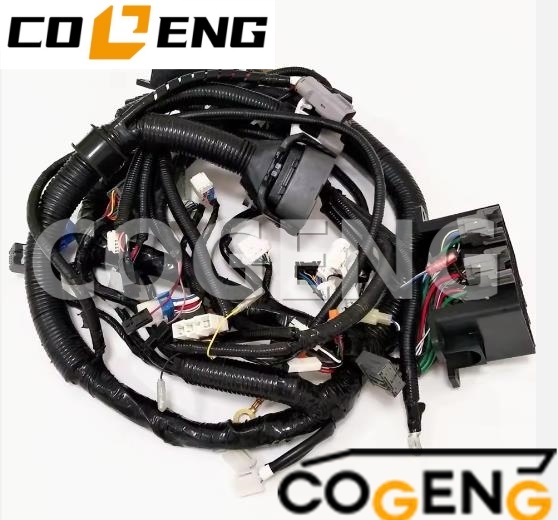

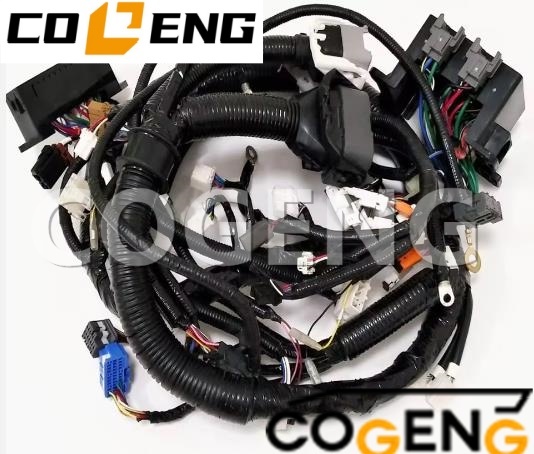

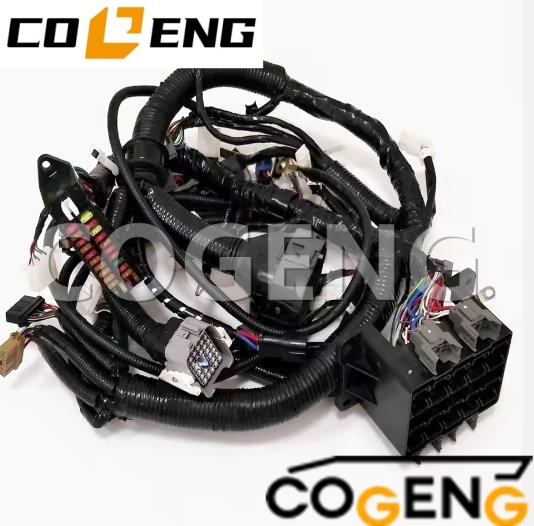

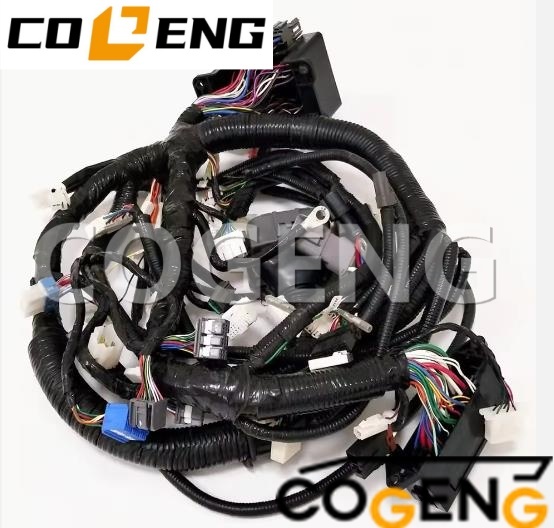

COGENG 0007745 / 0006003 OEM-Grade Internal Cab Wiring Harness for Hitachi ZX200-3, ZX240, ZX270, ZX330, ZX350, ZX360 Excavators | Complete Interior Electrical Harness Assembly

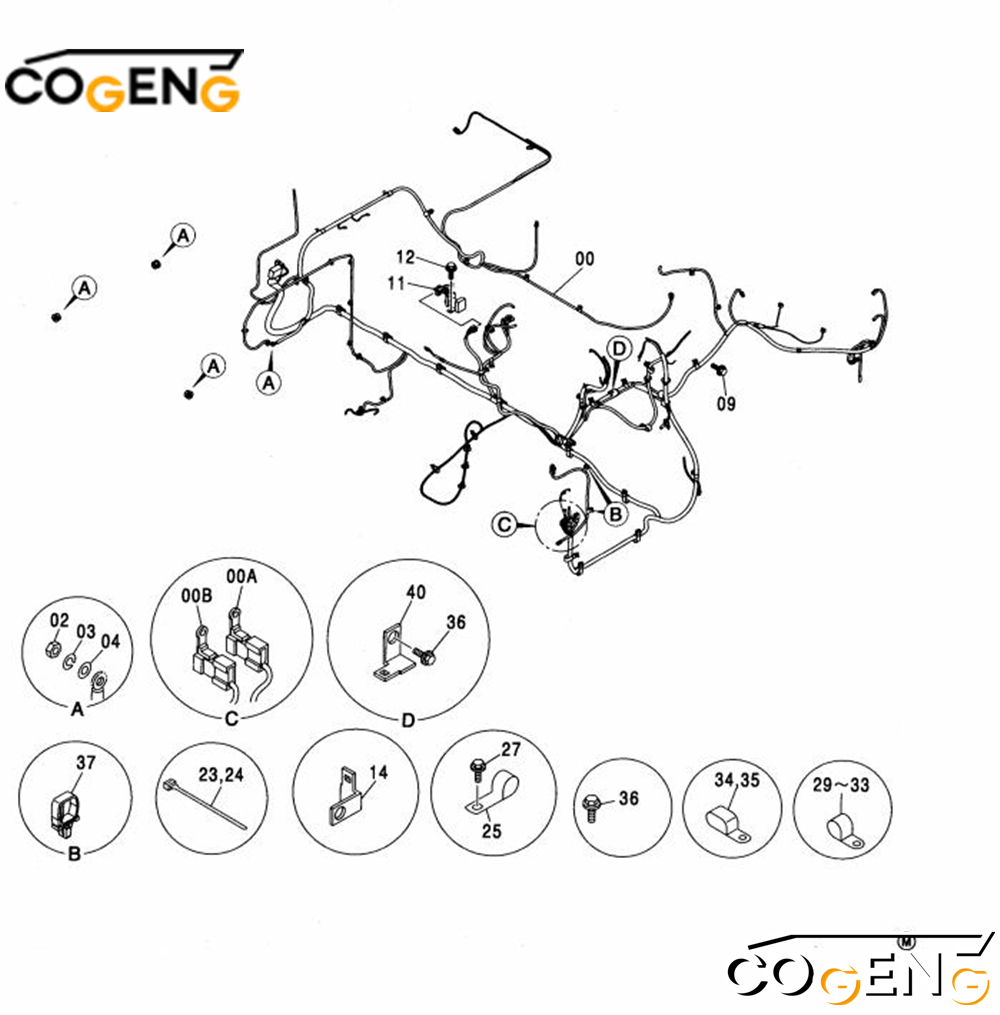

Component Specifications Table

Compatible Which models is it used for Models

Additional Compatible Models

Serial Number Compatibility Reference

Installation Notes

Pre-Installation Requirements

1. Safety First:

   • Disconnect the battery (negative terminal first)

   • Allow machine to cool (if recently operated)

   • Work in a dry, well-lit area

   • Use proper personal protective equipment (gloves, safety glasses)

2. Documentation:

   • Photograph original harness routing before removal

   • Label all connectors with masking tape (if not already marked)

   • Note clip and tie locations for reinstallation

   • Document switch panel and monitor mounting positions

3. Tools Required:

   • Basic hand tools (screwdrivers, wrenches, pliers)

   • Trim removal tools for interior panels

   • Small pick tools for connector release

   • Cable ties (for securing new harness)

   • Dielectric grease for connectors

   • Multimeter (for post-installation testing)

Installation Procedure

Phase 1: Preparation

1. Disconnect the negative battery terminal

2. Disconnect the positive battery terminal

3. Remove cab interior panels (floor plates, side panels, rear panel)

4. Remove monitor and switch panel bezels

5. Document original harness routing with photos

Phase 2: Old Harness Removal

1. Disconnect all connectors from components:

   • Monitor display and controller

   • Switch panels (key switch, rocker switches, push buttons)

   • Left and right joystick controllers

   • HVAC control module

   • Safety sensors (seat belt, operator presence)

   • Interior lights and accessories

   • CAN bus connections (ECU, pump controller, etc.)

2. Remove retaining clips, cable ties, and brackets securing the harness

3. Carefully extract the old harness, noting any difficult access points

4. Inspect old harness for failure points (chafing, corrosion, burnt wires) for reference

Phase 3: New Harness Installation

1. Unpack and Inspect:

   • Remove new harness from packaging

   • Inspect for any shipping damage

   • Verify all connectors are present (compare to old harness)

2. Routing:

   • Follow the original routing path documented during removal

   • Use original clip and bracket locations

   • Ensure harness does not contact moving parts (joystick mechanisms, pedals)

   • Maintain clearance from HVAC ducting and moving air doors

3. Connector Mating:

   • Apply dielectric grease to connector seals

   • Push connectors firmly until they click/lock

   • Verify proper seating with a gentle tug test

4. Securing:

   • Install all retaining clips and brackets

   • Use new cable ties where original ties were cut

   • Ensure harness has slight slack (not pulled tight) at flex points

   • Pay special attention to joystick harness routing (flexible zone)

Phase 4: Post-Installation Testing

1. Visual Inspection:

   • Verify all connectors are seated

   • Check for pinched or chafed wires

   • Confirm proper routing and clearance

   • Verify monitor and panel bezels fit correctly

2. Electrical Testing:

   • Reconnect battery (positive first, then negative)

   • Turn key to ON position (do not start)

   • Verify instrument panel lights and indicators function

   • Check monitor display boots up and shows data

   • Test all switches and controls

   • Verify HVAC system responds to inputs

3. Operational Test:

   • Start engine (verify no warning lights remain illuminated)

   • Test joystick functions (pilot control response)

   • Verify hydraulic function displays on monitor

   • Test safety systems (seat belt indicator, travel alarm)

   • Verify machine communication (GPS, telematics if equipped)

Critical Warnings

⚠️ IMPORTANT SAFETY NOTES:

• ALWAYS disconnect batteries before working on electrical systems

• NEVER route harness near moving mechanical components

• ALWAYS use dielectric grease on connectors to prevent corrosion

• VERIFY wire colors and pin positions match before finalizing installation

⚠️ CAB HARNESS SPECIFIC NOTES:

• MANDATORY: Use the original routing path through bulkhead grommets

• REQUIRED: Replace all cable ties removed during disassembly

• IMPORTANT: Maintain proper bend radius at joystick connections

• CHECK: Ensure connector seals are properly seated for weatherproofing

⚠️ CAN BUS NETWORK NOTES:

• CRITICAL: Do not cut or splice CAN bus wires

• REQUIRED: Maintain twisted pair configuration

• IMPORTANT: Use proper termination resistors (120Ω)

• CHECK: Verify network communication after installation

Troubleshooting Guide

Frequently Asked Questions
