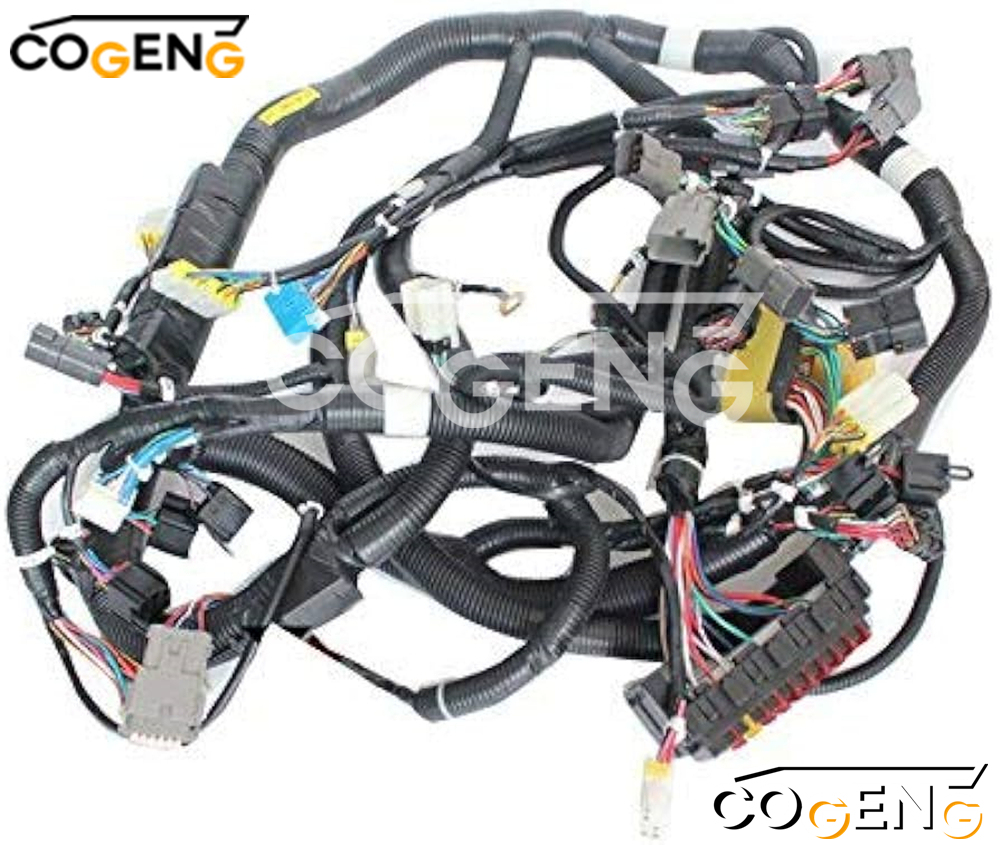

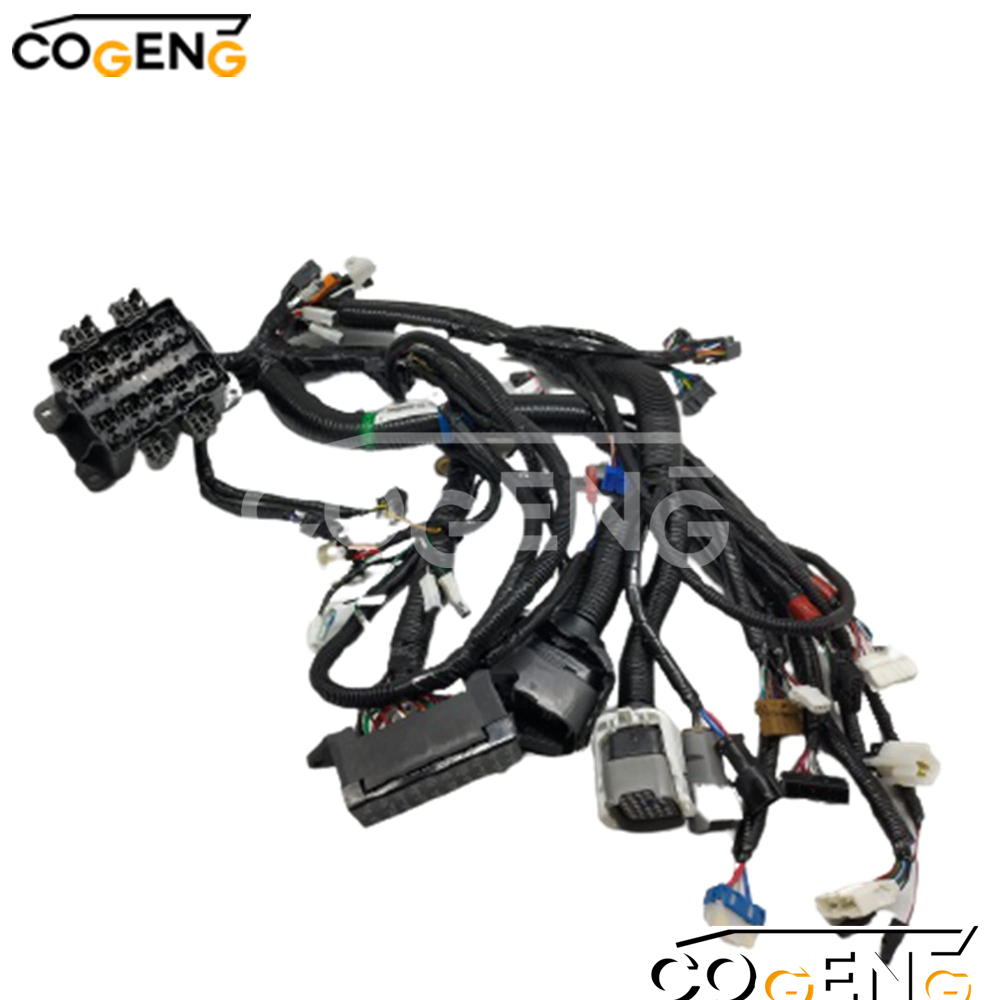

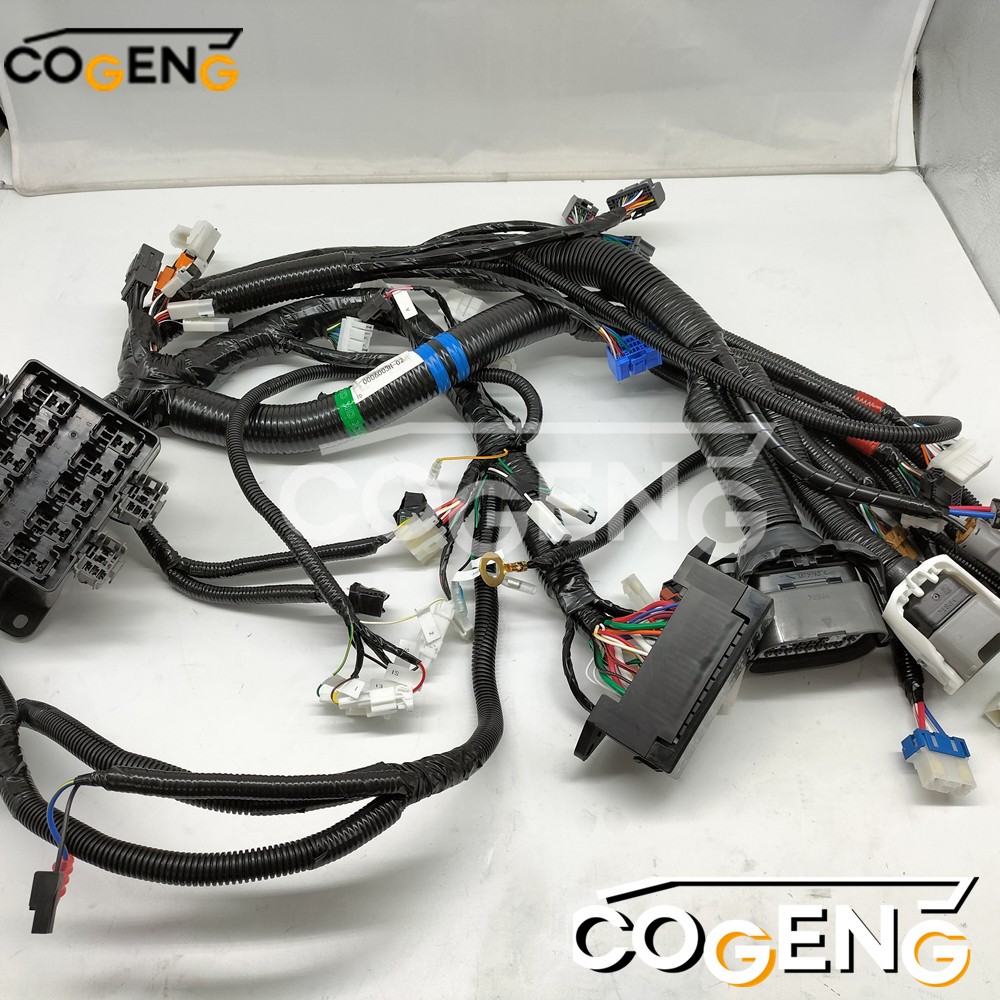

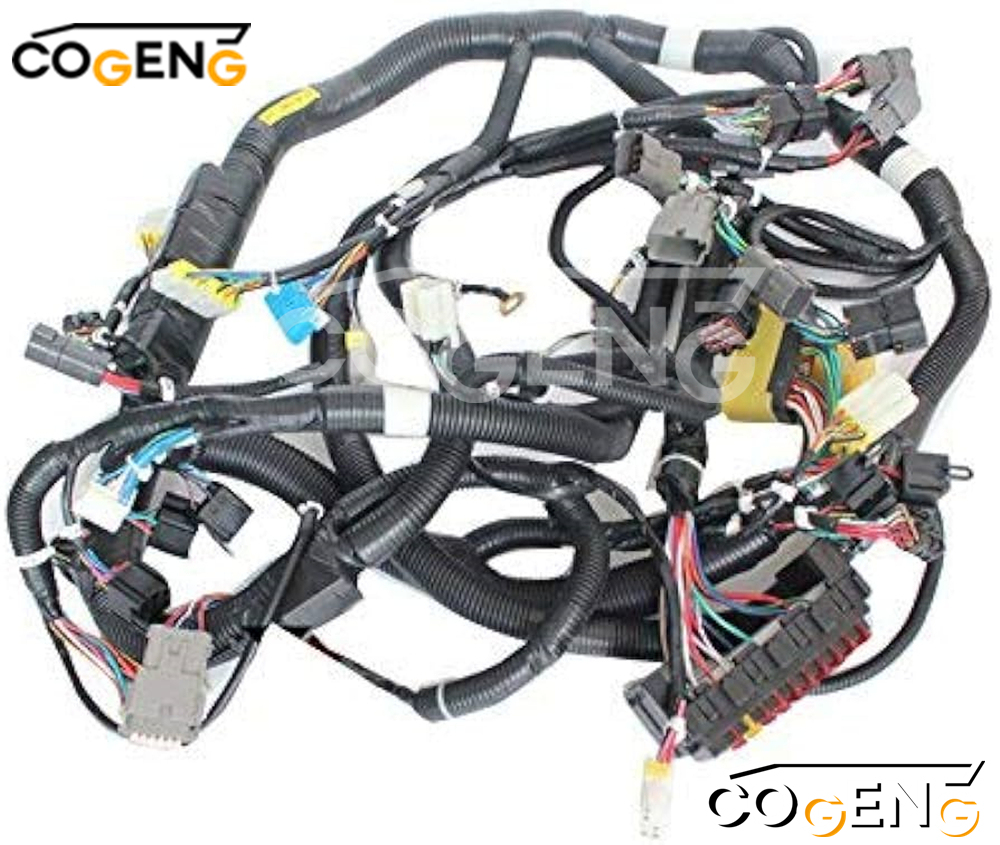

COGENG 0006003 Hitachi Wiring Harness | Direct OEM Replacement for Hitachi Excavators

Name: COGENG 0006003 Hitachi Wiring Harness | Direct OEM Replacement for Hitachi Excavators
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Hitachi Wiring Harness

Part No: 0006003
0007745 Wire Harness (This is a common replacement/cross-reference part number)
0005458 Wiring Harness (Another common replacement/cross-reference part number)

Model Number:For ZX200-3 ZX240-3 ZX210-3 ZX250-3 ZX270-3

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

PRODUCT IDENTIFICATION

Parameter	Specification
COGENG Part Numbers	0007745, 0006003
OEM Equivalent	Hitachi 0007745, Hitachi 0006003
Product Type	Internal Cab Wiring Harness Assembly
Application	Complete interior electrical system
Harness Type	Main cab harness (complete assembly)

Category	Specification
COGENG Part Number	CG-HIT-0006003
OEM Reference	0006003
Compatible Models	ZX200-3, ZX210-3, ZX240-3
Machine Weight Range	20-24 Ton Excavators
Configuration Support	Standard & Long Undercarriage
Wire Insulation	Oil-Resistant XLPE
Connector Rating	IP67 (Waterproof & Dustproof)
Temperature Range	-40°C to 125°C
Voltage Rating	24V DC System
Generation	Hitachi ZX-3 Series
Quality Validation	100% Circuit Testing
Warranty Coverage	18-Month Limited Warranty

Decompose pictures

The COGENG Internal Wiring Harness (P/N: 0006003) is a high-specification aftermarket replacement designed as the crucial electrical backbone for your Hitachi ZAXIS -3 series excavator's cabin and control systems. In modern heavy equipment, the wiring harness is vital for transferring data and power between the main controller, the operator display, sensors, switches, and the hydraulic pump control system.
A damaged or aged harness in the cabin can lead to devastating electrical faults, unreliable gauge readings, and complete control system failure. Our COGENG harness ensures flawless electrical communication, restoring your machine’s safety and operational precision.
Key Features and Benefits
OEM-Grade Signal Integrity: Manufactured with premium copper wiring and high-quality insulation materials to ensure minimal signal degradation. This is crucial for maintaining the precise operation of sophisticated components like the monitor, ECU, and proportional control valves.
Built for Harsh Environments: Features durable, heavy-duty loom sheathing and factory-style, sealed connectors to protect against moisture, dust, high temperatures, and intense vibration—the key causes of harness failure on the job site.
Direct Fit and Routing: Engineered using the exact specifications of the Hitachi OEM part 0006003 for the ZAXIS -3 platform. This guarantees "plug-and-play" installation with perfect length, connector locations, and mounting points, minimizing expensive installation time.
Critical System Restoration: Specifically covers the essential wiring for the internal cabin controls, display monitor, and often links to the main hydraulic pump control, ensuring reliable, immediate response from the operator's inputs.
Maximize Uptime with COGENG
Don't let a small electrical short lead to a major loss of revenue. The COGENG 0006003 Wiring Harness offers the durability, precision, and reliable performance required to keep your Hitachi ZAXIS excavator operating at peak efficiency, minimizing unexpected electrical failures.
Note: To confirm the correct harness section for your machine, please verify the OEM part number against your excavator's serial number or consult your machine’s parts catalog.

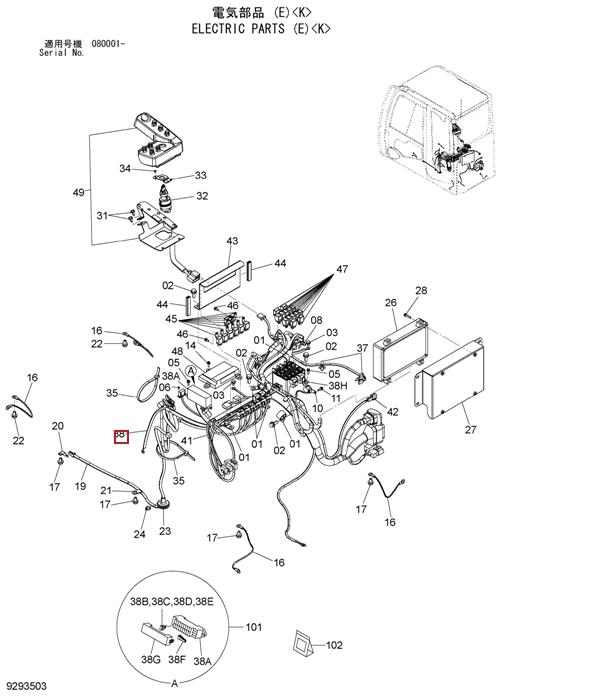

Parts list

NO	Number	Name	Qty
01	4192035	CLIP	5
02	J271030	BOLT	5
02A	]901030	BOLT	1
02B	J222010	WASHER	1
03	]260816	BOLT	2
03A	]900816	BOLT	1
03B	A590108	WASHER	1
05	]460620	SCREW	6
06	]460310	SCREW	2
08	4254600	CLIP	1
10	4297188	BUZZER	1
11	]460620	SCREW	1
14	]460620	SCREW	3
16	4464075	HARNESS	4
17	J271020	BOLT	4
17A	]901020	BOLT	1
17B	J222010	WASHER	1
19	4630572	HARNESS	1
20	4257159	BRACKET	1
21	4190261	CLIP	1
22	J271020	BOLT	2
22A	]901020	BOLT	1
22B	J222010	WASHER	1
23	4637225	BUSHING	1
24	4055311	CLIP	1
26	9276191	UNIT	1
27	7049302	COVER	1
28	]460635	SCREW	4
31	]260816	BOLT	2
31A	J900816	BOLT	1
31B	A590108	WASHER	1
33	3106928	BRACKET	1
34	4361800	SCREW	3
35	4121859	CLIP	2
37	4254600	CLIP	2
38	0006003	HARNESS	1
38A	4456735	BOX	1
38B	4428910	FUSE(5A)	9
38C	4428911	FUSE(10A)	8
38D	4436736	FUSE(20A)	2
38E	4639136	FUSE(30A)	1
38F	4436737	PULLER	1
38G	4648583	COVER	1
38H	4427429	BOX	1

Installation decomposition diagram
