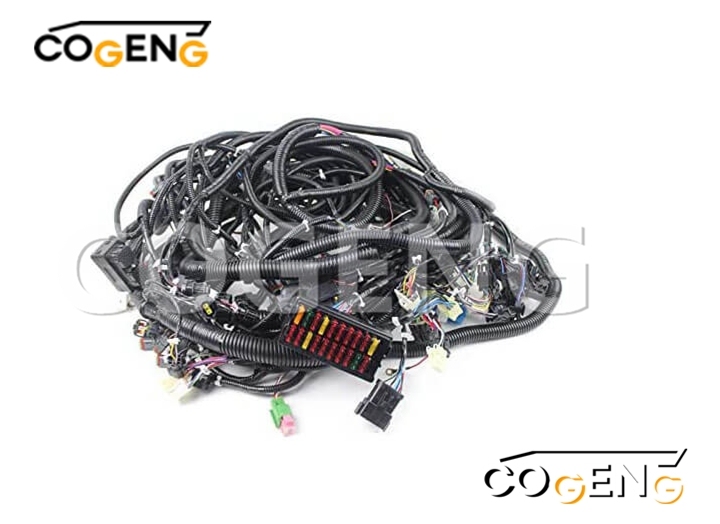

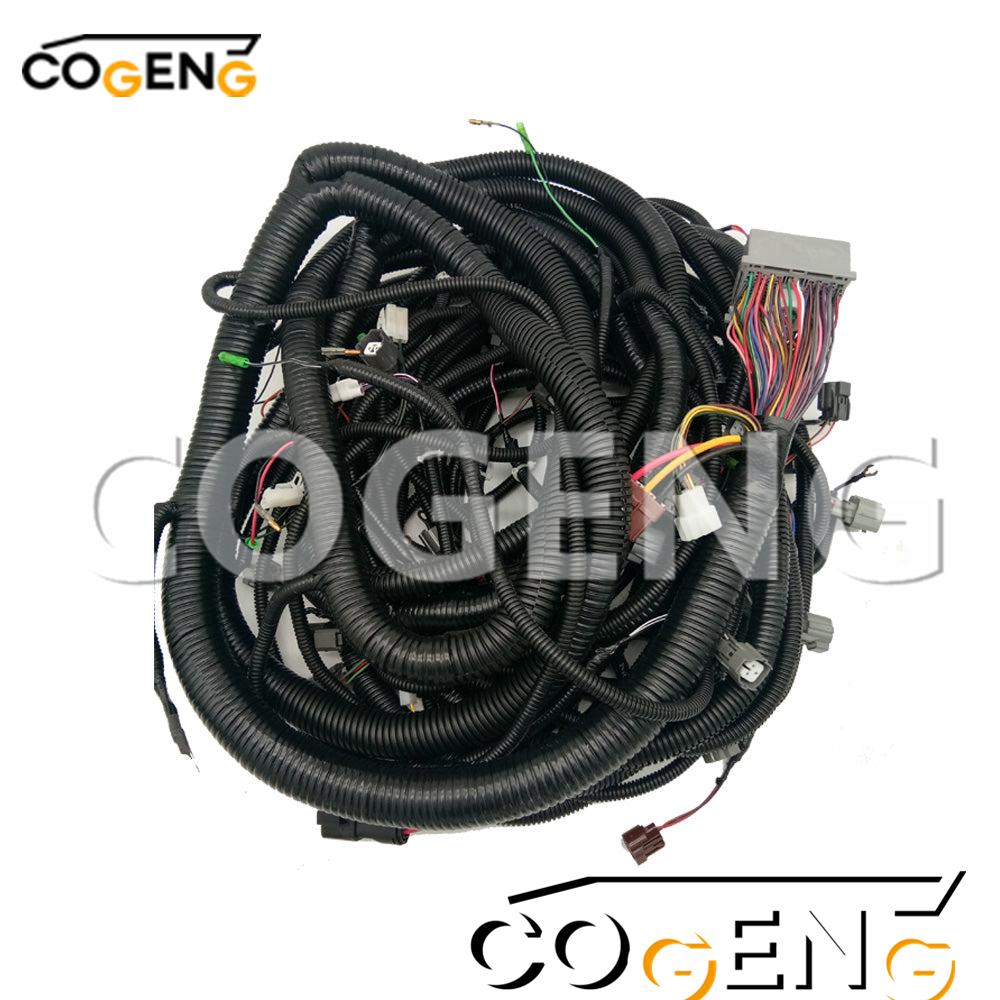

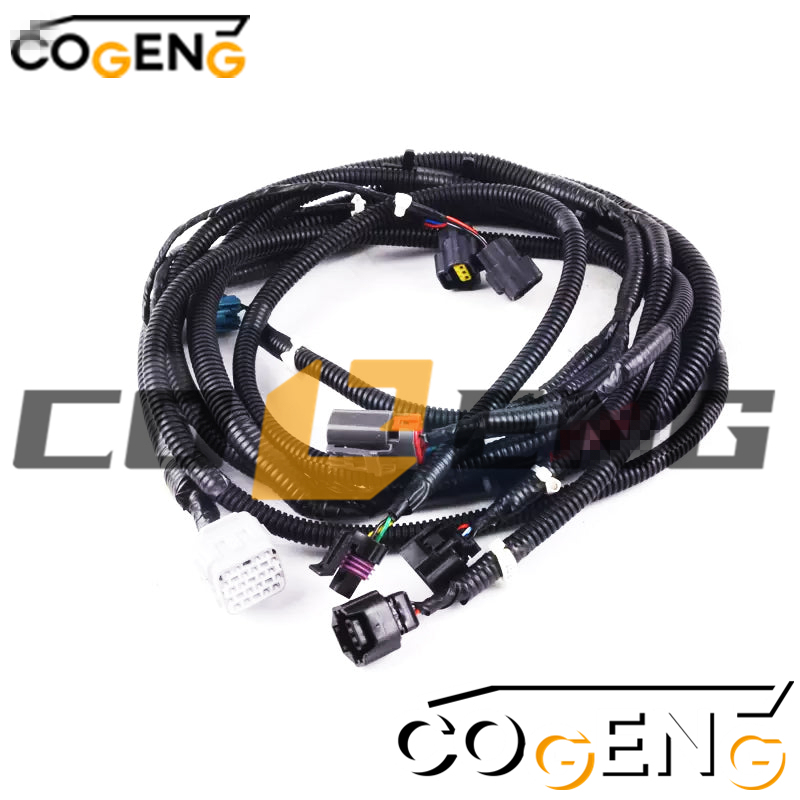

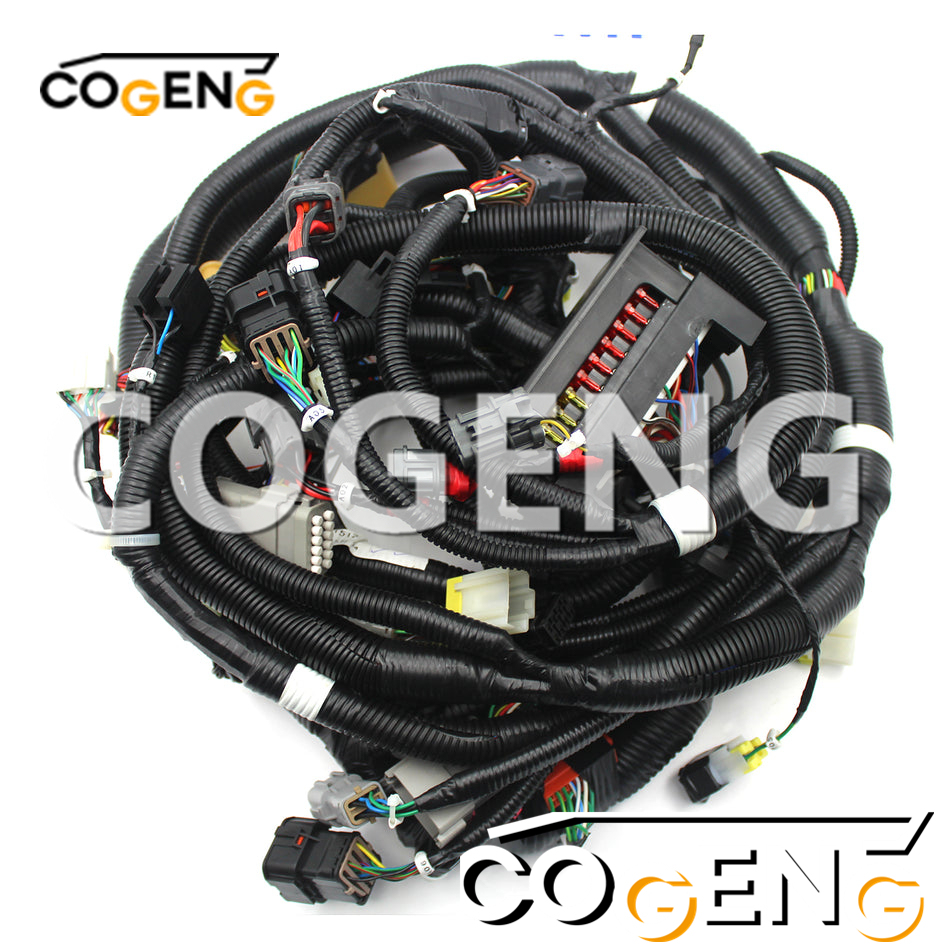

COGENG Premium KOBELCO Wiring Harness Set | Replaces YY13E01116P1 & YY13E01122P1 | Compatible with SK200, SK210 Excavators

Name: COGENG Premium KOBELCO Wiring Harness Set | Replaces YY13E01116P1 & YY13E01122P1 | Compatible with SK200, SK210 Excavators
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Kobelco Wiring Harness

Part No: YY13E01116P1 YY13E01122P1

Model Number:For SK115 SK135 SK260 SK200-8 SK250-8 SK260-8 SK485-8

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Specification	Details
COGENG Part No.	CG-WH-KOB-13116SET
OEM Part Numbers	YY13E01116P1 YY13E01122P1
Application	Control & Sensor Wiring Harnesses
Compatible Models	Kobelco SK130-7, SK140-7, and similar 7-Series excavators. Verify compatibility before installation.
Wire Construction	High-temperature PVC insulation, tinned copper conductors, OEM connectors.
Features	EMI shielding, color-coded wires, waterproof connectors.
Quality Standards	ISO 9001 certified manufacturing, 100% electrical testing.

Note: Always compare the new harnesses visually with the old ones before installation to ensure compatibility.
Decompose pictures

Parts list

NO	Number	Name	Qty
C1	LQ13E01070P1	Wiring Harness	1
	LQ13E01072P2	Wiring Harness	1
C2	YN13E01053D2	CABLE 430mm Long [16-59/64 in]	1
C3	YN13E01097P1	CABLE 400mm Long (15-3/4 in)	1
C4	LB13E01020D	CABLE 450mm Long (17-23/32 in)	1
C5	LQ13E01082P1	CABLE 3500mm Long (137-51/64 in)	1
C7	ZW26×08000	WASHER Lock--ID 08x0D 15xTh2.0mm	4
C8	ZN18C08007	NUT M08x1.25mm	3
C9	ZS18C08016	SCREWM08x1.25x16mm	1
C10	LC13E01002D1	GROMMET	1
C11	FY01P01043D3	CLIP Wire Ties --188mm Long	5
C12	2420R372D19	GROMMET	2
C13	2420Z1330	GROMMET	1
C14	2427Z1594D008	PROTECTION STRIP	1
C15	ZW16×08000	WASHER ID 08x0D 17x Th1.6mr	1
C16	YN03E01001D5	CLIP 195mm Long [7-43/64 in]--Black -Not Illustrated	7
C17	YY13E01116P1	Wiring Harness	1
	YY13E01122P1	Wiring Harness	1
C18	YN21P01003P1	GROMMET	1
C19	FY01P01043D5	CLIP Wire Ties --292mm Long	1
C20	ZC46X38014	CLIP Clamp--038.1mm Single Cable	1
C21	ZW16X10000	WASHER ID 10xOD 21xTh2.0mm	1
C22	ZN18C10008	NUT M10x1.50mm	1

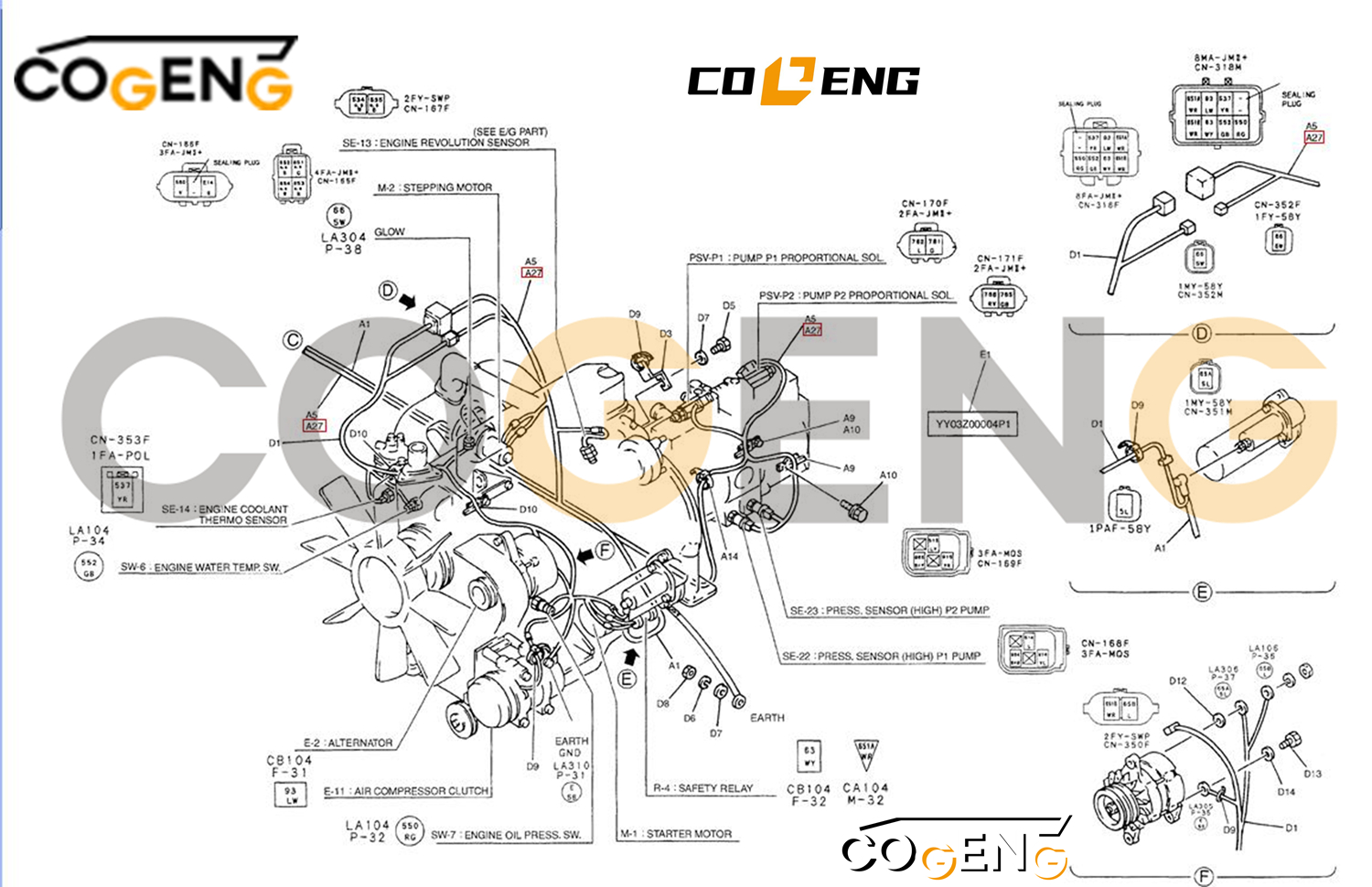

Installation decomposition diagram
