| Category | Specification |
|---|---|

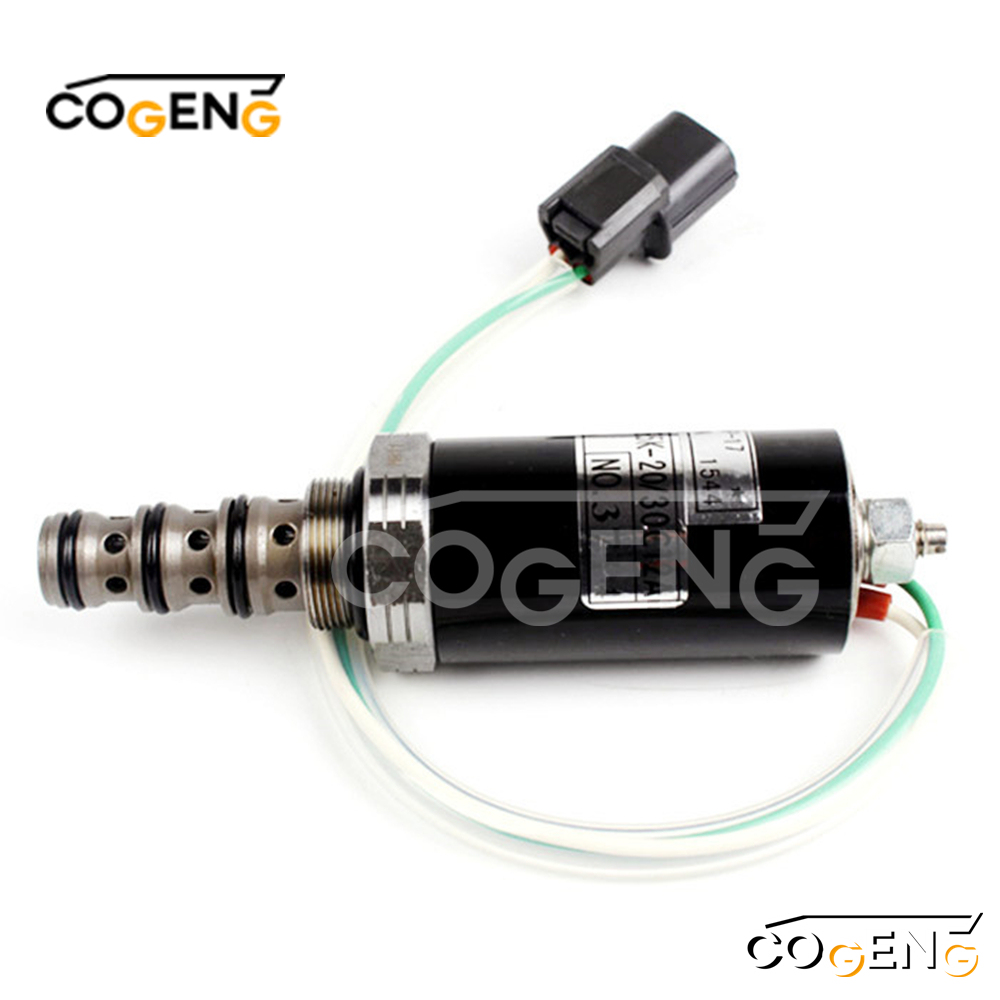

| COGENG Part Number | CG-KOB-YN35V00004F1 |
| OEM Reference | YN35V00004F1 |
| Compatible Models | SK100, SK120, SK200 |
| Machine Weight Range | 1-2 Ton Compact Excavators |
| Valve Type | Hydraulic Solenoid |
| Pressure Rating | Meets Kobelco Compact Specifications |
| Response Time | < 35ms |
| Voltage Rating | 12V DC System |
| Design Feature | Compact Space-Optimized |
| Temperature Range | -20°C to 80°C |
| Quality Validation | 100% Function Testing |
| Warranty Coverage | 18-Month Limited Warranty |
| NO | Number | Name | Qty |
| (081) | YN35V00004F1 | VALVE | 2 |
| 10 | YN35V00004F3 | VALVE | 2 |
| 415 | 2436U8285405 | CAPSCREW | 5 |
| 416 | ZS23C08060 | SCREW M08x1.25x60mm | 4 |
| 417 | ZS23C08075 | CAPSCREW [M8X75] | 3 |
| 466 | 2441U6675466 | PLUG 1/4"PF | 2 |
| 496 | 2441U722S490 | PLUG 1/16"NPTF | 28 |
| 541 | NSS | NOT SERVICED SEPARATELY SEAT | 2 |
| 543 | NSS | NOT SERVICED SEPARATELY STOPPER | 2 |
| 545 | NSS | NOT SERVICED SEPARATELY BALL | 2 |
| 601 | NSS | NOT SERVICED SEPARATELY CASE | 1 |
| 611 | NSS | NOT SERVICED SEPARATELY LEVER.FEEDBACK | 2 |
| 614 | NSS | NOT SERVICED SEPARATELY PLUG | 1 |
| 616 | NSS | NOT SERVICED SEPARATELY SPACER | 1 |
| 624 | NSS | NOT SERVICED SEPARATELY SEAT,SPRING | 2 2 |
| 627 | NSS | NOT SERVICED SEPARATELY SEAT,ADJUST | |
| 643 | NSS | NOT SERVICED SEPARATELY PISTON,PILOT | 2 |
| 646 | NSS | NOT SERVICED SEPARATELY SPRING,PILOT | 2 |
| 651 | NSS | NOT SERVICED SEPARATELY SLEEVE | 2 |
| 652 | NSS | NOT SERVICED SEPARATELY SPOOL | 2 |
| 657 | NSS | NOT SERVICED SEPARATELY COVER | 1 |
| 658 | NSS | NOT SERVICED SEPARATELY SCREW.RESTRICTOR | 2 |
| 709 | ZD12G07000 | O-RING ID 69.40±0.61xOD 75mm | 1 |
| 724 | ZD12P00800 | 0-RING ID 07.80±0.16×0D 11mm | 2 |
| 727 | YN10V010015727 | GASKET | 2 |
| 733 | ZD12P01800 | O-RING ID 17.80±0.21x0D 22mm | 2 |
| 755 | ZD12P01100 | 0-RING ID 10.80±0.18xOD 15mm | 3 |
| 756 | ZD12P01200 | 0-RING ID 11.80±0.19×0D 16mm | 2 |
| 801 | ZN11C08005 | NUT M08x1.25mm | 2 |
| 858 | ZR26X01500 | RING Retaining --ID 15x0D 16.2xTh 1.0mm | 1 |
| 887 | NSS | NOT SERVICED SEPARATELY PIN | 1 |
| 897 | NSS | NOT SERVICED SEPARATELY PIN | 2 |
| 898 | NSS | NOT SERVICED SEPARATELY PIN | 1 |
| 901 | ZS91C01000 | BOLT Eye -M10x1.50x18mm | 2 |
Complete hydraulic system depressurization required
Follow compact model specific mounting procedures
Ensure proper clearance in tight spaces
Use compact equipment specified seals and fittings
Test valve operation before returning to service
