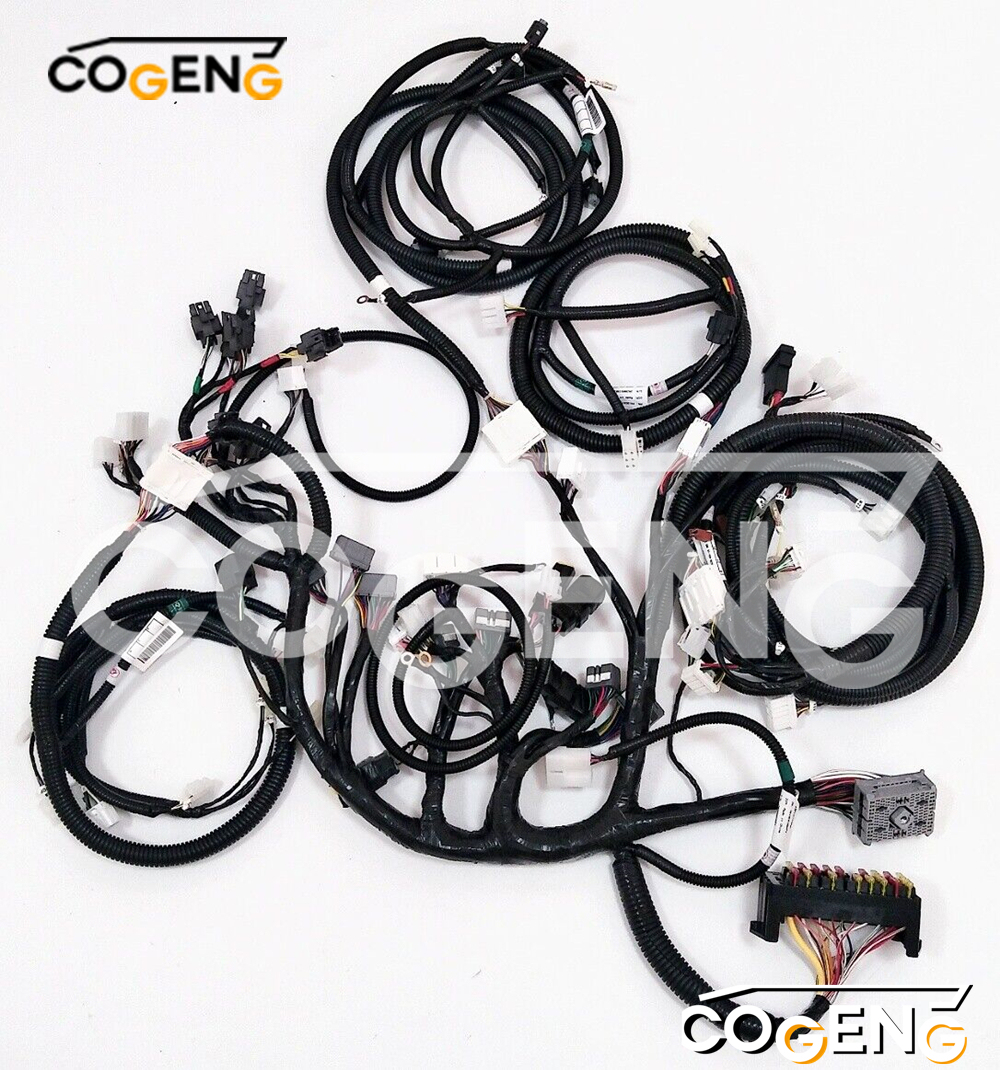

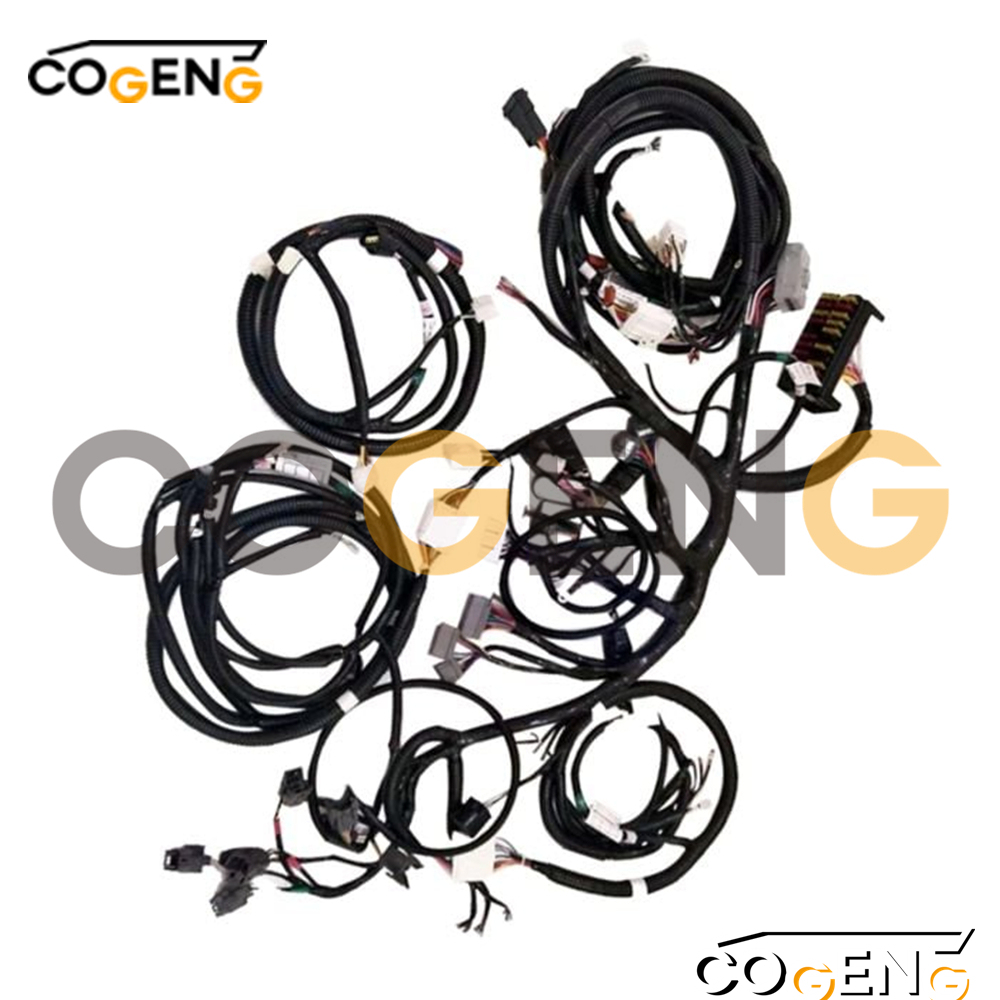

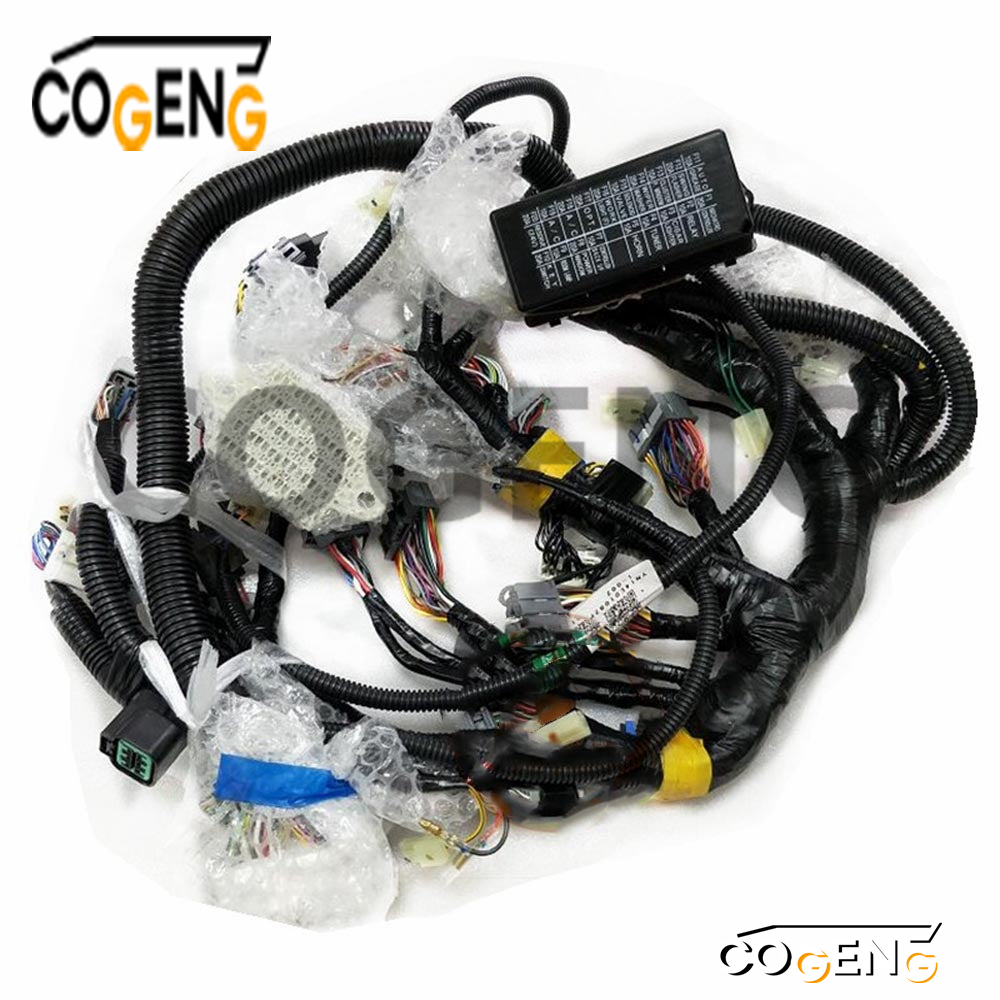

YN14E00046F1 YN14E01082P1 Kobelco Wiring Harness SK200-6E SK200LC-6E
Product name: Kobelco Wiring Harness
Part No: YN14E00046F1 YN14E01082P1
Model Number:For SK200-6E SK200LC-6E
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Note: For optimal performance and correct application, please verify the compatibility of these part numbers with your specific excavator's model and serial number. This is an aftermarket replacement part manufactured by COGENG to OE specifications.

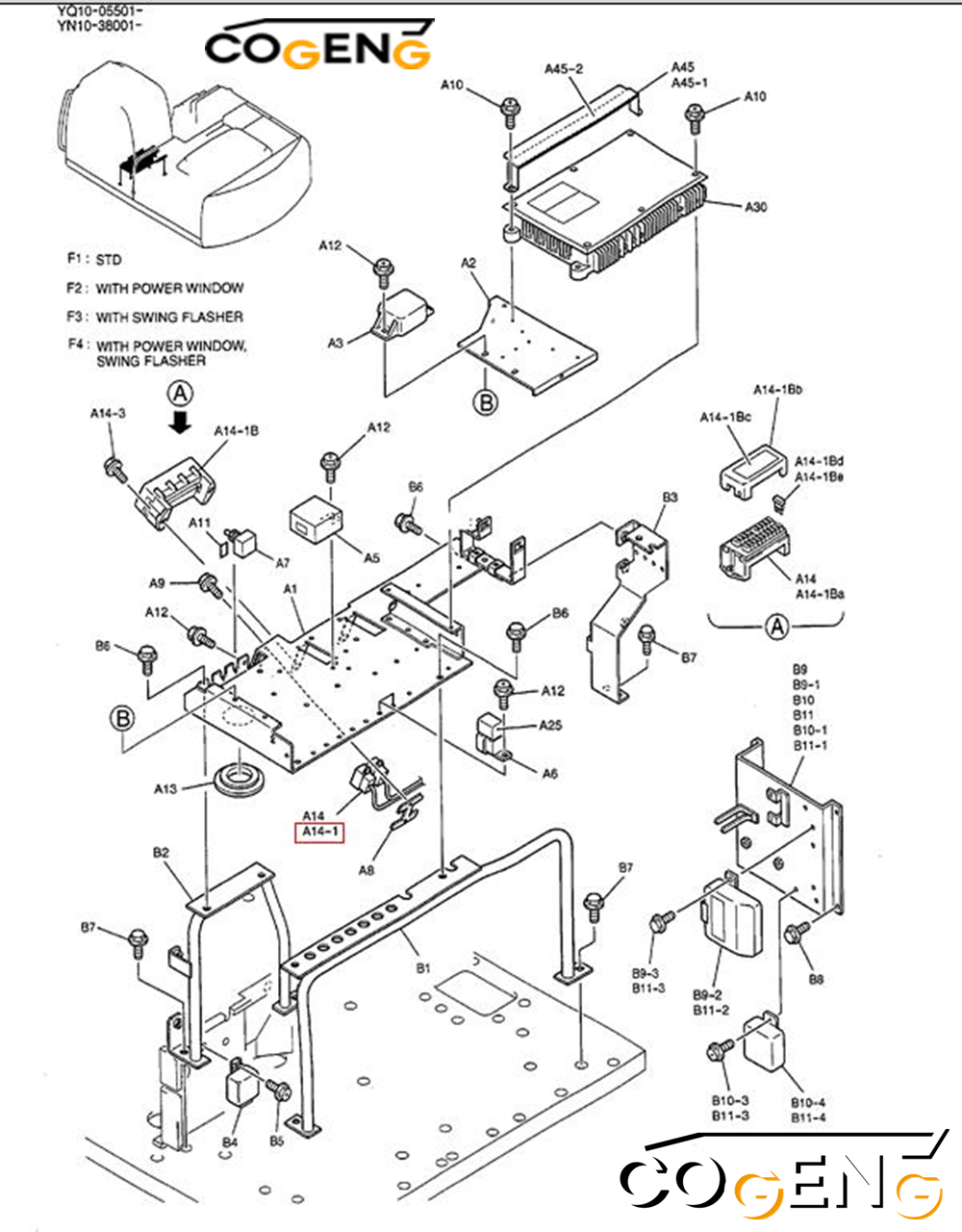

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| A1 |
YN22E01147P2 |
B0X |
1 |
| A2 |
YN22E01141P1 |
PLATE |
1 |
| A5 |
YT24E00001F1 |
RELAY ASSY [WIPER &WASHER] |
1 |
| A6 |
EN24S00008P1 |
RELAY |
2 |
| A7 |
YX50E00002F1 |
SWITCH ASSY (SWING PARKING RELEASE) |
1 |
| A8 |
YN22E01139P1 |
PLATE |
1 |
| A9 |
ZM66C05016 |
BOLT M05x0.8x16mm |
2 |
| A10 |
ZM61C06030 |
BOLT M06x1.0x30mm |
4 |
| A11 |
YN22M01014P1 |
BOLT M06x1.0x35mm |
1 |
| A12 |
ZM61C06016 |
BOLT M06x1.0×16mm |
7 |
| A13 |
2420Z699 |
GROMMET |
1 |
| A14 |
YN14E01082P1 |
HARNESS |
1 |
|
YN14E00046F1 |
HARNESS |
1 |

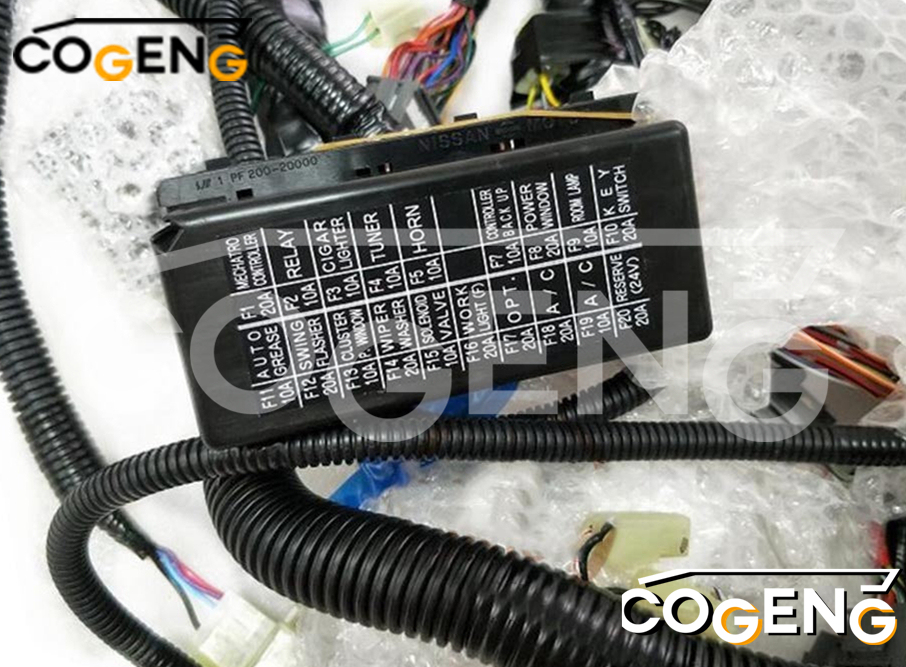

| A14-1B |
LQ73E00001F1 |
FUSE ASSY |
1 |
| A14-1Ba |
YN73E00001S001 |
BASE |
1 |
| A14-1Bb |
YN73E00001S002 |
COVER |
1 |
| A14-1Bd |
2479R655S8 |
FUSE 10.Amp |
10 |
| A14-1Be |
2479R65559 |
FISE 20Am |
11 |
| A14-2 |
ZS18C06016 |
SCREWM06x1.0×16mm |
2 |
| A14-3 |
ZM61C06020 |
BOLT M06x1.0x20mm |
8 |
| A14-4 |
YN03E01001D5 |
CLIP Black |
11 |
| A14-5 |
ZW26X06000 |
LOCK WASHER ID 06xOD 07xTh1.5mm |
2 |
| A14-6 |
ZW16X06000 |
WASHER ID 06x0D 12.5xTh1.6mm |
2 |
| A25 |
LC24S00001P1 |
RELAY |
2 |
| A30 |
YN22E00123F4 |
CONTROLLER ASSY [MECHA-TRO] |
1 |
| A30 |
YN22E00123F4 |
CONTROLLER ASSY (MECHA-TRO) |
1 |
|
YN22E00123F5 |
CONTROLLER ASSY(MECHA-TRO) |
1 |
|
YN22E00123F5 |
CONTROLLER ASSY(MECHA-TRO) |
1 |
| A45 |
YN04E01001P1 |
COVER BRACKET |
1 |
| A45 |
YN04E01001P1 |
COVER BRACKET |
1 |
| A45-1 |
YN04E01002P1 |
BRACKET |
1 |
| A45-2 |
YN04E01003P1 |
RUBBER |
1 |
| A.3 |
ME077148 |
51ARTER 5AFETY RELAY |
1 |
| B1 |
YN22E01121P1 |
SUPPORT |
1 |
| B2 |
YN22E01145P1 |
SUPPORT |
1 |
| B3 |
YN22E01149P2 |
BRACKE7 |
1 |
| B4 |
YN25S00001P |
TIMER |
1 |
| B5 |
ZM66C06025 |
BOLT M06x1.0×25mm |
1 |
| B6 |
ZM32C1002E |
BOLT M10x1.50x25mm |
5 |
| B7 |
ZM22C10030 |
BOLT M10x1.50x30mm |
6 |
| B8 |
ZM66C06016 |
BOLTM06x1.0×16mm |
4 |
| B9 |
YN24E00003F1 |
RELAYASSY |
1 |
| B9-1 |
YN24E01004P5 |
PLATE |
1 |
| B9-2 |
YN22E00016F1 |
CONTROL ASSY |
1 |
| B9-3 |
ZM61C06016 |
BOLT M06x1.0x16mm |
2 |
| B10 |
YN24E00003F² |
RELAYASSY(F3 ONLY |
1 |
| B10-1 |
YN24E01004P5 |
PLATE |
1 |
| B10-3 |
ZM61C06016 |
BOLT M06x1.0x16mm |
1 |
| B10-4 |
Y24S00001P |
RELAY FLASHER |
1 |
| B11 |
YN24E00003F3 |
RELAYASSY |
1 |
| B11-1 |
YN24E01004P5 |
PLATE |
1 |
| B11-2 |
YN22E00016F1 |
CONTROLASSY |
1 |
| B11-3 |
ZM61C06016 |
BOLT M06x1.0x16mm |
3 |
| B11-4 |
YY24S00001P |
RELAY FLASHER |
1 |
Installation decomposition diagram
Dynamic performance parameters
| Working condition level |
Vibration spectrum density |
Current fluctuation tolerance |
Bending life |
| Standard mode |
0.01g²/Hz |
±15% |
500,000 times |
| Enhanced mode |
0.05g²/Hz |
±25% |
300,000 times |
| Extreme mode |
0.1g²/Hz |
±35% |
100,000 times |
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
