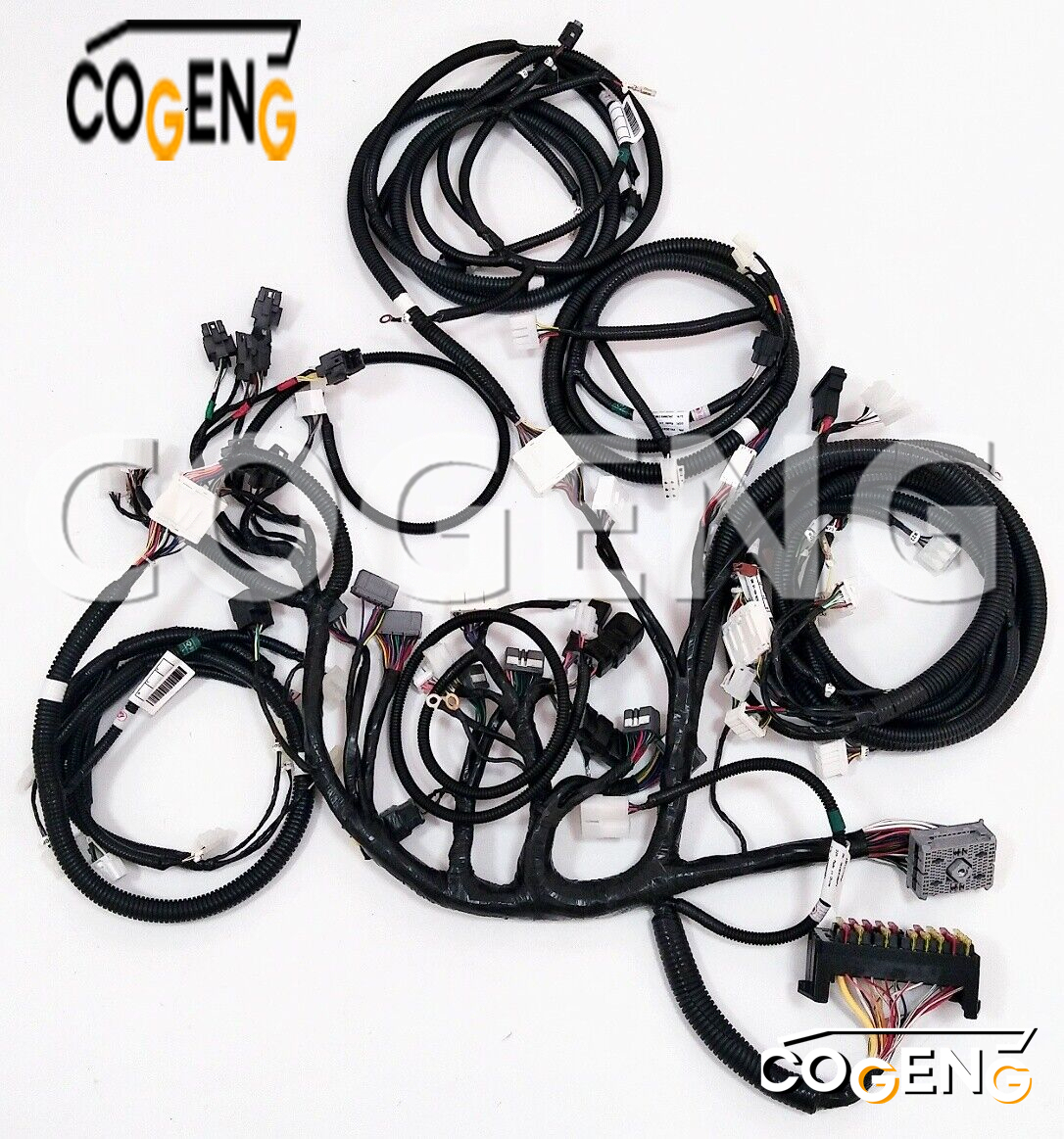

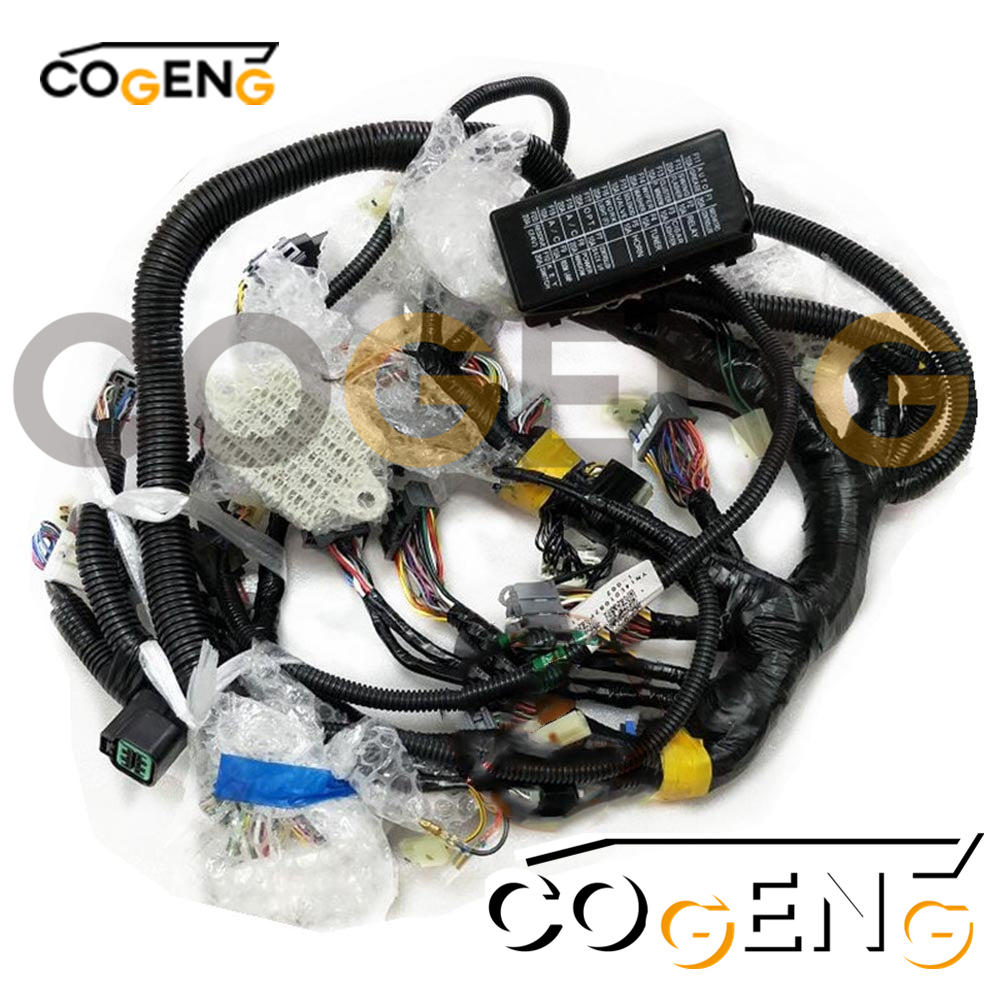

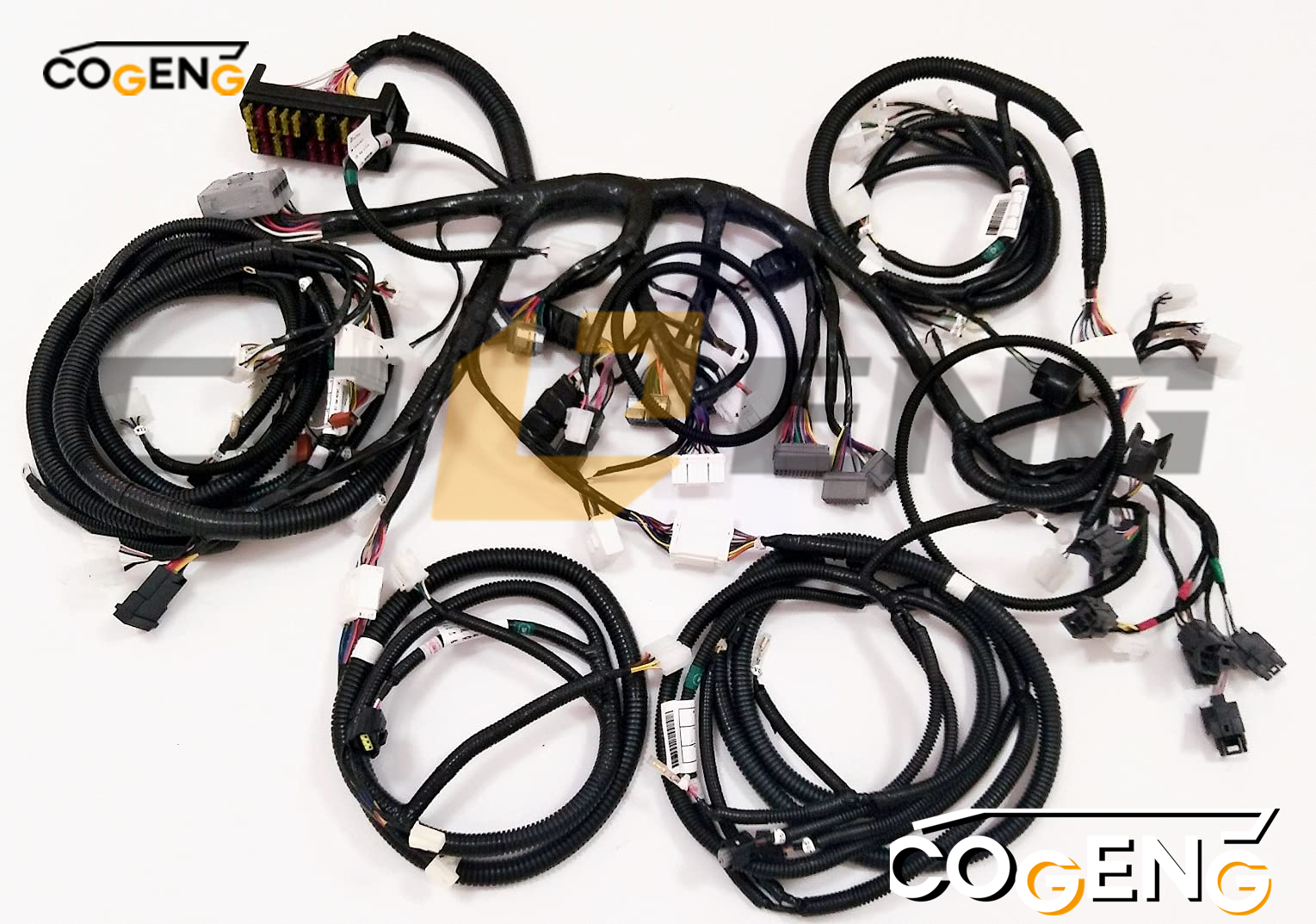

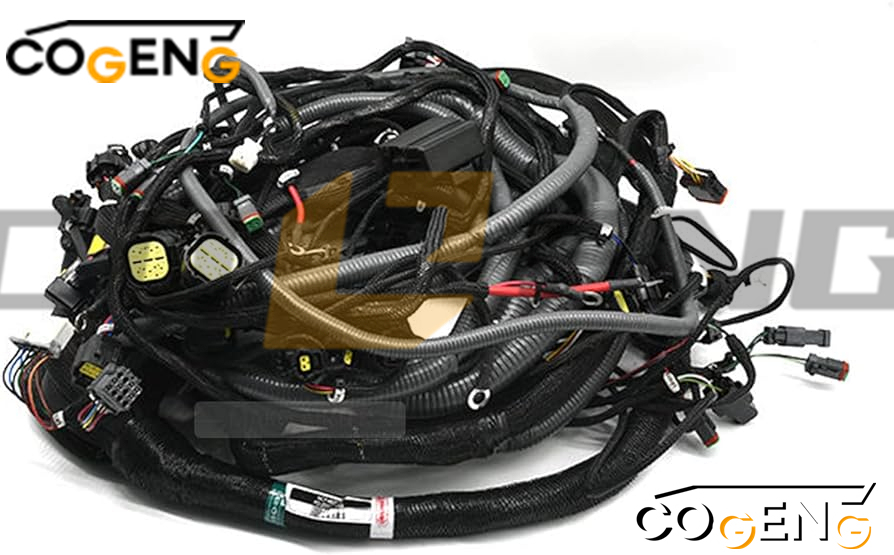

The COGENG Kobelco Wiring Harness (Part No. YN13E01336P1) is a complete electrical wiring assembly specifically designed for Kobelco SK200-6E and SK200LC-6E hydraulic excavators. This wiring harness serves as the central nervous system of the excavator, connecting the engine ECU, sensors, solenoids, display panel, and various control modules.
A high-quality wiring harness is critical for reliable machine operation. Common issues with aging or damaged harnesses include intermittent electrical faults, engine derating, false error codes, and complete machine shutdown. The COGENG YN13E01336P1 is manufactured to OEM specifications using high-grade copper conductors and durable PVC/TPE insulation to withstand the harsh environment of construction sites – including vibration, moisture, temperature extremes (-40°C to +125°C), and chemical exposure (oil, diesel, hydraulic fluid).
This harness is ISO9001 certified and undergoes 100% continuity, short-circuit, and connector fitment testing before shipment. Each harness is pre-formed to match the original routing path for easy installation.
| Specification Category | Details |
|---|---|
| COGENG Part Number | WH-KOB-6E-1336P1 |
| Replaces OEM Number | Kobelco YN13E01336P1 |
| Product Type | Electrical Wiring Harness Assembly |
| Compatible Brands | Kobelco |
| Compatible Models | SK200-6E, SK200LC-6E |
| Application | Main Electrical System Connectivity |
| Wire Specification | High-Temperature Copper Strand, Oil-Resistant Insulation |
| Connector Type | OEM-Grade, Weatherproof Connectors |
| Color Coding | Matches OEM Wiring Standards |
| Quality Standard | ISO 9001 |
This wiring harness is specifically designed for the following Kobelco excavator models:
| Model | Engine | Year Range | Notes |
|---|---|---|---|
| SK200-6E | Mitsubishi 6D34 / 6D16 | 1999–2005 | Standard arm length |
| SK200LC-6E | Mitsubishi 6D34 / 6D16 | 1999–2005 | Long chassis (LC) version |
Additional compatible models (verify before purchase):
| Model | Compatibility Level |
|---|---|
| SK200-6 | Similar but check connector differences |
| SK200LC-6 | Similar but check connector differences |
| SK210LC-6E | May fit but harness length differs slightly |
| SK230-6E | Not compatible – different ECU pinout |
✅ Direct fit for:
Kobelco SK200-6E (all sub-variants)
Kobelco SK200LC-6E (all sub-variants)
OEM part number: YN13E01336P1
✅ Designed to work with:
Mitsubishi 6D34 / 6D16 engines
Kobelco engine ECU (electronic governor)
Standard 12V or 24V electrical system
✅ Connector types included:
ECU: Sumitomo 50-pin or 70-pin (confirm)
Sensors: 2-pin TE / AMP
Solenoids: 2-pin Deutsch DT
Grounds: M6 or M8 ring terminals
⚠️ Important compatibility checks before purchase:
Model year – Confirm your machine is a "-6E" (electronic), not "-6" (mechanical)
Engine type – 6D34 vs 6D16 have different sensor locations
ECU style – Early vs late -6E have different connector pin counts
Cab type – Standard vs cab riser (harness length may vary)
❌ Not compatible with:
Kobelco SK200-6 (mechanical injection, no ECU)
Kobelco SK200-7 or newer (different ECU architecture)
Kobelco SK200 Mark IV (older generation)
Any non-Kobelco machine
| NO | Number | Name | Qty |
| A1 | YN22E01147P2 | B0X | 1 |
| A2 | YN22E01141P1 | PLATE | 1 |
| A5 | YT24E00001F1 | RELAY ASSYIWIPER&WASHER | 1 |
| A6 | EN24500008P1 | RELAY | 2 |
| A7 | YX50E00002F1 | SWITCH ASSY ISWING FARKING RELEASE |
1 |
| A8 | YN22E01139P1 | PLATE | 1 |
| A9 | ZM66C05016 | BOLT | 2 |
| A10 | ZM61C06030 | BOLT | 4 |
| A11 | YN22M01014P | BOLT | 1 |
| A12 | ZM61C06016 | BOLT | 7 |
| A13 | 24202699 | GROMMET | 1 |
| A14 | YN13E01336P1 | Wiring Harness | 1 |
| A14-1 | YN14E01082P1 | HARNESS | 1 |
| A14-1B | LQ73E00001F1 | FUSE ASSY | 1 |
| A14-1Ba | YN73E00001S001 | BASE | 1 |
| A14-1Bb | YN73E00001S002 | COVER | 1 |
| A14-1BC | LQ73E01001P1 | COVER | 1 |
| A14-1Bd | 2479R65558 | FISE 10 Am | 10 |
| A14-1Be | 2479R65559 | FISE 20 AmF | 11 |
| A14-2 | ZS18C06016 | SCREWM06x1.0x16mm | 2 |
| A14-3 | ZM61C06020 | BOLT M06x1.0x20mm [Incls Washer &Lockwasher |
8 |
| A14-4 | YN03E01001D5 | CLIP 195mm Long [7-43/64 in]Black | 11 |
| A14-5 | ZW2EXO600C | LOCK WASHER ID 06xOD 07xTh 1.5mm |
2 |
| A14-6 | ZW16X06000 | WASHER ID 06xOD 12.5xTh 1.6mm |
2 |
| A25 | LC24500001P1 | RELAY | 2 |
| A30 | YN22E00123F4 | CONTROLLER | 1 |
| A30 | YN22E00123F4 | CONTROLLER | 1 |
| YN22E00123F5 | CONTROLLER | 1 | |
| YN22E00123F5 | CONTROLLER | 1 |
The YN13E01336P1 Wiring Harness is a specific wiring harness used in Kobelco SK200-6E and SK200LC-6E excavators. It is an essential component that connects various electrical components and systems within the excavator.
Availability and Delivery:
Quality Assurance:
Packaging:
Pricing and Discounts:
Why Choose to Buy:
POWER DISCONNECTION: Always disconnect the negative (-) battery terminal and wait at least 5 minutes for system capacitors to discharge before beginning work.
DOCUMENTATION: Take comprehensive photos of the entire harness routing and all connection points before disassembly.
CLEANLINESS: Ensure the work area is clean and dry to prevent contamination of electrical connections.
| Connector | Pin | Function | Wire Color (typical) |
|---|---|---|---|
| ECU (main) | A1 | Battery + (ECU power) | Red |
| ECU (main) | A2 | Battery - (ECU ground) | Black |
| ECU (main) | B3 | Oil pressure sensor signal | Yellow |
| ECU (main) | B4 | Coolant temp sensor signal | Green |
| ECU (main) | C1 | Crank position signal | White |
| ECU (main) | C2 | Cam position signal | Blue |
| Sensor (2-pin) | 1 | Sensor ground | Black |
| Sensor (2-pin) | 2 | Signal output | Varies |
| Solenoid (2-pin) | 1 | Power (12V/24V switched) | Red/Yellow |
| Solenoid (2-pin) | 2 | Ground (ECU controlled) | Black/Brown |
Q: What Kobelco models use the YN13E01336P1 monitor and sensor wiring harness?
A: The COGENG OEM-compatible monitor and sensor wiring harness is a direct replacement for Kobelco part number YN13E01336P1. This harness is designed for select Kobelco excavator models where this part number is specified, typically connecting the operator monitor display to various machine sensors and control modules. Always verify the part number stamped on your original harness tag and consult your machine's parts manual to confirm exact compatibility before ordering.
Q: What are the symptoms of a failing monitor and sensor wiring harness?
A: Common symptoms include intermittent or complete loss of the monitor display, erratic or incorrect sensor readings on the screen, multiple warning indicators illuminated, communication errors between the monitor and machine controllers, specific sensor data not displaying, flickering or blank screen issues, or diagnostic trouble codes related to sensor circuit faults. Because this harness connects the operator's primary information interface to critical machine sensors, any degradation can severely impact the operator's ability to monitor machine health and performance
