Function:

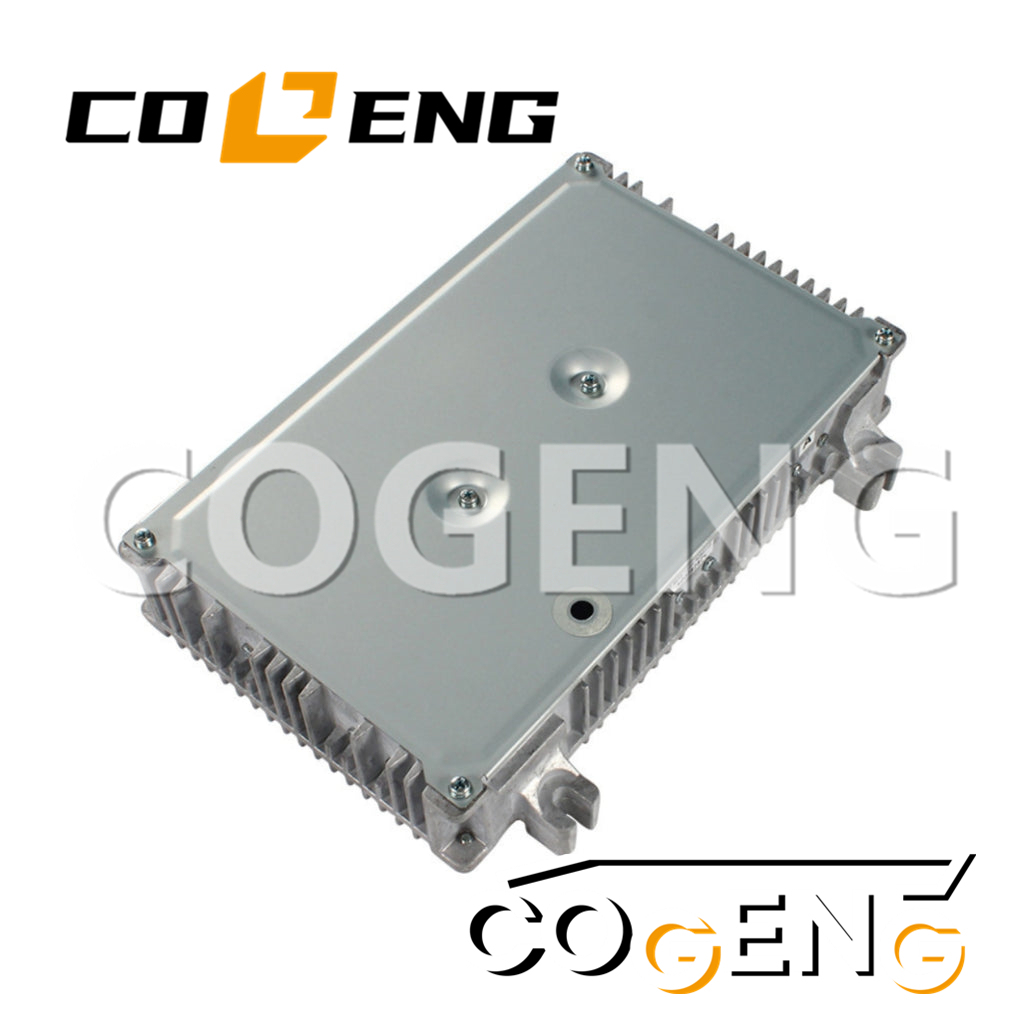

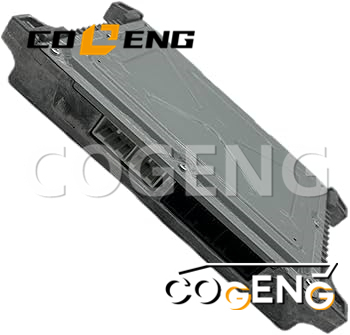

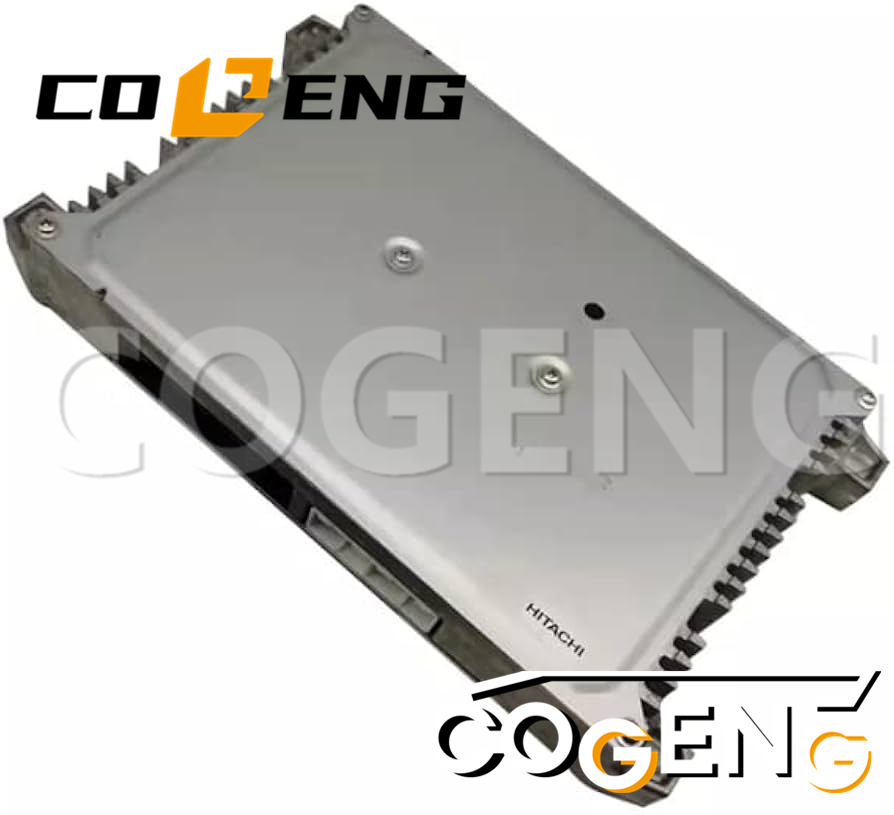

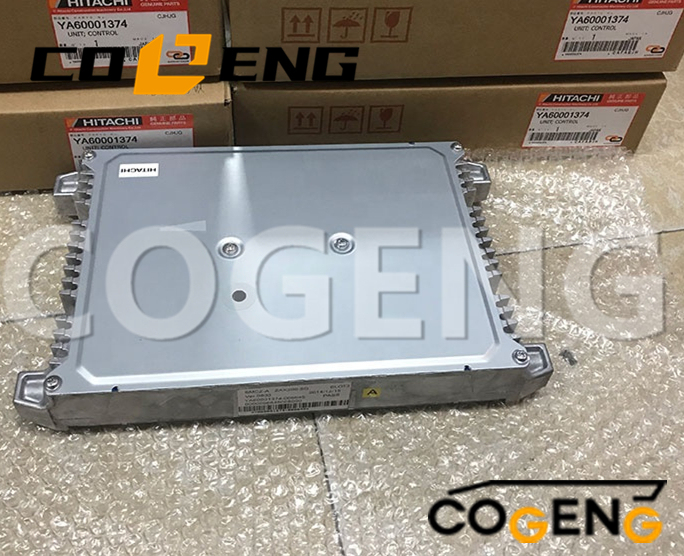

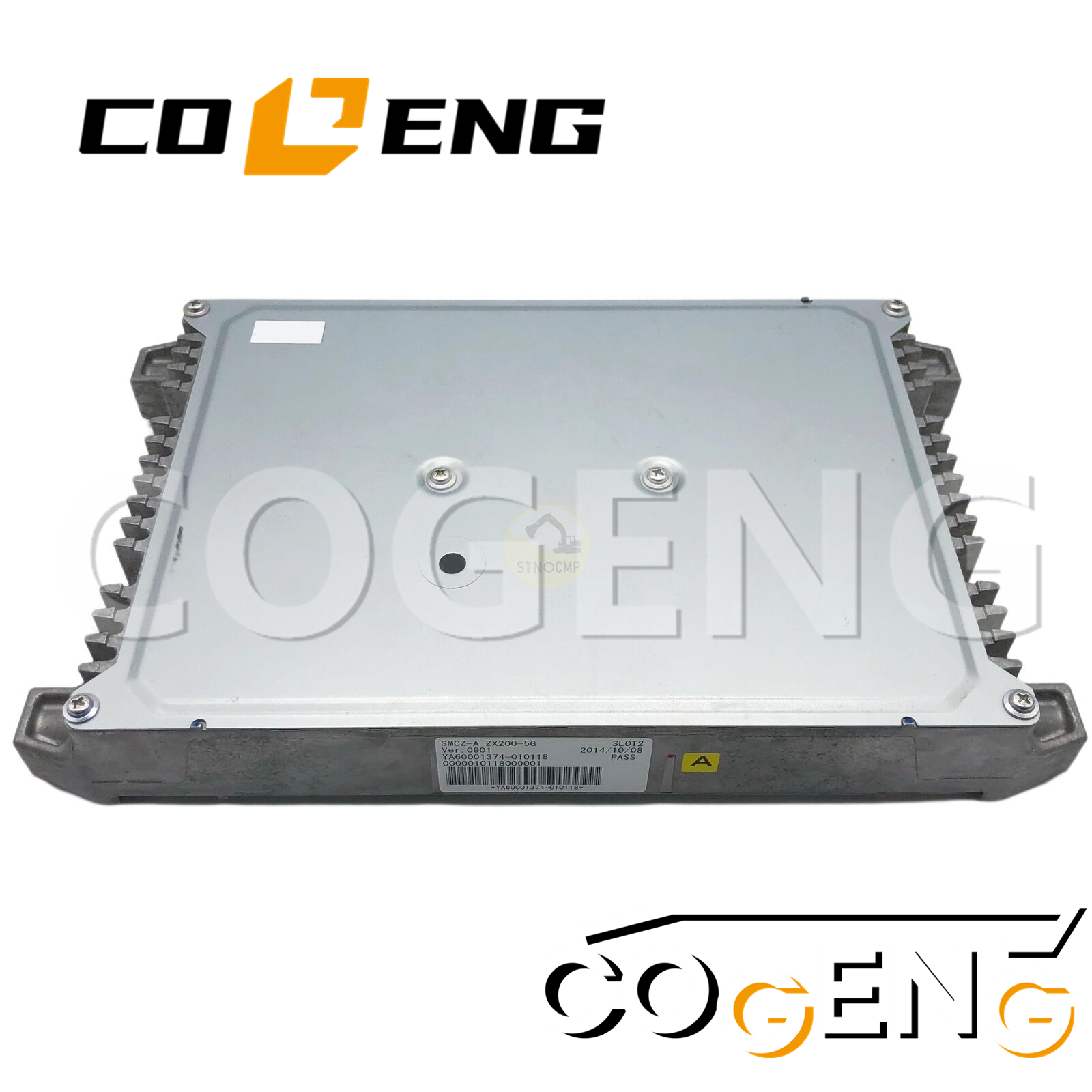

Acts as the main control unit for Hitachi excavators, integrating operator inputs, sensor data, and hydraulic/engine management
Manages real-time diagnostics, system interlocks, and performance optimization.
Compatible Models:
Primarily for Hitachi ZX-3 to ZX-5 Series excavators (e.g., ZX200-3, ZX350H-5, ZX470LCH-5)
Cross-references OEM manuals for ECUs in 2010–2020 mid-to-large excavators.
Technical Parameters:
| Parameter | Value |
|---|---|
| Voltage | 24V DC |
| Communication | CAN J1939 + ISO 11898 |
| IP Rating | IP67 (Dust/Water Resistant) |
| Operating Temp. | -30°C to +80°C |
Blank Display/No Power: Internal PCB damage or voltage irregularities.
Error Codes (e.g., E101, E315): Communication loss with sensors or hydraulic valves.
Unresponsive Controls: Faulty input processing or firmware corruption.
Intermittent Shutdowns: Overheating or poor connector contact
Disconnect batteries (Negative terminal first).
Release hydraulic pressure by operating controls 3-5 times after engine shutdown.
Wear ESD gloves when handling ECU components.
| Step | Operation | Technical Key Points |
|---|---|---|
| 1. Remove Old Harness | Label all connectors with tape markers. | Photograph original routing path for reference. |
| 2. Interface Treatment | Clean ECU socket with CRC® Electronic Cleaner. | Check for bent pins (Use magnifying glass if needed). |
| 3. Routing & Fixing | Follow factory clip points for installation. | Maintain 50mm clearance from exhaust/turbocharger (＞200°C surfaces). |
| 4. Connector Locking | Press Sumitomo connectors until audible "click". | Perform tug test (＞5kg force validation). |
| 5. Functional Verification | Read real-time data via Dr.ZX after startup. | Validate sensor signals: • Crank sensor: 200-1,000Hz • Oil pressure: |
Q: What Hitachi models use the YA60001374 and YA60003978 controller assembly?
A: The COGENG control panel controller assembly is a direct replacement for Hitachi part numbers YA60001374 and YA60003978, designed for select Hitachi excavator models where these CPU/ECU computer box part numbers are specified. This controller typically serves as the main machine control unit managing hydraulic, engine, and operator interface functions. Always verify the part number on your original controller and consult your machine's parts manual to confirm exact compatibility before ordering.
Q: What are the symptoms of a failing main controller on a Hitachi excavator?
A: Common symptoms include intermittent or complete failure of machine functions, multiple warning indicators illuminated on the monitor, loss of communication with the engine ECU, unresponsive hydraulic controls, erratic or incorrect display readings, failure to start, persistent diagnostic trouble codes that cannot be cleared, or the machine entering a failsafe limp mode. Controller failure may develop gradually with intermittent faults or occur suddenly.
