MIA12648 MIA11058 John Deere Throttle Motor Throttle Kit

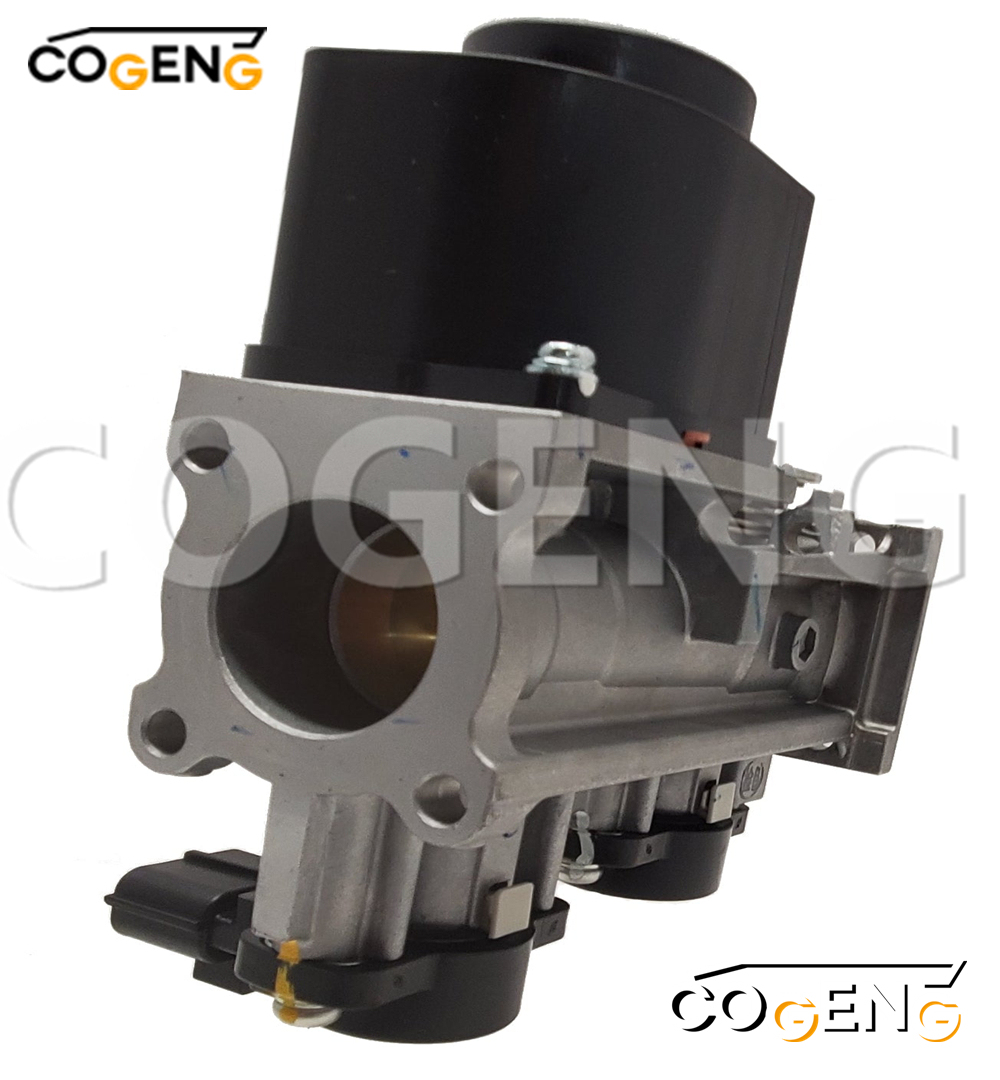

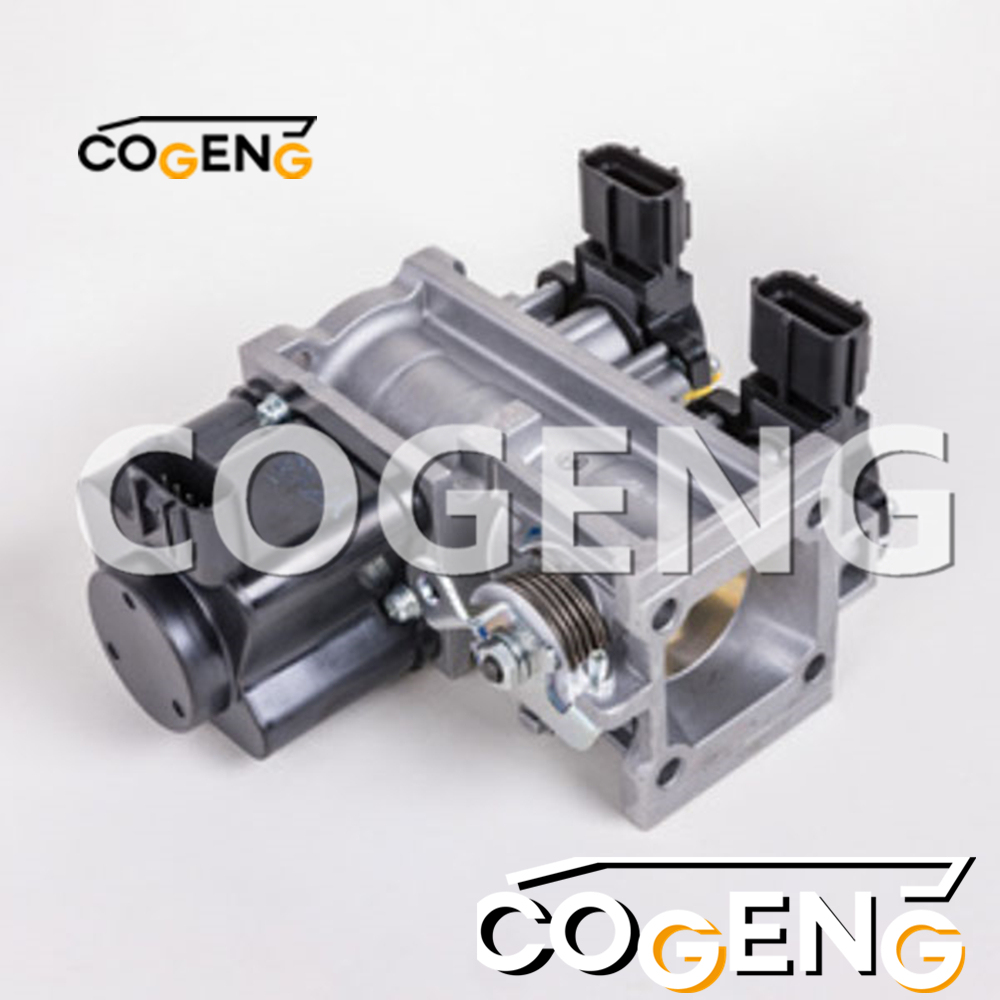

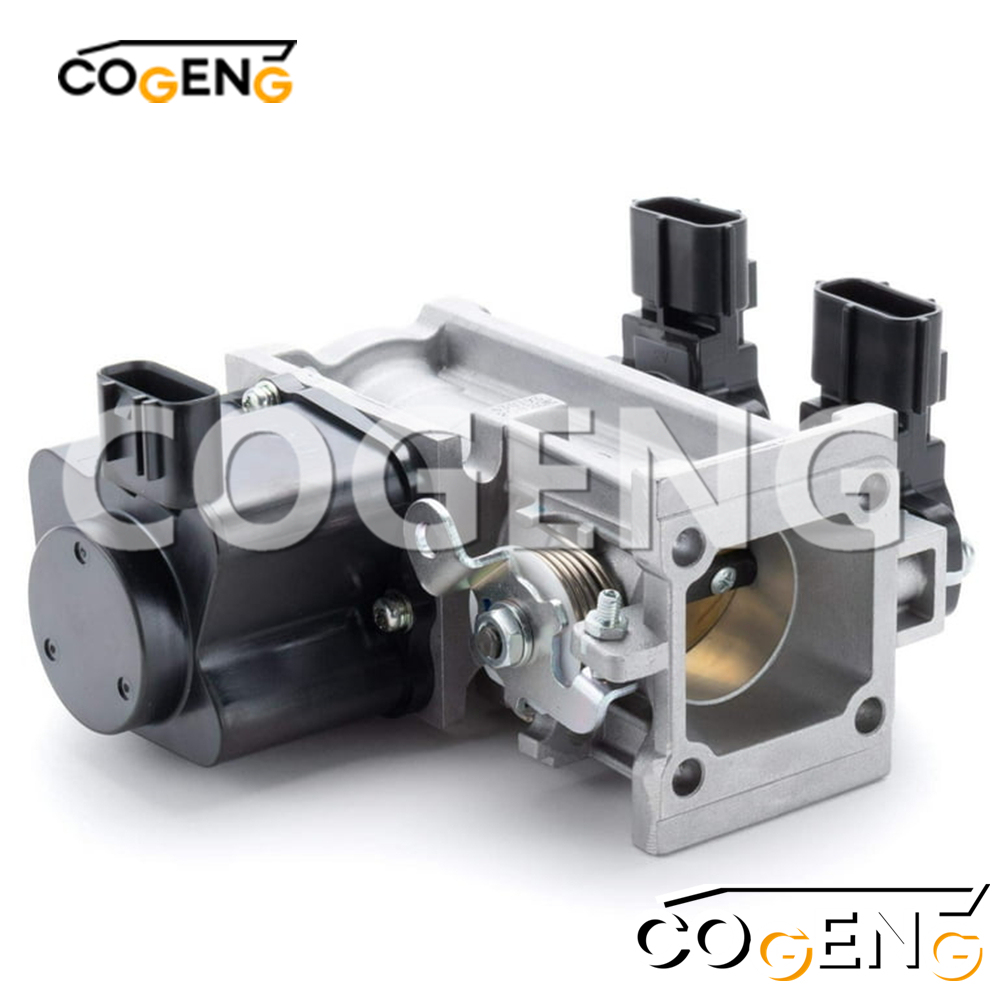

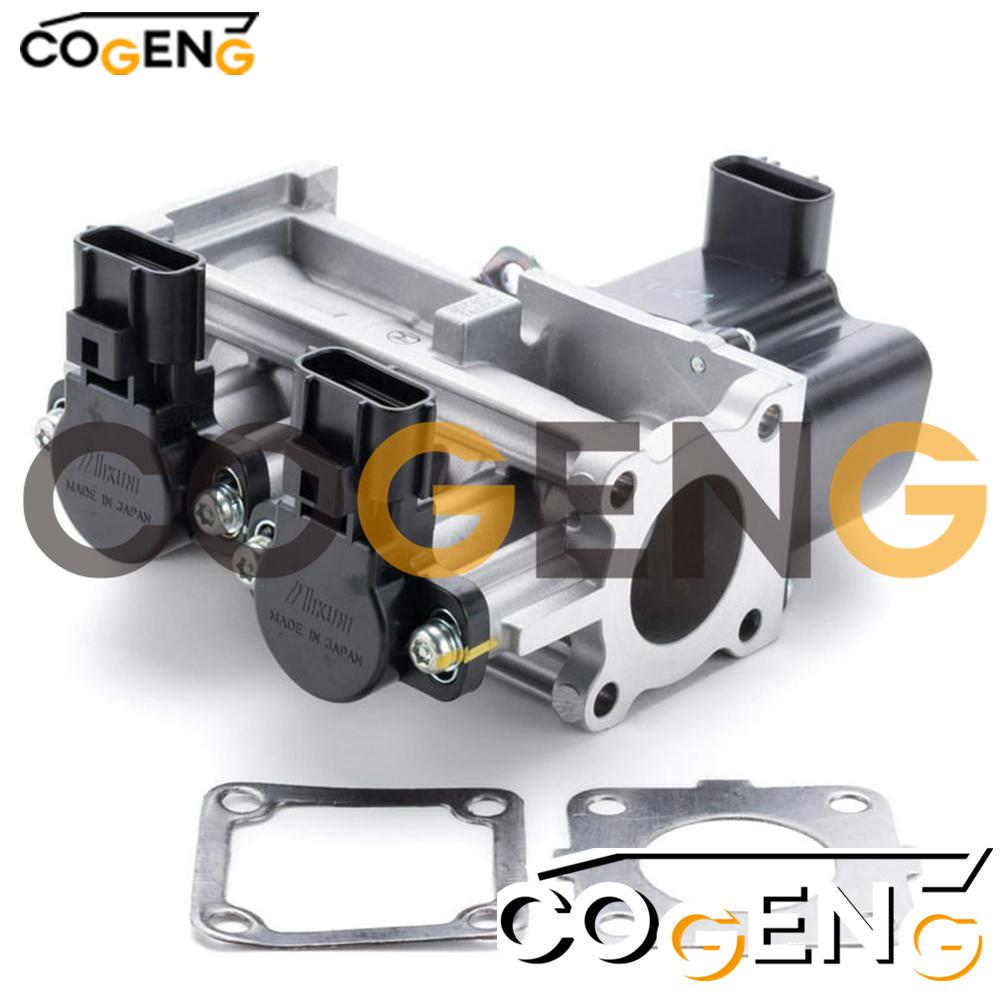

Product name: John Deere Throttle Motor
Part No: MIA12648 MIA11058
Model Number:For 40R877 D125 D130 D155 D140 D160 D170 X165
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Attribute |
Specification |
| COGENG Part Number |
CG-TM-MIA12648 |
| Replaces OEM Numbers |
MIA12648, MIA11058 |
| Application |
John Deere 40R877, D125-D170, X165 Engines |
| Voltage Rating |
12V/24V DC Auto-ranging |
| Operating Temperature |
-40°C to 90°C |
| Protection Rating |
IP67 |
| Position Accuracy |
±0.5° |
| Response Time |
<100 milliseconds |
| Shaft Material |
Stainless Steel with Anti-Corrosion Coating |
| Connector Type |
Weatherproof 6-pin |
| Housing Material |
Die-cast Aluminum with Powder Coat Finish |
| Quality Standard |
ISO 9001:2015, IATF 16949 |
| Warranty |
24-Month Limited Warranty |
Engine Series:
40R877
D125 D130 D135 D140
D155 D160 D165 D170
X165
Specific Engine Models:
4045 6059 6068
4045T 6059T 6068T
4045TF250 6059TF270 6068TF275
Typical Applications:
Decompose pictures
Here are some additional details about
MIA12648 and MIA11058 are part numbers associated with the John Deere Throttle Motor and Throttle Kit, respectively. Let's take a closer look at each of them:
MIA12648: John Deere Throttle Motor Kit
The part number MIA12648 corresponds to the Throttle Motor manufactured by John Deere. The Throttle Motor is a crucial component in electronic throttle control systems, enabling precise control of the throttle valve. It receives signals from the Throttle Position Sensor (TPS) and adjusts the throttle valve's position accordingly. The MIA12648 Throttle Motor is specifically designed and manufactured by John Deere for their equipment.
MIA11058: John DeereThrottle Motor Kit
The part number MIA11058 refers to the Throttle Kit produced by John Deere. The Throttle Kit typically includes various components required for throttle control, such as the Throttle Motor, Throttle Position Sensor (TPS), wiring harness, and other related parts. The MIA11058 Throttle Kit is a complete package provided by John Deere for specific equipment models or applications.
Both the Throttle Motor and Throttle Kit from John Deere are designed to meet the specific requirements and compatibility of John Deere equipment, ensuring proper throttle control and performance. It's essential to verify the compatibility of these parts with the specific John Deere equipment model or application before making a purchase or installation.
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
MIU11388 |
Gasket |
1 |
| 2A |
MIA11058 |
Throttle Motor Kit |
1 |
| 2B |
MIA12648 |
Throttle Motor Kit |
1 |
| 3 |
MIU11389 |
Gasket |
1 |
| 3 |
MIU14086 |
Gasket |
1 |
| 4 |
MIU11418 |
Housing |
1 |
| 5 |
MIU11425 |
Stud |
4 |
| 6 |
M70097 |
Nut |
4 |
| 7 |
M147787 |
Sensor |
1 |
| 8 |
M147788 |
Grommet |
1 |
| 9 |
MIU11420 |
Sensor |
1 |
| 10 |
M117798 |
Grommet |
1 |
| 11 |
19M7774 |
Screw |
1 |
| 12 |
PT18323 |
Tube |
1 |
| 13 |
PT18322 |
Strap |
1 |
| 14 |
M113685 |
Gasket |
1 |
| 15 |
19M7821 |
Screw |
3 |
| 16 |
19M7862 |
Screw |
5 |
| 17 |
MIU11419 |
Electronic Control Unit |
1 |
| 17 |
MIU13131 |
Electronic Control Unit |
1 |
| 17 |
MIU14459 |
Electronic Control Unit |
1 |
| 18 |
M147791 |
Seal |
2 |
| 19 |
MIU11421 |
Injection Nozzle |
2 |
| 20 |
MIU11423 |
Pipe |
2 |
| 21 |
19M8321 |
Screw |
2 |
| 22 |
AUC10052 |
Pipe |
1 |
| 23 |
M113684 |
Gasket |
1 |
| 24 |
MIU11424 |
Intake Manifold |
1 |
| 25 |
MIU11426 |
Seal |
1 |
| 26 |
M147786 |
Sensor |
1 |
| 27 |
M94391 |
O-Ring |
2 |
| 28 |
37M7089 |
Screw |
2 |
| 29 |
MIU11671 |
Screw |
4 |
| 30 |
MIU11670 |
Sensor |
2 |
| 31 |
MIU11669 |
Locking Collar |
2 |
| 32 |
MIU11674 |
Sea |
2 |
| 33 |
MIU11672 |
Screw |
1 |
| 34 |
MIU11673 |
Nut |
1 |
| 35 |
AUC10052 |
Pipe |
1 |

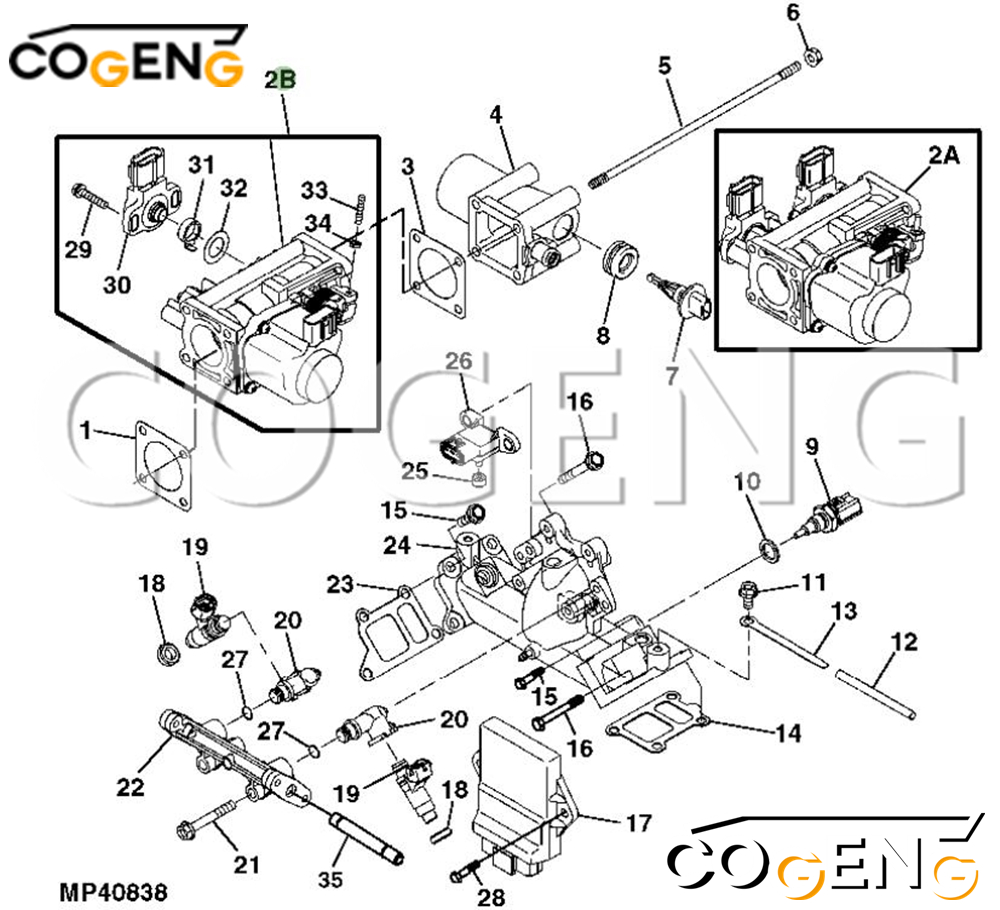

Installation decomposition diagram
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
