| Specification | Details |
|---|---|
| COGENG Part Number: | CG-WH-KOB-13045 |
| OEM Part Number | LP13E01045P1 |

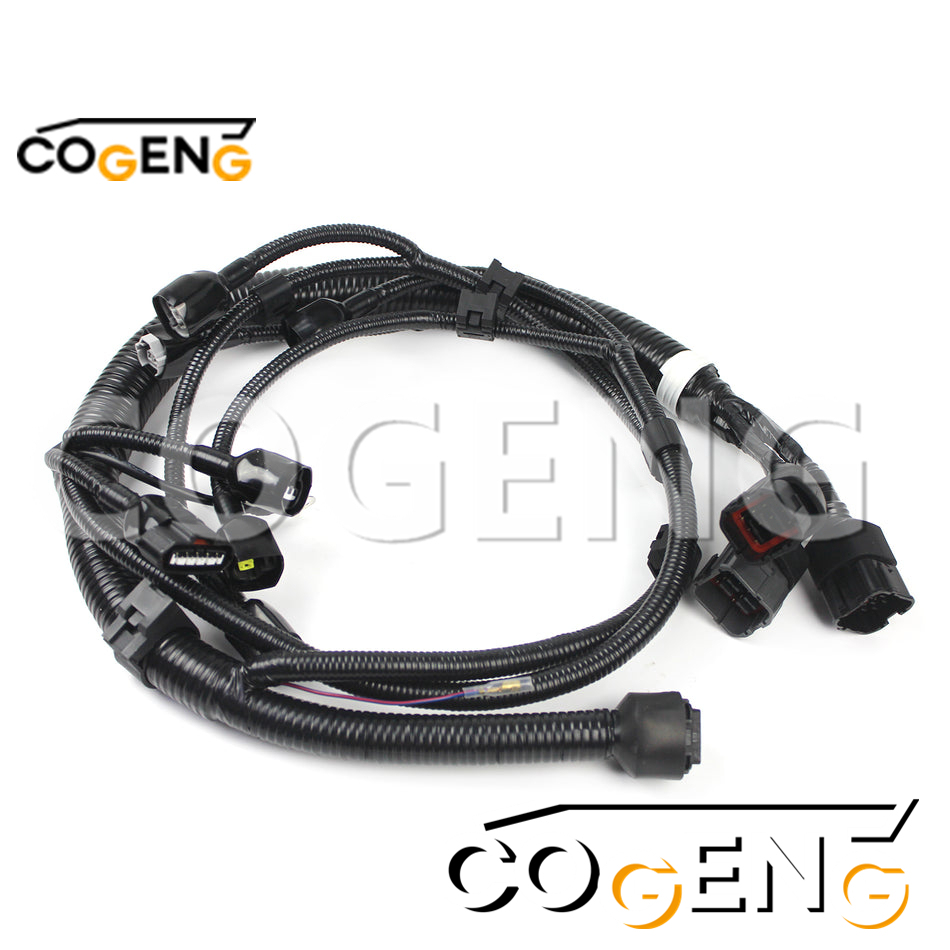

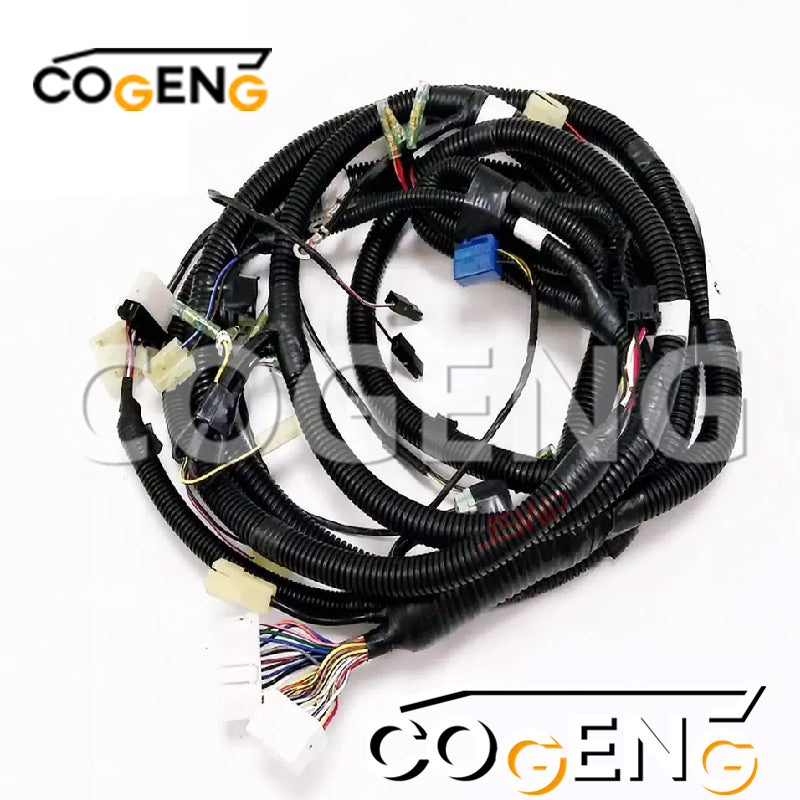

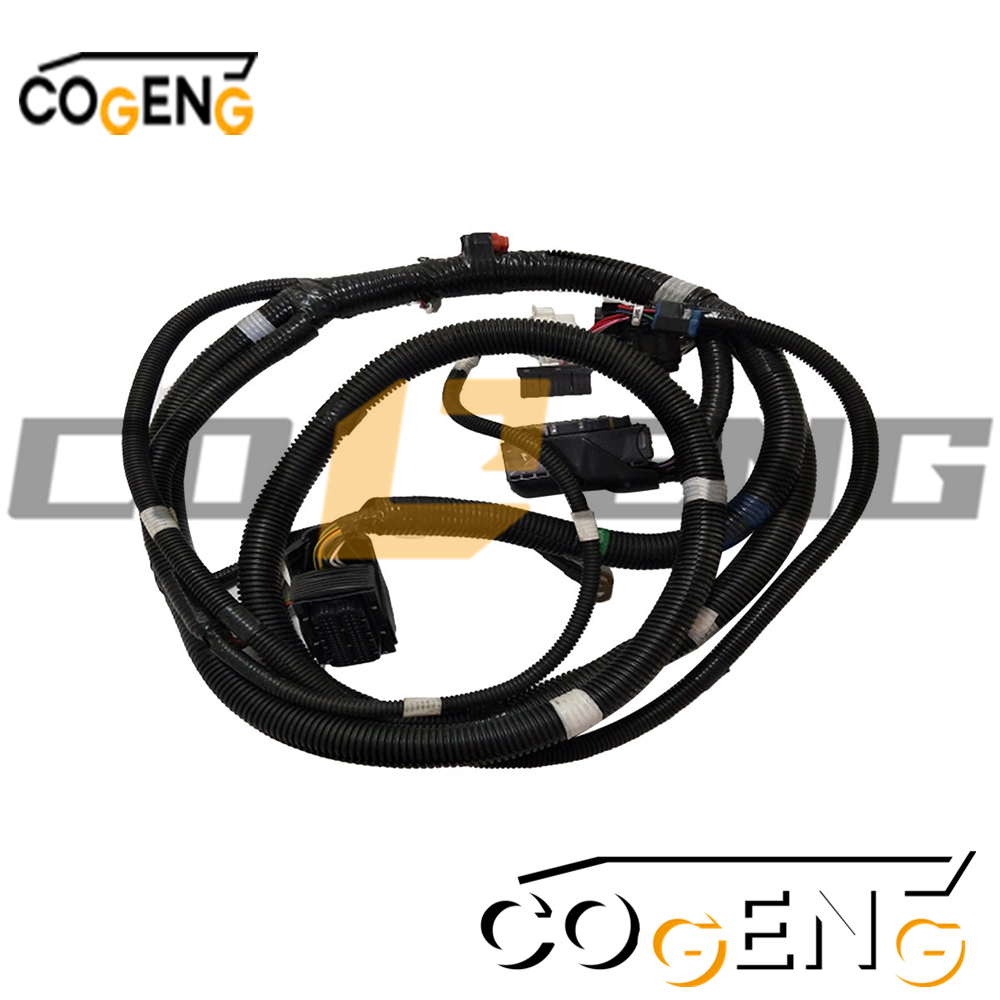

| Application | Engine Monitoring System Harness |
| Compatible Models | Kobelco SK130-7, SK140-7, and similar 7-Series excavators |
| Temperature Rating | -40°C to +150°C |
| Wire Construction | GPT primary wires with high-temperature XLPE insulation |

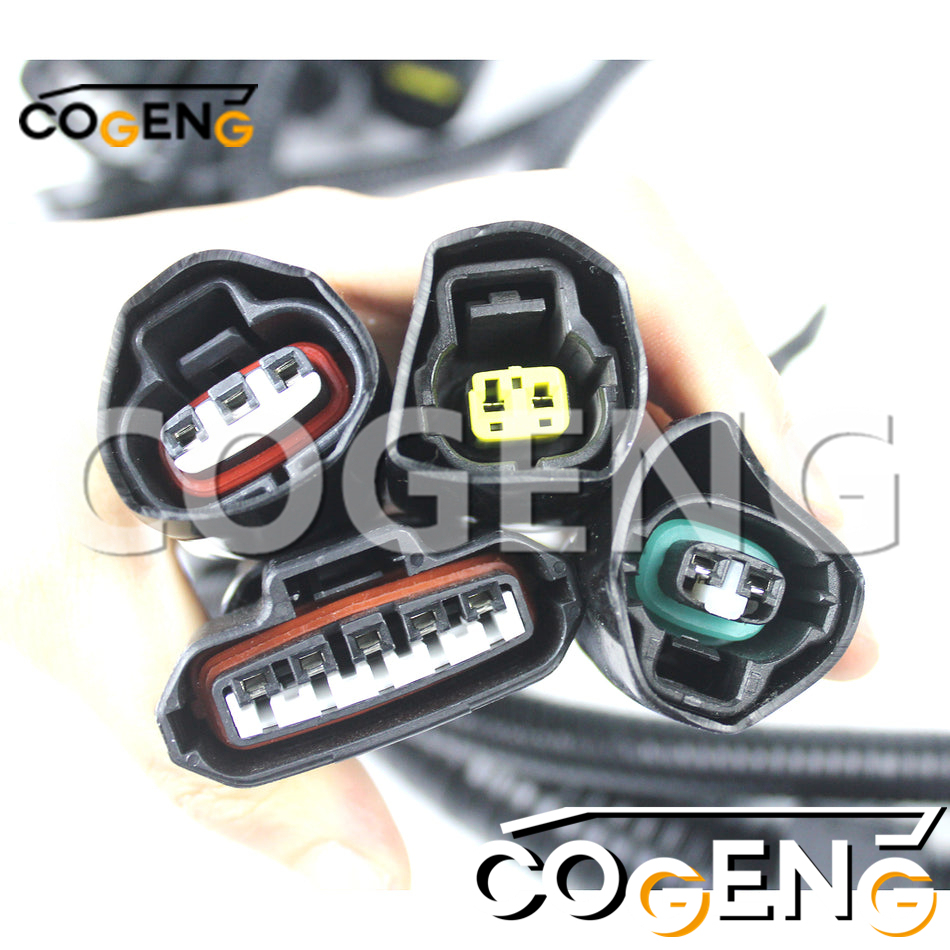

| Connector Types | Sumitomo, Yazaki, and JST OEM equivalents |
| Shielding | Full EMI protection on sensor circuits |
| Quality Standards | ISO 9001:2015 certified manufacturing |
| Testing | 100% continuity and hi-pot testing |
| NO | Number | Name | Qty |
| A1 | YW13E01015D2 | CABLE | 1 |
| A2 | 2486R89D3 | ELECTRIC CABLE | 1 |
| A3 | YW13E00003D1 | ELECTRIC CABLE | 1 |
| A4 | 2486R87D1 | CABLE | 1 |
| A5 | LP13E01045P1 | Wiring Harness | 1 |
| A6 | YW13E01018P1 | WIRE HARNESS | 1 |
| A7 | LE13E01006P1 | HARNESS 100mm Long [3-15/16 in | 1 |
| A8 | ZS18C08016 | SCREW M08x1.25x16mm | 2 |
| A9 | ZW26×08000 | WASHER Lock --ID 08x0D 15xTh 2.0mr |
2 |
| A10 | 2w16H08000 | WASHER ID 08x0D 18xTh3.2mm | 2 |
| A11 | ZN18C08007 | NIT M0Bx1.25m0 | 2 |
| A12 | 24202699 | GROMMET | 1 |
| A13 | 2432R233D1 | C1IP 37x12x4000 | 2 |
| A14 | 2432R233D2 | CLIP 37x12x40mm | 2 |
| A15 | 2432R233D3 | CIIP 50x16x60mm | 1 |
| A16 | FY01P01043D3 | CIP Wne Ties-188mm Lon | 3 |
| A17 | ZM11C08016 | BOLT | 2 |
| A18 | ZM61C06012 | BOLT | 2 |
| YN13E00014F1 | HARNESS | 1 | |
| B1 | YN13E01072P1 | HARNESS | 1 |
| B2 | LP13E01001P1 | Wiring Harness | 1 |
| LP13E01029P1 | Wiring Harness | 1 | |
| LP13E0134P1 | Wiring Harness | 1 | |
| B3 | LE13E01005P1 | CABLE | 1 |
| B4 | ZW26008000 | WASHER | 1 |
| B5 | ZW16008000 | WASHER | 1 |
| B6 | ZN18C08007 | NIT M08x1.25mm | 1 |
| B7 | YN03E01001D5 | CLIP 195mm Long [7-43/64 in]--Black | 5 |
| B8 | YN03M01064P1 | GRDMMET GROMMET | 1 |
| LP16E00001F1 | HARNESS | 1 | |
| B9 | 2432Z290 | CLIP | 1 |
| C1 | YW16E01002P1 | WIRE HARNESS | 1 |
| C3 | NW30P01002P1 | CLIP | 1 |
| 2432Z290 | CLIP | 4 | |
| 24322290 | CLIP | 4 | |
| C4 | ZS18F10014 | SCREWM10x1.25x14mm | 1 |
| C5 | ZS18C10014 | SCREWM10x1.50x14mm | 1 |
| C6 | ZW26×10000 | LOCK WASHER ID 10xOD 18xTh 2.5mm |
1 |
| C7 | ZW16×10000 | WASHER ID 10x0D 21xTh2.0mm | 3 |
| C8 | ZN18C10008 | NUT M10g1.50mm | 1 |
| C9 | FYD1P01043D3 | CLIP Wire Ties --188mm Long | 2 |
Compatibility Notes:
Specifically designed for 7-Series Kobelco excavators
Verify engine model and serial number compatibility
Cross-reference with machine's electrical schematic
Service Life:
Designed for minimum 10,000 operating hours under normal conditions with proper installation and maintenance.
Pre-Installation Preparation
Allow engine to cool completely before beginning work
Disconnect negative battery terminal and isolate
Clean work area around engine sensors and connection points
Removal Procedure
Photograph original harness routing and all connection points
Label each connector with corresponding sensor/component
Carefully release locking tabs before disconnecting
Note routing through existing clips and conduits
Installation Best Practices
Verify new harness matches old one in all physical aspects
Route exactly as original, avoiding contact with hot surfaces
Use all original mounting points and protective conduits
Ensure proper clearance from exhaust components and moving parts
Connection Protocol
Verify connector seals are intact and properly seated
Push connectors firmly until audible click confirms engagement
Ensure all sensor connections are clean and secure
Post-Installation Verification
Reconnect battery and perform visual inspection
Start engine and check for warning lights
Verify all sensor readings on monitor display
Test engine through operational temperature range
