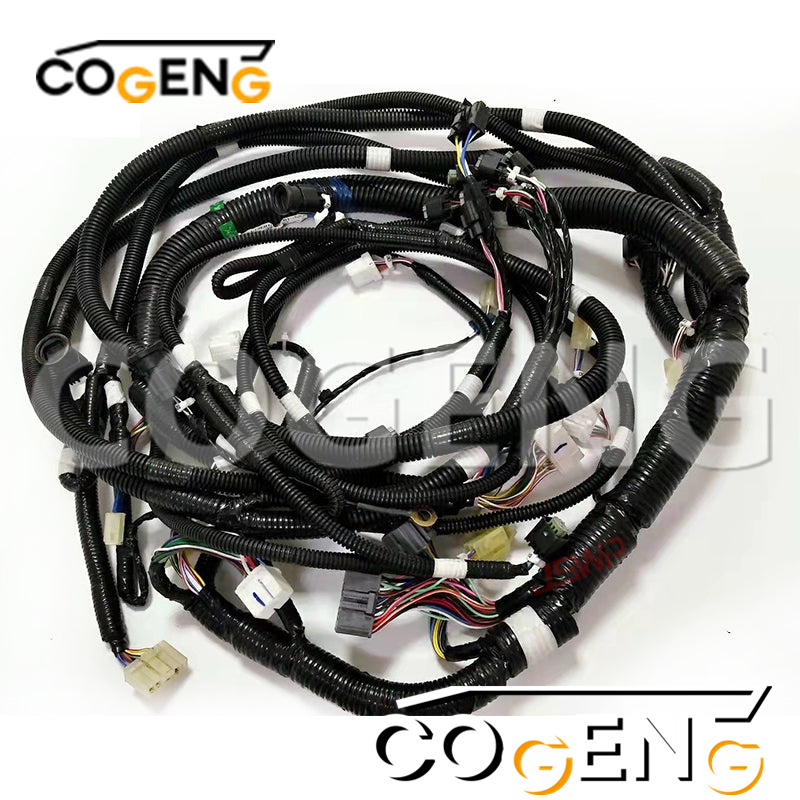

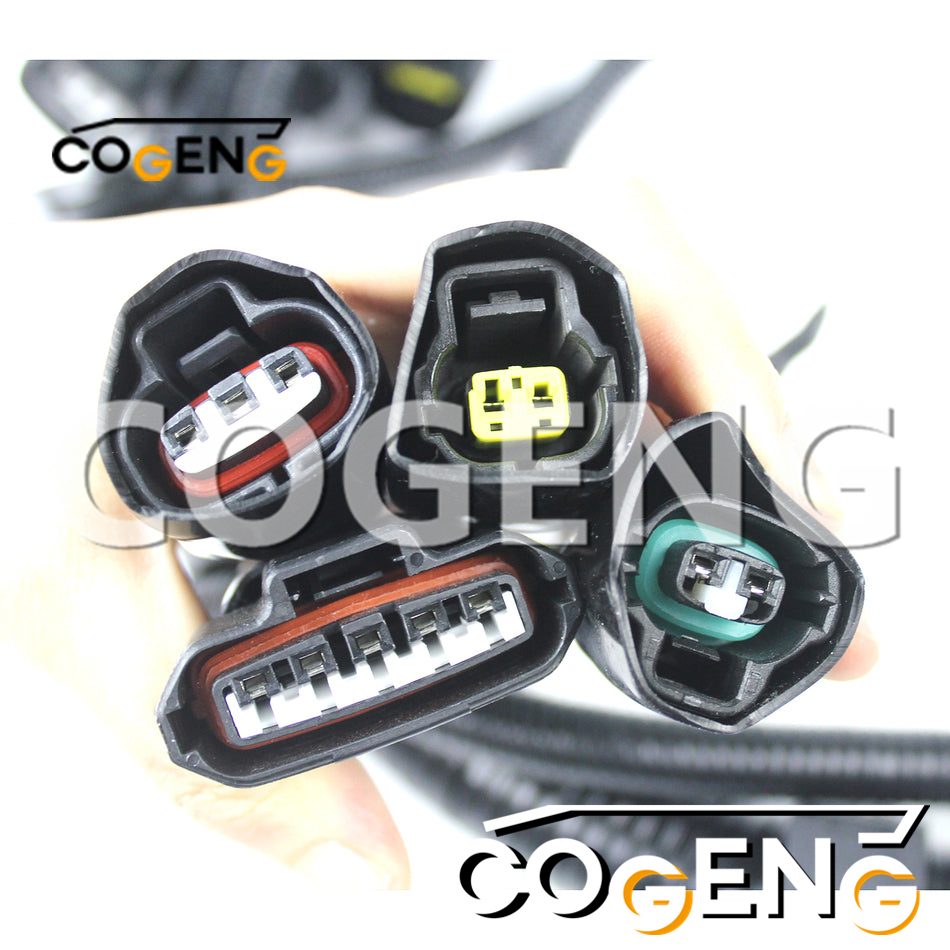

LP13E0134P1 LP13E01029P1 Kobelco Wiring Harness
Product name: Kobelco Wiring Harness
Part No: LP13E01001P1 LP13E0134P1 LP13E01029P1
Model Number:For SK120 SK210LC SK130-8
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Decompose pictures
Parts list
NO |
Number |
Name |
Qty |
A1 |
YW13E01015D2 |
CABLE |
1 |
A2 |
2486R89D3 |
ELECTRIC CABLE |
1 |
A3 |
YW13E00003D1 |
ELECTRIC CABLE |
1 |
A4 |
2486R87D1 |
CABLE |
1 |
A5 |
LP13E01001F1 |
WIRE HARNFSC |
1 |
A6 |
YW13E01018P1 |
WIRE HARNESS |
1 |
A7 |
LE13E01006P1 |
HARNESS 100mm Long [3-15/16 in |
1 |
A8 |
ZS18C08016 |
SCREW M08x1.25x16mm |
2 |
A9 |
ZW26×08000 |
WASHER Lock --ID 08x0D 15xTh 2.0mr |
2 |
A10 |
2w16H08000 |
WASHER ID 08x0D 18xTh3.2mm |
2 |
A11 |
ZN18C08007 |
NIT M0Bx1.25m0 |
2 |
A12 |
24202699 |
GROMMET |
1 |
A13 |
2432R233D1 |
C1IP 37x12x4000 |
2 |
A14 |
2432R233D2 |
CLIP 37x12x40mm |
2 |
A15 |
2432R233D3 |
CIIP 50x16x60mm |
1 |
A16 |
FY01P01043D3 |
CIP Wne Ties-188mm Lon |
3 |
A17 |
ZM11C08016 |
BOLT |
2 |
A18 |
ZM61C06012 |
BOLT |
2 |
|
YN13E00014F1 |
HARNESS |
1 |
B1 |
YN13E01072P1 |
HARNESS |
1 |
B2 |
LP13E01001P1 |
Wiring Harness |
1 |
|
LP13E01029P1 |
Wiring Harness |
1 |
|
LP13E0134P1 |
Wiring Harness |
1 |
B3 |
LE13E01005P1 |
CABLE |
1 |
B4 |
ZW26008000 |
WASHER |
1 |
B5 |
ZW16008000 |
WASHER |
1 |
B6 |
ZN18C08007 |
NIT M08x1.25mm |
1 |
B7 |
YN03E01001D5 |
CLIP 195mm Long [7-43/64 in]--Black |
5 |
B8 |
YN03M01064P1 |
GRDMMET GROMMET |
1 |
|
LP16E00001F1 |
HARNESS |
1 |
B9 |
2432Z290 |
CLIP |
1 |
C1 |
YW16E01002P1 |
WIRE HARNESS |
1 |
C3 |
NW30P01002P1 |
CLIP |
1 |
|
2432Z290 |
CLIP |
4 |
|
24322290 |
CLIP |
4 |
C4 |
ZS18F10014 |
SCREWM10x1.25x14mm |
1 |
C5 |
ZS18C10014 |
SCREWM10x1.50x14mm |
1 |
C6 |
ZW26×10000 |
LOCK WASHER ID 10xOD 18xTh 2.5mm |
1 |
C7 |
ZW16×10000 |
WASHER ID 10x0D 21xTh2.0mm |
3 |
C8 |
ZN18C10008 |
NUT M10g1.50mm |
1 |
C9 |
FYD1P01043D3 |
CLIP Wire Ties --188mm Long |
2 |
Installation decomposition diagram
