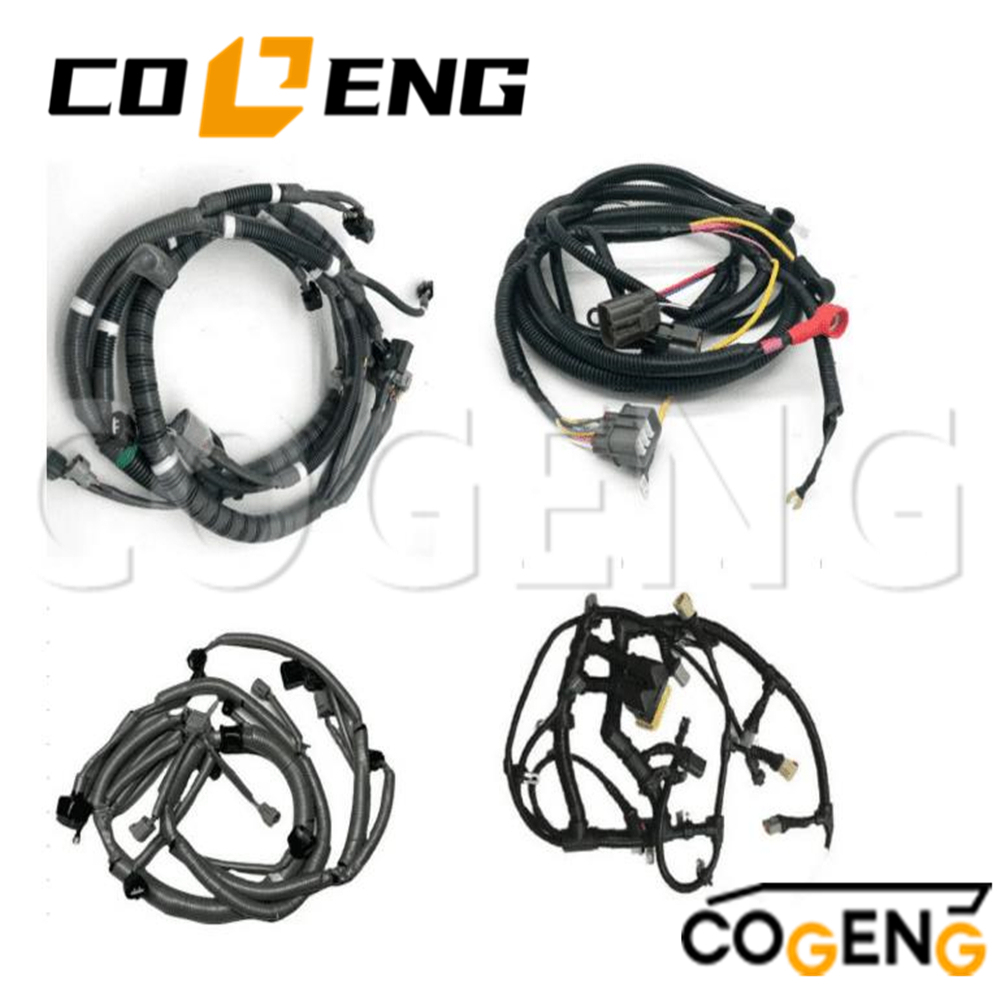

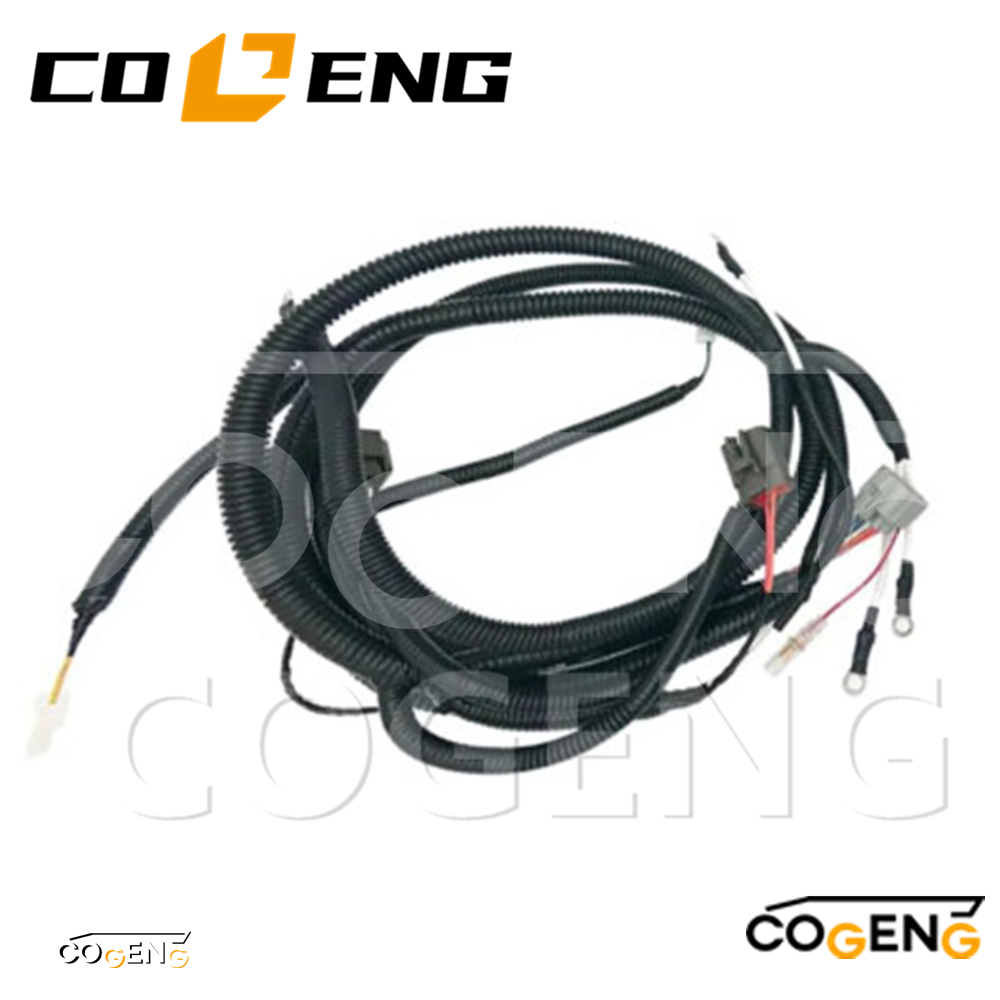

COGENG LC16E01011P1 LC16E01011P2 Engine Wiring Harness for Kobelco SK200-6E Excavator

Name: COGENG LC16E01011P1 LC16E01011P2 Engine Wiring Harness for Kobelco SK200-6E Excavator
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Kobelco Wiring harness
Part No: LC16E01011P1 LC16E01011P2
Model Number:For SK330-6E
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

PRODUCT IDENTIFICATION

Parameter	LC16E01011P1	LC16E01011P2
COGENG Part Number	LC16E01011P1	LC16E01011P2
OEM Equivalent	Kobelco LC16E01011P1	Kobelco LC16E01011P2
Product Type	Engine Wiring Harness	Engine Wiring Harness
Application	Main engine harness (ECU, injectors, sensors)	Secondary engine harness (sensors, actuators)
Harness Type	Complete engine electrical system	Complete engine electrical system
Compatible Model	Kobelco SK200-6E Excavator	Kobelco SK200-6E Excavator
Series	Dash 6E (Enhanced)	Dash 6E (Enhanced)

CROSS REFERENCE GUIDE

Brand	LC16E01011P1	LC16E01011P2
COGENG	LC16E01011P1	LC16E01011P2
Kobelco	LC16E01011P1	LC16E01011P2
Interchange	LC16E01011P3, YN13E01449P3	LC16E01011P4, YN13E01449P4

TECHNICAL SPECIFICATIONS

Electrical Specifications (Both Harnesses)

Parameter	Specification
System Voltage	24V DC (Kobelco standard)
Current Capacity	Up to 45A (main power circuits)
Wire Gauge Range	14AWG - 20AWG (signal) / 8AWG - 12AWG (starter/alternator)
Insulation Resistance	≥100MΩ @ 500V DC
Dielectric Strength	1500V AC/60s No Breakdown
Voltage Drop	<0.5V @ rated load
Temperature Rating	-40°C to +125°C (engine bay rated)

Material Construction

Component	Material Specification
Conductor	High-purity tinned copper (99.9%)
Wire Insulation	Heat-resistant XLPE / PVC (125°C rated)
Outer Wrapping	Automotive-grade cloth tape / Corrugated conduit
Connector Housings	OEM-grade Nylon 66 / PBT (UL94 V-0)
Terminals	Tin-plated / Gold-plated brass
Grommets/Bushings	EPDM Rubber (UV resistant)
Shielding	Aluminum foil + copper braid (sensor circuits)
Identification	Heat-shrink printed circuit labels
Diesel-resistant jacketing	Special compound for engine bay

Installation decomposition diagram

Pre-Installation Safety Protocol:
Park excavator on level ground, lower attachment to ground
Turn ignition key to OFF position and remove
Disconnect negative (-) battery terminal first, then positive (+)
Wait minimum 10 minutes for ECU capacitors to discharge
Identify and tag all existing harness connections
Harness Removal Procedure:
Photograph entire existing harness routing and connections
Label each connector with corresponding component identification
Use appropriate terminal release tools - never pull on wires
Carefully release all harness clamps and mounting points
Note specific routing through engine compartments and past hot surfaces
Installation Verification:
Compare new COGENG harness with original for exact match
Verify all connector types, lengths, and branch points align
Inspect all engine connection points for damage or corrosion
Ensure proper clearance from exhaust components and moving parts
Precision Installation Steps:
Route harness following exact original path documentation
Secure all mounting clamps and retention points
Connect all engine sensors and components first
Engage ECU and main power connections last
Verify all connector locks engage with positive click
Ensure adequate slack at engine movement points
System Initialization & Testing:
Reconnect battery terminals (positive first, then negative)
Turn key to ON position (do not start) for system initialization
Check for diagnostic trouble codes
Start engine and monitor for proper operation
Verify all sensor readings and system communications
Test complete operational cycle under load conditions
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
