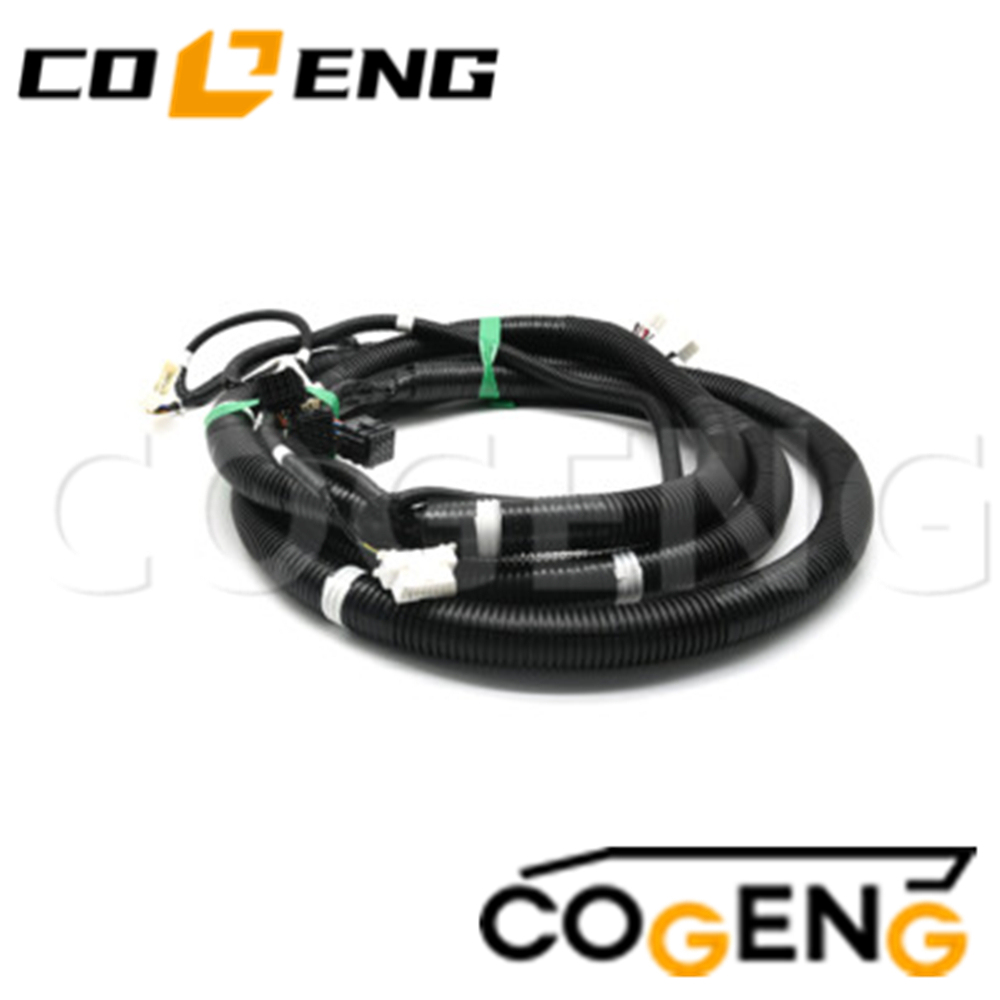

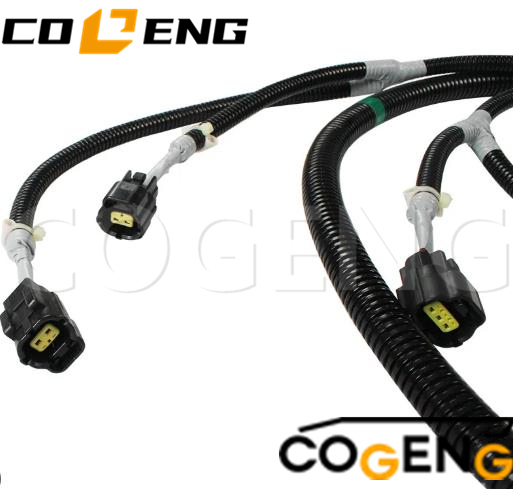

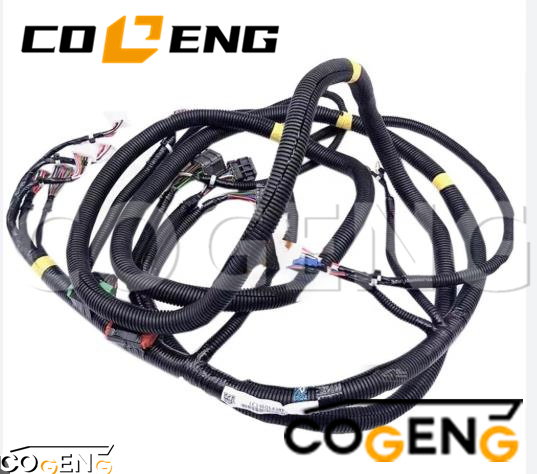

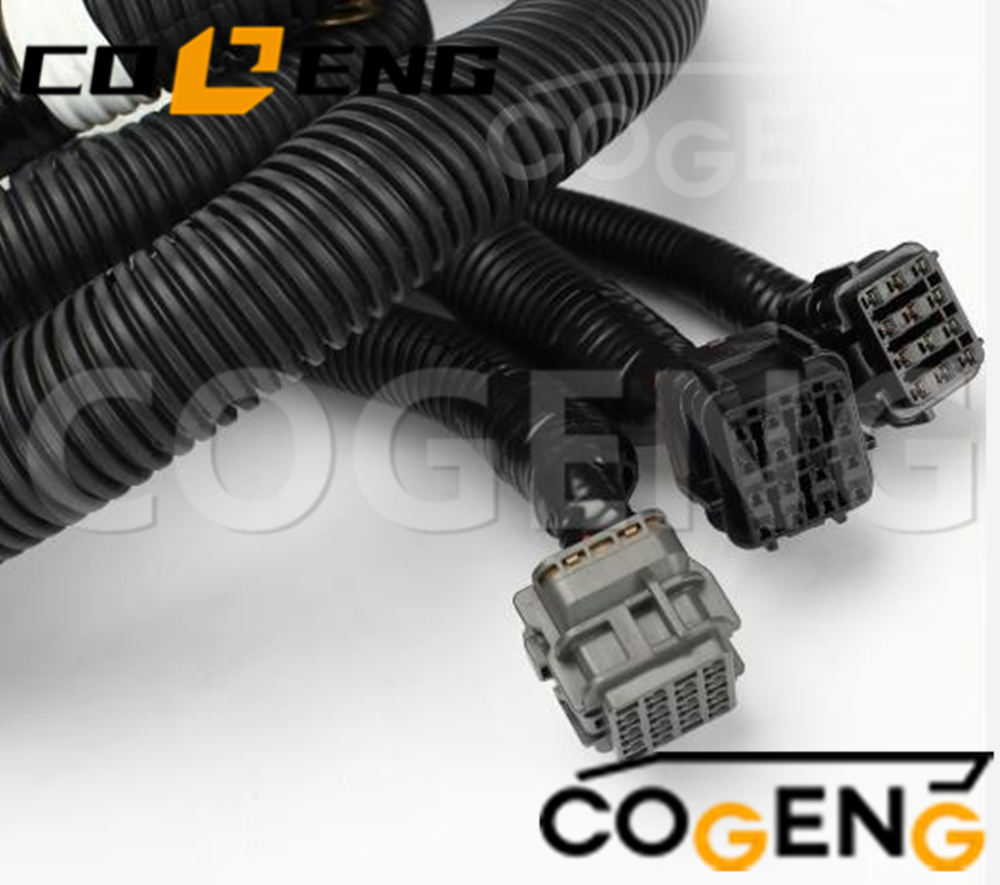

Product name: Kobelco Wiring harness
Part No: LC13E01438P2
Model Number:For SK350-8 SK250-8 SK235SRLC-2
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Attribute | Specification |
| COGENG Part Number | CG-KWH-LC13E01438P2 |
| Replaces OEM Number | LC13E01438P2 |
| Application | Kobelco SK350-8 Excavator |
| Harness Type | Engine Main Wiring Harness |
| Wire Insulation | High-Temperature XLPE (150掳C Rating) |
| Connector Rating | IP67 Sealed Environmental Protection |
| Circuit Protection | Heavy-Duty Convoluted Tubing System |
| Vibration Resistance | 15G (MIL-STD-810G) |
| Quality Standard | ISO 9001:2015, IATF 16949 |
| Warranty | COGENG Limited 24-Month Warranty |
| System Component | Interface Type | Primary Function |
| Main Engine ECU | 48-pin Sealed Connector | Primary Engine Management |
| Fuel Injection System | High-Pressure Connectors | Precision Fuel Delivery Control |
| Sensor Network | Multiple OEM Connectors | Comprehensive Engine Monitoring |
| Power Distribution | Heavy-Gauge Power Terminals | Primary Electrical Power Supply |
| *Note: This engine wiring harness is specifically engineered for the Kobelco SK350-8 excavator. Always verify machine model, serial number, and existing harness configuration before installation. Professional installation by qualified heavy equipment technicians is strongly recommended for optimal performance and warranty validation. Proper installation is critical for emission system compliance and engine performance optimization.* | ||
Installation decomposition diagram
Pre-Installation Safety Protocol:
Park excavator on solid, level ground with attachment fully lowered
Engage all safety locks and parking brakes
Turn ignition key to OFF position and remove
Disconnect negative (-) battery terminal first, then positive (+)
Wait minimum 15 minutes for complete system capacitor discharge
System Documentation & Removal:
Photograph entire existing harness routing from multiple angles
Label every connector with waterproof tags identifying components
Use appropriate terminal release tools - never pull on wire conductors
Carefully document routing through complex engine compartments
Note clearance from turbocharger, exhaust manifold, and moving components
Pre-Installation Verification:
Conduct point-by-point comparison with original harness
Verify all connector types, keying, and terminal configurations match
Inspect engine connection points for corrosion or damage
Confirm adequate protection from heat sources and sharp edges
Precision Installation Procedure:
Route new harness following exact documented path
Secure all factory mounting clamps and retention points
Connect sensor and component connections first
Engage ECU and main power connections last
Verify all connector locks engage with audible click
Ensure proper slack allowance for engine movement
System Commissioning & Testing:
Reconnect battery terminals (positive first, then negative)
Turn key to ON position (do not start) for 3-minute system initialization
Perform comprehensive diagnostic scan for trouble codes
Start engine and monitor all system parameters
Verify proper communication across all engine systems
Conduct full operational testing under working conditions
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
