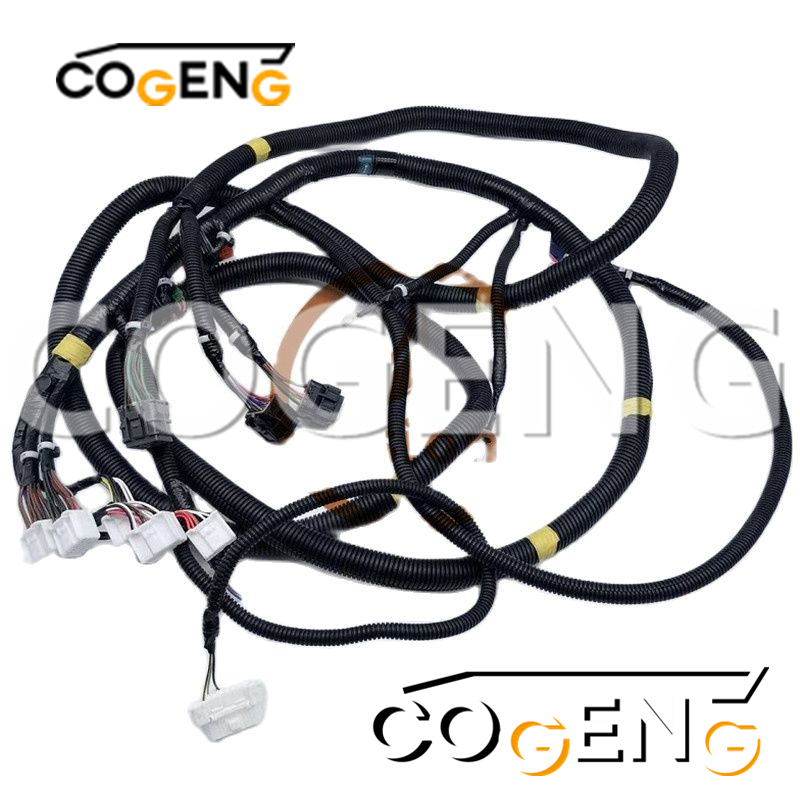

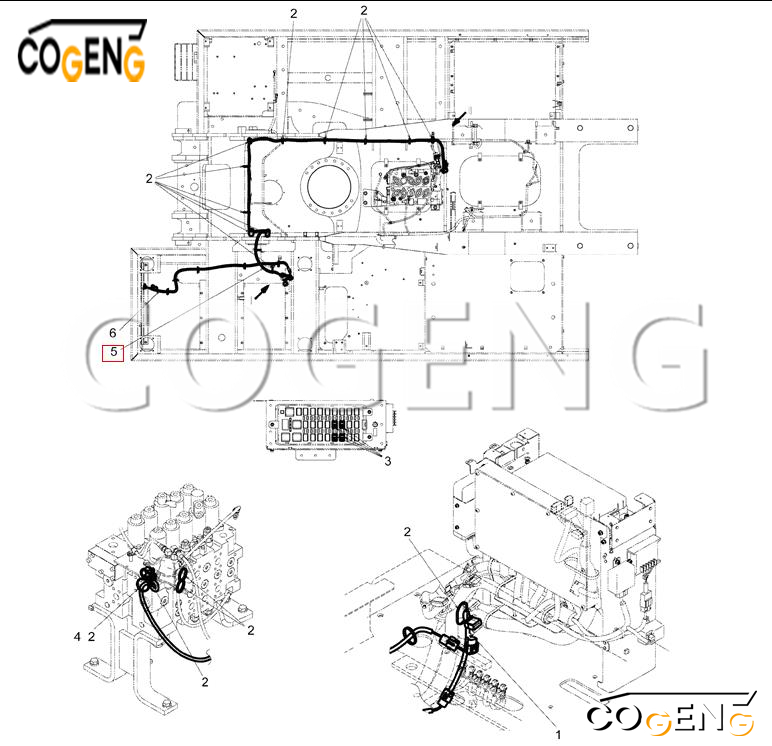

| Specification | Details |
|---|---|
| COGENG Part Number | CG-WH-KOB-13438 |
| OEM Part Number | LC13E01438P1 |
| Application | Cab Main Wiring Harness |
| Compatible Models | Kobelco SK130-7, SK140-7, and similar 7-Series excavators |
| Temperature Rating | -40°C to +105°C |
| Wire Construction | Cross-linked polyethylene insulation, tinned copper conductors |
| Connector Types | Sumitomo, JST, and TE Connectivity OEM equivalents |
| Circuit Protection | Individual fused circuits matching OEM specifications |
| Shielding | Double-layer braided shielding on CAN bus and sensor lines |
| Quality Standards | ISO 9001:2015 certified manufacturing processes |
| Testing Protocol | 100% continuity, insulation resistance, and functional testing |
| NO | Number | Name | Qty |
| 1 | LC13E01291P1 | WIRE HARNESS HAND CONTROL | 1 |
| 2 | FY01P01043D3 | CLIP Wire Ties --188mm Long | 23 |
| 3 | YN24500010P1 | RELAY | 4 |
| 4 | YN13E01375P1 | CLIP Anchor Wire Ties | 1 |
| 5 | LC13E01436P1 | Wiring Harness | 1 |
| 6 | LC13E01438P1 | Wiring Harness | 1 |
Pre-Installation Preparation
Park machine on level ground, lower all attachments, engage parking brake
Disconnect negative battery terminal and wait 10 minutes for system capacitors to discharge
Remove cab floor mats and access panels as needed
Documentation Protocol
Photograph entire original harness routing before disassembly
Tag each connector with corresponding component name
Note orientation of multi-pin connectors and grounding points
Removal Procedure
Start by disconnecting battery and main power feeds
Work systematically from one side of cab to the other
Carefully release all connector locks before disconnecting
Note routing through bulkheads and under floor panels
Installation Best Practices
Lay new harness alongside old one to verify identical configuration
Route through all original clamps and conduits
Ensure proper clearance from moving pedals and seat mechanisms
Keep harness away from sharp edges and heated elements
Connection Sequence
Begin with main power connections and ground points
Progress to control modules and display units
Finish with switches, sensors, and accessory connections
Verify each connector clicks securely into place
Post-Installation Verification
Reconnect battery and perform initial power-up test
Check all warning lights and display functions
Test all operator controls without starting engine
Verify comfort features (AC, lights, wipers) operation
Start engine and test complete system functionality
