| Specification | Details |
|---|---|
| COGENG Part Number | CG-WH-KOB-13436 |
| OEM Part Number | LC13E01436P1 |

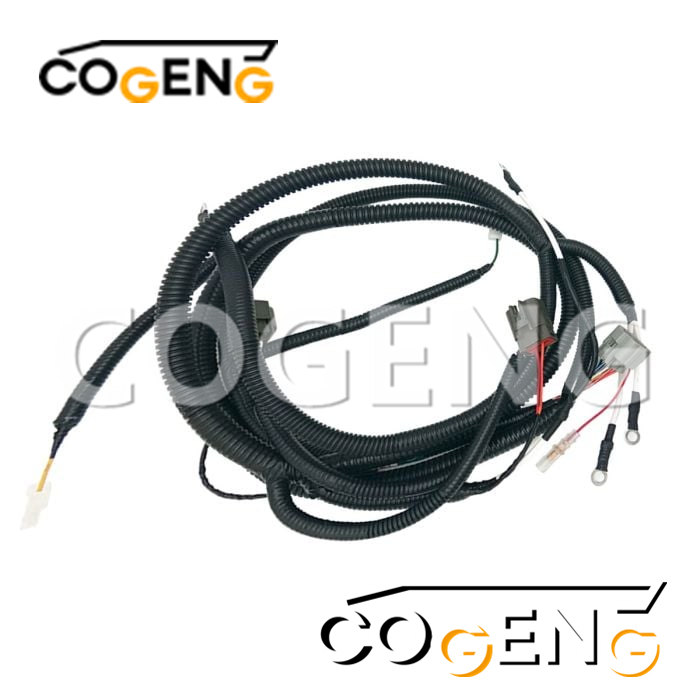

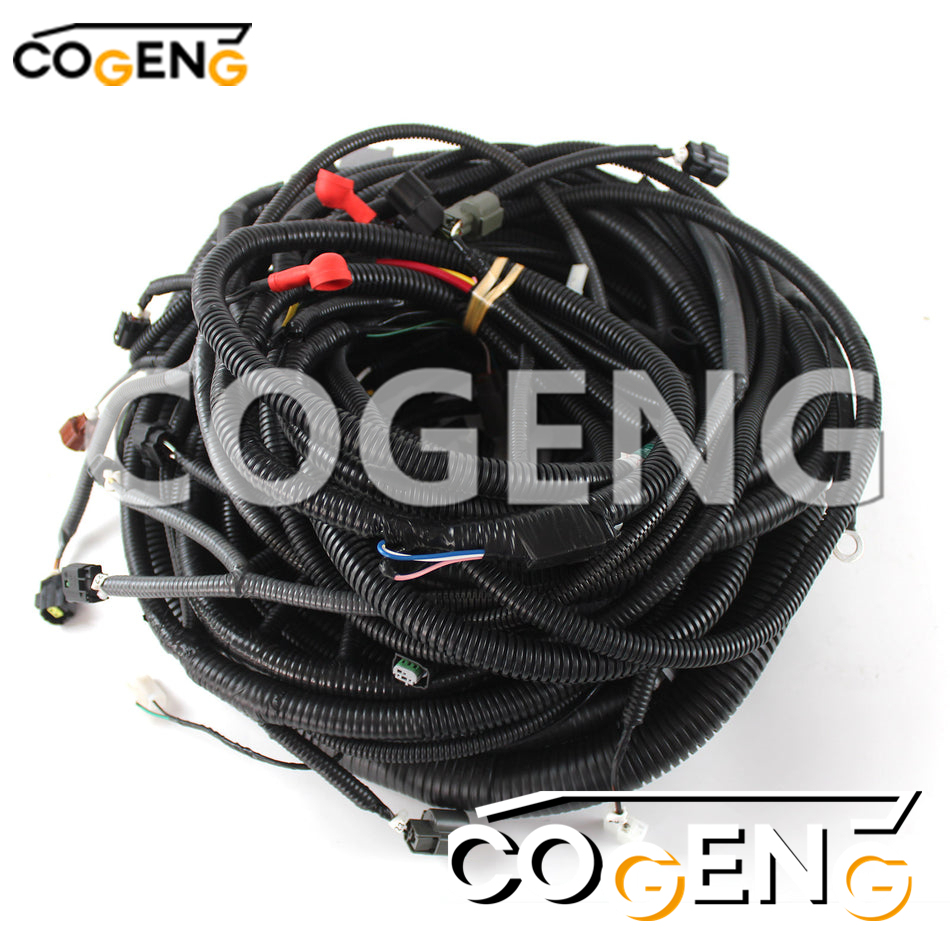

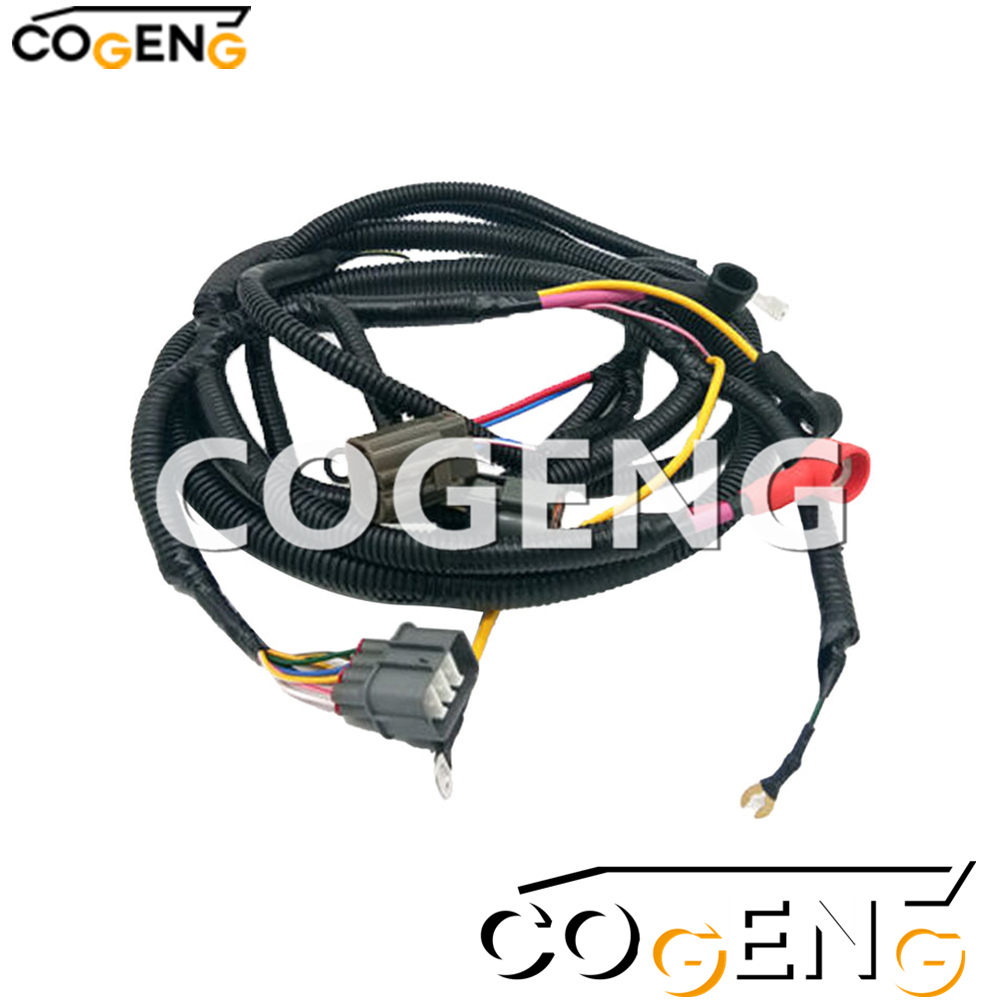

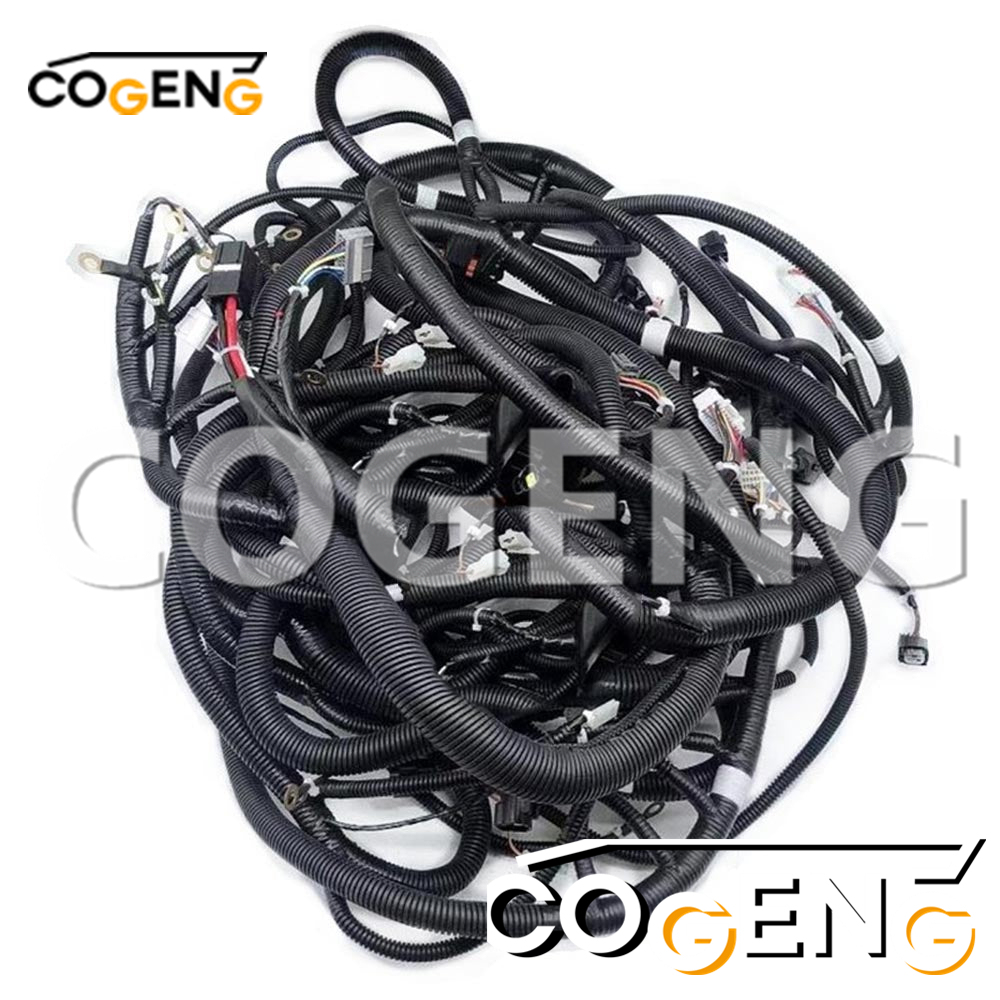

| Application | Instrument Panel Wiring Harness |
| Compatible Models | Kobelco SK130-7, SK140-7, and similar 7-Series excavators |
| Temperature Rating | -40°C to +105°C |
| Wire Construction | Thin-wall GPT insulation, precision signal-grade conductors |
| Connector Types | Sumitomo, JST, and AMP/TE Connectivity OEM equivalents |
| Circuit Protection | Integrated fuse protection matching OEM specifications |
| Shielding | Individual shielding on analog signal circuits |
| Quality Standards | ISO 9001:2015 certified manufacturing |
| Testing Protocol | 100% continuity, signal integrity, and insulation testing |
Compatibility Notes:
Specifically designed for 7-Series Kobelco excavators with standard instrument panels
Includes connectors for optional monitoring systems
Matches OEM wire colors and terminal configurations exactly
| NO | Number | Name | Qty |
| 1 | LC13E01291P1 | WIRE HARNESS HAND CONTROL | 1 |
| 2 | FY01P01043D3 | CLIP Wire Ties --188mm Long | 23 |
| 3 | YN24500010P1 | RELAY | 4 |
| 4 | YN13E01375P1 | CLIP Anchor Wire Ties | 1 |
| 5 | LC13E01436P1 | Wiring Harness | 1 |
| 6 | LC13E01438P1 | Wiring Harness | 1 |
