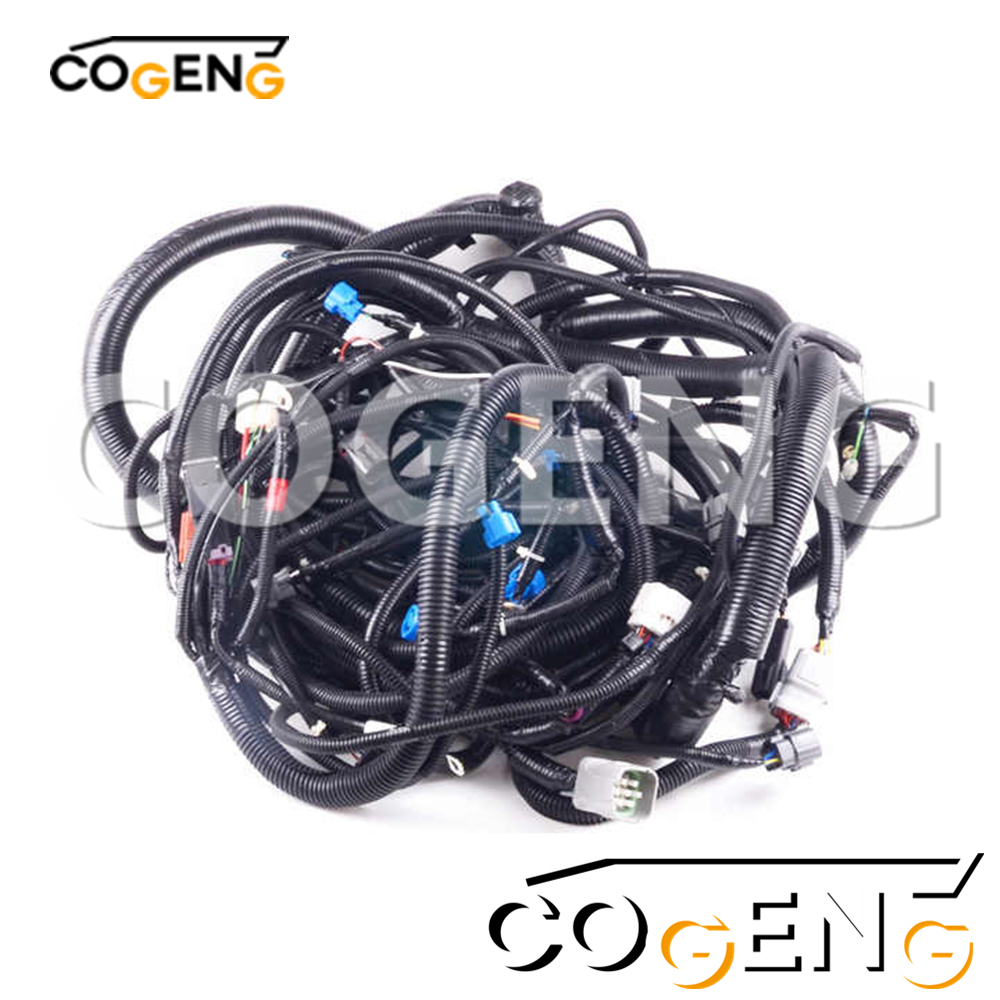

| Specification | Details |
|---|---|
| COGENG Part Number | CG-WH-KOB-13186 |
| OEM Part Number | LC13E01186P1 |
| Application | Engine Compartment Main Harness |
| Compatible Models | Kobelco SK130-7, SK140-7, and similar 7-Series excavators |
| Temperature Rating | -40°C to +150°C (high-temp areas) |
| Wire Construction | GPT and TXL cross-linked insulation where specified |
| Connector Types | Sumitomo, Deutsch, and TE Connectivity OEM equivalents |
| Circuit Protection | Heavy-duty power circuits with appropriate fuse protection |
| Environmental Rating | IP67 rated connectors, fluid-resistant conduit sections |
| Quality Standards | ISO 9001:2015 certified manufacturing processes |
| Testing Protocol | 100% continuity, hi-pot, and functional testing |

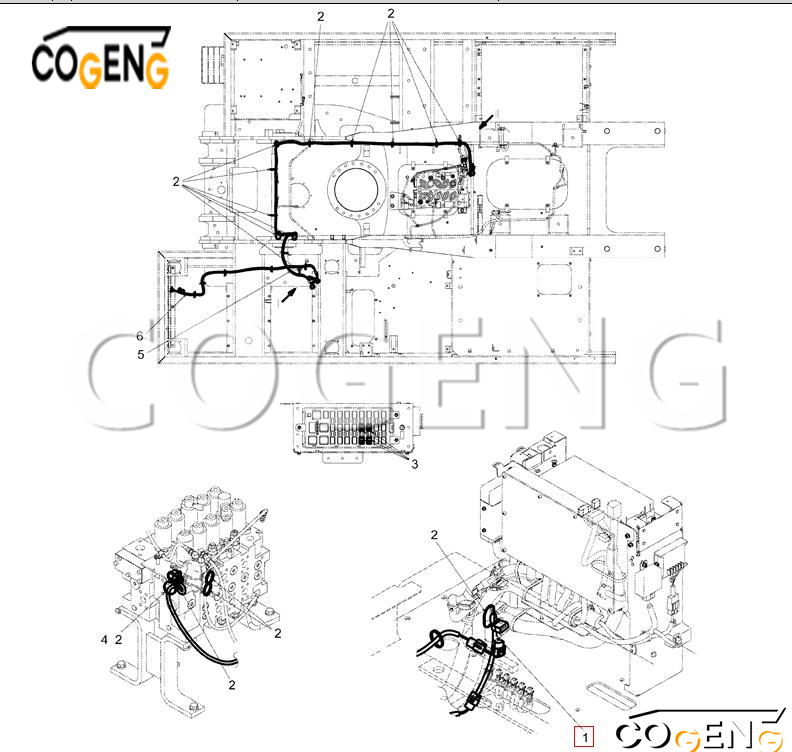

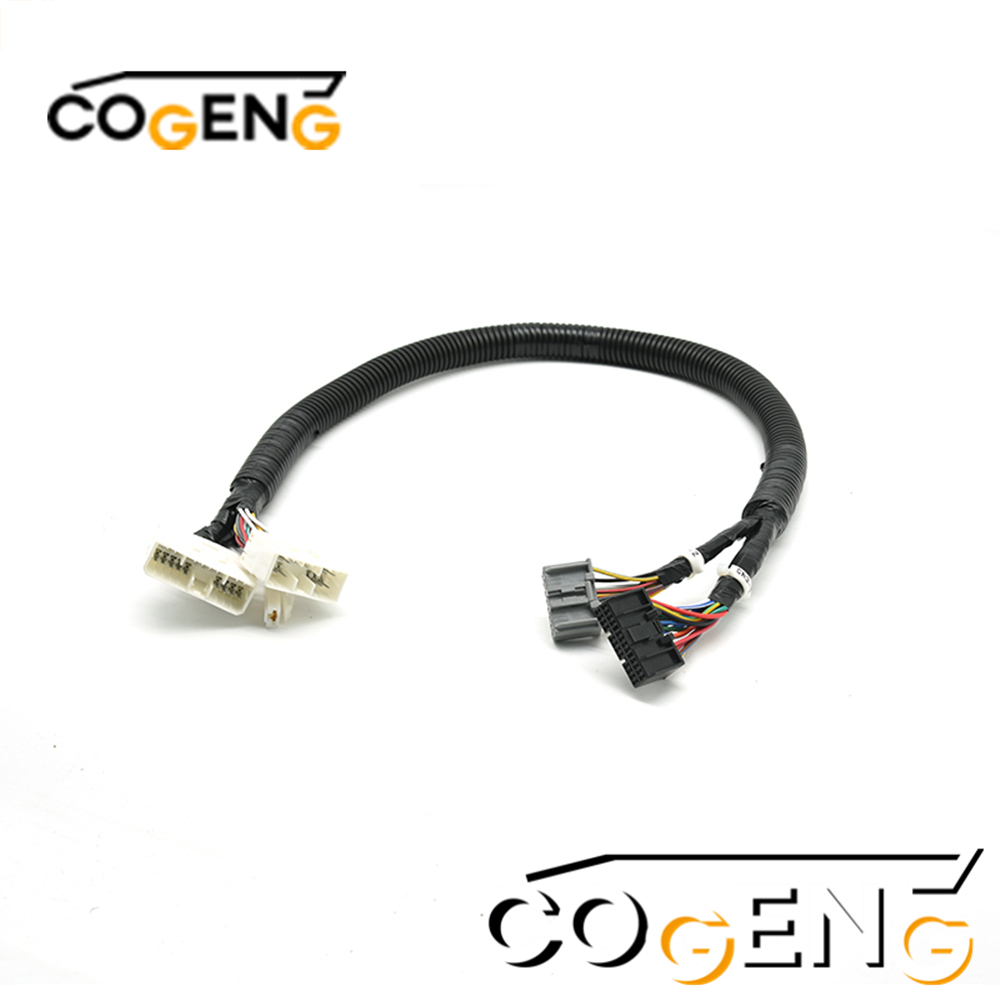

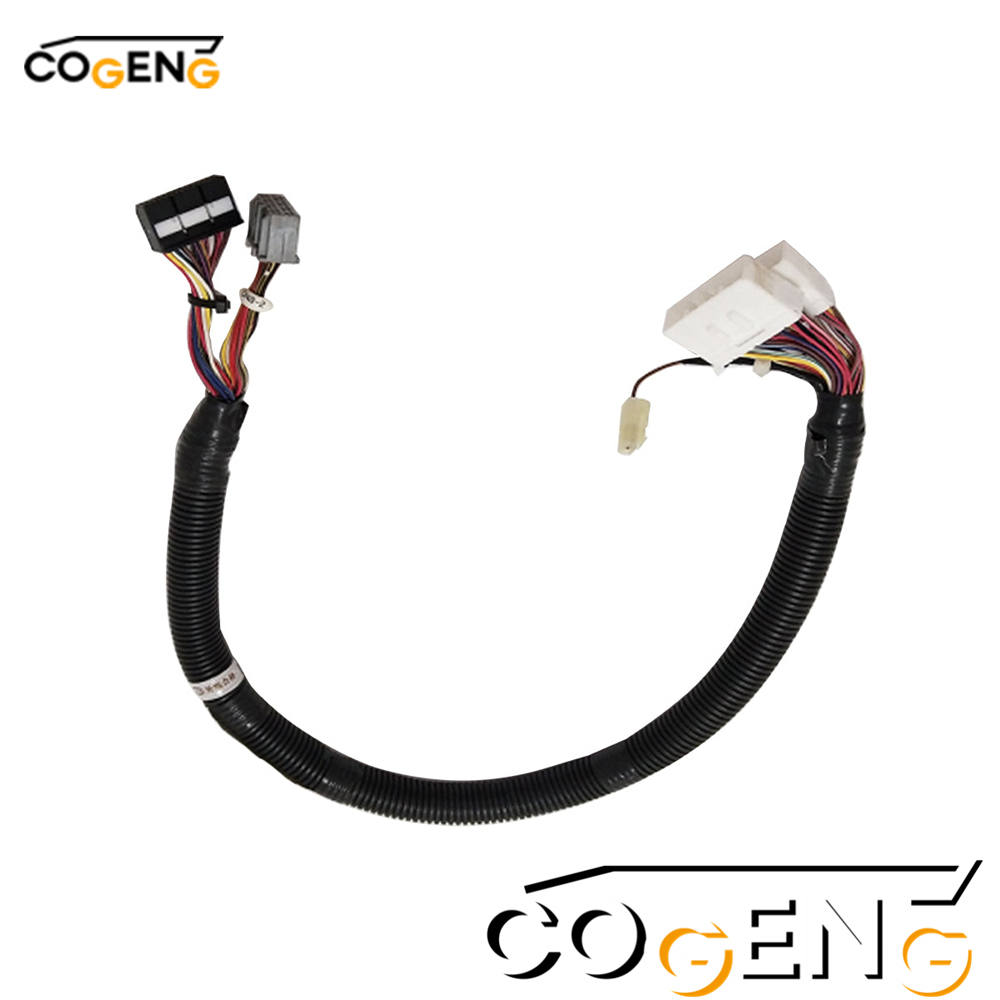

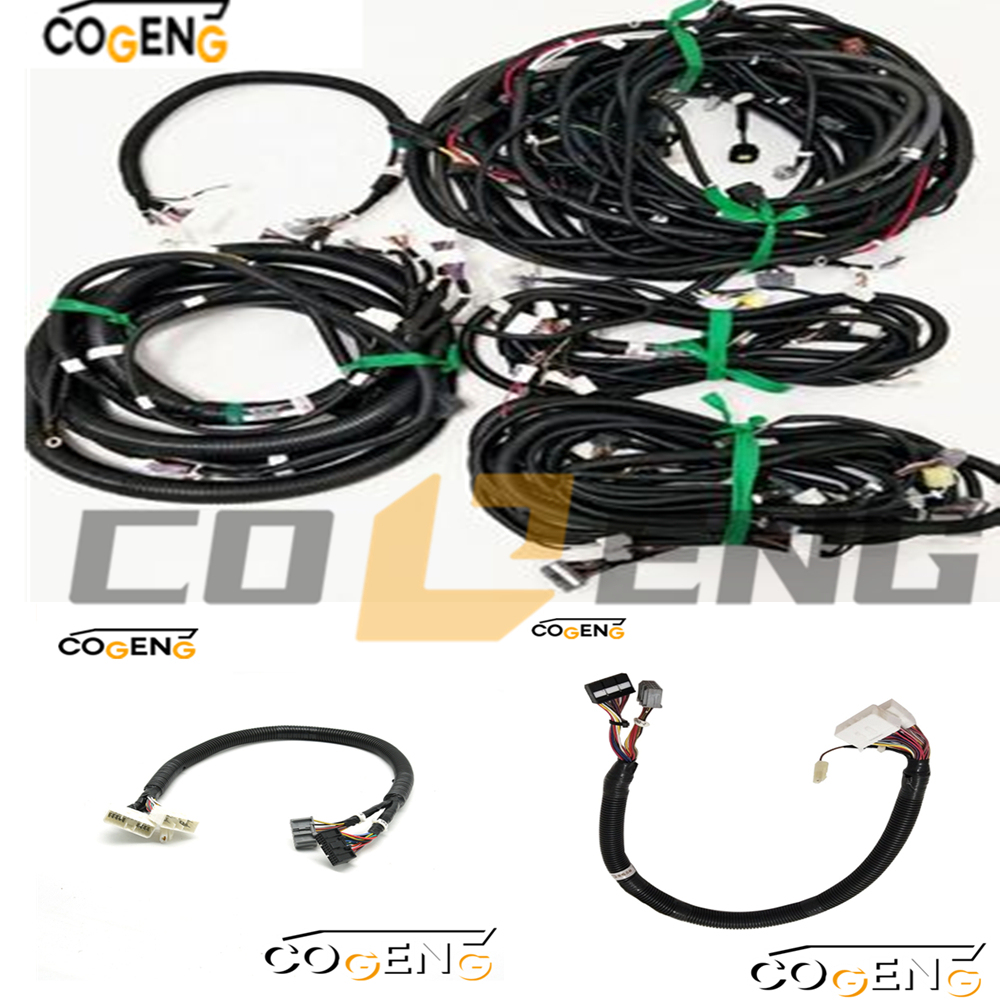

| NO | Number | Name | Qty |
| 1 | LC13E01186P1 | Wiring Harness | 1 |
| 2 | FY01P01043D3 | CLIP | 23 |
| 3 | YN24500010P1 | RELAY | 4 |
| 4 | YN13E01375P1 | CLIP | 1 |
| 5 | LC13E01436P1 | Wiring Harness | 1 |
| 6 | LC13E01438P1 | Wiring Harness | 1 |
Pre-Installation Preparation
Allow engine to cool completely before beginning work
Disconnect negative battery terminal and isolate
Clean engine compartment to prevent debris contamination
Documentation Protocol
Photograph entire original harness routing from multiple angles
Tag each connector with component identification
Note routing through all clips, brackets, and heat shields
Removal Procedure
Start by disconnecting battery and main power connections
Release all connector locks using proper tools
Note specific routing around exhaust components and moving parts
Carefully remove from all mounting points and conduits
Installation Best Practices
Verify new harness matches old one in all physical aspects
Route exactly as original, maintaining safe clearances from heat sources
Use all original mounting points with provided clips and ties
Ensure proper positioning through all protective conduits
Connection Protocol
Begin with main power and ground connections
Progress to sensor and solenoid connections
Verify all connector seals are properly seated
Ensure positive engagement with audible click
Post-Installation Verification
Reconnect battery and perform visual inspection
Start engine and check for proper operation
Monitor for any warning lights or error codes
Verify charging system operation and sensor readings
