| Part Number | VOE16213230 (also 16213230) |
| Product Type | Hydraulic / Pilot Pressure Sensor |
| Application | Volvo MC-Series Compact Excavators |
| Voltage | 24V DC |
| Output | 0.5V – 4.5V Analog (Linear) |
| Pressure Range | 0–40 MPa (0–400 bar) |
| Housing | Stainless Steel / Iron |
| Sealing | Pre-installed Rubber O-ring |
| Connector | OEM Multi-pin (Matching Original) |
| Certification | ISO9001 |
| Warranty | 6 Months |
| Stock | ✅ In Stock |
| Shipping | Express: 3–7 Days Worldwide |

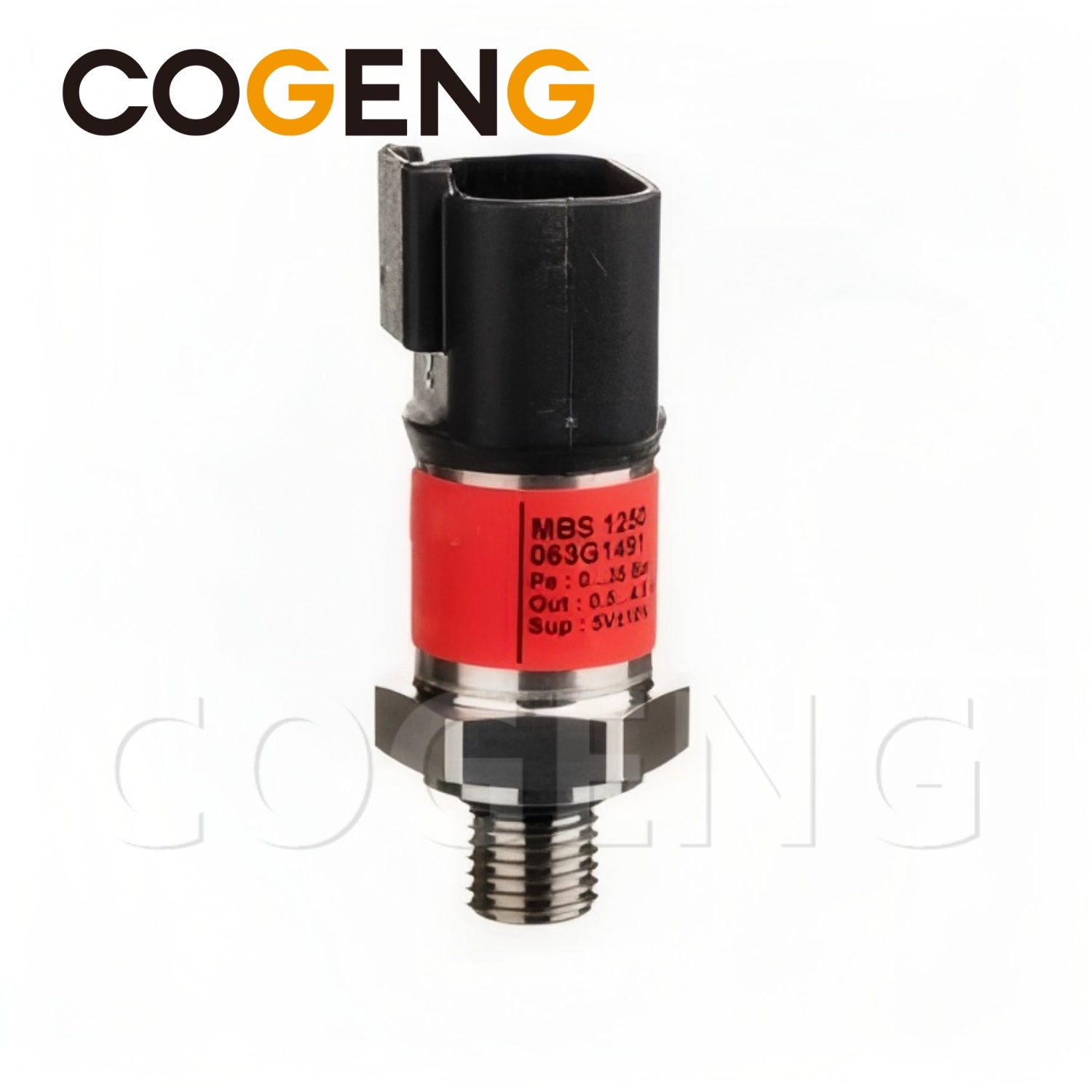

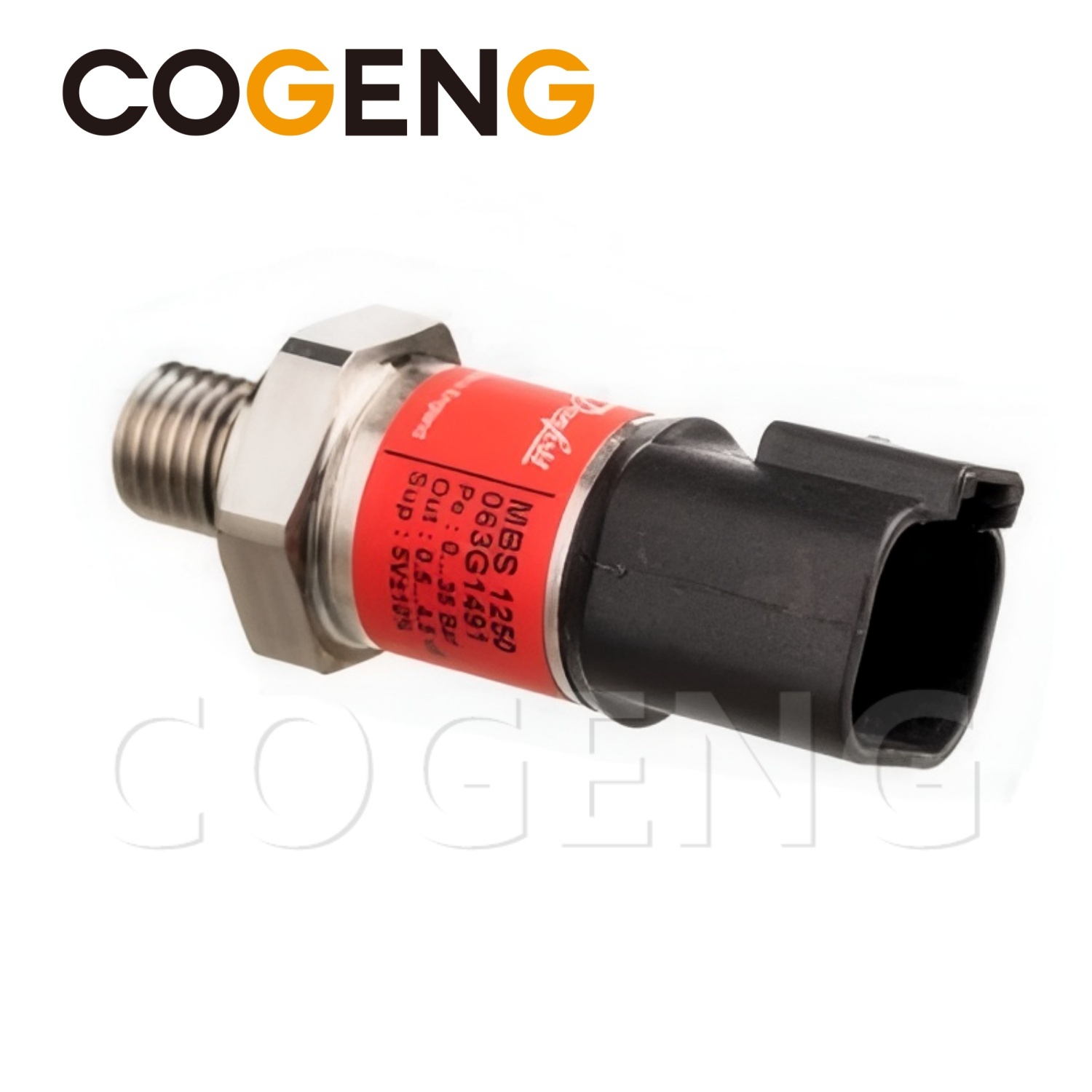

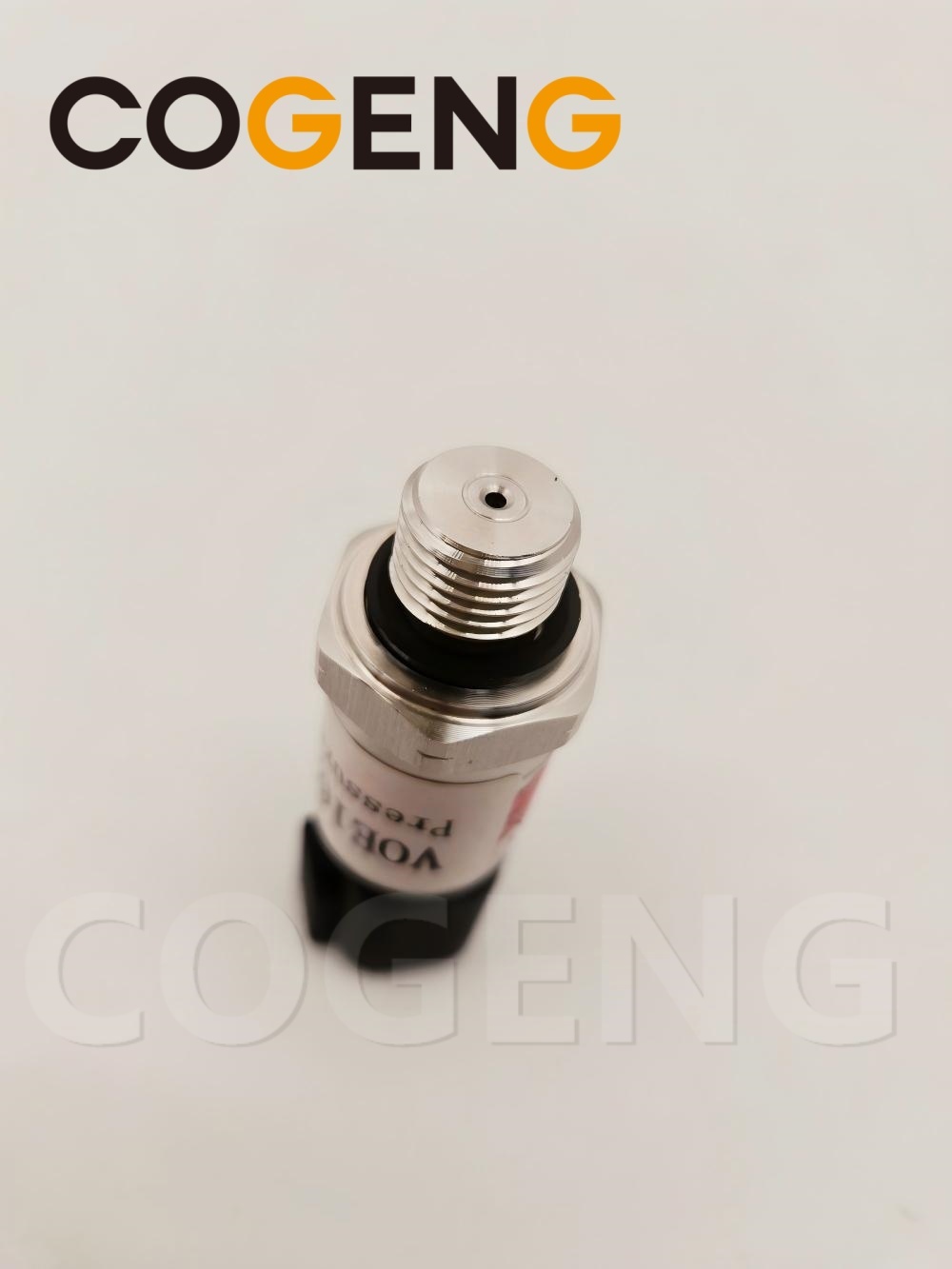

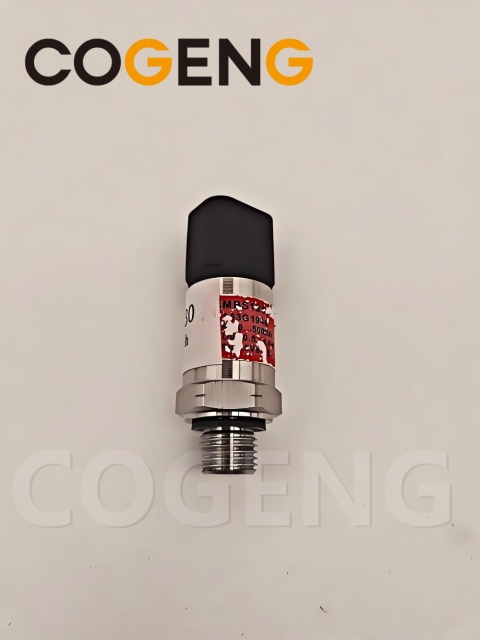

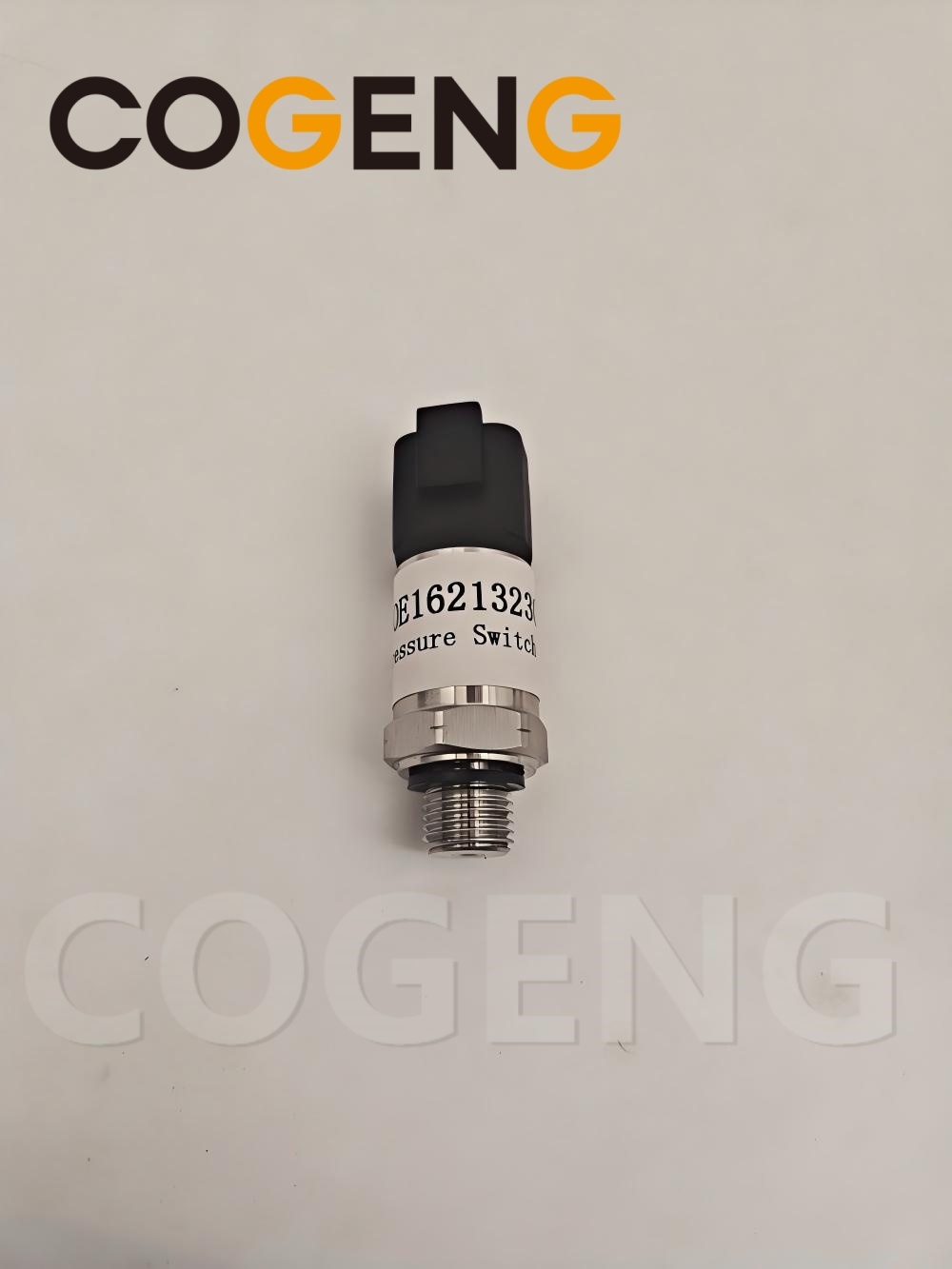

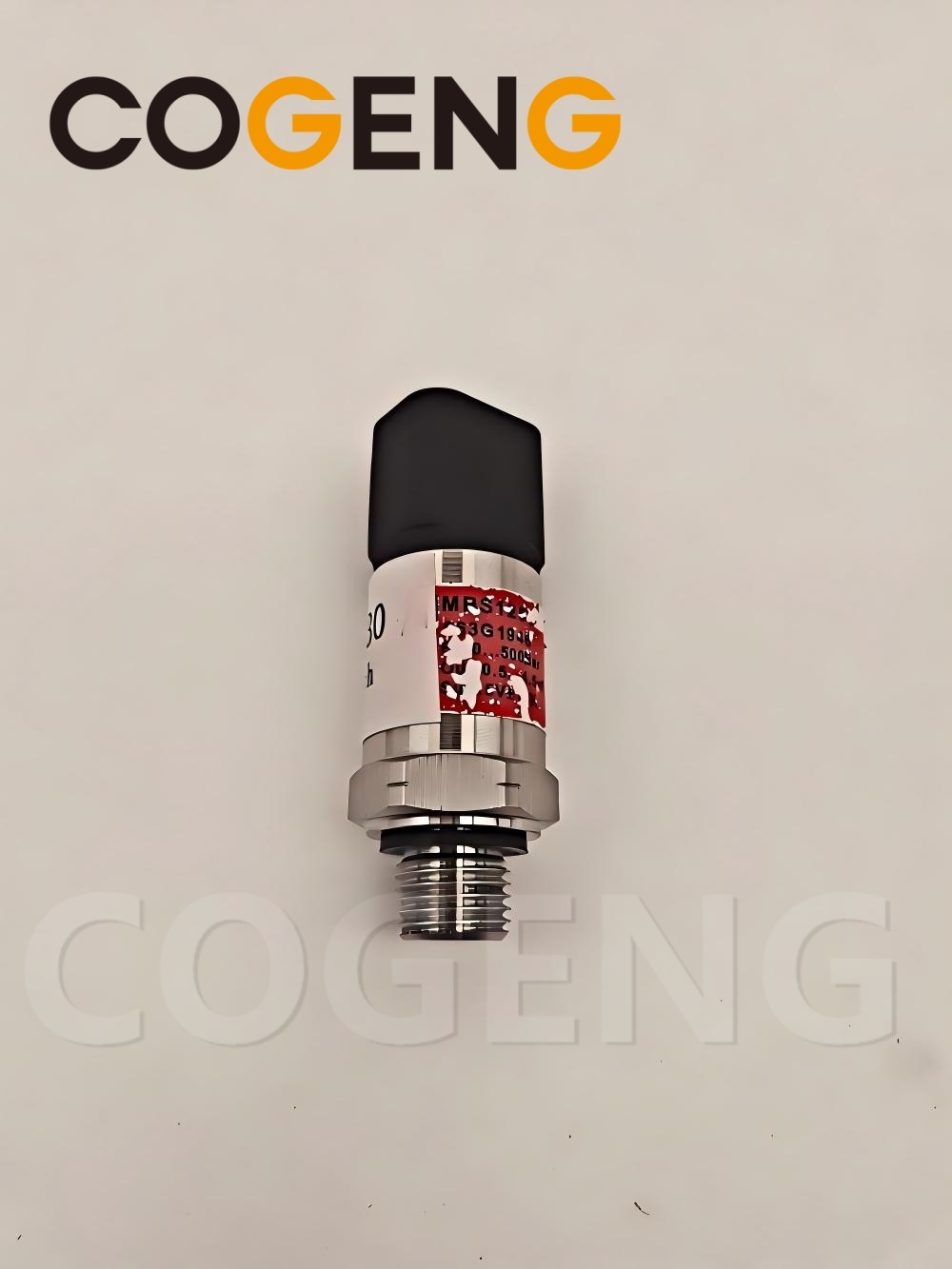

The COGENG VOE16213230 (16213230) is a direct OEM replacement hydraulic / pilot pressure sensor designed specifically for Volvo MC-Series compact excavators, including the MC60C, MC70C, MC105C, MC110C, MCT145C, and MCT95C models.
This sensor plays a critical role in the machine's hydraulic control system, monitoring pressure in:
Main hydraulic pump circuit – Load sensing and flow control
Pilot pressure circuit – Smooth joystick and pedal control
Attachment circuits – Breaker, shear, or compactor operation
Swing and travel circuits – Precise directional control
The sensor converts hydraulic pressure into an analog electrical signal (0.5V–4.5V) that is sent to the ECU (Electronic Control Unit) or MCU (Machine Control Unit) . This data enables:
| Function | Benefit |
|---|---|
| Load Sensing | Matches pump flow to demand — saves fuel |
| Overload Protection | Prevents damage from pressure spikes |
| Smooth Control | Precise, proportional hydraulic response |
| Diagnostics | Real-time fault monitoring and error logging |
| Attachment Optimization | Consistent performance for hydraulic tools |
Built to exact OEM specifications, the COGENG VOE16213230 delivers accurate, reliable, and durable performance in the most demanding compact excavator applications.
| Benefit | Description |
|---|---|
| Direct OEM Replacement | Identical fit, connector, and performance to the original Volvo part |
| High Accuracy | ±2% full-scale accuracy — precise hydraulic control |
| Wide Pressure Range | 0–40 MPa (0–400 bar) — covers all hydraulic circuits |
| Durable Construction | Stainless steel / iron housing — corrosion and vibration resistant |
| Leak-Proof | Pre-installed O-ring ensures a secure seal |
| Fast Response | <10 ms response time — real-time pressure monitoring |
| Cost-Effective | OEM quality at a fraction of the dealer price |
| In Stock | Ready for immediate shipment |
| Model | Series | Compatibility |
|---|---|---|
| Volvo MC60C | C-Series | ✅ Direct Fit |
| Volvo MC70C | C-Series | ✅ Direct Fit |
| Volvo MC105C | C-Series | ✅ Direct Fit |
| Volvo MC110C | C-Series | ✅ Direct Fit |
| Volvo MCT145C | C-Series | ✅ Direct Fit |
| Volvo MCT95C | C-Series | ✅ Direct Fit |
Other compatible models (verify before purchase):
| Model | Compatibility |
|---|---|
| Volvo MC70B | ⚠️ Check connector type |
| Volvo MC110B | ⚠️ Check connector type |
| Volvo ECR145C | ✅ Likely compatible |
| Volvo ECR88C | ⚠️ Verify |
⚠️ Always verify your original part number before ordering.
| Item | Qty |
|---|---|
| Pressure Sensor Assembly | 1 |
| Rubber O-ring (Pre-installed) | 1 |
| Protective Shipping Cap | 1 |
| Quick Installation Guide | 1 |
| Parameter | Specification |
|---|---|
| Part Number | VOE16213230 / 16213230 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Pressure Range | 0 – 40 MPa (0 – 400 bar) |
| Output Signal | 0.5V – 4.5V Analog (Linear) |
| Output at 0 MPa | 0.5V (±0.1V) |
| Output at 40 MPa | 4.5V (±0.1V) |
| Accuracy | ±2% Full Scale |
| Response Time | <10 ms |
| Operating Voltage | 5V DC (from ECU) |
| Current Consumption | <15 mA |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -50°C to +130°C |
| Thread Size | 1/8-27 NPT or M10x1 |
| Hex Size | 19mm / 22mm / 24mm |
| Housing Material | Stainless Steel / Zinc-plated Iron |
| Diaphragm Material | Stainless Steel |
| Seal Material | Nitrile Rubber (NBR) |

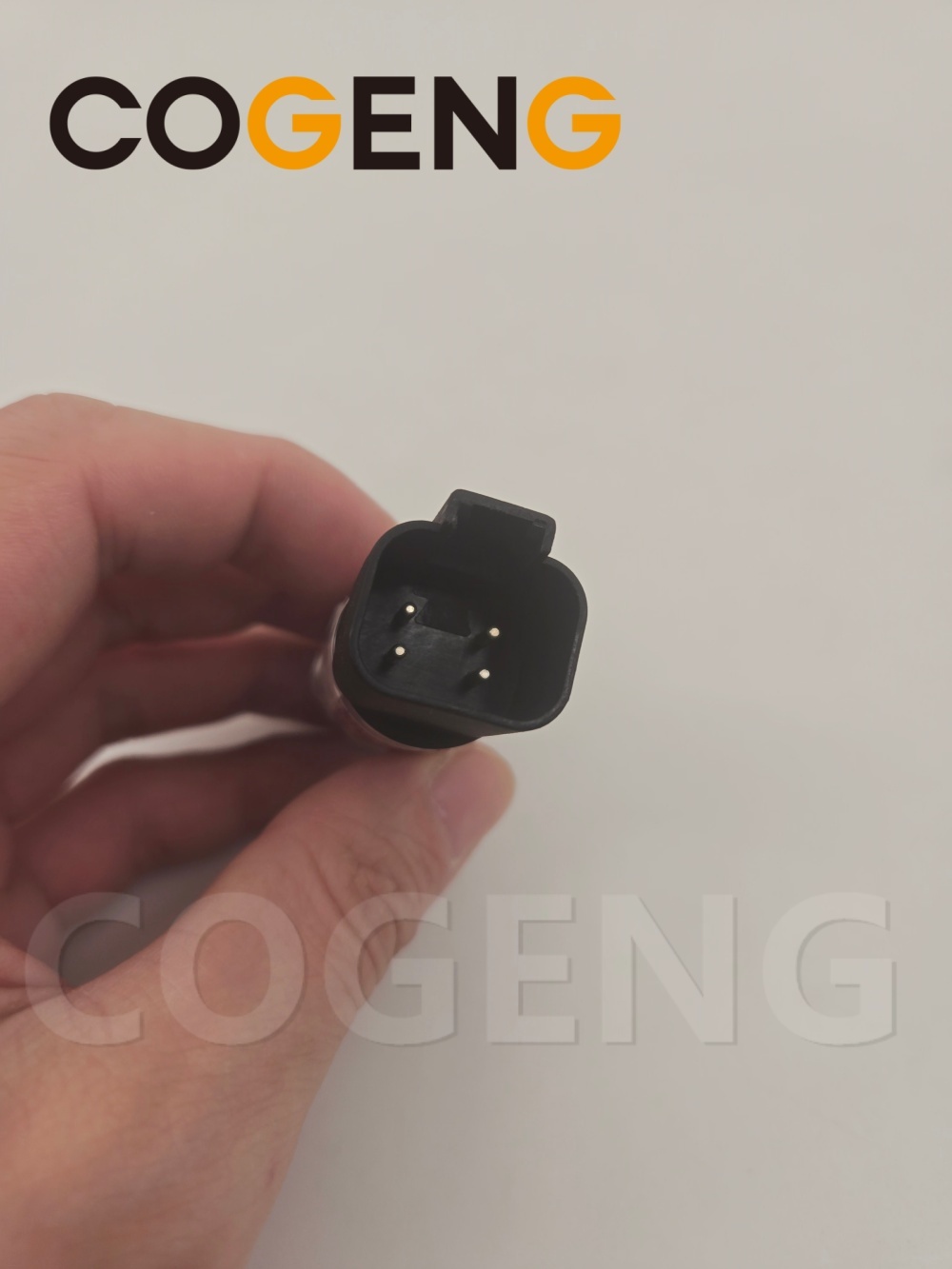

| Connector Type | 2-pin or 3-pin (matching original) |
| Protection Class | IP67 (Waterproof when mated) |
| Vibration Resistance | 20g (10–2000 Hz) |
| Shock Resistance | 100g (11 ms) |
| ISO Standard | ISO9001:2015 |
| Country of Origin | China (Guangdong) |
| HS Code | 90262090 |
| Weight | Approx. 100g |
Q: Is this a genuine Volvo OEM part?
A: No — this is a high-quality COGENG aftermarket replacement built to OEM specifications.
Q: What does this pressure sensor monitor?
A: It monitors hydraulic or pilot pressure in the main pump, control valve, or attachment circuits.
Q: Will this fit my Volvo MC60C?
A: Yes — it is specifically designed for the MC60C.
Q: Will this fit my Volvo MC70C?
A: Yes — it is specifically designed for the MC70C.
Q: Will this fit my Volvo MC105C?
A: Yes — it is specifically designed for the MC105C.
Q: Will this fit my Volvo MC110C?
A: Yes — it is specifically designed for the MC110C.
Q: Will this fit my Volvo MCT145C?
A: Yes — it is specifically designed for the MCT145C.
Q: Will this fit my Volvo MCT95C?
A: Yes — it is specifically designed for the MCT95C.
Q: What is the pressure range of this sensor?
A: The sensor measures 0–40 MPa (0–400 bar) , suitable for all hydraulic circuits.
Q: What is the output signal?
A: 0.5V – 4.5V analog signal (linear).
Q: Do I need to use thread sealant?
A: No — the pre-installed rubber O-ring provides a complete seal. Never use PTFE tape.
Q: Is this sensor in stock for immediate shipping?
A: ✅ Yes — ready to ship immediately.
Q: How long does shipping take?
A: Express (DHL/FedEx/UPS/TNT) — 3–7 business days worldwide.
Q: What is the warranty?
A: COGENG provides a 6-month warranty against manufacturing defects.
| Order Detail | Information |
|---|---|
| MOQ | 1 piece accepted |
| Shipping | DHL / FedEx / UPS / TNT — 3~7 Business Days |
| Payment | T/T, Western Union, L/C, MoneyGram, D/A, D/P |
| Warranty | 6 Months |
| Origin | Guangdong, China |
For pricing, bulk orders, or technical support, contact your COGENG supplier today.
Please provide your machine model and serial number for compatibility verification.
✅ Direct OEM Replacement.
✅ High Accuracy — 0–40 MPa Range.
✅ In Stock — Fast Shipping Worldwide.
