COGENG VOE14512670  Engine Harness Volvo EC290B D7D

Product Parameter Table

PRODUCT OVERVIEW

The COGENG Engine Wiring Harness, primary part number 14512406 and cross-referenced with associated part numbers 14512670 and 14513137, is a precision-manufactured, comprehensive engine management electrical distribution harness engineered as a direct, form-fit-function replacement for the Volvo D7D LAE3 diesel engine platform as installed in the Volvo EC290B series hydraulic excavator. This harness represents the complete electrical infrastructure that connects the Engine Control Module (ECM) to every engine-mounted sensor, actuator, and fuel system component, while simultaneously managing the high-speed CAN bus data interface with the machine's Vehicle Electronic Control Unit (VECU), hydraulic pump controller, and operator monitoring display. The 14512406 harness is the definitive service replacement for the engine electrical system on one of Volvo's most successful and widely deployed 30-ton class excavator platforms.

The Volvo EC290B is a 28- to 30-ton class hydraulic excavator that has earned a global reputation for exceptional fuel efficiency, operator comfort, and structural durability in the most demanding construction, quarry, demolition, and heavy infrastructure applications. Powered by the Volvo D7D LAE3—a 7.1-liter, inline six-cylinder, turbocharged and aftercooled, electronically controlled diesel engine—the EC290B delivers the high torque, low emissions, and reliable performance that have made Volvo excavators a preferred choice for contractors worldwide. The D7D engine employs an advanced electronic management system that controls every aspect of combustion: high-pressure unit injector fuel delivery with precise electronic timing and quantity control; variable geometry turbocharging (VGT) or electronic wastegate control to optimize boost pressure across the engine's full operating range; exhaust gas recirculation (EGR) for emissions compliance; and a comprehensive network of pressure, temperature, speed, and position sensors that provide the ECM with real-time data on engine operating conditions.

The 14512406 harness is the physical layer that enables this sophisticated engine management strategy. It carries precision analog signals from the intake manifold pressure and temperature sensor, coolant temperature sensor, oil pressure and temperature sensors, fuel pressure sensor, and atmospheric pressure sensor. It transmits high-frequency digital pulse trains from the camshaft position sensor and crankshaft speed sensor that allow the ECM to calculate engine speed and piston position with sub-millisecond accuracy. It delivers the precisely timed, high-current drive signals that actuate the six electronic unit injectors (EUIs), each requiring a specific current profile to achieve the correct injection rate shape for optimal combustion. It carries the control signals for the VGT or wastegate actuator, the EGR valve, and the engine cooling fan clutch. And it maintains the bidirectional CAN bus data link that enables real-time, coordinated communication between the engine ECM and the machine's VECU, ensuring seamless engine-to-hydraulic power matching. The operating environment for this harness is exceptionally demanding. The engine bay of an EC290B working in a hard rock quarry is filled continuously with fine, abrasive stone dust. Ambient temperatures around the engine exceed 70°C during sustained heavy digging, with localized hot spots near the exhaust manifold and turbocharger reaching surface temperatures that rapidly degrade standard insulation. Continuous vibration from the engine and the high-pressure hydraulic pumps, shock loads from the digging cycle, and regular high-pressure steam cleaning all contribute to the progressive degradation of the OEM harness.

The failure modes of the OEM 14512406/14512670/14513137 harness are systematic. Heat-induced insulation embrittlement causes microscopic cracking, allowing moisture ingress and "green wire" copper corrosion that increases circuit resistance and corrupts sensor signals. Fretting corrosion at the ECM connector pins, driven by continuous micro-vibration, creates intermittent high-resistance connections. Chafing at contact points wears through the protective conduit and insulation. COGENG's aftermarket harness definitively resolves these failures. We use XLPE-insulated wire rated for 125°C continuous operation, multi-layer thermal shielding in exhaust-adjacent zones, self-fusing silicone tape at every branch junction for permanent waterproof sealing, and precision-machined, gold-plated ECM connector contacts to prevent fretting. Every terminal is solid-barrel and crimped using computer-monitored presses. Built on a precision OEM jig, this harness is a true drop-in replacement.

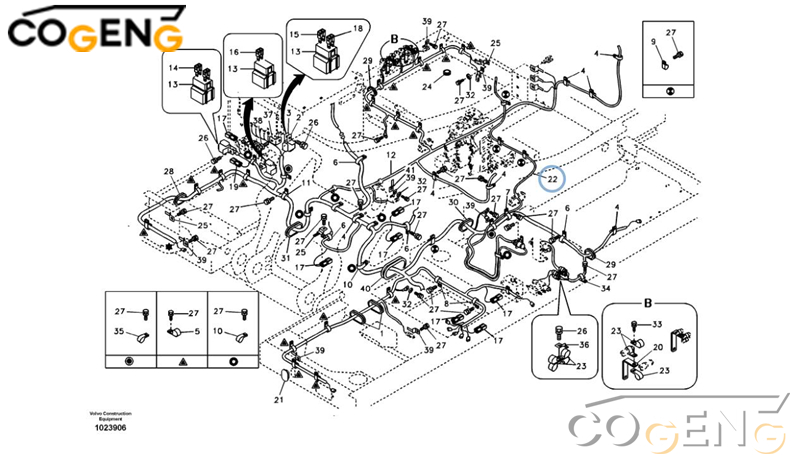

Parts list

COMPATIBLE EXCAVATORS & ENGINES

The 14512406 harness is specifically designed for Volvo D7D LAE3 engine installations in the EC290B series excavator platform. The associated part numbers 14512670 and 14513137 are electrically and physically interchangeable. Always provide your complete machine PIN and engine serial number for final compatibility verification.

Decompose pictures


PARTS LIST (Included in Package)

1. Complete Engine Wiring Harness Assembly (1 unit): Fully assembled, jig-built harness with all connectors, solid-barrel terminals, protective conduit sheathing, thermal shielding layers, factory-positioned P-clips, and heat-shrink printed identification labels pre-installed.

2. Integrated ECM Connector Assembly: The primary ECM connector body, fully populated with gold-plated machined socket contacts, silicone interfacial seal, and adhesive-lined heat shrink strain relief boot.

3. All Sensor, Actuator, and Injector Connectors: Every branch is pre-terminated with solid-barrel contacts, silicone wire seals, and plastic cavity plugs in unused positions. Includes the six electronic unit injector (EUI) connectors with high-current-rated terminals.

4. High-Current Power and Ground Terminals: Heavy-gauge alternator, starter motor, and battery cables terminated with tin-plated, closed-barrel copper ring terminals, each sealed with dual-wall adhesive-lined heat shrink.

5. Anti-Static Protective Bag and Heavy-Duty Export Carton: Sealed in a silver anti-static moisture barrier bag and flat-packed in a rigid, double-wall corrugated carton with "Do Not Cut — Electrical Harness Inside" labels.

DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)

Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.

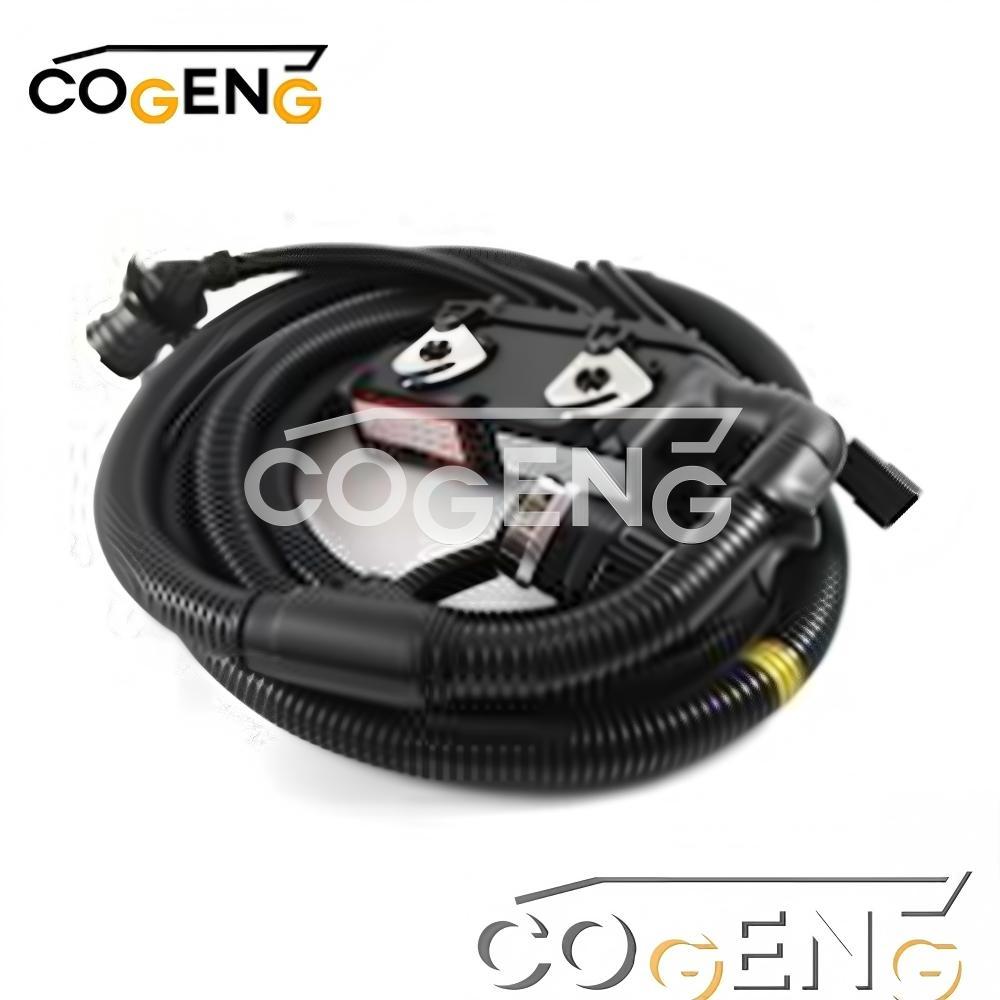

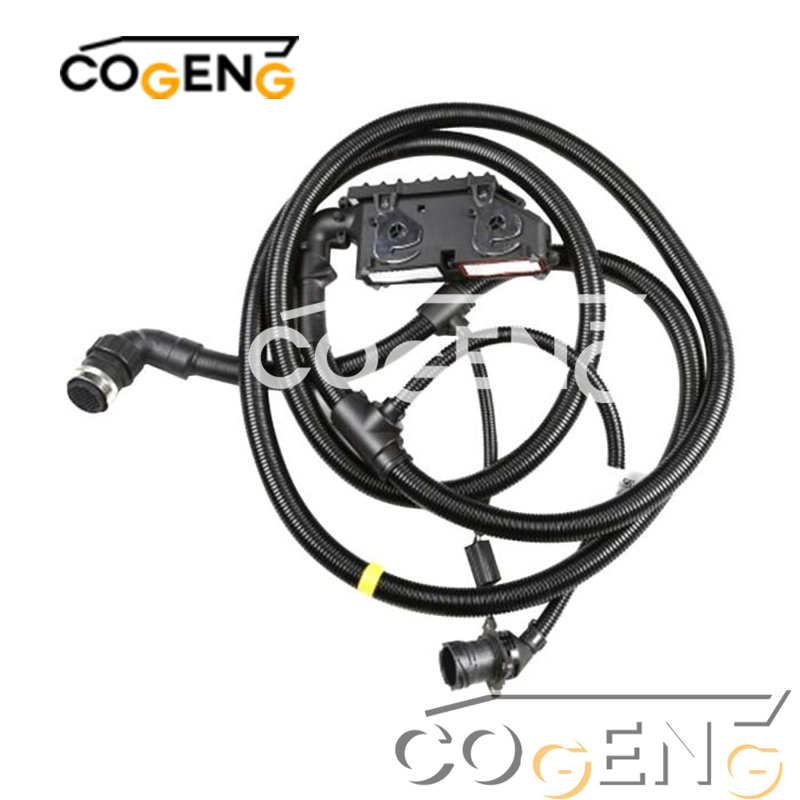

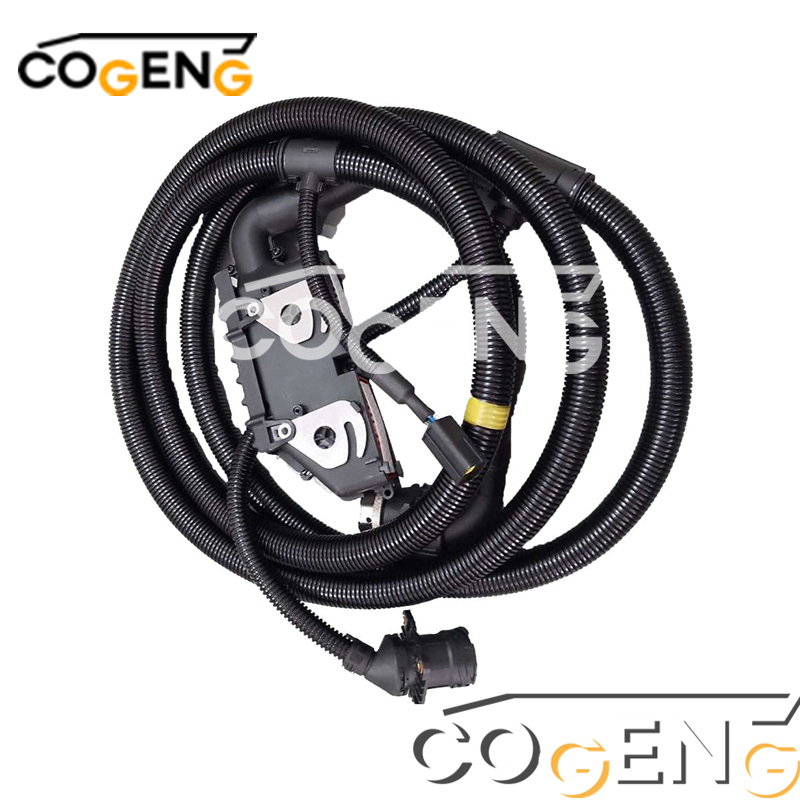

Image 1: Complete Harness Assembly — Jig Board Layout
A wide-angle overhead view of the entire harness laid out on a calibrated precision engineering jig board. The harness displays the characteristic multi-branch topology of a D7D engine harness. The main trunk, wrapped in heavy-duty black high-temperature split-loom nylon conduit, routes along the engine block. Branches extend to the six electronic unit injectors, the high-pressure fuel pump, the VGT or wastegate turbocharger actuator, the EGR valve and differential pressure sensor, the intake manifold temperature and pressure sensor, the coolant temperature sensor, the oil pressure and temperature sensors, the camshaft and crankshaft position sensors, and the atmospheric pressure sensor. Each branch is tagged with a white heat-shrink printed identification label.

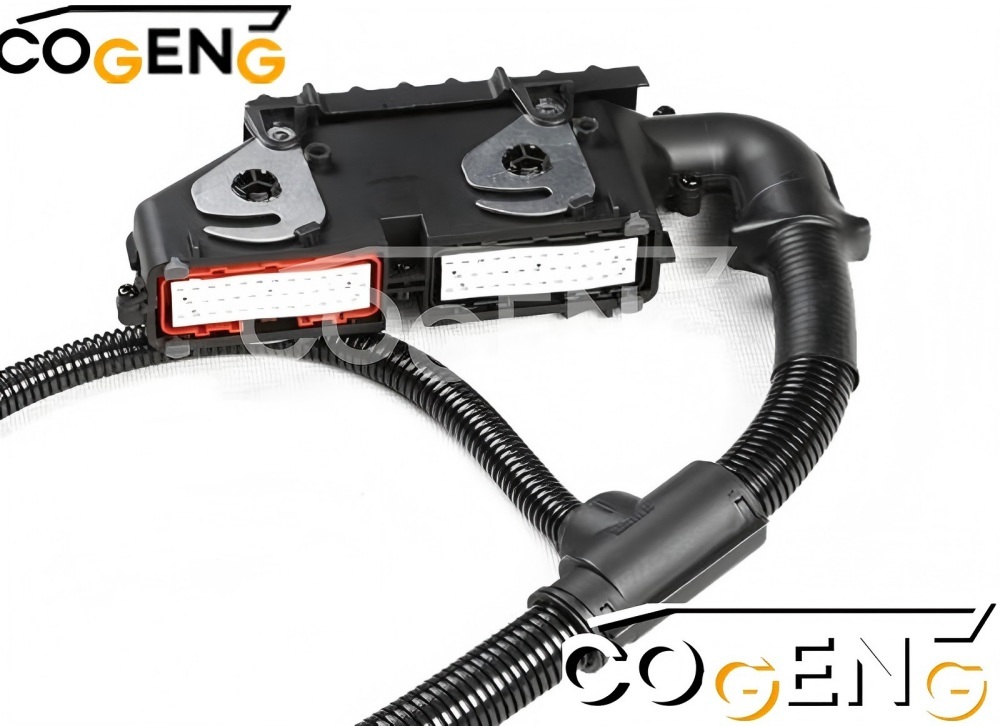

Image 2: Main ECM Connector — High-Magnification Macro Detail
A close-up image of the primary ECM connector with the locking mechanism open, revealing the precisely aligned grid of gold-plated machined socket contacts. The silicone interfacial seal surrounds the pin field. The backshell is fully encapsulated in a thick-walled, adhesive-lined heat shrink boot providing complete 360-degree environmental sealing and mechanical strain relief.

Image 3: Electronic Unit Injector (EUI) Branch — High-Current Circuit Protection
This image focuses on one of the six EUI injector connectors. The branch features appropriately specified heavy-gauge wire for the high actuation currents required by the electronic unit injectors. The protective sheathing includes chemical-resistant PET braided sleeving over self-fusing silicone tape. The connector is a high-current-rated Deutsch design with silver-plated contacts.

Image 4: Turbocharger & Exhaust Zone Branch — Multi-Layer Thermal Protection
A cross-sectional cutaway view of a branch leg for the exhaust-adjacent zone. The multi-layer thermal protection system includes an inner PTFE tape wrap, a reflective aluminized fiberglass sleeve, and an outer flexible stainless steel wire overbraid. The branch terminates in a high-temperature-rated ceramic-insert Deutsch connector.

Image 5: Heavy-Gauge Power Terminal — Macro Detail
A macro photograph of a main alternator power cable termination showing the precise hexagonal crimp barrel compression pattern and the glossy, dual-wall adhesive-lined heat shrink seal with a visible adhesive bead at both edges, confirming a permanent moisture-proof environmental seal.

COMPATIBILITY NOTES: CRITICAL VERIFICATION GUIDE

1. 14512406, 14512670, 14513137 — Interchangeable Part Numbers: These three part numbers are electrically and physically interchangeable. They represent the same core engine harness with minor production revisions or different OEM supplier codes. If your machine has a harness labeled 14512670 or 14513137, the 14512406 is the correct direct replacement.

2. Volvo D7D LAE3 Engine Specificity: This harness is designed exclusively for machines powered by the Volvo D7D LAE3 electronic diesel engine. It is not compatible with the earlier D7C mechanical engine, the D6E engine, or the later D8H engine used in the EC290C and subsequent models. Verify your engine serial number.

3. EC290B Series Specificity: This harness is for the B-Series EC290 excavator platform (EC290B, EC290B LC, EC290B LR). It is not compatible with the earlier EC290A or the later EC290C models, which use different electrical architectures and ECM generations.

4. LC and LR Variants: The Long Carriage (LC) and Long Reach (LR) variants of the EC290B share the same D7D engine installation and engine harness as the standard EC290B. The 14512406 is the correct harness for all three configurations.

5. Professional Installation Required: This harness routes through the tight engine bay of a 30-ton class excavator. Installation should be performed by a qualified technician with access to the Volvo service manual and diagnostic software (VCADS Pro or Tech Tool) for post-installation verification.

INSTALLATION DECOMPOSITION DIAGRAM

Note: This is a step-by-step textual guide corresponding to a numbered visual installation diagram.

Step 1: Safety Lockout and Documentation
Red lockout symbol over battery: "Disconnect negative (-) and positive (+) battery cables. Lock out master disconnect switch. Wait 60 seconds." Camera icon: "Photograph every aspect of existing harness routing. Document all P-clips, routing around exhaust and turbo, injector connector locations, and all connector orientations."

Step 2: Old Harness Systematic Removal

• Label every connector with numbered wire tags.

• Disconnect all sensors: intake manifold pressure/temperature, coolant temperature, oil pressure/temperature, fuel pressure, camshaft position, crankshaft speed, atmospheric pressure, EGR sensors.

• Disconnect actuators: six electronic unit injector connectors, VGT or wastegate actuator, EGR valve, engine cooling fan clutch.

• Disconnect main ECM connector.

• Disconnect power cables from alternator, starter motor, battery junction.

• Cut zip ties, release P-clips, remove old harness.

Step 3: New Harness Visual Comparison
Uncoil new COGENG harness beside old harness. Compare ECM connector, injector connectors, branch lengths, connector types, ring terminal diameters. Verify every match before proceeding.

Step 4: New Harness Routing and Connection

• Route harness following photographic reference. Secure loosely at all P-clip locations.

• Connect ECM connector first.

• Systematically reconnect all sensor, actuator, and injector branches.

• Install and torque all power ring terminals to OEM specifications.

• Tighten all P-clips. Install new high-temperature zip ties. Verify clearance from exhaust, turbo, and all moving linkages.

Step 5: Power-Up and Full Functional Test
Reconnect batteries. Connect Volvo VCADS Pro or Tech Tool. Verify no active diagnostic trouble codes (DTCs). Start engine. Verify immediate oil pressure. Monitor all engine parameters. Warm to operating temperature. Cycle all hydraulic functions. Confirm zero DTCs after complete test.

🚚 SHIPPING DETAILS & RETURN POLICY

Shipping Details

Return Policy

FREQUENTLY ASKED QUESTIONS

Q1: What is the difference between part numbers 14512406, 14512670, and 14513137?
A: These three part numbers are functionally and electrically identical. They represent the same Volvo D7D engine harness with minor production revisions or different supplier codes. All three numbers are completely interchangeable. You can replace a harness labeled 14512670 or 14513137 with the 14512406 with full confidence.

Q2: What are the symptoms of a failing D7D engine harness?
A: Common symptoms include multiple unrelated diagnostic trouble codes appearing simultaneously, intermittent ECM communication loss, engine derate or shutdown during operation, rough running or misfiring, visible chafing or melted insulation on the harness, and green corrosion at connector backshells. A "wiggle test" while monitoring live data with VCADS Pro or Tech Tool that causes sensor values to drop out is a definitive diagnosis.

Q3: Does this harness include the injector wiring?
A: Yes. The 14512406 harness includes the external wiring and connectors for the six D7D electronic unit injectors. The injector harness that runs under the valve cover—if your engine configuration includes one—is a separate internal component.

Q4: Will this harness fit both the standard EC290B and the LR long-reach variant?
A: Yes. The EC290B LC and EC290B LR variants share the same D7D engine installation and engine wiring harness as the standard EC290B. The 14512406 is the correct harness for all EC290B series configurations.

Q5: Do I need Volvo diagnostic software to complete the installation?
A: Physical installation can be done with standard hand tools. However, Volvo VCADS Pro or Tech Tool diagnostic software is essential for post-installation verification—checking for DTCs, monitoring live sensor data, and confirming proper ECM and VECU communication. We strongly recommend installation by a technician with access to the correct Volvo diagnostic tools.

📞 CONTACT & ORDERING

For pricing, machine-down emergency support, fleet quantity discounts, or pre-purchase compatibility verification, contact your COGENG supplier today.

Sales Price: Contact COGENG sales customer service for the most current competitive pricing and volume discount structures.
Shipping Method & Cost: We will quote the optimal shipping solution for your location and urgency. DDP terms available for select countries.
Estimated Delivery Time: Based on the selected carrier. Tracking provided within one business day of dispatch.

✅ Direct OEM Replacement — Jig-Built for Guaranteed Fit, No Cutting or Splicing Required.
✅ Volvo D7D LAE3 Engine Harness — Validated for EC290B, EC290B LC, and EC290B LR Platforms.
✅ Severe-Duty Construction — XLPE Wire, Gold-Plated ECM Terminals, EUI-Rated High-Current Circuits, Multi-Layer Thermal Shielding.
✅ In Stock & Ready to Ship — Minimize Excavator Downtime with Immediate Worldwide Dispatch.

Critical Action: To ensure 100% compatibility, please provide your machine's complete Product Identification Number (PIN), the D7D engine serial number, and a clear photo of your existing harness label and ECM connector face. Our technical team will cross-reference your build configuration and provide written confirmation before you order.
Merchant Return Policy: All products shipped are not returnable or exchangeable. Please complete all compatibility checks before purchase.
