| Parameter | Specification |
|---|---|
| Product Name | Low Pressure Sensor |
| COGENG Part Number | KM15-P02 (KM15P02) |
| OEM Equivalent | Sumitomo KM15-P02, KM15P02 |
| Product Type | Hydraulic Low Pressure Sensor |
| Sensor Type | Piezoresistive pressure transducer |
| Output Type | 4-20 mA or 0.5-4.5V (application dependent) |
| Application | Pilot pressure, return line pressure, low-pressure circuits |
| Compatible Models | Sumitomo SH200, SH210, SH240, SH250 Excavators |
| Material | Iron + Rubber (seals: NBR / FKM) |
| Packing | PP bag inside, carton box outside |
| Place of Origin | Guangdong, China |
| Brand Name | COGENG |
| Certification | ISO9001 |
| Supply Capacity | 500 PCS |
| Brand | Part Number |
|---|---|
| COGENG | KM15-P02, KM15P02 |
| Sumitomo | KM15-P02, KM15P02 |
| Interchange | KM15-P03, KM15-P04, KM15-P05, KM15-P06 |
| Parameter | Specification |
|---|---|
| Supply Voltage | 8-36V DC (typically 24V system) |
| Output Signal | 4-20 mA (current loop) or 0.5-4.5V analog |
| Current Draw | ≤ 25 mA |
| Response Time | < 5 ms |
| Insulation Resistance | ≥100MΩ @ 500V DC |
| Reverse Polarity Protection | Yes |
| Overvoltage Protection | Yes |
| Parameter | Specification |
|---|---|
| Pressure Range | 0 - 50 bar (0 - 725 psi) |
| Measurement Type | Gauge pressure |
| Accuracy | ±1.0% to ±2.0% of full scale |
| Overpressure Limit | 75 bar (1,088 psi) |
| Burst Pressure | 100 bar (1,450 psi) |
| Compensated Temperature | -40°C to +105°C |
| Pressure (bar) | Pressure (psi) | Output (mA) | Condition |
|---|---|---|---|
| 0 | 0 | 4.0 ±0.1 | No pressure |
| 12.5 | 181 | 8.0 ±0.1 | Low pressure |
| 25 | 363 | 12.0 ±0.1 | Medium pressure |
| 37.5 | 544 | 16.0 ±0.1 | High pressure |
| 50 | 725 | 20.0 ±0.1 | Maximum pressure |
| Pressure (bar) | Pressure (psi) | Output (V) | Condition |
|---|---|---|---|
| 0 | 0 | 0.5 ±0.1 | No pressure |
| 12.5 | 181 | 1.5 ±0.1 | Low pressure |
| 25 | 363 | 2.5 ±0.1 | Medium pressure |
| 37.5 | 544 | 3.5 ±0.1 | High pressure |
| 50 | 725 | 4.5 ±0.1 | Maximum pressure |
| Parameter | Specification |
|---|---|

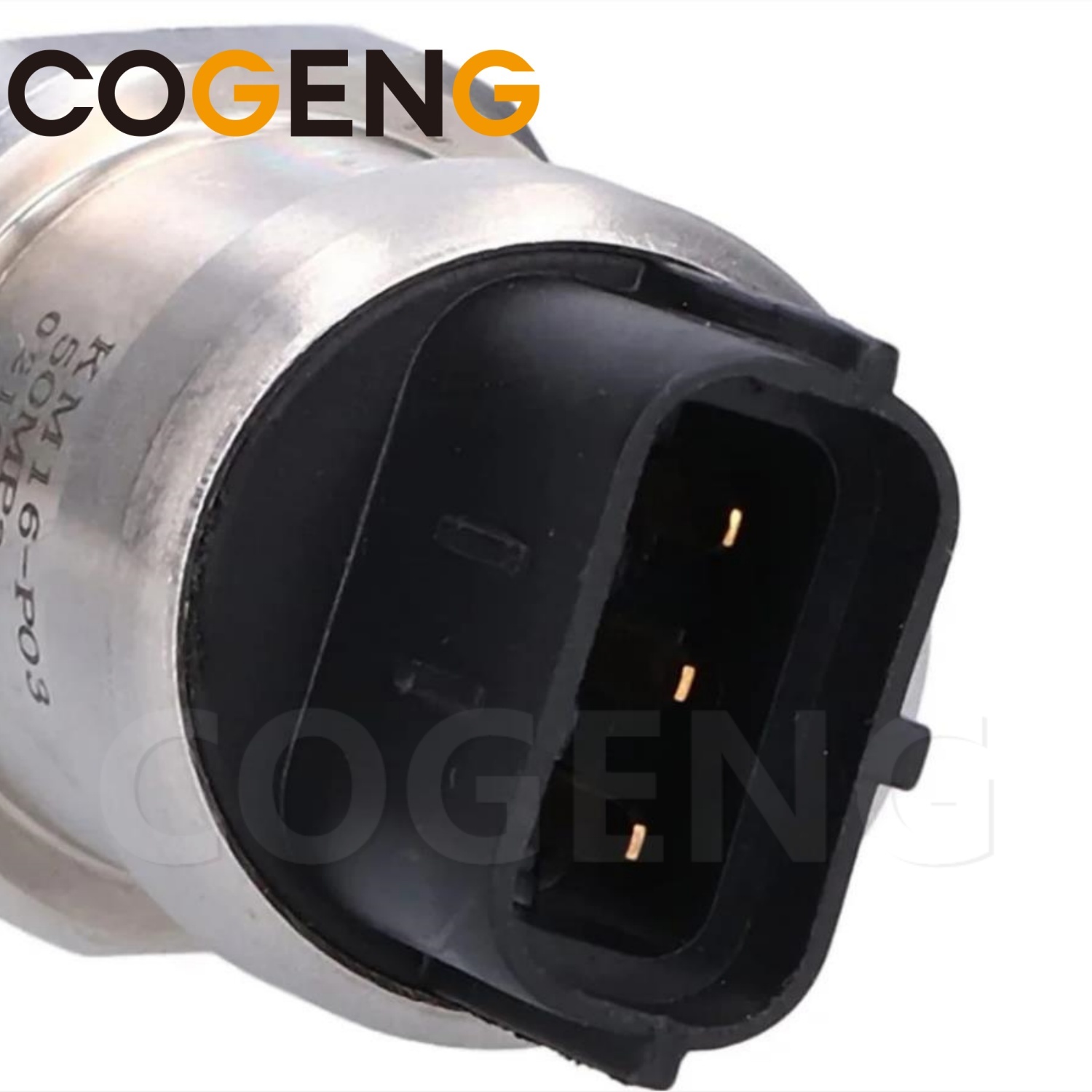

| Connector Type | 3-pin Deutsch DT / AMP |
| Mounting Thread | 1/4"-18 NPT or 7/16-20 UNF (OEM spec) |
| Hex Size | 19 mm (3/4") or 22 mm (7/8") |
| Housing Material | Stainless steel / Zinc-nickel plated steel |
| Diaphragm Material | 17-4PH stainless steel |
| Seal Material | NBR / FKM (Viton) |
| Weight | 0.08 - 0.12 kg (0.18 - 0.26 lbs) |
| Overall Length | 55-65 mm |
| Model | Series | Application |
|---|---|---|
| SH200 | Standard | Low pressure monitoring (pilot, return) |
| SH200-3 | Dash 3 | Low pressure monitoring |
| SH200-5 | Dash 5 | Low pressure monitoring |
| SH200-6 | Dash 6 | Low pressure monitoring |
| SH200-8 | Dash 8 | Low pressure monitoring |
| Model | Series | Application |
|---|---|---|
| SH210 | Standard | Low pressure monitoring |
| SH210-3 | Dash 3 | Low pressure monitoring |
| SH210-5 | Dash 5 | Low pressure monitoring |
| SH210-6 | Dash 6 | Low pressure monitoring |
| SH210-8 | Dash 8 | Low pressure monitoring |
| Model | Series | Application |
|---|---|---|
| SH240 | Standard | Low pressure monitoring |
| SH240-3 | Dash 3 | Low pressure monitoring |
| SH240-5 | Dash 5 | Low pressure monitoring |
| SH240-6 | Dash 6 | Low pressure monitoring |
| SH240-8 | Dash 8 | Low pressure monitoring |
| Model | Series | Application |
|---|---|---|
| SH250 | Standard | Low pressure monitoring |
| SH250-3 | Dash 3 | Low pressure monitoring |
| SH250-5 | Dash 5 | Low pressure monitoring |
| SH250-6 | Dash 6 | Low pressure monitoring |
| SH250-8 | Dash 8 | Low pressure monitoring |

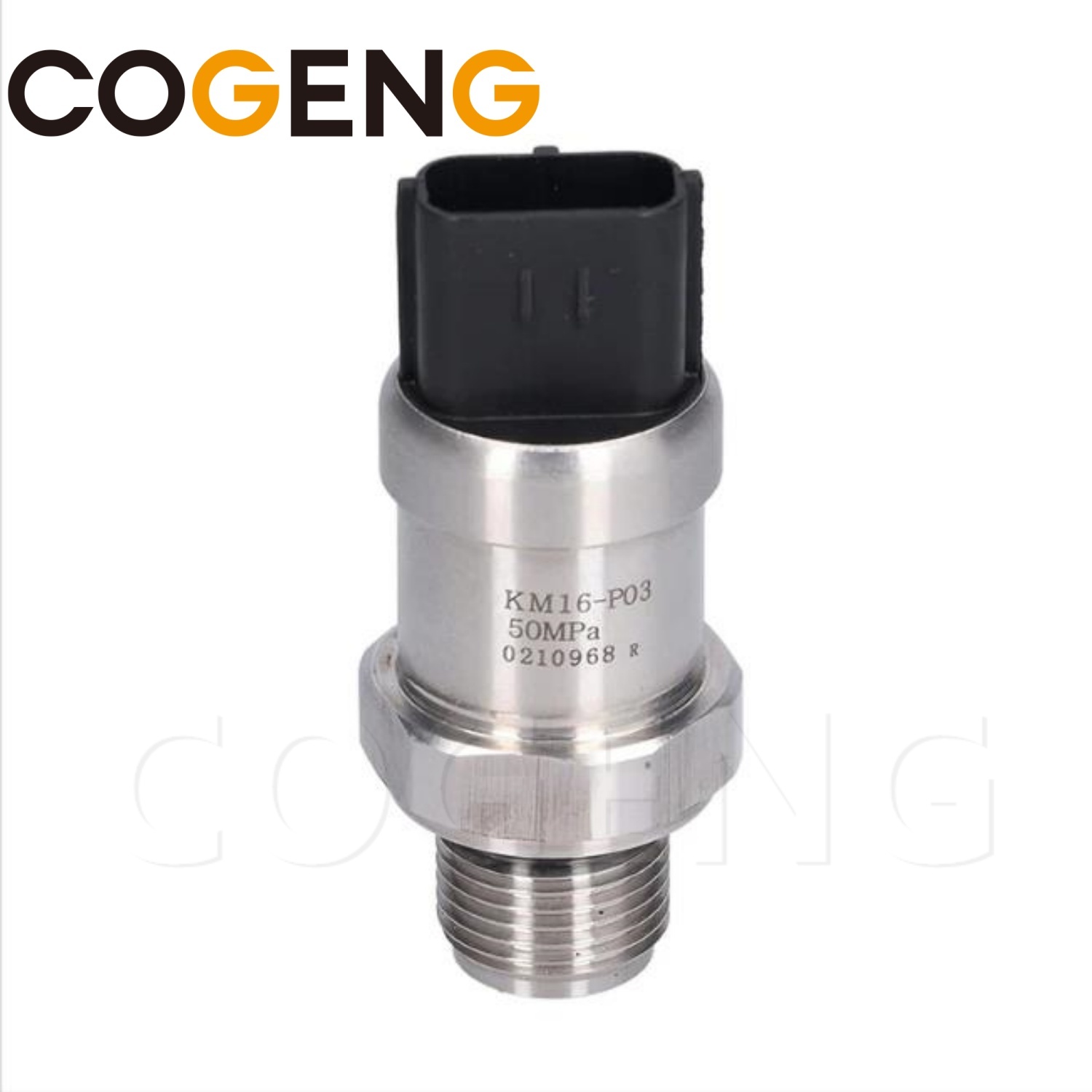

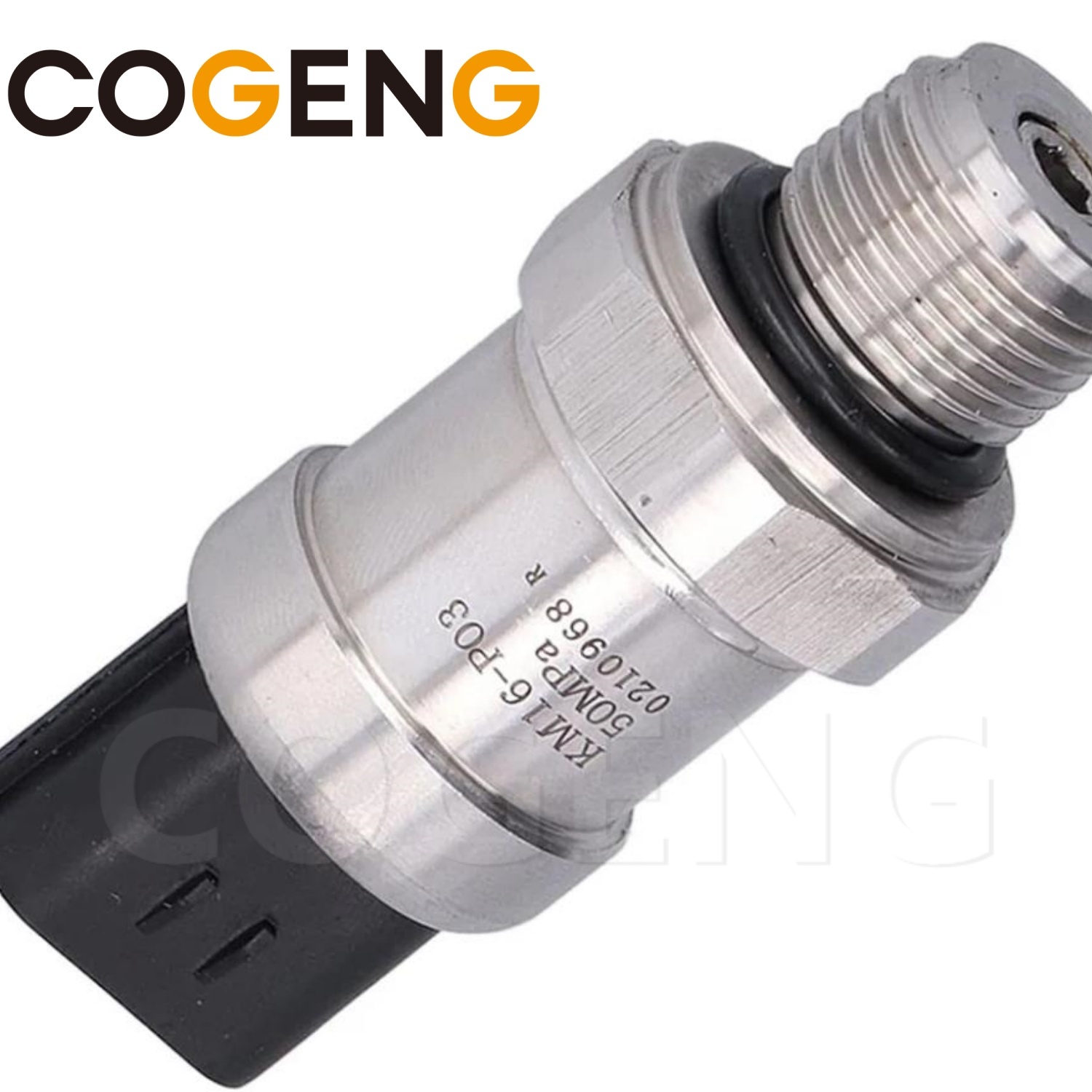

Application Table for COGENG KM16-P03 Pressure Sensor
| Equipment Series | Specific Models |
|---|---|
| SH200 Series | SH200-3, SH200-5, SH200-6, SH200LC-3, SH200LC-5, SH200LC-6 |
| SH210 Series | SH210-3, SH210-5, SH210-6, SH210LC-3, SH210LC-5, SH210LC-6 |
| SH240 Series | SH240-3, SH240-5, SH240-6, SH240LC-3, SH240LC-5, SH240LC-6 |
| Extended Compatibility | SH130, SH140, SH160, SH220, SH260, SH280, SH300, SH350, SH460 |
Compatible OEM Part Numbers
Sumitomo KM16-P03 (primary - standard pressure range)
Sumitomo KM16-P04 (alternative - different pressure range)
Sumitomo KM16-P05 (alternative - high pressure version)
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Hydraulic pressure sensor / pressure transducer |
| Output Signal | Analog (typically 0.5–4.5V or 4–20mA) |

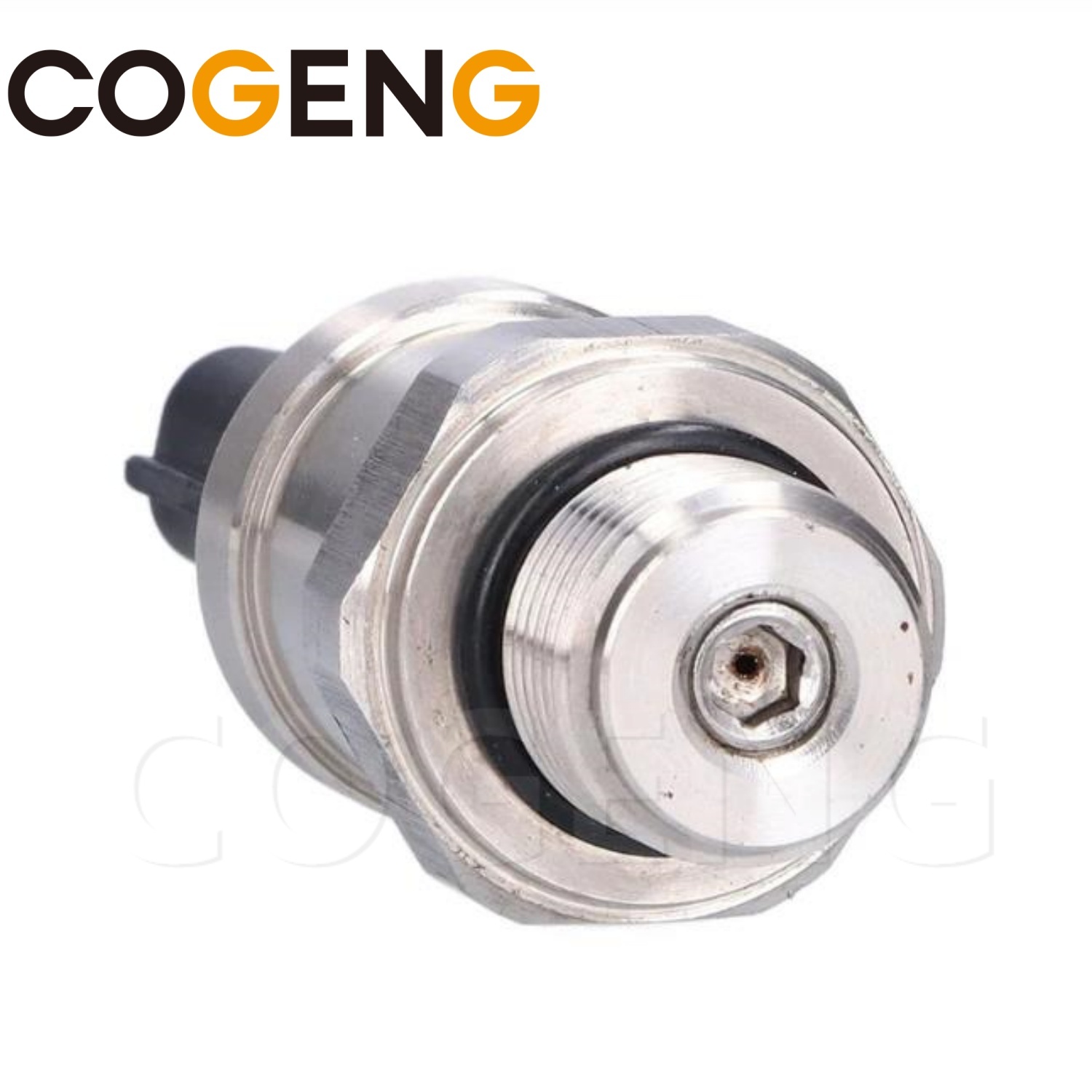

| Thread Size | Typically M16 x 1.5 (confirm with original) |
| Pressure Range | Typically 0–250 bar or 0–350 bar |
| Operating Temperature | -40°C to +125°C |
| Sealing | O-ring seal (included) |
Installation Tips
Clean the mounting port before installation
Check O-ring condition (replace if damaged)
Tightening torque: 20–30 Nm (do not over-tighten)
Do not use thread sealant on O-ring sealed connections
Verify pressure range matches original sensor specifications
Common Failure Symptoms
Inaccurate hydraulic operation
Slow or jerky implement movement
Error codes on monitor panel
Reduced machine performance
Q: What Sumitomo models use the KM16-P03 pressure sensor?
A: The COGENG KM16-P03 pressure sensor is a direct OEM replacement specifically designed for Sumitomo SH200, SH240, and SH250 excavator models. This sensor is typically used in the hydraulic system for monitoring pump discharge pressure, pilot pressure, or other critical pressure circuits. Always verify this part number against your machine's parts manual or the original sensor's identification markings to confirm exact compatibility before ordering.
Q: What are the symptoms of a failing pressure sensor on a Sumitomo excavator?
A: Common symptoms include inaccurate or erratic pressure readings on the monitor panel, active diagnostic trouble codes related to the pressure sensor circuit, degraded hydraulic performance or unexpected power reduction, the machine entering a failsafe or limp mode, intermittent hydraulic function response, or the engine control system failing to properly match engine speed to hydraulic load demand. A faulty pressure sensor can significantly impact overall machine performance, digging force, and fuel efficiency.
Q: How does the pressure sensor affect excavator operation?
A: The KM16-P03 sensor provides real-time hydraulic pressure data to the machine's electronic control system. This information is used to manage pump displacement, engine speed matching, and implement response. Accurate pressure sensing is essential for smooth hydraulic operation, preventing system overloads, and optimizing fuel consumption.
Q: Is this sensor a direct plug-and-play replacement?
A: Yes, the COGENG KM16-P03 sensor is manufactured to exact OEM specifications for thread size, electrical connector type, pressure range, output signal characteristics, and response time. It is a direct plug-and-play replacement requiring no wiring modifications or adapters when installed on compatible Sumitomo excavator models.
Q: What is the warranty coverage for this pressure sensor?
A: COGENG provides a standard 12-month warranty against manufacturing defects from the date of installation. Proof of purchase and installation by a qualified technician are required. Warranty does not cover failure caused by hydraulic fluid contamination, over-pressurization, improper installation, overtightening, thread damage, or use on incompatible equipment.
