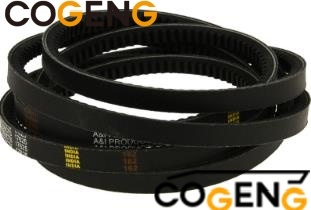

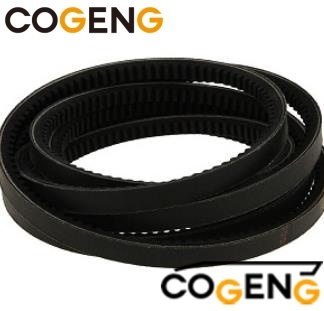

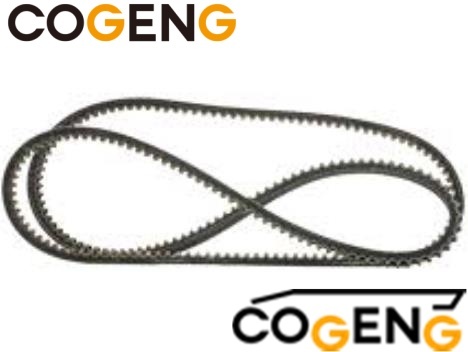

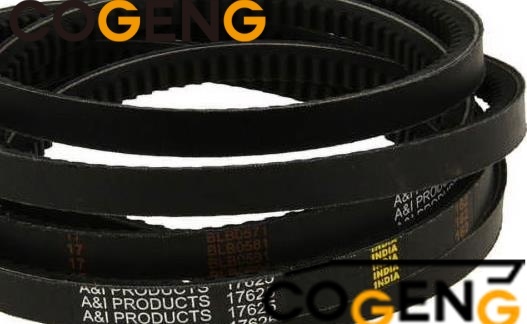

Product name: John Deere Belt Set
Part No: AR54592
Model Number:For X300 Series, X500 Series, X700 Series
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name: John Deere
| Parameter | Value / Specification |
|---|---|
| OEM Part Number | AR54592 |
| Product Type | Engine Auxiliaries Belt Set / Mower Deck Drive Belt |
| Belt Type | Multi-V-Ribbed (Poly-V / Serpentine Style) |
| Effective Length | 1588 mm (62.5 inches) |
| Number of Ribs | As per OEM specification (6-rib typical) |
| Belt Construction | High-Tensile Polyester Cord Reinforcement |
| Rubber Compound | Heat-Resistant EPDM / Neoprene Blend |
| Tensile Strength | High (Engineered for shock load resistance) |
| Temperature Range | -30°F to 250°F (-34°C to 121°C) |
| Stretch Resistance | Minimal (Pre-tensioned for stable performance) |
| Friction Coefficient | Optimized for reliable grip without slippage |
| Compatible Applications | Engine Auxiliaries, Mower Deck Drive |
| Manufacturing Standard | Manufactured to meet or exceed John Deere OEM specifications |
| Maintenance Item | Recommendation |
|---|---|
| Inspection Frequency | Inspect drive belt before each use or every 25 hours of operation for signs of wear, cracking, fraying, glazing, or rib separation |
| Tension Check | Verify proper belt tension according to equipment manual. Loose belts cause slippage and poor cutting performance |
| Pulley Inspection | When replacing belts, inspect all pulleys for wear, damage, rust, or misalignment. Worn pulleys will cause rapid belt failure |
| Idler Arm Check | Verify idler arm and spring tension mechanism moves freely and provides proper tension. Lubricate pivot points as specified |
| Cleaning | Keep belt area free of grass clippings, debris, and oil to prevent slippage and premature wear. Clean deck thoroughly after each use |
| Replacement Interval | Replace at first signs of significant wear, cracking, or every 200-300 hours of operation to prevent unexpected failure |
| Storage | Store spare belts in a cool, dry place away from direct sunlight, ozone sources, and chemicals. Hang on wide hooks or lay flat |
| Break-In Period | New belts may require a short break-in period (2-4 hours) to seat properly. Re-tension if necessary after initial use |
| Safety Category | Precaution / Instruction |
|---|---|
| Personal Protection | Wear safety glasses and work gloves when inspecting or replacing drive belts to protect against debris and pinch points |
| Engine Shutdown | Always shut off engine, remove ignition key, and disconnect spark plug wire(s) before inspecting or replacing drive belts |
| Wait for Cooling | Allow engine and belt components to cool completely before handling to prevent burns from hot surfaces |
| Pinch Point Hazard | Keep hands, fingers, and loose clothing clear of belt and pulley areas during installation and tensioning to prevent entanglement or crushing injuries |
| Secure Mower Deck | When working under the mower deck, ensure deck is securely supported with jack stands or blocking. Never rely solely on hydraulic or mechanical lift systems |
| Proper Tools | Use appropriate tools for belt tensioning and removal. Use belt tension gauge for accurate adjustment where applicable |
| Belt Storage | Store belts flat or coiled loosely. Do not kink, twist, or hang on sharp edges which can damage the tensile cord structure |
| Disposal | Dispose of worn belts in accordance with local regulations. Do not burn rubber belts as they may produce toxic fumes |
| Injury Response | For pinch injuries, seek medical attention. For eye injuries from debris, flush with water and seek immediate medical attention |
| Application | Compatible Equipment | System Function |
|---|---|---|
| John Deere Lawn Tractors | X300 Series, X500 Series, X700 Series | Engine Auxiliaries / Mower Deck Drive |
| John Deere Garden Tractors | X300, X500, X700 with compatible decks | Power transmission from engine to deck |
| John Deere Zero-Turn Mowers | Z300 Series, Z500 Series, Z700 Series | Mower deck drive belt system |
| John Deere Compact Tractors | 1023E, 1025R, 2025R with mid-mount mowers | Mid-mount mower deck drive |
| Engine Auxiliaries | Alternator, Cooling Fan, Water Pump (where applicable) | Accessory drive system |
| Belt Cross Reference | AR54592 | Direct OEM Replacement |
| Effective Length | 1588 mm (62.5 inches) | Matches original equipment specifications |
Note: Since I cannot render a live image file here, this section provides the English text description corresponding to the exploded view of the deck drive system.
Diagram Key Components (Based on typical John Deere 42"/48" Edge Deck):
Engine Vertical Pulley (Drive): Electric PTO Clutch. Item 1.
Belt (AR54592): Routed in a "Z" or "M" pattern. Item 2.
Stationary Idler Pulley (Left): Fixed position. Item 3.
Tensioner Idler Pulley (Right): Spring-loaded arm. Item 4.
Left Blade Spindle Pulley: Item 5.
Right Blade Spindle Pulley: Item 6.
Belt Guide / Keeper: Metal bracket preventing belt jump. Item 7.
Routing Description (English):
Install belt around Engine Pulley (1).
Route forward to Stationary Idler (3) backside.
Route to Left Spindle (5) V-groove.
Route across deck to Right Spindle (6) V-groove.
Route back up to Tensioner Idler (4) backside.
Final Step: Rotate tensioner arm clockwise using a 3/8" drive ratchet in the square hole to slip belt onto the last pulley.
Q1: What is the difference between COGENG AR54592 and a standard V-belt?
A: The COGENG prefix indicates a "Cogged Engine" belt. It has notches on the underside (raw edge). These notches allow the belt to wrap around small backside idler pulleys without cracking. A standard solid V-belt will overheat and break quickly on this application due to the tight reverse bends required by the mower deck geometry.
Q2: Is 1588 mm (62.5 inch) the Outside Circumference or Effective Length?
A: It is the Effective Length (Measured at the belt's pitch line/cord line). When ordering an aftermarket replacement, you must search for 5L620 (where 5L = 5/8" wide, 620 = 62.0 inches industry standard decimal). DO NOT use a 62.5" Outside Circumference belt; it will be too loose and burn up.
Q3: My new AR54592 belt flips over or jumps off immediately. Why?
A:
Cause 1: Belt routed under the belt keepers/guides instead of over them.
Cause 2: Deck is out of level or a spindle bearing is seized, causing the pulleys to be misaligned.
Cause 3: The spring on the Tensioner Arm (Item 4) is broken or stretched. This is a common wear item on 100 Series tractors.
Q4: Does this belt fit a 54-inch deck?
A: No. The AR54592 (1588mm) is strictly for smaller decks (typically 42" and some 48" Edge decks). A 54-inch deck requires a much longer belt (typically M154617 or equivalent, approx. 103-105 inches). Attempting to stretch the AR54592 onto a 54" deck will break the tensioner arm.
