| Parameter | Specification |
|---|---|
| COGENG Part Number | AH222648 |
| OEM Equivalent | John Deere AH222648 |

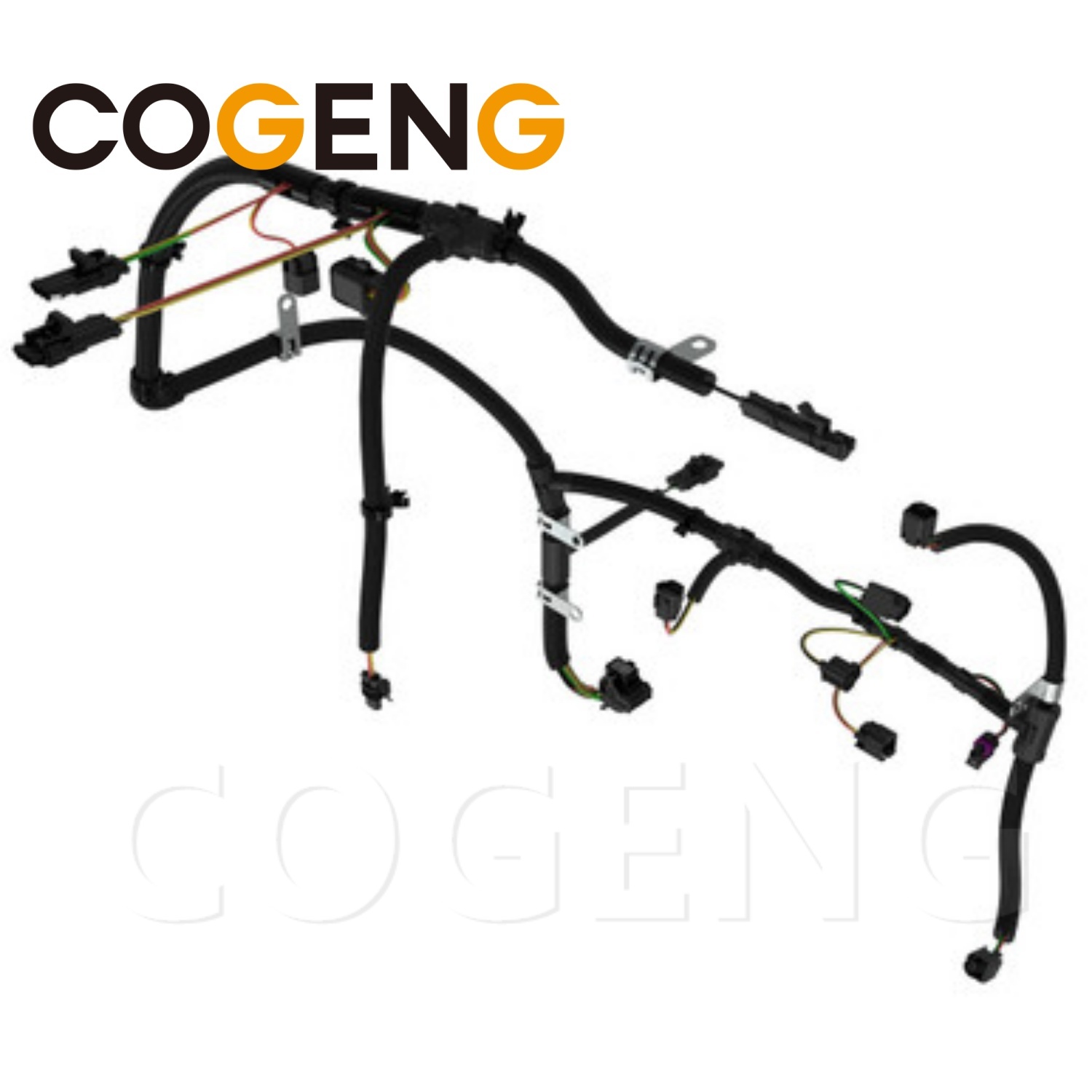

| Product Type | Left Main Wiring Harness Assembly |
| Application | Feeder house, header controls, left side electrical systems |
| Harness Type | Left main machine harness (cab left side + feeder house + header) |
| Compatible Models | John Deere STS Series Combines (9560STS, 9660STS, 9760STS, 9860STS) |
| Model Year | MY06 (2006 Model Year) |
| Harness Position | Left side (operator cab left side, feeder house left side) |
| Brand | Part Number |
|---|---|
| COGENG | AH222648 |
| John Deere | AH222648 |
| Interchange | AH222649, AH222650, AH222651, AH163386, AH163387 |
| Model | Series | Application | Harness Position |
|---|---|---|---|
| 9560STS | STS (Single Tine Separation) | Combine harvester | Left main harness |
| 9660STS | STS (Single Tine Separation) | Combine harvester | Left main harness |
| 9760STS | STS (Single Tine Separation) | Combine harvester | Left main harness |
| 9860STS | STS (Single Tine Separation) | Combine harvester | Left main harness |
| Model Year | Compatibility | Notes |
|---|---|---|
| 2006 (MY06) | ✓ Direct fit | Primary application |
| 2005 (MY05) | Verify | Minor pinout variations possible |
| 2007 (MY07) | Verify | Minor pinout variations possible |
| 2004 (MY04) | Check compatibility | May require adapter |
Note: This harness is specifically designed for MY06 John Deere STS combines. Verify compatibility with your equipment model, serial number, and model year before ordering. Contact COGENG with your machine details for exact application verification.
Installation decomposition diagram
| Step | Action | Key Component | Specification / Guideline |
|---|---|---|---|
| 1 | Safety Isolation | Entire Electrical System | Park the STS combine on level ground. Shut off engine, remove key, and disconnect all battery negative (-) terminals completely. |
| 2 | Document Existing Routing | Old Left Main Harness | Take detailed photos of the existing harness routing along the left chassis rail, every connector location, and clip attachment point. |
| 3 | Disconnect All Left-Side Connectors | Old Harness Connectors | Systematically unplug every connector along the left side. Press locking tabs carefully. Cut any cable ties securing the old harness. |
| 4 | Remove Old Harness | Old AH222648 Assembly | Extract the complete old harness from the left side of the machine, noting tight routing areas and any brackets to be reused. |
| 5 | Lay In New Harness | COGENG Harness (Item 1) | Route the new CG-AH222648 along the identical left-side OEM path. Keep the protective loom clear of sharp edges, hot surfaces, and moving belts/pulleys. |
| 6 | Secure Routing | Frame Clips (Item 8) | Anchor the harness at all OEM-designated mounting points. Ensure adequate slack at connector ends — never pull the harness tight against the frame. |
| 7 | Connect All Plugs | All Branch Connectors | Firmly seat each connector until the locking tab produces an audible click. Visually inspect that no terminal pins are bent or pushed back. |
| 8 | Final Verification | Battery & Combine Systems | Reconnect all batteries. Start the combine and run through all left-side functions: solenoids, sensors, lighting, and CAN bus communication. Verify fault-free operation |
| Parameter | Specification |
|---|---|
| System Voltage | 12V DC (John Deere standard) |
| Current Capacity | Up to 50A (main power circuits) |
| Wire Gauge Range | 18AWG - 20AWG (signal) / 12AWG - 14AWG (power) |
| Insulation Resistance | ≥100MΩ @ 500V DC |
| Dielectric Strength | 500V AC/60s No Breakdown |
| Voltage Drop | <0.5V @ rated load |
| Temperature Rating | -40°C to +125°C (engine bay) / -40°C to +105°C (cab/chassis) |
| Component | Material Specification |
|---|---|
| Conductor | High-purity tinned copper (99.9% OFC) |
| Wire Insulation | Heat-resistant XLPE / PVC / TPE |
| Outer Wrapping | Automotive-grade cloth tape / Corrugated conduit |
| Connector Housings | OEM-grade Nylon 66 / PBT (UL94 V-0) |
| Terminals | Tin-plated / Gold-plated brass |
| Grommets/Bushings | EPDM Rubber / Silicone (UV resistant) |
| Shielding | Aluminum foil + copper braid (sensor and CAN circuits) |
| Identification | Heat-shrink printed circuit labels (John Deere-standard numbering) |
Q: What John Deere models use the AH222648 left main wiring harness?
A: The COGENG AH222648 left main wiring harness is a direct OEM replacement specifically designed for John Deere STS series combines, model year 2006 (MY06). This harness serves as a primary electrical backbone on the left side of the machine. Always verify this part number against your combine's parts manual or the original harness tag to confirm exact compatibility before ordering, as harness configurations can vary by serial number range and specific combine options.
Q: What are the symptoms of a failing left main wiring harness on a John Deere STS combine?
A: Common symptoms include intermittent electrical faults, unresponsive controls on the left side operator station, erratic sensor readings, CAN bus communication errors, specific functions or modules not responding, warning indicators illuminated on the cornerpost display, or unexpected system shutdowns. On STS combines, the left main harness connects critical harvesting, threshing, and separation control systems, and any degradation can significantly impact harvesting productivity during critical operating windows.
Q: What does the "left main" wiring harness cover?
A: The left main wiring harness is a primary electrical section that routes through the left side of the STS combine, connecting various sensors, actuators, control modules, and operator interface components. It is a distinct harness section that works in conjunction with other harnesses to form the complete combine electrical system. The left main harness typically serves systems located on the left side of the machine including header controls, hydraulic functions, and monitoring sensors.
Q: Is this harness a direct plug-and-play replacement?
A: Yes, the COGENG AH222648 left main harness is manufactured to exact OEM specifications for connector types, pin assignments, wire gauge, and routing length. It features durable connectors built to withstand the demanding agricultural harvesting environment. It is a direct plug-and-play replacement requiring no wire splicing, soldering, or modifications when installed on compatible John Deere MY06 STS combines.
Q: What is the warranty coverage for this wiring harness?
A: COGENG provides a standard 12-month warranty against manufacturing defects from the date of installation. Proof of purchase and installation by a qualified technician are required. Warranty does not cover damage caused by improper installation, unauthorized modifications, rodent damage, or use on incompatible equipment.
