| Parameter | Specification |
|---|---|
| Product Name | Komatsu Hydraulic System High Pressure Sensor / Pressure Transducer Switch |
| Primary Part Number | 7861-93-1653 |
| Brand | COGENG (Premium Aftermarket Replacement) |
| Condition | Brand New, 100% Calibrated and Function Tested |
| Sensor Type | Solid-State Piezoresistive Pressure Transducer with Integrated Signal Conditioning and Solid-State Switch Output |
| Pressure Rating | 50 MPa (500 bar / 7,252 psi) Maximum Rated Pressure |
| Output Signal | 0.5V – 4.5V DC Ratiometric Linear Voltage Output (Analog Pressure Signal) |
| Supply Voltage | 5V DC Regulated (ECM/PCM Supplied) |
| Accuracy | ±0.5% Full Scale Over Compensated Temperature Range (Includes Linearity, Hysteresis, and Repeatability) |
| Response Time | < 1 millisecond |
| Housing Design | Compact Cylindrical Body with Hexagonal Wrench Flats for Direct Hydraulic Port Mounting |
| Connector Type | Integral Sealed Multi-Pin Connector (OEM-Standard Mating Interface) with Gold-Plated Terminals |
| Thread Specification | Metric Fine Thread with Integrated Metal Bonded Seal or O-Ring Face Seal (OEM Specification) |
| Housing Material | High-Strength 17-4 PH Stainless Steel, Fully Welded Hermetic Construction |
| Ingress Protection | IP67 / IP69K Rated (Fully Submersible, Resistant to High-Pressure Steam Cleaning and Washdown) |
| Operating Temperature | -40°C to +125°C (Ambient); -40°C to +135°C (Fluid Media) |
| Vibration Resistance | 20 g Peak, 10-2000 Hz Sine Sweep (Exceeds ISO 16750-3 Heavy Equipment Vibration Standards) |
| Shock Resistance | 50 g, 11 ms Half-Sine Pulse |
| Chemical Compatibility | Sensing Element Fully Compatible with Mineral Hydraulic Oil, Synthetic Hydraulic Oil, Engine Oil, Diesel Fuel, and Water-Glycol Fire-Resistant Fluids |
| Quality Assurance | 100% Pressure Cycle Calibration Against NIST-Traceable Reference Standard; Full-Range Output Verification at Multiple Pressure Points; Helium Leak Test on Every Hermetic Weld |
| Certification | ISO 9001 Certified Manufacturing Facility; CE Marked; RoHS Compliant |
| Place of Origin | Guangdong, China |
| Shipping Weight | 0.15 kg (Gross, with protective packaging) |
| Package Dimensions | 10 x 8 x 5 cm (Individual Box) |
| Packing | Inner: Anti-Static ESD Shielding Bag with Desiccant; Outer: Heavy-Duty Export-Grade Corrugated Carton Box with Custom-Cut Protective Foam Insert |
| Payment Terms | Western Union, L/C (Letter of Credit), T/T (Telegraphic Transfer), MoneyGram, D/A (Documents against Acceptance), D/P (Documents against Payment) |
| Shipping Mode | By Air, By Sea, By Express (FedEx, UPS, DHL, TNT, etc.) — Optimized Based on Cargo Situation and Destination |
| Minimum Order Quantity | Acceptable Trial Order — Single Unit Orders Welcome |
| Return Policy | Non-Returnable / Non-Exchangeable (Comprehensive DOA Guarantee Included) |
| Item | Description |
|---|---|
| Part Number | 7861-93-1653 (also available without separators: 7861931653) |
| Associated Part Numbers | 7861-93-1650 / 1651 / 1652 — same series, interchangeable sensors |
| Compatible Wheel Loaders | WA380-6 (S/N 65949-UP), WA430-6, WA500-6 |
| Compatible Excavators | PC400-8 |
| Compatible Dozers | D85PX-15, D375A-6, D475A-5E0, etc. |
| Compatible Engines | WA380-6 is equipped with the SAA6D107E-1 engine; PC400-8 shares the same engine platform |
The COGENG High Pressure Sensor Switch, part number 7861-93-1653, is a precision-manufactured, solid-state piezoresistive pressure transducer engineered as a direct, form-fit-function replacement for the Komatsu WA380-6 wheel loader and PC400-8 hydraulic excavator platforms. This critical dual-function electronic component serves as the essential pressure sensing and switching element within the machine's advanced hydraulic and power train control systems. Rated for a maximum operating pressure of 50 MPa (500 bar / 7,252 psi), this sensor is specifically designed to monitor the extreme high-pressure hydraulic circuits that power the implement systems, steering systems, and transmission control systems of Komatsu's medium to large construction and mining equipment. The 7861-93-1653 sensor provides the precision, real-time pressure feedback signal that the machine's Electronic Control Module (ECM) or Pump Control Module (PCM) requires to manage and optimize hydraulic pump displacement, implement power delivery, transmission shift quality, and overall machine performance under the most demanding operating conditions.
The Komatsu WA380-6 is a 20-ton class wheel loader that serves as a cornerstone of quarry, aggregate, construction, and industrial material handling operations worldwide. The Komatsu PC400-8 is a 40-ton class hydraulic excavator deployed in heavy construction, mining, quarry, and mass excavation applications. Both machines rely on sophisticated electronically controlled hydraulic systems that operate at pressures significantly higher than those found in smaller equipment. The 7861-93-1653 sensor is typically installed in critical high-pressure sensing locations: the main implement pump discharge circuit, the steering pump discharge circuit on the wheel loader, the main control valve inlet manifold, the travel motor high-pressure circuits on the excavator, or specific high-pressure implement circuits such as the boom cylinder head end or the bucket cylinder circuit. From these locations, the sensor directly monitors hydraulic oil pressure at levels that can reach 50 MPa during heavy digging, lifting, breakout, or steering operations. The sensor operates on the piezoresistive principle: a micro-machined silicon sensing element, hermetically sealed behind a thin stainless steel diaphragm, converts the mechanical stress of the hydraulic pressure into a precise, proportional change in electrical resistance. An integrated Application-Specific Integrated Circuit (ASIC) signal conditioner amplifies, temperature-compensates, and linearizes this signal, producing a clean, low-noise, 0.5V to 4.5V ratiometric analog voltage output that is directly proportional to the sensed pressure.
The operating environment for a high-pressure sensor mounted on a WA380-6 wheel loader or a PC400-8 excavator is among the most severe in the heavy equipment industry. In a quarry application, the sensor is continuously exposed to fine, abrasive dust that settles on every surface and penetrates every crevice. The sensor body is subjected to continuous, high-amplitude, high-frequency vibration transmitted directly from the hydraulic pump and engine. The hydraulic oil temperature can fluctuate dramatically, from cold-start ambient conditions potentially as low as -30°C in winter operations to sustained operating temperatures exceeding 100°C during heavy summer work at full load, causing rapid thermal expansion and contraction cycles that stress the sensor's internal welds, seals, and electronic components. The sensor is exposed to extreme hydraulic pressure spikes and pulsations—rapid, high-amplitude pressure transients generated by pump ripple at the system's operating frequency, valve spool shifting transients, cylinder cavitation during over-running loads, and the sudden, violent pressure surges that occur when a loaded bucket strikes a rock face or when an excavator bucket stalls against an immovable object. These pressure spikes can momentarily approach or even briefly exceed the sensor's 50 MPa rated pressure, subjecting the internal sensing diaphragm and wire bonds to significant mechanical fatigue over thousands of operating hours. The external environment includes direct exposure to high-pressure hot water jetting during machine cleaning, diesel fuel and hydraulic oil spray from inevitable seepage, corrosive de-icing salts in winter road maintenance applications, and the constant abrasive assault of sand, mud, and aggregate dust.
The OEM 7861-93-1653 pressure sensor, despite its robust design, is a known service item with well-documented failure modes. The most common failure is sensor output signal drift, where the zero-pressure offset voltage or the full-scale span voltage gradually shifts over time due to mechanical fatigue of the silicon sensing diaphragm or thermal degradation of the ASIC compensation circuit. This causes the ECM to receive an incorrect pressure signal, potentially resulting in reduced hydraulic performance, sluggish implement response, harsh or delayed transmission shifting, or erroneous diagnostic trouble codes that can lead to unnecessary component replacement. A second critical failure mode is complete signal loss, often caused by a fatigue fracture in the microscopic gold or aluminum wire bonds that connect the silicon sensing element to the ASIC signal conditioning chip, corrosion of the connector terminals due to moisture ingress past a degraded environmental seal, or physical damage to the sensor housing or electrical connector from impact with debris or improper handling during maintenance. A third failure is leakage at the pressure port interface, where the metal bonded seal or O-ring face seal hardens, shrinks, or takes a compression set due to repeated thermal cycling and prolonged exposure to hot hydraulic oil, allowing hydraulic oil to seep past the threads—a condition that presents both an environmental spill hazard and a fire risk if the leaking oil contacts a hot exhaust manifold or turbocharger housing.
COGENG's 7861-93-1653 aftermarket high pressure sensor is engineered to definitively resolve these failure mechanisms and provide enhanced reliability over the OEM component. We utilize a fully welded, hermetically sealed 17-4 PH precipitation-hardened stainless steel housing that provides superior corrosion resistance, high tensile and fatigue strength, and long-term dimensional stability under extreme pressure cycling. The internal sensing element is fabricated using advanced bulk silicon micromachining techniques with a robust, thick-film diaphragm design that offers exceptional linearity, minimal long-term drift, and high over-pressure tolerance. The internal ASIC signal conditioner incorporates sophisticated multi-point temperature compensation algorithms, built-in EMI/RFI electromagnetic interference filtering for clean, noise-free signal output in the electrically noisy engine bay environment, and reverse polarity and over-voltage protection on the supply voltage input. Every COGENG sensor undergoes a complete, multi-point pressure calibration cycle against a NIST-traceable deadweight tester or precision pressure reference standard, a helium mass spectrometer leak test to verify the integrity of the hermetic weld seal, and a full functional output verification across its entire compensated temperature range before shipment.
The 7861-93-1653 high pressure sensor switch is validated for the following Komatsu equipment platforms. Always provide your complete machine model and serial number for final compatibility verification.
| Brand | Model | Machine Type | Pressure Rating |
|---|---|---|---|
| Komatsu | WA380-6 | 20-Ton Class Wheel Loader | 50 MPa (500 bar) |
| Komatsu | PC400-8 | 40-Ton Class Hydraulic Excavator | 50 MPa (500 bar) |
High Pressure Sensor Switch Assembly (1 unit): The complete sensor, featuring a 17-4 PH stainless steel cylindrical body with hexagonal wrench flats, an integral OEM-standard sealed multi-pin electrical connector with gold-plated terminals, and a pre-installed metal bonded seal or O-ring face seal on the threaded pressure port, ready for immediate installation.
Pre-Installed Sealing Element: A new, OEM-specification metal bonded sealing washer or Viton fluoroelastomer O-ring face seal, correctly seated at the base of the pressure port threads to provide a leak-free, high-pressure seal against the mating hydraulic port surface.
Protective Connector Dust Cap: A plastic protective cap installed on the electrical connector to prevent contamination of the gold-plated terminals during handling, storage, and transit. Remove immediately before connecting the machine's wiring harness.
Anti-Static ESD Shielding Bag with Desiccant: The sensor is sealed in a silver anti-static protective bag containing a silica gel desiccant packet to prevent moisture absorption and electrostatic discharge damage during transit and storage.
Heavy-Duty Export Carton with Protective Foam Insert: The bagged sensor is packed in a rigid, double-wall corrugated carton box with a custom-cut high-density protective foam insert that immobilizes the sensor and protects the connector, threads, and sealing element from impact damage during international shipping.\DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)
Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.

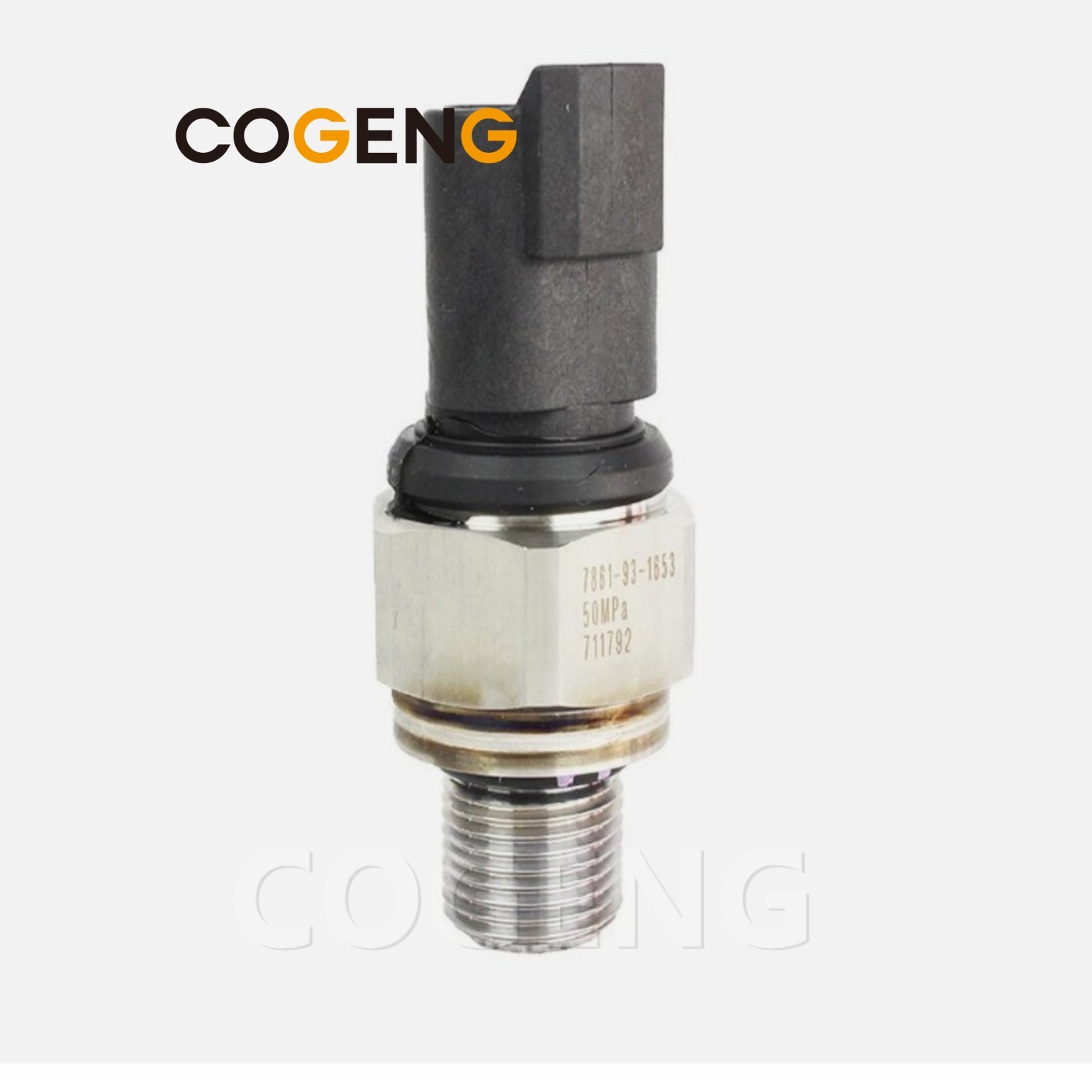

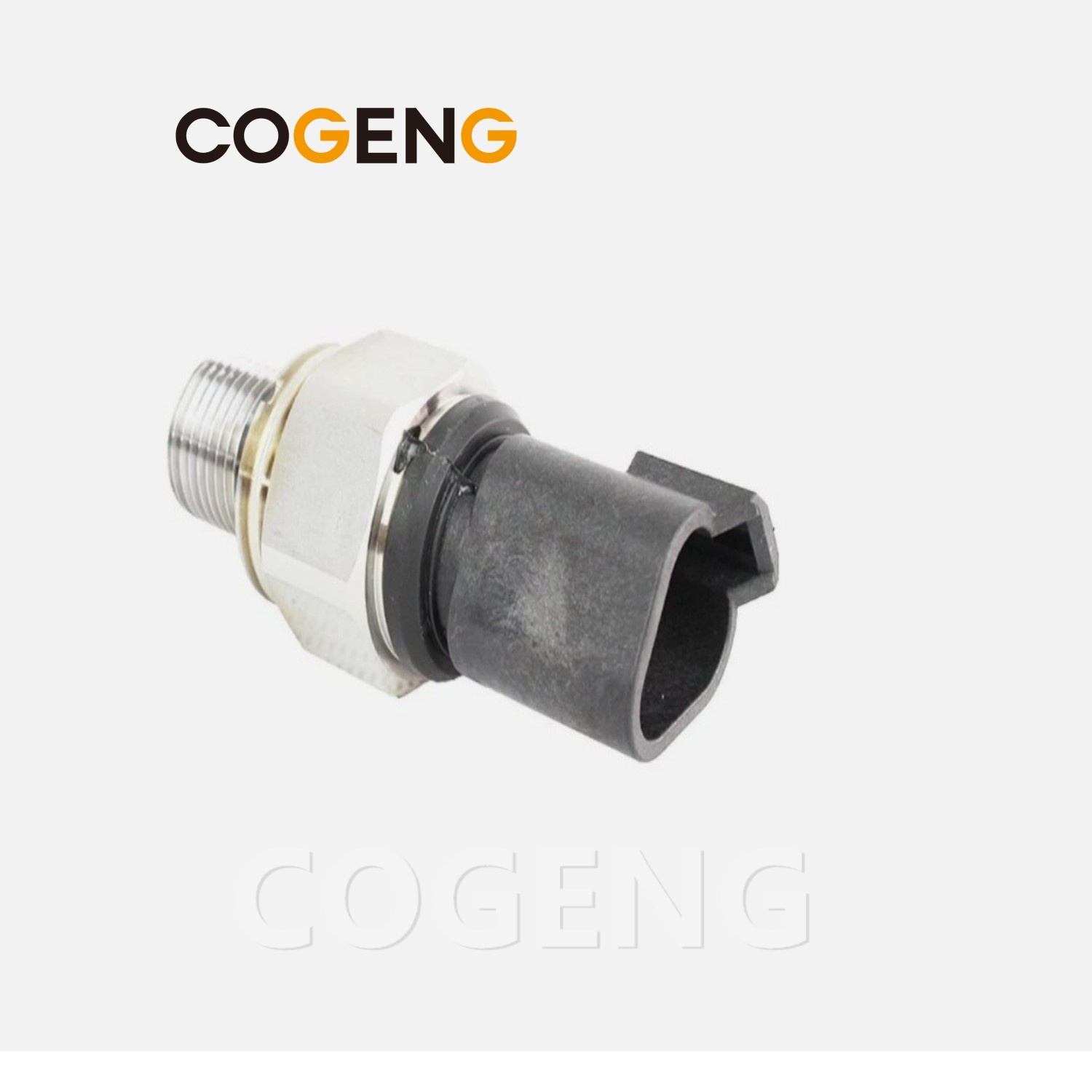

Image 1: Complete Sensor Assembly — Isometric View
A high-resolution studio photograph of the 7861-93-1653 pressure sensor shown from a three-quarter isometric angle. The image clearly displays the three main sections of the sensor: the threaded pressure port at the base with the visible metal bonded seal or O-ring, the hexagonal wrench flats for precise installation torque application, the cylindrical 17-4 PH stainless steel main body with permanent laser-etched part number and specification markings, and the integral sealed multi-pin electrical connector at the top with the protective dust cap installed.

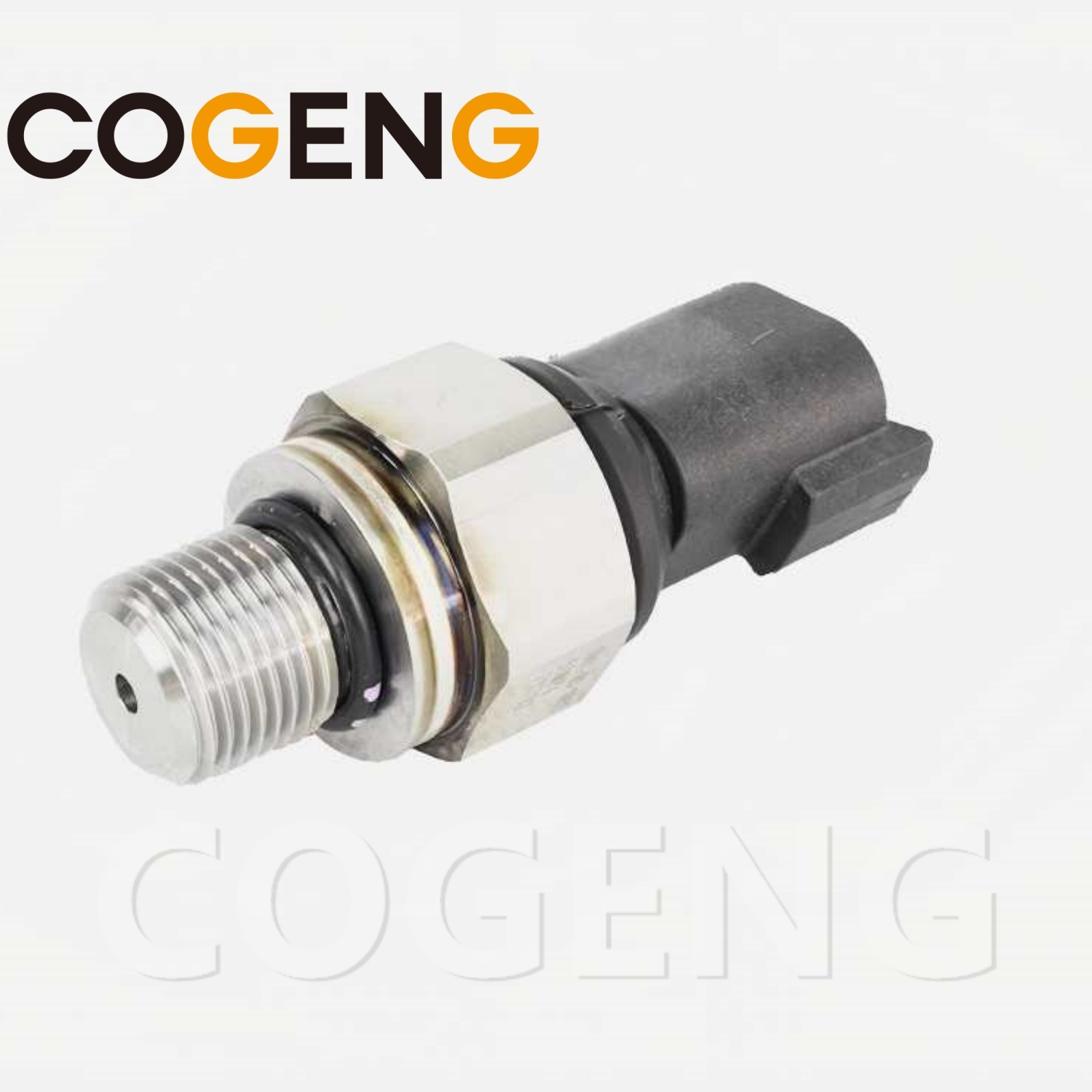

Image 2: Pressure Port & Sealing Element — Macro Detail
A close-up macro photograph focusing on the threaded pressure port. The image shows clean, precision-rolled threads in sharp detail. The pre-installed metal bonded sealing washer or Viton O-ring is clearly visible, seated correctly in its precise position at the base of the thread. This sealing element is the critical component that maintains a leak-free high-pressure connection at pressures up to 50 MPa.

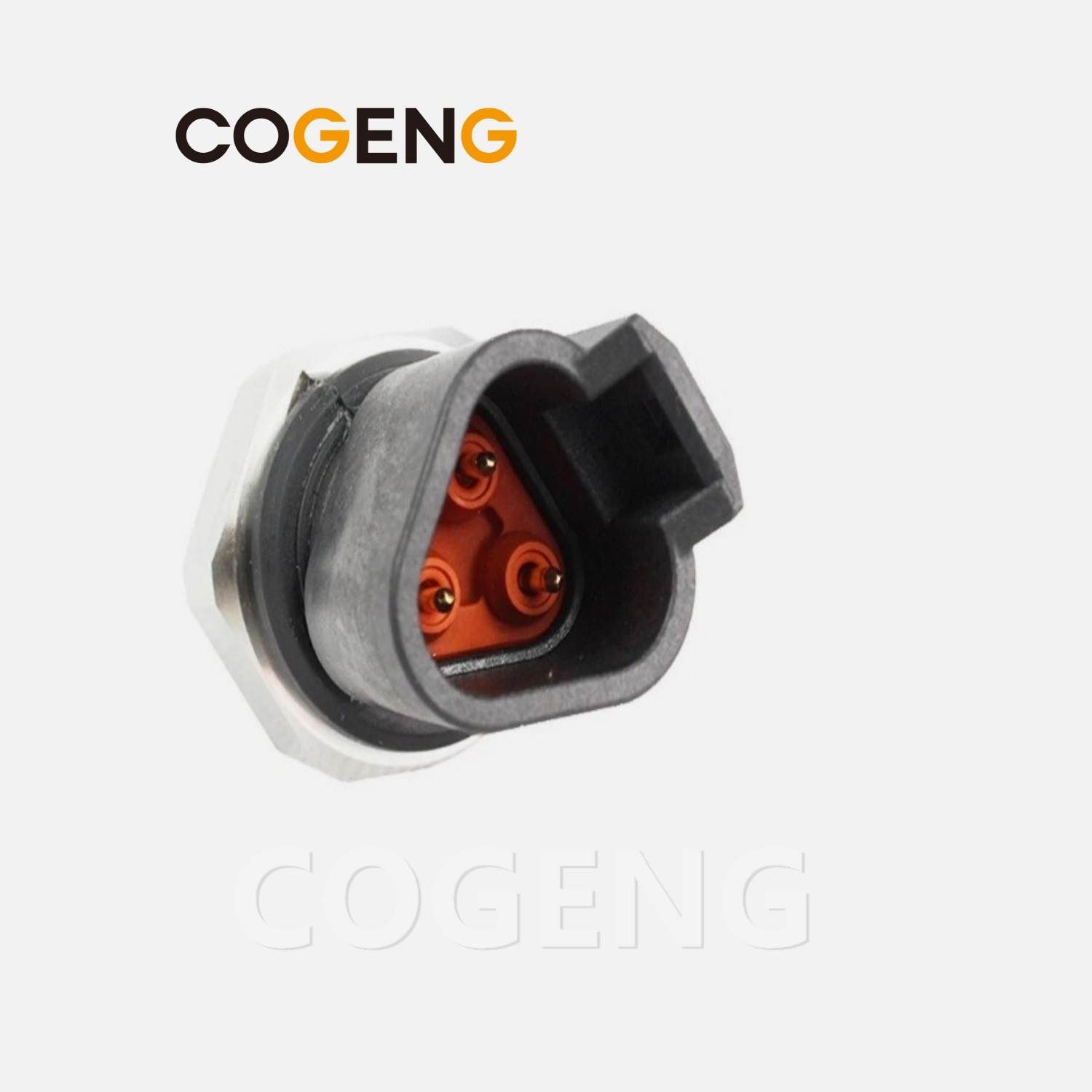

Image 3: Electrical Connector Interface — Pin Configuration
A head-on view of the OEM-standard sealed multi-pin electrical connector with the protective dust cap removed. The gold-plated terminals are visible within the environmentally sealed connector body. The image includes a pin-out diagram overlay showing the standard terminal assignments: Supply Voltage (5V DC Regulated), Ground, and Signal Output (0.5V – 4.5V DC Ratiometric).
Image 4: Laser-Etched Identification Markings
A close-up image of the sensor's cylindrical body showing the permanent, laser-etched identification markings. The part number 7861-93-1653, the pressure rating 50 MPa, the output signal specification, the serial number for batch traceability, and the COGENG brand logo are clearly legible on the stainless steel surface, resistant to wear, chemicals, and fading.
Image 5: Hermetic Weld Detail — Construction Quality
A macro photograph of the circumferential laser weld seam that permanently joins the pressure port base to the main sensor body. The image shows a smooth, uniform, fully penetrated weld bead with no porosity, no cracks, and no discoloration. This weld quality is the visual evidence of the hermetic seal that protects the internal piezoresistive sensing element and ASIC signal conditioning circuitry from moisture ingress, contamination, and environmental degradation.
50 MPa High-Pressure Rating: This sensor is specifically designed for high-pressure hydraulic circuits operating at pressures up to 50 MPa (500 bar / 7,252 psi). It must not be installed in circuits where the pressure exceeds this rating, as over-pressure can permanently damage the sensing element or rupture the sensor housing, creating a safety hazard.
WA380-6 and PC400-8 Specificity: The 7861-93-1653 sensor is validated for the Komatsu WA380-6 wheel loader and PC400-8 hydraulic excavator. While the sensor may be physically compatible with other Komatsu models that use the same connector and thread configuration, the electrical output calibration and pressure range are specifically matched to the ECM/PCM programming for these models.
Correct Sealing Element Installation: The high-pressure seal at the sensor-to-port interface is critical for leak-free operation. The pre-installed metal bonded seal or O-ring must be in good condition and correctly seated before installation. Never reuse an old sealing washer or O-ring. Always use the new sealing element supplied with the COGENG sensor.
Electrical Connector Compatibility: The sensor features an integral OEM-standard sealed multi-pin connector. Verify that your machine's wiring harness mating connector is compatible before attempting connection. Do not force an incompatible connector, as this will damage the terminals.
Professional Installation Required: Replacing a high-pressure hydraulic sensor involves the machine's high-pressure hydraulic system. Installation must be performed by a qualified heavy equipment technician who will properly depressurize the system, verify the sealing element condition, torque the sensor to the OEM-specified value, and confirm leak-free operation at full system pressure before returning the machine to service.
Note: This is a step-by-step procedural guide for correct high-pressure sensor installation.
Step 1: Complete System Depressurization
Park the machine on level ground. Lower all attachments completely to the ground until fully supported. Stop the engine. Turn the key switch to the OFF position and remove the key. Operate all hydraulic control levers and pedals repeatedly through their full range of motion in all directions to release any stored pressure in the implement, steering, and transmission hydraulic circuits. Open the hydraulic tank filler cap slowly and carefully to release any residual tank pressure, then retighten the cap. The hydraulic system must be completely depressurized before removing the old sensor. Hydraulic oil under high pressure can penetrate skin and cause severe injury.
Step 2: Old Sensor Removal
Locate the existing 7861-93-1653 sensor on the hydraulic pump, control valve, or sensing port. Thoroughly clean the area around the sensor base using a suitable degreasing solvent and a lint-free cloth to remove all accumulated dirt, oil, and debris. This prevents contamination from entering the hydraulic system when the sensor is removed. Disconnect the machine's wiring harness connector from the sensor by releasing the locking tab and pulling the connector body straight out. Do not pull on the wires. Using a suitable wrench on the sensor's hexagonal flats, carefully unscrew the old sensor by turning it counter-clockwise. Have a clean rag ready to catch any residual hydraulic oil.
Step 3: Port Inspection and Preparation
Inspect the hydraulic port's threaded bore and the sealing surface for any damage, debris, corrosion, or remnants of the old sealing washer or O-ring. Clean the sealing surface thoroughly with a lint-free cloth. Verify that the new COGENG sensor has the pre-installed sealing element seated correctly. Do not use liquid thread sealant or PTFE tape on the threads—the metal bonded seal or O-ring provides the high-pressure seal.
Step 4: New Sensor Installation and Torque
Carefully insert the threaded pressure port of the new sensor into the hydraulic port. Thread it in by hand initially to ensure correct thread engagement and prevent cross-threading. Once hand-tight, use a calibrated torque wrench on the sensor's hexagonal flats to tighten to the OEM-specified torque. Do not overtighten, as this can damage the sealing element or the sensor body. Connect the wiring harness connector, ensuring positive latch engagement.
Step 5: System Verification and Leak Check
Start the engine and allow it to idle. Immediately inspect the sensor installation point for any hydraulic oil leakage. If leakage is observed, stop the engine immediately, depressurize, and verify sealing element condition and torque. Cycle all hydraulic functions through their full range. Recheck for leaks at full system pressure. Verify correct sensor output using diagnostic software. Confirm no active diagnostic trouble codes before releasing the machine to service.
| Detail | Description |
|---|---|
| Shipping Methods | By Air: Cost-effective for medium-quantity orders to international airports. By Sea: Most economical for bulk distributor orders and containerized freight. By Express (FedEx, UPS, DHL, TNT): Fastest priority door-to-door service for machine-down emergencies (3-5 business days). Method optimized based on cargo situation, destination, and urgency. |
| Estimated Delivery Time | Express Courier: 3-5 business days. Air Freight: 8-15 days. Sea Freight: 30-45 days. Transit times are carrier-dependent. The arrival date on the official tracking portal is the definitive reference. Tracking provided within one business day of dispatch. |
| Packing | Inner: Anti-static ESD shielding bag with silica gel desiccant packet. Outer: Heavy-duty, export-grade corrugated carton box with custom-cut high-density protective foam insert that immobilizes the sensor and protects the connector, threads, and sealing element. |
| Payment Terms | Western Union, L/C (Letter of Credit), T/T (Telegraphic Transfer), MoneyGram, D/A (Documents against Acceptance), D/P (Documents against Payment). Standard terms: 30% T/T deposit, 70% balance before shipment. |
| Minimum Order Quantity | Acceptable Trial Order — Single unit orders welcomed and encouraged for first-time customers. |
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. A high-pressure sensor is a precision-calibrated safety-critical component. Once departed from our controlled quality environment, we cannot verify it has not been installed, subjected to over-pressure, or damaged. This policy ensures every customer receives a brand-new, factory-calibrated sensor. |
| DOA Quality Guarantee | Full replacement for manufacturing defects reported within 7 calendar days of delivery. Sensor must be in original, uninstalled condition with the protective dust cap in place and the sealing element intact. Any evidence of installation, hydraulic fluid exposure, or physical damage voids the guarantee immediately. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact sensor for your written approval before dispatch. No shipment is released without your explicit confirmation. |
Q1: What does the 50 MPa rating mean for this sensor?
A: The 50 MPa (500 bar / 7,252 psi) rating is the maximum pressure the sensor is designed to measure accurately and withstand without damage. This high-pressure rating makes it suitable for the main implement and steering hydraulic circuits on the WA380-6 wheel loader and the PC400-8 excavator, where system pressures can reach these levels during heavy operation. The sensor provides a linear 0.5V to 4.5V output signal proportional to pressure across this entire range.
Q2: What symptoms indicate a failed 7861-93-1653 pressure sensor?
A: Common symptoms include: sluggish or unpredictable hydraulic response; reduced digging, lifting, or breakout power; harsh, delayed, or erratic transmission shifting on the wheel loader; the machine entering a protective derate or limp mode; diagnostic trouble codes related to "Pressure Sensor — Signal Out of Range" or "Pressure Sensor — Voltage Too High/Low"; visible hydraulic oil leakage from the sensor base; and a sensor output voltage that is stuck, erratic, or does not respond to pressure changes when monitored with diagnostic software.
Q3: Is this sensor a direct replacement for the Komatsu OEM part?
A: Yes. The COGENG 7861-93-1653 is manufactured to the exact functional, electrical, and dimensional specifications of the Komatsu OEM sensor. It is a true plug-and-play replacement that requires no modification to the wiring harness, no adapter fittings, and no ECM reprogramming.
Q4: Does this sensor require calibration after installation?
A: No. The sensor is factory-calibrated across its full 50 MPa pressure range and compensated temperature range against a NIST-traceable reference standard. It outputs a standardized 0.5V to 4.5V ratiometric signal that is directly compatible with the WA380-6 and PC400-8 ECM/PCM. No field calibration is required. We recommend using Komatsu diagnostic software after installation to verify the sensor output reads correctly at system standby pressure.
Q5: What is the correct installation torque for this high-pressure sensor?
A: The correct installation torque is specified by Komatsu for this specific sensor and port configuration. Always refer to the machine's service manual for the exact torque value. As a general guideline, high-pressure sensors with metal bonded seals typically require torque values higher than those with O-ring seals. Using a calibrated torque wrench is essential: under-torquing can cause leakage at high pressure, while over-torquing can damage the sealing element, distort the threads, or crack the sensor body.
For pricing, machine-down emergency technical support, trial order arrangements, fleet quantity discount structures, or comprehensive pre-purchase compatibility verification, contact your COGENG supplier today.
Sales Price: Contact COGENG sales customer service directly for the most current competitive pricing. Trial orders are welcome. Request a personalized quotation.
Shipping Method & Cost: We will provide a tailored shipping quotation—by air, by sea, or by express courier—based on your location, urgency, and budget. DDP shipping terms available for select countries.
Estimated Delivery Time: Based on the selected carrier's service standards. Tracking provided within one business day of dispatch.
✅ Direct OEM Replacement — Precision-Calibrated for Guaranteed Plug-and-Play Performance.
✅ 50 MPa High-Pressure Rated — Specifically Engineered for Komatsu WA380-6 and PC400-8 Hydraulic Systems.
✅ Severe-Duty Construction — 17-4 PH Stainless Steel Body, Fully Welded Hermetic Seal, EMI/RFI Protected.
✅ ISO 9001 Certified Manufacturing — NIST-Traceable Calibration, 100% Function Tested, Helium Leak Verified.
✅ Trial Orders Welcome — Single Unit Orders Accepted for First-Time Customer Evaluation.
✅ In Stock & Ready to Ship — Minimize Your Komatsu Equipment Downtime with Immediate Worldwide Dispatch.
Critical Action Required: To ensure 100% part number accuracy, please provide your Komatsu machine's complete model designation and serial number. Our technical team will verify compatibility and provide written confirmation before your order is processed.
Merchant Return Policy: All products shipped are not returnable or exchangeable. Please complete all compatibility checks before purchase.
*shipping Details Return Sales*
Sales price:
Please contact COGENG sales customer service for specific prices.
Shipping method:
The specific arrangement will be based on the cargo situation.
Estimated delivery time:
It is based on the shipping time of the logistics company, and the arrival time shown shall prevail.
Contact details are at the bottom.
MerchantReturnPolicy:
The products shipped are not returnable or exchangeable.
Contact COGENG
📞 Phone: +86-185-2913-1515 🌐 Instagram
📧 Email: hugo@cogeng.net 🌐 Facebook：Excavator Parts Selection and Replacement Community
💬 WhatsApp +86-185-2913-1515 Facebook: Excavator Wiring Harness
💬 WeChat: +86-185-7865-1106 Facebook: Excavator Wire Harness
🌐 Website: cogeng.net Facebook: Excavator SolenoidValve
