| Parameter | Specification |
|---|---|
| Product Name | Caterpillar Engine Control & Injector Wiring Harness / ECM to Engine Management Harness |
| Primary Part Number | 546-2154 (5462154) |
| Brand | COGENG (Premium Aftermarket Replacement) |
| Condition | Brand New, 100% Continuity & Dielectric Withstand Tested |
| Engine Compatibility | Caterpillar C9 ACERT Diesel Engine (All Ratings) |
| Machine Model Compatibility | CAT 330D, 336D Hydraulic Excavators; CAT D6R Series II Track-Type Tractor |
| Harness Type | Complete Engine Control & Injector Management Harness — ECM Interconnect, Full Sensor & Actuator Network, HEUI Injector Solenoid Interface, CAN Bus Machine Communication |
| Wire Insulation | Cross-Linked Polyethylene (XLPE) with PTFE Overwrap in High-Temperature Zones; SAE J1128 Type SXL/GXL; Rated -40°C to +125°C Continuous, +150°C Intermittent |
| Connector Systems | Deutsch DT, Deutsch DTM, Deutsch HD30, Ampseal 16, Integrated 70-Pin ECM Connector with Gold-Plated Machined Socket Contacts, HEUI Injector Pass-Through Connectors |
| Protective Sheathing | High-Temperature Corrugated Nylon Split-Loom Conduit; Self-Fusing Silicone Tape at All Branch Junctions; Adhesive-Lined Dual-Wall Heat Shrink Boots at All Connector Backshells; Reflective Aluminized Fiberglass Sleeving in Exhaust and Turbocharger Proximate Zones; Stainless Steel Overbraid in Extreme Heat Areas |
| Voltage Rating | 24V DC System, 600V Insulation Rating; High-Voltage Injector Drive Circuits Rated for HEUI Actuation |
| Environmental Sealing | IP67 / IP69K Rated Mated Connectors with Silicone Interfacial Seals, Peripheral Gaskets, and Cavity Plugs in All Unused Positions |
| Chemical & Abrasion Resistance | Resistant to Diesel Fuel, Engine Oil, Hydraulic Fluid, Engine Coolant, and Commercial Degreasing Solvents; Exceeds SAE J1128 Abrasion Standards |
| Quality Assurance | 100% Automated Pin-to-Pin Continuity Mapping Against OEM Schematic; 1000V AC HiPot Dielectric Withstand Test; Computer-Monitored Crimp Force Recording on Every Terminal; 10x Magnification Visual Inspection; 12-Hour Thermal Cycling Burn-In Test |
| Shipping Weight | 3.2 kg (Gross, approximate) |
| Package Dimensions | 60 x 48 x 16 cm (Coiled and Flat-Packed in Protective Carton) |
| Return Policy | Non-Returnable / Non-Exchangeable (Comprehensive DOA Guarantee Included) |
The COGENG Engine Control & Injector Wiring Harness, primary part number 546-2154 (5462154), is a precision-manufactured, comprehensive engine management and fuel injection control electrical distribution harness engineered as a direct, form-fit-function replacement for the Caterpillar C9 ACERT diesel engine platform. This harness represents the complete electrical infrastructure that connects the Engine Control Module (ECM) to every critical engine-mounted sensor, actuator, and fuel injection component, with specific emphasis on the high-current, high-precision circuits that drive the Hydraulic Electronic Unit Injection (HEUI) system. The 546-2154 harness is specifically validated for use across a powerful range of Caterpillar heavy equipment, including the 330D and 336D hydraulic excavators—two of the most productive 30- to 36-ton class excavators in the global construction and mining industries—as well as the D6R Series II track-type tractor, a mid-size dozer renowned for its versatility and durability.
The Caterpillar C9 ACERT engine is an 8.8-liter, inline six-cylinder, electronically controlled diesel powerplant that has served as a cornerstone of Cat's mid-to-large machine platform strategy. The ACERT technology suite depends on an intricate network of electronic controls to manage combustion precisely: high-pressure HEUI fuel injection that uses engine oil pressurized to actuation levels to inject fuel at the precise moment and in the precise quantity demanded by load conditions; variable geometry turbocharging or electronic wastegate control to optimize boost pressure across the entire engine speed range; exhaust gas recirculation (EGR) to manage combustion temperatures and reduce emissions; and comprehensive sensor feedback from pressure, temperature, speed, and position sensors distributed across the engine. The 546-2154 harness is the physical layer that enables every millisecond of this complex, coordinated control strategy. It carries the precision analog signals from the network of pressure and temperature sensors; the high-frequency digital pulse trains from the camshaft and crankshaft position sensors that provide real-time engine speed and piston position data; the high-current PWM drive signals that command the HEUI injector solenoids, which require precise current profiles to achieve the correct injection rate shape; the control signals for the turbocharger actuator and EGR valve; and the bidirectional CAN bus data stream that allows the engine ECM to coordinate seamlessly with the machine's implement and hydraulic system controllers.
The operating environment for a C9 engine harness in these machine applications is relentlessly severe. In a 330D excavator performing heavy trenching or rock excavation, the engine bay is subjected to continuous high-amplitude vibration from the engine itself and from the high-pressure hydraulic pumps that are mounted directly to the engine flywheel housing and driven at pressures exceeding 35,000 kPa. The engine compartment ambient temperature can exceed 80°C during sustained full-load operation, with localized hot spots near the exhaust manifold and turbocharger turbine housing reaching surface temperatures that rapidly degrade standard wire insulation. Fine, abrasive dust penetrates every opening in the engine enclosure. In a D6R II dozer working in forestry or land clearing, the harness faces additional challenges from impact shock, falling debris, and the physical stress of branches and vegetation striking the engine compartment. High-pressure steam cleaning and aggressive industrial degreasing solvents, used regularly to maintain the machine, attack any connector seal that has lost its elasticity due to thermal aging.
The failure modes of the OEM 546-2154 harness are well-characterized. Heat-induced insulation embrittlement causes microscopic cracking in the wire insulation, allowing moisture ingress and "green wire" copper corrosion that increases circuit resistance and corrupts sensor signals. Fretting corrosion at the ECM connector pins, driven by continuous micro-vibration, wears through the gold plating and creates intermittent, high-resistance connections that cause phantom fault codes and random engine shutdowns. Chafing at contact points with the engine block, brackets, and hydraulic fittings wears through the protective conduit and insulation, creating direct shorts to ground. COGENG's 546-2154 harness systematically eliminates these failures. We use XLPE-insulated wire rated for 125°C continuous operation, multi-layer thermal shielding in exhaust-adjacent zones, self-fusing silicone tape at every branch junction for permanent waterproof sealing, and precision-machined, gold-plated ECM connector contacts with closed-entry design to prevent fretting. Every terminal is solid-barrel and crimped using computer-monitored presses for a guaranteed gas-tight connection. Built on a precision OEM jig, this harness is a true drop-in replacement.
The 546-2154 harness is specifically designed for Caterpillar C9 ACERT engine installations. Always provide your complete machine PIN and engine serial number (ESN) for final compatibility verification.
| Brand | Model | Machine Class | Typical Engine |
|---|---|---|---|
| Caterpillar | 330D | 30-Ton Hydraulic Excavator | Cat C9 ACERT |
| Caterpillar | 336D | 36-Ton Hydraulic Excavator | Cat C9 ACERT |
| Caterpillar | D6R Series II | Track-Type Tractor (Mid-Size Dozer) | Cat C9 ACERT |
Complete Engine Control & Injector Wiring Harness Assembly (1 unit): Fully assembled, jig-built harness with all connectors, solid-barrel terminals, protective conduit sheathing, thermal shielding layers, factory-positioned rubber-lined P-clips, and heat-shrink printed circuit identification labels pre-installed and verified.
Integrated ECM Connector Assembly: The primary 70-pin ECM connector body, fully populated with gold-plated machined socket contacts, silicone interfacial environmental seal, and a thick-walled, adhesive-lined heat shrink strain relief boot pre-installed.
All Sensor, Actuator, and Injector Connectors: Every branch is pre-terminated with the correct solid-barrel contacts, silicone wire seals, and plastic cavity plugs in unused positions. Includes the six HEUI injector pass-through connectors with high-current-rated terminals.
High-Current Power and Ground Terminals: Heavy-gauge alternator, starter motor, and battery cables terminated with tin-plated, closed-barrel copper ring terminals. Each crimp-to-insulation transition is fully sealed with dual-wall, adhesive-lined heat shrink.
Anti-Static Protective Bag and Heavy-Duty Export Carton: Sealed in a silver anti-static moisture barrier bag and flat-packed in a rigid, double-wall corrugated carton with "Do Not Cut — Electrical Harness Inside" labels.
Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.

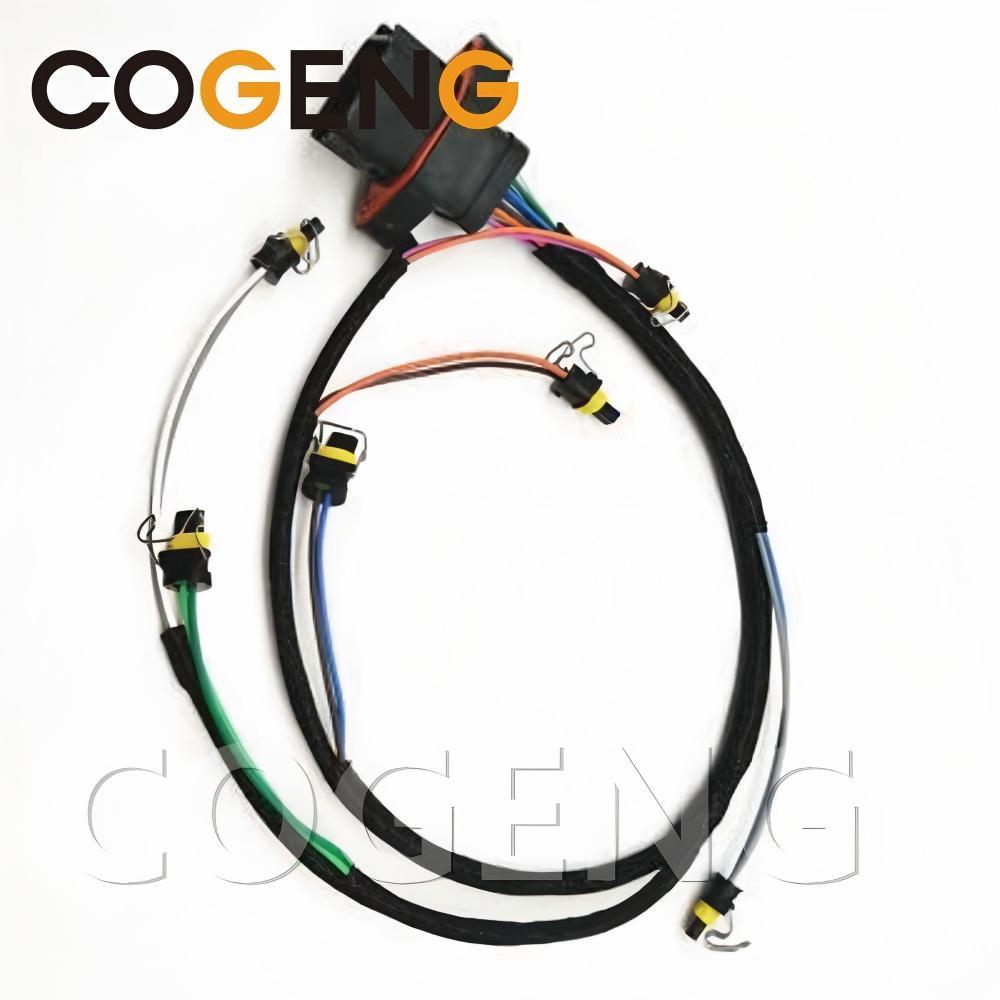

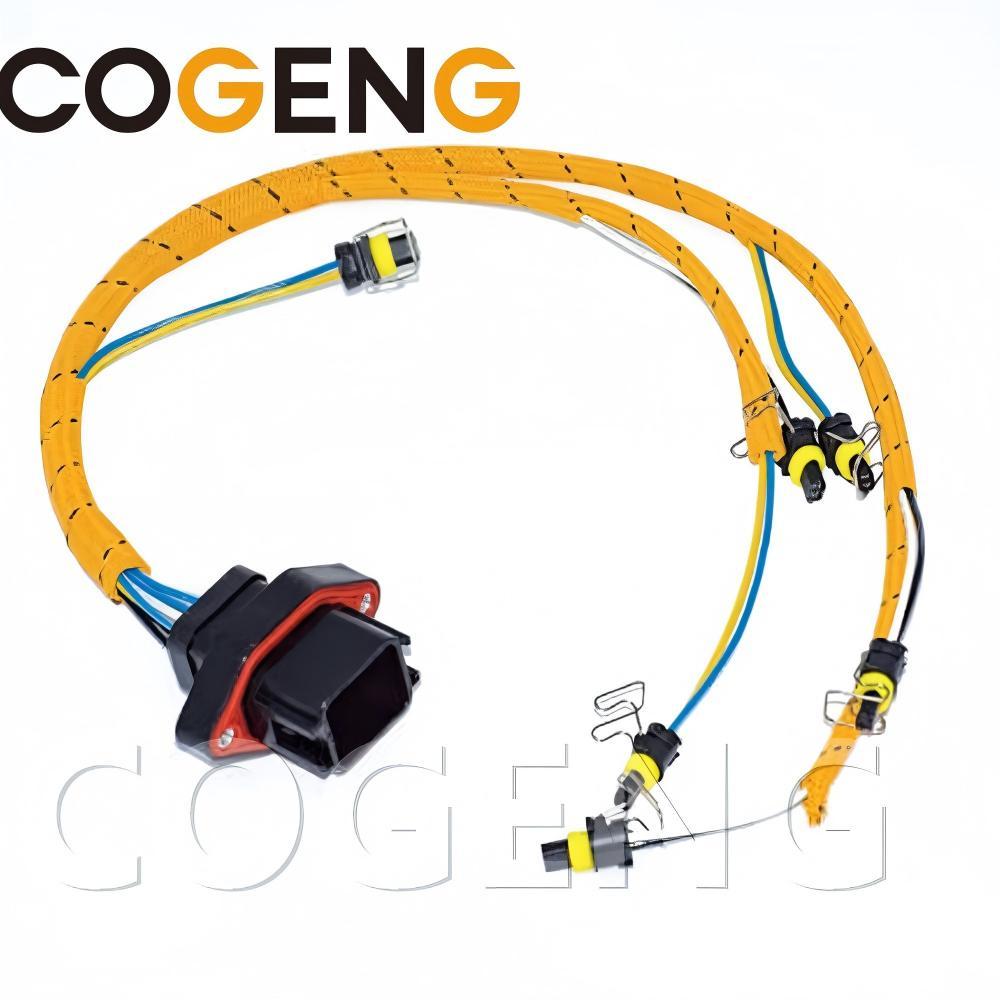

Image 1: Complete Harness Assembly — Jig Board Layout
A wide-angle overhead view of the entire 546-2154 harness laid out on a calibrated precision engineering jig board. The harness displays a comprehensive multi-branch topology. The main trunk, wrapped in heavy-duty black high-temperature split-loom nylon conduit, routes along the engine block. Branches extend to the common rail or HEUI pump, turbocharger electronic actuator, EGR valve and differential pressure sensor, intake manifold temperature/pressure, coolant temperature, oil pressure/temperature, camshaft and crankshaft position sensors, atmospheric pressure sensor, and the six HEUI fuel injector pass-through connectors. Each branch is tagged with a white heat-shrink printed identification label. The jig board grid and locator pins confirm OEM dimensional accuracy.
Image 2: Main ECM Connector — High-Magnification Macro Detail
A close-up image of the primary 70-pin ECM connector with the locking lever open, revealing the precisely aligned grid of gold-plated machined socket contacts. The green silicone interfacial seal surrounds the pin field. The connector backshell is fully encapsulated in a thick-walled, glossy, adhesive-lined polyolefin heat shrink boot providing complete 360-degree environmental sealing and mechanical strain relief. Laser-etched wire identification numbers are visible near the backshell.
Image 3: HEUI Injector Branch — High-Current Drive Circuit Protection
This image focuses on one of the six HEUI injector pass-through connectors. The branch features heavy-gauge wire capable of carrying the high actuation current required by the HEUI injector solenoids. The protective sheathing includes chemical-resistant PET braided sleeving over self-fusing silicone tape. The connector is a high-current-rated Deutsch HD30 series with silver-plated contacts, designed to handle the demanding electrical load of injector actuation without overheating.
Image 4: Turbocharger & Exhaust Zone Branch — Multi-Layer Thermal Protection
A cross-sectional cutaway view of a branch leg for the exhaust-adjacent zone. The multi-layer thermal protection system includes an inner PTFE tape wrap, a reflective aluminized fiberglass sleeve, and an outer flexible stainless steel wire overbraid. The branch terminates in a high-temperature ceramic-insert Deutsch connector.
Image 5: Heavy-Gauge Alternator Power Terminal — Macro Detail
A macro photograph of a main 8 AWG alternator power cable termination showing the precise hexagonal crimp barrel compression pattern and the glossy, dual-wall adhesive-lined heat shrink seal with visible adhesive bead at both edges, confirming a permanent moisture-proof environmental seal.
C9 ACERT Engine Specificity: The 546-2154 harness is designed exclusively for machines powered by the electronic Caterpillar C9 ACERT diesel engine. It is not compatible with machines equipped with the earlier 3306 mechanical engine, the 3126B engine, or the later C9.3 ACERT engine used in Tier 4 Final applications. Verify your engine serial number (ESN) prefix.
330D and 336D Excavators: The 330D is a 30-ton class excavator and the 336D is a 36-ton class excavator. Both machines share the C9 ACERT engine platform and the 546-2154 engine control harness is common to both models. The machine-side interface connectors may vary slightly by serial number prefix. PIN verification ensures the correct configuration.
D6R Series II Specificity: The D6R "Series II" designation is critical. The original D6R (non-Series II) may use a different engine and electrical architecture. The 546-2154 harness is validated for the D6R Series II equipped with the C9 ACERT engine.
Control & Injector Harness Function: Unlike a basic engine sensor harness, the 546-2154 includes the high-current circuits that directly drive the HEUI fuel injector solenoids. These circuits require robust terminals and heavier-gauge wire to handle the high actuation currents without voltage drop or overheating. The COGENG harness is built with appropriately specified components.
Professional Installation Required: This harness routes through the tight engine bay of a large excavator or dozer, around the exhaust manifold, turbocharger, EGR cooler, and across the articulation interface. Installation should be performed by a qualified technician with access to Caterpillar Electronic Technician (ET) for post-installation ECM verification and injector calibration if required.
Note: This is a step-by-step textual guide corresponding to a numbered visual installation diagram.
Step 1: Safety Lockout and Documentation
Red lockout symbol over battery: "Disconnect negative (-) and positive (+) battery cables. Lock out master switch. Wait 60 seconds." Camera icon: "Photograph every aspect of existing harness routing. Document all P-clips, routing around exhaust and turbo, injector pass-through locations, and all connector orientations."
Step 2: Old Harness Systematic Removal
Label every connector with numbered wire tags.
Disconnect all sensors: intake manifold temp/pressure, coolant temp, oil pressure/temp, fuel rail or HEUI pressure, camshaft, crankshaft, atmospheric pressure, EGR sensors.
Disconnect actuators: six HEUI injector pass-through connectors, HEUI pump control solenoid, turbo actuator, EGR valve, engine brake solenoids.
Disconnect main ECM connector.
Disconnect power cables from alternator, starter, battery junction.
Cut zip ties, release P-clips, remove old harness.
Step 3: New Harness Visual Comparison
Uncoil new 546-2154 beside old harness. Compare ECM connector, injector pass-through connectors, branch lengths, connector types, ring terminal diameters. Verify every match.
Step 4: New Harness Routing and Connection
Route harness following photographic reference. Secure loosely at all P-clip locations.
Connect ECM connector first.
Systematically reconnect all sensor, actuator, and injector branches.
Install and torque all power ring terminals to OEM specifications.
Tighten all P-clips. Install new high-temperature zip ties. Verify clearance from exhaust, turbo, and all moving linkages.
Step 5: Power-Up and Full Functional Test
Reconnect batteries. Connect Cat ET. Verify "Active Diagnostic Codes: 0." Start engine. Verify immediate oil pressure. Monitor all parameters including injector actuation pressure. Warm to operating temperature. Cycle all machine functions. Perform injector cut-out test if required. Confirm zero fault codes.
| Detail | Description |
|---|---|
| Shipping Methods | International Express Courier (DHL, FedEx, UPS): 4-8 business days for machine-down emergencies. Economy Air Freight: 8-15 days. Sea Freight (LCL/FCL): 30-45 days for bulk orders. Method optimized per destination and urgency. |
| Estimated Delivery Time | Transit times governed by carrier schedule. Arrival date on tracking portal is definitive. Tracking provided within one business day of dispatch. |
| Packing | Coiled to safe radius, sealed in anti-static bag, flat-packed in double-wall export carton with reinforced corners. Labeled "Do Not Cut — Electrical Harness Inside." |
| Payment Terms | T/T (30% deposit / 70% before shipment), Western Union, MoneyGram, Irrevocable L/C at Sight, Trade Assurance. |
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. Once a harness has left our controlled environment, we cannot verify it remains in factory-fresh, uninstalled condition. |
| DOA Quality Guarantee | Full replacement for manufacturing defects reported within 7 days of delivery. Harness must be in original, uninstalled condition. Physical damage voids the guarantee. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact harness for written approval before dispatch. No shipment without your confirmation. |
Q1: Does this harness include the complete injector wiring?
A: Yes. The 546-2154 is a control and injector harness. It includes the six external HEUI injector pass-through connectors that mate with the under-valve-cover injector harness. It carries the high-current drive signals from the ECM to the HEUI fuel injectors. The internal under-valve-cover injector harness is a separate component.
Q2: Will this harness fit both my 330D excavator and my D6R II dozer?
A: The 546-2154 is an engine-side harness for the C9 ACERT engine. Since the engine and ECM platform are common across the 330D, 336D, and D6R Series II, the engine harness is architecturally the same. However, machine-side interface connectors can vary. We verify your specific PIN during pre-shipment confirmation.
Q3: What are the symptoms of a failed injector harness circuit?
A: Symptoms specific to injector harness failure include: individual cylinder misfire codes (e.g., Cylinder #3 Fault), engine running rough or with reduced power, "Injector Solenoid Open/Short" diagnostic codes, and engine derate. If multiple injector codes appear simultaneously, the main engine harness is the prime suspect.
Q4: Is this the superseded part number for my older 330D harness?
A: Yes. The 546-2154 is a later service replacement part number that supersedes several earlier harness part numbers for the C9 ACERT engine in these machine platforms. If your machine model and serial number match our compatibility list, the 546-2154 is the correct current-revision replacement.
Q5: Do I need to perform an injector calibration after installation?
A: Physical installation of the harness does not require injector calibration. However, after replacing the harness, we recommend connecting Cat ET and verifying that all injector codes are cleared and that the ECM is communicating correctly with all injector solenoids. If injector trim codes were previously programmed, they remain stored in the ECM and are not affected by harness replacement.
For pricing, machine-down emergency support, fleet quantity discounts, or pre-purchase compatibility verification, contact your COGENG supplier today.
Sales Price: Contact COGENG sales customer service for the most current competitive pricing and volume discount structures.
Shipping Method & Cost: We will quote the optimal shipping solution for your location and urgency. DDP terms available for select countries.
Estimated Delivery Time: Based on the selected carrier. Tracking provided within one business day of dispatch.
✅ Direct OEM Replacement — Jig-Built for Guaranteed Fit, No Cutting or Splicing Required.
✅ C9 ACERT Control & Injector Harness — Validated for 330D, 336D, and D6R Series II Platforms.
✅ Severe-Duty Construction — XLPE Wire, Gold-Plated ECM Terminals, HEUI-Rated High-Current Circuits, Multi-Layer Thermal Shielding.
✅ In Stock & Ready to Ship — Minimize Excavator and Dozer Downtime with Immediate Worldwide Dispatch.
Critical Action: To ensure 100% compatibility, please provide your machine's complete PIN, C9 engine serial number (ESN), and a clear photo of your existing harness label and ECM connector face. Our technical team will cross-reference your build configuration and provide written confirmation before you order.
Merchant Return Policy: All products shipped are not returnable or exchangeable. Please complete all compatibility checks before purchase.
