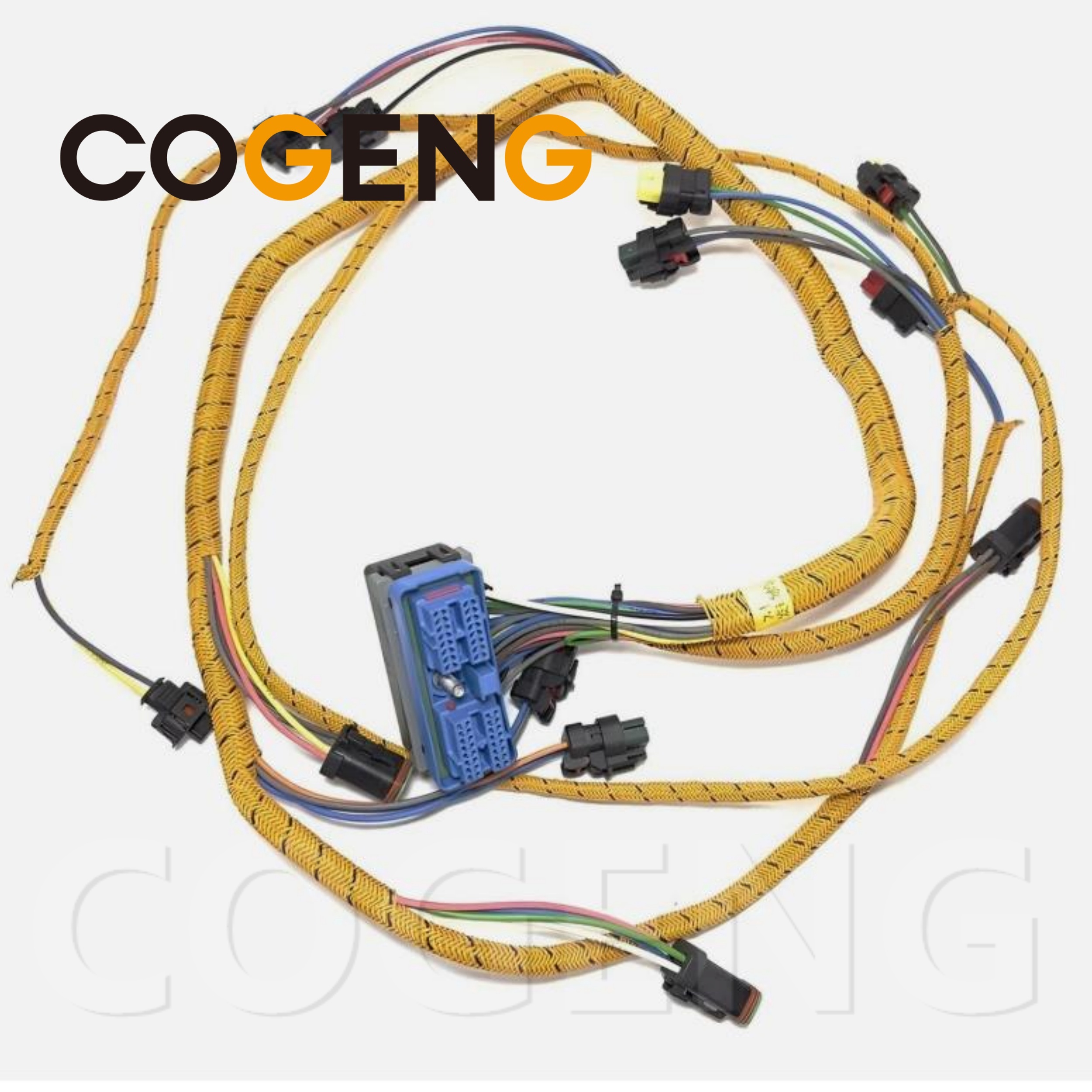

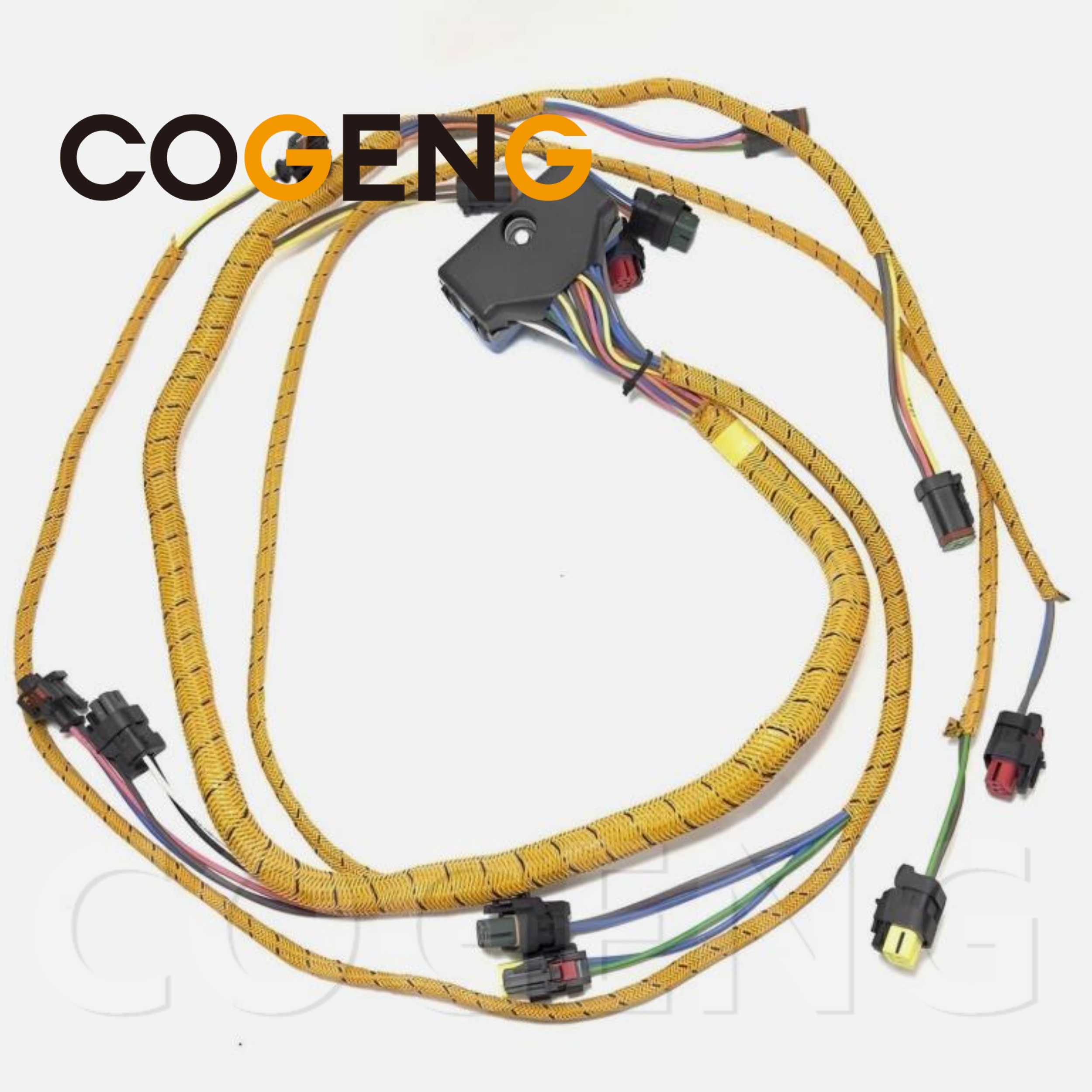

The COGENG 385-5997 is a premium direct OEM replacement wiring harness specifically engineered for the Caterpillar C7.1 diesel engine, commonly found in 320D2, 320D, 323D2, 326D2, and 329D2 excavators. This comprehensive engine harness connects and powers critical engine components including the Engine Control Module (ECM), fuel injectors, sensors, actuators, and charging system. Manufactured to meet or exceed original Caterpillar specifications, this durable, plug-and-play harness ensures reliable electrical performance, optimal signal integrity, and long service life in demanding construction and excavation applications.
Direct OEM replacement | CAT C7.1 engine | 320D2 / 320D / 323D2 / 326D2 / 329D2 compatible | Factory direct | In stock
| Parameter | Specification |
|---|---|
| COGENG Part Number | 385-5997 |
| OEM Equivalent | Caterpillar 385-5997 |
| Product Type | Engine Wiring Harness Assembly |
| Application | Engine electrical system (ECM, injectors, sensors) |
| Harness Type | Complete engine bay harness |
| Engine Compatibility | Caterpillar C7.1 (7.1L, 6-cylinder) |
| Compatible Models | CAT 320D2, 320D, 323D2, 326D2, 329D2 Excavators |
| Brand | Part Number |
|---|---|
| COGENG | 385-5997 |
| Caterpillar | 385-5997 |
| Interchange | 385-5998, 385-5999, 385-6000, 385-6001, 386-9122 |
| Model | Engine | Application |
|---|---|---|
| 320D | C7.1 | Engine wiring harness |
| 320D L | C7.1 | Engine wiring harness |
| 320D RR | C7.1 | Engine wiring harness |
| 320D GC | C7.1 | Engine wiring harness |
| Model | Engine | Application |
|---|---|---|
| 320D2 | C7.1 | Engine wiring harness |
| 320D2 L | C7.1 | Engine wiring harness |
| 320D2 GC | C7.1 | Engine wiring harness |
| 320D2 RR | C7.1 | Engine wiring harness |
| Model | Engine | Application |
|---|---|---|
| 323D2 | C7.1 | Engine wiring harness |
| 323D2 L | C7.1 | Engine wiring harness |
| Model | Engine | Application |
|---|---|---|
| 326D2 | C7.1 | Engine wiring harness |
| 326D2 L | C7.1 | Engine wiring harness |
| Model | Engine | Application |
|---|---|---|
| 329D2 | C7.1 | Engine wiring harness |
| 329D2 L | C7.1 | Engine wiring harness |
| Parameter | Specification |
|---|---|
| Engine Model | Caterpillar C7.1 |
| Displacement | 7.1L (433 cu in) |
| Cylinders | 6 in-line |
| Bore x Stroke | 105mm x 135mm |
| Fuel System | Common rail (high pressure) |
| Injection Pressure | Up to 1,800 bar (26,100 psi) |
| Emission Standards | Tier 3 / Stage IIIA, Tier 4 / Stage IV |
Note: Verify compatibility with your equipment model, engine serial number, and production year before ordering. Contact COGENG with your machine details for exact application verification.
| Parameter | Specification |
|---|---|
| System Voltage | 24V DC (Caterpillar standard) |
| Current Capacity | Up to 45A (main power circuits) |
| Wire Gauge Range | 14AWG - 20AWG (signal) / 8AWG - 12AWG (starter/alternator) |
| Insulation Resistance | ≥100MΩ @ 500V DC |
| Dielectric Strength | 1500V AC/60s No Breakdown |
| Voltage Drop | <0.5V @ rated load |
| Temperature Rating | -40°C to +125°C (engine bay rated) |
| Component | Material Specification |
|---|---|
| Conductor | High-purity tinned copper (99.9%) |
| Wire Insulation | Heat-resistant XLPE / PVC (125°C rated) |
| Outer Wrapping | Automotive-grade cloth tape / Corrugated conduit |
| Connector Housings | OEM-grade Nylon 66 / PBT (UL94 V-0) |
| Terminals | Tin-plated / Gold-plated brass |
| Grommets/Bushings | EPDM Rubber (UV resistant) |
| Shielding | Aluminum foil + copper braid (sensor circuits) |
| Identification | Heat-shrink printed circuit labels |
| Diesel-resistant jacketing | Special compound for engine bay |
| Parameter | Rating |
|---|---|
| Temperature Range | -40°C to +125°C |
| Ingress Protection | IP67 (engine connectors) |
| Vibration Resistance | 15G @ 50-1000Hz |
| UV Resistance | 500+ hours weatherometer |
| Chemical Resistance | Resists diesel, oil, hydraulic fluid, coolant |
| Abrasion Resistance | Corrugated conduit in high-wear areas |
| Circuit Type | Components Connected | Wire Specification | Shielding |
|---|---|---|---|
| Engine Control (ECM) | Main ECM, crank sensor, cam sensor | Shielded 18-20 AWG | Yes |
| Fuel System | Injectors (6), fuel pump, rail pressure sensor | 14-16 AWG + shield | On sensors |
| Air Intake | Turbo actuator, MAF sensor, boost sensor | 18-20 AWG shielded | Yes |
| Exhaust / Aftertreatment | EGR valve, DPF sensors, temp sensors (Tier 4) | 18-20 AWG shielded | Yes |
| Cooling System | Fan motor, coolant temp sensor, fan clutch | 14-16 AWG (fan) + 20 AWG (sensor) | No |
| Charging System | Alternator, starter motor, battery connections | 8-10 AWG (alternator) / 4-6 AWG (starter) | No |
| Engine Sensors | Oil pressure, fuel temp, coolant temp, water in fuel | 18-20 AWG shielded | Yes |
| Connector Type | Location | Pins | Sealing |
|---|---|---|---|

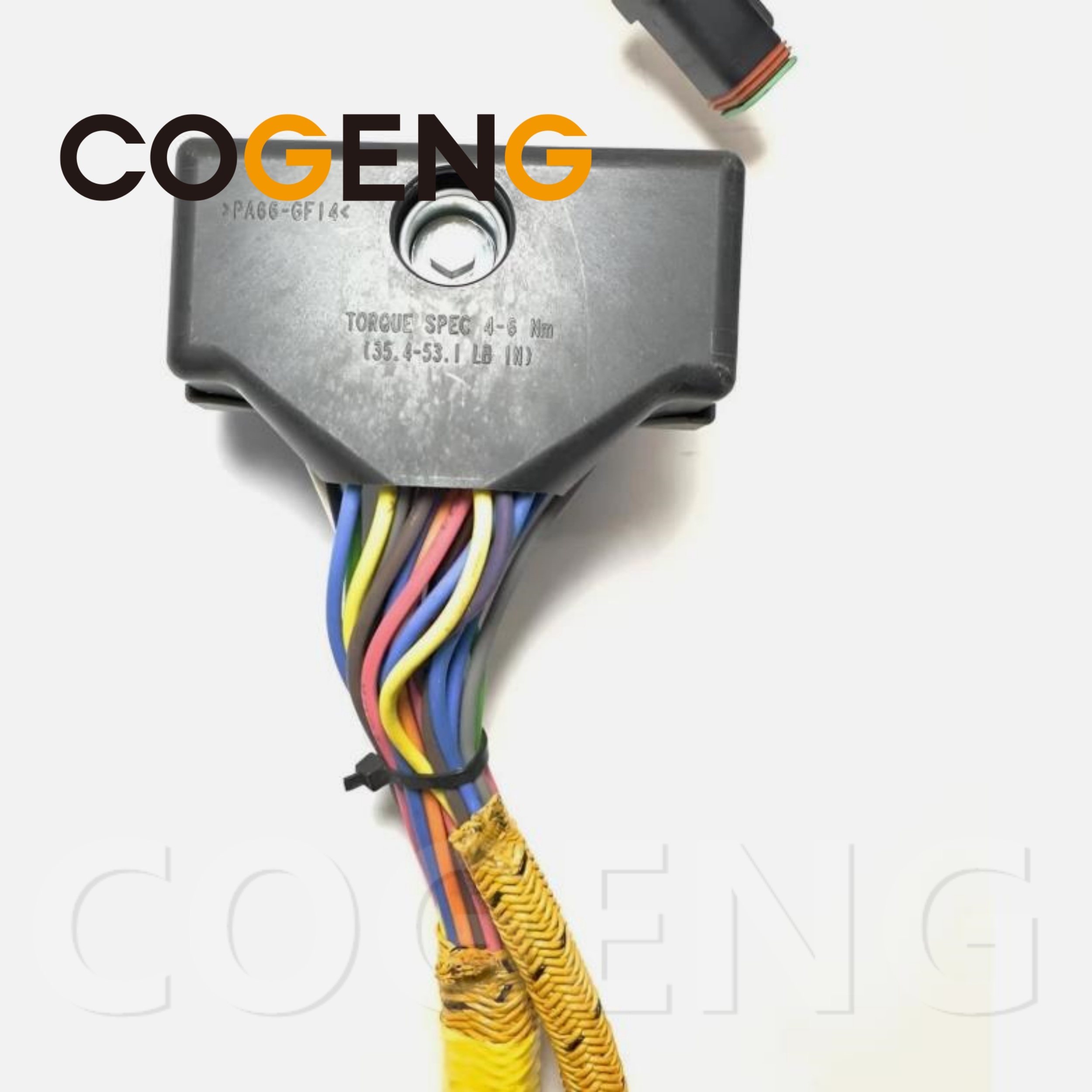

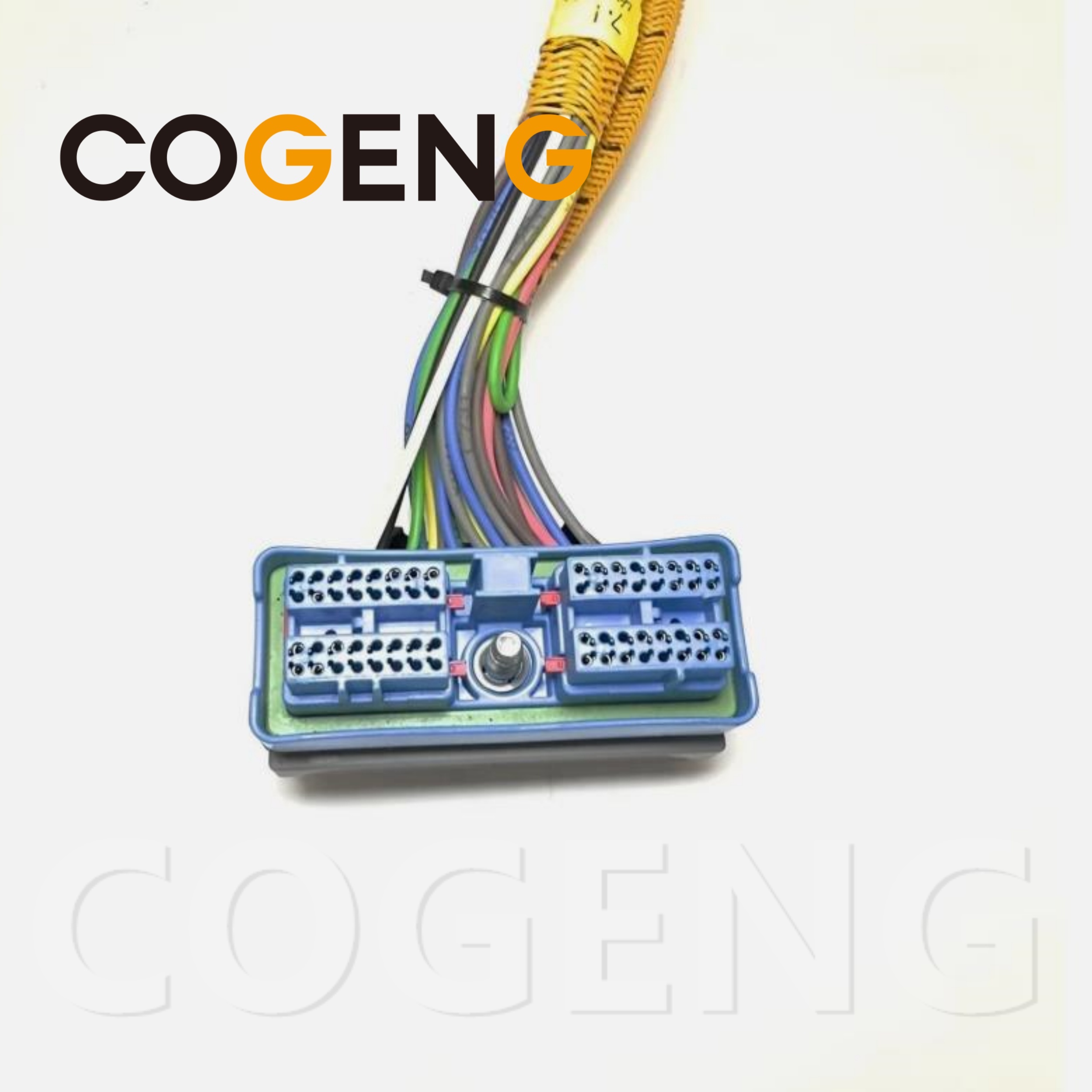

| CAT OEM | Engine Control Module (ECM) | 48-60 pin | IP67 |
| Injector Connectors | Valve cover (6 injectors) | 2-pin each | IP67 |
| Deutsch DT | Sensors, actuators | 2-4 pins | IP67 |
| AMP/Tyco | Alternator, starter | 2-pin + ring terminal | IP65 |
| Crank Sensor | Flywheel housing | 3-pin | IP67 |
| Cam Sensor | Front timing cover | 3-pin | IP67 |
| Rail Pressure Sensor | Common rail | 3-pin | IP67 |
| Coolant Temp | Thermostat housing | 2-pin | IP67 |
| Oil Pressure | Engine block | 2-pin | IP67 |
| Feature | Benefit |
|---|---|
| OEM-Grade Materials | CAT C7.1 spec wire, terminals, connectors |
| Model-Specific Fit | Exact routing for C7.1 engine in 320D2/320D/323D2/326D2/329D2 |
| Pre-Formed Branches | Matches factory routing paths |
| Color-Coded Wires | Caterpillar-standard wire colors |
| Labeled Connectors | Circuit identification at every junction |
| 100% Tested | Every harness individually verified |
| Shielded Circuits | Critical sensor circuits fully shielded |
| High-Temp Wire | 125°C rated for C7.1 engine bay |
| Diesel-Resistant | Jacketing resists diesel, oil, coolant |
| EMI Protection | Resists electrical noise for sensitive sensors |
| Symptom | Root Cause | COGENG Solution |
|---|---|---|
| Engine won't start / no crank | Starter circuit failure, ECM power loss | New power circuits |
| Engine cranks but no start | Crank/cam sensor signal loss | New shielded sensor wiring |
| Engine runs rough / misfire | Injector circuit failure (6-cylinder) | New injector harness |
| Cylinder-specific misfire | Individual injector wiring break | New injector branch |
| Reduced power / derate | Sensor signal loss (boost, temp, pressure) | New sensor circuits |
| Intermittent shutdown | Loose connection, broken wire | New secure connections |
| No communication with engine ECM | CAN bus failure | New twisted pair CAN lines |
| Check engine light on | Multiple circuit faults | Complete harness replacement |
| Engine won't stop (key off) | ECU power relay circuit short | New properly insulated wiring |
| Cold start difficulty | Glow plug / intake heater circuit failure | New heater wiring |
| Turbo not responding | Turbo actuator circuit failure | New turbo control circuits |
| EGR / emission faults | EGR valve circuit failure | New EGR wiring |
| DPF regeneration issues (Tier 4) | Aftertreatment sensor circuit failure | New DPF/SCR sensor wiring |
| Symptom | Root Cause | COGENG Solution |
|---|---|---|
| Rodent damage | Chewed wires (common in excavators) | New complete harness |
| Chafed / exposed wires | Rubbing against engine components | New conduit protection |
| Corroded connectors | Moisture ingress, salt exposure | New sealed connectors |
| Burnt / melted wires | Exhaust manifold / turbo heat | New high-temp wire + heat shielding |
| Broken wires at ECM connector | Vibration fatigue | New strain relief |
| Oil-soaked harness | Fluid contamination (engine leaks) | New oil-resistant insulation |
| Diesel-soaked harness | Fuel leaks (common rail) | New diesel-resistant jacketing |
| Tool | Purpose |
|---|---|
| Socket set (metric, 8-19mm) | Component removal/installation |
| Wrench set (metric) | Bolt and nut removal |
| Screwdrivers | Connector locks, covers |
| Multimeter | Verification testing |
| Zip ties (included) | Harness securing |
| Diagonal cutters | Zip tie trimming |
| Work light | Illumination |
| CAT ET diagnostic tool | Fault code clearing (recommended) |
| Step | Action | Critical Note |
|---|---|---|
| Preparation | ||
| 1 | Park excavator on level surface, lower bucket | Safety first |
| 2 | Disconnect battery (negative first - both batteries) | Essential safety step (24V system) |
| 3 | Allow engine to cool completely | Prevent burns (1 hour minimum) |
| 4 | Open engine hood and side panels | Access engine area |
| 5 | Remove engine covers and acoustic panel | Access injectors/ECM |
| 6 | Document all connections (take MANY photos) | Especially ECM and injectors |
| Removal | ||
| 7 | Locate ECM (behind right kick panel or in engine bay) | C7.1 ECM location |
| 8 | Disconnect ECM (48-60 pin) | Note locking mechanism |
| 9 | Disconnect injectors (6 connectors) | Mark cylinder order (1-6, 1 at fan end) |
| 10 | Disconnect crank sensor (flywheel housing) | 3-pin Deutsch, hard to reach |
| 11 | Disconnect cam sensor (front timing cover) | 3-pin Deutsch |
| 12 | Disconnect rail pressure sensor (common rail) | 3-pin Deutsch |
| 13 | Disconnect boost sensor (intake manifold) | 3-pin Deutsch |
| 14 | Disconnect coolant temp sensor (thermostat housing) | 2-pin |
| 15 | Disconnect oil pressure switch (near filter) | 1 or 2-pin |
| 16 | Disconnect alternator (2-pin + B+ nut) | Note wire locations |
| 17 | Disconnect starter (solenoid + battery cable) | Note orientation |
| 18 | Release all clips, ties, clamps | Save reusable clips |
| 19 | Remove old harness | Follow routing path |
| Installation | ||
| 20 | Clean mounting surfaces | Remove debris, corrosion |
| 21 | Lay new harness following original routing | Exact path match |
| 22 | Install grommets, clamps, heat shields | Prevent chafing |
| 23 | Connect ECM (48-60 pin) | Ensure fully seated, locking lever engaged |
| 24 | Connect injectors (6) in correct order | Cylinder 1 is front (fan end) |
| 25 | Connect crank sensor (flywheel) | 3-pin Deutsch, click |
| 26 | Connect cam sensor (front cover) | 3-pin Deutsch, click |
| 27 | Connect rail pressure sensor (common rail) | 3-pin Deutsch, click |
| 28 | Connect boost sensor (intake) | 3-pin Deutsch |
| 29 | Connect coolant temp sensor | 2-pin |
| 30 | Connect oil pressure switch | Push on, ensure tight |
| 31 | Connect alternator (2-pin + B+ nut) | 10mm nut, tight |
| 32 | Connect starter (solenoid + battery cable) | 12mm nut, tight |
| 33 | Verify all ground connections (2-3 points) | Clean, tight |
| 34 | Secure harness with clips and ties | Every 100-150mm |
| 35 | Double-check all connectors | All locked |
| Final | ||
| 36 | Reconnect battery (positive last) | Momentary contact check |
| 37 | Connect CAT ET diagnostic tool | Clear fault codes |
| 38 | Start engine, check for leaks, listen for noise | Verify operation |
| 39 | Close hood and covers | No wire pinching |
| Note | Detail |
|---|---|
| C7.1 specific | Designed for Caterpillar C7.1 engine (7.1L, 6-cylinder) |
| Battery Disconnect | Excavators have 2x12V batteries in series for 24V. Disconnect both negative terminals first. |
| Cool Engine | C7.1 engine bay is compact. Allow 1+ hours cool down. |
| Injector Order | Cylinder 1 is at the fan (front), cylinder 6 at flywheel (rear). Mark before removal. |
| Rail Pressure Sensor | Located on common rail. High pressure - relieve before disconnecting. |
| Crank Sensor Access | Located at flywheel housing. May require access from below. |
| ECM Location | Typically behind right kick panel or in engine bay. |
| Routing Path | Follow original along valve cover. Keep away from injector lines and turbo. |
| Heat Sources | Turbo (right side) is extremely hot. Harness must be routed with heat shielding. |
| Connector Sealing | Excavators operate in wet/dusty conditions. Ensure all seals are seated. |
| Ground Points | Multiple grounds. All must be clean and tight. |
| CAT ET | Strongly recommended to clear fault codes after harness replacement. |
| Common rail | System pressure up to 1,800 bar. Always relieve pressure before servicing. |
| Issue | Check | Solution |
|---|---|---|
| Single circuit fault | Fuse, relay, component | Check component first |
| Intermittent fault | Connector corrosion (ECM, engine bay) | Clean, dielectric grease |
| Multiple circuit faults | Main ground (battery to engine block) | Clean ground points |
| Engine fault codes | Specific circuit | Diagnose with CAT ET |
| No start | ECM power, crank sensor signal | Check ECM fuse (10A or 15A) |
| Test | Procedure | Acceptable Reading |
|---|---|---|
| ECM Power | Key ON, ECM power pin to ground | 22-28V DC |
| Injector resistance | Disconnect, measure across injector pins (each of 6) | 0.5-2Ω (low impedance) |
| Crank sensor resistance | Disconnect, measure across pins | 200-500Ω (typical) |
| Cam sensor resistance | Disconnect, measure across pins | 200-500Ω (typical) |
| Rail pressure sensor supply | Key ON, sensor connector (VCC) | 4.8-5.2V DC |
| Boost sensor supply | Key ON, sensor connector (VCC) | 4.8-5.2V DC |
| Issue | Possible Cause | Solution |
|---|---|---|
| Engine won't start | ECM connector not fully seated (48-60 pin) | Check locking lever |
| Crank no start | Crank sensor connector loose (hard to reach) | Verify 3-pin Deutsch is seated |
| Check engine light | Sensor connector loose (12+ sensors) | Verify all sensor connections |
| Rough idle | Injector connector not locked (one cylinder) | Reseat individual injector until click |
| No throttle response | Throttle actuator or CAN connection | Check ECM communication (CAN) |
| No alternator charge | Alternator harness connector loose | Check 2-pin Deutsch + B+ nut |
| Oil pressure light on (false) | Oil pressure switch connector loose | Check 1-pin push connector |
| Coolant temp gauge inoperative | Coolant temp sensor connector loose | Check 2-pin |
| Rail pressure fault | Rail pressure sensor connector loose | Check 3-pin Deutsch on common rail |
| CAN bus fault | Termination resistor or twisted pair swapped | Verify CAN Hi/Lo polarity |
Q: What Caterpillar models use the 385-5997 wiring harness?
A: The COGENG 385-5997 wiring harness is a direct OEM replacement designed for Caterpillar excavators powered by the C7.1 diesel engine, specifically including 320D, 320D2, 323D2, 326D2, and 329D2 models. This harness connects critical engine sensors, actuators, and the engine ECM to the machine's electrical system. Always verify this part number against your machine's parts manual or the original harness tag to confirm exact compatibility before ordering, as harness configurations can vary by engine serial number and emissions tier.
Q: What are the symptoms of a failing engine harness on a Cat C7.1 powered excavator?
A: Common symptoms include intermittent engine performance issues, engine stalling or failure to start, multiple diagnostic trouble codes, erratic sensor readings on the monitor panel, unresponsive throttle control, CAN bus communication errors between the engine ECM and machine controller, or the engine entering a derate or limp mode. Engine harness degradation is often accelerated by high heat exposure, vibration, and oil or fuel contamination at connector joints in the demanding excavator engine compartment environment.
Q: Is this harness a direct plug-and-play replacement?
A: Yes, the COGENG 385-5997 harness is manufactured to exact OEM specifications for connector types, pin assignments, wire gauge, and routing length. It is a durable, direct plug-and-play replacement requiring no wire splicing, soldering, or modifications when installed on compatible Caterpillar C7.1 engine applications.
Q: What is the warranty coverage for this wiring harness?
A: COGENG provides a standard 12-month warranty against manufacturing defects from the date of installation. Proof of purchase and installation by a qualified technician are required. Warranty does not cover damage caused by improper installation, unauthorized modifications, rodent damage, or use on incompatible equipment.
Q: Does COGENG offer technical support for installation or troubleshooting?
A: Yes, COGENG provides complimentary technical support to assist with installation guidance and basic troubleshooting. For complex engine diagnostics on Caterpillar C7.1 engines, we recommend consulting a certified Caterpillar service technician with access to Cat ET diagnostic software.
Q: How is the wiring harness protected during shipping?
A: Each COGENG 385-5997 wiring harness is individually packaged in a heavy-duty, moisture-resistant corrugated carton with custom foam inserts to prevent connector damage and wire kinking during transit. All connectors are capped and bagged for additional protection. In-stock items ship promptly for minimal downtime. Factory direct shipping ensures the product reaches you in optimal condition.
Contact COGENG
📞 Phone: +86-185-2913-1515 🌐 Instagram
📧 Email: hugo@cogeng.net 🌐 Facebook：Excavator Parts Selection and Replacement Community
💬 WhatsApp +86-185-2913-1515 Facebook: Excavator Wiring Harness
💬 WeChat: +86-185-7865-1106 Facebook: Excavator Wire Harness
🌐 Website: cogeng.net Facebook: Excavator SolenoidValve
#ExcavatorWiringHarness #ExcavatorThrottleMotor #ExcavatorSolenoidValve #ExcavatorSealKit #ExcavatorPressureSensor
