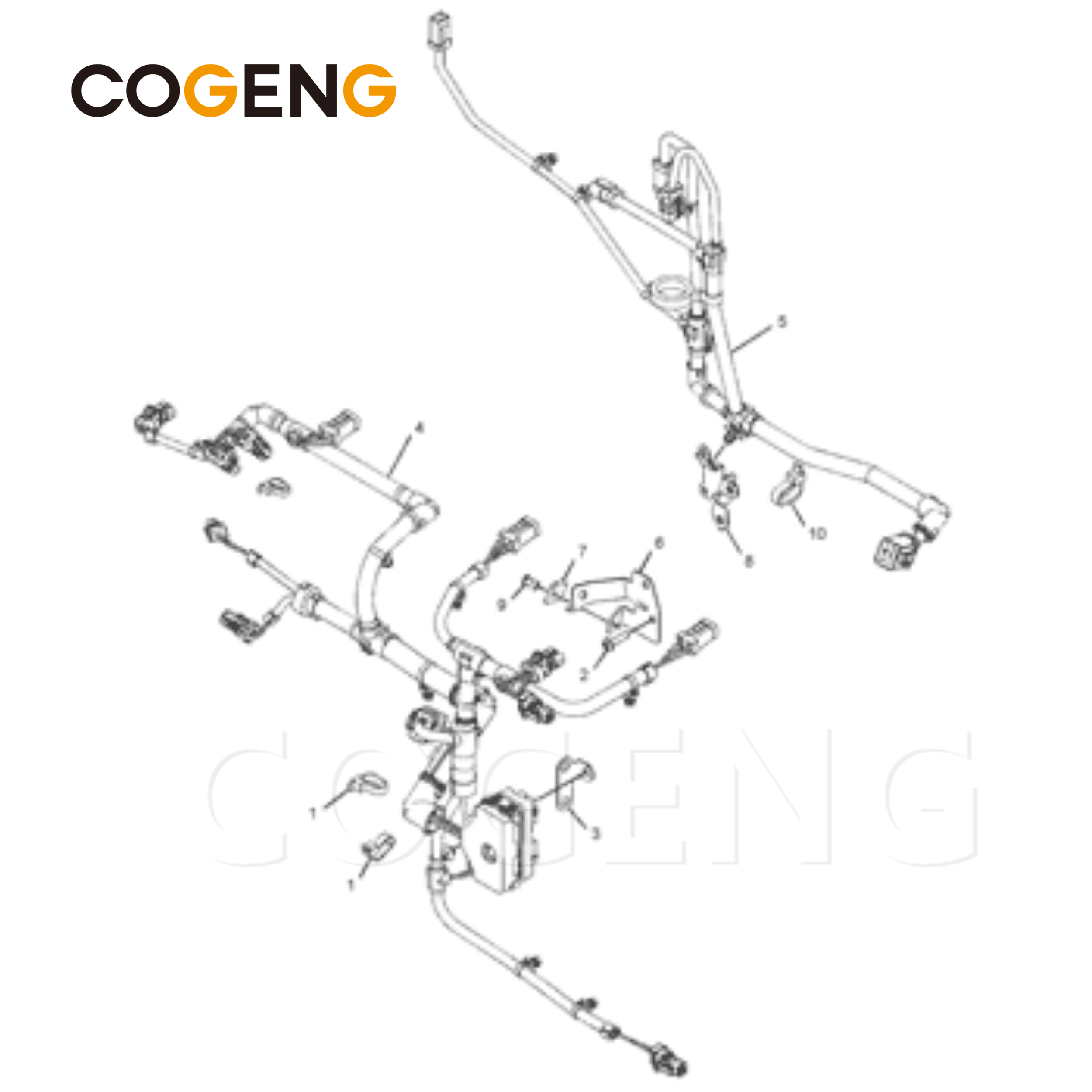

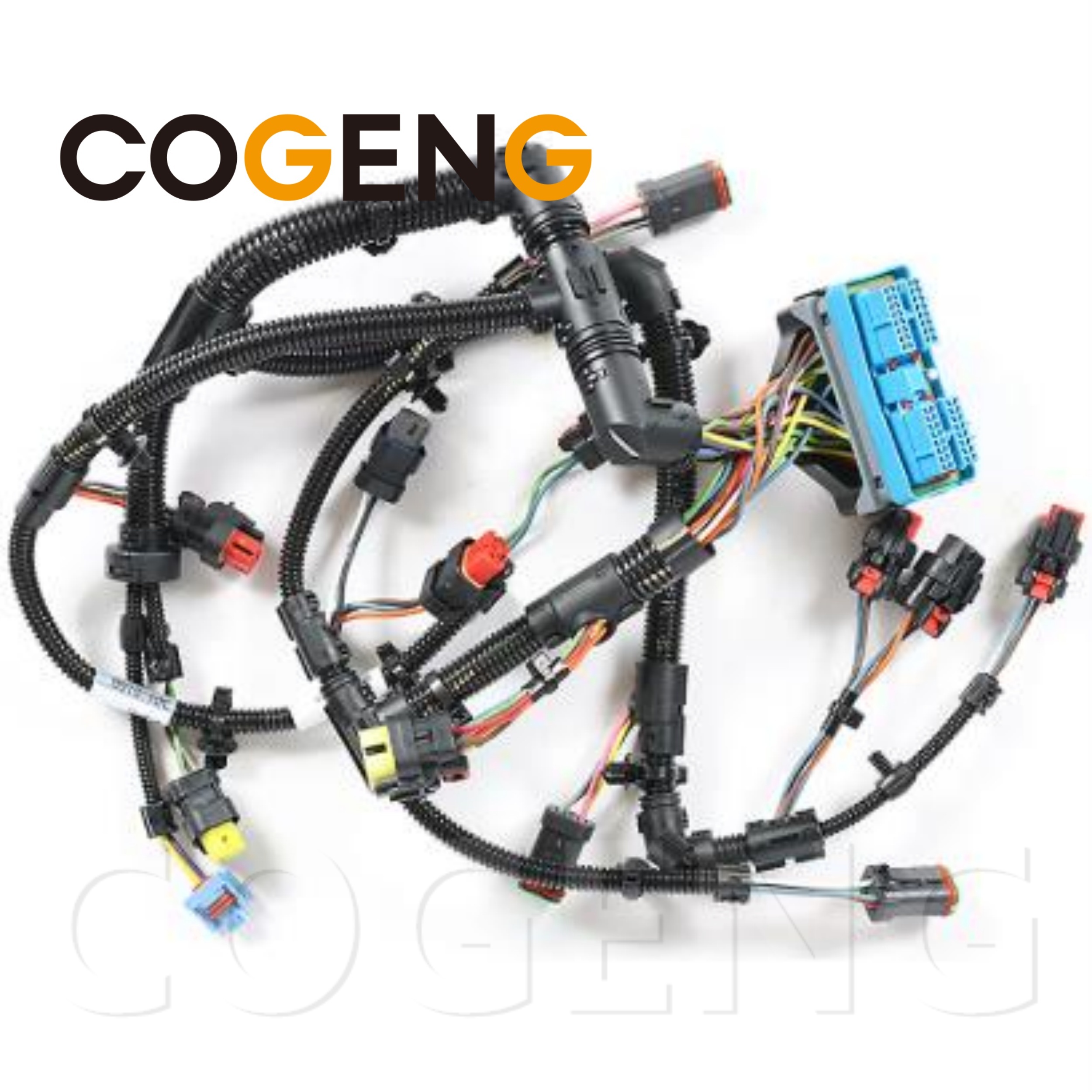

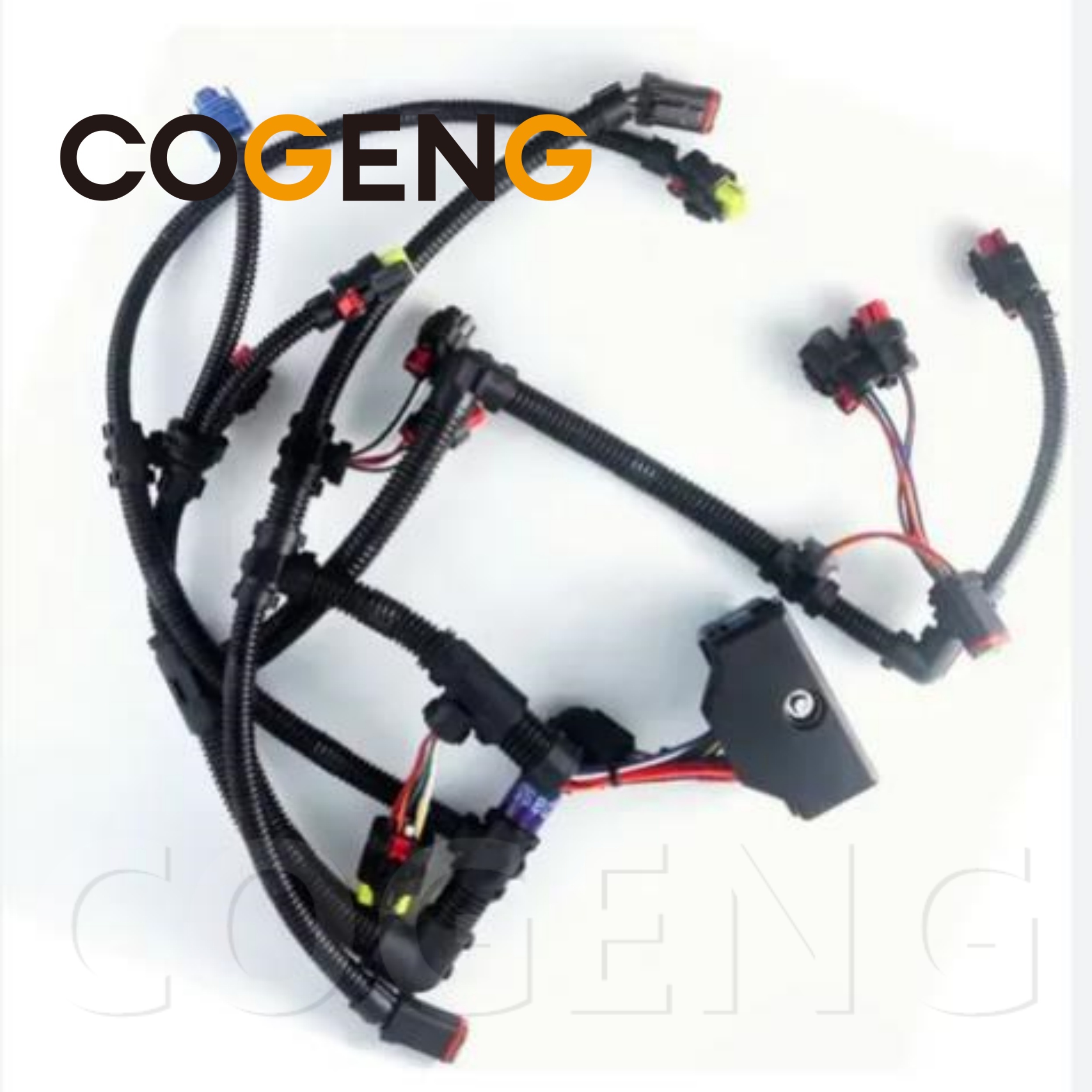

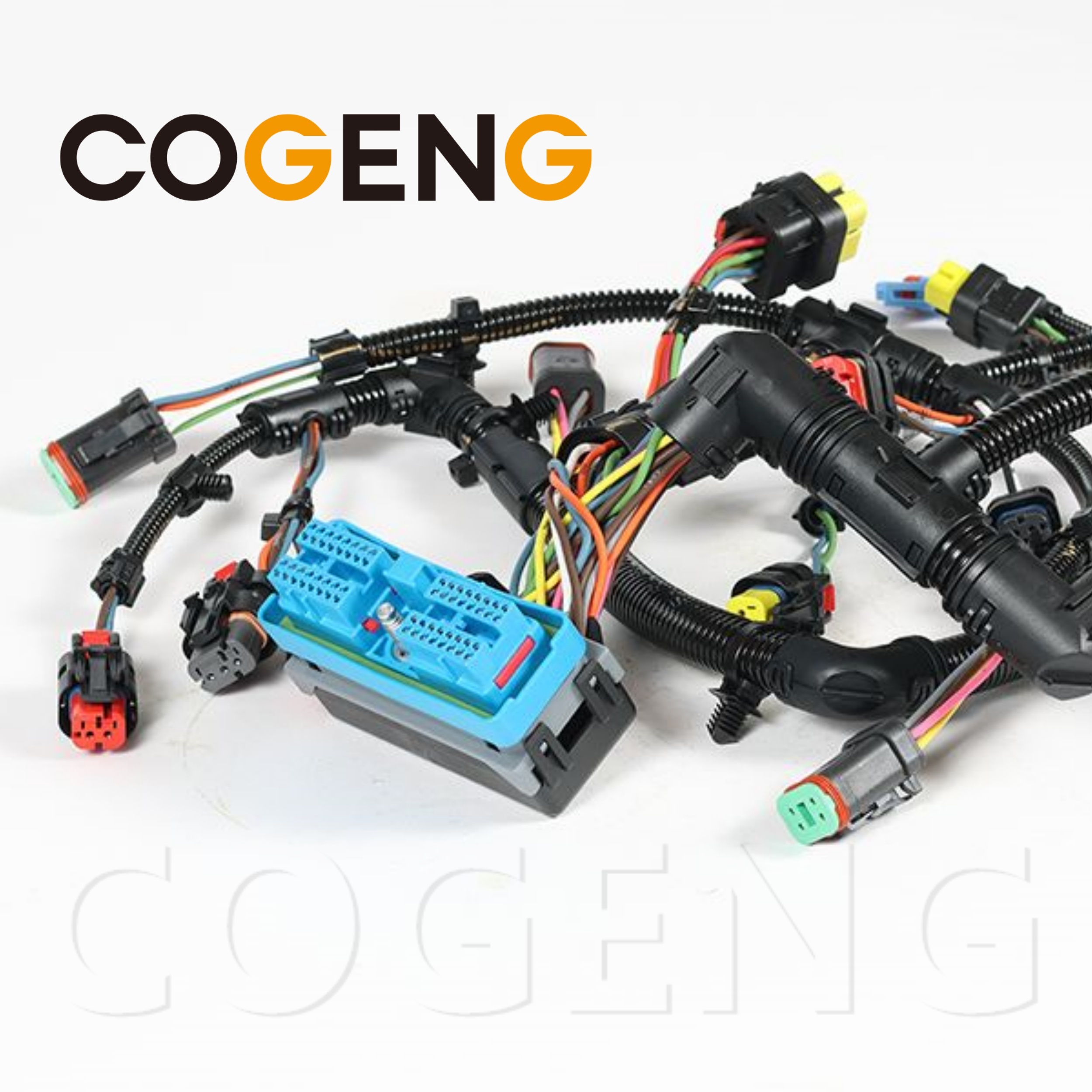

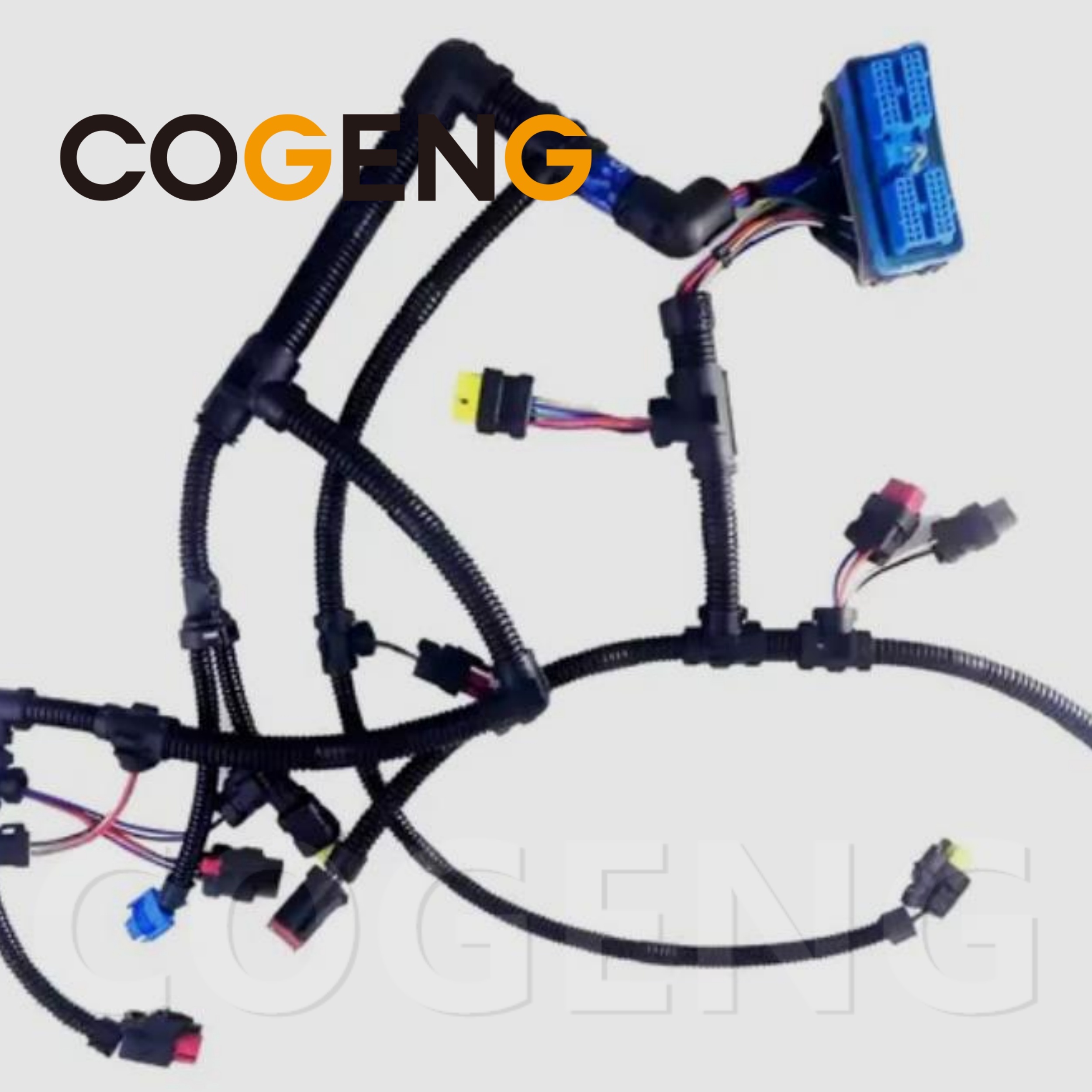

The COGENG 304-5166 is a premium direct OEM replacement wiring harness specifically engineered for Caterpillar D6R and D7R track-type tractors (bulldozers). This comprehensive engine harness connects and powers critical engine components including the Engine Control Module (ECM), fuel injectors, sensors, actuators, and charging system. Manufactured to meet or exceed original Caterpillar specifications, this new, durable, plug-and-play harness ensures reliable electrical performance, optimal signal integrity, and long service life in demanding earthmoving and construction applications.
Direct OEM replacement | CAT D6R / D7R compatible | New engine harness | Factory direct | In stock
| Parameter | Specification |
|---|---|
| COGENG Part Number | 304-5166 |
| OEM Equivalent | Caterpillar 3045166 |
| Product Type | Engine Wiring Harness Assembly |
| Application | Engine electrical system (ECM, injectors, sensors) |
| Harness Type | Complete engine bay harness |
| Compatible Models | Caterpillar D6R, D7R Track-Type Tractors (Bulldozers) |
| Brand | Part Number |
|---|---|
| COGENG | 304-5166 |
| Caterpillar | 304-5166 3045166 |
| Interchange | 3045167, 3045168, 3045169, 198-5056, 1985056 |
| Parameter | Specification |
|---|---|
| Model | Caterpillar D6R Bulldozer |
| Series | R-Series |
| Engine | CAT 3306 / C9 (depending on serial number) |
| Engine Power | 145-165 kW (195-220 HP) |
| Operating Weight | 18,000 - 20,000 kg |
| Parameter | Specification |
|---|---|
| Model | Caterpillar D7R Bulldozer |
| Series | R-Series |
| Engine | CAT 3306 / 3176 / C9 (depending on serial number) |
| Engine Power | 180-200 kW (240-270 HP) |
| Operating Weight | 24,000 - 27,000 kg |
| Engine Model | Displacement | Cylinders | Fuel System | Found In |
|---|---|---|---|---|
| CAT 3306 | 10.5L | 6-cylinder | In-line pump | D6R, D7R (early) |
| CAT 3176 | 10.3L | 6-cylinder | Electronic | D7R |
| CAT C9 | 8.8L | 6-cylinder | Common Rail | D6R, D7R (late) |
| CAT C9 ACERT | 8.8L | 6-cylinder | Common Rail | D6R, D7R (Tier 3) |
Note: Verify your machine's engine model and serial number before ordering. The D6R and D7R may have different engine configurations depending on production year. Contact COGENG with your machine details for exact application verification.
| Parameter | Specification |
|---|---|
| System Voltage | 24V DC (Caterpillar standard) |
| Current Capacity | Up to 45A (main power circuits) |
| Wire Gauge Range | 14AWG - 20AWG (signal) / 8AWG - 12AWG (starter/alternator) |
| Insulation Resistance | ≥100MΩ @ 500V DC |
| Dielectric Strength | 1500V AC/60s No Breakdown |
| Voltage Drop | <0.5V @ rated load |
| Temperature Rating | -40°C to +125°C (engine bay rated) |
| Component | Material Specification |
|---|---|
| Conductor | High-purity tinned copper (99.9%) |
| Wire Insulation | Heat-resistant XLPE / PVC (125°C rated) |
| Outer Wrapping | Automotive-grade cloth tape / Corrugated conduit |
| Connector Housings | OEM-grade Nylon 66 / PBT (UL94 V-0) |
| Terminals | Tin-plated / Gold-plated brass |
| Grommets/Bushings | EPDM Rubber (UV resistant) |
| Shielding | Aluminum foil + copper braid (sensor circuits) |
| Identification | Heat-shrink printed circuit labels |
| Diesel-resistant jacketing | Special compound for engine bay |
| Parameter | Rating |
|---|---|
| Temperature Range | -40°C to +125°C |
| Ingress Protection | IP67 (engine connectors) |
| Vibration Resistance | 15G @ 50-1000Hz |
| UV Resistance | 500+ hours weatherometer |
| Chemical Resistance | Resists diesel, oil, hydraulic fluid, coolant |
| Abrasion Resistance | Corrugated conduit in high-wear areas |
| Circuit Type | Components Connected | Wire Specification | Shielding |
|---|---|---|---|
| Engine Control (ECM) | Main ECM, crank sensor, cam sensor | Shielded 18-20 AWG | Yes |
| Fuel System | Injectors (6), fuel pump, pressure sensors | 14-16 AWG + shield | On sensors |
| Air Intake | Turbo actuator, MAF sensor, boost sensor | 18-20 AWG shielded | Yes |
| Exhaust / Aftertreatment | EGR valve, temp sensors (if equipped) | 18-20 AWG shielded | Yes |
| Cooling System | Fan motor, coolant temp sensor, fan clutch | 14-16 AWG (fan) + 20 AWG (sensor) | No |
| Charging System | Alternator, starter motor, battery connections | 8-10 AWG (alternator) / 4-6 AWG (starter) | No |
| Engine Sensors | Oil pressure, fuel temp, coolant temp, water in fuel | 18-20 AWG shielded | Yes |
| Connector Type | Location | Pins | Sealing |
|---|---|---|---|
| CAT OEM | Engine Control Module (ECM) | 48-60 pin | IP67 |
| Injector Connectors | Valve cover (6 injectors) | 2-pin each | IP67 |
| Deutsch DT | Sensors, actuators | 2-4 pins | IP67 |
| AMP/Tyco | Alternator, starter | 2-pin + ring terminal | IP65 |
| Crank/Cam Sensor | Engine block (3306/3176/C9) | 3-pin | IP67 |
| Coolant Temp | Thermostat housing | 2-pin | IP67 |
| Oil Pressure | Engine block | 2-pin | IP67 |
| Feature | Benefit |
|---|---|
| OEM-Grade Materials | CAT D6R/D7R spec wire, terminals, connectors |
| Model-Specific Fit | Exact routing for D6R/D7R engine bay |
| Pre-Formed Branches | Matches factory routing paths |
| Color-Coded Wires | Caterpillar-standard wire colors |
| Labeled Connectors | Circuit identification at every junction |
| 100% Tested | Every harness individually verified |
| Shielded Circuits | Critical sensor circuits fully shielded |
| High-Temp Wire | 125°C rated for D6R/D7R engine bay |
| Diesel-Resistant | Jacketing resists diesel, oil, coolant |
| Tool | Purpose |
|---|---|
| Socket set (metric, 8-19mm) | Component removal/installation |
| Wrench set (metric) | Bolt and nut removal |
| Screwdrivers | Connector locks, covers |
| Multimeter | Verification testing |
| Zip ties (included) | Harness securing |
| Diagonal cutters | Zip tie trimming |
| Work light | Illumination |
| CAT ET diagnostic tool | Fault code clearing (recommended) |
| Step | Action | Critical Note |
|---|---|---|
| Preparation | ||
| 1 | Park D6R/D7R on level surface, lower blade | Safety first |
| 2 | Disconnect battery (negative first) | Essential safety step (24V system) |
| 3 | Allow engine to cool completely | Prevent burns (1 hour minimum) |
| 4 | Open engine hood (both sides for access) | Access engine area |
| 5 | Remove engine covers and acoustic panel | Access injectors/ECM |
| 6 | Document all connections (take photos) | Especially ECM and injectors |
| Removal | ||
| 7 | Locate ECM (behind right panel or in engine bay) | D6R/D7R ECM location may vary |
| 8 | Disconnect ECM (48-60 pin) | Note locking mechanism |
| 9 | Disconnect injectors (6 connectors) | Mark cylinder order (1-6, 1 at fan end) |
| 10 | Disconnect crank sensor (flywheel housing) | 3-pin Deutsch, hard to reach |
| 11 | Disconnect cam sensor (front timing cover) | 3-pin Deutsch |
| 12 | Disconnect boost sensor (intake manifold) | 3-pin Deutsch |
| 13 | Disconnect coolant temp sensor (thermostat housing) | 2-pin |
| 14 | Disconnect oil pressure switch (near filter) | 1 or 2-pin |
| 15 | Disconnect alternator (2-pin + B+ nut) | Note wire locations |
| 16 | Disconnect starter (solenoid + battery cable) | Note orientation |
| 17 | Release all clips, ties, clamps | Save reusable clips |
| 18 | Remove old harness | Follow routing path |
| Installation | ||
| 19 | Clean mounting surfaces | Remove debris, corrosion |
| 20 | Lay new harness following original routing | Exact path match |
| 21 | Install grommets, clamps, heat shields | Prevent chafing |
| 22 | Connect ECM (48-60 pin) | Ensure fully seated, locking lever engaged |
| 23 | Connect injectors (6) in correct order | Cylinder 1 is front (fan end) |
| 24 | Connect crank sensor (flywheel) | 3-pin Deutsch, click |
| 25 | Connect cam sensor (front cover) | 3-pin Deutsch, click |
| 26 | Connect boost sensor (intake) | 3-pin Deutsch |
| 27 | Connect coolant temp sensor | 2-pin |
| 28 | Connect oil pressure switch | Push on, ensure tight |
| 29 | Connect alternator (2-pin + B+ nut) | 10mm nut, tight |
| 30 | Connect starter (solenoid + battery cable) | 12mm nut, tight |
| 31 | Verify all ground connections (2-3 points) | Clean, tight |
| 32 | Secure harness with clips and ties | Every 100-150mm |
| 33 | Double-check all connectors | All locked |
| Final | ||
| 34 | Reconnect battery (positive last) | Momentary contact check |
| 35 | Connect CAT ET diagnostic tool | Clear fault codes |
| 36 | Start engine, check for leaks, listen for noise | Verify operation |
| 37 | Close hood and covers | No wire pinching |
| Note | Detail |
|---|---|
| Battery Disconnect | D6R/D7R have 2x12V batteries in series for 24V. Disconnect both negative terminals first. |
| Cool Engine | D6R/D7R engine bay is compact. Exhaust manifold remains hot for 1+ hours. |
| Injector Order | Cylinder 1 is at the fan (front), cylinder 6 at flywheel (rear). Mark before removal. |
| Crank Sensor Access | Located at flywheel housing. May require access from below on D6R/D7R. |
| ECM Location | D6R/D7R ECM is typically behind the right panel (operator cab) or in engine bay. |
| Routing Path | Follow original along top of engine, down behind injection pump. Use photos. |
| Heat Sources | Turbo (right side) is extremely hot. Harness must be routed with heat shielding. |
| Ground Points | D6R/D7R has multiple grounds. All must be clean and tight (corrosion common). |
| CAT ET | Strongly recommended to clear fault codes after harness replacement. |
| Dozer operation | Machine may vibrate heavily. Ensure all clips and ties are secure. |
| Issue | Check | Solution |
|---|---|---|
| Single circuit fault | Fuse, relay, component | Check component first |
| Intermittent fault | Connector corrosion (ECM, engine bay) | Clean, dielectric grease |
| Multiple circuit faults | Main ground (battery to engine block) | Clean ground points |
| Engine fault codes | Specific circuit | Diagnose with CAT ET |
| No start | ECM power, crank sensor signal | Check ECM fuse (10A or 15A) |
| Test | Procedure | Acceptable Reading |
|---|---|---|
| ECM Power | Key ON, ECM power pin to ground | 22-28V DC |
| Injector resistance | Disconnect, measure across injector pins (each of 6) | 0.5-2Ω (low impedance) |
| Crank sensor resistance | Disconnect, measure across pins | 200-500Ω (typical) |
| Cam sensor resistance | Disconnect, measure across pins | 200-500Ω (typical) |
| Boost sensor supply | Key ON, sensor connector (VCC) | 4.8-5.2V DC |
| Issue | Possible Cause | Solution |
|---|---|---|
| Engine won't start | ECM connector not fully seated (48-60 pin) | Check locking lever |
| Crank no start | Crank sensor connector loose (hard to reach) | Verify 3-pin Deutsch is seated |
| Check engine light | Sensor connector loose (10+ sensors) | Verify all sensor connections |
| Rough idle | Injector connector not locked (one cylinder) | Reseat individual injector until click |
| No throttle response | Throttle actuator or CAN connection | Check ECM communication (CAN) |
| No alternator charge | Alternator harness connector loose | Check 2-pin Deutsch + B+ nut |
| Oil pressure light on (false) | Oil pressure switch connector loose | Check 1-pin push connector |
| Coolant temp gauge inoperative | Coolant temp sensor connector loose | Check 2-pin |
| CAN bus fault | Termination resistor or twisted pair swapped | Verify CAN Hi/Lo polarity |
| Warning | Detail |
|---|---|
| Engine hazard | Engine may start unexpectedly. Keep clear of fan, belts, pulleys. |
| Hot surfaces | D6R/D7R engine, turbo, exhaust remain hot. Allow to cool (1+ hours). |
| Heavy equipment | Lower blade to ground. Chock tracks. Use parking brake. |
| Electrical | 24V systems can arc. Disconnect battery before servicing. |
| High pressure | Common rail fuel system (C9 engines) up to 1,600 bar. Relieve pressure before disconnecting. |
| Sharp edges | D6R/D7R engine components have sharp edges. Use cut-resistant gloves. |
A: The COGENG 304-5166 (also referenced as 3045166) wiring harness is a direct OEM replacement specifically designed for Caterpillar D6R and D7R track-type tractor (dozer) models. This harness connects critical electrical components, sensors, and control modules within the machine's electrical system. Always verify this part number against your machine's parts manual or the original harness tag to confirm exact compatibility before ordering, as harness configurations can vary by serial number range and machine options.
Q: What are the symptoms of a failing wiring harness on a Cat D6R or D7R?
A: Common symptoms include intermittent electrical faults, multiple warning lights illuminated on the monitor panel, unresponsive implement or transmission controls, erratic gauge or sensor readings, CAN bus communication errors, specific functions not responding, or unexpected machine shutdowns. Wiring harness degradation is often caused by prolonged exposure to heat, vibration, moisture ingress, and physical wear in the demanding dozer operating environment.
Q: What material construction is used for this wiring harness?
A: The COGENG 304-5166 wiring harness is constructed with high-quality wiring materials and durable connector components designed to withstand the harsh operating conditions of track-type tractors. The assembly incorporates robust protective loom covering and is built to match the OEM routing and connection points for Cat D6R and D7R models.
Q: Is this harness a direct plug-and-play replacement?
A: Yes, the COGENG 304-5166 harness is manufactured to exact OEM specifications for connector types, pin assignments, wire gauge, and routing length. It is a direct plug-and-play replacement requiring no wire splicing, soldering, or modifications when installed on compatible Caterpillar D6R or D7R models.
Q: What are the ordering and shipping options?
A: COGENG accepts trial orders with no minimum order quantity requirement. Payment can be made via Western Union, L/C, T/T, MoneyGram, D/A, or D/P. Shipping options include air freight, sea freight, and international express couriers (FedEx, UPS, DHL, TNT, etc.). Products are packaged in a protective PP bag inside a durable carton box for safe transit. COGENG is ISO9001 certified and ships from Guangdong, China.
Q: What is the warranty coverage for this wiring harness?
A: COGENG provides a standard 12-month warranty against manufacturing defects from the date of installation. Proof of purchase and installation by a qualified technician are required. Warranty does not cover damage caused by improper installation, unauthorized modifications, rodent damage, or use on incompatible equipment.
Q: Does COGENG offer technical support for installation or troubleshooting?
A: Yes, COGENG provides complimentary technical support to assist with installation guidance and basic troubleshooting. For complex electrical diagnostics on Cat D6R and D7R dozers, we recommend consulting a certified Caterpillar service technician.
Q: How is the wiring harness protected during shipping?
A: Each COGENG 304-5166 wiring harness is individually sealed in a protective PP inner bag and packed in a sturdy outer carton box to prevent connector damage and wire kinking during transit. All connectors are capped for additional protection. Factory direct shipping ensures the product reaches you in optimal condition.
