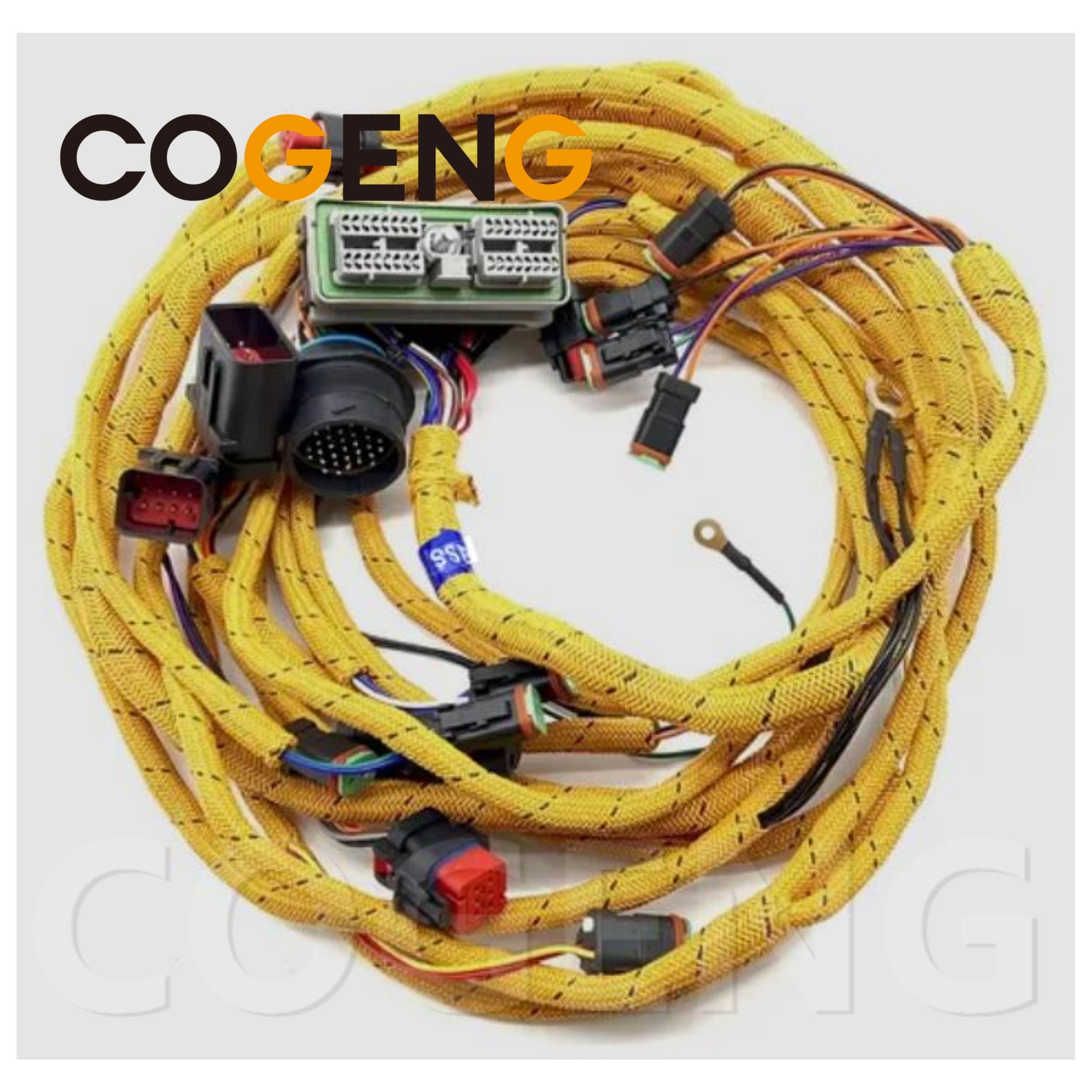

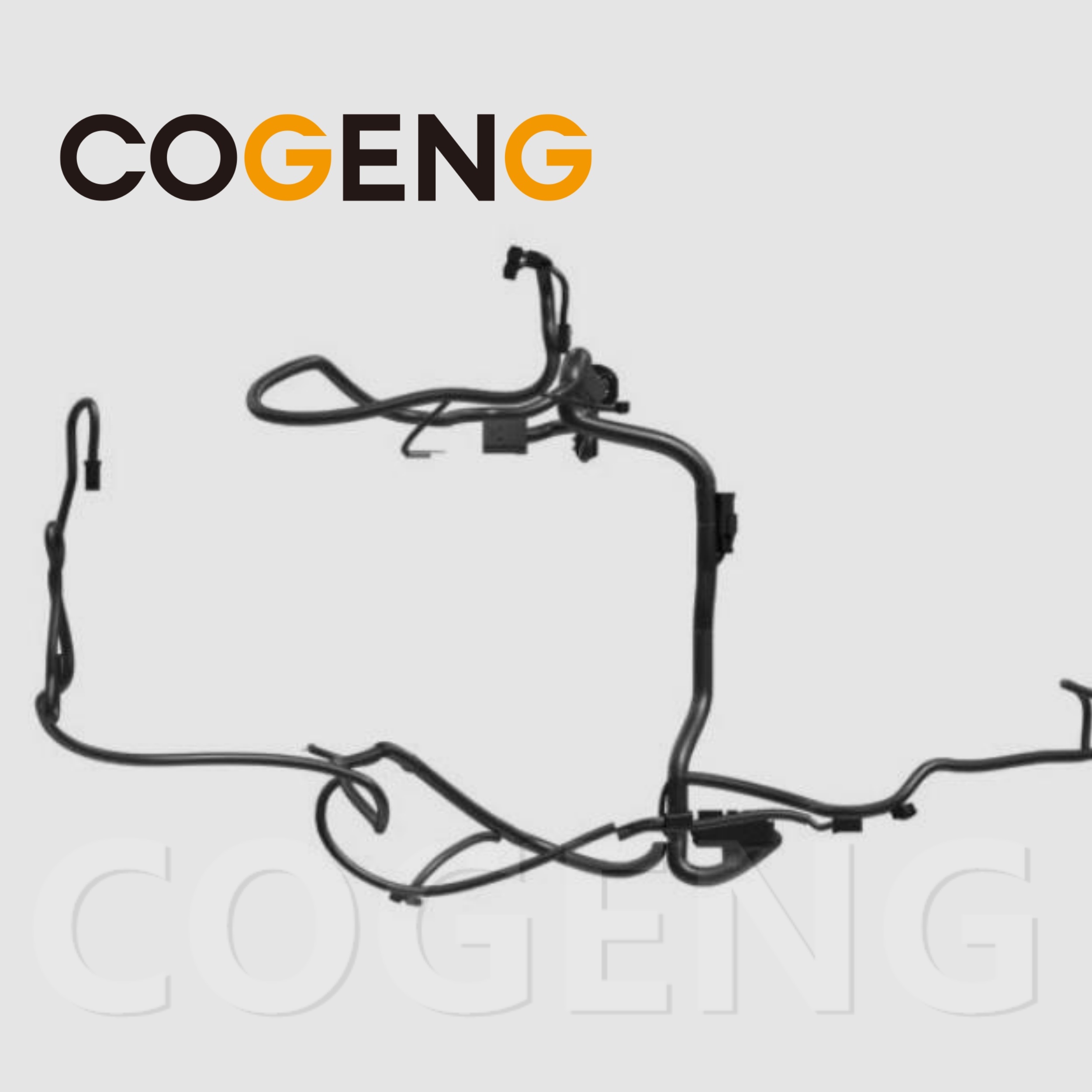

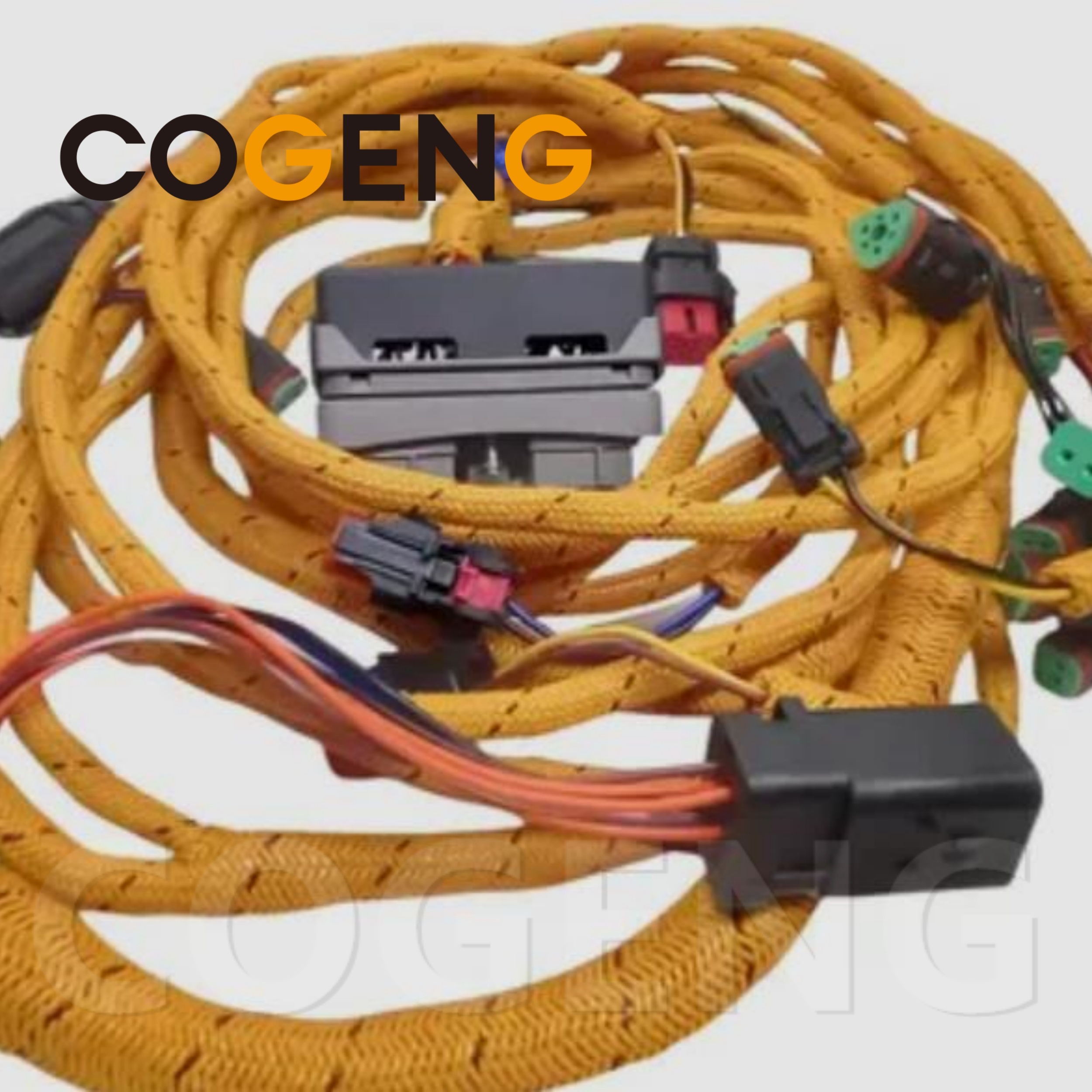

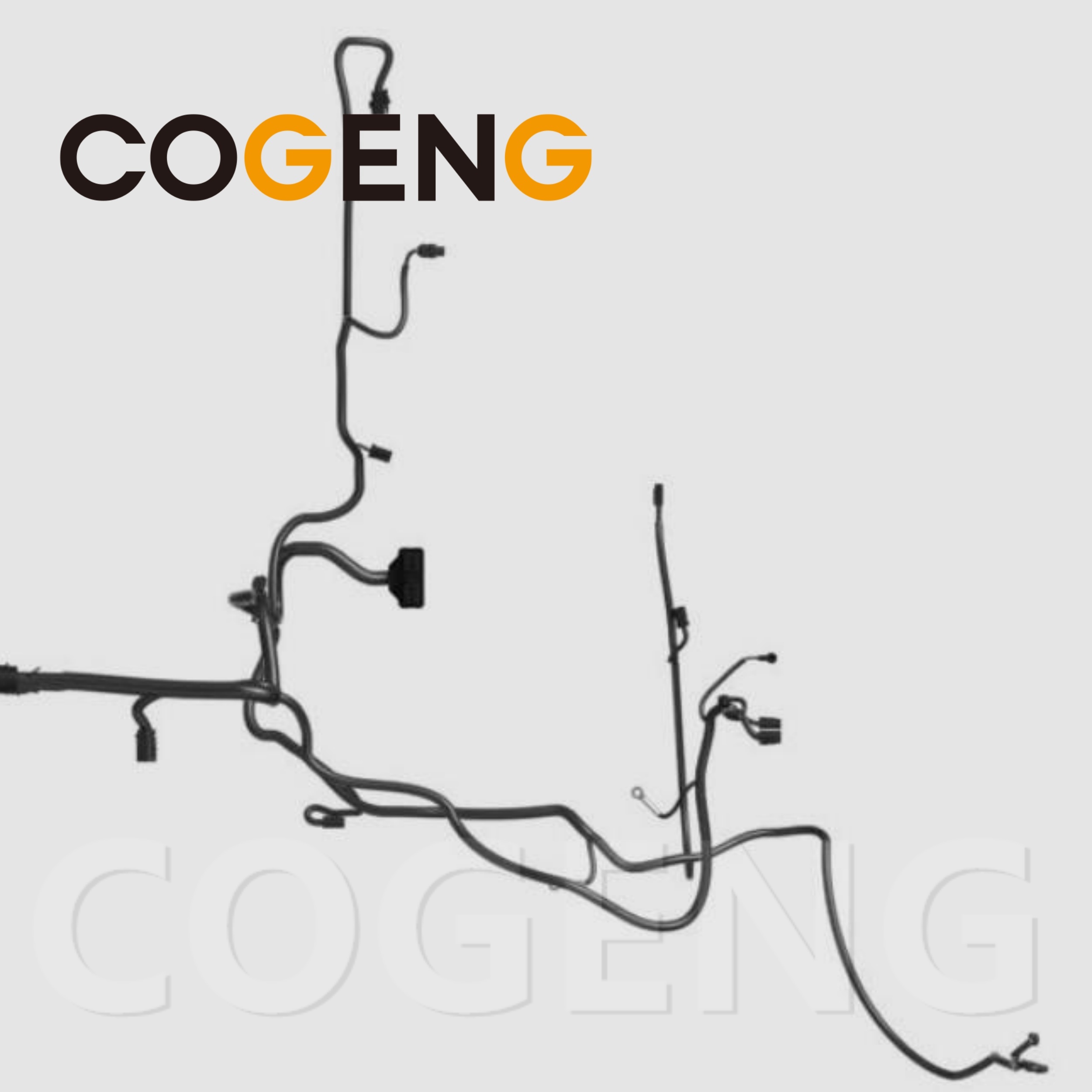

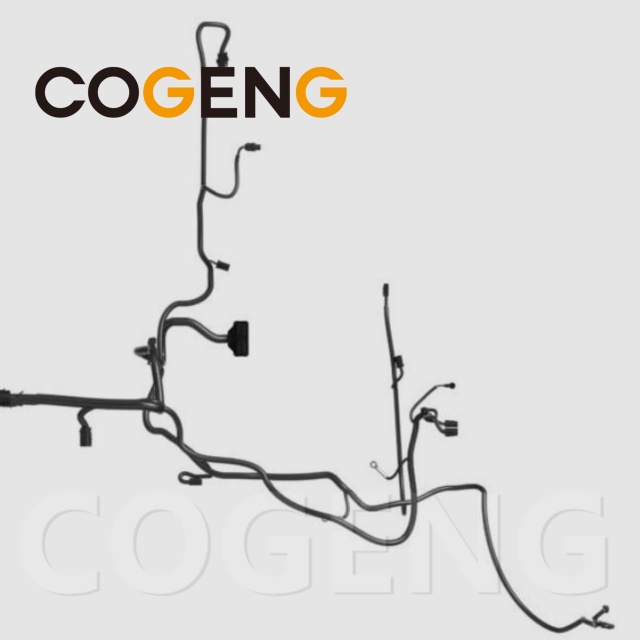

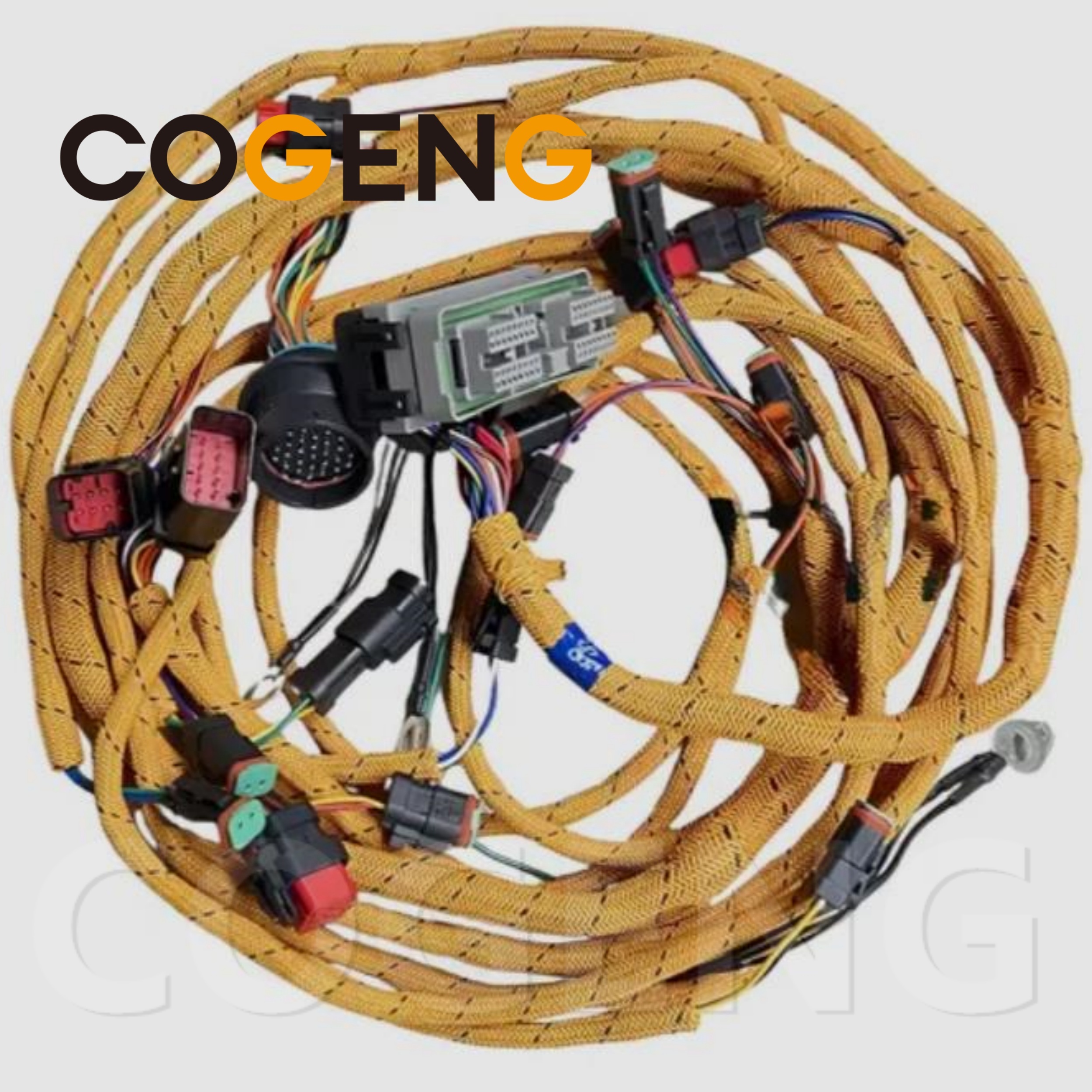

The COGENG 293-5223 is a premium direct OEM replacement engine wiring harness specifically engineered for Caterpillar 320D and 336D excavators as well as D6R track-type tractors (bulldozers). This comprehensive engine harness connects and powers critical engine components including the Engine Control Module (ECM), fuel injectors, sensors, actuators, and charging system. Manufactured to meet or exceed original Caterpillar specifications, this durable, plug-and-play harness ensures reliable electrical performance, optimal signal integrity, and long service life in demanding construction, excavation, and earthmoving applications.
| Parameter | Specification |
|---|---|
| COGENG Part Number | 293-5223 |
| OEM Equivalent | Caterpillar 293-5223 |
| Product Type | Engine Wiring Harness Assembly |
| Application | Engine electrical system (ECM, injectors, sensors) |
| Harness Type | Complete engine bay harness |
| Compatible Models | Caterpillar 320D, 336D Excavators; D6R Bulldozer |
| Engine Compatibility | CAT C-Series (C6.4, C6.6, C7, C9, C11, C13) |
| Brand | Part Number |
|---|---|
| COGENG | 293-5223 |
| Caterpillar | 293-5223 |
| Interchange | 293-5224, 293-5225, 293-5226, 293-5227, 293-5228 |
| Parameter | Specification |
|---|---|
| Model | Caterpillar 320D Excavator |
| Type | 20-ton Crawler Excavator |
| Engine | CAT C6.4 / C7.1 |
| Engine Power | 115-125 kW (154-168 HP) |
| Operating Weight | 20,000 - 22,000 kg |
| Parameter | Specification |
|---|---|
| Model | Caterpillar 336D Excavator |
| Type | 36-ton Crawler Excavator |
| Engine | CAT C9 / C11 / C13 |
| Engine Power | 200-240 kW (268-322 HP) |
| Operating Weight | 36,000 - 38,000 kg |
| Parameter | Specification |
|---|---|
| Model | Caterpillar D6R Bulldozer |
| Type | Track-Type Tractor |
| Engine | CAT 3306 / C9 |
| Engine Power | 145-165 kW (195-220 HP) |
| Operating Weight | 18,000 - 20,000 kg |
| Engine Model | Displacement | Cylinders | Fuel System | Found In |
|---|---|---|---|---|
| CAT C6.4 | 6.4L | 6-cylinder | Common Rail | 320D |
| CAT C6.6 | 6.6L | 6-cylinder | Common Rail | 320D |
| CAT C7 | 7.0L | 6-cylinder | Common Rail | 320D |
| CAT C7.1 | 7.1L | 6-cylinder | Common Rail | 320D |
| CAT C9 | 8.8L | 6-cylinder | Common Rail | 336D, D6R |
| CAT C11 | 11.0L | 6-cylinder | Common Rail | 336D |
| CAT C13 | 12.5L | 6-cylinder | Common Rail | 336D |
| CAT 3306 | 10.5L | 6-cylinder | Mechanical/Electronic | D6R (early) |
Note: The 293-5223 engine harness fits multiple C-series engine configurations. Verify your machine's engine model and serial number before ordering. Contact COGENG with your machine details for exact application verification.
| Parameter | Specification |
|---|---|
| System Voltage | 24V DC (Caterpillar standard) |
| Current Capacity | Up to 45A (main power circuits) |
| Wire Gauge Range | 14AWG - 20AWG (signal) / 8AWG - 12AWG (starter/alternator) |
| Insulation Resistance | ≥100MΩ @ 500V DC |
| Dielectric Strength | 1500V AC/60s No Breakdown |
| Voltage Drop | <0.5V @ rated load |
| Temperature Rating | -40°C to +125°C (engine bay rated) |
| Component | Material Specification |
|---|---|
| Conductor | High-purity tinned copper (99.9%) |
| Wire Insulation | Heat-resistant XLPE / PVC (125°C rated) |
| Outer Wrapping | Automotive-grade cloth tape / Corrugated conduit |
| Connector Housings | OEM-grade Nylon 66 / PBT (UL94 V-0) |
| Terminals | Tin-plated / Gold-plated brass |
| Grommets/Bushings | EPDM Rubber (UV resistant) |
| Shielding | Aluminum foil + copper braid (sensor circuits) |
| Identification | Heat-shrink printed circuit labels |
| Diesel-resistant jacketing | Special compound for engine bay |
| Parameter | Rating |
|---|---|
| Temperature Range | -40°C to +125°C |
| Ingress Protection | IP67 (engine connectors) |
| Vibration Resistance | 15G @ 50-1000Hz |
| UV Resistance | 500+ hours weatherometer |
| Chemical Resistance | Resists diesel, oil, hydraulic fluid, coolant |
| Abrasion Resistance | Corrugated conduit in high-wear areas |
| Circuit Type | Components Connected | Wire Specification | Shielding |
|---|---|---|---|
| Engine Control (ECM) | Main ECM, crank sensor, cam sensor | Shielded 18-20 AWG | Yes |
| Fuel System | Injectors (6), fuel pump, rail pressure sensor | 14-16 AWG + shield | On sensors |
| Air Intake | Turbo actuator, MAF sensor, boost sensor | 18-20 AWG shielded | Yes |
| Exhaust / Aftertreatment | EGR valve, temp sensors (if equipped) | 18-20 AWG shielded | Yes |
| Cooling System | Fan motor, coolant temp sensor, fan clutch | 14-16 AWG (fan) + 20 AWG (sensor) | No |
| Charging System | Alternator, starter motor, battery connections | 8-10 AWG (alternator) / 4-6 AWG (starter) | No |
| Engine Sensors | Oil pressure, fuel temp, coolant temp, water in fuel | 18-20 AWG shielded | Yes |
| Connector Type | Location | Pins | Sealing |
|---|---|---|---|
| CAT OEM | Engine Control Module (ECM) | 48-60 pin | IP67 |
| Injector Connectors | Valve cover (6 injectors) | 2-pin each | IP67 |
| Deutsch DT | Sensors, actuators | 2-4 pins | IP67 |
| AMP/Tyco | Alternator, starter | 2-pin + ring terminal | IP65 |
| Crank/Cam Sensor | Engine block | 3-pin | IP67 |
| Coolant Temp | Thermostat housing | 2-pin | IP67 |
| Oil Pressure | Engine block | 2-pin | IP67 |
| Feature | Benefit |
|---|---|
| OEM-Grade Materials | CAT C-series spec wire, terminals, connectors |
| Multi-Model Fitment | 320D, 336D, D6R compatible |
| Pre-Formed Branches | Matches factory routing paths |
| Color-Coded Wires | Caterpillar-standard wire colors |
| Labeled Connectors | Circuit identification at every junction |
| 100% Tested | Every harness individually verified |
| Shielded Circuits | Critical sensor circuits fully shielded |
| High-Temp Wire | 125°C rated for engine bay |
| Diesel-Resistant | Jacketing resists diesel, oil, coolant |
| Tool | Purpose |
|---|---|
| Socket set (metric, 8-19mm) | Component removal/installation |
| Wrench set (metric) | Bolt and nut removal |
| Screwdrivers | Connector locks, covers |
| Multimeter | Verification testing |
| Zip ties (included) | Harness securing |
| Diagonal cutters | Zip tie trimming |
| Work light | Illumination |
| CAT ET diagnostic tool | Fault code clearing (recommended) |
| Step | Action | Critical Note |
|---|---|---|
| Preparation | ||
| 1 | Park machine on level surface, lower implements | Safety first |
| 2 | Disconnect battery (negative first - both batteries) | Essential safety step (24V system) |
| 3 | Allow engine to cool completely | Prevent burns (1 hour minimum) |
| 4 | Open engine hood and side panels | Access engine area |
| 5 | Remove engine covers and acoustic panel | Access injectors/ECM |
| 6 | Document all connections (take MANY photos) | Especially ECM and injectors |
| Removal | ||
| 7 | Locate ECM (behind right panel or in engine bay) | Location varies by model |
| 8 | Disconnect ECM (48-60 pin) | Note locking mechanism |
| 9 | Disconnect injectors (6 connectors) | Mark cylinder order (1-6, 1 at fan end) |
| 10 | Disconnect crank sensor (flywheel housing) | 3-pin Deutsch, hard to reach |
| 11 | Disconnect cam sensor (front timing cover) | 3-pin Deutsch |
| 12 | Disconnect rail pressure sensor (common rail) | 3-pin Deutsch |
| 13 | Disconnect boost sensor (intake manifold) | 3-pin Deutsch |
| 14 | Disconnect coolant temp sensor (thermostat housing) | 2-pin |
| 15 | Disconnect oil pressure switch (near filter) | 1 or 2-pin |
| 16 | Disconnect alternator (2-pin + B+ nut) | Note wire locations |
| 17 | Disconnect starter (solenoid + battery cable) | Note orientation |
| 18 | Release all clips, ties, clamps | Save reusable clips |
| 19 | Remove old harness | Follow routing path |
| Installation | ||
| 20 | Clean mounting surfaces | Remove debris, corrosion |
| 21 | Lay new harness following original routing | Exact path match |
| 22 | Install grommets, clamps, heat shields | Prevent chafing |
| 23 | Connect ECM (48-60 pin) | Ensure fully seated, locking lever engaged |
| 24 | Connect injectors (6) in correct order | Cylinder 1 is front (fan end) |
| 25 | Connect crank sensor (flywheel) | 3-pin Deutsch, click |
| 26 | Connect cam sensor (front cover) | 3-pin Deutsch, click |
| 27 | Connect rail pressure sensor | 3-pin Deutsch, click |
| 28 | Connect boost sensor (intake) | 3-pin Deutsch |
| 29 | Connect coolant temp sensor | 2-pin |
| 30 | Connect oil pressure switch | Push on, ensure tight |
| 31 | Connect alternator (2-pin + B+ nut) | 10mm nut, tight |
| 32 | Connect starter (solenoid + battery cable) | 12mm nut, tight |
| 33 | Verify all ground connections (2-3 points) | Clean, tight |
| 34 | Secure harness with clips and ties | Every 100-150mm |
| 35 | Double-check all connectors | All locked |
| Final | ||
| 36 | Reconnect battery (positive last) | Momentary contact check |
| 37 | Connect CAT ET diagnostic tool | Clear fault codes |
| 38 | Start engine, check for leaks, listen for noise | Verify operation |
| 39 | Close hood and covers | No wire pinching |
| Note | Detail |
|---|---|
| Multi-model harness | Fits 320D, 336D, and D6R with C-series engines |
| Battery Disconnect | All models have 2x12V batteries in series for 24V. Disconnect both negative terminals first. |
| Cool Engine | Allow 1+ hours cool down. |
| Injector Order | Cylinder 1 is at the fan (front), cylinder 6 at flywheel (rear). Mark before removal. |
| ECM Location | 320D/336D: behind right kick panel; D6R: in engine bay or behind panel. |
| Routing Path | Follow original along valve cover. Keep away from injector lines and turbo. |
| Heat Sources | Turbo (right side) is extremely hot. Harness must be routed with heat shielding. |
| Ground Points | Multiple grounds. All must be clean and tight. |
| CAT ET | Strongly recommended to clear fault codes after harness replacement. |
| Common rail | System pressure up to 1,800 bar. Always relieve pressure before servicing. |
| Excavator swing | Keep harness away from swing bearing area (320D/336D). |
| Dozer blade | Keep harness away from blade control linkages (D6R). |
| Issue | Check | Solution |
|---|---|---|
| Single circuit fault | Fuse, relay, component | Check component first |
| Intermittent fault | Connector corrosion (ECM, engine bay) | Clean, dielectric grease |
| Multiple circuit faults | Main ground (battery to engine block) | Clean ground points |
| Engine fault codes | Specific circuit | Diagnose with CAT ET |
| No start | ECM power, crank sensor signal | Check ECM fuse (10A or 15A) |
Frequently Asked Questions
Q: What Caterpillar models use the 293-5223 engine wiring harness?
A: The COGENG 293-5223 engine wiring harness is a direct OEM replacement specifically designed for Caterpillar 320D and 336D excavators, as well as D6R track-type tractor models. This harness connects critical engine sensors, actuators, and the engine ECM to the machine's electrical system. Always verify this part number against your machine's parts manual or the original harness tag to confirm exact compatibility before ordering, as harness configurations can vary by engine serial number and emissions tier.
Q: What are the symptoms of a failing engine harness on a Cat 320D, 336D, or D6R?
A: Common symptoms include intermittent engine performance issues, engine stalling or failure to start, multiple diagnostic trouble codes, erratic sensor readings on the monitor panel, unresponsive throttle control, CAN bus communication errors between the engine ECM and machine controller, or the engine entering a derate or limp mode. Engine harness degradation is often accelerated by high heat exposure in the engine compartment, vibration, and oil or fuel contamination at connector joints.
Q: Is this harness a direct plug-and-play replacement?
A: Yes, the COGENG 293-5223 engine harness is manufactured to exact OEM specifications for connector types, pin assignments, wire gauge, and routing length. It is a direct plug-and-play replacement requiring no wire splicing, soldering, or modifications when installed on compatible Caterpillar 320D, 336D, or D6R models.
Q: What is the warranty coverage for this engine wiring harness?
A: COGENG provides a standard 12-month warranty against manufacturing defects from the date of installation. Proof of purchase and installation by a qualified technician are required. Warranty does not cover damage caused by improper installation, unauthorized modifications, rodent damage, or use on incompatible equipment.
Q: Does COGENG offer technical support for installation or troubleshooting?
A: Yes, COGENG provides complimentary technical support to assist with installation guidance and basic troubleshooting. For complex engine diagnostics on Caterpillar equipment, we recommend consulting a certified Caterpillar service technician with access to Cat ET diagnostic software.
