COGENG 253-0618 Fuel Injector CAT C18 C15 C13

Product Parameter Table

PRODUCT OVERVIEW

The COGENG Fuel Injector, part number 253-0618 (2530618), is a precision-engineered, high-performance diesel fuel injection component designed as a direct, form-fit-function replacement for the original equipment Caterpillar injector used in the C13, C15, and C18 ACERT diesel engine platforms. This injector is a critical component of the engine's fuel injection system, responsible for delivering the precise quantity of atomized diesel fuel into the combustion chamber at exactly the right moment and with the exact spray pattern required for optimal combustion efficiency, power output, fuel economy, and emissions compliance.

The Caterpillar C13, C15, and C18 ACERT engines are among the most widely deployed and respected heavy-duty diesel platforms in the world. These 12.5-, 15.2-, and 18.1-liter inline six-cylinder engines power a vast range of critical equipment, including large hydraulic excavators, wheel loaders, track-type tractors, articulated dump trucks, off-highway mining trucks, motor graders, and industrial and marine power units. The ACERT (Advanced Combustion Emissions Reduction Technology) system relies on precise electronic control of fuel injection to simultaneously optimize performance and minimize emissions. The 253-0618 injector is the mechanical and electrical device that executes the ECM's injection commands with microsecond precision.

This injector is a Mechanically Actuated Electronically Controlled Unit Injector (MEUI). In this design, the injector is driven by the engine's camshaft, which actuates the injector plunger via a rocker arm. The timing and quantity of fuel injection are controlled electronically by a high-speed solenoid valve mounted on the injector body, which is commanded by the Engine Control Module (ECM). When the ECM energizes the solenoid at the precise moment, the injector's internal control valve opens, allowing the pressurized fuel to be injected through the micro-machined nozzle into the combustion chamber. This hybrid design combines the high injection pressure capability of a mechanically driven unit injector with the precise electronic control of a common rail system, enabling multiple injection events per combustion cycle—pilot injection to reduce combustion noise, main injection for power production, and post injection for emissions control.

The operating environment for a MEUI injector in a C18 engine is uniquely extreme. The injector body is exposed to the full heat of the engine, with the nozzle tip directly exposed to combustion chamber temperatures that can exceed 2,000°C during combustion. Internally, the injector must contain and control fuel at injection pressures up to 200 MPa (2,000 bar)—approximately 100 times the pressure in a typical car tire—while maintaining zero leakage. The injector is mechanically actuated by the camshaft on every engine cycle, subjecting the internal plunger and rocker arm contact surfaces to continuous high-load impact and wear. The solenoid valve must respond in fractions of a millisecond, millions of times over its service life. It must be immune to contamination from microscopic particles in the fuel, which is why fuel filtration is so critical on these engines.

COGENG's 253-0618 injector is manufactured using premium materials and processes: a high-strength forged alloy steel body for structural integrity; a hardened, micro-machined nozzle assembly with a precision-ground needle for accurate spray control; a high-speed solenoid with a low-resistance, high-durability coil; and precision-lapped internal control valve components for leak-free operation. Every injector undergoes a complete, multi-point bench test protocol before shipment, verifying flow rate at multiple pressure points, spray pattern geometry, internal leak-down rate, solenoid resistance, and response time against OEM specifications.

COMPATIBLE ENGINES & APPLICATIONS

The 253-0618 injector is specifically designed for the Caterpillar C13, C15, and C18 ACERT diesel engine platforms. Always provide your complete engine serial number (ESN) and application details for final compatibility verification.

PARTS LIST (Included in Package)

1. Fuel Injector Assembly (1 unit): The complete injector, including the forged alloy steel body, micro-machined nozzle assembly, high-speed solenoid, control valve assembly, and all internal components.

2. Protective Nozzle Cap: A protective plastic cap installed over the nozzle tip to prevent damage to the precision micro-machined holes and needle during shipping and handling.

3. Pre-Installed O-Rings and Seals: All external sealing elements required for leak-free installation, including the combustion seal (copper washer) and any injector body O-rings.

4. Anti-Static ESD Shielding Bag: The injector is sealed in a silver anti-static bag to prevent electrostatic discharge damage to the solenoid coil during transit and storage.

5. Heavy-Duty Export Carton with Protective Foam: The bagged injector is packed in a rigid, double-wall corrugated carton with a custom-cut high-density foam insert that immobilizes the injector and protects the nozzle, connector, and body from impact.

DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)

Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.

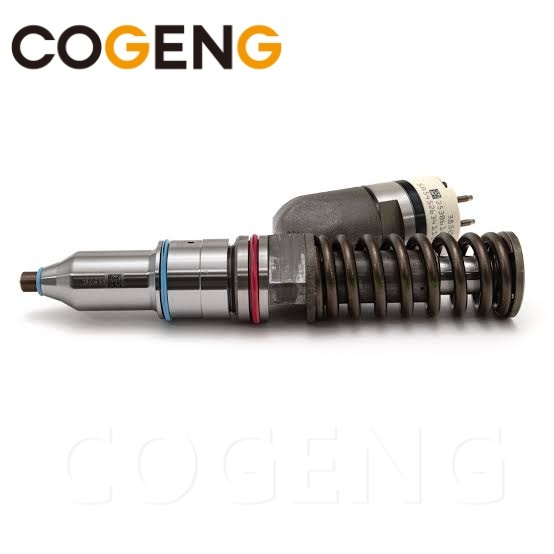

Image 1: Complete Injector Assembly — Isometric View
A high-resolution studio photograph of the 253-0618 injector shown from a three-quarter isometric angle. The image clearly displays the injector's key features: the high-pressure fuel inlet port, the electrical connector for the solenoid, the forged alloy steel body, the rocker arm contact pad at the top, the nozzle retaining nut, and the protective plastic cap over the nozzle tip.

Image 2: Nozzle Tip — High-Magnification Macro Detail
An extreme close-up macro photograph of the injector nozzle tip with the protective cap removed. The image reveals the micro-machined nozzle holes—typically 6 to 8 holes, each measured in microns—arranged in a precise pattern for optimal fuel atomization and spray distribution. The precision-ground needle tip is visible at the center.

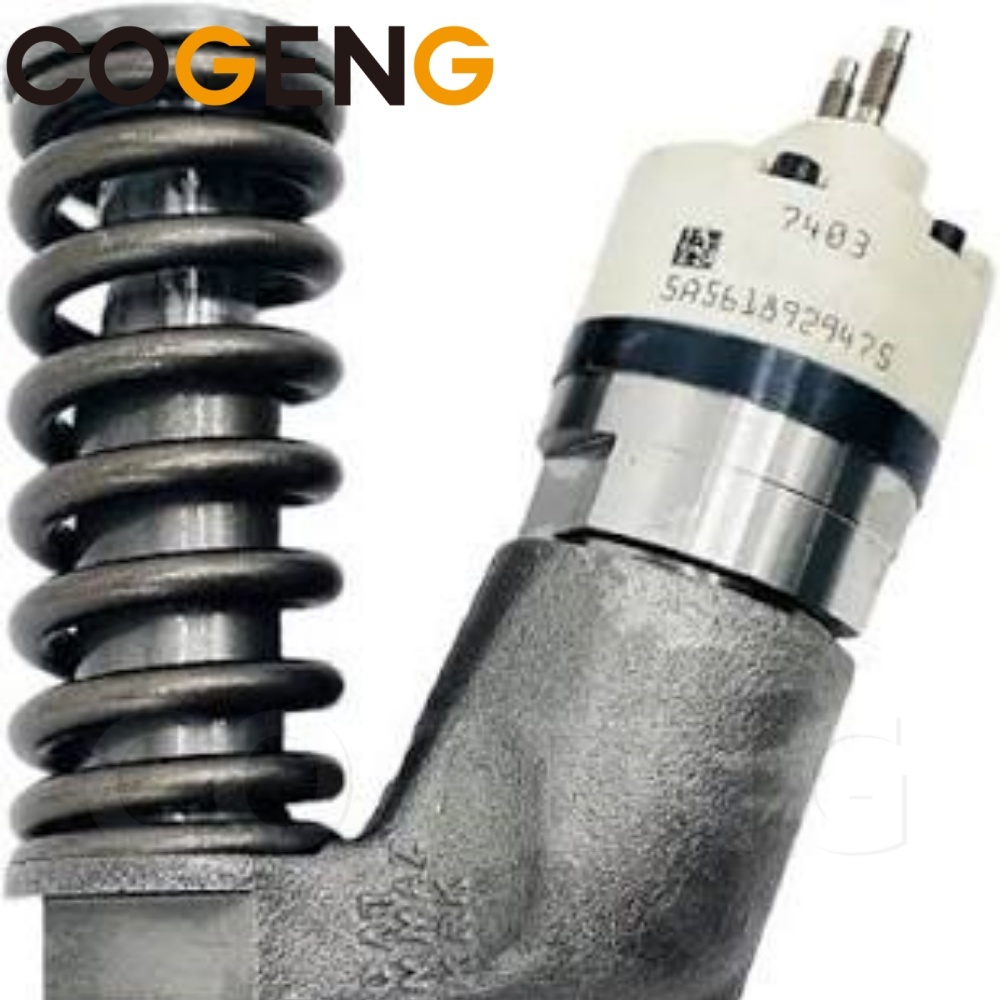

Image 3: Solenoid and Electrical Connector — Pin Configuration
A detailed view of the solenoid assembly and its sealed 2-pin electrical connector with gold-plated terminals. The image includes a call-out confirming terminal assignments for the solenoid control circuit.

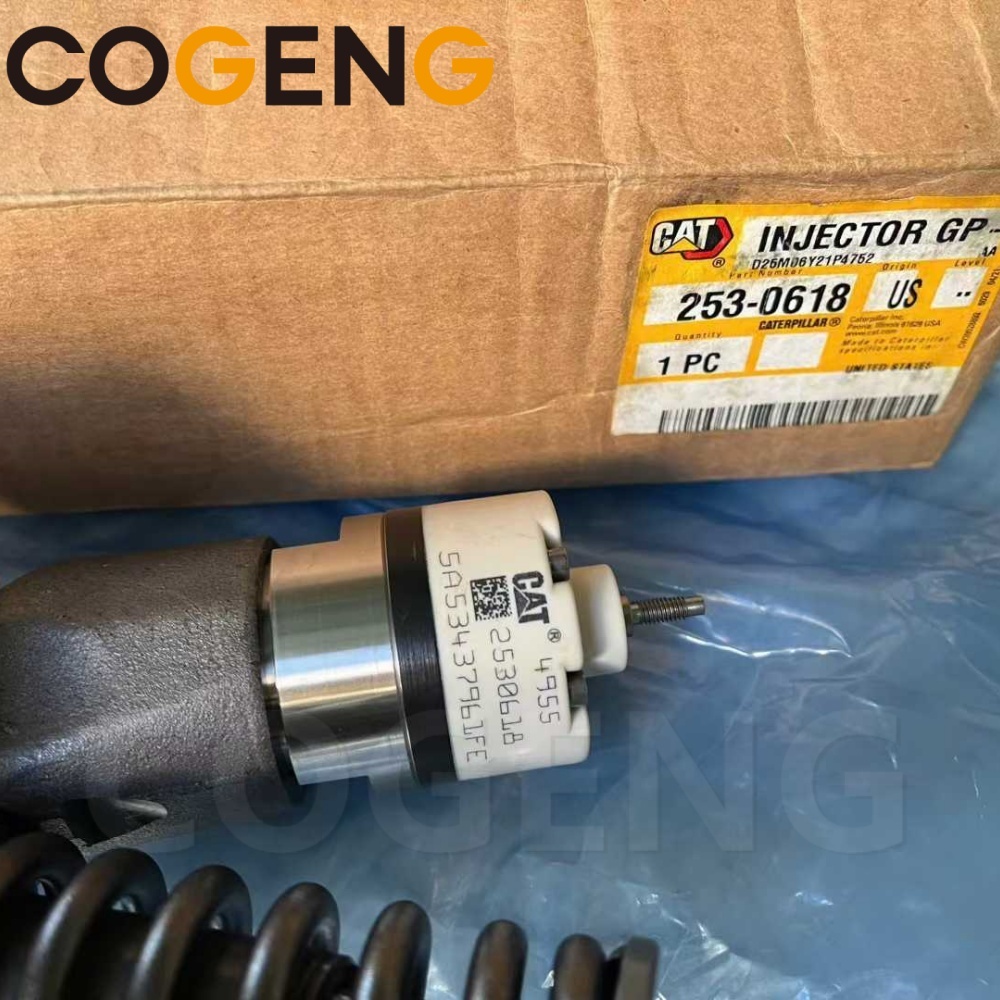

Image 4: Identification Markings and Serial Number
A close-up image of the injector body showing the permanent, laser-etched identification markings: the part number 253-0618, the manufacturing serial number for traceability, and the COGENG brand logo.

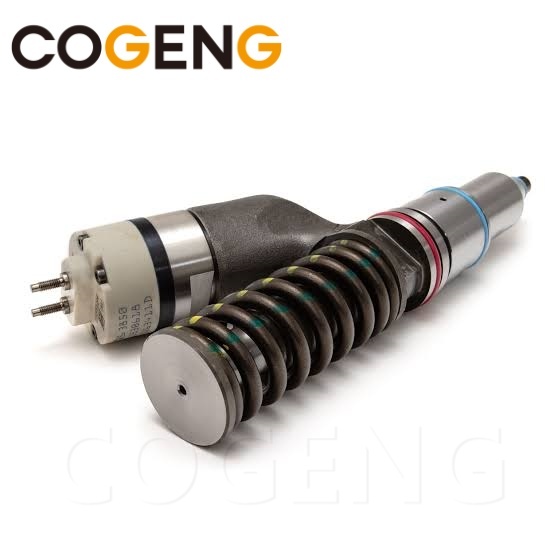

Image 5: Rocker Arm Contact Pad — Wear Surface Detail
A macro photograph of the injector's top contact pad, where the engine's rocker arm applies mechanical force to actuate the injector plunger. The image shows the hardened, polished surface finish designed for minimal wear and maximum fatigue life under continuous high-load cycling.

COMPATIBILITY NOTES: CRITICAL VERIFICATION GUIDE

1. Engine Serial Number Verification is Mandatory: The 253-0618 injector is used across the C13, C15, and C18 engine platforms, but injector calibration and flow rate may vary by specific engine rating, emissions tier, and application. Providing your complete engine serial number (ESN) allows our technical team to verify the exact injector variant your engine requires.

2. MEUI vs. EUI Distinction: This injector is a Mechanically Actuated Electronically Controlled Unit Injector (MEUI), used in the ACERT versions of the C13, C15, and C18 engines. It is not compatible with earlier mechanical injectors or with common rail injectors used in some other engine platforms.

3. Injector Class and Flow Rate: Unit injectors are classified by flow rate and are matched to specific engine power ratings and emissions tiers. Installing an injector with an incorrect flow rate will cause poor performance, excessive smoke, or engine damage. Always verify the correct injector class for your engine.

4. Injector Coding and Programming: After installing new injectors, the injector codes (also called injector trim codes or E-trim codes) must be programmed into the engine ECM using Caterpillar Electronic Technician (ET). This allows the ECM to compensate for minor manufacturing variations between individual injectors. Failure to program the new injector codes will result in rough running and poor performance.

5. Fuel System Cleanliness: Unit injectors are extremely sensitive to fuel contamination. Before installing new injectors, the entire fuel system—tank, lines, filter, and transfer pump—must be thoroughly flushed and inspected. Replacing the fuel filter is mandatory. Any debris in the system will damage the new injectors.

6. Professional Installation Required: Injector replacement involves working with the high-pressure fuel system and the engine's valvetrain. Installation requires precise adjustment of the injector height and rocker arm clearance. This work should be performed by a qualified heavy equipment technician with access to Caterpillar ET for injector coding and post-installation system verification.

INSTALLATION PROCEDURE

Note: This is a summarized procedural guide. Always follow the Caterpillar service manual for your specific engine.

Step 1: Safety Lockout and Fuel System Preparation
Park the machine on level ground. Lower all attachments. Stop the engine. Disconnect battery cables. Allow the engine to cool completely. Relieve fuel system pressure. Thoroughly clean the area around the injector to prevent contamination ingress.

Step 2: Old Injector Removal
Remove the valve cover. Disconnect the electrical connector from the injector. Remove the rocker arm and the injector hold-down clamp. Carefully extract the old injector using an appropriate extraction tool.

Step 3: Injector Bore Cleaning
Clean the injector bore in the cylinder head thoroughly. Remove all carbon deposits, debris, and old combustion seal remnants. Inspect the bore for damage. Install a new combustion seal (copper washer) in the bore.

Step 4: New Injector Installation
Apply a light coating of clean engine oil or assembly grease to the injector body O-rings. Carefully insert the new COGENG injector into the bore, ensuring the combustion seal is properly seated. Install the injector hold-down clamp and torque to OEM specifications. Reinstall the rocker arm and adjust the injector height and rocker arm clearance to OEM specifications using a dial indicator. Reconnect the electrical connector.

Step 5: Injector Coding and System Verification
Connect Caterpillar Electronic Technician (ET). Program the new injector trim codes into the engine ECM. Start the engine and allow it to idle. Check for fuel leaks at all connections. Monitor engine parameters. Perform a cylinder cut-out test to verify each injector is contributing correctly. Confirm no active diagnostic trouble codes before releasing the machine to service.

🚚 SHIPPING DETAILS & RETURN POLICY

Shipping Details

Return Policy

FREQUENTLY ASKED QUESTIONS

Q1: What are the symptoms of a failing 253-0618 injector?
A: Common symptoms include: engine misfire or rough running, excessive black smoke or white smoke from the exhaust, reduced engine power and poor fuel economy, hard starting or no-start condition, increased engine noise (combustion knock), diagnostic trouble codes related to injector circuit faults or cylinder contribution imbalance, and fuel in the engine oil (indicating injector leakage).

Q2: Do I need to replace all injectors at once, or can I replace just one?
A: In most cases, a single failed injector can be replaced individually. However, if the other injectors have high operating hours, replacing them as a set is recommended for balanced performance. Our technical team can advise based on your engine's hours and condition.

Q3: Do the new injectors need to be programmed into the ECM?
A: Yes. After installing new injectors, the injector trim codes must be programmed into the engine ECM using Caterpillar Electronic Technician (ET). This allows the ECM to compensate for individual injector variations. Failure to program the codes will result in poor performance and possible fault codes.

Q4: What causes injector failure?
A: The primary causes of injector failure are fuel contamination (water, dirt, or debris in the fuel), fuel starvation (running the engine out of fuel or with a clogged filter), excessive heat, and normal wear of internal components over time. Clean fuel and regular filter replacement are the best prevention.

Q5: What is the warranty on this injector?
A: We provide a comprehensive DOA guarantee. If the injector is found to have a manufacturing defect within 7 days of delivery, we will replace it at no cost. The injector must be in original, uninstalled condition with the protective cap in place.
