Product Parameter Table
| Parameter | Specification |
|---|---|
| Product Name | Caterpillar Wiring Harness / Engine or Machine Interconnect Harness |
| Primary Part Number | 236-6223 (2366223) |
| Brand | COGENG (Premium Aftermarket Replacement) |
| Condition | Brand New, 100% Continuity & Dielectric Withstand Tested |
| Compatible Equipment | Caterpillar 583T Pipelayer, 587T Pipelayer, 824C Wheel Dozer |
| Harness Type | Wiring Harness — Engine or Machine Interconnect (Application Dependent) |
| Wire Insulation | Cross-Linked Polyethylene (XLPE) with PTFE Overwrap in High-Temperature Zones; SAE J1128 Type SXL/GXL; Rated -40°C to +125°C |
| Connector Systems | Deutsch DT, Deutsch DTM, Deutsch HD30, Ampseal 16, Integrated ECM/Controller Connectors with Gold-Plated Terminals |
| Protective Sheathing | High-Temperature Corrugated Nylon Split-Loom Conduit; Self-Fusing Silicone Tape at All Branch Junctions; Adhesive-Lined Dual-Wall Heat Shrink Boots at All Connector Backshells |
| Voltage Rating | 24V DC System |
| Environmental Sealing | IP67 Rated Mated Connectors with Silicone Interfacial Seals, Peripheral Gaskets, and Cavity Plugs in All Unused Positions |
| Chemical & Abrasion Resistance | Resistant to Diesel Fuel, Engine Oil, Hydraulic Fluid, Engine Coolant, and Commercial Degreasing Solvents; Exceeds SAE J1128 Abrasion Standards |
| Quality Assurance | 100% Automated Pin-to-Pin Continuity Mapping Against OEM Schematic; Dielectric Withstand Test; Computer-Monitored Crimp Force Recording; 10x Magnification Visual Inspection |
| Certification | ISO 9001 Certified Manufacturing Facility |
| Place of Origin | Guangdong, China |
| Supply Capacity | 300 Pieces per Month |
| Shipping Weight | Approx. 3.0 – 5.0 kg (Configuration Dependent) |
| Package Dimensions | 60 x 48 x 18 cm (Coiled and Flat-Packed in Protective Carton) |
| Packing | Inner: PP Bag with Anti-Static Protection; Outer: Heavy-Duty Export-Grade Corrugated Carton Box with Custom-Cut Protective Foam |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| Shipping Mode | By Air, By Sea, By Express (FedEx, UPS, DHL, TNT) |
| Minimum Order Quantity | Acceptable Trial Order — Single Unit Orders Welcome |
| Return Policy | Non-Returnable / Non-Exchangeable (Comprehensive DOA Guarantee Included) |
PRODUCT OVERVIEW

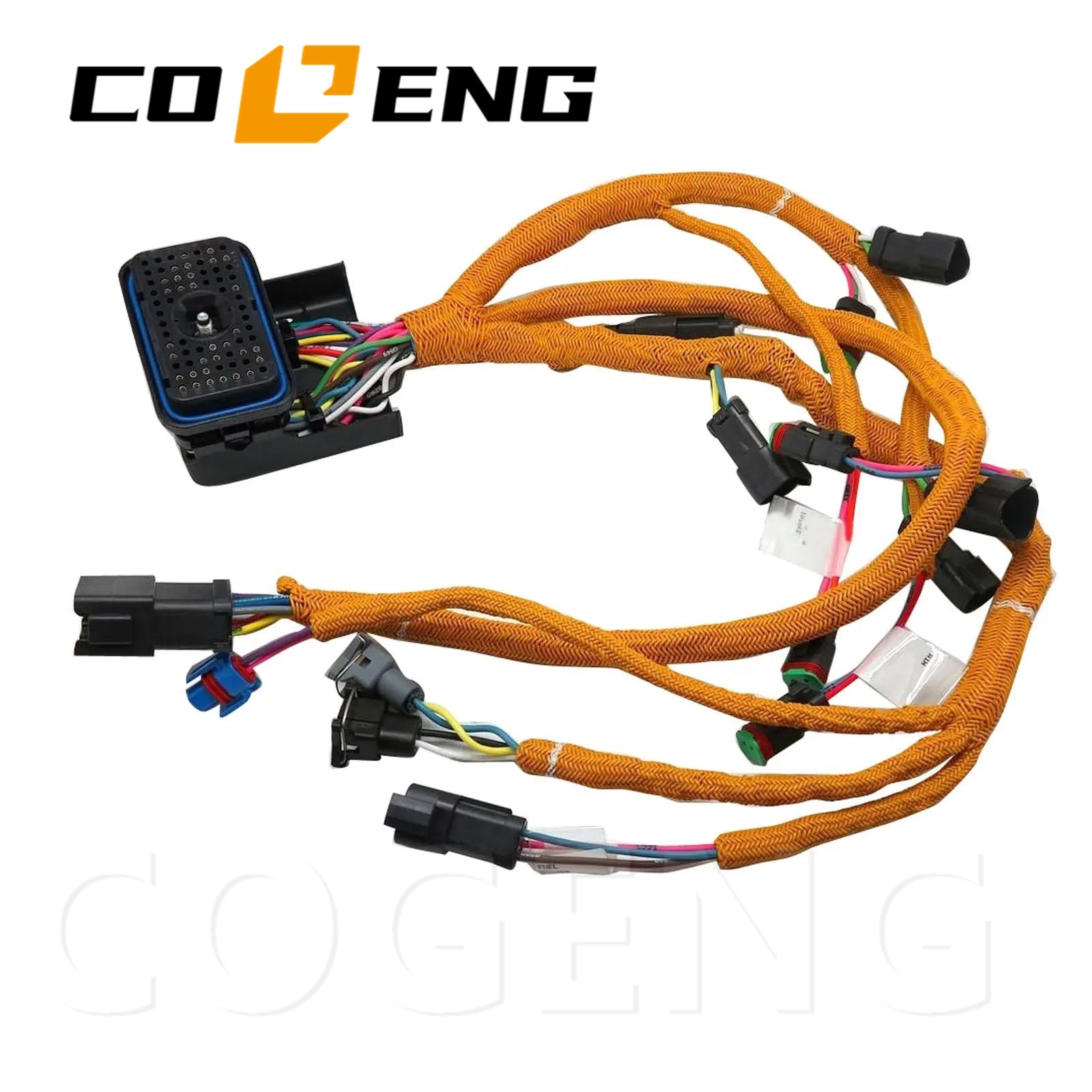

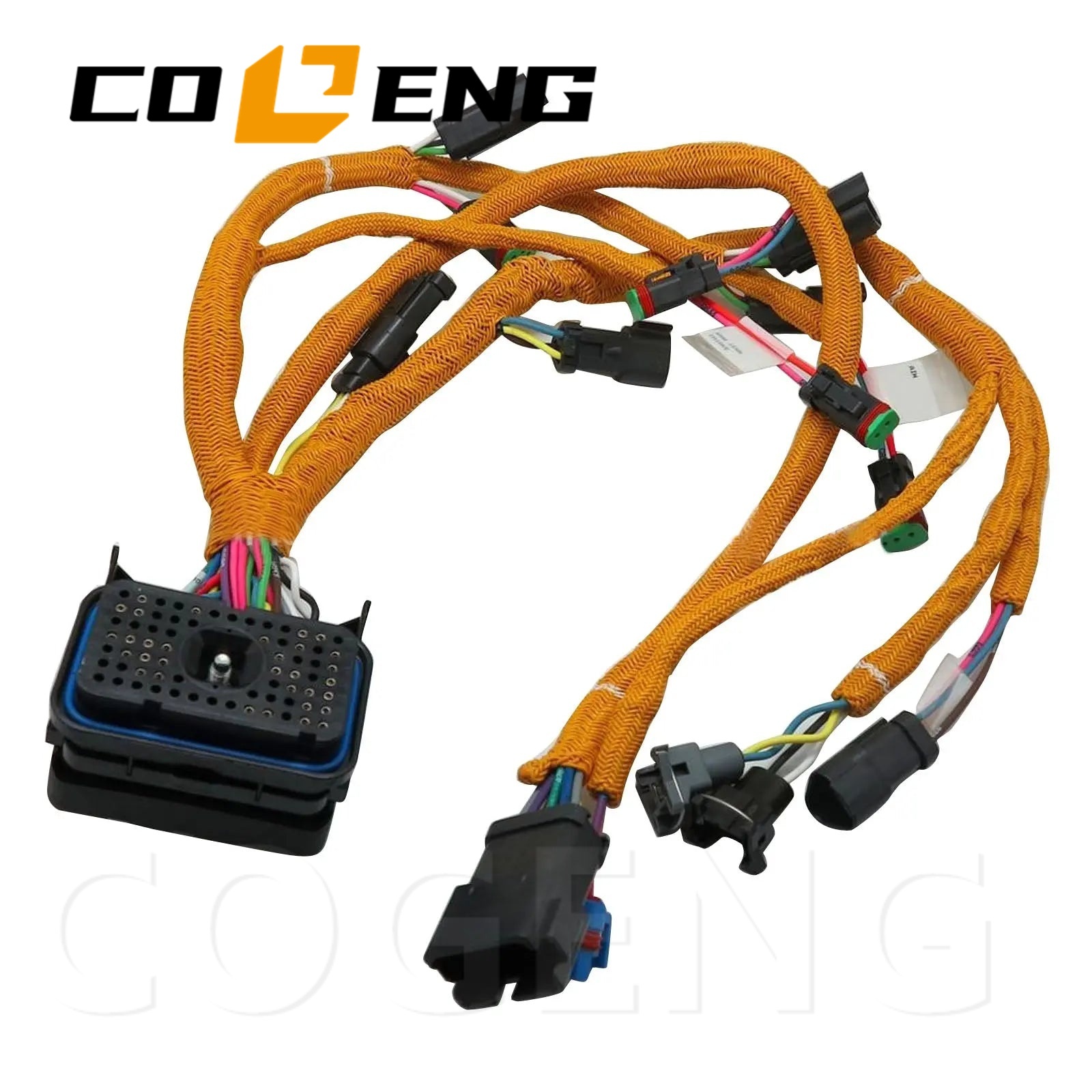

The COGENG Wiring Harness, part number 236-6223 (2366223), is a precision-manufactured electrical distribution harness engineered as a direct, form-fit-function replacement for Caterpillar equipment applications, specifically validated for the 583T Pipelayer, 587T Pipelayer, and 824C Wheel Dozer platforms.
The 583T and 587T are specialized pipelayer machines built on excavator and tractor undercarriages respectively, used extensively in oil and gas pipeline construction. The 824C is a wheel dozer used in landfill compaction, mining, and heavy earthmoving applications. These machines operate in some of the most demanding environments in the heavy equipment industry—remote pipeline rights-of-way, landfill sites with corrosive and abrasive waste, and mining operations with extreme dust and temperature conditions. The electrical harness on these machines must survive continuous vibration, thermal cycling, exposure to hydraulic fluid and fuel, and the constant assault of abrasive dust and moisture.
This harness serves as a critical electrical infrastructure component, providing the protected pathways for power distribution, sensor signal transmission, and control command delivery between the machine's Electronic Control Module (ECM) or controller and the various engine, hydraulic, and machine system components it governs. The harness carries precision analog signals from pressure, temperature, and position sensors; high-frequency digital pulse trains from speed and position sensors; high-current PWM drive signals for fuel injectors, solenoid valves, and actuators; and the bidirectional CAN bus data link that facilitates real-time communication between the engine ECM and the machine's other control modules.
COGENG's 236-6223 aftermarket harness is engineered to overcome the failure modes of the OEM harness—heat-induced insulation embrittlement, moisture ingress causing copper corrosion, fretting corrosion at connector pins, and chafing damage—using premium XLPE-insulated wire rated for 125°C continuous operation, multi-layer thermal shielding in exhaust-proximate zones, self-fusing silicone tape at every branch junction for permanent waterproof sealing, and precision-machined gold-plated connector contacts to prevent fretting corrosion. Every terminal is solid-barrel and crimped using computer-monitored presses. The harness is built on a precision OEM jig for guaranteed drop-in fit.
COMPATIBLE CATERPILLAR EQUIPMENT
The 236-6223 harness is validated for the following Caterpillar equipment platforms. Always provide your complete machine PIN and serial number for final compatibility verification.
| Brand | Model | Equipment Type |
|---|---|---|
| Caterpillar | 583T | Pipelayer |
| Caterpillar | 587T | Pipelayer |
| Caterpillar | 824C | Wheel Dozer |
Note: These machines span different equipment families but may share a common harness application. Verification with your machine's complete PIN is mandatory.
PARTS LIST (Included in Package)
-
Complete Wiring Harness Assembly (1 unit): Fully assembled, jig-built harness with all connectors, solid-barrel terminals, protective conduit sheathing, thermal shielding layers, factory-positioned P-clips, and identification labels pre-installed.
-
Integrated ECM/Controller Connector Assembly: The primary connector body with all gold-plated terminals, silicone interfacial seal, and adhesive-lined heat shrink strain relief boot pre-installed.
-
All Sensor and Actuator Connectors: Every branch is pre-terminated with the correct solid-barrel contacts, silicone wire seals, and plastic cavity plugs in unused positions.
-
High-Current Power and Ground Terminals: Heavy-gauge power cables terminated with tin-plated, closed-barrel copper ring terminals, each sealed with dual-wall adhesive-lined heat shrink.
-
PP Bag Inner Packing and Export Carton: The harness is sealed in a PP bag with anti-static protection and flat-packed in a rigid, double-wall corrugated carton with custom-cut protective foam and "Do Not Cut — Electrical Harness Inside" labels.
COMPATIBILITY NOTES: CRITICAL VERIFICATION GUIDE
-
Multi-Platform Harness: The 236-6223 is validated for the 583T, 587T, and 824C platforms. These machines may share a common harness application, but the specific harness section (engine, chassis, or cab) and connector configuration must be verified against your machine's PIN.
-
Harness Section Verification: It is important to confirm whether this is an engine harness, chassis harness, cab harness, or a specialized sub-harness. The harness section must be verified before ordering.
-
Serial Number Verification is Mandatory: Caterpillar implemented running production changes across these equipment platforms. Providing your complete machine PIN allows our technical team to verify the exact harness variant your machine requires.
-
Visual Comparison Recommended: Before ordering, we strongly recommend comparing your existing harness identification label and connector face with our product photos. Our technical team can provide a side-by-side comparison to confirm compatibility.
-
Professional Installation Required: Installing a wiring harness requires routing through tight engine bay clearances, around hot exhaust components, and proper securing at all mounting points. Installation should be performed by a qualified heavy equipment technician with access to Caterpillar Electronic Technician (ET) diagnostic software.
INSTALLATION PROCEDURE
Note: This is a summarized procedural guide. Always follow the Caterpillar service manual for your specific equipment.
Step 1: Safety Lockout and Documentation
Disconnect negative (-) and positive (+) battery cables. Photograph every aspect of the existing harness routing, documenting all P-clip locations, routing around the exhaust manifold and turbocharger, and all connector orientations.
Step 2: Old Harness Systematic Removal
Label every connector with numbered wire tags as it is disconnected. Disconnect all sensors and actuators. Disconnect power cables from alternator and starter. Cut zip ties, release P-clips, and carefully extract the old harness.
Step 3: New Harness Visual Comparison
Uncoil the new COGENG harness beside the old harness. Compare ECM connector, branch lengths, connector types, and ring terminal diameters. Verify every match before proceeding.
Step 4: New Harness Routing and Connection
Route harness following photographic reference. Secure loosely at all P-clip locations. Connect ECM connector first. Systematically reconnect all sensor and actuator branches. Install and torque all power ring terminals to OEM specifications. Tighten all P-clips. Install new high-temperature zip ties. Verify adequate clearance from exhaust, turbo, and all moving components.
Step 5: Power-Up and Full Functional Test
Reconnect batteries. Connect Caterpillar Electronic Technician (ET). Verify no active diagnostic trouble codes. Start engine and verify immediate oil pressure. Monitor all parameters. Warm to operating temperature. Cycle all functions. Confirm zero fault codes after complete test.
🚚 SHIPPING DETAILS & RETURN POLICY
Shipping Details
| Detail | Description |
|---|---|
| Shipping Methods | By Air: Cost-effective for medium-weight orders. By Sea: Most economical for bulk orders. By Express (FedEx, UPS, DHL, TNT): Fastest door-to-door service for machine-down emergencies. |
| Estimated Delivery Time | Express: 3-5 business days. Air Freight: 8-15 days. Sea Freight: 30-45 days. Transit times are carrier-dependent. Tracking provided within one business day of dispatch. |
| Packing | Inner: PP bag with anti-static protection. Outer: Heavy-duty export-grade corrugated carton box with custom-cut protective foam. |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P. Standard terms: 30% T/T deposit, 70% balance before shipment. |
| Minimum Order Quantity | Acceptable Trial Order — Single unit orders welcomed. |
Return Policy
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. A wiring harness cannot be restocked once departed from our controlled environment. |
| DOA Quality Guarantee | Full replacement for manufacturing defects reported within 7 days of delivery. Harness must be in original, uninstalled condition. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact harness for written approval before dispatch. |
FREQUENTLY ASKED QUESTIONS
Q1: What are the symptoms of a failing 236-6223 harness?
A: Common symptoms include multiple unrelated fault codes appearing simultaneously, intermittent engine derate or shutdown, erratic sensor readings, visible chafing or melted insulation, green corrosion at connector backshells, and a successful "wiggle test" where manipulating the harness causes sensor values to drop out.
Q2: Will this harness fit all three models — 583T, 587T, and 824C?
A: The 236-6223 is validated for these platforms, but the specific harness section and connector configuration must be verified against your machine's PIN. These machines span different equipment families, so verification is essential.
Q3: Is this the complete machine harness or just the engine harness?
A: The harness section (engine, chassis, cab, or sub-harness) should be verified before ordering. Please confirm the specific section you are replacing.
Q4: Do you accept trial orders for a single unit?
A: Yes, absolutely. We welcome trial orders for single units from first-time customers.
Q5: What certifications does COGENG hold?
A: COGENG is an ISO 9001 certified manufacturer.
