| Parameter | Specification |
|---|---|
| Product Name | Komatsu Excavator Wiring Harness / External Chassis Harness |
| Primary Part Number | 20Y-06-31614 (20Y0631614) 20Y-06-31612 20Y-06-31613 |
| Associated / Cross-Reference Part Numbers | 20Y-06-31161, 20Y-06-31610, 20Y-06-31611 |
| Brand | COGENG (Premium Aftermarket Replacement) |
| Condition | Brand New, 100% Continuity & Dielectric Withstand Tested |
| Compatible Equipment | Komatsu PC200-7, PC200LC-7, PC220-7, PC220LC-7 Hydraulic Excavators |
| Harness Type | External Wiring Harness — Engine-to-Chassis Interconnect |
| Wire Insulation | Cross-Linked Polyethylene (XLPE) / Heat-Resistant Material Rated to 105°C |

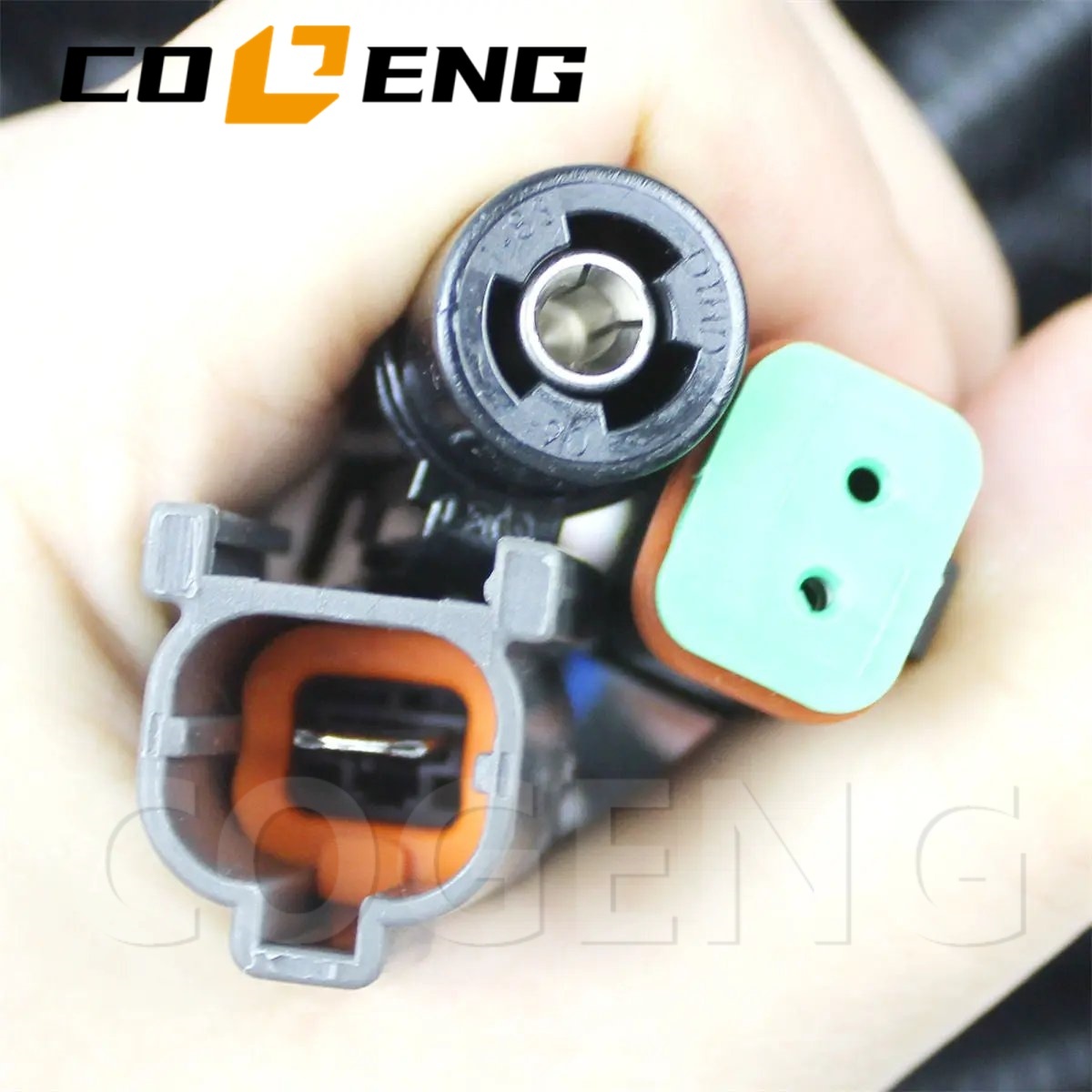

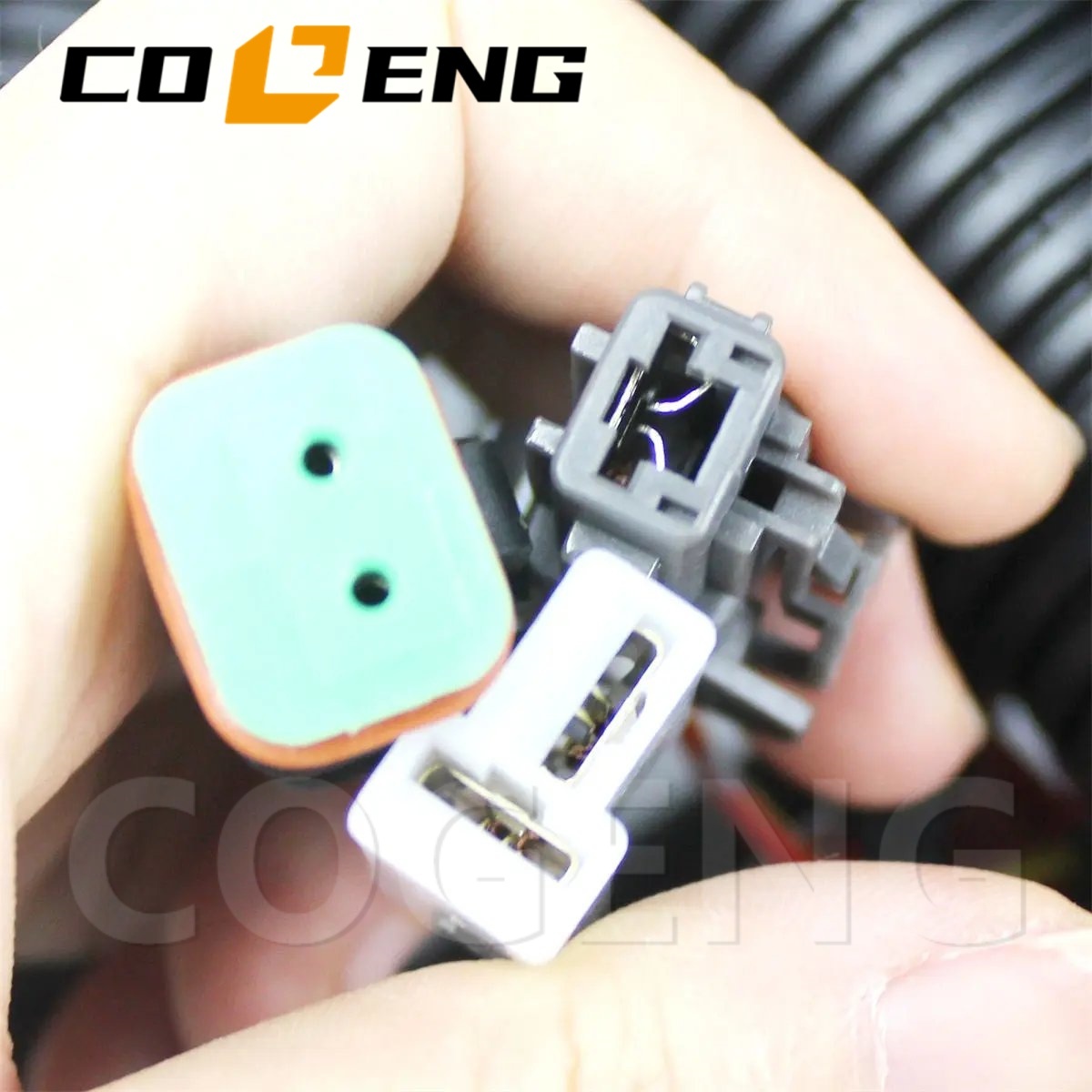

| Connector Systems | Industrial Sealed Connectors with Mechanical Locking and Vibration Resistance |
| Protective Sheathing | High-Temperature Corrugated Nylon Conduit; Self-Fusing Silicone Tape at Branch Junctions |
| Voltage Rating | 24V DC System |
| Environmental Sealing | Sealed Connectors Resistant to Dust, Moisture, and Chemical Exposure |
| Chemical & Abrasion Resistance | Resistant to Diesel Fuel, Engine Oil, Hydraulic Fluid, and Construction Site Contaminants |
| Quality Assurance | 100% Automated Pin-to-Pin Continuity Mapping Against OEM Schematic; Dielectric Withstand Test; Visual Inspection |
| Certification | ISO 9001 Certified Manufacturing Facility |
| Place of Origin | Guangdong, China |
| Supply Capacity | 500 Pieces per Month |
| Shipping Weight | Approx. 3.0 – 4.0 kg (Configuration Dependent) |
| Package Dimensions | 60 x 48 x 16 cm (Coiled and Flat-Packed in Protective Carton) |
| Packing | Inner: PP Bag with Anti-Static Protection; Outer: Heavy-Duty Export-Grade Corrugated Carton Box with Custom-Cut Protective Foam |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| Shipping Mode | By Air, By Sea, By Express (FedEx, UPS, DHL, TNT) |
| Minimum Order Quantity | Acceptable Trial Order — Single Unit Orders Welcome |
| Return Policy | Non-Returnable / Non-Exchangeable (Comprehensive DOA Guarantee Included) |

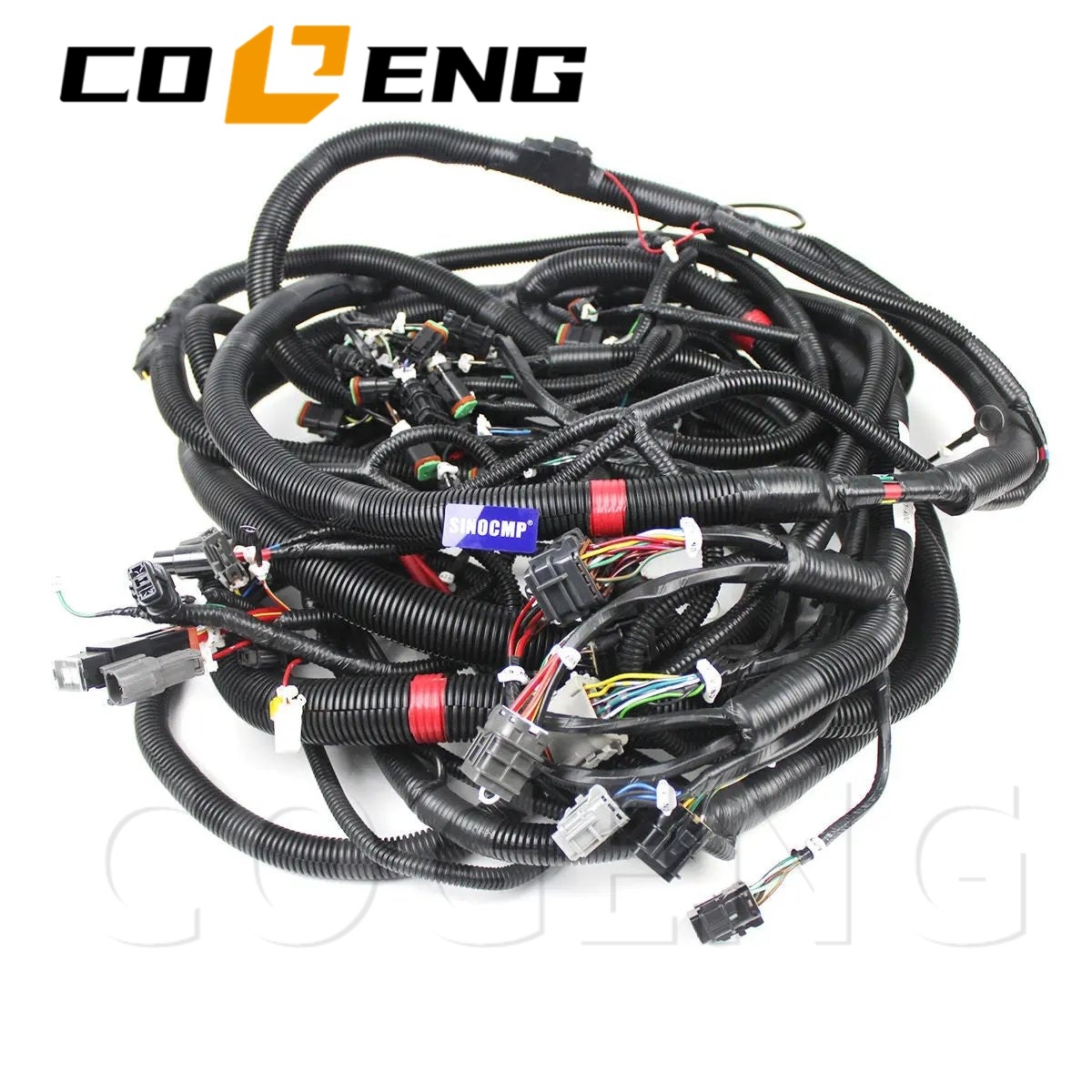

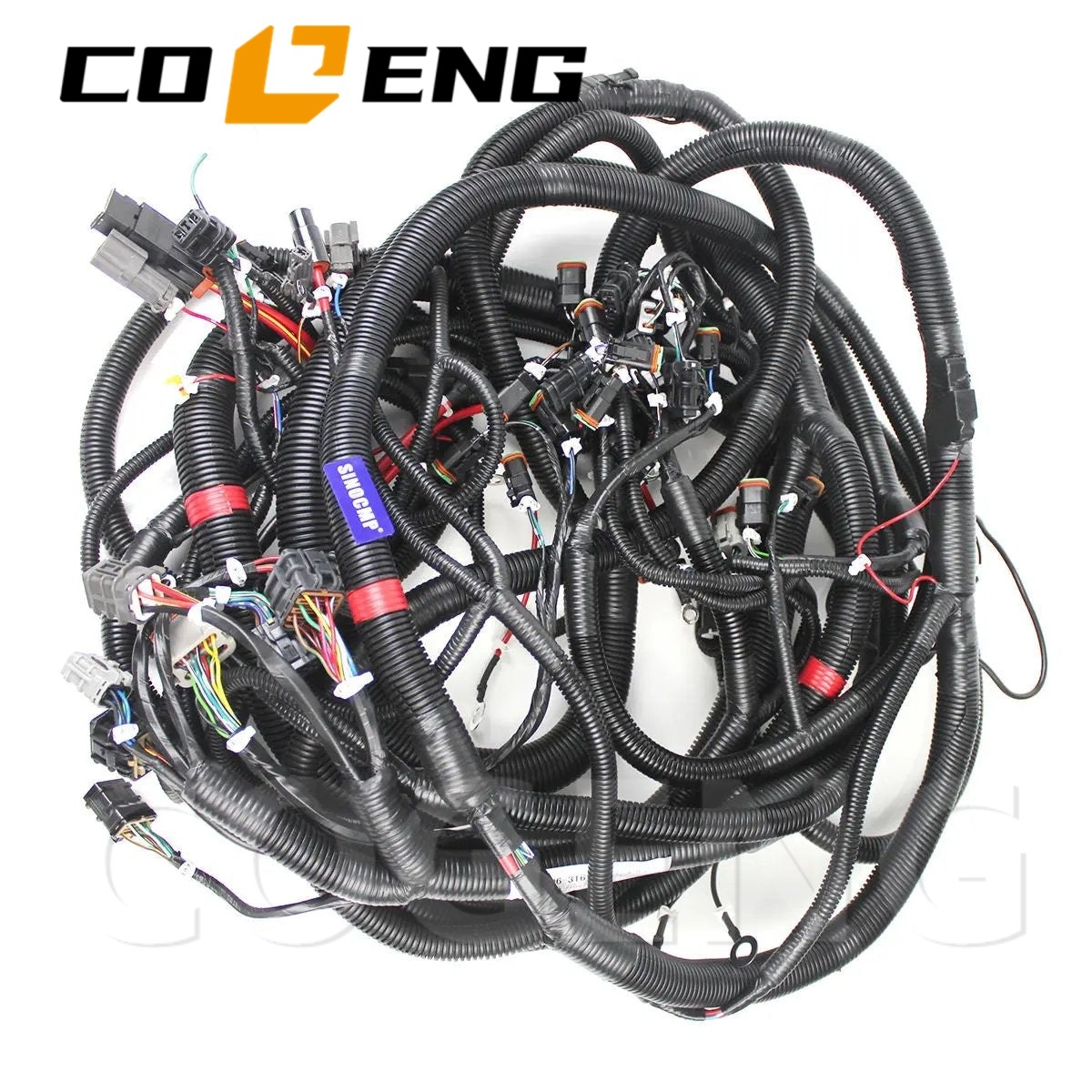

The COGENG External Wiring Harness, part number 20Y-06-31614 (20Y0631614), is a precision-manufactured electrical distribution harness engineered as a direct, form-fit-function replacement for the Komatsu PC200-7 and PC220-7 hydraulic excavator platforms. These 20- to 22-ton class excavators belong to Komatsu's globally deployed Dash-7 generation, machines widely used in construction, road building, utility installation, quarry, and general earthmoving applications.
This harness is an external / chassis wiring harness, providing the electrical link between the engine compartment and the machine chassis. It carries power and control signals for the engine ECU, alternator, starter motor, sensors, and various actuators. A damaged or degraded external harness can cause intermittent fault codes, sensor errors, engine derate, hard starting, or complete electrical failure.
The Komatsu PC200-7 and PC220-7 utilize a sophisticated electronic control architecture that coordinates engine power output, hydraulic pump displacement, and valve spool positioning for optimal productivity and fuel economy. The 20Y-06-31614 harness is the physical infrastructure that makes this intelligent control possible, carrying precision analog signals from pressure and temperature sensors, transmitting digital data between controllers, and delivering drive signals to the electro-proportional solenoid valves.
The operating environment for an external harness in a PC200-7 or PC220-7 excavator is exceptionally severe. The harness must route through the engine bay, where radiant heat from the exhaust manifold and turbocharger bakes the wire insulation, and through the articulation zone between the upper structure and undercarriage. It must survive exposure to high-pressure water jetting, diesel fuel and hydraulic oil mist, and the chemical assault of degreasing solvents. It is subjected to continuous, high-amplitude vibration and the shock loads transmitted through the machine frame during digging, lifting, and hammer operation.
COGENG's 20Y-06-31614 aftermarket harness is manufactured using premium XLPE-insulated wire with a high temperature rating, providing superior resistance to thermal aging, cut-through, and chemical degradation. At every branch junction, we implement a three-stage environmental sealing protocol: PTFE tape underlayer, self-fusing silicone tape that cures into a solid waterproof barrier, and adhesive-lined dual-wall heat shrink for structural strain relief. Every connector terminal is solid-barrel and crimped using computer-calibrated presses. The harness is built on a precision jig that duplicates the exact OEM routing, branch lengths, and connector positions. Installation is a true drop-in replacement: no cutting, splicing, or adapting is necessary.
The 20Y-06-31614 harness is designed for the Komatsu PC200-7 and PC220-7 excavator platforms. Always provide your complete machine serial number for final compatibility verification.
| Brand | Model | Machine Class |
|---|---|---|
| Komatsu | PC200-7 | 20-Ton Hydraulic Excavator |
| Komatsu | PC200LC-7 | 20-Ton Hydraulic Excavator (Long Crawler) |
| Komatsu | PC220-7 | 22-Ton Hydraulic Excavator |
| Komatsu | PC220LC-7 | 22-Ton Hydraulic Excavator (Long Crawler) |
Note: These models share a common Dash-7 generation electrical architecture. Verification with your machine's complete serial number is mandatory.
Complete External Wiring Harness Assembly (1 unit): Fully assembled harness with all connectors, terminals, protective conduit sheathing, factory-positioned P-clips, and identification labels pre-installed.

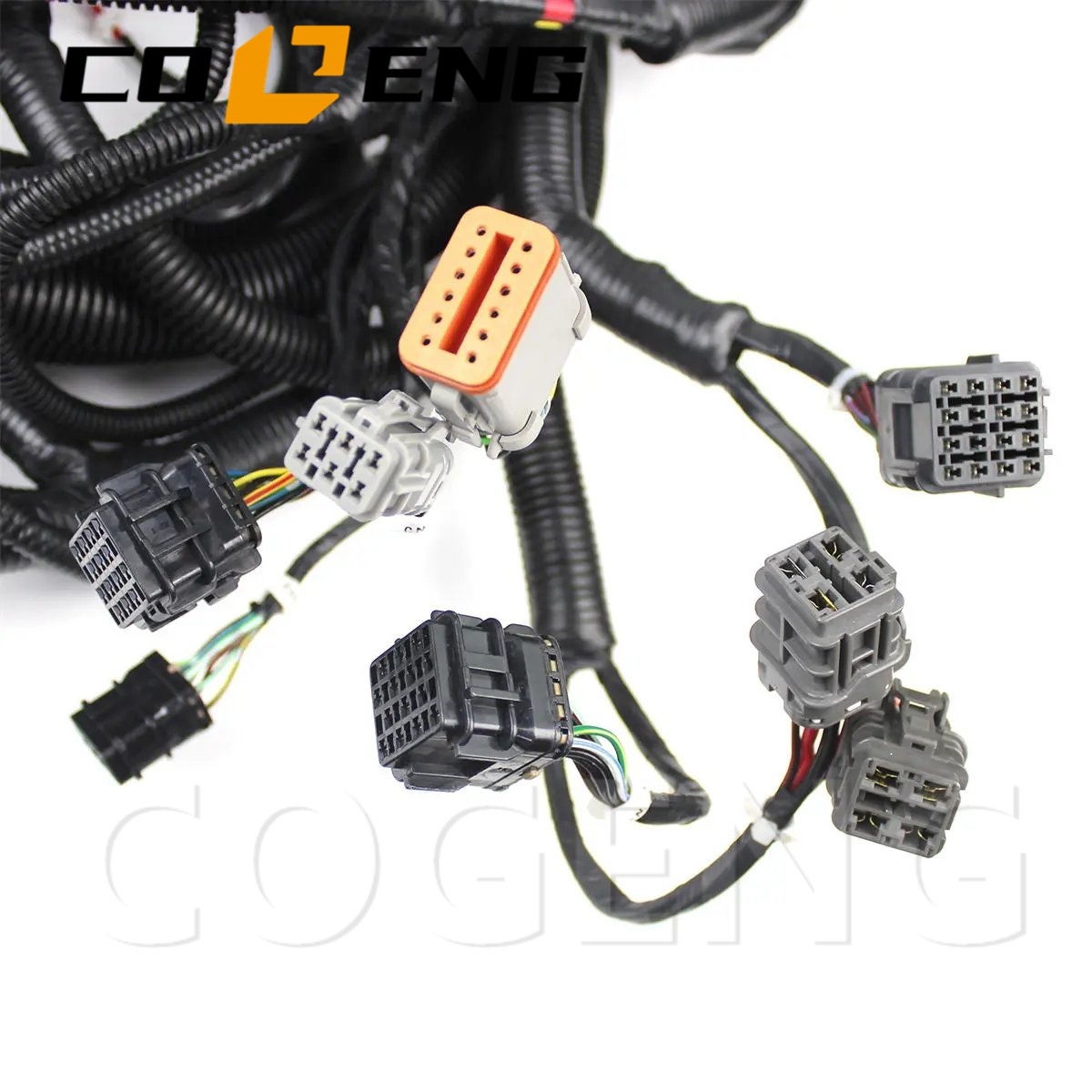

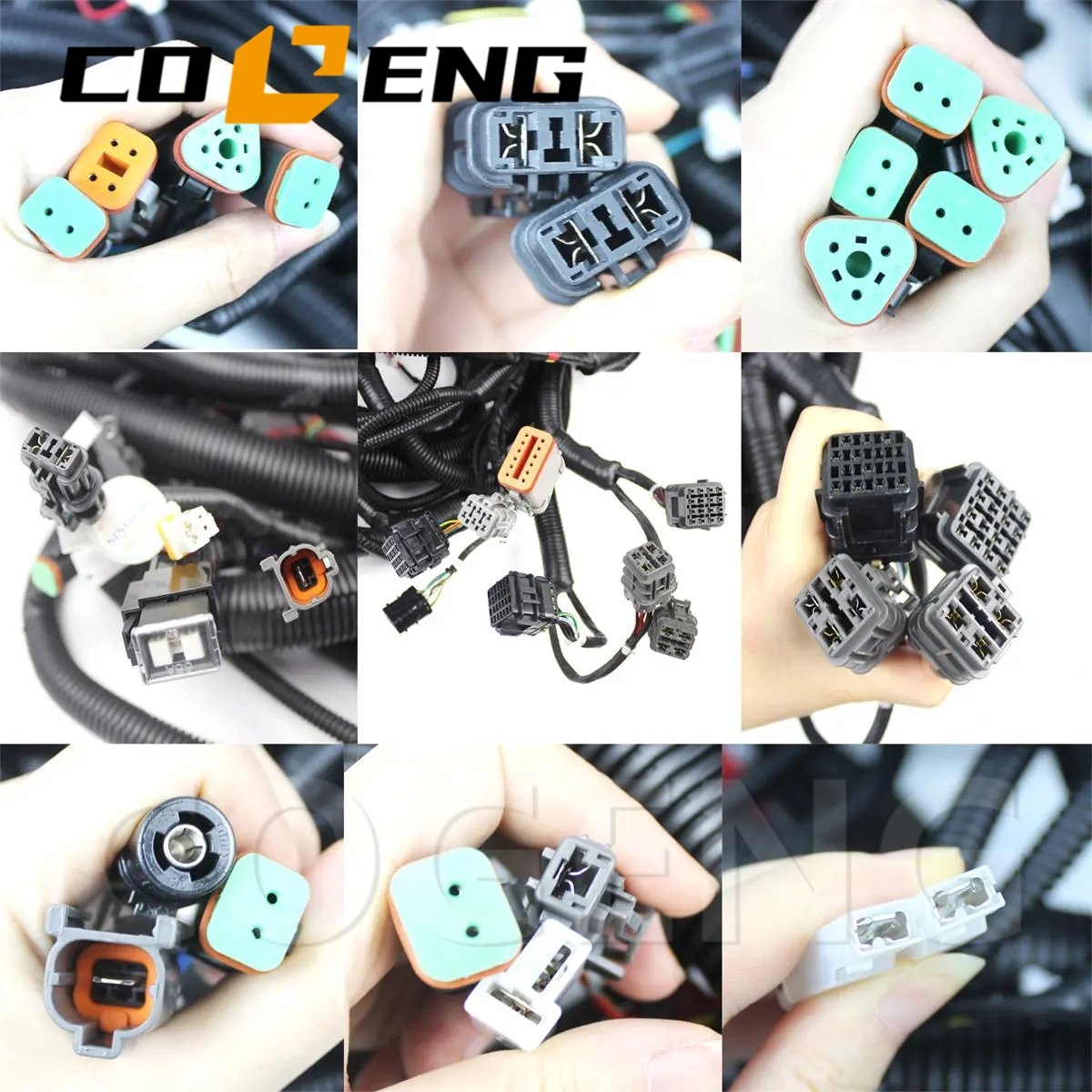

All Sensor, Actuator, and System Connectors: Every branch is pre-terminated with the correct sealed contacts and silicone wire seals.
High-Current Power and Ground Terminals: Heavy-gauge alternator, starter motor, and battery cables terminated with appropriate ring terminals, sealed with heat shrink.
PP Bag Inner Packing and Export Carton: The harness is sealed in a PP bag with anti-static protection and flat-packed in a rigid, double-wall corrugated carton with custom-cut protective foam and "Do Not Cut — Electrical Harness Inside" labels.
PC200-7 and PC220-7 Specificity: The 20Y-06-31614 harness is designed for the Komatsu PC200-7 and PC220-7 excavator platforms (Dash-7 generation). It is not compatible with the earlier PC200-6 or the later PC200-8 models, which utilize different electrical architectures and connector generations.
Part Number Relationship: The 20Y-06-31614 is part of the Dash-7 external harness family, closely related to 20Y-06-31161, 20Y-06-31610, and 20Y-06-31611. These may represent production revisions or configuration variants. Our technical team will verify the correct configuration for your machine serial number.
External Harness Section: The 20Y-06-31614 is an external / chassis harness. It is not the internal cab harness (e.g., 20Y-06-71510/71511/71512) or the complete machine harness. Please verify the specific section you are replacing before ordering.
Serial Number Verification is Mandatory: Komatsu implemented running production changes within the Dash-7 series production run. Providing your complete machine serial number allows our technical team to verify the exact harness variant your machine requires.
Professional Installation Required: Installing an external wiring harness requires methodical routing through the engine bay and chassis, proper securing at all mounting points, and verification of all connections. Installation should be performed by a qualified heavy equipment technician with access to the Komatsu service manual and diagnostic software.
Note: This is a summarized procedural guide. Always follow the Komatsu service manual for your specific model.
Step 1: Safety Lockout and Documentation
Disconnect negative (-) and positive (+) battery cables. Photograph every aspect of the existing harness routing, documenting all P-clip locations, routing through the engine bay and chassis, and all connector orientations.
Step 2: Old Harness Systematic Removal
Label every connector with numbered wire tags as it is disconnected. Disconnect the controller connector(s), all engine sensor connectors, alternator, starter motor, and chassis interface connectors. Remove the ring terminals from the battery and ground points. Cut zip ties, release P-clips, and carefully extract the old harness.
Step 3: New Harness Visual Comparison
Uncoil the new COGENG harness beside the old harness. Compare connector types, branch lengths, and mounting clip positions. Verify every match before proceeding.
Step 4: New Harness Routing and Connection
Route the harness following the photographic reference. Secure at all P-clip and standoff locations. Connect the controller connector first. Systematically reconnect all sensor, actuator, alternator, starter, and chassis interface connectors. Install and torque all power and ground ring terminals to OEM specifications. Verify clearance from exhaust, turbo, and all moving parts.
Step 5: Power-Up and Full Functional Test
Reconnect batteries. Connect Komatsu diagnostic software. Verify no active diagnostic trouble codes. Start the engine and verify immediate oil pressure and alternator charging. Monitor all parameters. Warm to operating temperature. Cycle all functions. Confirm zero fault codes after complete test.
| Detail | Description |
|---|---|
| Shipping Methods | By Air: Cost-effective for medium-weight orders. By Sea: Most economical for bulk orders. By Express (FedEx, UPS, DHL, TNT): Fastest door-to-door service for machine-down emergencies. |
| Estimated Delivery Time | Express: 3-5 business days. Air Freight: 8-15 days. Sea Freight: 30-45 days. Transit times are carrier-dependent. Tracking provided within one business day of dispatch. |
| Packing | Inner: PP bag with anti-static protection. Outer: Heavy-duty export-grade corrugated carton box with custom-cut protective foam. |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P. Standard terms: 30% T/T deposit, 70% balance before shipment. |
| Minimum Order Quantity | Acceptable Trial Order — Single unit orders welcomed. |
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. A wiring harness cannot be restocked once departed from our controlled environment. |
| DOA Quality Guarantee | Full replacement for manufacturing defects reported within 7 days of delivery. Harness must be in original, uninstalled condition. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact harness for written approval before dispatch. |
Q1: What are the symptoms of a failing 20Y-06-31614 harness?
A: Common symptoms include multiple unrelated fault codes appearing simultaneously, intermittent controller communication loss, specific hydraulic functions becoming slow or inoperative, erratic sensor readings, random engine derate or shutdown, visible chafing or melted insulation, green corrosion at connector backshells, and a successful "wiggle test" where manipulating the harness causes sensor values to drop out.
Q2: What is the relationship between 20Y-06-31614 and 20Y-06-31161?
A: Both are part of the Dash-7 external harness family for the PC200-7 / PC220-7. They may represent production revisions or configuration variants. Our technical team will verify the correct configuration for your machine serial number.
Q3: Is this the complete machine harness or just the external harness?
A: The 20Y-06-31614 is an external / chassis wiring harness (engine-to-chassis interconnect). It is not the internal cab harness or the complete machine harness.
Q4: Do you accept trial orders for a single unit?
A: Yes, absolutely. We welcome trial orders for single units from first-time customers. Contact our sales team to arrange your trial order.
Q5: What certifications does COGENG hold?
A: COGENG is an ISO 9001 certified manufacturer, ensuring consistent manufacturing processes, rigorous inspection protocols, and full batch traceability.
