| Parameter | Specification |
|---|---|
| Product Name | Komatsu Excavator Wiring Harness / Main Chassis & Engine Interconnect Harness |
| Primary Part Numbers | 20Y-06-25140 (20Y0625140), 20Y-06-23880 |
| Brand | COGENG (Premium Aftermarket Replacement) |
| Condition | Brand New, 100% Continuity & Dielectric Withstand Tested |
| Compatible Equipment | Komatsu PC100-6, PC200-6, PC200LC-6 Hydraulic Excavators |
| Harness Type | Main Chassis & Engine Interconnect Harness — Controller Interface, Sensor Network, Actuator Control, Communication Wiring |
| Wire Insulation | Cross-Linked Polyethylene (XLPE) with PVC Inner Layer; SAE J1128 Type SXL/GXL; Rated -40°C to +105°C |
| Connector Systems | Sumitomo Sealed Series, Deutsch DT, Deutsch DTM, Integrated Controller Connectors with Gold-Plated Terminals |
| Protective Sheathing | High-Temperature Corrugated Nylon Split-Loom Conduit; Self-Fusing Silicone Tape at All Branch Junctions; Adhesive-Lined Dual-Wall Heat Shrink Boots at All Connector Backshells |
| Voltage Rating | 24V DC System |
| Environmental Sealing | IP67 Rated Mated Connectors with Silicone Interfacial Seals, Peripheral Gaskets, and Cavity Plugs in All Unused Positions |
| Chemical & Abrasion Resistance | Resistant to Diesel Fuel, Engine Oil, Hydraulic Fluid, Engine Coolant, and Commercial Degreasing Solvents; Exceeds SAE J1128 Abrasion Standards |
| Quality Assurance | 100% Automated Pin-to-Pin Continuity Mapping Against OEM Schematic; Dielectric Withstand Test; Computer-Monitored Crimp Force Recording; 10x Magnification Visual Inspection |
| Certification | ISO 9001 Certified Manufacturing Facility |
| Place of Origin | Guangdong, China |
| Supply Capacity | 500 Pieces per Month |
| Shipping Weight | 3.0 kg (Gross, approximate) |
| Package Dimensions | 58 x 46 x 16 cm (Coiled and Flat-Packed in Protective Carton) |
| Packing | Inner: PP Bag with Anti-Static Protection; Outer: Heavy-Duty Export-Grade Corrugated Carton Box with Custom-Cut Protective Foam |
| Payment Terms | Western Union, L/C (Letter of Credit), T/T (Telegraphic Transfer), MoneyGram, D/A (Documents against Acceptance), D/P (Documents against Payment) |
| Shipping Mode | By Air, By Sea, By Express (FedEx, UPS, DHL, TNT, etc.) |
| Minimum Order Quantity | Acceptable Trial Order — Single Unit Orders Welcome |
| Return Policy | Non-Returnable / Non-Exchangeable (Comprehensive DOA Guarantee Included) |

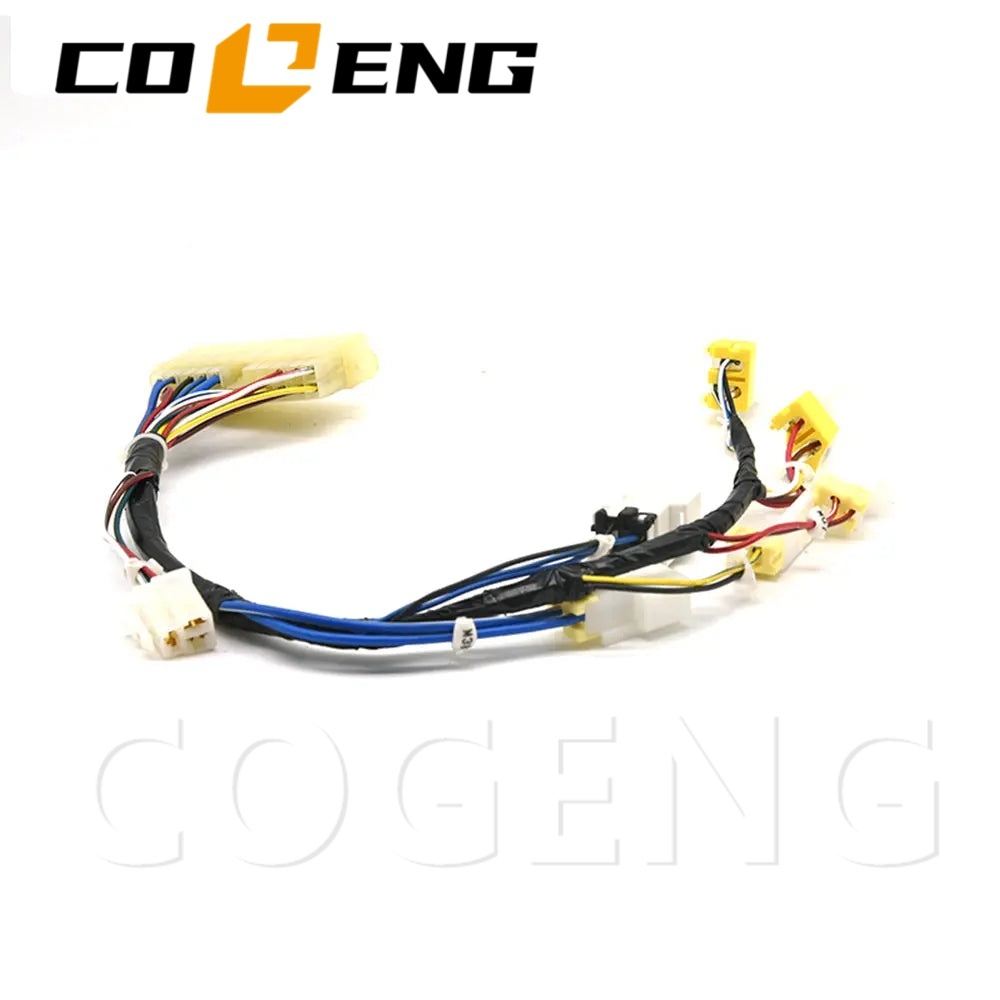

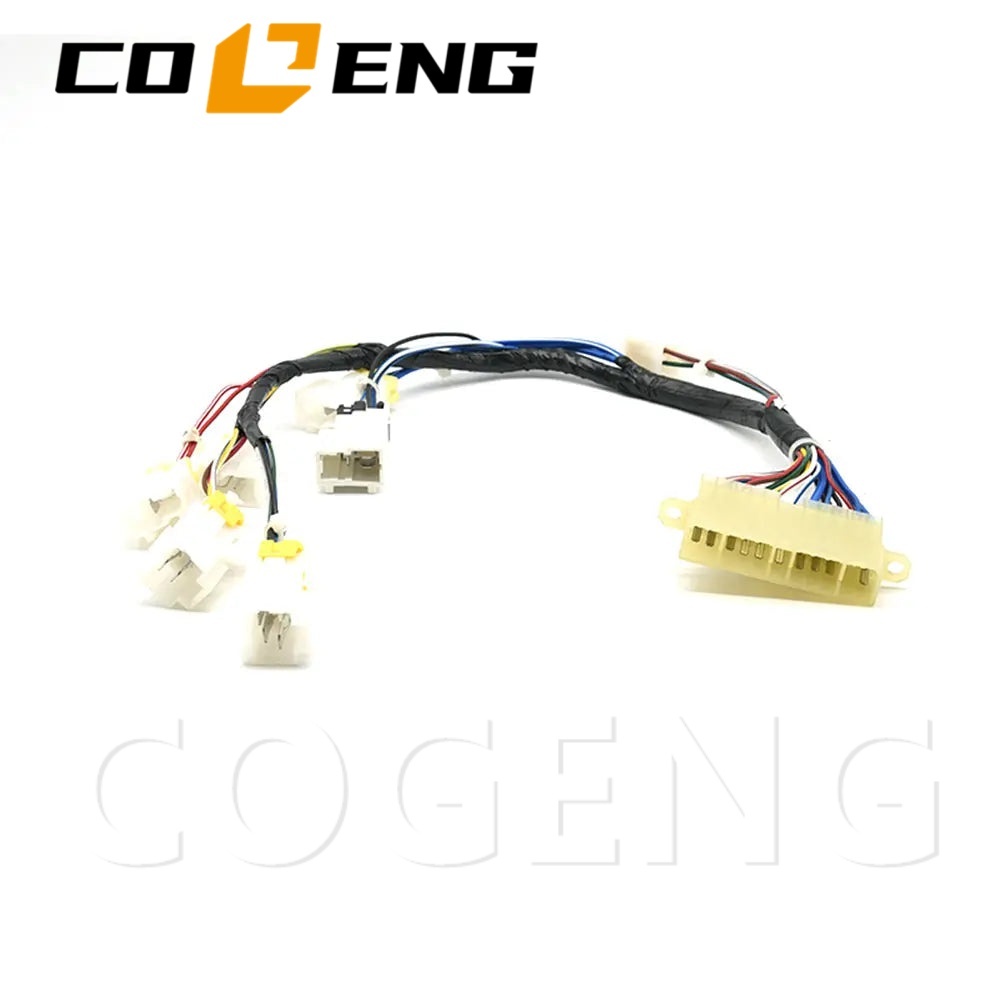

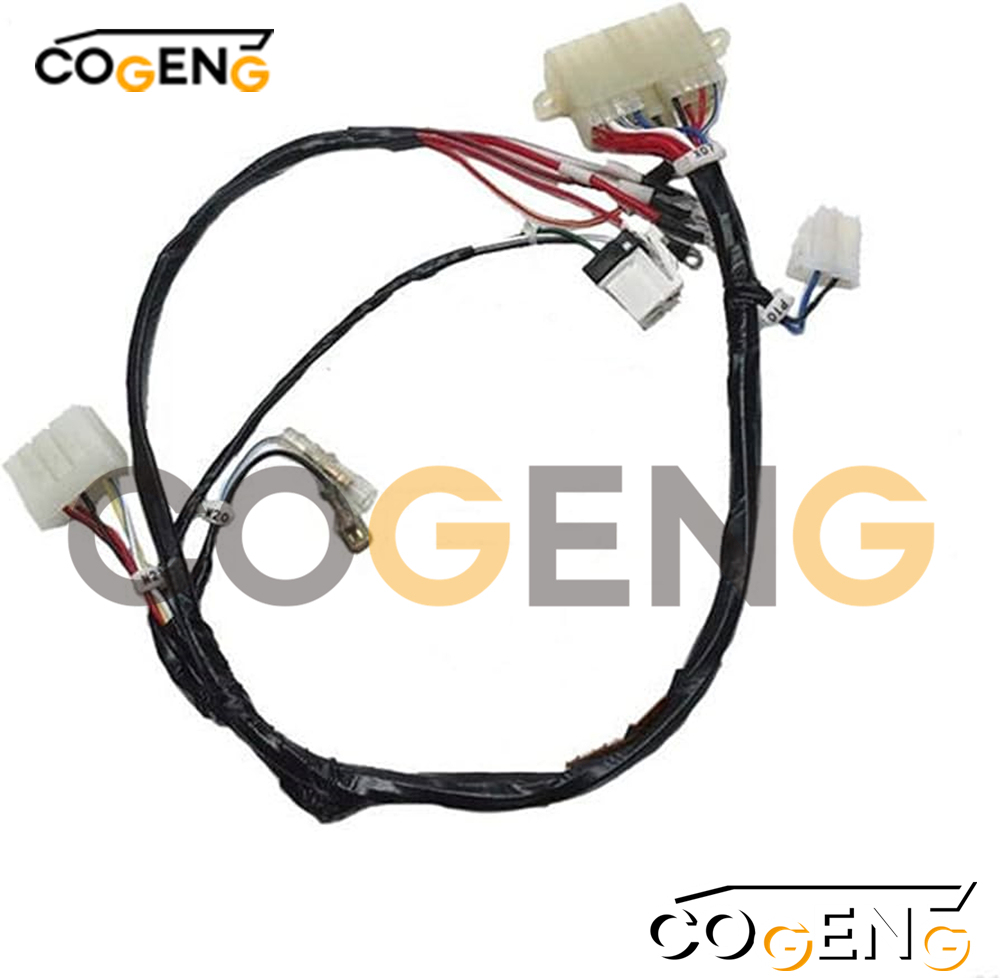

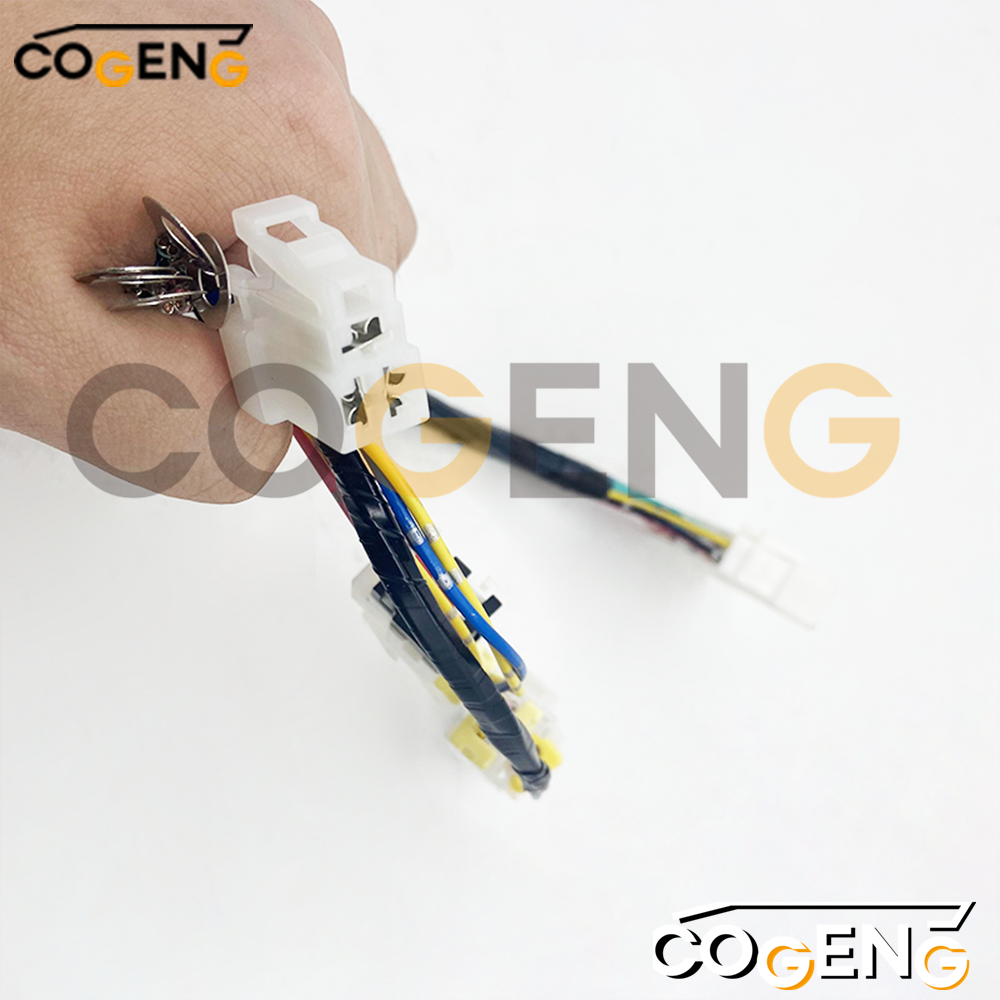

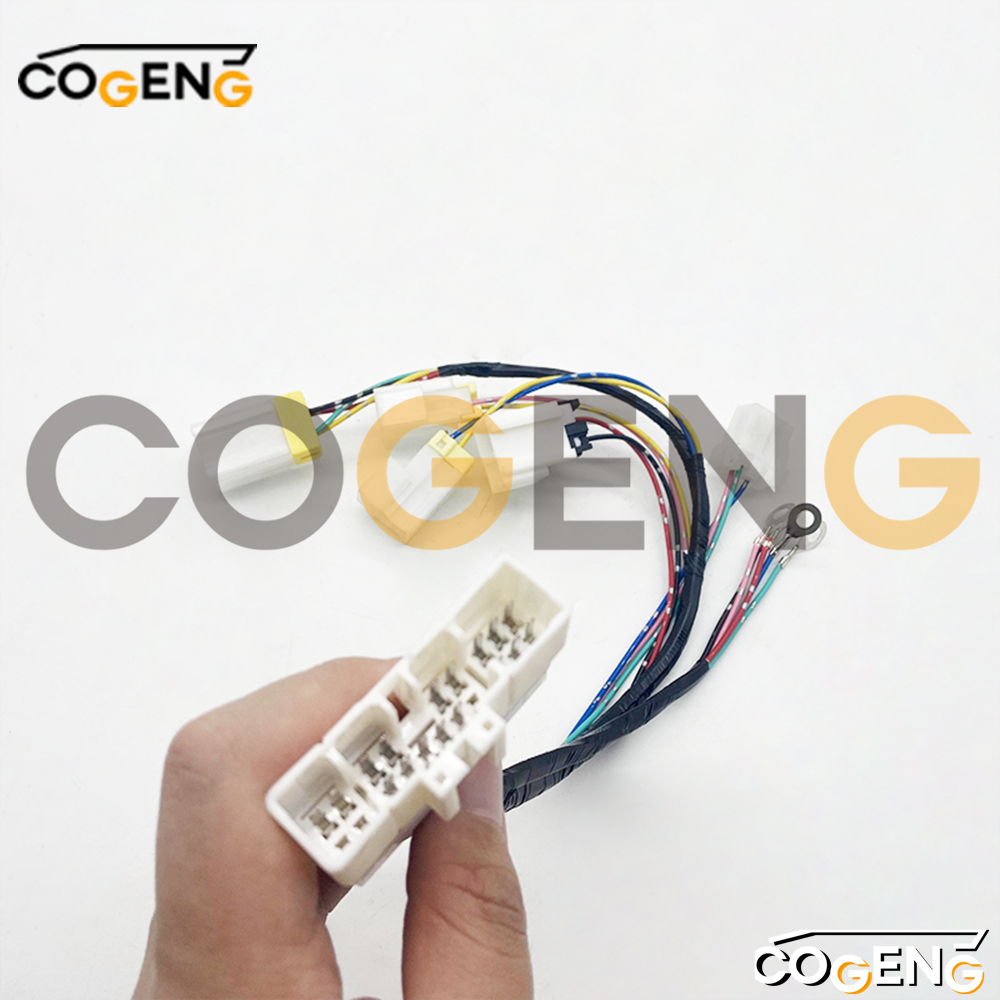

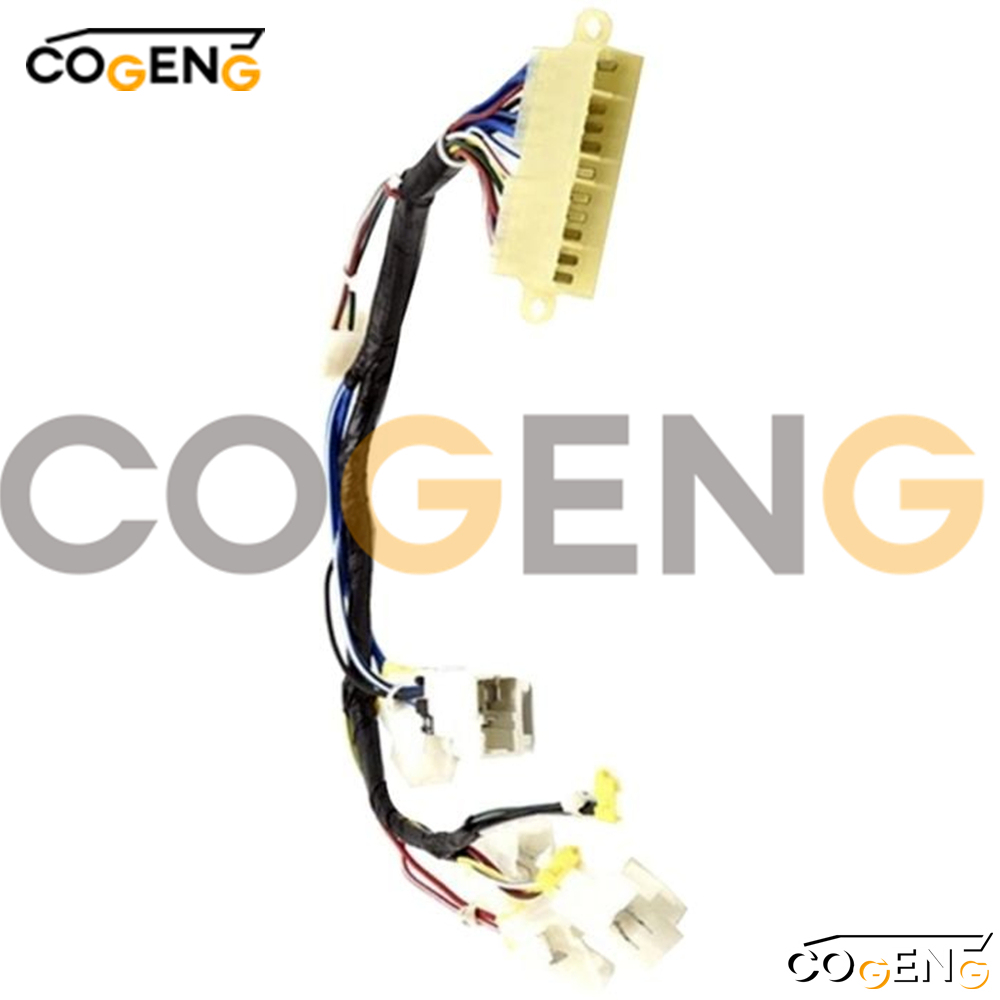

The COGENG Wiring Harness, identified by primary part numbers 20Y-06-25140 (20Y0625140) and 20Y-06-23880, is a precision-manufactured, comprehensive electrical distribution harness engineered as a direct, form-fit-function replacement for the Komatsu PC100-6 and PC200-6 hydraulic excavator platforms. These machines belong to Komatsu's globally deployed Dash-6 generation, a platform widely used in construction, road building, utility installation, quarry, and general earthmoving applications.
The Dash-6 generation introduced significant advancements in electronic control, fuel efficiency, and operator comfort compared to earlier platforms. These machines utilize a sophisticated electronic control architecture that coordinates engine power output, hydraulic pump displacement, and valve spool positioning for optimal productivity and fuel economy. The 20Y-06-25140 / 20Y-06-23880 harness is the physical infrastructure that makes this intelligent control possible. It carries precision analog signals from pressure sensors on the main hydraulic pumps, temperature sensors in the engine and hydraulic oil circuits, and position sensors throughout the machine. It transmits digital data between the engine controller, the pump controller, and the operator's monitor panel via the communication data link. It delivers the precisely modulated drive signals to the electro-proportional solenoid valves that control pump displacement, swing priority, travel straight-line compensation, and auxiliary hydraulic flow.
The operating environment for a main chassis harness in a PC100-6 or PC200-6 excavator is exceptionally severe. The harness must route through the tight, complex geometry of the excavator's swing frame, where it endures constant flexing and twisting as the upper structure rotates continuously relative to the undercarriage. It must pass through the engine bay, where radiant heat from the exhaust manifold and turbocharger bakes the wire insulation. It must survive exposure to high-pressure water jetting during cleaning, diesel fuel and hydraulic oil mist from inevitable seepage, and the chemical assault of degreasing solvents. It is subjected to continuous, high-amplitude vibration from the engine and hydraulic pumps, and the shock loads transmitted through the machine frame during digging, lifting, and hammer operation.
The failure modes of the OEM harness are predictable: heat-induced insulation embrittlement and cracking, moisture ingress causing copper corrosion and increased circuit resistance, fretting corrosion at connector pins causing intermittent signal loss, and chafing damage at frame contact points causing direct shorts to ground. COGENG's 20Y-06-25140 / 20Y-06-23880 aftermarket harness directly and definitively solves these failure mechanisms. We manufacture this harness using premium XLPE-insulated wire with a high temperature rating, providing dramatically superior resistance to thermal aging, cut-through, and chemical degradation. At every branch junction, we implement a three-stage environmental sealing protocol: PTFE tape underlayer, self-fusing silicone tape that cures into a solid waterproof barrier, and adhesive-lined dual-wall heat shrink for structural strain relief. Every connector terminal is solid-barrel and crimped using computer-calibrated presses. The harness is built on a precision jig that duplicates the exact OEM routing, branch lengths, and connector positions. Installation is a true drop-in replacement: no cutting, splicing, or adapting is necessary.
The 20Y-06-25140 / 20Y-06-23880 harness is designed for the Komatsu PC100-6 and PC200-6 excavator platforms. Always provide your complete machine serial number for final compatibility verification.
| Brand | Model | Machine Class |
|---|---|---|
| Komatsu | PC100-6 | 10-Ton Hydraulic Excavator |
| Komatsu | PC200-6 | 20-Ton Hydraulic Excavator |
| Komatsu | PC200LC-6 | 20-Ton Hydraulic Excavator (Long Crawler) |
Note: These models share a common Dash-6 generation electrical architecture. Verification with your machine's complete serial number is mandatory.
Complete Wiring Harness Assembly (1 unit): Fully assembled, jig-built harness with all connectors, solid-barrel terminals, protective conduit sheathing, factory-positioned P-clips, and identification labels pre-installed.
Integrated Controller Connector Assembly: The primary controller connector body with all gold-plated terminals, silicone interfacial seal, and adhesive-lined heat shrink strain relief boot pre-installed.
All Sensor, Actuator, and System Connectors: Every branch is pre-terminated with solid-barrel contacts, silicone wire seals, and plastic cavity plugs in unused positions. Connector types include Sumitomo sealed series, Deutsch DT, and DTM.
High-Current Power and Ground Terminals: Heavy-gauge alternator, starter motor, and battery cables terminated with tin-plated, closed-barrel copper ring terminals, each sealed with dual-wall adhesive-lined heat shrink.
PP Bag Inner Packing and Export Carton: The harness is sealed in a PP bag with anti-static protection and flat-packed in a rigid, double-wall corrugated carton with custom-cut protective foam and "Do Not Cut — Electrical Harness Inside" labels.
PC100-6 and PC200-6 Specificity: The 20Y-06-25140 / 20Y-06-23880 harness is designed for the Komatsu PC100-6 and PC200-6 excavator platforms (Dash-6 generation). It is not compatible with the earlier PC100-5 or PC200-5, or the later PC200-7, PC200-8 models, which utilize different electrical architectures and connector generations.
Part Number Relationship: The 20Y-06-25140 and 20Y-06-23880 are associated references for the same Dash-6 harness family. They may represent production revisions or configuration variants for the PC100-6 / PC200-6 application. Our technical team will verify the correct configuration for your machine serial number.
Serial Number Verification is Mandatory: Komatsu implemented running production changes within the Dash-6 series production run. Providing your complete machine serial number allows our technical team to verify the exact harness variant your machine requires.
Harness Section Identification: The 20Y-06-25140 / 20Y-06-23880 is a main chassis or engine interconnect harness. It does not include the cab harness or the complete machine harness. Please verify the specific harness section you are replacing before ordering.
Professional Installation Required: Installing a main chassis wiring harness on an excavator is a labor-intensive procedure requiring methodical routing through the cab, swing frame, engine bay, and hydraulic compartment. Installation should be performed by a qualified heavy equipment technician with access to the Komatsu service manual and diagnostic software.
Note: This is a summarized procedural guide. Always follow the Komatsu service manual for your specific model.
Step 1: Safety Lockout and Documentation
Red lockout symbol over battery: "Disconnect negative (-) and positive (+) battery cables. Lock out master disconnect switch." Camera icon: "Photograph every aspect of existing harness routing. Document all P-clip locations, routing through the swing frame, around the exhaust and turbo, hydraulic pump connections, and all connector orientations."
Step 2: Old Harness Systematic Removal
Label every connector with numbered wire tags as it is disconnected.
Cab Interior: Disconnect monitor display, key switch, throttle dial, joystick pilot controllers, and cab harness interface connectors.
Engine Bay: Disconnect controller connector(s), all engine sensor connectors, injector pass-through, turbo actuator.
Hydraulic Compartment: Disconnect pump displacement solenoids, pressure sensor connectors, swing and travel motor sensor connectors.
Power Disconnection: Remove ring terminals from alternator, starter motor, battery junction stud, and chassis ground points.
Cut all zip ties, release all P-clips, carefully extract the old harness.
Step 3: New Harness Visual Comparison
Uncoil new COGENG harness beside old harness. Compare controller connector shape and pin count, branch lengths and connector types, ring terminal diameters. Verify every match before proceeding.
Step 4: New Harness Routing and Connection
Route harness following photographic reference. Secure loosely at all P-clip and standoff locations.
Connect controller connector(s) first.
Systematically reconnect all cab interface, sensor, actuator, and hydraulic system connectors.
Install and torque all power and ground ring terminals to OEM specifications.
Tighten all P-clips. Install new high-temperature zip ties. Verify clearance from exhaust, turbo, swing frame, and all moving parts.
Step 5: Power-Up and Full Functional Test
Reconnect batteries. Connect Komatsu diagnostic software. Verify no active diagnostic trouble codes. Start engine. Verify immediate oil pressure. Monitor all parameters. Warm to operating temperature. Cycle all hydraulic functions, swing, and travel. Confirm zero fault codes after complete test.
| Detail | Description |
|---|---|
| Shipping Methods | By Air: Cost-effective for medium-weight orders. By Sea: Most economical for bulk orders. By Express (FedEx, UPS, DHL, TNT): Fastest door-to-door service for machine-down emergencies. |
| Estimated Delivery Time | Express: 3-5 business days. Air Freight: 8-15 days. Sea Freight: 30-45 days. Transit times are carrier-dependent. Tracking provided within one business day of dispatch. |
| Packing | Inner: PP bag with anti-static protection. Outer: Heavy-duty export-grade corrugated carton box with custom-cut protective foam. |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P. Standard terms: 30% T/T deposit, 70% balance before shipment. |
| Minimum Order Quantity | Acceptable Trial Order — Single unit orders welcomed. |
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. A wiring harness cannot be restocked once departed from our controlled environment. |
| DOA Quality Guarantee | Full replacement for manufacturing defects reported within 7 days of delivery. Harness must be in original, uninstalled condition. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact harness for written approval before dispatch. |
Q1: What are the symptoms of a failing 20Y-06-25140 / 20Y-06-23880 harness?
A: Common symptoms include multiple unrelated fault codes appearing simultaneously, intermittent controller communication loss, specific hydraulic functions becoming slow or inoperative, the monitor display flickering or losing data, random engine derate or shutdown, visible chafing or melted insulation, green corrosion at connector backshells, and a successful "wiggle test" where manipulating the harness causes sensor values to drop out.
Q2: What is the relationship between 20Y-06-25140 and 20Y-06-23880?
A: These two part numbers are associated references for the same Dash-6 harness family. They may represent production revisions or configuration variants for the PC100-6 / PC200-6 application. Our technical team will verify the correct configuration for your machine serial number.
Q3: Will this harness fit both my PC100-6 and PC200-6?
A: Yes. The 20Y-06-25140 / 20Y-06-23880 harness is validated for the PC100-6 and PC200-6 excavator platforms. These machines share a common Dash-6 generation electrical architecture. However, we always verify your specific machine serial number during pre-shipment confirmation.
Q4: Do you accept trial orders for a single unit?
A: Yes, absolutely. We welcome trial orders for single units from first-time customers. Contact our sales team to arrange your trial order.
Q5: What certifications does COGENG hold?
A: COGENG is an ISO 9001 certified manufacturer, ensuring consistent manufacturing processes, rigorous inspection protocols, and full batch traceability.
