PRODUCT OVERVIEW

The COGENG Engine Wiring Harness, primary part number 190-5038 (1905038) and cross-referenced with associated part number 195-7336 (1957336), is a precision-manufactured, comprehensive engine management electrical distribution harness engineered as a direct, form-fit-function replacement for the Caterpillar C9 ACERT diesel engine platform. This harness represents the complete electrical infrastructure that connects the Engine Control Module (ECM) to every critical engine-mounted sensor, actuator, and fuel system component, while simultaneously managing the high-speed CAN bus data interface with the machine's implement control system, hydraulic pump controller, and operator monitoring display. The 190-5038 harness is specifically validated for use across a broad family of Caterpillar hydraulic excavators, including the 330C, 330D, E330C, E330D, M330D, 325D, and 328D models.

The Caterpillar C9 ACERT engine is an 8.8-liter, inline six-cylinder, electronically controlled diesel powerplant that has served as the standard engine in Cat's 30-ton class excavator platform for over a decade. The ACERT technology suite relies on a sophisticated network of electronic controls: high-pressure common rail fuel injection or Hydraulic Electronic Unit Injection (HEUI), depending on the emissions tier; variable geometry turbocharging or electronic wastegate control; exhaust gas recirculation (EGR); and, in later iterations, closed-crankcase ventilation and aftertreatment integration. The 190-5038 harness is the physical layer that enables every millisecond of this complex control strategy. It carries precision analog signals from a network of pressure and temperature sensors distributed across the engine; high-frequency digital pulse trains from the camshaft and crankshaft position sensors that provide the ECM with real-time engine speed and piston position data accurate to fractions of a crankshaft degree; high-current PWM drive signals that command the HEUI injector solenoids, turbocharger actuator, and EGR valve; and the bidirectional CAN bus data stream that allows the engine ECM to coordinate seamlessly with the machine's hydraulic pump controller, ensuring optimal engine-power-to-hydraulic-demand matching.

The operating environment for a C9 engine harness in a 30-ton class excavator is among the most severe in the heavy equipment industry. In a mining application, the engine bay is continuously filled with fine, abrasive dust that settles on every surface and penetrates every gap. Ambient temperatures in the engine compartment can exceed 80°C, with localized hot spots near the exhaust manifold and turbocharger turbine housing reaching surface temperatures that rapidly degrade standard wire insulation. The engine and hydraulically-driven implement pumps generate continuous, high-amplitude vibration throughout the machine's operating cycle. In demolition and material handling applications, the harness is additionally subjected to impact shock and falling debris. The machine is cleaned regularly with high-pressure hot water spray and aggressive industrial degreasing compounds, which attack any weakened connector seal or compromised insulation. The cumulative effect of these environmental stressors on the OEM harness is predictable: insulation embrittlement and cracking, moisture ingress leading to copper corrosion and increased circuit resistance, fretting corrosion at the ECM connector pins causing intermittent signal loss, and chafing damage where the harness contacts the engine casting or a sharp frame bracket.

COGENG's 190-5038 aftermarket harness is engineered to definitively overcome each of these failure mechanisms. We manufacture this harness using premium XLPE (cross-linked polyethylene) insulated wire with a continuous temperature rating of 125°C, providing significantly superior resistance to thermal aging, cut-through, and chemical degradation compared to the OEM PVC-based insulation. In all zones proximate to the exhaust manifold, turbocharger turbine housing, and EGR cooler, we apply a comprehensive multi-layer thermal protection protocol: an inner spiral wrap of high-temperature PTFE film tape that remains stable at temperatures exceeding 250°C; a reflective aluminized fiberglass sleeve that actively rejects radiant heat; and an outer armor layer of flexible stainless steel wire overbraid that provides unmatched mechanical protection against abrasion, impact, and accidental contact with hot surfaces. At every wire branch junction—the most common point of moisture ingress in OEM harnesses—we implement a three-stage environmental sealing process: a PTFE tape underlayer for chemical resistance; a full, continuous overwrap of self-fusing silicone tape that cures into a solid, waterproof, rubber-like monolithic barrier that cannot unravel or dry out; and a final covering of adhesive-lined dual-wall heat shrink tubing that provides structural strain relief and a permanent, 100% environmental lock. The main ECM connector is fitted with precision-machined, gold-plated socket contacts featuring a closed-entry design that maintains a consistently high normal-force gas-tight connection, completely eliminating the micro-motion that causes fretting corrosion. Every single terminal in the harness is a solid-barrel, closed-entry design, crimped using automated, computer-calibrated presses that continuously monitor and record the force applied to each individual crimp. This guarantees a cold-welded, gas-tight, low-resistance, vibration-proof bond between the copper conductor and the terminal, meeting or exceeding all OEM specifications. The complete harness is assembled on a precision engineering jig that exactly duplicates the OEM routing geometry, branch lengths, connector clocking angles, and P-clip mounting positions. Installation is a true drop-in replacement: remove the failed harness, route the COGENG harness using the existing factory mounting points, connect every sealed plug, and the C9 engine returns to full, reliable, factory-specification performance.

COMPATIBLE EXCAVATORS & ENGINES

The 190-5038 harness is validated for Caterpillar excavators equipped with the C9 ACERT diesel engine. The associated part number 195-7336 is a direct cross-reference and is electrically and physically interchangeable. Always provide your complete machine PIN and engine serial number (ESN) for final compatibility confirmation.

PARTS LIST (Included in Package)

1. Complete Engine Wiring Harness Assembly (1 unit): Fully assembled, jig-built harness with all connectors, solid-barrel terminals, protective conduit sheathing, thermal shielding layers, factory-positioned rubber-lined P-clips, and heat-shrink printed circuit identification labels pre-installed and verified.

2. Integrated ECM Connector Assembly: The primary 70-pin ECM connector body, fully populated with gold-plated machined socket contacts, the silicone interfacial environmental seal, and a thick-walled, adhesive-lined heat shrink strain relief boot pre-installed on the backshell.

3. All Sensor and Actuator Connectors: Every branch is pre-terminated with the correct solid-barrel contacts, silicone wire seals, and plastic cavity plugs installed in all unused positions. Connector types include Deutsch DT, DTM, HD30, and Ampseal 16 series.

4. High-Current Power and Ground Terminals: Heavy-gauge alternator, starter motor, and battery power/ground cables terminated with tin-plated, closed-barrel copper ring terminals. Each crimp-to-insulation transition is fully sealed with dual-wall, adhesive-lined heat shrink.

5. Anti-Static Protective Bag and Heavy-Duty Export Carton: The harness is sealed in a silver anti-static moisture barrier bag and flat-packed in a rigid, double-wall corrugated carton with reinforced corners and prominent "Do Not Cut — Electrical Harness Inside" and "Fragile — Handle with Care" label

Parts list

DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)

Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.

Image 1: Complete Harness Assembly — Jig Board Layout
A wide-angle, high-resolution overhead view of the entire 190-5038 harness spread out on a calibrated precision engineering jig board. The harness exhibits a complex, multi-branch tree topology characteristic of a large-displacement excavator engine harness. The main trunk, which routes along the engine block from the ECM mounting location to the front gear train and fuel system, is wrapped in heavy-duty black high-temperature split-loom nylon conduit. Multiple lateral branches of precisely controlled lengths extend to all critical engine locations: the common rail fuel pressure sensor and high-pressure pump metering valve; the six HEUI fuel injector pass-through connectors; the turbocharger electronic wastegate or VGT actuator; the EGR valve and differential pressure sensor; the intake manifold temperature and pressure sensor; the coolant temperature sensor; the oil pressure and temperature sensors; the camshaft and crankshaft position sensors; and the atmospheric pressure sensor. Each branch terminus is tagged with a white, heat-shrink printed identification label showing the OEM circuit number. The jig board's calibrated grid and locator pins are visible, confirming dimensional accuracy to OEM specifications.

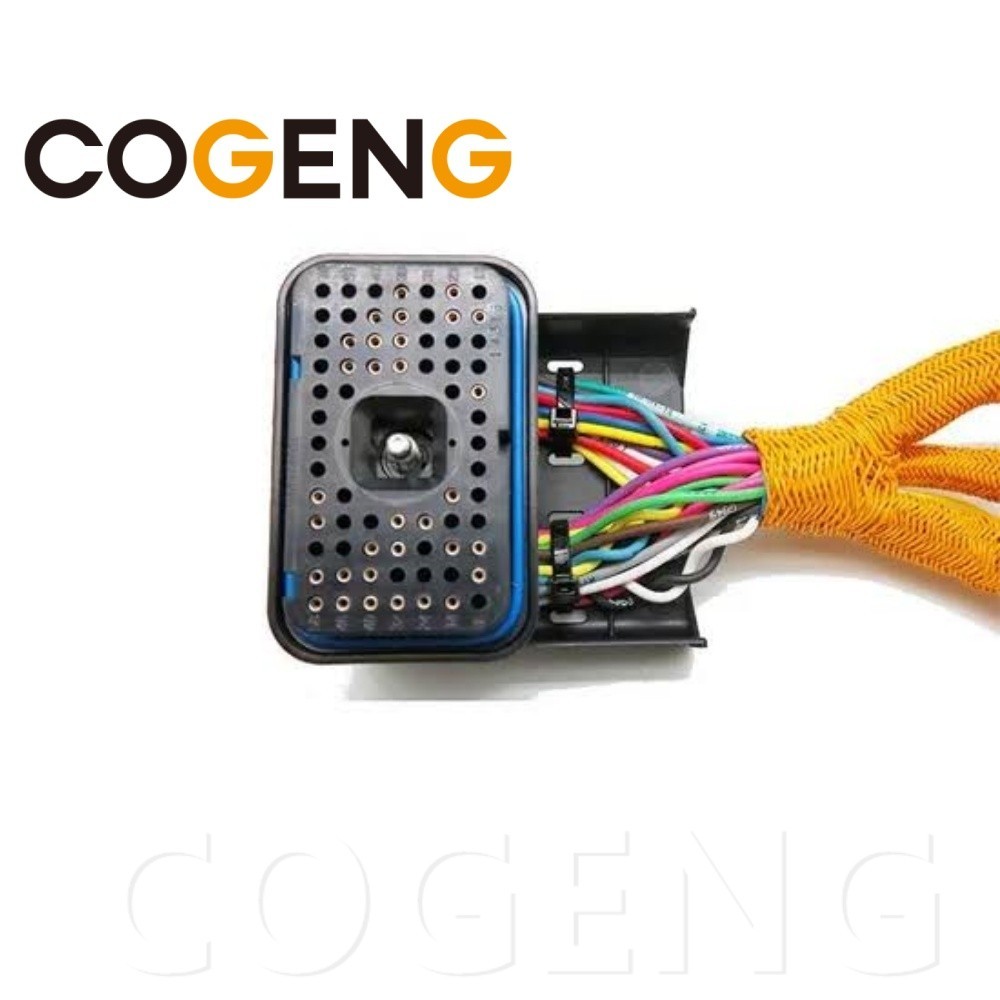

Image 2: Main ECM Connector — High-Magnification Macro Detail
A close-up, high-magnification image of the primary 70-pin ECM connector. The robust, glass-filled nylon connector body is shown with the locking lever in the open position, revealing the precisely aligned, high-density grid of gold-plated machined socket contacts. The green silicone interfacial seal that provides the primary environmental barrier when the connector is mated is clearly visible as a continuous gasket surrounding the entire pin field. The image highlights the stainless steel jack-screws that provide positive mechanical retention. The connector backshell is completely encapsulated in a thick-walled, glossy, adhesive-lined polyolefin heat shrink boot that provides complete 360-degree environmental sealing and critical mechanical strain relief, preventing wire flexure from being concentrated at the terminal crimp point. Individual wire identification numbers are laser-etched on the insulation near the connector backshell.

Image 3: Turbocharger & Exhaust Manifold Zone Branch — Multi-Layer Thermal Protection System
This detailed image focuses on a branch leg engineered for the extreme radiant heat environment adjacent to the turbocharger turbine housing and exhaust manifold. The image presents a cross-sectional cutaway view that reveals the complete multi-layer thermal protection system. The innermost layer consists of the wire bundle tightly spiral-wrapped with high-temperature PTFE film tape in a beige color. Over this, a reflective aluminized fiberglass sleeve in silver provides active radiant heat rejection. The outer layer is a flexible, tightly-woven stainless steel wire overbraid that provides unmatched mechanical armor against abrasion, impact, and accidental contact with hot surfaces. The branch terminates in a high-temperature-rated, ceramic-insert Deutsch connector designed to maintain full seal integrity at sustained elevated exhaust-zone temperatures.

Image 4: HEUI Fuel System Branch — Chemical-Resistant and Drip-Loop Protection
This image highlights a branch leg that connects to the HEUI high-pressure oil pump control solenoid and the fuel rail pressure sensor. In this zone, the harness is continuously exposed to hot engine oil mist, diesel fuel spillage, and fuel vapor. The protective sheathing consists of a tight-weave, chemical-resistant PET braided sleeving over a self-fusing silicone tape underlayer that provides a waterproof barrier. The branch is carefully routed with a deliberate, engineered downward drip loop—a U-shaped bend in the harness before the connector—designed to prevent any liquid fuel or oil from migrating along the harness surface and into the connector body, where it would degrade the silicone seals.

Image 5: Heavy-Gauge Alternator Power Terminal — Macro Detail
This high-magnification macro photograph shows the termination of a main 8 AWG alternator power supply cable. The wire has red XLPE insulation and ends in a heavy-duty, tin-plated copper ring terminal. The image focuses sharply on the crimp barrel, clearly displaying the precise, uniform hexagonal die compression pattern that creates a cold-welded, gas-tight, low-resistance bond between the terminal and the copper wire strands. The transition area from the terminal barrel to the wire insulation is completely sealed with a glossy, dual-wall adhesive-lined heat shrink tube. A small, controlled, uniform bead of melted adhesive is visible at both edges of the heat shrink, providing definitive visual proof of a permanent, moisture-proof, corrosion-proof environmental seal that prevents the capillary wicking of moisture and battery acid fumes along the copper conductor.

COMPATIBILITY NOTES: CRITICAL VERIFICATION GUIDE

1. 190-5038 vs. 195-7336 — Interchangeable Part Numbers: Part numbers 190-5038 and 195-7336 are electrically and physically interchangeable. They represent the same core engine harness with minor production revisions or different OEM supplier codes. If your machine currently has a harness labeled 195-7336, the 190-5038 is the correct direct replacement, and vice versa. Both numbers reference the same C9 ACERT engine harness application.

2. C9 ACERT Engine Specificity: This harness is designed exclusively for machines powered by the electronic Caterpillar C9 ACERT diesel engine. It is not compatible with machines equipped with the earlier 3306 mechanical engine, the 3126B engine, or the later C9.3 ACERT engine used in some Tier 4 Final applications. Verify your engine serial number (ESN) prefix to confirm a C9 ACERT installation.

3. Cross-Generational Compatibility: The 190-5038 harness is compatible with both the C-Series (330C, E330C) and D-Series (325D, 328D, 330D, E330D, M330D) excavator platforms. The C9 engine and its ECM platform are common across these generations. However, the machine-side interface connectors—the bulkhead connectors that link the engine harness to the main chassis harness—can vary between C-Series and D-Series machines. We verify the correct configuration for your specific machine PIN during the pre-shipment photo confirmation process.

4. E-Series and M-Series Designations: The "E" prefix (E330C, E330D) designates export or specific regional market configurations. The core engine electrical architecture is identical to the standard models. The "M" prefix (M330D) designates a material handler variant with a raised cab, specialized hydraulic cooling, and an auxiliary generator drive. Despite these machine-level differences, the C9 engine installation and engine harness are the same as the standard 330D.

5. Emissions Tier Verification: The C9 ACERT engine spans Tier 3 and Tier 4 Interim emissions configurations. The 190-5038 harness is typically configured for the Tier 3 / Stage IIIA emissions standard, which includes EGR but no Diesel Particulate Filter (DPF). If your machine is a late-production Tier 4 Interim / Stage IIIB configuration with an active aftertreatment system, a different harness part number may be required. Providing your complete machine PIN allows our technical team to cross-reference your machine's exact build sheet.

6. Professional Installation Required: This is a complex engine harness with over 50 individual connection points, routing through the tight engine bay of a large excavator, around the exhaust manifold, turbocharger, EGR cooler, hydraulic pump stack, and across the articulation interface to the machine frame. Installation should be performed by a qualified heavy equipment technician with access to the machine's service manual and Caterpillar Electronic Technician (ET) diagnostic software.

INSTALLATION DECOMPOSITION DIAGRAM

Note: This is a detailed step-by-step textual guide that corresponds to a numbered, visual installation diagram.

Step 1: Safety Lockout and Comprehensive Documentation
The first diagram panel depicts a 330D excavator with all engine compartment access doors and covers open. A prominent red lockout and tagout symbol is superimposed over the battery compartment with the text: "Disconnect Negative (-) Battery Cable First, Then Positive (+). Lock Out Master Disconnect Switch. Wait 60 Seconds for Complete ECM Capacitive Discharge." A large digital camera icon accompanies critical instructional text: "Photograph every aspect of the existing harness routing in detail. Capture all P-clip and standoff locations, the exact routing path around the turbocharger, exhaust manifold, and EGR cooler, the routing through the engine block valley, and the precise clocking orientation of every individual connector. These photographs are your indispensable, irreplaceable installation guide. Do not proceed without completing this step."

Step 2: Methodical Old Harness Systematic Disconnection

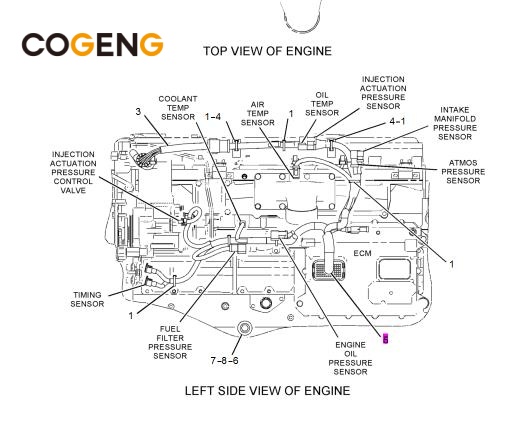

A detailed schematic diagram of the C9 engine shows a numbered, methodical disconnection sequence:

• Label Everything: Attach numbered wire tags or adhesive labels to every single connector as it is disconnected. Do not rely on memory alone.

• Sensor Disconnection: Disconnect the common rail fuel pressure sensor; intake manifold temperature and pressure sensor; coolant temperature sensor; engine oil pressure and temperature sensors; camshaft position sensor; crankshaft speed sensor; atmospheric pressure sensor; and EGR differential pressure and temperature sensors.

• Actuator Disconnection: Disconnect the six HEUI fuel injector pass-through connectors; the high-pressure oil pump (HEUI pump) control solenoid; the turbocharger electronic wastegate or variable geometry turbo actuator; the EGR valve actuator; and the engine compression brake solenoids if equipped.

• ECM Disconnection: Release the positive locking lever on the main 70-pin ECM connector and pull the connector straight out. Do not twist or rock the connector body.

• Power Disconnection: Loosen and remove the ring terminal fastening nuts from the alternator B+ terminal, the starter motor main solenoid and battery cable terminals, and the main battery positive junction stud.

• Harness Release: Cut all zip ties, release all metal P-clips and plastic standoff clips, and carefully extract the old harness from the engine bay.

Step 3: New Harness Side-by-Side Visual Comparison
The new COGENG 190-5038 harness is uncoiled and laid out on a clean workbench directly next to the removed OEM harness. Arrows highlight critical comparison checkpoints: the ECM connector body shape, keying, and pin count; the length and connector type of every major branch; and the diameter and stud hole size of all ring terminals. The diagram instructs: "Perform a meticulous, connector-by-connector, branch-by-branch comparison. If any discrepancy whatsoever is identified, stop immediately and contact COGENG technical support for guidance."

Step 4: New Harness Routing and Systematic Connection
The diagram shows the new harness being carefully fed into the engine bay, following the exact photographic reference path recorded in Step 1.

• Route First, Secure Second: Lay the new harness into its approximate final position, securing it loosely at all P-clip and standoff locations to maintain the routing geometry.

• ECM Connection First: Mate the ECM connector, ensuring the silicone interfacial seal is fully seated, and lock the lever mechanism firmly.

• Systematic Sensor and Actuator Reconnection: Methodically reconnect every sensor and actuator branch connector, checking each numbered wire tag against its corresponding component. Listen for the audible "click" confirming positive connector lock engagement.

• Power Connection: Install all power and ground ring terminals onto their respective studs. Torque every nut to the OEM-specified torque value using a calibrated torque wrench.

• Final Securement: Tighten all P-clips to specification. Install new, high-temperature-rated, UV-resistant nylon zip ties at every original factory location. Conduct a thorough visual inspection: verify the harness has adequate clearance from the turbocharger, exhaust manifold, EGR cooler, engine lifting eyes, and all moving linkages and rotating components.

Step 5: Power-Up, ECM Communication Verification, and Full Functional Test
The final diagram panel illustrates the batteries being reconnected—positive cable first, then negative. A laptop computer running Caterpillar Electronic Technician (ET) software is connected to the machine's diagnostic service port. The ET screen prominently displays: "Active Diagnostic Codes: 0. Logged Diagnostic Codes: 0." The instructional text states: "Turn the key switch to the ON position. Observe the instrument cluster performing its full self-test sequence. Verify ECM communication on Cat ET and confirm CAN bus data link integrity with no active communication faults. Start the engine and verify immediate engine oil pressure rise on the monitor. Monitor all engine parameters in real-time on ET: fuel rail pressure, boost pressure, coolant temperature, EGR system operation. Allow the engine to warm fully to operating temperature. Cycle all hydraulic functions—boom, arm, bucket, swing, and travel—through their complete full range of motion. Perform a full hydraulic stall test while monitoring engine parameters for any deviation. Confirm zero active or logged diagnostic fault codes after the complete functional test before releasing the machine to production."

🚚 SHIPPING DETAILS & RETURN POLICY

Shipping Details

Return Policy

FREQUENTLY ASKED QUESTIONS

Q1: What is the difference between part numbers 190-5038 and 195-7336?
A: There is no functional, electrical, or physical difference between these two part numbers. The 190-5038 and 195-7336 are interchangeable part numbers that reference the same C9 ACERT engine wiring harness. The different numbers typically reflect a running production change, a dual-sourcing arrangement with different OEM harness suppliers, or a minor revision in connector clocking. Both numbers are completely interchangeable. You can replace a harness labeled 195-7336 with a 190-5038, and vice versa, with full confidence.

Q2: How can I be sure my engine harness is the source of my machine's electrical problems?
A: The classic symptoms of a failing C9 engine harness include: multiple, logically unrelated diagnostic fault codes appearing on the monitor simultaneously; intermittent "No Communication" or "Data Erratic" fault messages from the ECM when viewed on Cat ET; engine power derate or complete engine shutdown that occurs randomly, especially when the machine is operating under heavy load or vibration; visible physical damage such as chafed, melted, or cracked insulation on the harness; green or white powdery corrosion visible at connector backshells; and a successful "wiggle test"—where physically manipulating a section of the harness while monitoring live sensor data on Cat ET causes sensor values to drop out, spike, or become erratic. If you observe these symptoms, the harness is the primary suspect component.

Q3: Does this harness include the injector wiring harness that runs under the valve cover?
A: No. The 190-5038 is the external engine wiring harness. The internal HEUI fuel injector harness, which passes through a sealed bulkhead connector in the cylinder head and connects to the six individual fuel injectors under the valve cover, is a separate, internal component. If you require the under-valve-cover injector harness as well, please contact our sales team for availability and pricing.

Q4: Will this harness fit my 330C as well as my 330D?
A: Yes. The 190-5038 harness is compatible with both the C-Series and D-Series excavator platforms equipped with the C9 engine. The C9 engine ECM platform and engine-side sensor suite are common across both generations. However, the machine-side bulkhead interface connectors can vary. We verify the correct configuration for your specific machine's Product Identification Number (PIN) during our pre-shipment photo confirmation process, ensuring a first-time correct fit.

Q5: Do I need any special tools or software to complete the installation?
A: The physical installation of the harness can be completed using standard heavy equipment mechanic hand tools. However, Caterpillar Electronic Technician (ET) diagnostic software and a compatible communication adapter are absolutely essential for the post-installation verification process. Cat ET allows the technician to check for active and logged diagnostic trouble codes, monitor all engine sensor values in real-time, confirm proper CAN bus communication between the ECM and other machine controllers, and perform any necessary calibration procedures. If you do not have access to Cat ET, we strongly recommend that the installation be performed by an authorized Caterpillar dealer or a qualified independent service provider who has this diagnostic capability.
