COGENG VOE11171705 2-in-1 Harness Volvo Excavator

📋 PRODUCT DATA SHEET

🔌 PRODUCT OVERVIEW

The COGENG VOE11171705 (11171705) is a direct OEM replacement wiring harness designed for a wide range of Volvo excavators and wheel loaders. This harness is a critical component that connects and transmits power and signals between the machine's electrical systems, including:

• Engine Control Unit (ECU) – Power and sensor communication

• Dashboard / Monitor – Display and warning systems

• Hydraulic Solenoids – Proportional valve control

• Sensors – Pressure, temperature, speed, position

• Lighting Systems – Headlights, work lights, beacons

• Chassis Ground Points – Frame and engine grounds

• Fuse / Relay Panels – Power distribution

Manufactured to exact OEM specifications, the COGENG VOE11171705 harness uses 99.9% pure copper conductors (tin-plated for corrosion resistance) and heat/oil-resistant PVC insulation to withstand the harsh conditions of construction sites, quarries, and material handling operations.

Parts list

✅ WHY CHOOSE COGENG VOE11171705?

All connectors are pre-terminated — no crimping or soldering required.

🔧 INSTALLATION DECOMPOSITION DIAGRAM

┌─────────────────────────────────────────────────────────────────┐
│ STEP 1: SAFETY FIRST                                           │
│ └── Park machine on level surface, turn off engine             │
│ └── Disconnect batteries (negative first) — 24V system        │
│ └── Allow ECU to fully power down (wait 2 minutes)             │
├─────────────────────────────────────────────────────────────────┤
│ STEP 2: DOCUMENT & REMOVE OLD HARNESS                          │
│ └── Take photos of old harness routing (CRITICAL)              │
│ └── Label all connectors with tape                             │
│ └── Open engine compartment covers and access panels           │
│ └── Disconnect all connectors systematically                   │
│ └── Remove ground terminal bolts                               │
│ └── Carefully pull old harness — save clips/brackets           │
├─────────────────────────────────────────────────────────────────┤
│ STEP 3: PREPARE MOUNTING SURFACES                              │
│ └── Clean all connector mounting points                        │
│ └── Clean all ground terminal locations to bare metal          │
│ └── Apply dielectric grease to ground bolts                    │
│ └── Inspect rubber grommets — replace if damaged               │
├─────────────────────────────────────────────────────────────────┤
│ STEP 4: INSTALL NEW HARNESS                                    │
│ └── Lay new harness following original routing                 │
│ └── Connect ECU connectors first (ensure they click)           │
│ └── Connect all sensors, solenoids, and actuators              │
│ └── Connect chassis ground terminals to clean metal            │
│ └── Secure harness with cable ties — avoid moving parts        │
│ └── Keep harness away from exhaust, turbo, sharp edges         │
├─────────────────────────────────────────────────────────────────┤
│ STEP 5: TEST BEFORE STARTING                                   │
│ └── Double-check all connectors are fully seated (click)       │
│ └── Verify ground connections are tight                        │
│ └── Reconnect batteries (positive first, then negative)        │
│ └── Turn key to ON (do NOT start engine)                       │
│ └── Check monitor/display lights up                            │
│ └── Check for any warning lights or error codes                │
├─────────────────────────────────────────────────────────────────┤
│ STEP 6: START ENGINE & FINAL TEST                              │
│ └── Start engine — check for normal operation                  │
│ └── Check all gauges: voltage, oil pressure, coolant temp      │
│ └── Check charging system (alternator output)                  │
│ └── Test all hydraulic functions                               │
│ └── Inspect for any issues after 5 minutes                     │
└─────────────────────────────────────────────────────────────────┘

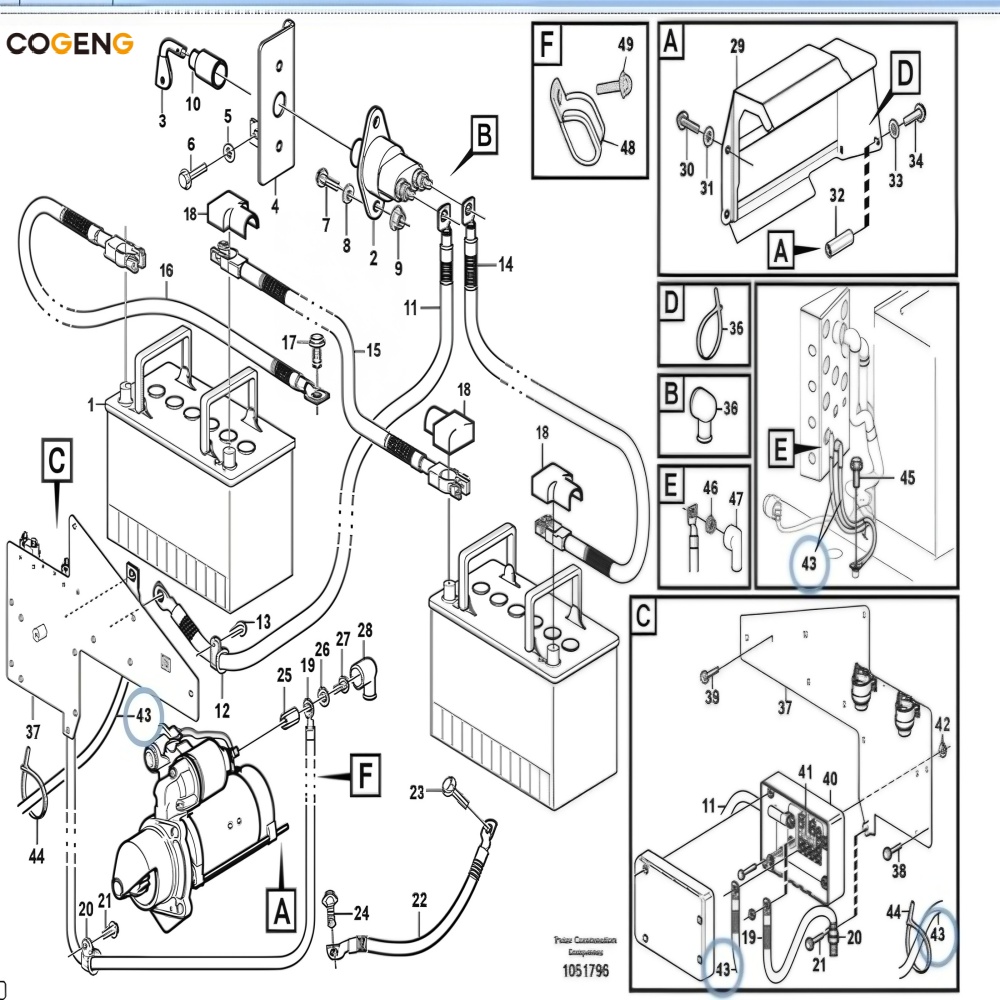

Decompose pictures


🚜 COMPATIBLE VOLVO MODELS

This wiring harness is designed for a wide range of Volvo excavators and wheel loaders.

Volvo Excavators

Volvo Wheel Loaders

⚠️ Always verify your original part number before ordering. This harness is for Volvo equipment with matching connectors.

⚠️ SAFETY HAZARDS & TROUBLESHOOTING

Safety Hazards

Troubleshooting Guide

Installation Checklist

🚚 SHIPPING DETAILS & RETURN POLICY

Shipping Details

Delivery Time:

• Estimated delivery time is based on the shipping time of the logistics company.

• The actual arrival time shown on the tracking shall prevail.

Sales Price

💰 Please contact COGENG sales customer service for specific pricing.

Prices vary based on:

• Order quantity

• Shipping destination

• Shipping method

Merchant Return Policy

❓ FREQUENTLY ASKED QUESTIONS

Q1: Is this a genuine Volvo OEM part?
A: No — this is a high-quality COGENG aftermarket replacement built to OEM specifications and ISO9001 certified.

Q2: What is the difference between VOE11171705 and 11171705?
A: They are the same part number — the "VOE" prefix indicates a Volvo original equipment part number. Both refer to the same harness.

Q3: Will this harness fit my Volvo EC210B?
A: Yes — the EC210B is one of the compatible models.

Q4: Will this harness fit my Volvo L90F wheel loader?
A: Yes — the L90F is one of the compatible models.

Q5: Is this harness plug-and-play?
A: ✅ Yes — all connectors are pre-terminated. No cutting or splicing required.

Q6: Does this harness come with installation instructions?
A: A basic quick guide is included. For detailed instructions, we recommend using the Volvo service manual for your specific machine.

Q7: What is the warranty?
A: COGENG provides a 6-month warranty against manufacturing defects.

Q8: Is this harness in stock for immediate shipping?
A: ✅ Yes — 500 PCS in stock, ready to ship immediately.

Q9: How long does shipping take?
A: Express (DHL/FedEx/UPS/TNT) — 3–7 business days worldwide. Air freight — 7–12 days. Sea freight — 20–40 days.

Q10: How do I know if this harness fits my machine?
A: Send the following to your supplier:

• Your exact Volvo model and serial number

• Photos of the old harness (especially connectors)

• The old part number

Q11: Do I need special tools to install this harness?
A: No — standard hand tools are sufficient.

Q12: Can this harness be returned?
A: Please see the Shipping Details & Return Policy below.
