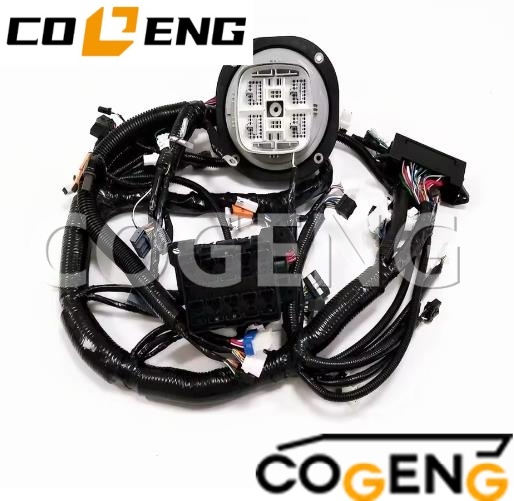

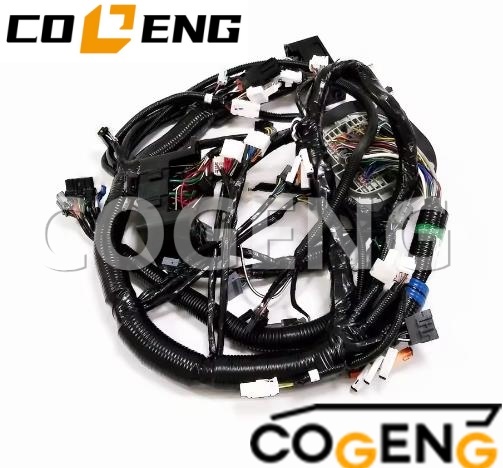

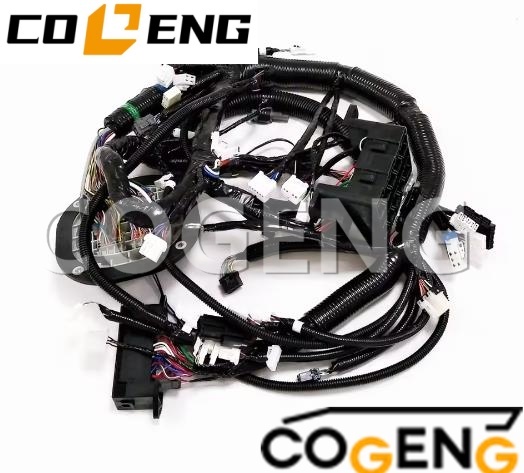

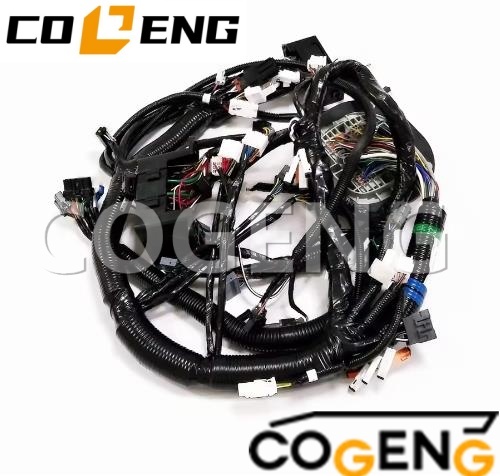

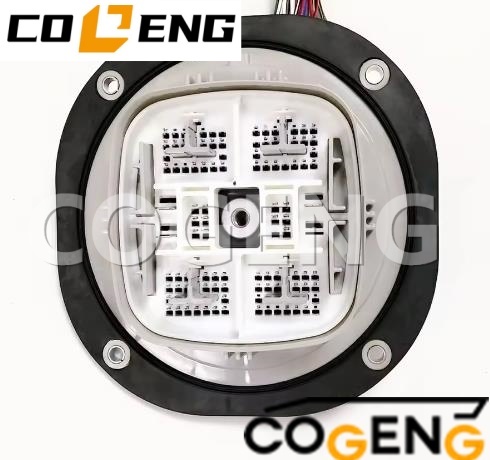

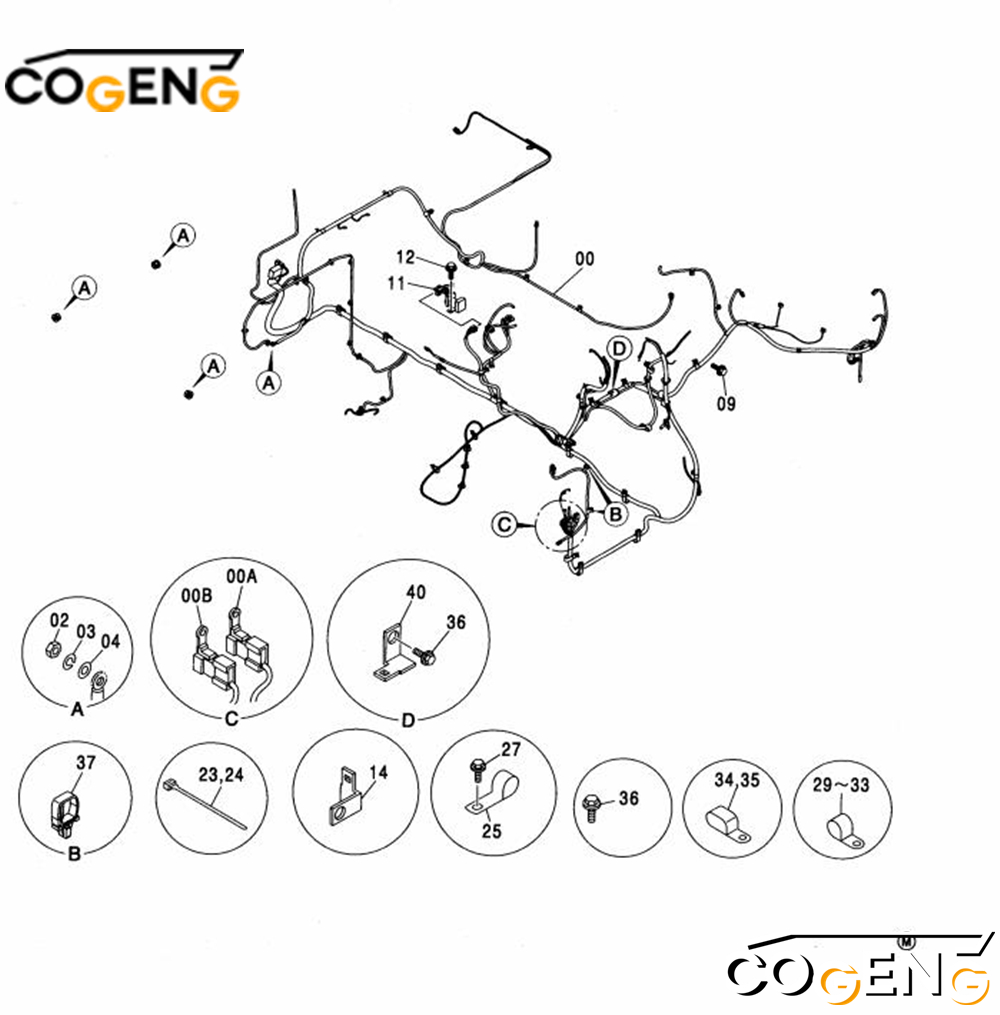

| Replaces OEM Part Numbers | 0007838 / YA00029688H1 |
| Brand | COGENG (Direct OEM Replacement) |
| Harness Type | Main Engine / Chassis Wiring Harness Set |
| Compatible Models | Hitachi ZX200-5G, ZX240-5G, ZX330-5G Excavators |
| System Coverage | Engine ECU / Hydraulic Pump Control / Main Electrical System |
| Key Feature | OEM-spec connectors and CAN bus wiring for ZX-5G series compatibility |
| Parameter | Specification |
|---|---|
| COGENG Part Number | 0007838 / YA00029688H1 |
| OEM Reference | Hitachi 0007838, YA00029688H1 |
| Harness Type | Main chassis wiring harness (engine bay / cab / chassis) |
| Wire Gauge Range | 0.5mm² to 5.0mm² (20 AWG to 10 AWG) |
| Number of Circuits | 85-120 circuits (depending on machine configuration) |
| Number of Connectors | 25-35 connectors |
| Connector Types | AMP, Deutsch, Sumitomo, Yazaki (OEM specific) |
| Wire Insulation | XLPE (Cross-linked Polyethylene) / PVC |
| Temperature Range | -40°C to +125°C (-40°F to +257°F) |
| Rated Voltage | 24V DC (12V-32V operating range) |
| Conductor Material | Oxygen-free copper (tinned for corrosion resistance) |
| Terminal Plating | Tin (standard) / Gold (sensor/control circuits) |
| Protective Conduit | Corrugated nylon / PVC loom (heat-shrink sealed ends) |
| Abrasion Resistance | Exceeds 500 cycles (DIN EN 60754) |
| Fluid Resistance | Resistant to engine oil, diesel fuel, hydraulic fluid, coolant |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Dielectric Strength | 1,500V AC for 1 minute (no breakdown) |
| Continuity Testing | 100% of circuits verified |
| Service Life | 5,000-8,000 hours in typical excavator service |
| Component Category | Specification | Material / Standard |
|---|---|---|
| Main Power Cables | Battery to starter, alternator, distribution box | 25-50mm² copper, heavy-duty insulation |
| Engine Control Circuits | ECU, sensors (crank, cam, temp, pressure), injectors | 0.5-1.25mm², shielded where required |
| Pump Control Circuits | Hydraulic pump regulators, pressure sensors | 0.5-1.0mm², oil-resistant insulation |
| Cab & Control Panel | Monitor, switches, joystick controllers, HVAC | 0.5-1.25mm², color-coded for identification |
| Safety & Lighting | Headlights, work lights, beacons, travel alarms | 1.25-2.0mm², heavy-duty weatherproofing |
| Sensor Harness | Temperature, pressure, level, position sensors | 0.3-0.5mm², shielded against EMI |
| Solenoid & Relay Circuits | Control valves, starter relay, glow plug control | 1.0-2.5mm², high-temperature terminals |
| Grounding Harness | Chassis ground, engine ground, cab ground | 16-50mm², corrosion-resistant lugs |
| Connector Seals | Weather-pack seals | Silicone rubber, IP67/IP69K rating |
| Protective Conduit | Wire loom, split tubing, heat shrink | Nylon 6/6, PVC, flame-retardant |
| Hitachi Model | Series | Application Notes | Compatibility Status |
|---|---|---|---|
| ZX200-5G | -5G series | Main chassis harness - full fitment | Direct replacement |
| ZX240-5G | -5G series | Main chassis harness - full fitment | Direct replacement |
| ZX330-5G | -5G series | Main chassis harness - full fitment | Direct replacement |
| ZX200-3 | -3 series | Different connector configuration | NOT COMPATIBLE |
| ZX240-3 | -3 series | Different connector configuration | NOT COMPATIBLE |
| ZX330-3 | -3 series | Different connector configuration | NOT COMPATIBLE |
| ZX200-5 | -5 series | May require verification | Check serial number |
| ZX240-5 | -5 series | May require verification | Check serial number |
| ZX330-5 | -5 series | May require verification | Check serial number |
| ZX200LC-5G | Long undercarriage | Same harness | Compatible |
| ZX240LC-5G | Long undercarriage | Same harness | Compatible |
| ZX330LC-5G | Long undercarriage | Same harness | Compatible |
| Model | Serial Number Range | Compatibility |
|---|---|---|
| ZX200-5G | 20001 and up | Full compatibility |
| ZX240-5G | 24001 and up | Full compatibility |
| ZX330-5G | 33001 and up | Full compatibility |
Safety First:
Disconnect the battery (negative terminal first)
Allow machine to cool (if recently operated)
Work in a dry, well-lit area
Use proper personal protective equipment (gloves, safety glasses)
Documentation:
Photograph original harness routing before removal
Label all connectors with masking tape (if not already marked)
Note clip and tie locations for reinstallation
Tools Required:
Basic hand tools (screwdrivers, wrenches, pliers)
Trim removal tools for interior panels
Cable ties (for securing new harness)
Dielectric grease for connectors
Multimeter (for post-installation testing)
Disconnect the negative battery terminal
Disconnect the positive battery terminal
Remove any panels, covers, or floor plates obstructing harness access
Document original harness routing with photos
Disconnect all connectors from components (ECU, sensors, solenoids, lights, etc.)
Remove retaining clips, cable ties, and brackets securing the harness
Carefully extract the old harness, noting any difficult access points
Inspect old harness for failure points (corrosion, chafing, burnt wires) for reference
Unpack and Inspect:
Remove new harness from packaging
Inspect for any shipping damage
Verify all connectors are present (compare to old harness)
Routing:
Follow the original routing path documented during removal
Use original clip and bracket locations
Ensure harness does not contact moving parts (linkage, fan, belts)
Maintain clearance from exhaust components (heat shields required)
Connector Mating:
Apply dielectric grease to connector seals
Push connectors firmly until they click/lock
Verify proper seating with a gentle tug test
Securing:
Install all retaining clips and brackets
Use new cable ties where original ties were cut
Ensure harness has slight slack (not pulled tight) at flex points
Visual Inspection:
Verify all connectors are seated
Check for pinched or chafed wires
Confirm proper routing and clearance
Electrical Testing:
Reconnect battery (positive first, then negative)
Turn key to ON position (do not start)
Verify instrument panel lights and indicators function
Check all lights (head, work, beacon, travel)
Verify horn, wipers, and other accessories
Operational Test:
Start engine (verify no warning lights remain illuminated)
Check all hydraulic functions (pump control response)
Test safety systems (travel alarm, seat switch, etc.)
Verify machine communication systems (monitor, GPS, etc.)
⚠️ IMPORTANT SAFETY NOTES:
ALWAYS disconnect batteries before working on electrical systems
NEVER route harness near exhaust components without heat shielding
ALWAYS use dielectric grease on connectors to prevent corrosion
VERIFY wire colors and pin positions match before finalizing installation
⚠️ INSTALLATION REQUIREMENTS:
MANDATORY: Use the original routing path
REQUIRED: Replace all cable ties removed during disassembly
IMPORTANT: Do not exceed 100mm of unsupported harness length
CHECK: Connector seals must be properly seated for weatherproofing
⚠️ TROUBLESHOOTING NOTES:
If warning lights remain on, verify connector seating
If engine fails to start, check battery connections and starter circuit
If hydraulic functions are limited, check pump control connector and solenoid circuits
Contact COGENG
📞 Phone: +86-185-2913-1515
📧 Email: hugo@cogeng.net
💬 WhatsApp +86-185-2913-1515
💬 WeChat: +86-185-7865-1106
🌐 Website: cogeng.net
#ExcavatorWiringHarness #ExcavatorThrottleMotor #ExcavatorSolenoidValve
