| Parameter | Specification |
|---|---|
| COGENG Part Numbers | 0005757, 0005757H, 0005757H-02 |
| OEM Reference | Hitachi 0005757, 0005757H, 0005757H-02 |
| Harness Type | Internal cab wiring harness (full interior coverage) |
| Wire Gauge Range | 0.3mm² to 2.5mm² (26 AWG to 14 AWG) |
| Number of Circuits | 40-65 circuits (depending on configuration) |
| Number of Connectors | 15-25 connectors |
| Connector Types | AMP, Deutsch, Sumitomo, Yazaki, JST (OEM specific) |
| Wire Insulation | XLPE (Cross-linked Polyethylene) / PVC |
| Temperature Range | -40°C to +105°C (-40°F to +221°F) |
| Rated Voltage | 12V / 24V DC (dual voltage compatible) |
| Conductor Material | Oxygen-free copper (tinned for corrosion resistance) |
| Terminal Plating | Tin (standard) / Gold (sensor/control circuits) |
| Shielded Circuits | Sensor signals, CAN bus (where applicable) |
| Protective Conduit | Corrugated nylon / PVC loom (flexible for compact routing) |
| Connector Sealing | Weather-pack seals for bulkhead pass-throughs |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Dielectric Strength | 1,500V AC for 1 minute (no breakdown) |
| Continuity Testing | 100% of circuits verified |
| Vibration Resistance | 10-500 Hz, 2g, 10 hours (no discontinuity) |
| Service Life | 5,000-7,000 hours in typical compact excavator service |
| Component Category | Specification | Material / Standard |
|---|---|---|
| Monitor Display Harness | LCD monitor (machine information, gauges, warnings) | 10-20 pin connector, shielded where required |
| Switch Panel Harness | Key switch, rocker switches, push buttons, dimmer control | 0.5-1.25mm², color-coded by function |
| Joystick Controller Harness | Left/right pilot control joysticks (thumb rollers, switches, proportional controls) | 0.5-1.0mm², high-flex wire for joystick movement |
| HVAC Control Harness | Heater, A/C (if equipped), blower motor, temperature control | 0.5-2.5mm², sealed connectors |
| Safety System Harness | Seat belt switch, operator presence sensor, travel alarm relay | 0.5-1.25mm², redundant safety circuits |
| Lighting Harness (Interior) | Dome light, panel indicator lights, switch illumination | 0.5-1.0mm², constant + switched power |
| Accessory Harness | Radio (if equipped), 12V power outlet, USB port | 0.5-1.5mm², fused accessory circuits |
| Wiper/Washer Harness | Front window wiper, washer pump (cab models) | 0.85-1.5mm², weather-sealed connectors |
| CAN Bus Network | Machine control network (if equipped) | Twisted pair, 120Ω impedance, shielded |
| Grounding Harness | Cab chassis ground, instrument panel ground | 2.5-6.0mm², corrosion-resistant lugs |
| Bulkhead Interface | Connection to main chassis harness | 10-20 pin sealed bulkhead connector |
| Connector Seals | Weather-pack seals for exterior connections | Silicone rubber, IP67 rating |
| Hitachi Model | Series | COGENG Part | Application Notes | Compatibility Status |
|---|---|---|---|---|
| ZAX60 | -1 series | 0005757 | Internal cab harness (standard) | Direct replacement |
| ZAX60 | -1 series (late) | 0005757H | Internal cab harness (enhanced) | Direct replacement |
| ZX60 | -1 series | 0005757 | Internal cab harness (standard) | Direct replacement |
| ZX60 | -1 series (late) | 0005757H | Internal cab harness (enhanced) | Direct replacement |
| ZAX70 | -1 series | 0005757 | Internal cab harness (standard) | Direct replacement |
| ZAX70 | -1 series (late) | 0005757H | Internal cab harness (enhanced) | Direct replacement |
| ZX70 | -1 series | 0005757 | Internal cab harness (standard) | Direct replacement |
| ZX70 | -1 series (late) | 0005757H | Internal cab harness (enhanced) | Direct replacement |
| ZX70 | -1 series (premium) | 0005757H-02 | Internal cab harness (premium) | Direct replacement |
| Model | Compatibility Status | Notes |
|---|---|---|
| ZAX60 (Japan Domestic) | Direct replacement | Minor differences possible |
| ZX60 (Export) | Direct replacement | Export specification verified |
| ZAX70 (Japan Domestic) | Direct replacement | Minor differences possible |
| ZX70 (Export) | Direct replacement | Export specification verified |
| ZAX60-2 | NOT COMPATIBLE | Different cab design |
| ZX60-2 | NOT COMPATIBLE | Different cab design |
| ZAX70-2 | NOT COMPATIBLE | Different cab design |
| ZX70-2 | NOT COMPATIBLE | Different cab design |
| ZX55 | Verify with support | Smaller cab, different configuration |
| ZAX50 | NOT COMPATIBLE | Different platform |
| Model | Serial Number Range | COGENG Part | Compatibility |
|---|---|---|---|
| ZAX60 / ZX60 | 600001 - 600500 | 0005757 | Full compatibility |
| ZAX60 / ZX60 | 600501 - 601000 | 0005757H | Full compatibility |
| ZAX60 / ZX60 | 601001 and up | 0005757H-02 | Full compatibility |
| ZAX70 / ZX70 | 700001 - 700500 | 0005757 | Full compatibility |
| ZAX70 / ZX70 | 700501 - 701000 | 0005757H | Full compatibility |
| ZAX70 / ZX70 | 701001 and up | 0005757H-02 | Full compatibility |

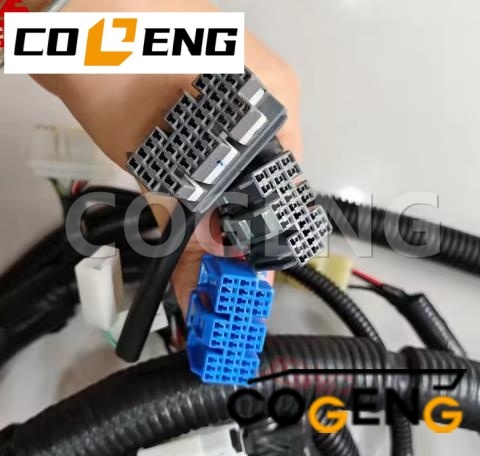

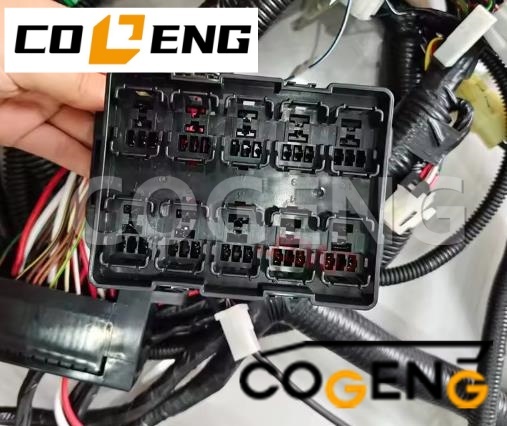

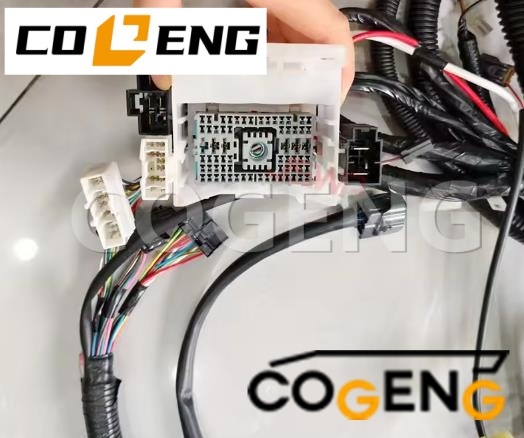

| Connection Point | Quantity | Connector Type | Circuit Type |
|---|---|---|---|
| Monitor display | 1 | 10-20 pin | Power, ground, CAN bus, video |
| Key switch | 1 | 4-6 pin | Battery, ignition, start, accessory |
| Switch panel | 1 | 8-12 pin | Lighting, wiper, horn, work lights |
| Left joystick | 1 | 6-10 pin | Proportional controls, thumb roller |
| Right joystick | 1 | 6-10 pin | Proportional controls, thumb roller |
| HVAC control | 1 | 4-8 pin | Blower, temperature, mode |
| Seat belt switch | 1 | 2 pin | Operator presence safety |
| Interior light | 1 | 2 pin | Dome light |
| Wiper motor | 1 | 2-3 pin | Front window wiper |
| 12V power outlet | 1 | 2 pin | Accessory power |
| Bulkhead connector | 1 | 10-20 pin | Interface to chassis harness |
| CAN bus terminator | 1 (if equipped) | 2 pin | Network termination resistor |

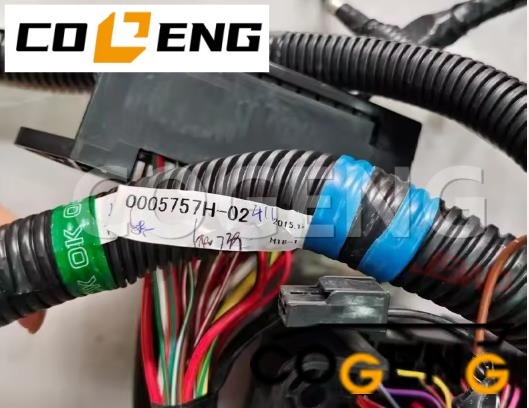

Q: What is the difference between COGENG 0005757, 0005757H, and 0005757H-02?A: These three numbers represent different production versions or minor revision updates of the same internal cab wiring harness. 0005757 is the base model number. 0005757H typically indicates a harness with enhanced or high-flex insulation on specific circuits. 0005757H-02 is the latest revision (Revision 02), which may include minor connector pinout corrections or improved routing to prevent chafing near the cab floor plate. All three are physically interchangeable and direct fit for the listed ZAX/ZX60 and ZAX/ZX70 models.
Q: What are the symptoms of a faulty internal cab wiring harness on a Hitachi ZX70?

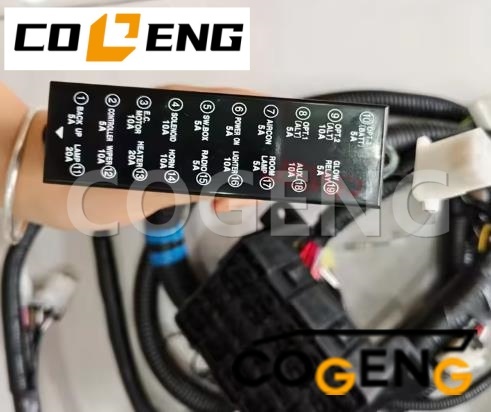

A: The internal cab harness is responsible for all operator controls. Common symptoms of failure include: Intermittent function of the windshield wiper or washer pump; Loss of backlighting on the monitor panel or switch LEDs; Heater/AC blower fan only working on certain speeds or not at all; Unresponsive throttle dial or auto-idle switch; and Blown fuses (especially Fuse #7 or #12 in the cab fuse box) that recur shortly after replacement. In many cases, the issue is a broken wire at the cab floor entry grommet or a corroded connector behind the seat base.
Q: Does this harness include the wiring for the optional radio and 12V power outlet?
A: Yes. The COGENG 0005757H-02 harness includes the pre-wired pigtails for the standard DIN radio connector (speaker and power leads) and the 12V accessory socket (cigarette lighter style plug). Even if your machine did not originally come equipped with a radio, the wiring is present in this harness and is terminated with blank protective caps on the plug ends.
Q: Will this harness fit a Hitachi ZX70 with the "Premium Cab" (A/C with Auto Climate Control)?
A: Yes. This harness is designed for excavators with the standard manual A/C controls and the premium auto climate control system. The harness contains the extra wiring circuits for the sunload sensor (mounted on the dash top) and the cabin temperature sensor (located near the recirculation intake) that are required for the automatic climate control unit.
Q: What is the most common installation tip for replacing the 0005757 harness?
A: Label every connector before disconnecting the old harness. The internal cab space on a ZX60/70 is very tight, and several connectors behind the right-side console are the same shape and color (specifically the wiper timer relay and the heater resistor block). Mismatching these can cause a dead short or damage to the wiper motor controller. Additionally, ensure the new harness grommet at the cab floor entry point is sealed tightly with silicone spray lubricant to prevent water ingress during pressure washing.
