| Parameter | Specification |
|---|---|
| Product Name | Hitachi Excavator Wiring Harness / Main Chassis & Engine Interconnect Harness |
| Primary Part Numbers | 0004770, 0004772 |
| Brand | COGENG (Premium Aftermarket Replacement) |
| Condition | Brand New, 100% Continuity & Dielectric Withstand Tested |
| Compatible Equipment | Hitachi ZX110, ZX120, ZX130 Hydraulic Excavators |
| Harness Type | Main Chassis & Engine Interconnect Harness — Controller Interface, Sensor Network, Actuator Control, CAN Bus Communication |
| Wire Insulation | Cross-Linked Polyethylene (XLPE) with PVC Inner Layer; SAE J1128 Type SXL/GXL; Rated -40°C to +105°C |
| Connector Systems | Sumitomo Sealed Series, Deutsch DT, Deutsch DTM, Integrated Controller Connectors with Gold-Plated Terminals |
| Protective Sheathing | High-Temperature Corrugated Nylon Split-Loom Conduit; Self-Fusing Silicone Tape at All Branch Junctions; Adhesive-Lined Dual-Wall Heat Shrink Boots at All Connector Backshells |
| Voltage Rating | 24V DC System |
| Environmental Sealing | IP67 Rated Mated Connectors with Silicone Interfacial Seals, Peripheral Gaskets, and Cavity Plugs in All Unused Positions |
| Chemical & Abrasion Resistance | Resistant to Diesel Fuel, Engine Oil, Hydraulic Fluid, Engine Coolant, and Commercial Degreasing Solvents; Exceeds SAE J1128 Abrasion Standards |
| Quality Assurance | 100% Automated Pin-to-Pin Continuity Mapping Against OEM Schematic; Dielectric Withstand Test; Computer-Monitored Crimp Force Recording; 10x Magnification Visual Inspection |
| Certification | ISO 9001 Certified Manufacturing Facility |
| Place of Origin | Guangdong, China |
| Supply Capacity | 500 Pieces per Month |
| Shipping Weight | 3.0 kg (Gross, approximate) |
| Package Dimensions | 58 x 46 x 16 cm (Coiled and Flat-Packed in Protective Carton) |
| Packing | Inner: PP Bag with Anti-Static Protection; Outer: Heavy-Duty Export-Grade Corrugated Carton Box with Custom-Cut Protective Foam |
| Payment Terms | Western Union, L/C (Letter of Credit), T/T (Telegraphic Transfer), MoneyGram, D/A (Documents against Acceptance), D/P (Documents against Payment) |
| Shipping Mode | By Air, By Sea, By Express (FedEx, UPS, DHL, TNT, etc.) — Optimized Based on Cargo Situation and Destination |
| Minimum Order Quantity | Acceptable Trial Order — Single Unit Orders Welcome |
| Return Policy | Non-Returnable / Non-Exchangeable (Comprehensive DOA Guarantee Included) |
The COGENG Wiring Harness, identified by primary part numbers 0004770 and 0004772, is a precision-manufactured, comprehensive electrical distribution harness engineered as a direct, form-fit-function replacement for the Hitachi ZX110, ZX120, and ZX130 hydraulic excavator platforms. These 11- to 13-ton class excavators represent the compact-to-mid-size core of Hitachi's globally deployed ZX-series product line, machines widely used in construction, road building, utility installation, landscaping, and general earthmoving applications. The 0004770 / 0004772 harness serves as the central nervous system of the machine, providing the complete, protected electrical pathways that connect the machine's controllers, the hydraulic system's electro-proportional solenoid valves, the operator's cab controls and monitoring display, and the full suite of engine and hydraulic sensors distributed across the superstructure and undercarriage.
The Hitachi ZX110, ZX120, and ZX130 belong to the ZX-series generation, which introduced significant advancements in electronic control, fuel efficiency, and operator comfort. These machines utilize a sophisticated electronic control architecture that coordinates engine power output, hydraulic pump displacement, and valve spool positioning for optimal productivity and fuel economy. The 0004770 / 0004772 harness is the physical infrastructure that makes this intelligent control possible. It carries precision analog signals from pressure sensors on the main hydraulic pumps, temperature sensors in the engine and hydraulic oil circuits, and position sensors throughout the machine. It transmits digital data between the engine controller, the pump controller, and the operator's monitor panel via the CAN bus data link. It delivers the precisely modulated PWM drive signals to the electro-proportional solenoid valves that control pump displacement, swing priority, travel straight-line compensation, and auxiliary hydraulic flow.
The operating environment for a main chassis harness in a ZX110, ZX120, or ZX130 excavator is exceptionally severe. The harness must route through the tight, complex geometry of the excavator's swing frame, where it endures constant flexing and twisting as the upper structure rotates continuously relative to the undercarriage. It must pass through the engine bay, where radiant heat from the exhaust manifold and turbocharger bakes the wire insulation. It must survive exposure to high-pressure water jetting during cleaning, diesel fuel and hydraulic oil mist from inevitable seepage, and the chemical assault of degreasing solvents. It is subjected to continuous, high-amplitude vibration from the engine and hydraulic pumps, and the shock loads transmitted through the machine frame during digging, lifting, and hammer operation.
The failure modes of the OEM harness are predictable: heat-induced insulation embrittlement and cracking, moisture ingress causing copper corrosion and increased circuit resistance, fretting corrosion at connector pins causing intermittent signal loss, and chafing damage at frame contact points causing direct shorts to ground. COGENG's 0004770 / 0004772 aftermarket harness directly and definitively solves these failure mechanisms. We manufacture this harness using premium XLPE-insulated wire with a high temperature rating, providing dramatically superior resistance to thermal aging, cut-through, and chemical degradation. At every branch junction, we implement a three-stage environmental sealing protocol: PTFE tape underlayer, self-fusing silicone tape that cures into a solid waterproof barrier, and adhesive-lined dual-wall heat shrink for structural strain relief. Every connector terminal is solid-barrel and crimped using computer-calibrated presses. The harness is built on a precision jig that duplicates the exact OEM routing, branch lengths, and connector positions. Installation is a true drop-in replacement: no cutting, splicing, or adapting is necessary.
The 0004770 / 0004772 harness is specifically designed for the Hitachi ZX110, ZX120, and ZX130 excavator platforms. Always provide your complete machine serial number for final compatibility verification.
| Brand | Model | Machine Class |
|---|---|---|
| Hitachi | ZX110 | 11-Ton Hydraulic Excavator |
| Hitachi | ZX120 | 12-Ton Hydraulic Excavator |
| Hitachi | ZX130 | 13-Ton Hydraulic Excavator |
Note: These models share a common ZX-series electrical architecture. The 0004770 and 0004772 part numbers represent associated references for this harness application. Our technical team will verify the correct configuration for your specific machine serial number.
Complete Wiring Harness Assembly (1 unit): Fully assembled, jig-built harness with all connectors, solid-barrel terminals, protective conduit sheathing, factory-positioned P-clips, and identification labels pre-installed.
Integrated Controller Connector Assembly: The primary controller connector body with all gold-plated terminals, silicone interfacial seal, and adhesive-lined heat shrink strain relief boot pre-installed.
All Sensor, Actuator, and System Connectors: Every branch is pre-terminated with solid-barrel contacts, silicone wire seals, and plastic cavity plugs in unused positions. Connector types include Sumitomo sealed series, Deutsch DT, and DTM.
High-Current Power and Ground Terminals: Heavy-gauge alternator, starter motor, and battery cables terminated with tin-plated, closed-barrel copper ring terminals, each sealed with dual-wall adhesive-lined heat shrink.
PP Bag Inner Packing and Export Carton: The harness is sealed in a PP bag with anti-static protection and flat-packed in a rigid, double-wall corrugated carton with custom-cut protective foam and "Do Not Cut — Electrical Harness Inside" labels.
Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.
Image 1: Complete Harness Assembly — Jig Board Layout
A wide-angle overhead view of the entire 0004770 / 0004772 harness laid out on a calibrated precision engineering jig board. The harness displays the characteristic multi-branch topology of a compact-to-mid-size excavator main chassis harness. The main trunk is wrapped in heavy-duty black high-temperature split-loom nylon conduit. Branches extend to the engine controller, hydraulic pump solenoids, swing motor sensors, travel motor sensors, operator cab interface, monitor display, and the full suite of engine and hydraulic sensors. Each branch is tagged with a white heat-shrink printed identification label.

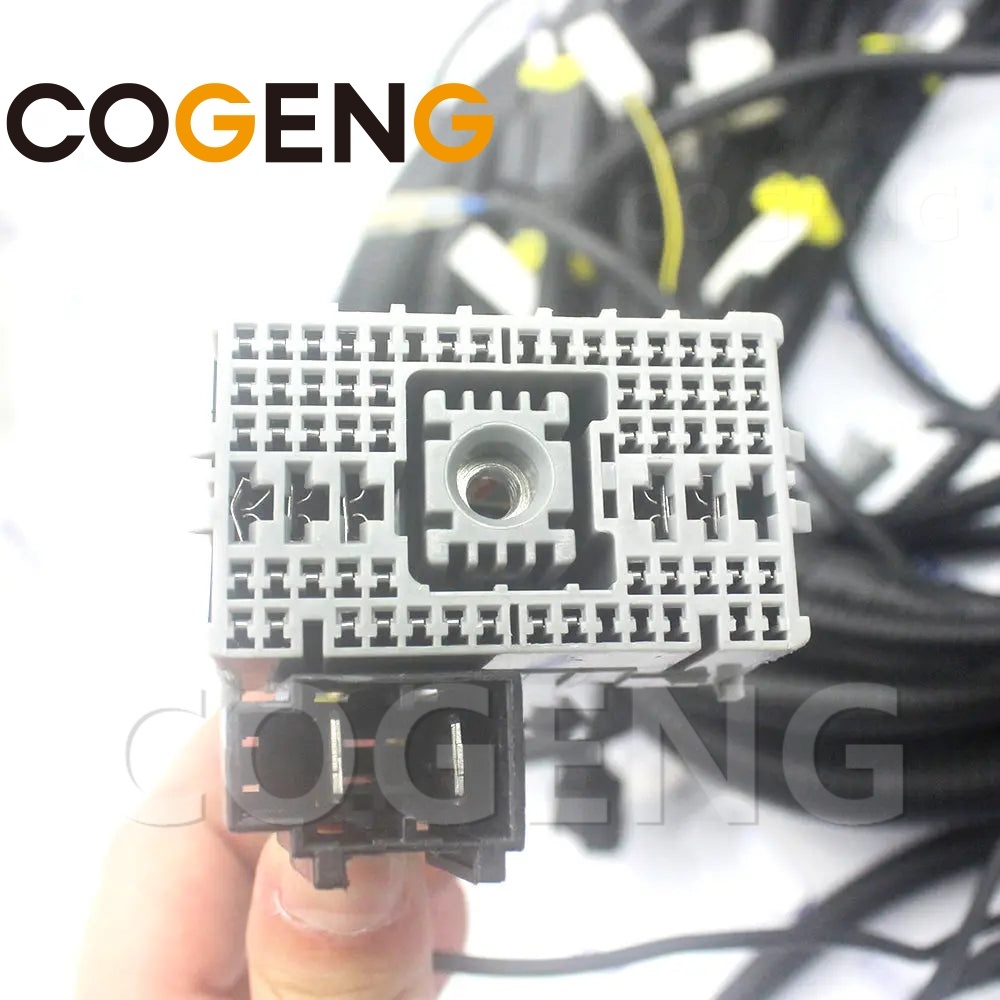

Image 2: Main Controller Connector — High-Magnification Macro Detail
A close-up image of the primary controller connector with the locking mechanism open, revealing the precisely aligned grid of gold-plated contacts. The silicone interfacial seal surrounds the pin field. The backshell is fully encapsulated in a thick-walled, adhesive-lined heat shrink boot providing complete 360-degree environmental sealing.
Image 3: Hydraulic Pump Solenoid Branch — Chemical & Abrasion Protection
This image focuses on a branch leg that connects to the electro-proportional pump displacement solenoids. The branch features chemical-resistant PET braided sleeving over self-fusing silicone tape, with a deliberate drip loop to prevent hydraulic oil migration into the connector body.
Image 4: Swing Frame Flex Zone — Articulation Protection
A detailed view of the harness section designed to route through the center swivel joint. The wires are bundled in a helical coil configuration, wrapped in flexible, abrasion-resistant nylon conduit. Heavy-duty molded rubber strain relief boots protect the transition points.
Image 5: Heavy-Gauge Power Terminal — Macro Detail
A macro photograph of a main power cable termination showing the precise hexagonal crimp barrel compression pattern and the glossy, dual-wall adhesive-lined heat shrink seal with a visible adhesive bead, confirming a permanent moisture-proof environmental seal.
ZX110, ZX120, ZX130 Specificity: The 0004770 / 0004772 harness is designed for the Hitachi ZX110, ZX120, and ZX130 excavator platforms. It is not compatible with the earlier EX-series models or the larger ZX200 / ZX240 series, which utilize different electrical architectures and connector generations.
Part Number Relationship: The 0004770 and 0004772 part numbers are associated references for this harness application. They may represent a production revision, a supersession, or a specific machine configuration variant. Both are provided for cross-reference identification. Our technical team will verify the correct configuration for your specific machine serial number.
Serial Number Verification is Mandatory: Hitachi implemented running production changes within the ZX110 / ZX120 / ZX130 production run. Providing your complete machine serial number allows our technical team to verify the exact harness variant your machine requires.
Harness Section Identification: The 0004770 / 0004772 is a main chassis or engine interconnect harness. It does not include the cab harness or the complete machine harness. Please verify the specific harness section you are replacing before ordering.
Professional Installation Required: Installing a main chassis wiring harness on an excavator is a labor-intensive procedure requiring methodical routing through the cab, swing frame, engine bay, and hydraulic compartment. Installation should be performed by a qualified heavy equipment technician with access to the Hitachi service manual and diagnostic software.
Note: This is a summarized procedural guide. Always follow the Hitachi service manual for your specific model.
Step 1: Safety Lockout and Documentation
Red lockout symbol over battery: "Disconnect negative (-) and positive (+) battery cables. Lock out master disconnect switch." Camera icon: "Photograph every aspect of existing harness routing. Document all P-clip locations, routing through the swing frame, around the exhaust and turbo, hydraulic pump connections, and all connector orientations."
Step 2: Old Harness Systematic Removal
Label every connector with numbered wire tags as it is disconnected.
Cab Interior: Disconnect monitor display, key switch, throttle dial, joystick pilot controllers, and cab harness interface connectors.
Engine Bay: Disconnect controller connector(s), all engine sensor connectors, injector pass-through, turbo actuator.
Hydraulic Compartment: Disconnect pump displacement solenoids, pressure sensor connectors, swing and travel motor sensor connectors.
Power Disconnection: Remove ring terminals from alternator, starter motor, battery junction stud, and chassis ground points.
Cut all zip ties, release all P-clips, carefully extract the old harness.
Step 3: New Harness Visual Comparison
Uncoil new COGENG harness beside old harness. Compare controller connector shape and pin count, branch lengths and connector types, ring terminal diameters. Verify every match before proceeding.
Step 4: New Harness Routing and Connection
Route harness following photographic reference. Secure loosely at all P-clip and standoff locations.
Connect controller connector(s) first.
Systematically reconnect all cab interface, sensor, actuator, and hydraulic system connectors.
Install and torque all power and ground ring terminals to OEM specifications.
Tighten all P-clips. Install new high-temperature zip ties. Verify clearance from exhaust, turbo, swing frame, and all moving parts.
Step 5: Power-Up and Full Functional Test
Reconnect batteries. Connect Hitachi diagnostic software. Verify no active diagnostic trouble codes. Start engine. Verify immediate oil pressure. Monitor all parameters. Warm to operating temperature. Cycle all hydraulic functions, swing, and travel. Confirm zero fault codes after complete test.
| Detail | Description |
|---|---|
| Shipping Methods | By Air: Cost-effective for medium-weight orders. By Sea: Most economical for bulk orders. By Express (FedEx, UPS, DHL, TNT): Fastest door-to-door service for machine-down emergencies. Method optimized based on cargo situation and destination. |
| Estimated Delivery Time | Express: 3-5 business days. Air Freight: 8-15 days. Sea Freight: 30-45 days. Transit times are carrier-dependent. Tracking provided within one business day of dispatch. |
| Packing | Inner: PP bag with anti-static protection. Outer: Heavy-duty export-grade corrugated carton box with custom-cut protective foam. |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P. Standard terms: 30% T/T deposit, 70% balance before shipment. |
| Minimum Order Quantity | Acceptable Trial Order — Single unit orders welcomed. |
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. A wiring harness cannot be restocked once departed from our controlled environment. |
| DOA Quality Guarantee | Full replacement for manufacturing defects reported within 7 days of delivery. Harness must be in original, uninstalled condition. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact harness for written approval before dispatch. |
Q1: What are the symptoms of a failing 0004770 / 0004772 harness?
A: Common symptoms include multiple unrelated fault codes appearing simultaneously, intermittent controller communication loss, specific hydraulic functions becoming slow or inoperative, the monitor display flickering or losing data, random engine derate or shutdown, visible chafing or melted insulation, green corrosion at connector backshells, and a successful "wiggle test" where manipulating the harness causes sensor values to drop out.
Q2: What is the relationship between 0004770 and 0004772?
A: These two part numbers are associated references for this harness application on the ZX110 / ZX120 / ZX130 platform. They may represent a production revision, a supersession, or a specific machine configuration variant. Both are provided for cross-reference identification. Our technical team will verify the correct configuration for your machine serial number.
Q3: Will this harness fit all three models — ZX110, ZX120, and ZX130?
A: Yes. The ZX110, ZX120, and ZX130 share a common ZX-series electrical architecture. The 0004770 / 0004772 harness is validated for these platforms. However, we always verify your specific machine serial number during pre-shipment confirmation.
Q4: Do you accept trial orders for a single unit?
A: Yes, absolutely. We welcome trial orders for single units from first-time customers. Contact our sales team to arrange your trial order.
Q5: What certifications does COGENG hold?
A: COGENG is an ISO 9001 certified manufacturer, ensuring consistent manufacturing processes, rigorous inspection protocols, and full batch traceability.
For pricing, machine-down emergency support, trial orders, bulk quantity discounts, or pre-purchase compatibility verification, contact your COGENG supplier today.
Sales Price: Contact COGENG sales customer service directly for the most current competitive pricing. Trial orders welcome.
Shipping Method & Cost: We will quote the optimal shipping solution based on your location and urgency.
Estimated Delivery Time: Based on the selected carrier. Tracking provided within one business day of dispatch.
✅ Direct OEM Replacement — Jig-Built for Guaranteed Fit, No Cutting or Splicing Required.
✅ Hitachi ZX110, ZX120, ZX130 Compatible — Precision-Engineered Wiring Harness.
✅ ISO 9001 Certified — 100% Continuity Tested, 500 Pieces Monthly Supply.
✅ Trial Orders Welcome — Single Unit Orders Accepted.
✅ In Stock & Ready to Ship — Minimize Excavator Downtime with Immediate Worldwide Dispatch.
Critical Action: To ensure 100% compatibility, please provide your Hitachi excavator's complete model and serial number. A photo of your existing harness label and connector face is recommended. Our technical team will cross-reference your machine's exact configuration and provide written confirmation before you order.
Merchant Return Policy: All products shipped are not returnable or exchangeable. Please complete all compatibility checks before purchase.
*shipping Details Return Sales*
Sales price:
Please contact COGENG sales customer service for specific prices.
Shipping method:
The specific arrangement will be based on the cargo situation.
Estimated delivery time:
It is based on the shipping time of the logistics company, and the arrival time shown shall prevail.
Contact details are at the bottom.
MerchantReturnPolicy:
The products shipped are not returnable or exchangeable.
Contact COGENG
📞 Phone: +86-185-2913-1515 🌐 Instagram
📧 Email: hugo@cogeng.net 🌐 Facebook：Excavator Parts Selection and Replacement Community
💬 WhatsApp +86-185-2913-1515 Facebook: Excavator Wiring Harness
💬 WeChat: +86-185-7865-1106 Facebook: Excavator Wire Harness
🌐 Website: cogeng.net Facebook: Excavator SolenoidValve
Excavator Solenoid Valve Excavator Wiring Harness Excavator Seal Kit
Excavator Pressure Sensor Excavator Revolution Sensor Excavator Water Temp Sensor
Excavator Control Panel Excavator Switch Parts Excavator Motors
Excavator Hydraulic Pump Excavator Other parts Excavator Engine Oil
