| Technical Feature / Attribute | Product Specification Details |
| Brand / Manufacturer | COGENG |
| Part Number (MPN) | 0003816 |
| Product Category | External / Main Frame Wiring Harness Assembly |
| Primary Machine Application | Hitachi ZX230, ZX240, ZX250 Hydraulic Excavators |
| Series Generation | ZAXIS Series (ZAX230, ZAX240, ZAX250, ZX230-1, ZX240-1, ZX250-1) |
| Condition | 100% Brand New, Direct OEM Spec Aftermarket Replacement |
| Conductor Core Material | High-Conductivity Electrolytic Annealed Copper (Multi-Strand) |
| Insulation & Outer Armor | Flame-retardant cross-linked polyethylene (XLPE) with corrugated split loom & nylon braiding |
| Connector & Plug Types | Heavy-duty, IP67/IP68 waterproof and dustproof sealed multi-pin connectors |
| Operating Voltage | 24V DC Heavy Machinery Electrical System |
| Operational Temperature | -40°C to +125°C (-40°F to +257°F) continuous thermal tolerance |
| Quality Control & Testing | 100% Automated Continuity, Resistance, and Thermal Burn-in Bench Tested |

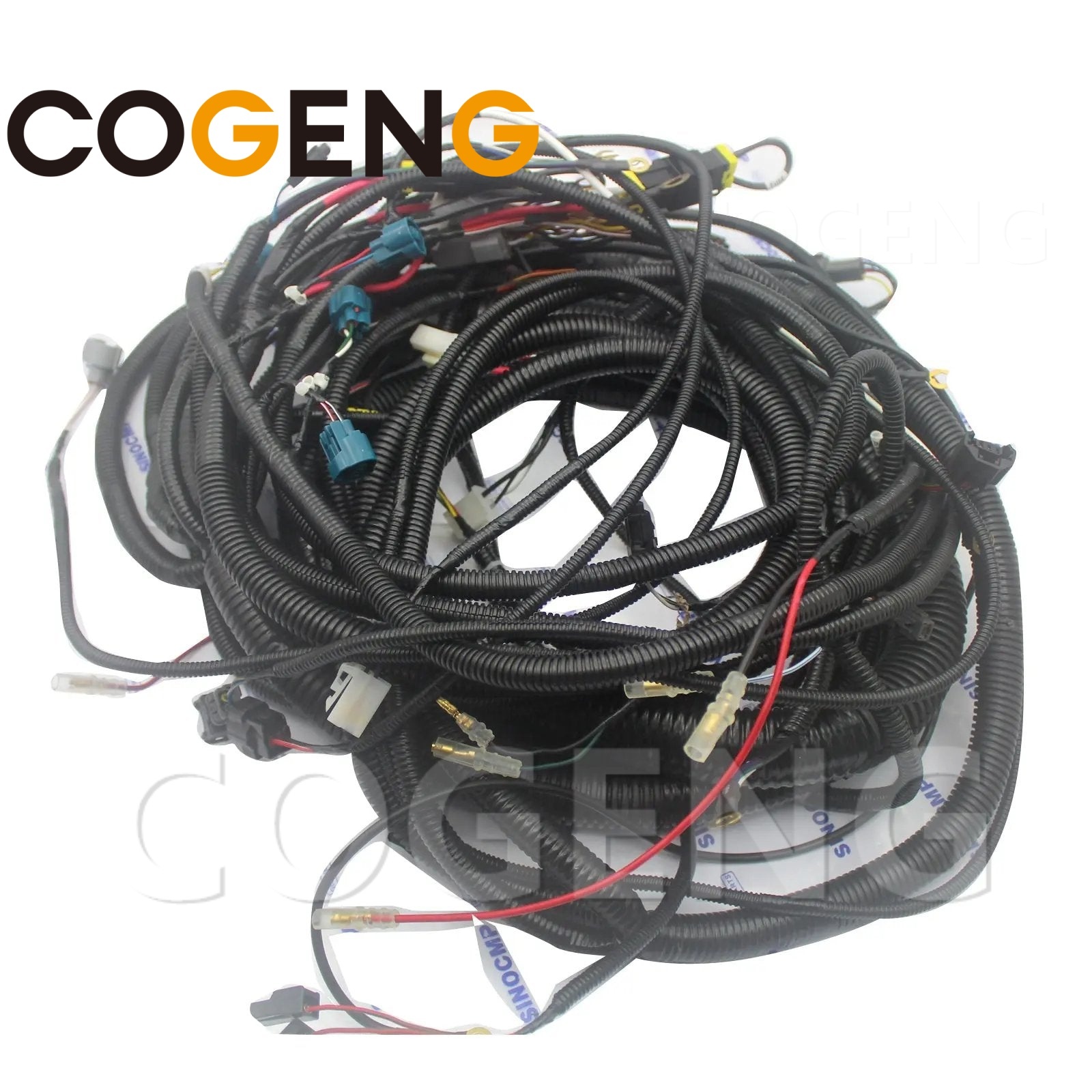

The COGENG 0003816 External Wiring Harness is a premium main frame and pump/engine control electrical assembly engineered specifically for Hitachi ZX230, ZX240, and ZX250 hydraulic excavators. Serving as a critical central artery within the excavator's electrical system, this harness routes vital power and sensor feedback signals between the operator cabin controller, main hydraulic pump solenoids, pressure transducers, pilot cut-off valves, and engine compartment components.
Medium-to-heavy earthmoving machinery like the ZX230, ZX240, and ZX250 operates continuously under demanding job site conditions. Exposure to high ambient engine temperatures, continuous chassis vibration, moisture, and chemical contamination from hydraulic fluid and diesel fuel causes factory wiring to degrade over time. Common failure symptoms include copper wire fatigue, cracked protective insulation, pin oxidation, intermittent sensor fault codes, delayed hydraulic pump response, erratic throttle behavior, and unexpected machine downtime.
The COGENG 0003816 wiring harness is manufactured as a direct plug-and-play OEM-spec replacement. Constructed with high-grade multi-strand copper wiring, flame-retardant outer protective jacketing, and factory-matched waterproof sealed connectors, this harness eliminates voltage drop and signal resistance issues while protecting sensitive electronic control units (ECU/PVC) from damage caused by short circuits. Upgrading to the COGENG 0003816 restores precise signal delivery, minimizes machine maintenance costs, and ensures long-term operational productivity.
Main External Chassis Cable Trunk: Heavy-gauge copper wiring designed for central power distribution, ground loops, and primary frame routing.
Hydraulic Pump & Valve Control Leads: Pre-terminated branch leads featuring heavy-duty waterproof connectors for main hydraulic pump proportional valves, pump displacement transducers, and pilot shut-off solenoids.
Engine Bay Sensor & Control Branch: Factory-configured plugs for oil pressure switches, coolant temperature senders, fuel shutoff solenoids, alternator leads, and starter relay triggers.

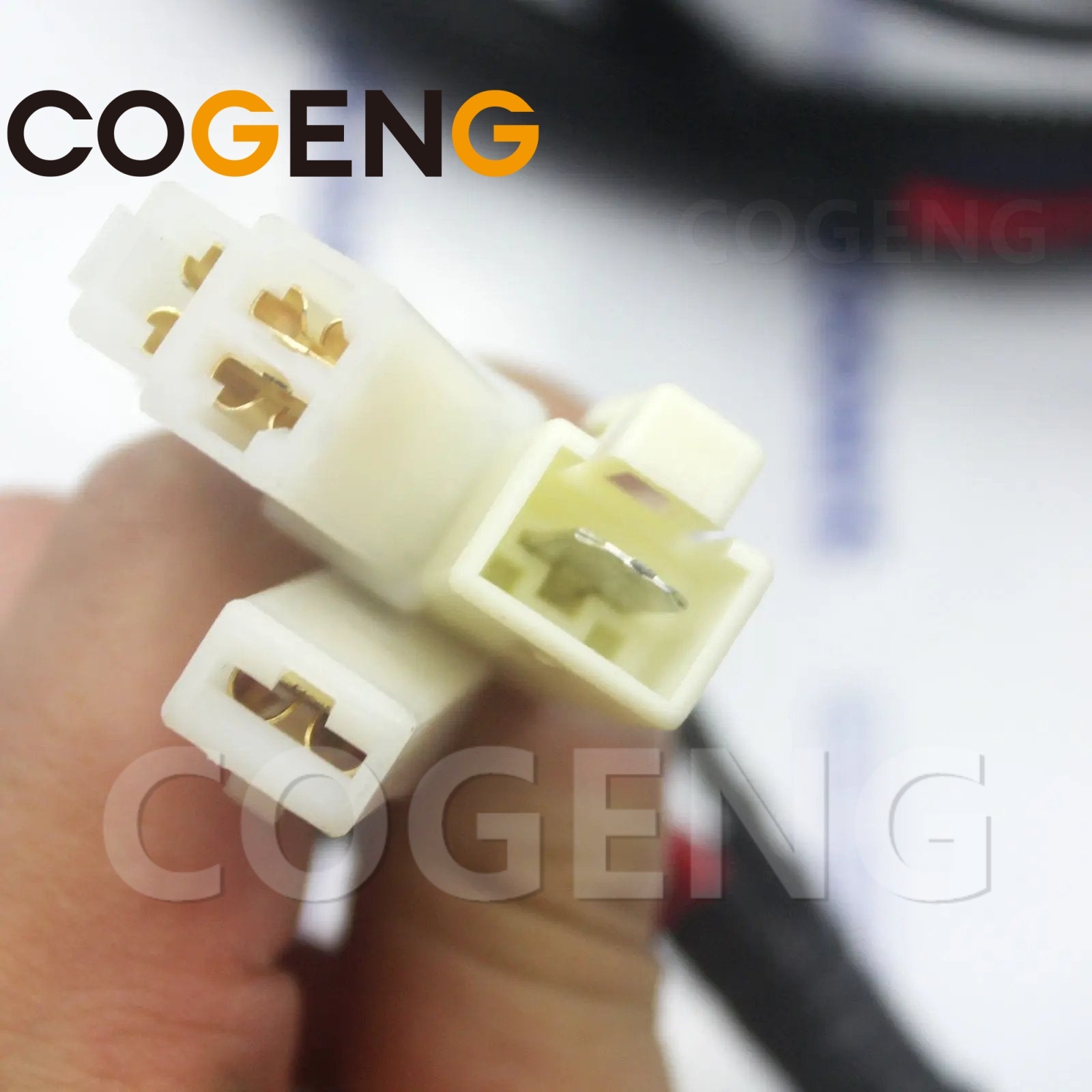

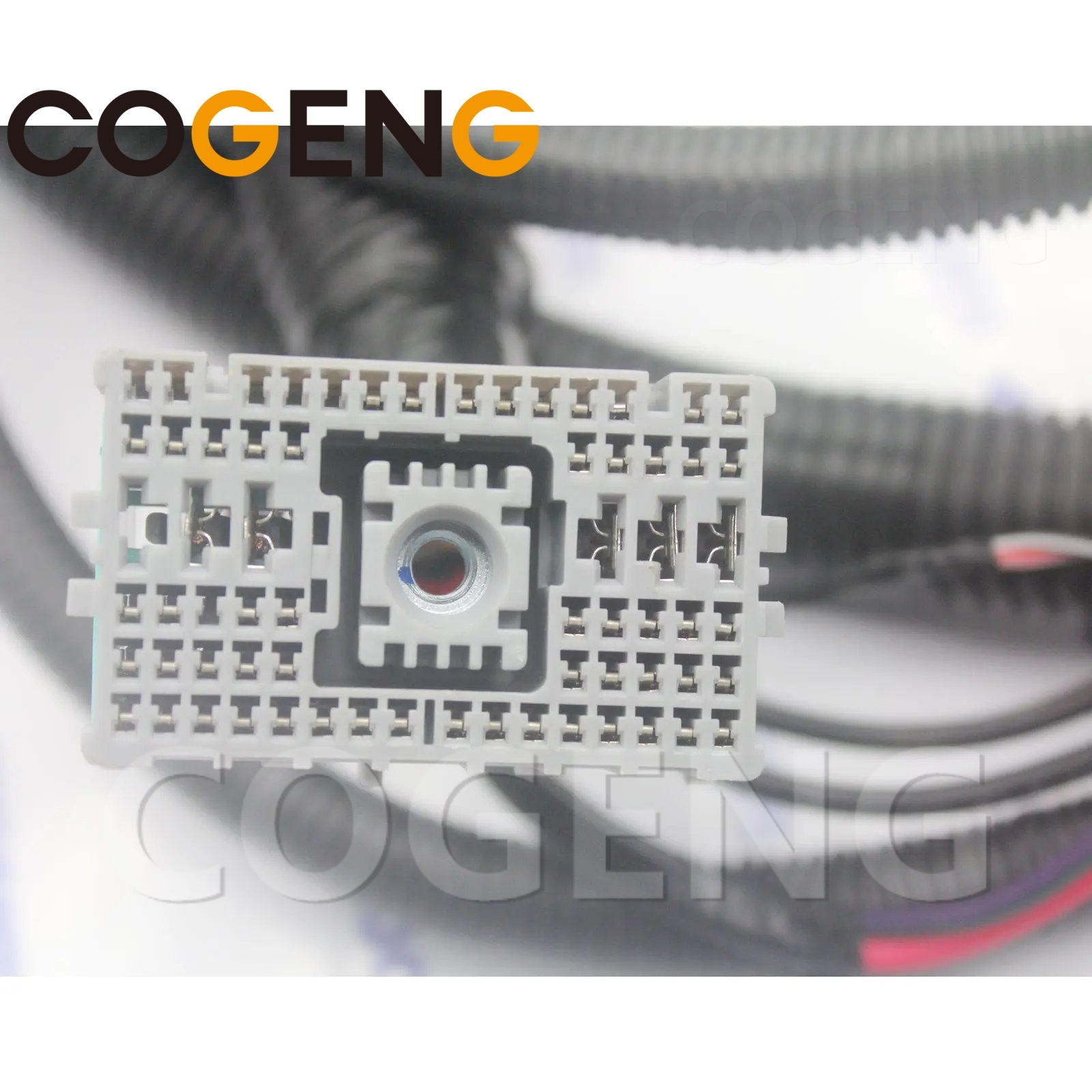

Cab & Main Controller Interconnect Interface: High-density multi-pin OEM-style plugs designed to connect directly into the cabin harness and electronic control units.

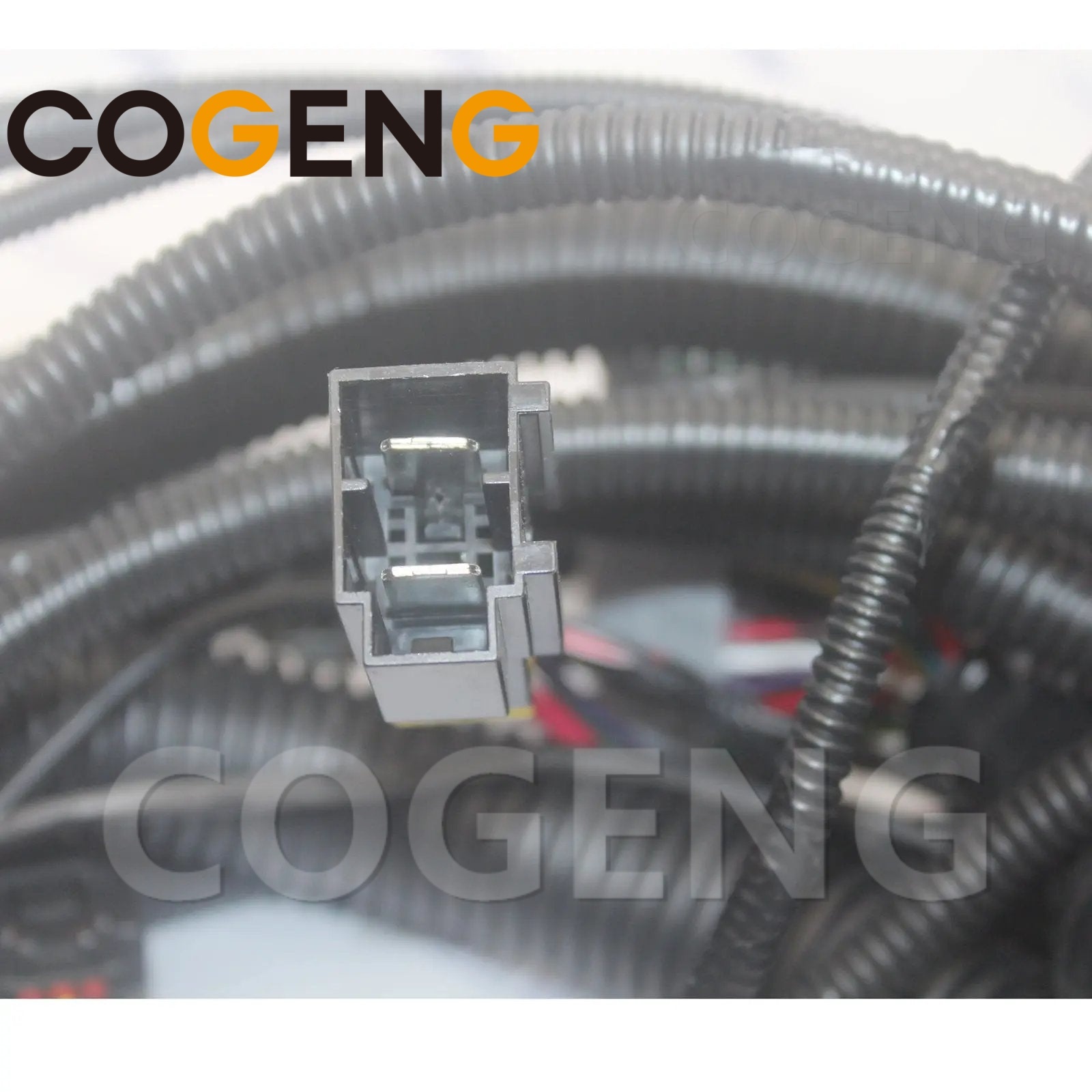

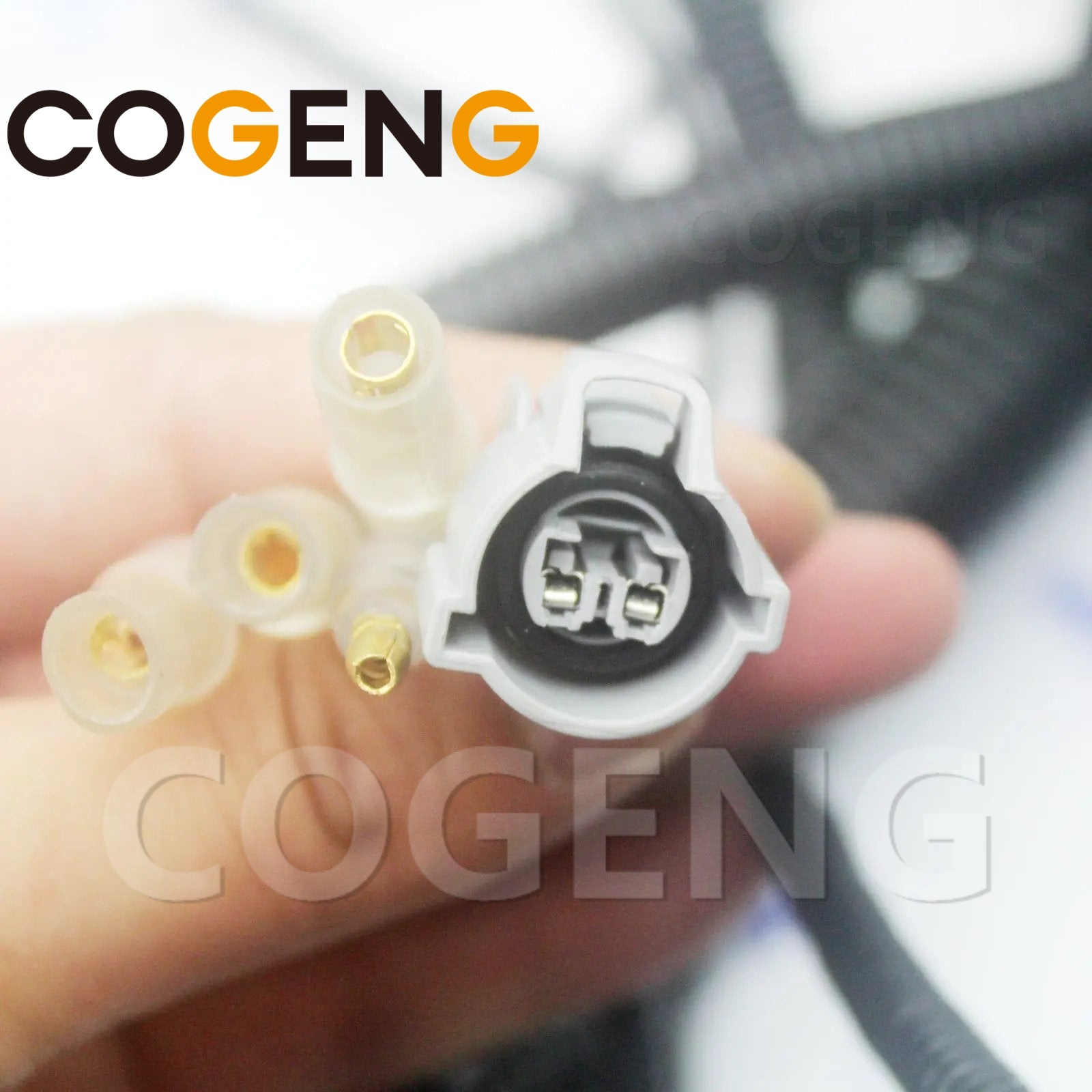

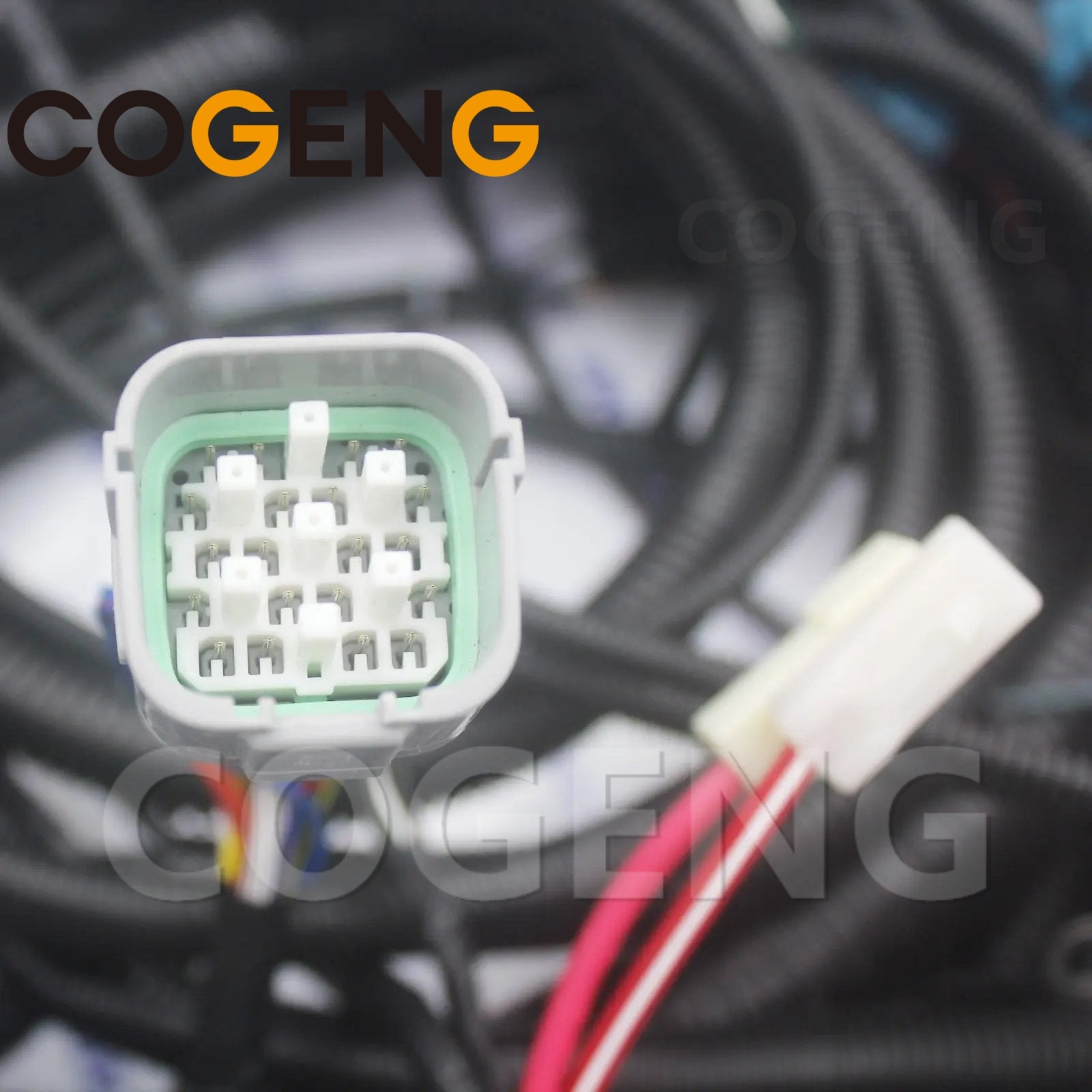

IP67 Waterproof Sealed Connectors: Robust Deutsch/Sumitomo-style connector plugs with internal silicone seals and locking tabs to prevent water, dirt, and mud intrusion.
Protective Outer Armor & Mounting Hardware: Abrasion-resistant corrugated split loom, heat-shrink reinforced branch joints, and pre-installed rubber grommets and chassis mounting clips.
========================================================================================
COGENG 0003816 WIRING HARNESS ARCHITECTURE
========================================================================================
[ Cab Harness Junction & ECU Controller Interface ]
|
|-- Central Power & Relay Feeds
|-- Monitor Panel & Throttle Control
|
+-----------------+-----------------+
| |
[ Engine Bay Branch Trunk ] [ Hydraulic Pump & Frame Trunk ]
| |
+--------------+--------------+ +--------------+--------------+
| | | |
(Engine Sensors) (Starter & Alt) (Main Pump Solenoids) (Pressure Transducers)
- Oil Pressure Switch - Starter B+ - Proportional Valve - Main Delivery Sensor
- Water Temp Sender - Alternator D+ - Speed Control Sol. - Pilot Cutoff Solenoid
- Fuel Shutoff Solenoid - Chassis Ground - Angle Sensors - Travel / Swing Horn
Hitachi ZX230 / ZAX230
Hitachi ZX240 / ZAX240
Hitachi ZX250 / ZAX250
Hitachi ZX230-1 / ZX240-1 / ZX250-1 Series
Hitachi ZX240LC / ZX250LC Sub-Models
External vs. Cabin Harness: The 0003816 is the external main frame harness assembly. If your machine requires cabin interior or monitor panel wiring, confirm whether you need an additional internal cabin harness set.
Serial Number Verification: Production variations or mid-model year updates by Hitachi can alter plug shapes or wire pinouts. Always cross-reference your machine serial number and original part number with our customer service team prior to ordering.
Circuit Safety Check: Before connecting the new harness, ensure the main battery isolator is turned off and verify that external electrical short circuits (such as shorted solenoid coils) are cleared to protect the new wiring assembly.
+---------------------------------------------------------------------------------------+
| INSTALLATION WORKFLOW STEPS |
+---------------------------------------------------------------------------------------+
| [STEP 1: DISCONNECT POWER] ---> Shut off main battery isolator & disconnect (-) |
| terminal to eliminate risk of electrical short. |
+---------------------------------------------------------------------------------------+
| [STEP 2: LABEL & REMOVE] ---> Tag all existing connections on engine and pump, |
| unbolt chassis clamps, and extract old harness. |
+---------------------------------------------------------------------------------------+
| [STEP 3: BENCH COMPARISON] ---> Lay out old harness beside COGENG 0003816 to verify |
| branch lengths, pin count, and connector profiles. |
+---------------------------------------------------------------------------------------+
| [STEP 4: ROUTE & SECURE] ---> Route new harness along factory chassis channels; |
| seat rubber grommets firmly in frame pass-throughs. |
+---------------------------------------------------------------------------------------+
| [STEP 5: PLUG & CLICK] ---> Connect engine sensors, hydraulic solenoids, and |
| ECU connectors until locking tabs click tightly. |
+---------------------------------------------------------------------------------------+
| [STEP 6: SYSTEM TEST] ---> Reconnect battery, turn ignition key to ON position,|
| check monitor status, and perform operational test. |
+---------------------------------------------------------------------------------------+
| Detail | Description |
| Shipping Methods | By Air, By Sea, By Express (FedEx, UPS, DHL, TNT, etc.). The specific arrangement will be based on the cargo situation and destination. |
| Estimated Delivery Time | Based on the shipping time of the logistics company. The arrival time shown by the carrier's tracking system shall prevail. |
| Packing | Inner: PP bag. Outer: Export-grade carton box with protective foam. |
| Payment Terms | Western Union, L/C (Letter of Credit), T/T (Telegraphic Transfer), MoneyGram, D/A (Documents against Acceptance), D/P (Documents against Payment) |
| Policy Point | Terms |
| Merchant Return Policy | Products shipped are not returnable or exchangeable. |
| Quality Guarantee | Every board and harness is function-tested and burned-in before shipment to ensure it is not Dead on Arrival (DOA). |
| Pre-Shipment Confirmation | Photos and testing videos can be provided upon request before shipment to confirm correct part numbers and operational condition. |
Q1: Does this harness fit ZX230, ZX240, and ZX250 models?
A: Yes, the COGENG 0003816 is designed for direct compatibility across ZX230, ZX240, and ZX250 ZAXIS series hydraulic excavators sharing the same main frame electrical architecture.
Q2: Are all branch connectors sealed against water and dust?
A: Yes, all external connections feature heavy-duty IP67/IP68 rubber-sealed plugs designed to resist moisture, dirt, and heavy washdowns.
Q3: Can I receive visual confirmation before the item is shipped?
A: Yes! Pre-shipment photos and testing videos can be provided upon request prior to dispatch to confirm part numbers, wire layouts, and connector profiles.
Sales Price: Please contact COGENG sales customer service for specific prices and wholesale bulk discounts.
Shipping Method: The specific arrangement will be based on the cargo situation, parcel weight, and destination country.
Estimated Delivery Time: It is based on the shipping time of the logistics company, and the arrival time shown by the carrier's tracking system shall prevail.
Merchant Return Policy: The products shipped are not returnable or exchangeable. Please verify part numbers carefully before ordering.
For pricing, bulk orders, or technical support, contact your COGENG supplier today.
Please provide your machine model and serial number for compatibility verification.
