Document Version: 1.0
Date of Issue: October 26, 2023
Product Category: Electrical Components / Excavator Spare Parts
Brand: COGENG
Manufacturer Reference: Hitachi OEM Reference
Application: Wiring Harness (Electrical System)
This document serves as the comprehensive technical specification for the wiring harness identified by part number 0001931, supplied by COGENG. This part is a critical electrical component used in Hitachi EX200-5 and EX210-5 excavators. The wiring harness is the central nervous system of the machine's electrical system, responsible for transmitting power and signals between the battery, alternator, starter, controller, sensors, and various electrical components.
The purpose of this document is to provide engineers, mechanics, procurement specialists, and maintenance teams with a complete understanding of the physical specifications, compatibility, installation protocols, and maintenance requirements for this specific wiring harness.

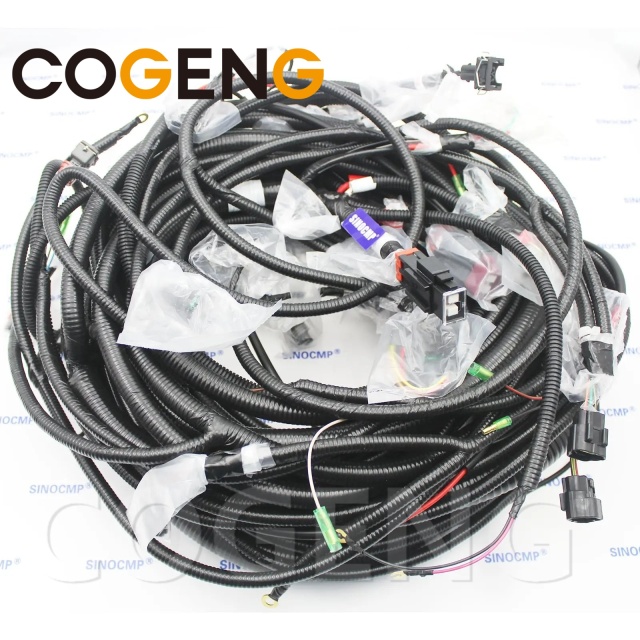

The 0001931 is a precision-engineered Wiring Harness manufactured by COGENG as a direct replacement for the Hitachi OEM part. This harness is a complete assembly of electrical wires, connectors, and terminals that routes power and signals throughout the excavator.
The wiring harness is essential for the safe and reliable operation of the machine. It connects:
Engine Control System: ECU, sensors, injectors, and actuators.
Hydraulic Control System: Solenoid valves, pressure sensors, and controllers.
Cab Electrical System: Instrument panel, switches, lights, and accessories.
Safety Systems: Alarms, interlocks, and emergency shutdown circuits.
Monitoring Systems: Gauges, warning lights, and diagnostic connectors.
The harness is engineered to withstand the demanding operating conditions of construction equipment, including vibration, temperature extremes, moisture, dust, and chemical exposure. It is manufactured using high-quality copper wire, durable insulation materials, and weatherproof connectors.
Key Functional Characteristics:
Complete Assembly: Includes all wires, connectors, and terminals required for the specific application.
High-Quality Materials: Copper wire with durable insulation for long service life.
Weatherproof Connectors: Sealed connectors resist moisture and contamination.
Vibration Resistance: Designed to withstand the vibration of excavator operation.
Temperature Resistance: Suitable for operating temperatures ranging from -30°C to +120°C.
OEM-Compatible: Direct replacement for Hitachi 0001931.
COGENG Quality: Manufactured to meet or exceed OEM specifications.
Direct OEM Replacement: Designed to replace Hitachi 0001931 without modification.
Precision Manufacturing: All wires, connectors, and terminals manufactured to exacting tolerances.
High-Quality Copper Wire: Stranded copper wire for excellent conductivity and flexibility.
Durable Insulation: Cross-linked polyethylene (XLPE) or PVC insulation for resistance to heat, oil, and abrasion.
Weatherproof Connectors: Sealed connectors with high-quality seals to prevent moisture ingress.
Color-Coded Wires: Wires are color-coded for easy identification and troubleshooting.
Easy Installation: Plug-and-play design for straightforward replacement.
Quality Assurance: Manufactured under ISO 9001 quality management system.
The following list details the components included in or associated with the 0001931 wiring harness. This part is typically a complete assembly, but the following table details the main components.
| Item No. | Part Number | Description | Quantity | Material |
|---|---|---|---|---|
| 1 | 0001931 | Wiring Harness Assembly | 1 | Copper / XLPE / PVC |
| 2 | 0001931-C1 | Main Connector (ECU) | 1 | Plastic / Metal |
| 3 | 0001931-C2 | Main Connector (Controller) | 1 | Plastic / Metal |
| 4 | 0001931-C3 | Connector (Solenoid) | 4 | Plastic / Metal |
| 5 | 0001931-C4 | Connector (Sensor) | 6 | Plastic / Metal |
| 6 | 0001931-C5 | Connector (Instrument Panel) | 1 | Plastic / Metal |
| 7 | 0001931-C6 | Fuse Box Connector | 1 | Plastic / Metal |
| 8 | 0001931-T1 | Terminal (Various) | - | Copper / Tin |
| 9 | 0001931-S1 | Seal (Various) | - | Rubber / Silicone |
| 10 | 0001931-L1 | Loom / Conduit | - | Plastic |
Note: The specific components and part numbers may vary slightly based on the specific production batch. Always verify with the serial number of your machine.
When replacing a wiring harness, the following components should be inspected and replaced if necessary:
Fuses: Inspect for blown fuses.
Relays: Inspect for proper operation.
Battery: Inspect for corrosion or damage.
Alternator: Inspect for proper charging.
Starter: Inspect for proper operation.
Ground Straps: Inspect for corrosion or damage.
Electrical Connectors: Inspect for corrosion, damage, or loose pins.
| Property | Specification |
|---|---|
| Wire Material | Stranded Copper |
| Insulation Material | XLPE or PVC |
| Connector Material | Plastic (PA66) / Metal |
| Terminal Material | Copper / Tin-plated |
| Seal Material | Rubber / Silicone |
| Operating Voltage | 12V or 24V DC (dependent on system) |
| Temperature Range | -30°C to +120°C |
| Wire Gauge | Various (dependent on circuit) |
| Weight | Approx. 3.0-6.0 kg (Complete Assembly) |
The part number 0001931 is primarily designed for Hitachi EX200-5 and EX210-5 excavators. The following compatibility information is compiled from multiple industry sources.
This part is most commonly found on the following machine models:
Hitachi EX200-5 (Excavator)
Hitachi EX200LC-5 (Excavator)
Hitachi EX210-5 (Excavator)
Hitachi EX210LC-5 (Excavator)
Hitachi EX210H-5 (Excavator)
Hitachi EX210K-5 (Excavator)
Based on cross-reference data, the 0001931 may also be compatible with:
Hitachi EX200-3 (Excavator)
Hitachi EX200LC-3 (Excavator)
Hitachi EX220-5 (Excavator)
Hitachi EX220LC-5 (Excavator)
Hitachi EX230-5 (Excavator)
Hitachi EX230LC-5 (Excavator)
When searching for this part, you may encounter the following interchangeable or superseded part numbers. If you cannot find 0001931, check for these:
0001932
0001933
0001934
0001935
0001936
0001937
0001938
0001939
0001940
Warning: While these numbers are often interchangeable, the specific suffix number usually denotes a specific revision or application. Always confirm the exact harness specifications before ordering.
The following part numbers are related to the 0001931 and may be used in the same electrical system:
0001930 (Alternate configuration)
0001929 (Alternate configuration)
0001928 (Alternate configuration)
Installing a wiring harness is a precision operation. Failure to follow these precautions can result in immediate damage to the harness, electrical system damage, or personal injury.
Verify Part Number: Ensure the new wiring harness matches the old harness exactly. Check the connector types, wire colors, and routing.
Cleanliness: The electrical system is sensitive to contamination. Clean the area around the harness before removal.
Battery Disconnect: Disconnect the battery before beginning work to prevent electrical shock or short circuits.
Inspect Mating Parts: Check the ECU, controller, solenoids, sensors, and other electrical components for corrosion, damage, or loose pins.
Check Fuses: Inspect all fuses and relays for damage or corrosion.
Safety First: Ensure the machine is parked on level ground, the engine is off, and the battery is disconnected before beginning work.
Disassembly: Carefully disconnect the old wiring harness from all components. Label connectors if necessary to aid in reinstallation. Remove the old harness from the machine.
Cleaning: Thoroughly clean the routing area and all electrical connectors. Remove any debris, oil, or corrosion.
Inspection: Inspect all electrical components for wear, cracks, or damage. Replace any damaged components.
Harness Routing: Route the new wiring harness along the same path as the old harness. Secure with clips and ties as required.
Connector Installation: Connect all connectors to their respective components. Ensure they click into place and are secure.
Ground Connections: Connect all ground straps and wires to the chassis. Ensure clean, tight connections.
Battery Connection: Reconnect the battery. Verify correct polarity.
This is the most critical step.
Visual Inspection: Inspect all connections for security and correct routing.
Electrical Test:
Turn the ignition on (engine off).
Verify that all electrical functions operate correctly (lights, gauges, alarms, etc.).
Check for any error codes on the monitor panel.
Functional Test:
Start the engine.
Verify that all engine and hydraulic functions operate correctly.
Check for any intermittent electrical issues.
Check for Shorts: Inspect for any signs of overheating, smoke, or burning smells.
Final Check: Verify all systems are operating correctly.
Electrical Hazard: Disconnect the battery before working on the electrical system.
Short Circuit Hazard: Ensure all connections are correct before reconnecting the battery.
Fire Hazard: Keep sparks and flames away from the battery and electrical components.
Pinch Points: Keep hands and fingers away from moving parts during installation.
Hot Surfaces: Allow the engine and exhaust components to cool before servicing.
Personal Protective Equipment: Wear safety glasses and insulated gloves when working on the electrical system.
This section provides a detailed breakdown of the excavators compatible with the 0001931, including specific model years and regional variations.
The 0001931 wiring harness is commonly used in Hitachi EX200-5 and EX210-5 excavators. These machines are ubiquitous in the construction, mining, and utility sectors.
Hitachi EX200-5: Produced in the late 1990s to early 2000s. This model is known for its reliability and durability. The 0001931 is a direct fit for the wiring harness.
Hitachi EX200LC-5: The long-crawler version of the EX200-5. The harness is identical.
Hitachi EX210-5: A slightly larger version of the EX200-5. The 0001931 is compatible.
Hitachi EX210LC-5: The long-crawler version of the EX210-5. The harness is identical.
Hitachi EX210H-5: High-performance version. The harness is compatible.
Hitachi EX210K-5: Wheeled version. The harness is compatible.
Hitachi EX200-3: Earlier generation model. The 0001931 may be compatible. Verification required.
Hitachi EX200LC-3: Long-crawler version. Verification required.
Hitachi EX220-5: Larger excavator. The 0001931 may be compatible. Verification required.
Hitachi EX220LC-5: Long-crawler version. Verification required.
Hitachi EX230-5: Larger excavator. Verification required.
Hitachi EX230LC-5: Long-crawler version. Verification required.
To ensure compatibility with your specific machine:
Locate the Serial Number: Find the machine's serial number plate (usually in the cab).
Check the Parts Manual: Consult the official Hitachi parts manual for your specific serial number range.
Visual Inspection: Compare the old wiring harness with the new harness. Check the connector types, wire colors, and routing.
Check the Electrical System: Verify the voltage (12V or 24V) and connector types of your machine's electrical system.
Cross-Reference the Part Number: Use the Hitachi parts catalog to confirm the 0001931 is the correct part for your machine.
Q1: What is the part number 0001931 exactly?
A: The 0001931 is a Wiring Harness manufactured by COGENG for Hitachi EX200-5 and EX210-5 excavators. It is a complete assembly of electrical wires, connectors, and terminals that routes power and signals throughout the machine.
Q2: What does a wiring harness do?
A: A wiring harness is the central nervous system of the machine's electrical system. It transmits power and signals between the battery, alternator, starter, controller, sensors, and various electrical components, enabling the machine to operate safely and reliably.
Q3: What are the symptoms of a bad wiring harness?
A: Symptoms of a bad wiring harness include:
Electrical failures: Lights, gauges, or accessories not working.
Intermittent operation: Functions that work sometimes and not others.
Error codes: The machine's computer may display fault codes.
Overheating: Wires or connectors may become hot.
Burning smell: Insulation may be burning.
Corrosion: Visible corrosion on connectors or terminals.
Physical damage: Cracked insulation, broken wires, or damaged connectors.
Q4: Is this a direct replacement for the original Hitachi part?
A: Yes, the 0001931 is designed as a direct replacement for the Hitachi OEM part.
Q5: What is the warranty period for this part?
A: Standard warranty for these electrical components is typically 6 to 12 months, depending on the supplier. However, warranty is void if the unit is damaged during installation, if the system was not properly connected, or if the wrong voltage was applied.
Q6: Can I use this wiring harness on a different brand of excavator?
A: It is not recommended unless you are a qualified electrical engineer. While the harness might physically fit, the connector types and wire routing may not match the host machine's system, leading to poor performance or failure.
Q7: What type of electrical system does this harness support?
A: The 0001931 supports 12V or 24V DC electrical systems, depending on the specific machine configuration. Always verify the voltage of your machine's electrical system before ordering.
Q8: Do I need to replace any other components when installing a new wiring harness?
A: It is recommended to inspect and replace any damaged fuses, relays, connectors, or ground straps. If the old harness failed due to a short circuit, the affected components should also be inspected and replaced.
Q9: What is the typical lead time for this part?
A: Lead times vary. Standard stock items may ship within 24-48 hours. Custom or non-stock items may take 15-30 days for manufacturing or sourcing.
Q10: How do I identify if I have a genuine OEM part or an aftermarket replacement?
A: Genuine OEM parts will have the Hitachi logo and part number cast or stamped into the connectors or wire tags. Aftermarket parts may have the part number but lack the logo. COGENG parts are aftermarket replacements manufactured to meet or exceed OEM specifications. Always source from a trusted supplier.
Q11: What is the difference between 0001931 and other 00019 numbers?
A: The base number "00019" indicates the series. The suffix (e.g., -31) indicates the specific revision, configuration, or application. Always match the complete part number.
Q12: Can I rebuild the wiring harness instead of replacing it?
A: In some cases, individual wires or connectors can be repaired or replaced. However, if the harness is extensively damaged, replacement is the most reliable option. Rebuilding a harness requires specialized tools, connectors, and technical expertise.
Q13: How do I test a wiring harness?
A: To test a wiring harness:
Visual Inspection: Check for physical damage, corrosion, or loose connectors.
Continuity Test: Use a multimeter to check for continuity between connectors.
Voltage Test: Use a multimeter to check for voltage at various points in the circuit.
Resistance Test: Check for excessive resistance in wires and connections.
Load Test: Apply a load to the circuit and check for voltage drop.
Q14: What causes wiring harness failure?
A: Wiring harness failure can be caused by:
Vibration: Constant vibration can cause wires to break or connectors to loosen.
Heat: Excessive heat can cause insulation to crack or melt.
Moisture: Water ingress can cause corrosion and short circuits.
Abrasion: Rubbing against metal components can wear through insulation.
Rodent damage: Mice or rats can chew through wires.
Improper installation: Incorrect routing or connection can cause damage.
Q15: Can I install this wiring harness myself?
A: Yes, if you have electrical experience and the proper tools. However, electrical systems are complex and can be dangerous. If you are unsure, consult a qualified mechanic or electrician.
| Parameter | Specification |
|---|---|
| Part Number | 0001931 |
| Brand | COGENG |
| Type | Wiring Harness |
| Series | 00019 |
| Wire Material | Stranded Copper |
| Insulation Material | XLPE or PVC |
| Connector Material | Plastic (PA66) / Metal |
| Operating Voltage | 12V or 24V DC |
| Temperature Range | -30°C to +120°C |
| Weight | Approx. 3.0-6.0 kg (Complete Assembly) |
| Application | Electrical System |
| Certification | ISO 9001 |
| Country of Origin | China (Aftermarket) / Japan (OEM) |
| Compatibility | Hitachi EX200-5, EX200LC-5, EX210-5, EX210LC-5, EX210H-5, EX210K-5 |
We offer worldwide shipping for all our electrical components and spare parts. Our shipping partners include DHL, FedEx, UPS, and EMS to ensure fast and reliable delivery.
Shipping Methods:
Express Shipping: 3-7 business days for urgent orders.
Standard Shipping: 7-15 business days for regular orders.
Economy Shipping: 15-30 business days for bulk orders.
Shipping Costs:
Shipping costs are calculated based on the weight, dimensions, and destination of the package.
For bulk orders, please contact us for a customized shipping quote.
Packaging:
All parts are carefully packaged in protective materials to prevent damage during transit.
Each package is labeled with the part number and quantity for easy identification.
Tracking:
Once your order is shipped, you will receive a tracking number via email.
You can track your order on the carrier's website.
We are committed to ensuring your satisfaction with our products. If you are not completely satisfied with your purchase, we offer a hassle-free return policy.
Return Eligibility:
Returns are accepted within 30 days of delivery.
The item must be unused, in its original packaging, and in the same condition as received.
A valid proof of purchase (order number or receipt) is required.
Non-Returnable Items:
Custom-made or special-order parts.
Parts that have been installed or used.
Parts that have been damaged due to improper installation or handling.
Return Process:
Contact our customer service team to request a return authorization (RA) number.
Pack the item securely in its original packaging.
Ship the item back to the address provided by our customer service team.
Once we receive and inspect the item, we will process your refund or exchange.
Refunds:
Refunds will be processed within 5-7 business days after we receive the returned item.
Refunds will be issued to the original payment method.
Shipping costs are non-refundable unless the return is due to our error.
Exchanges:
If you need to exchange an item, please contact our customer service team.
Exchanges are subject to product availability.
For orders, inquiries, or technical support, please contact us using the following details:
Email: hugo@cogeng.net
Phone: +86 18529131515
WhatsApp: +86 18529131515
Website: cogeng.net
Identify Your Part Number: Use your machine's parts manual or contact us for assistance.
Request a Quote: Send us an email or WhatsApp message with the part number and quantity.
Confirm Your Order: We will provide a proforma invoice for your confirmation.
Make Payment: We accept T/T, Western Union, and other payment methods.
Receive Your Order: We will ship your order promptly and provide tracking information.
Our team of experienced professionals is available to assist you with:
Part identification and compatibility verification.
Technical support and installation guidance.
Shipping and logistics inquiries.
Warranty and return requests.
Business Hours: Monday to Saturday, 9:00 AM – 6:00 PM (GMT+8)
End of Document
Disclaimer: This document is for informational purposes only. The manufacturer reserves the right to change specifications without notice. Always consult the official service manual for your specific machine before performing any repairs. Part numbers and compatibility are based on industry cross-reference data and may vary by region and production year. COGENG is an aftermarket supplier and is not affiliated with Hitachi.
*shipping Details Return Sales*
Sales price:
Please contact COGENG sales customer service for specific prices.
Shipping method:
The specific arrangement will be based on the cargo situation.
Estimated delivery time:
It is based on the shipping time of the logistics company, and the arrival time shown shall prevail.
Contact details are at the bottom.
MerchantReturnPolicy:
The products shipped are not returnable or exchangeable.
Contact COGENG
📞 Phone: +86-185-2913-1515 🌐 Instagram
📧 Email: hugo@cogeng.net 🌐 Facebook：Excavator Parts Selection and Replacement Community
💬 WhatsApp +86-185-2913-1515 Facebook: Excavator Wiring Harness
💬 WeChat: +86-185-7865-1106 Facebook: Excavator Wire Harness
🌐 Website: cogeng.net Facebook: Excavator SolenoidValve
Excavator Solenoid Valve Excavator Wiring Harness Excavator Seal Kit
Excavator Pressure Sensor Excavator Revolution Sensor Excavator Water Temp Sensor
Excavator Control Panel Excavator Switch Parts Excavator Motors
Excavator Hydraulic Pump Excavator Other parts Excavator Engine Oil
