| Parameter | Specification |
|---|---|
| COGENG Part Number | 991/00130 (99100130 / 991-00130) |
| OEM Equivalent | JCB 991/00130, JCB 99100130, JCB 991-00130 |

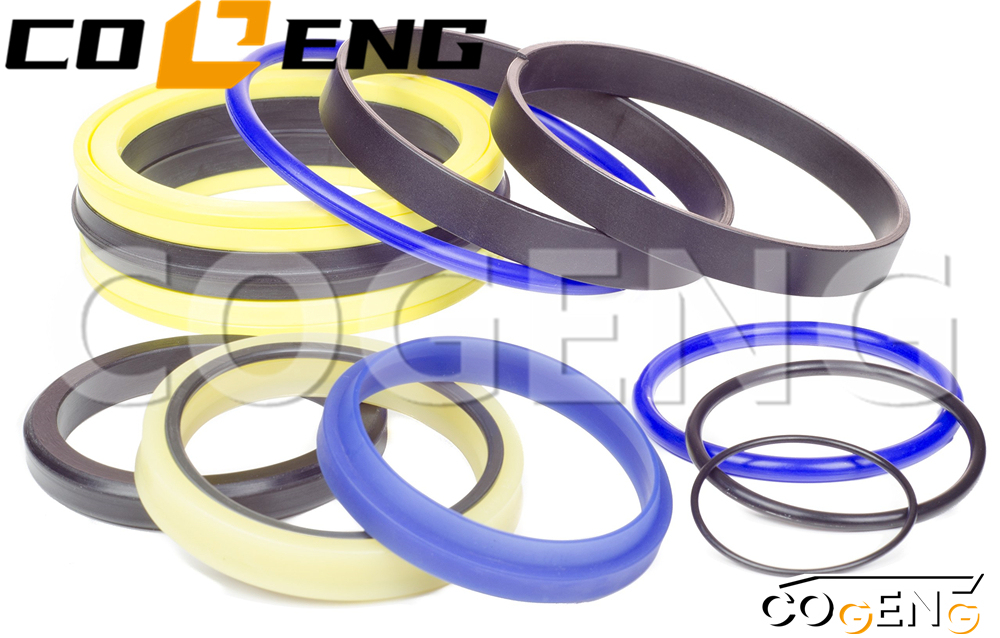

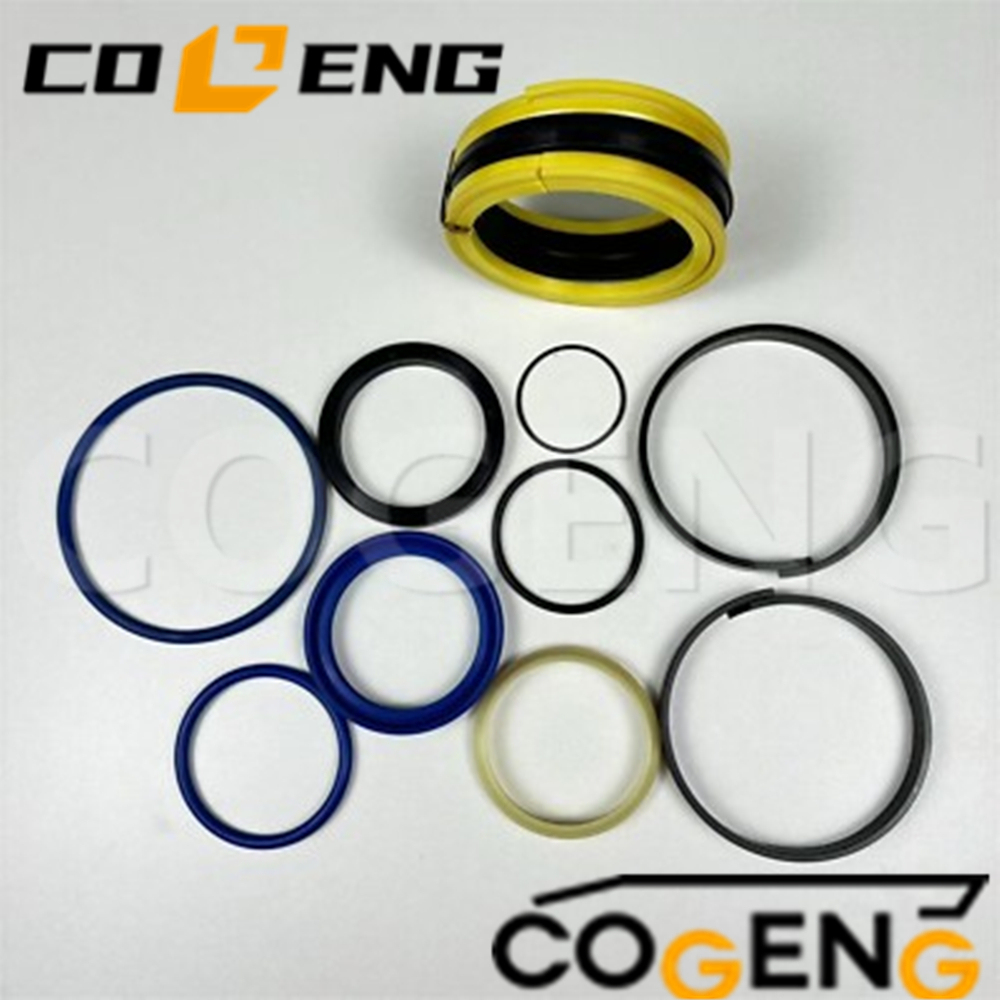

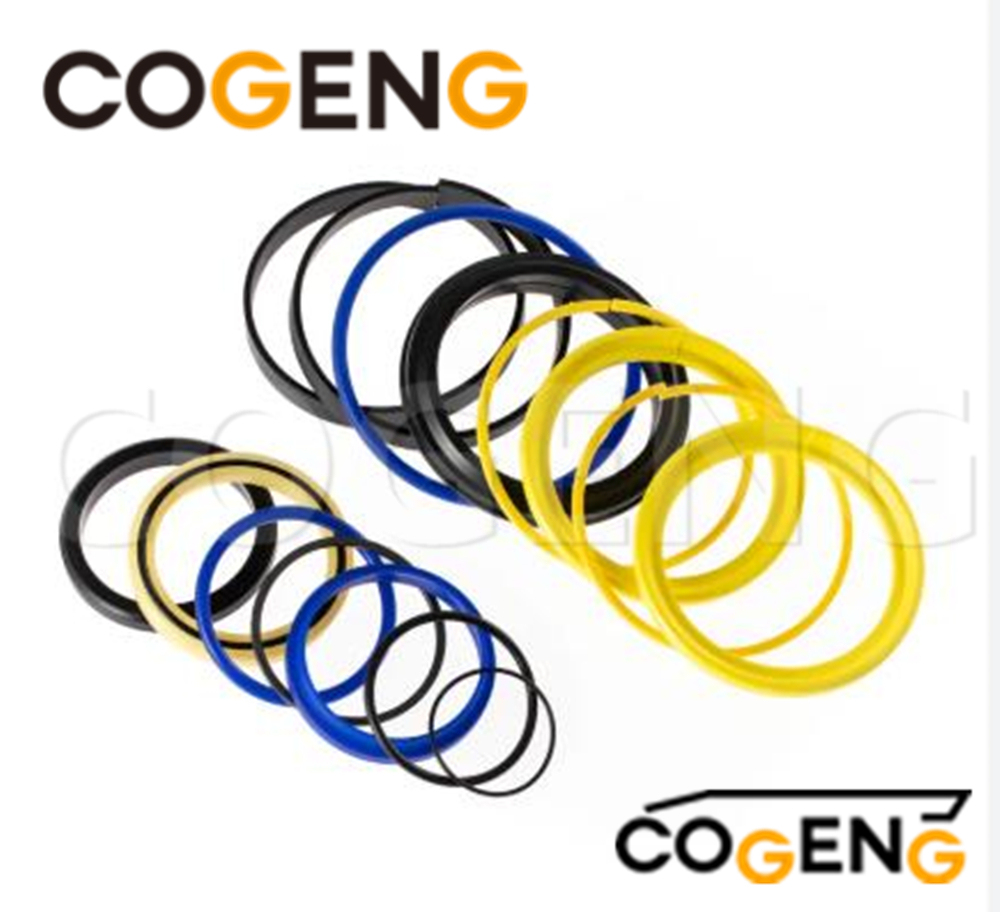

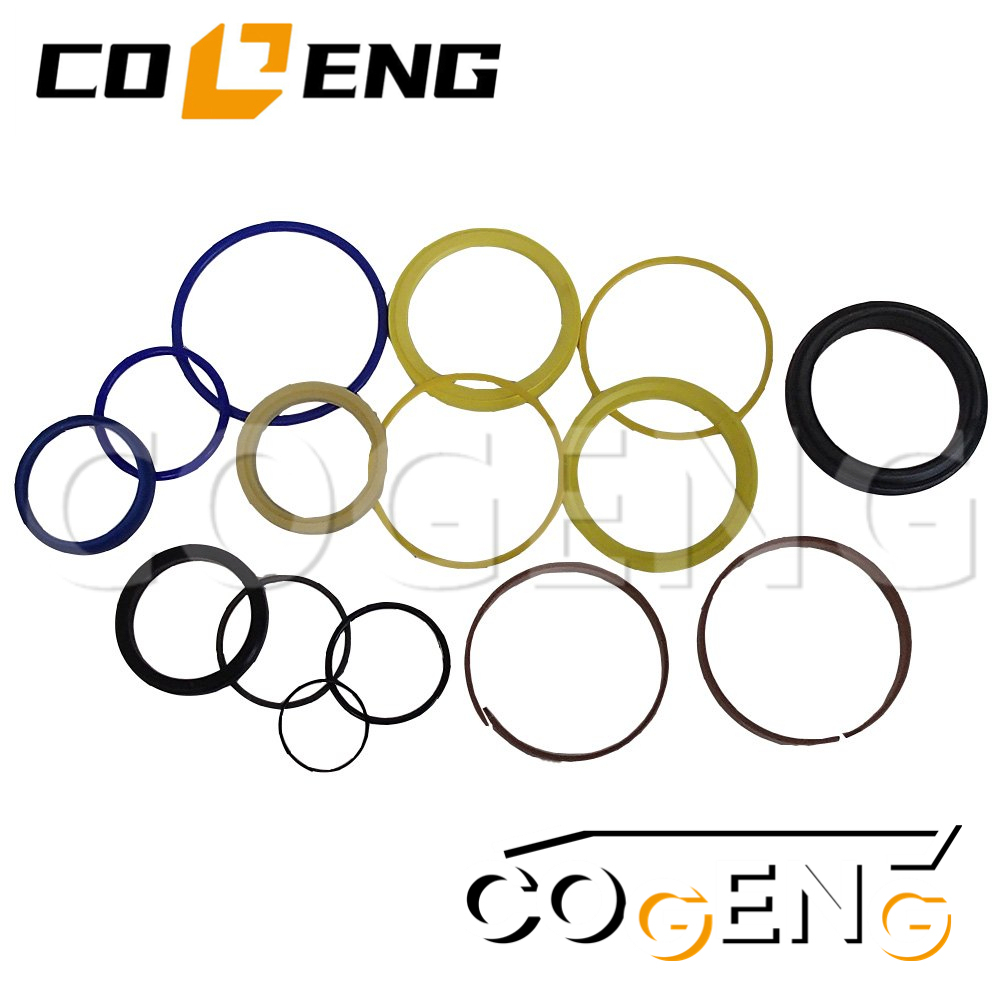

| Product Type | Hydraulic Cylinder Seal Kit |
| Application | Boom, Bucket, Arm, Stabilizer, Steering cylinders |
| Kit Type | Complete overhaul seal kit |
| Compatible Models | Multiple JCB excavator, backhoe loader, and telehandler models |
| Brand | Part Number |
|---|---|
| COGENG | 991/00130, 99100130, 991-00130 |
| JCB | 991/00130, 99100130, 991-00130 |
| Interchange | 991/00131, 991/00132, 991/00145, 991/00147, 991/10142 |
| Component | Material Grade | Hardness | Temperature Range |
|---|---|---|---|
| Piston Seals | Polyurethane (PU) | 90-92 Shore A | -35°C to +110°C |
| Rod Seals | NBR + PTFE coating | 85 Shore A | -40°C to +120°C |
| Wiper Seals | Polyurethane (PU) | 88-90 Shore A | -35°C to +100°C |
| O-Rings | HNBR (Zetpol) | 70 Shore A | -40°C to +150°C |
| Wear Rings | PTFE + Bronze filler | — | -50°C to +200°C |
| Backup Rings | Nylon 66 (Glass filled) | — | -40°C to +120°C |
| Buffer Seals | Polyurethane | 90 Shore A | -35°C to +110°C |
| Parameter | Rating |
|---|---|
| Maximum Pressure | 350 bar (5,075 psi) |
| Operating Temperature | -40°C to +120°C |
| Fluid Compatibility | Mineral oil, synthetic hydraulic fluids, biodegradable oils |
| Seal Speed Rating | Up to 0.5 m/s |
| Service Life | 5,000+ operating hours |
| Item | Description | Quantity | Material |
|---|---|---|---|
| 1 | Piston Seal (Primary) | 2 | Polyurethane |
| 2 | Rod Seal (Step-cut) | 2 | NBR + PTFE |
| 3 | Wiper Seal (Double-lipped) | 2 | Polyurethane |
| 4 | Buffer Seal | 2 | Polyurethane |
| 5 | Wear Ring (Piston) | 2 | PTFE Composite |
| 6 | Wear Ring (Gland) | 2 | PTFE Composite |
| 7 | O-Ring (Gland to barrel) | 2 | HNBR |
| 8 | O-Ring (Piston to rod) | 2 | HNBR |
| 9 | O-Ring (End cap) | 4 | HNBR |
| 10 | Backup Ring (Various sizes) | 4 | Nylon 66 |
| 11 | Dust Seal (Rod wiper) | 2 | Polyurethane |

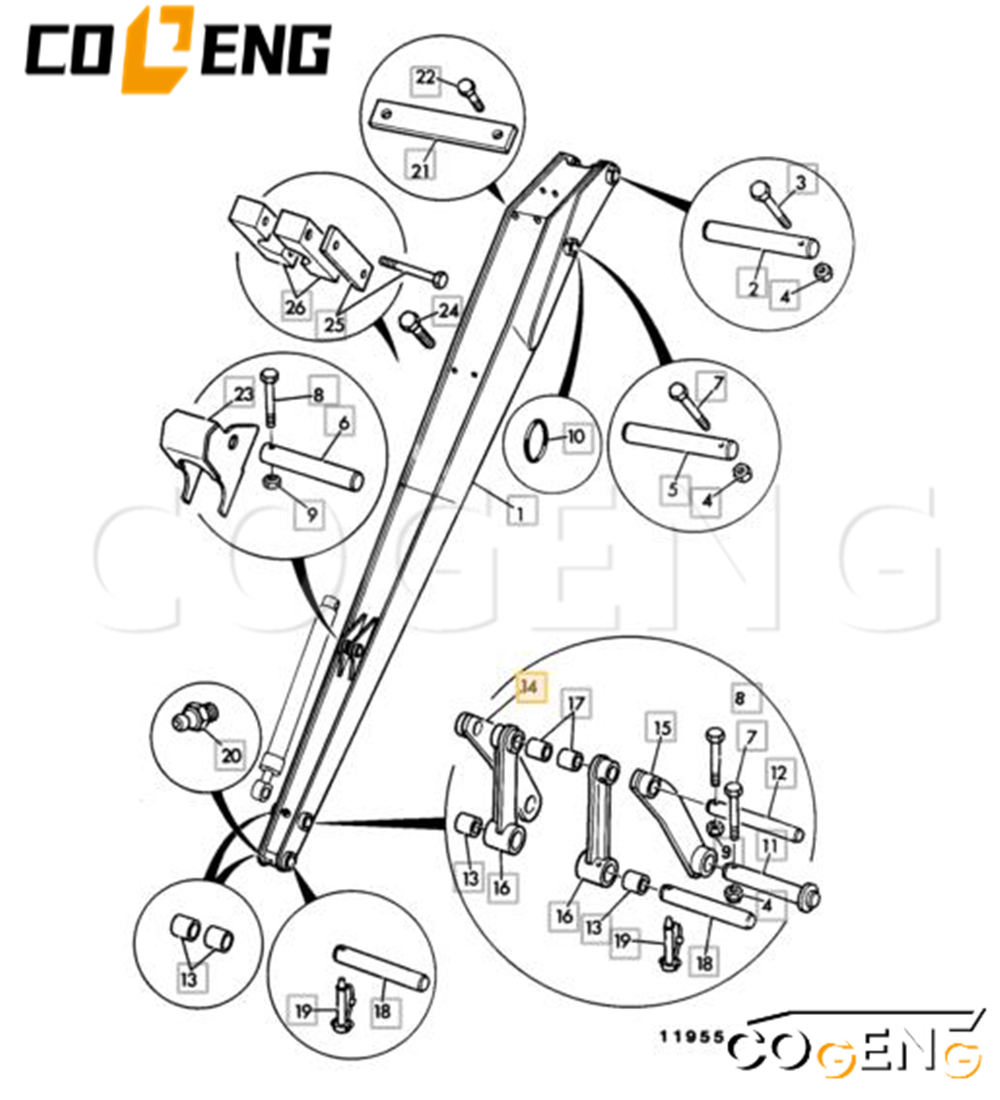

| NO | Number | Name | Qty |
| 1 | 214/ 18000 | Dipper river rig 15m reachmaster | 1 |
| 2 | 1029/2026 | Pin pivot Dipper to beam |
1 |
| 3 | 1305/3436Z | Bolt | 1 |
| 4 | 1340/0403Z | Nut lock | 3 |
| 5 | 1025/2025 | Pin pivot Dipper ram pivot |
1 |
| 6 | 811/80012 | Pin pivot Bucket ram pivot |
1 |
| 7 | 1305/3434Z | Bolt | 3 |
| 8 | 1305/3226Z | Bolt | 1 |
| 8A | 1305/3226Z | Bolt | 2 |
| 8A | 1305/3434Z | Bolt | 2 |
| 9 | 1340/0203Z | Nut Lock 3/8" UNF | 1 |
| 9A | 1340/0203Z | Nut Lock 3/8" UNF | 2 |
| 9A | 1340/0303Z | Nut lock | 2 |
| 10 | 813/00135 | Seal | 2 |
| 11 | 911/ 13200 | Pin pivot | 1 |
| 12 | 811/20031 | Pin pivot Part is mss use the following parts marked A |
1 |
| 12 | 911/ 13200 | Pin pivot | 1 |
| 13 | 831/00101 | Bush nylon | 6 |
| 13 | 809/00073 | Bearing liner/ steel | 6 |
| 14 | 213/31200 | Lever tipping right hand Part is mss use the following parts marked A |
1 |
| 14 | M.S.S. | Multi Supersession | 1 |
| 14 | :590/29100 | Rod piston | 1 |
| 14 | :808/00129 | Bush | 1 |
| 14 | :1305/3434Z | Bolt | 1 |
| 14 | :1340/0303Z | Nut lock | 1 |
| 14 | :595/ 10020 | Head piston | 1 |
| 14 | :911/ 13200 | Pin pivot | 1 |
| 14 | :991/00055 | Kit-seal ram 60mm rod x 100mm cyl | 1 |
| 14 | :991/00130 | Kit-seal 100 x 60 | 1 |
| 14 | :214/81000 | Lever tipping right hand | 2 |
| 14 | :214/80900 | Link tipping | 2 |
| 14 | :808/00060 | Bush | 2 |
| 14 | :826/01179 | Dowel | 1 |
| 14 | :823/00006 | Washer Shim | 2 |
| 15 | 213/31300 | Lever tipping left hand Part is mss use thr following parts marked A |
1 |
| 15 | 214/81000 | Lever tipping right hand | 1 |
| 16 | 213/32400 | Link tipping Part is mss use the following parts marked A |
1 |
| 16 | 214/80900 | Link tipping | 1 |
| 17 | 808/00262 | Bush | 2 |
| 17 | 809/00060 | Bush | 2 |
| 18 | 811/50171 | Pin pivot | 2 |
| 19 | 826/00987 | Pin | 2 |
| 20 | 1450/0001 | Nipple Grease/ Straight 1/8 BSP | 6 |
| 21 | 214/ 18101 | Plate guard | 1 |
| 22 | 1305/1908Z | Bolt 1/2 | 2 |
| 23 | 213/33800 | Guard | 1 |
| 24 | 1305/1706Z | Bolt | 11 |
| 25 | 821/00153 | Plate cover M10 x 45mm @ 33mm CRS | 2 |
| 26 | 821/00176 | Clamp 12.7mm hole 33mm CRS | 2 |
| 27 | 823/00006 | Washer Shim | 2 |
Q: What JCB models use the 991/00130 hydraulic seal kit?
A: The 991/00130 (also referenced as 99100130 or 991-00130) is a hydraulic seal kit designed for specific JCB backhoe loader and excavator cylinders, commonly used in boom, dipper, or stabilizer applications depending on machine configuration. Seal kit compatibility can vary by cylinder serial number and production year. Always verify this part number against your machine's parts manual or the cylinder's original seal kit reference before ordering.
Q: What are the symptoms of failing hydraulic cylinder seals on JCB equipment?
A: Common symptoms include visible hydraulic oil leaking from the cylinder rod or gland area, decreased lifting or digging force, cylinder drift where the implement slowly lowers under load, jerky or erratic cylinder movement, and external oil contamination around the cylinder assembly. Early seal replacement helps prevent internal cylinder scoring and more expensive repairs.
Q: What is included in the COGENG 991/00130 seal kit?
A: Each complete seal kit includes piston seals, rod seals, wiper seals, O-rings, backup rings, and gland seals required for a full cylinder overhaul. COGENG kits are manufactured using materials that meet or exceed OEM specifications for abrasion resistance, temperature tolerance, and extended service life.
