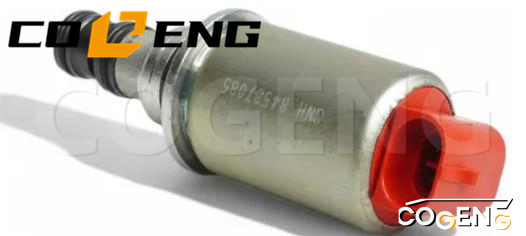

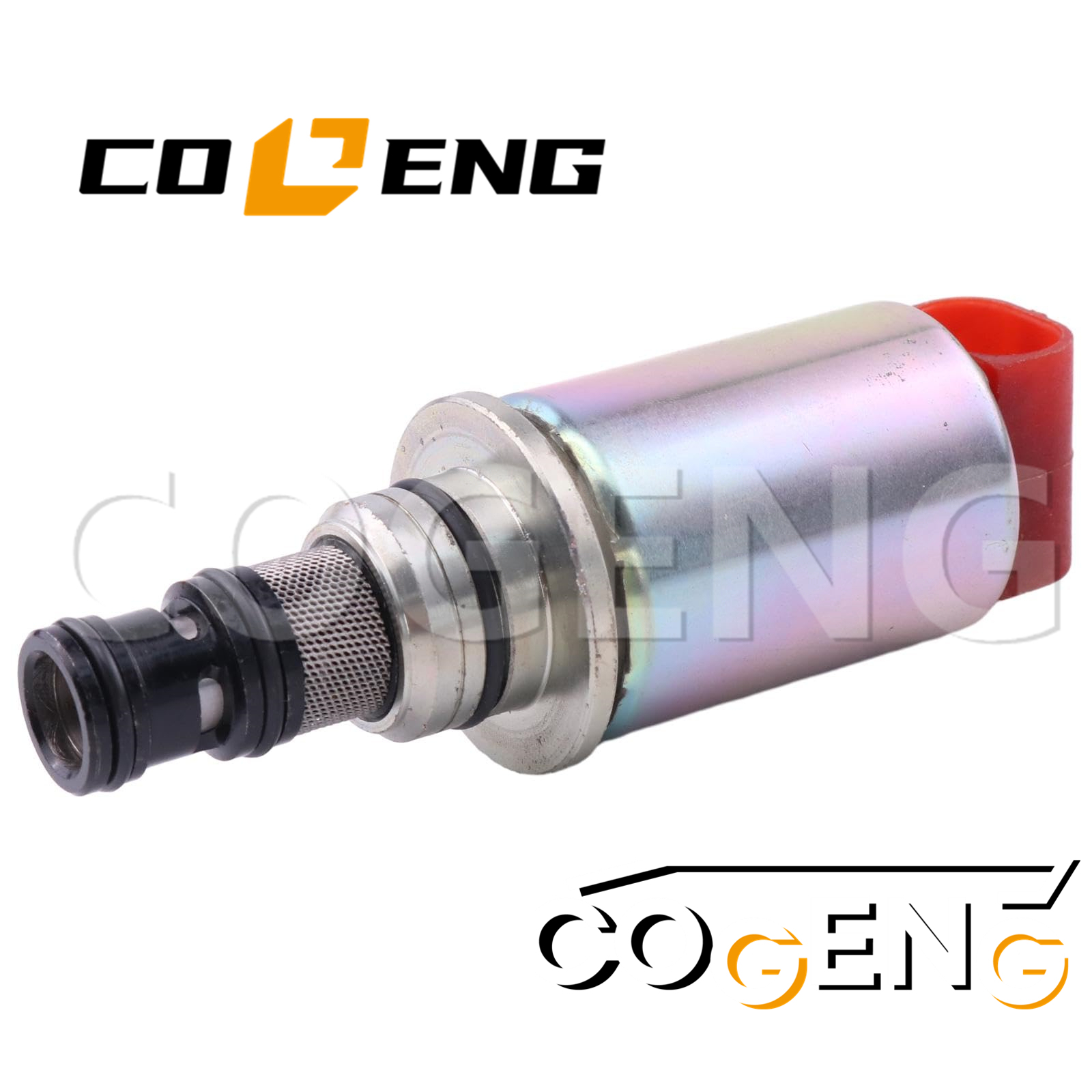

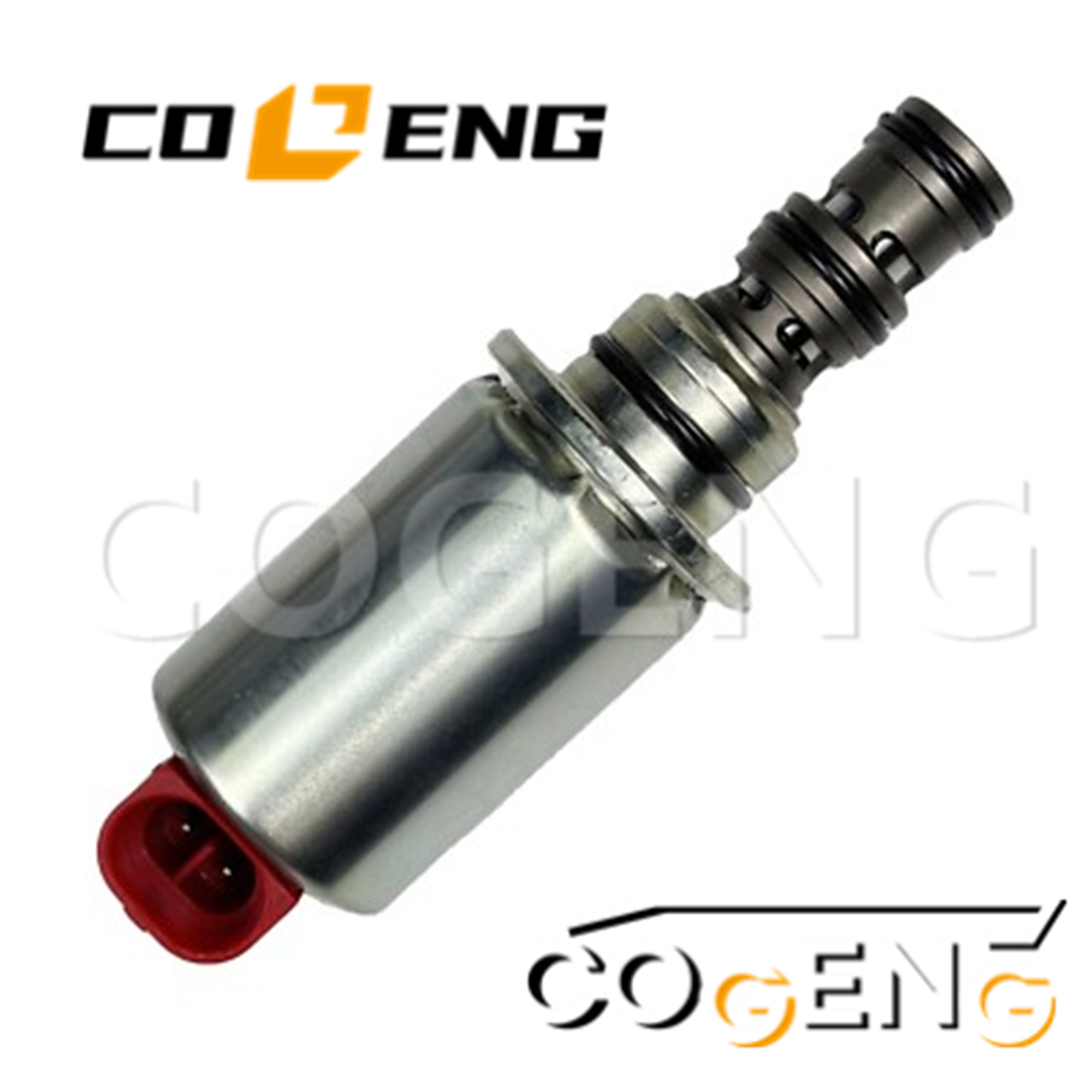

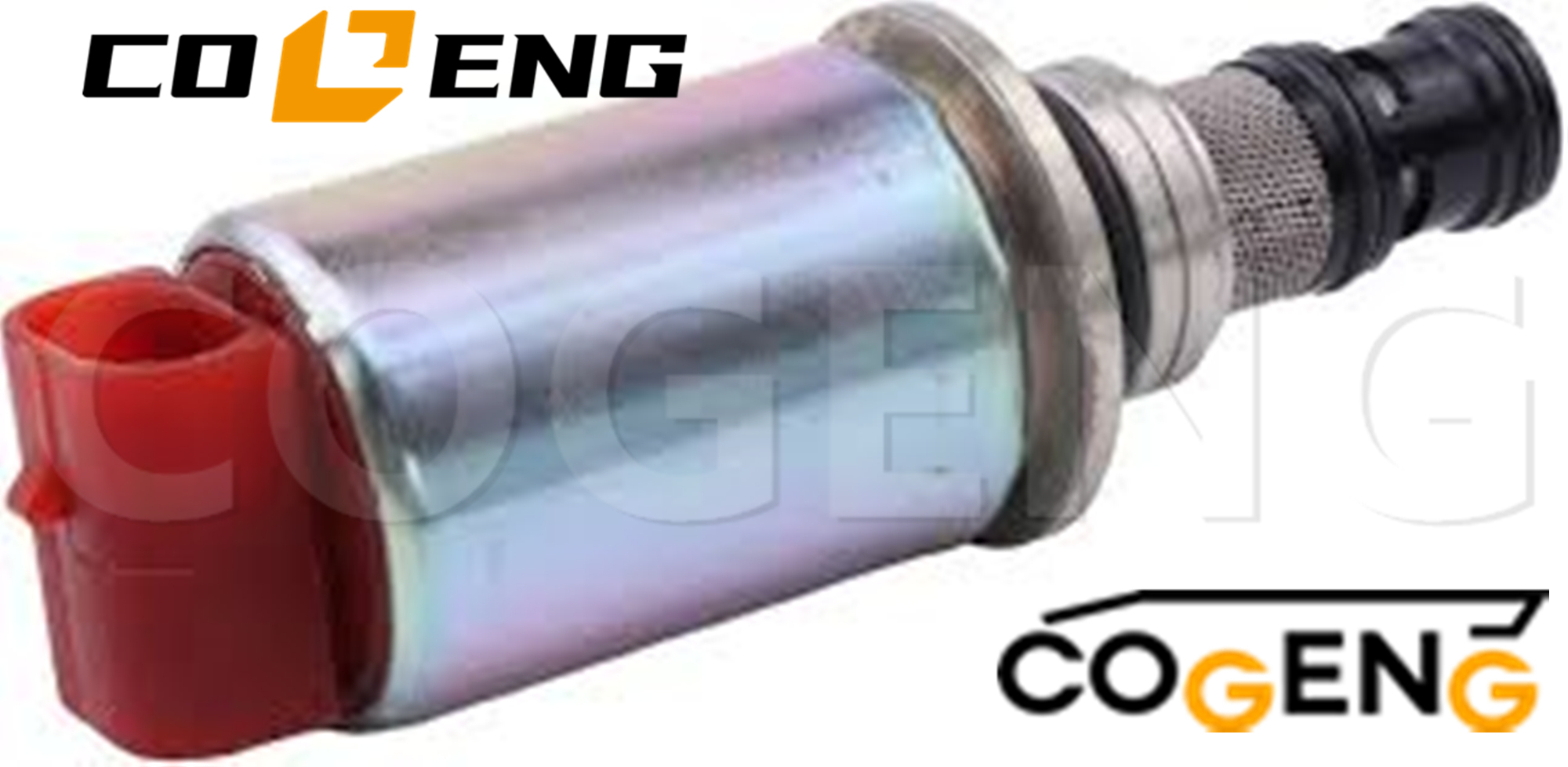

The COGENG Case Solenoid Valve is a high-performance electromechanical component designed for Case IH agricultural tractors, specifically the 155, 165, 170, 185, T1804, T2104, T1554, T1654, and T1754 models. This solenoid valve controls the flow of hydraulic fluid, transmission oil, or fuel (depending on application) by converting electrical signals into mechanical movement.
Solenoid valves are critical for modern tractor functions including:
Transmission shifting (powershift or CVT)
Hydraulic implement control (lift arms, remotes)
PTO engagement
Differential lock activation
Brake valve control
Manufactured under ISO9001 certified processes, this valve features a durable iron body for structural strength and rubber seals to prevent fluid leakage and withstand high pressure (up to 3000 PSI). Each unit is tested for coil resistance, sealing integrity, and response time before leaving the factory.
PRODUCT IDENTIFICATION
| Parameter | Specification |
|---|---|
| COGENG Part Number | 84537085 |
| OEM Equivalent | Case 84537085 |
| Product Type | Hydraulic / Pneumatic Solenoid Valve |
| Voltage | 12V DC or 24V DC (Case standard - verify application) |
| Mounting Type | Direct fit, cartridge or bolt-on |
| Brand | Part Number |
|---|---|
| COGENG | 84537085 |
| Case | 84537085 |
| Interchange | 84537086, 84537087, 84276869, 84286799, 87723783 |
| Parameter | 12V Version | 24V Version |
|---|---|---|
| Voltage Rating | 12V DC | 24V DC |
| Current Draw | 1.2 - 2.0 A | 0.6 - 1.0 A |
| Coil Resistance | 6 - 12 Ω @ 20°C | 20 - 40 Ω @ 20°C |
| Duty Cycle | 100% continuous | 100% continuous |
| Insulation Class | Class F (155°C) / Class H (180°C) | Class F (155°C) / Class H (180°C) |
| Protection Rating | IP65 / IP67 / IP69K | IP65 / IP67 / IP69K |
| Electrical Connection | Deutsch DT type (2-pin) or AMP/Tyco | Deutsch DT type (2-pin) or AMP/Tyco |
| Surge Protection | Built-in suppression diode | Built-in suppression diode |
| Power Consumption | Approx. 18-25 W | Approx. 18-25 W |
| Parameter | Specification |
|---|---|
| Valve Type | 2-way, 3-way, or 4-way (application dependent) |
| Maximum Operating Pressure | 350 bar (5,075 psi) |
| Pilot Pressure Range | 10 - 30 bar (145 - 435 psi) |
| Flow Capacity | Up to 30 L/min (8 GPM) |
| Response Time (On) | ≤ 45 ms |
| Response Time (Off) | ≤ 35 ms |
| Leakage (Internal) | ≤ 3 drops/min @ rated pressure |
| Fluid Compatibility | Mineral oil, synthetic hydraulic fluids |
| Parameter | Specification |
|---|---|
| Valve Body Material | High-strength steel / zinc-nickel plated |
| Spool Material | Hardened alloy steel (58-62 HRC) |
| Seal Material | NBR / HNBR / FKM (Viton) |
| Spring Material | Stainless steel |
| Mounting Interface | Case standard / ISO 4401 |

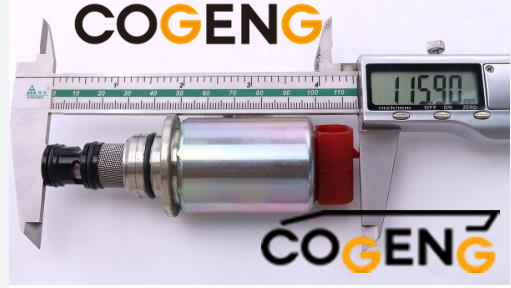

| Weight | 0.35 - 0.65 kg (0.77 - 1.4 lbs) |
| Parameter | Rating |
|---|---|
| Operating Temperature | -40°C to +90°C (-40°F to +194°F) |
| Storage Temperature | -40°C to +105°C (-40°F to +221°F) |
| Vibration Resistance | 15G @ 50-500Hz |
| Ingress Protection | IP67 / IP69K |
| Corrosion Protection | 500+ hours salt spray |
| Equipment Type | Series | Application |
|---|---|---|
| Backhoe Loaders | 580, 590, 680, 695 | Pilot control, attachment switching, transmission |
| Excavators | CX130, CX160, CX210, CX240, CX350, CX470 | Pilot control, swing brake |
| Wheel Loaders | 621, 721, 821, 921 | Pilot control, transmission clutch |
| Skid Steer Loaders | 180, 220, 250, 300, 400, 450 | Auxiliary hydraulics |
| Compact Track Loaders | TR270, TR320, TV320, TV380 | Auxiliary hydraulics |
| Tractors | Farmall, Maxxum, Magnum, Puma | Transmission, PTO, hydraulic remotes |
| Function | Description |
|---|---|
| Pilot Shut-Off (PSO) | Safety cut-off for hydraulic pilot controls |
| Attachment Switching | Selects between hydraulic attachments |
| Swing Brake Release | Controls excavator swing brake |
| Travel Speed Change | Shifts between high/low travel speeds |
| Transmission Shift Solenoid | Controls clutch engagement for gear changes |
| Differential Lock | Engages diff lock on wheel loaders |
| Auxiliary Hydraulic Control | Controls additional hydraulic circuits |
| PTO Engagement | Power take-off control on tractors |
Note: Verify voltage (12V or 24V) and function with your equipment manual before ordering. Contact COGENG with your machine model and serial number for exact compatibility confirmation.
| Feature | Benefit |
|---|---|
| Precision-ground spool | Consistent flow control, minimal leakage |
| High-quality copper coil | Reliable electrical operation |
| Corrosion-resistant plating | Withstands harsh environments |
| Direct fit accuracy | No modifications required |
| 100% factory tested | Every valve individually tested |
| Surge protection diode | Prevents voltage spike damage |
| Test | Method | Criteria |
|---|---|---|
| Coil Resistance | 100% measurement | Within specification |
| Dielectric Strength | 1500V AC/60s | No breakdown |
| Insulation Resistance | 500V DC | ≥100 MΩ |
| Operational Test | Rated voltage applied | Proper spool movement |
| Leak Test | Rated pressure | No external leakage |
| Flow Test | Certified test bench | Meets OEM curve |
✅ ISO 9001:2015 – Quality Management System
✅ RoHS Compliant
✅ REACH Compliant

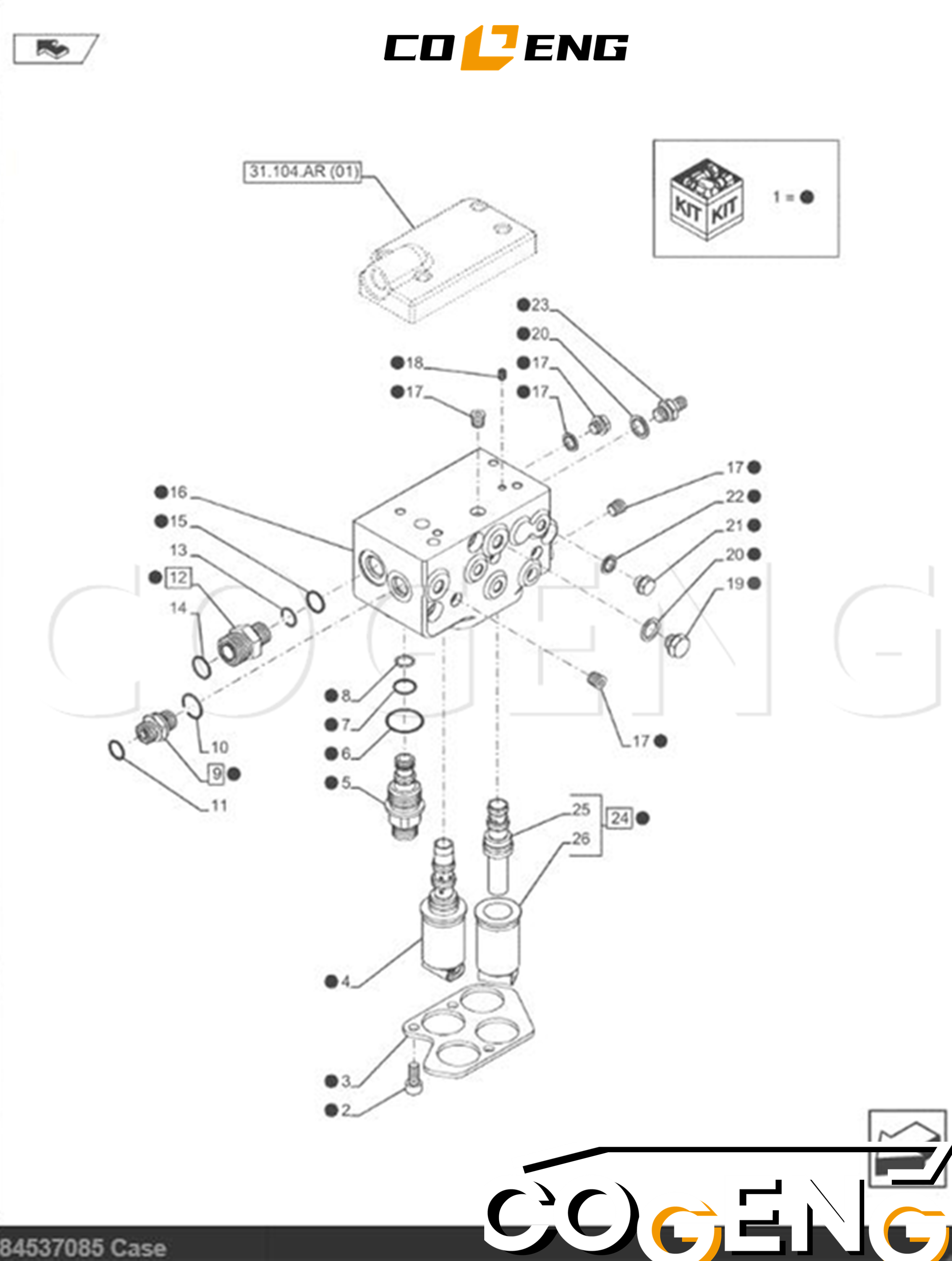

| NO | Number | Name | Qty |
| 1 | 87676058 | MANIFOLD | [1] |
| 2 | 86597760 | HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB | [1] |
| 3 | 87723783 | SOLENOID VALVE | [1] |
| 84537085 | SOLENOID VALVE | [1] | |
| 4 | 87676315 | TEE | [1] |
| 5 | 865998043 | PLUG,M12 x 1.5 ORB | [2] |
| 6 | 9993143 | HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB | [1] |
| 7 | 8767103 | HYD CONNECTOR | [1] |
| 8 | 5194826 | BRACKET | [1] |
| 9 | 14305124 | HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd | [2] |
| 10 | 14457880 | O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro | [1] |
| 11 | 5185512 | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | [1] |
| 12 | 5185513 | O-RING,1.78mm Thk x 18.77mm ID, 85 Duro | [1] |
| 13 | 14438185 | O-RING,24mm ID x 3mm | [1] |
| 14 | 86598098 | O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro | [1] |
| 15 | 9617873 | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | [1] |
| 16 | 9993141 | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | [1] |
| 17 | 5185511 | O-RING,1.78mm Thk x 12.42mm ID, 85 Duro | [1] |
| 18 | 86598103 | O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro | [1] |
| 19 | 9992069 | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | [1] |
| 20 | 5185423 | COUPLING | [1] |
| 21 | 8753222 | PLUG,Hex, M10 x 1 x 13mm | [4] |
| 22 | 87316678 | SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk | [4] |
| 23 | 84340724 | STUD | [1] |
| 24 | 84286799 | SOLENOID VALVE | [3] |
| 25 | 84537085 | SOLENOID VALVE | [1] |
Field Troubleshooting Guide:
| Symptom | Potential Cause | Field Correction |
|---|---|---|
| No valve operation | Electrical supply issue | Check fuses, relays, and wiring |
| Slow system response | Contaminated hydraulic fluid | Change fluid and filters |
| Hydraulic leakage | Improper installation or seal damage | Retorque connections or replace seals |
| Intermittent operation | Moisture in electrical connections | Dry connections and apply dielectric grease |
| Valve overheating | Excessive cycling or flow restriction | Check for system restrictions and allow cool-down |
Q: What Case IH models use this solenoid valve?
A: The COGENG solenoid valve is a direct OEM replacement for Case IH part numbers 84286799, 87723783, 84276869, and 84537085, designed for Case IH tractor models including 155, 165, 170, 185, T1804, T2104, T1554, T1654, and T1754. These multiple part numbers represent supersessions and cross-references of the same solenoid valve. This valve is typically used in the hydraulic or transmission control system. Always verify the specific part number against your machine's parts manual or the original valve's identification label to confirm exact compatibility before ordering.
Q: What are the symptoms of a failing solenoid valve on a Case IH tractor?
A: Common symptoms include the controlled hydraulic or transmission function failing to operate or operating intermittently, slow or delayed response when the function is activated, the solenoid clicking but no hydraulic movement, the solenoid coil overheating, blown fuses related to the solenoid circuit, or the transmission being stuck in a single gear or operating mode. A faulty solenoid valve can also trigger diagnostic trouble codes within the tractor's control system.
Q: What is the relationship between part numbers 84286799, 87723783, 84276869, and 84537085?
A: These four part numbers represent supersessions, updated versions, or cross-references of the same solenoid valve used across different Case IH tractor models and production periods. The COGENG solenoid valve is designed to be a direct replacement for all four part number references, simplifying parts inventory and ordering.
Q: Is this solenoid valve a direct plug-and-play replacement?
A: Yes, the COGENG solenoid valve is manufactured to exact OEM specifications for mounting dimensions, hydraulic port configuration, electrical connector type, voltage rating, coil resistance, and valve spool stroke. It is a direct plug-and-play replacement requiring no modifications when installed on compatible Case IH tractor models.
Q: What voltage does this solenoid valve operate on?
A: This solenoid valve is designed to operate on the standard voltage specified by Case IH for these part numbers. Always verify your machine's system voltage before installation to ensure proper solenoid operation and to prevent coil damage.
Q: What should I check before installing the new solenoid valve?
A: Before installation, verify the hydraulic system is depressurized, inspect the mating hydraulic surface for cleanliness and damage, check the electrical connector for corrosion or contamination, and ensure the O-rings or seals are properly seated. Contaminated hydraulic fluid is a leading cause of solenoid valve failure, so verify fluid cleanliness and replace hydraulic filters if necessary before installation.
Q: What is the warranty coverage for this solenoid valve?
A: COGENG provides a standard 12-month warranty against manufacturing defects from the date of installation. Proof of purchase and installation by a qualified technician are required. Warranty does not cover failure caused by contaminated hydraulic fluid, voltage irregularities, water ingress, improper installation, or use on incompatible equipment.
Q: Does COGENG offer technical support for installation or troubleshooting?
A: Yes, COGENG provides complimentary technical support to assist with installation guidance and basic troubleshooting. For complex hydraulic or transmission diagnostics on Case IH tractors, we recommend consulting a certified Case IH service technician.
Q: How is the solenoid valve protected during shipping?
A: Each COGENG solenoid valve is individually sealed in a moisture-resistant poly bag and packed in a sturdy corrugated carton with protective foam padding. All hydraulic ports and the electrical connector are capped to prevent contamination during transit. Factory direct shipping ensures the product reaches you in optimal condition.
