COGENG 82028413 Premium Main Wire Harness for New

Name: COGENG 82028413 Premium Main Wire Harness for New
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

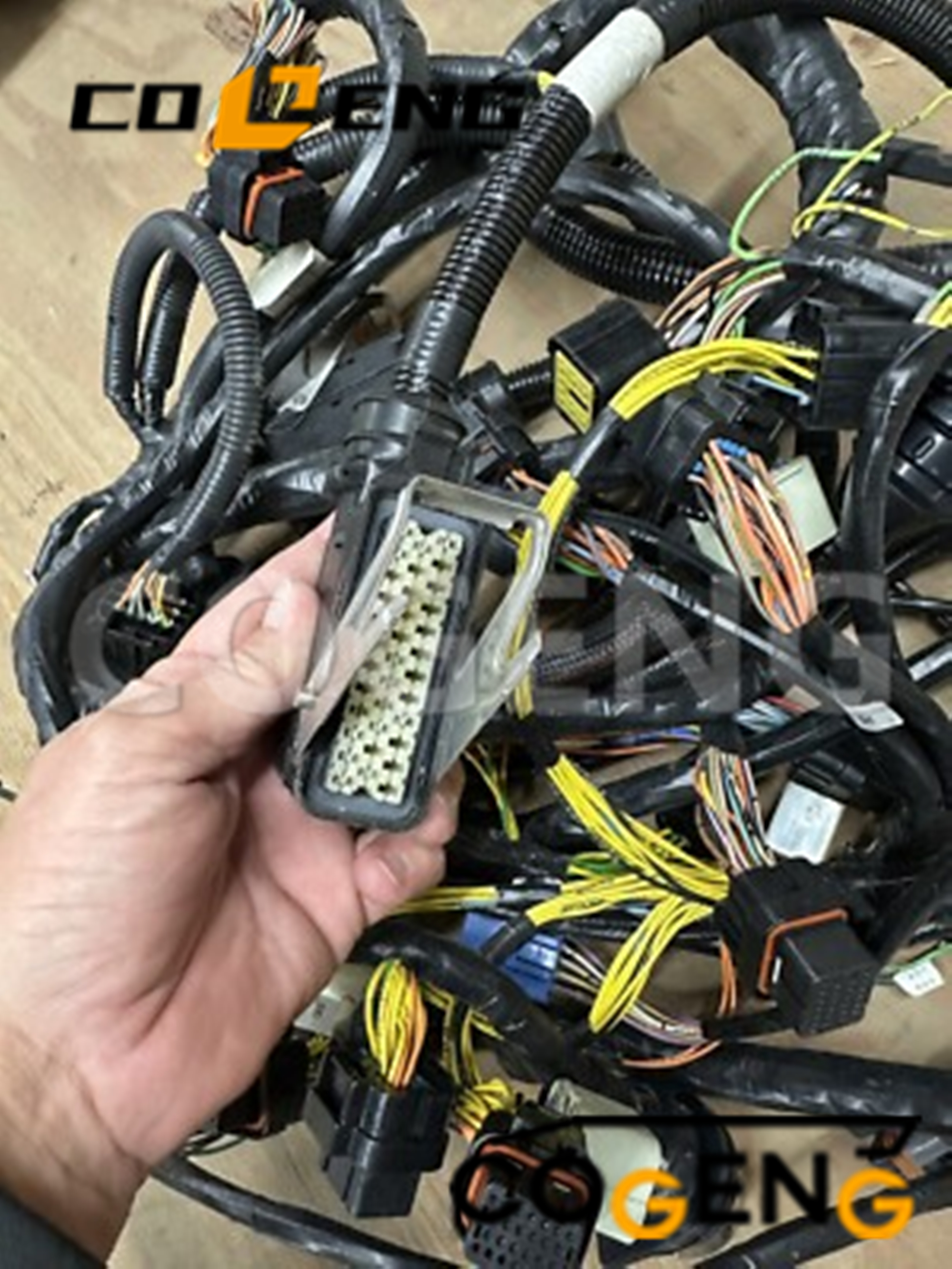

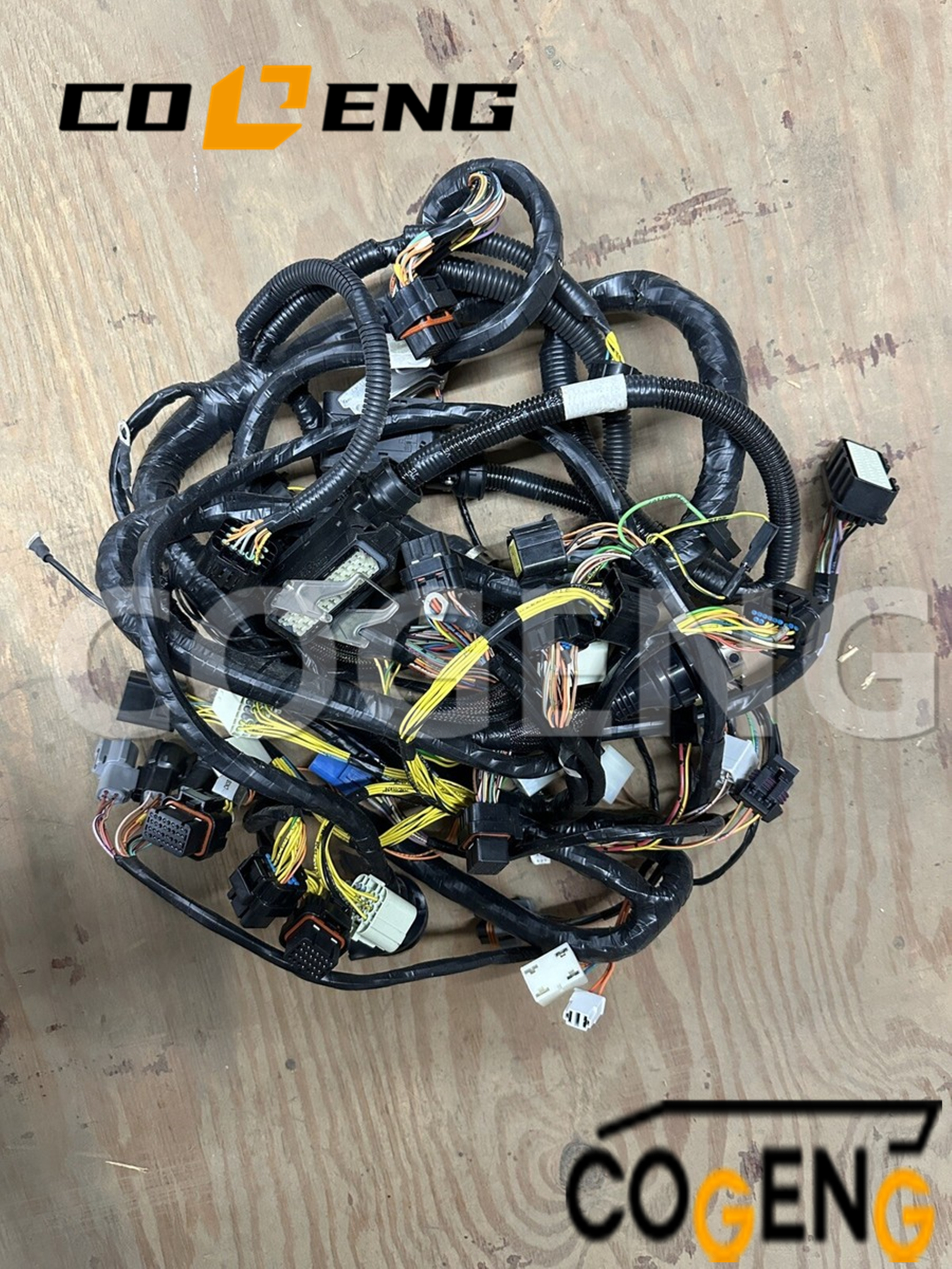

Product name: Case Wiring Harness
Part No: 82028413
Model Number:For MXM120, MXM130, MXM140, MXM155 MXM175, MXM190, MXM155 PRO
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

echnical Specifications & Performance Data

Parameter	Specification	Testing Standard
COGENG Part Number	COGENG-82028413-MWH	Internal Quality Standard QS-500
Replaces OEM Part No.	82028413	Direct OEM Replacement
Wire Gauge Range	0.5 mm² - 25.0 mm²	ISO 6722
Temperature Rating	-40°C to +125°C (-40°F to +257°F)	ISO 16750-4
Insulation Material	Cross-linked polyethylene	UL 224
Protective Conduit	Corrugated PA66	ISO 6722 Class B
Voltage Rating	12V/24V DC	IEC 60589
Current Capacity	5A - 150A (circuit dependent)	ISO 3780
Insulation Resistance	>100 MΩ at 1000V DC	IEC 60851
Dielectric Strength	2500V AC for 60 seconds	ISO 1456
Connector System	AMP/Tyco agricultural series	USCAR-2
Waterproof Rating	IP67 (connectors)	IEC 60529
Vibration Resistance	5-2000 Hz, 20G RMS	ISO 19453

Circuit Function	Wire Gauge	Color Code	Connector Type	Application
Starter Motor	25.0 mm²	Red	Heavy-duty lugs	High-current starting
Alternator Output	16.0 mm²	Orange	Ring terminals	120A charging system
Engine ECU Main	4.0 mm²	Red/Black	24-pin weatherproof	ECU power & control
Transmission Control	1.5 mm²	Green/White	16-pin connector	Transmission ECU
Hydraulic Valves	2.5 mm²	Blue/Yellow	12-pin weatherpack	Valve solenoids
Lighting System	2.0 mm²	White/Black	8-pin connector	Work lights
Cab Controls	0.5 mm²	Various	32-pin connector	Operator interfaces
Sensor Cluster	0.75 mm²	Various	Multiple 4-pin	Engine/transmission
CAN Bus System	0.75 mm²	Orange/Brown	Twisted pair shielded	Data communication
Ground Distribution	25.0 mm²	Black	Multiple points	System grounding

Compatible Tractor Models

Brand	Series	Specific Models	Model Years
New Holland	TM Series	TM120, TM130, TM140, TM150	2000-2007
New Holland	TM Series	TM155, TM165, TM175, TM190	2000-2007
Case IH	MXM Series	MXM120, MXM130, MXM140, MXM155	2000-2006
Case IH	MXM Series	MXM175, MXM190, MXM155 PRO	2000-2006

Parts list

NO	Number	Name	Qty
1	82034549	WIRE HARNESS	[1]
	82028409	WIRE HARNESS	[1]
	82028253	Main Rear, MXM120, MXM130, MXM140	[1]
	82028414	WIRE HARNESS	[1]
	82028410	WIRE HARNESS	[1]
	82028408	WIRE HARNESS	[1]
2	263117	CABLE TIE,292.1mm L, Nylon, Black	[4]
2	5112712	COLLAR,M4.8 x 283	[3]
3	82011886	WIRE HARNESS	[1]
4	80015353	RELAY,12V, 0.88A	[1]
5	82028411	WIRE HARNESS	[1]
5	82028412	WIRE HARNESS	[1]
6	81872099	SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8	[3]
7	83976853	CLIP,12.7mm, Coat, 11.5mm Bolt Hole, J Type	[1]
8	81813738	CLIP	[1]
9	83918745	SPRING CLIP	[4]
10	83864706	BOOT	[3]
11	820150683	WIRE HARNESS	[1]
12	82015352	PLATE	[2]
13	10523401	WASHER,6.15mm ID x 18mm OD x 2mm Thk	[4]
14	12035670	LOCK WASHER	[4]
15	10902224	SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd	[4]
16	82028413	WIRE HARNESS	[1]
17	82004463	RELAY,12V, 30A	[2]
18	16043824	SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC	[4]
19	14496504	WASHER,8.4mm ID x 17mm OD x 1.6mm Thk	[4]
20	82031360	BRACKET	[1]
21	15687201	SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm	[4]
21	16043424	SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd	[2]
22	16100811	NUT,Hex, M8, 6.80mm, Cl 8, ZND	[2]
23	82028413	WIRE HARNESS	[1]

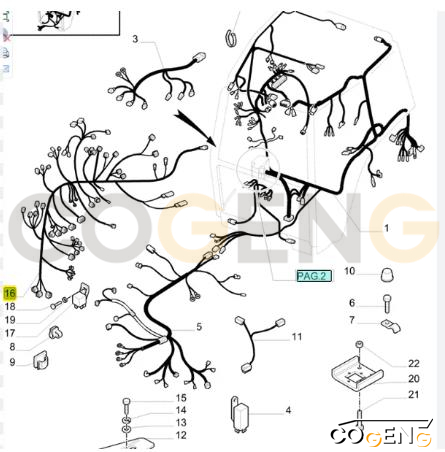

Decompose pictures

Installation decomposition diagram

Electrical Performance Parameters

Parameter	Minimum	Typical	Maximum
Starter Voltage Drop	N/A	<0.4V	<0.6V
Signal Circuit Resistance	N/A	<0.1Ω	<0.2Ω
CAN Bus Termination	110Ω	120Ω	130Ω
Insulation Resistance	100 MΩ	500 MΩ	N/A
Voltage Drop (Power)	N/A	<0.3V	<0.5V

Maintenance & Troubleshooting Data

Maintenance Activity	Interval	Parameters	Test Equipment
Visual Inspection	500 hours	Check for abrasion, UV damage	Visual assessment
Connector Check	1000 hours	Verify IP67 seal integrity	Connector test tool
Resistance Test	2000 hours	Circuit resistance < 0.2Ω	Digital multimeter
Insulation Test	4000 hours	>100 MΩ at 1000V DC	Megohmmeter
Function Test	8000 hours	Full system operational check	Diagnostic software
