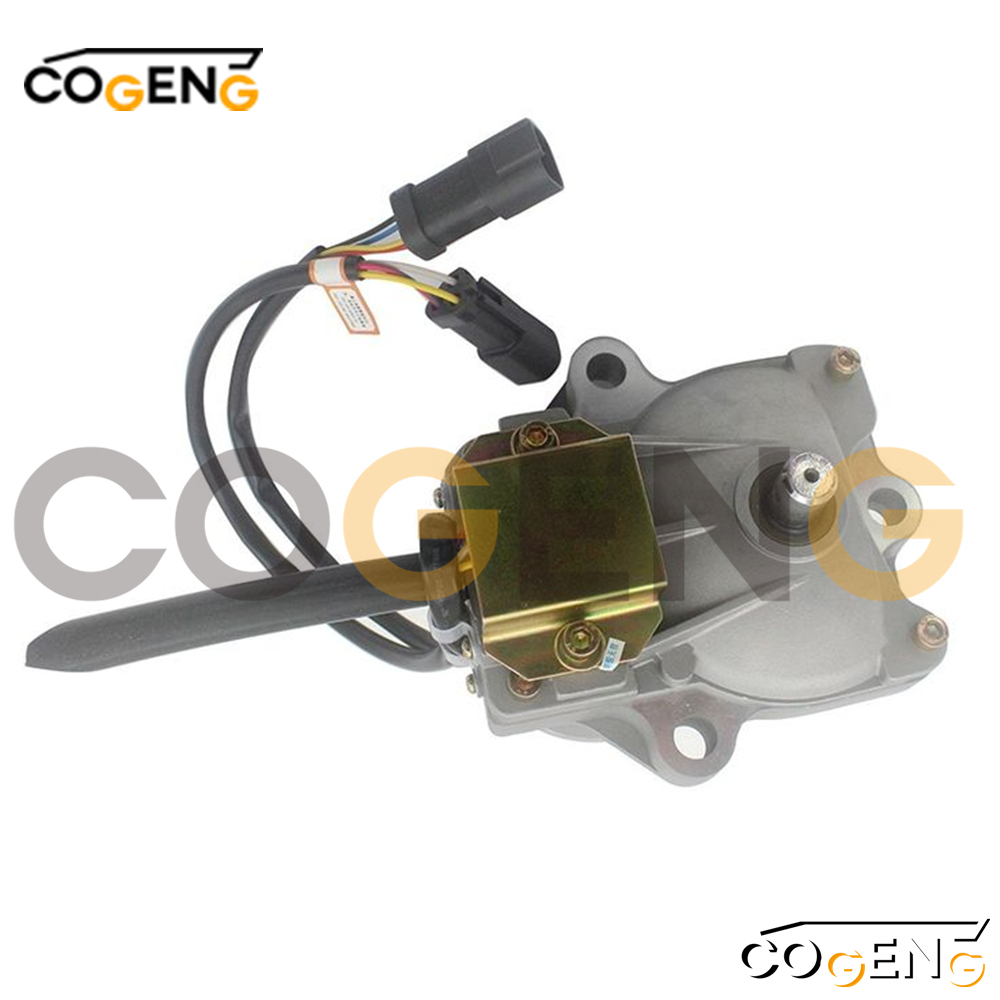

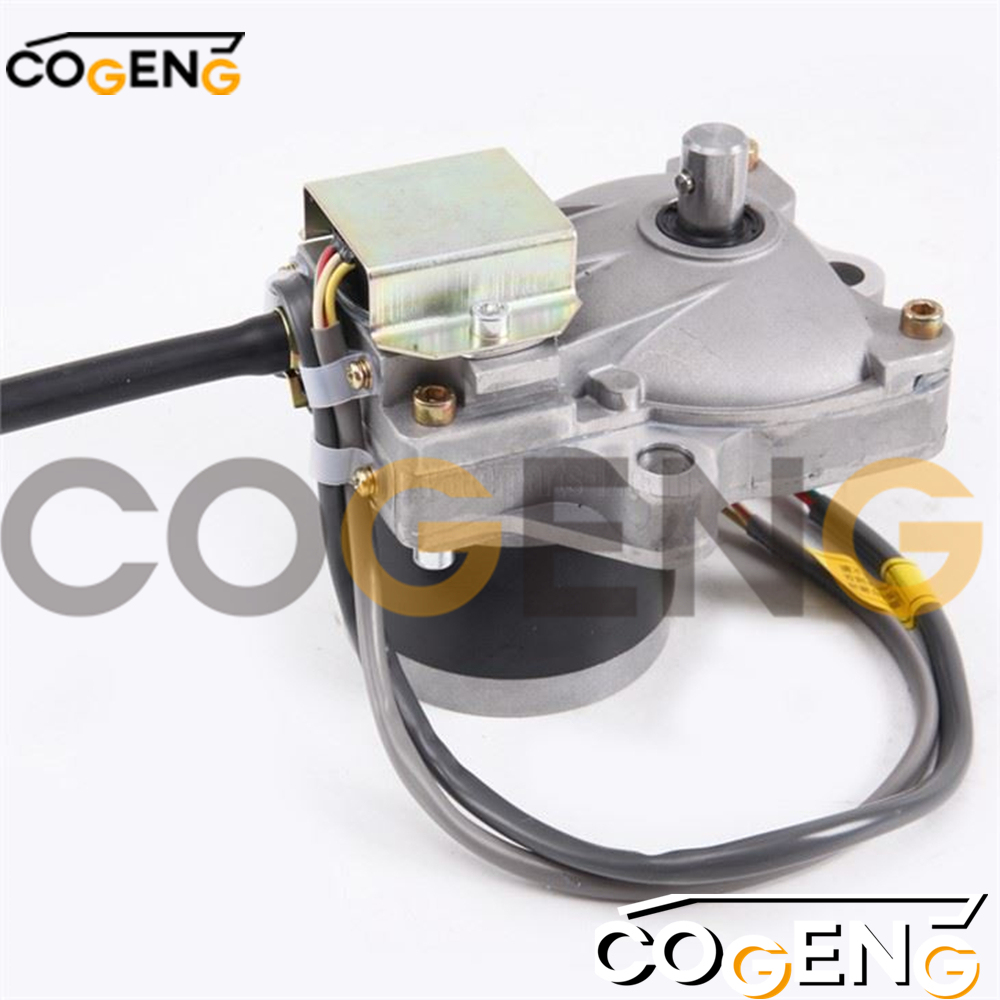

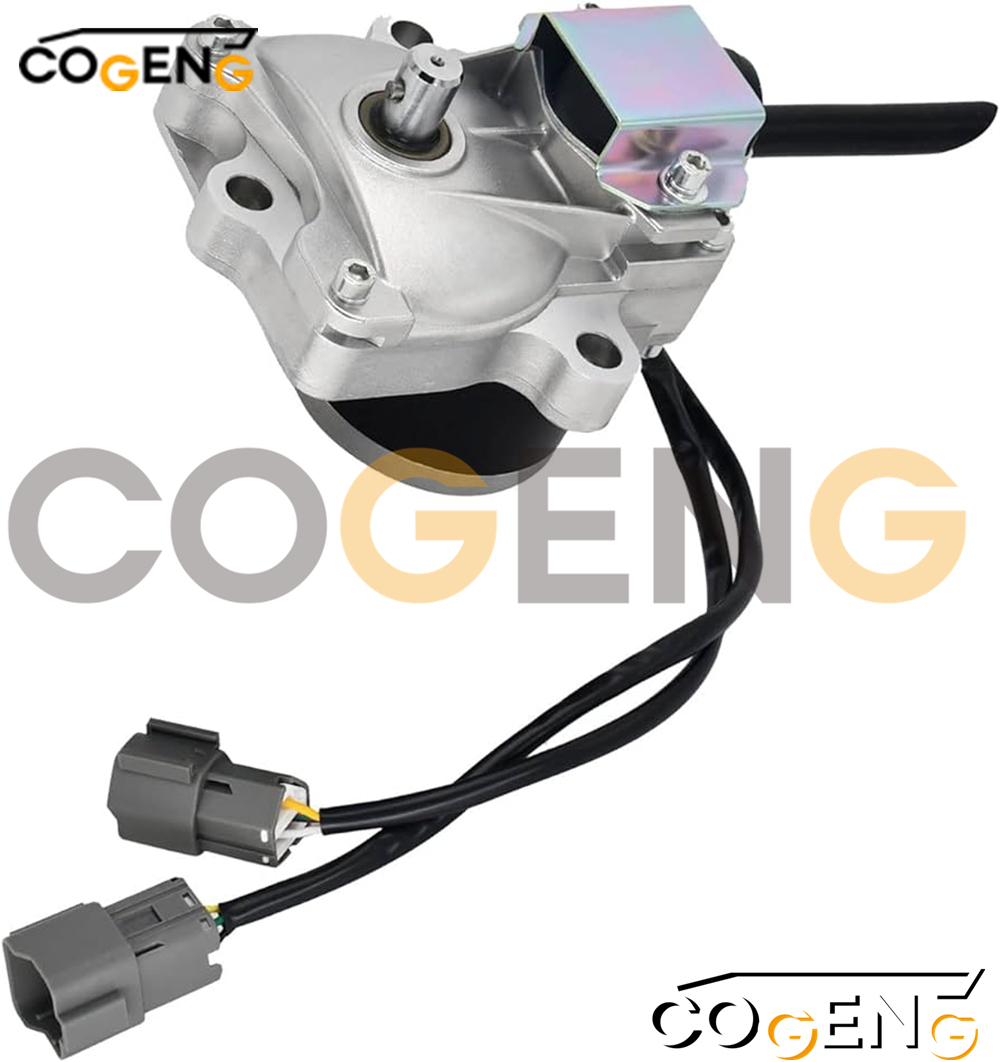

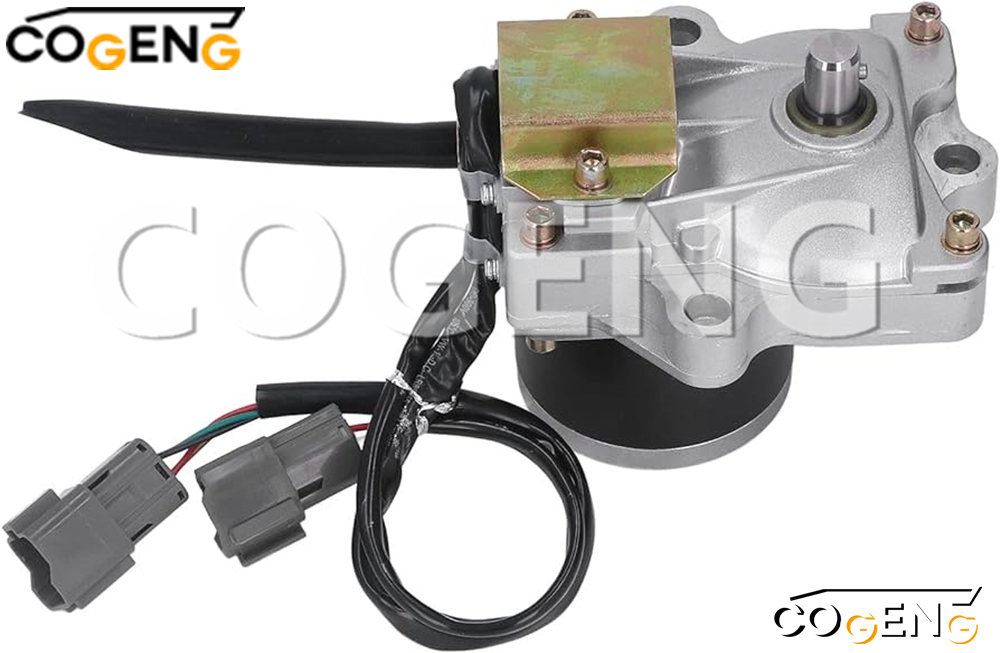

| Specification Category | Technical Specifications |
|---|---|
| Compatible Applications | Komatsu Excavators (Compatible with 7824-41-2000/2001/2002 applications) |
| COGENG Part Number | CG-KOM-TM-28 |
| Replaces OEM Part Numbers | 7824-41-2000, 7824-41-2001, 7824-41-2002 |
| Product Type | Electronic Throttle Motor Assembly |
| Operating Voltage | 12V/24V DC (Auto-sensing) |
| Protection Rating | IP67 Sealed Connectors and Housing |
| Position Feedback | Integrated Potentiometer or Hall Effect Sensor |
| Temperature Range | -40°C to 85°C Operating Temperature |
| Quality Assurance | 100% Performance and Endurance Tested |
| Warranty | COGENG 12-Month Unlimited Hour Warranty |

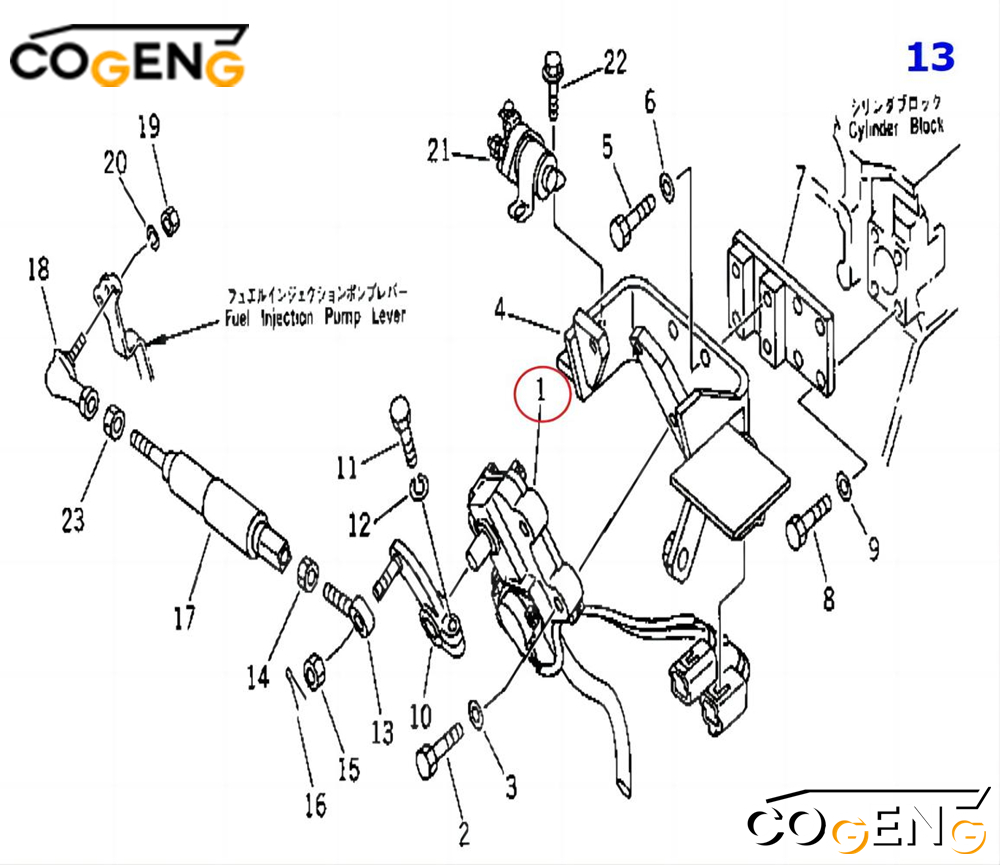

| NO | Number | Name | Qty |
| 1 | 7824-41-2000 | Throttle Motor | 1 |
| 7824-41-2001 | Throttle Motor | 1 | |
| 7824-41-2002 | Throttle Motor | 1 | |
| 2 | 01010-51040 | BOLT | 3 |
| 3 | 01643-31032 | WASHER | 3 |
| 4 | 20Y-43-12122 | BRACKET | 1 |
| 5 | 01010-51025 | BOLT | 4 |
| 6 | 01643-31032 | WASHER | 4 |
| 7 | 20Y-43-12132 | BRACKET | 1 |
| 8 | 01010-51025 | BOLT | 4 |
| 9 | 01643-31032 | WASHER | 4 |
| 10 | 20Y-43-12143 | LEVER | 1 |
| 11 | 01010-51035 | BOLT | 1 |
| 12 | 01602-21030 | WASHER,SPRING | 1 |
| 13 | 04252-21061 | END | 1 |
| 14 | 01582-11008 | NUT | 1 |
| 15 | 01593-31008 | NUT | 1 |
| 16 | 04050-12018 | PIN,COTTER | 1 |
| 17 | 20Y-43-12116 | SPRING ASS'Y | 1 |
| 20Y-43-12115 | SPRING ASS'Y | 1 | |
| 18 | 20Y-43-12180 | JOINT | 1 |
| 19 | 01580-10605 | NUT | 1 |
| 20 | 01602-20619 | WASHER,SPRING | 1 |
| 21 | 600-815-2170 | SWITCH,HEATER | 1 |
| 22 | 01435-20612 | BOLT | 2 |
| 23 | 01582-11008 | NUT | 1 |
System Power Isolation: Disconnect the battery and main power sources before beginning installation. Wait at least 10 minutes for system capacitors to discharge completely.
Linkage Documentation: Photograph and note the exact position of all throttle linkage connections before disassembly to ensure proper reassembly.
Connector Handling: Use proper technique when disconnecting electrical connectors. Avoid pulling on wires and ensure locking mechanisms are fully released before separation.
Mounting Surface Preparation: Clean the mounting surface thoroughly and inspect for damage or corrosion that could affect motor alignment or operation.
Linkage Adjustment: After installation, verify throttle linkage moves freely through its entire range without binding or excessive slack.
System Calibration: Perform throttle calibration procedure using appropriate diagnostic equipment to ensure accurate position feedback and control.
Operational Verification: Test throttle operation through complete speed range, verifying smooth engine response and accurate speed control.
