Komatsu Throttle Motor
Product name: Komatsu Throttle Motor
Part No: 7824-40-2000 7824-40-2001 7824-40-2002 7824-40-2003 7824-40-3000 7824402000 7824402001 7824402002 7824402003 7824403000
Model Number:For PC200-6 PC220-6 PC120-6 PC300-6 PC400-6 PC350-6 PC450-6
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Technical Specifications |
| COGENG Part Number Series |
KTM-7824-01 to KTM-7824-05 |
| Replaces OEM Numbers |
7824-40-2000, 7824-40-2001, 7824-40-2002, 7824-40-2003, 7824-40-3000 |
| Compatible Komatsu Models |
PC200-6/7/8, PC220-6/7/8, PC300-6/7, PC360-6/7 |
| Operating Voltage |
24V DC ±15% |
| - Current Consumption |
3.5A max @ stall condition |
| - Position Feedback |
12-bit absolute encoder |
| - Communication Protocol |
PWM Position Control |
| Positioning Accuracy |
±0.5° |
| - Response Time |
< 150ms full stroke |
| - Maximum Torque |
2.8 Nm |
| - Operating Range |
0° to 90° |
Decompose pictures
| Environmental Ratings |
|
| - Temperature Range |
-40°C to +140°C |
| - Protection Rating |
IP67 |
| - Vibration Resistance |
15G (5-2000 Hz) |
| - Shock Resistance |
50G (11ms duration) |
Here are some additional details about
The Komatsu Throttle Motor is a component used in electronic throttle control systems in Komatsu equipment. It is responsible for controlling the throttle valve's opening and regulating the engine's power output. The Throttle Motor receives signals from various sensors, such as the Throttle Position Sensor (TPS), and adjusts the throttle valve's position accordingly.
The specific part numbers you provided likely correspond to different versions, variations, or applications of the Komatsu Throttle Motor. Each part number may be associated with a specific Komatsu equipment model or engine configuration. The different part numbers allow for accurate identification and selection of the appropriate Throttle Motor for a particular application or equipment model.
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
7824-40-2000 |
Throttle Motor |
1 |
|
7824-40-2001 |
Throttle Motor |
1 |
|
7824-40-2002 |
Throttle Motor |
1 |
|
7824-40-2003 |
Throttle Motor |
1 |
|
7824-40-3000 |
Throttle Motor |
1 |
| 2 |
01010-51040 |
BOLT |
3 |
| 3 |
01643-31032 |
WASHER |
3 |
| 4 |
20Y-43-12122 |
BRACKET |
1 |
| 5 |
01010-51025 |
BOLT |
4 |
| 6 |
01643-31032 |
WASHER |
4 |
| 7 |
20Y-43-12132 |
BRACKET |
1 |
| 8 |
01010-51025 |
BOLT |
4 |
| 9 |
01643-31032 |
WASHER |
4 |
| 10 |
20Y-43-12143 |
LEVER |
1 |
| 11 |
01010-51035 |
BOLT |
1 |
| 12 |
01602-21030 |
WASHER,SPRING |
1 |
| 13 |
04252-21061 |
END |
1 |
| 14 |
01582-11008 |
NUT |
1 |
| 15 |
01593-31008 |
NUT |
1 |
| 16 |
04050-12018 |
PIN,COTTER |
1 |
| 17 |
20Y-43-12116 |
SPRING ASS'Y |
1 |
|
20Y-43-12115 |
SPRING ASS'Y |
1 |
| 18 |
20Y-43-12180 |
JOINT |
1 |
| 19 |
01580-10605 |
NUT |
1 |
| 20 |
01602-20619 |
WASHER,SPRING |
1 |
| 21 |
600-815-2170 |
SWITCH,HEATER |
1 |
| 22 |
01435-20612 |
BOLT |
2 |
| 23 |
01582-11008 |
NUT |
1 |
| Mechanical Specifications |
|
| - Housing Material |
Die-cast Aluminum with Powder Coat |
| - Gear Material |
Stainless Steel with Diamond-like Coating |
| - Shaft Material |
440C Stainless Steel |
| - Weight |
1.2 kg (2.65 lbs) |
| Durability & Quality |
|
| - Cycle Life |
> 1,000,000 cycles |
| - Manufacturing Standard |
IATF 16949:2016 |
| - Quality Testing |
100% dynamic performance validation |
| Warranty Coverage |
4,000 hours / 36 months |
Application Guide
-
KTM-7824-01: Replaces 7824-40-2000 (Standard Duty)
-
KTM-7824-02: Replaces 7824-40-2001 (Heavy Duty)
-
KTM-7824-03: Replaces 7824-40-2002 (High Temperature)
-
KTM-7824-04: Replaces 7824-40-2003 (Enhanced Sealing)
-
KTM-7824-05: Replaces 7824-40-3000 (Latest Revision)
Note: Always verify specific model application and calibration requirements before installation.

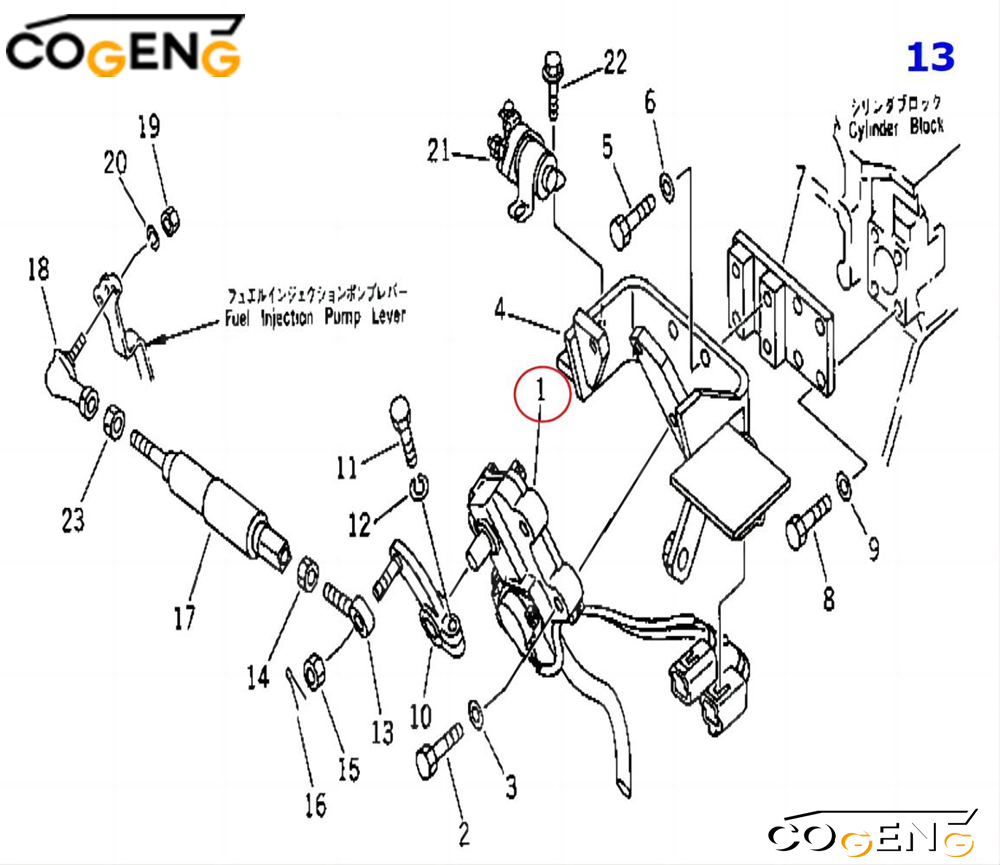

Installation decomposition diagram
