| Specification Category | Technical Details |
|---|---|
| Compatible Machine Models | JCB 3CX, 4CX, 5CX Backhoe Loaders (All variants) |
| COGENG Part Number | CG-JCB-3CX5CX-UWH09 |
| Replaces OEM Part Number | 721-00261 |

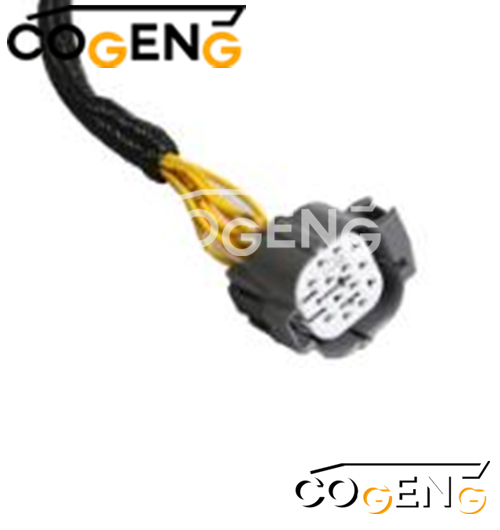

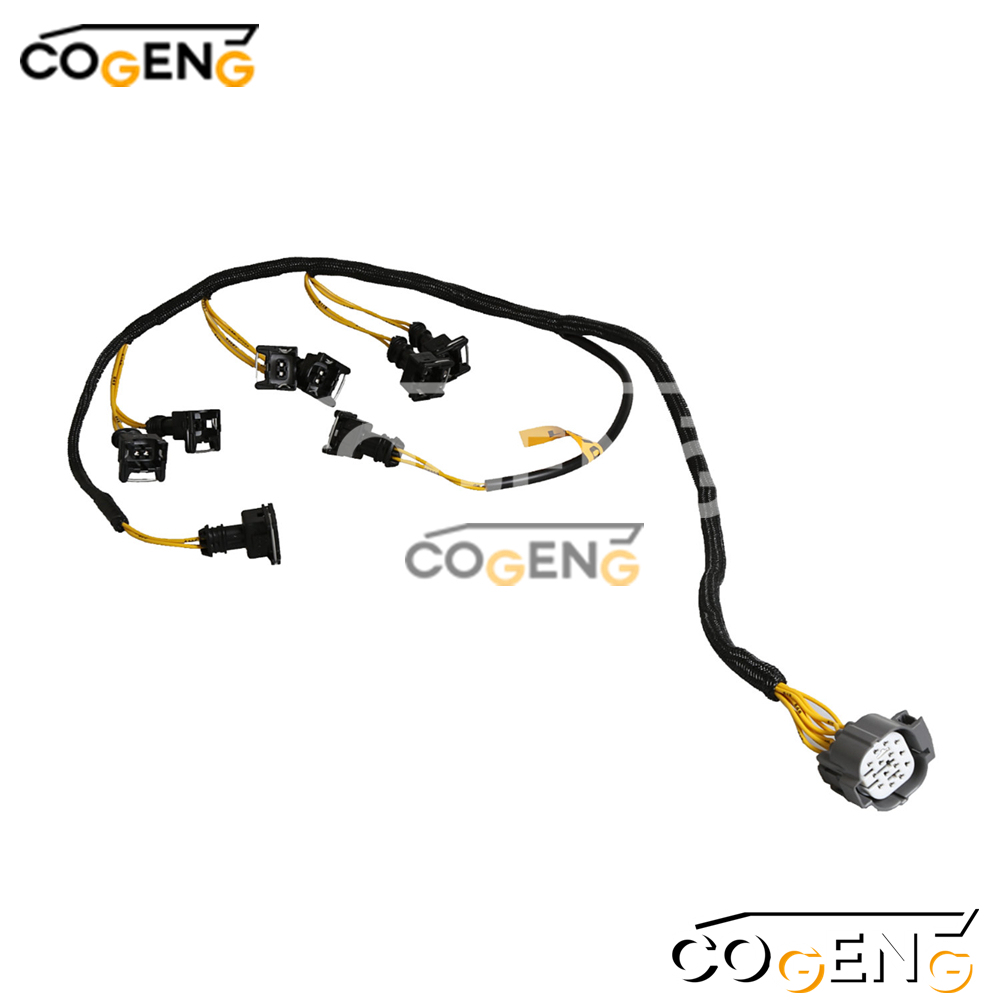

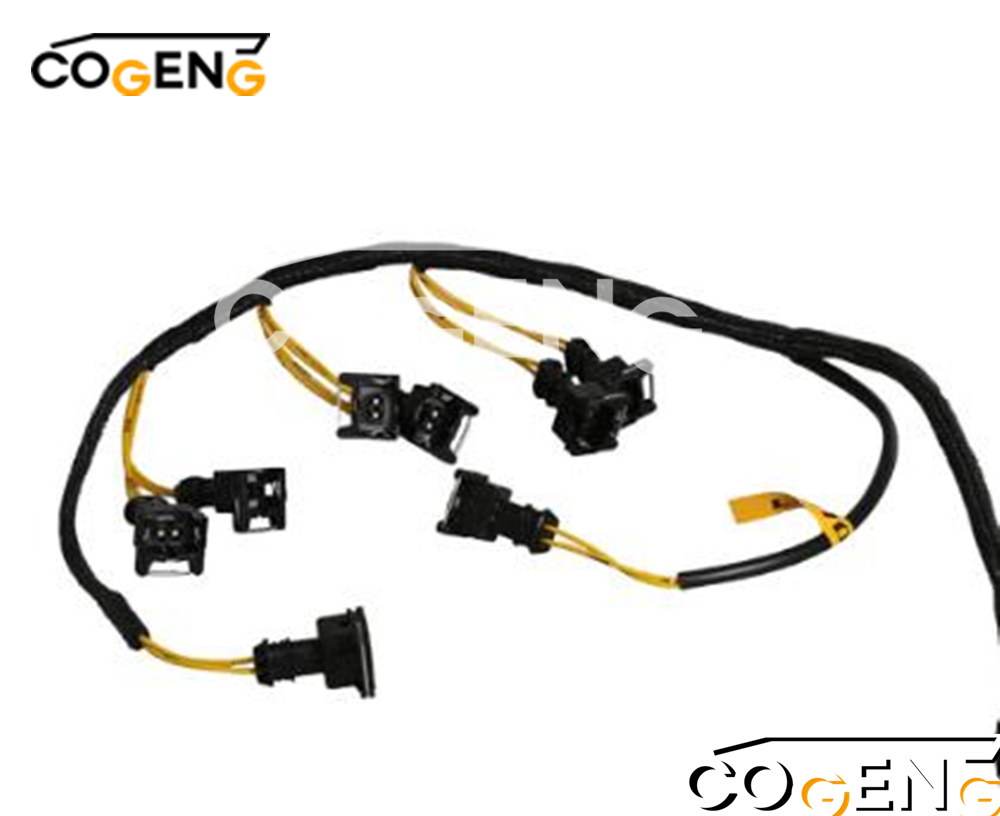

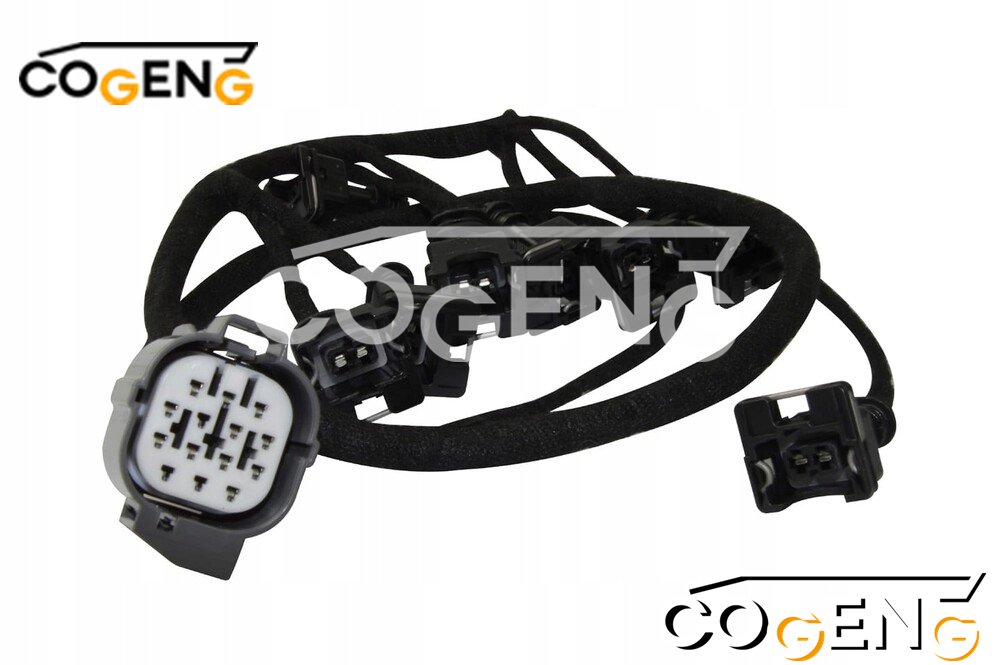

| Product Name | Universal Main Wiring Harness Assembly |
| Application Scope | Complete machine electrical system including power distribution, lighting, controls, and safety systems |
| Wire Specifications | Military-grade TXL insulation (-50°C to 150°C), oil/fuel/abrasion resistant |
| Connector System | IP68 rated sealed connectors with model-specific keying and color coding |
| Quality Assurance | 9-stage testing protocol including vibration endurance and electromagnetic compatibility |
| Warranty Coverage | 3,000-hour premium warranty |
| Brand | Part Number |
|---|---|
| COGENG | 721/00261 |
| JCB | 721/00261 |
| Interchange | 721/00262, 721/00263, 721/00264, 701/50350 |
| Parameter | Specification |
|---|---|
| System Voltage | 12V or 24V DC (JCB standard - verify application) |
| Current Capacity | Up to 30A (solenoid circuits) |
| Wire Gauge Range | 18AWG - 20AWG (signal) / 14AWG - 16AWG (solenoid power) |
| Insulation Resistance | ≥100MΩ @ 500V DC |
| Dielectric Strength | 500V AC/60s No Breakdown |
| Voltage Drop | <0.5V @ rated load |
| Temperature Rating | -40°C to +105°C |
| Component | Material Specification |
|---|---|
| Conductor | High-purity tinned copper (99.9%) |
| Wire Insulation | Heat-resistant PVC / Cross-linked polyethylene |
| Outer Wrapping | Automotive-grade cloth tape / Corrugated conduit |
| Connector Housings | OEM-grade Nylon 66 / PBT (UL94 V-0) |
| Terminals | Tin-plated brass |
| Protective Sleeving | Corrugated conduit for abrasion protection |
| Identification | Color-coded wires (JCB standard) |
| Parameter | Rating |
|---|---|
| Temperature Range | -40°C to +105°C |
| Ingress Protection | IP65 / IP67 (transmission connectors) |
| Vibration Resistance | 10G @ 50-500Hz |
| Chemical Resistance | Resists oil, diesel, hydraulic fluid |
| Abrasion Resistance | Corrugated conduit in high-wear areas |
| Model | Series | Transmission | Application |
|---|---|---|---|
| 3CX | T0 Series | 4-speed powershift | Powershift harness |
| 3CX | T4i Series | 4-speed powershift | Powershift harness |
| 3CX Super | Various | 4-speed powershift | Powershift harness |
| 3CX Plus | Various | 4-speed powershift | Powershift harness |
| 3CX Xtra | Various | 4-speed powershift | Powershift harness |
| Model | Series | Transmission | Application |
|---|---|---|---|
| 4CX | T0 Series | 4-speed powershift | Powershift harness |
| 4CX | T4i Series | 4-speed powershift | Powershift harness |
| 4CX Super | Various | 4-speed powershift | Powershift harness |
| 4CX Plus | Various | 4-speed powershift | Powershift harness |
| 4CX Xtra | Various | 4-speed powershift | Powershift harness |
Note: This harness is specifically for machines equipped with 4-speed powershift transmissions. Verify compatibility with your equipment model and serial number before ordering. Contact COGENG with your machine details for exact application verification.
| Circuit Group | Components | Wire Specification |
|---|---|---|
| Transmission Control | Powershift ECU / controller interface | Shielded 18-20 AWG |
| Shift Solenoids | Forward/reverse, gear selection solenoids | 14-16 AWG |
| Speed Sensors | Input/output speed sensors | Shielded 18-20 AWG |
| Clutch Control | Torque converter lock-up, clutch solenoids | 14-16 AWG |
| Temperature Sensor | Transmission oil temperature | Shielded 18-20 AWG |
| Pressure Switch | Transmission oil pressure monitoring | 18-20 AWG |
| Operator Controls | Shuttle lever, gear selector, neutral start | 18-20 AWG |

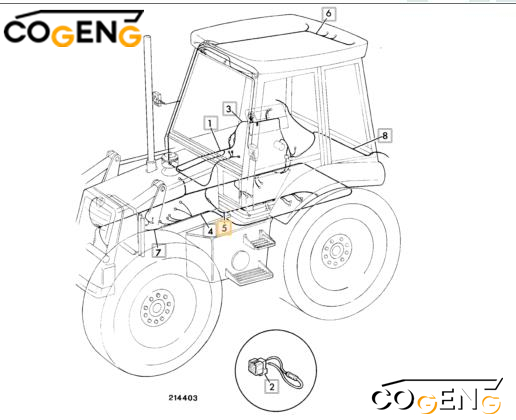

| NO | Number | Name | Qty |
| 1 | 721/10140 | Harness cab | 1 |
| 2 | 716/10700 | Plug single diode 2 way | 1 |
| 3 | 721/00629 | Harness panel | 1 |
| 3A | 716/20400 | Plug 6 diode AWS | 1 |
| 3A | 716/13300 | Diode Gate Assembly Double | 1 |
| 4 | 721/00906 | Harness chassis | 1 |
| 5 | 721/00261 | Harness | 1 |
| 6 | 721/00611 | Harness roof ROW | 1 |
| 7 | 718/56073 | Harness Esos darwin engine | 1 |
| 7 | 721/10495 | Harness ESOS link | 1 |
| 8 | 721/00260 | Harness rear light sideshift | 1 |
| 9 | 719/10103 | Plug Harness Blanking 6-way,Sealed | 1 |
| 10 | 718/56006 | Harness altemator | 1 |
| Step | Action | Critical Note |
|---|---|---|
| Preparation | ||
| 1 | Park machine on level surface, lower implements, engage parking brake | Safety first |
| 2 | Disconnect battery (negative first) | Essential safety step |
| 3 | Raise cab or remove floor plates (as required) | Access to transmission |
| 4 | Document all connections (take photos) | Especially solenoid connections |
| Removal | ||
| 5 | Locate powershift harness on transmission | Usually on top/side of transmission |
| 6 | Disconnect all connectors from old harness | Note locations and solenoid positions |
| 7 | Mark solenoid connectors (FWD, REV, 1-4) | Critical for correct reconnection |
| 8 | Release all clips, ties, clamps | Save reusable clips |
| 9 | Remove old harness | Follow routing path |
| Installation | ||
| 10 | Clean mounting surfaces | Remove debris, corrosion, oil |
| 11 | Lay new harness following original routing | Exact path match |
| 12 | Connect transmission solenoid connectors in correct order | Match markings (FWD, REV, 1-4) |
| 13 | Connect speed sensors (input and output) | Verify orientation |
| 14 | Connect temperature sensor and pressure switch | Ensure seated |
| 15 | Route to powershift ECU | Follow original path |
| 16 | Connect to ECU (if separate) | Ensure fully seated |
| 17 | Route to cab controls (shuttle lever, gear selector) | Through firewall |
| 18 | Connect shuttle lever and gear selector | Verify orientation |
| 19 | Connect neutral start switch | Critical safety circuit |
| 20 | Connect main power and ground | Clean, tight connections |
| 21 | Secure with clips and zip ties | Every 150mm, prevent chafing |
| Final | ||
| 22 | Reconnect battery (positive last) | Momentary contact check |
| 23 | Start engine, test transmission functions | Forward, reverse, all gears |
| 24 | Check for leaks around transmission | Inspect sensor ports |
| 25 | Test neutral start safety | Machine must NOT start in gear |
| 26 | Road test (if applicable) | Verify all gears under load |
| 27 | Reinstall cab/floor plates | No wire pinching |
| Note | Detail |
|---|---|
| Solenoid identification | Mark each solenoid connector before removal (FWD, REV, 1, 2, 3, 4, LC). Incorrect connection causes wrong gear engagement. |
| Speed sensor orientation | Some speed sensors have polarity. Verify orientation. |
| Neutral start test | Test after installation: Engine must NOT crank in forward or reverse. |
| Fluid resistance | Harness is exposed to transmission fluid. Use oil-resistant connectors. |
| Routing Path | Follow original exactly. Keep away from hot exhaust components. |
| Connector Sealing | Ensure all seals are properly seated. |
| Ground Points | Clean to bare metal. Poor grounds cause erratic shifting. |
| Function Test | Test ALL gears: Forward 1-4, Reverse 1-2. Verify smooth shifts. |
