| Specification Category | Technical Specifications |
|---|---|
| Compatible Applications | Komatsu Equipment (Compatible with 708-23-18272, 708-2H-25240, 708-2L-25211 applications) |
| COGENG Part Number | CG-KOM-SV-36 |
| Replaces OEM Part Numbers | 708-23-18272, 708-2H-25240, 708-2L-25211 |

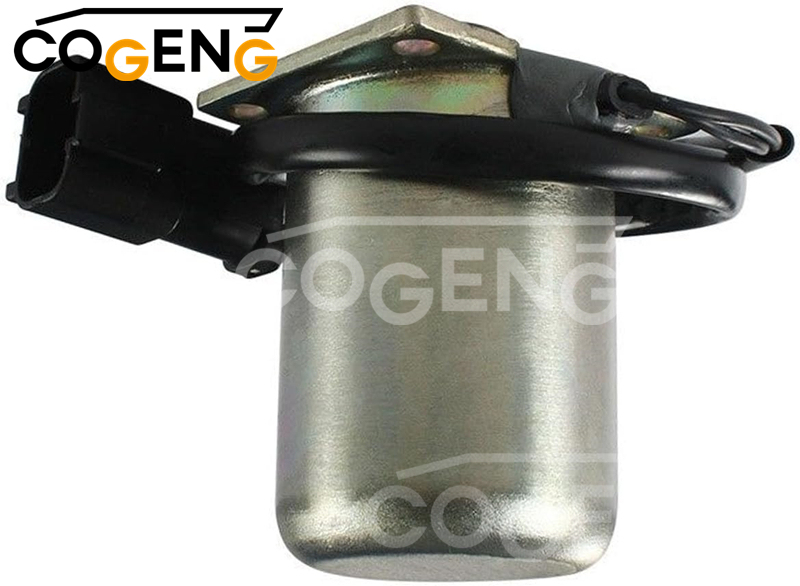

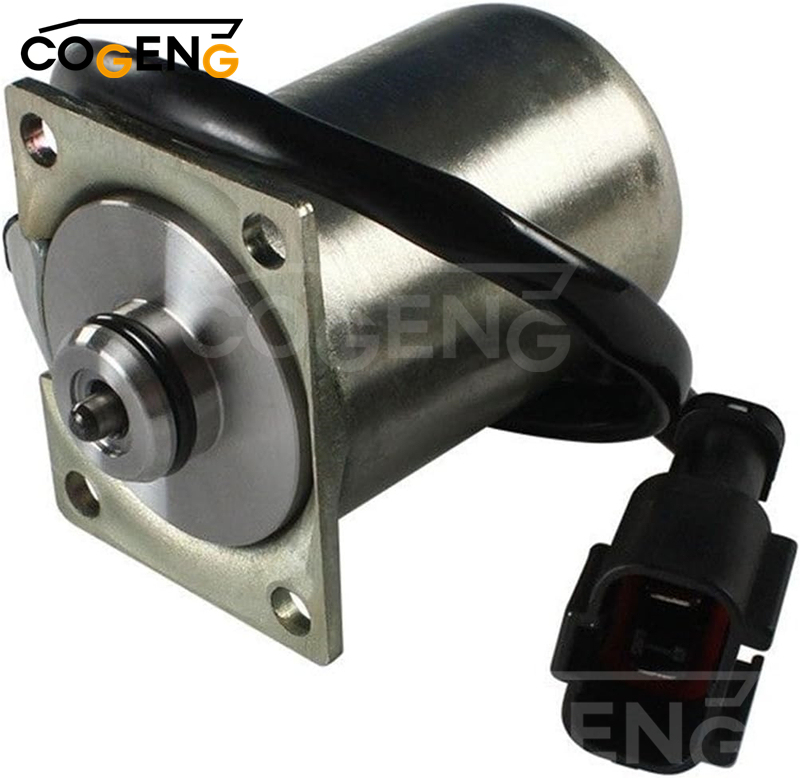

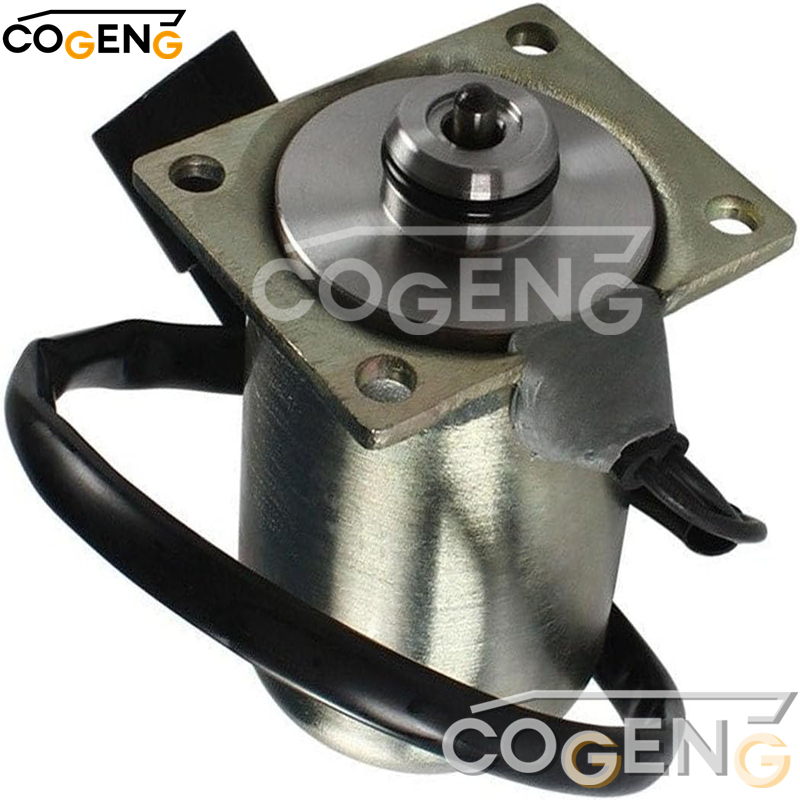

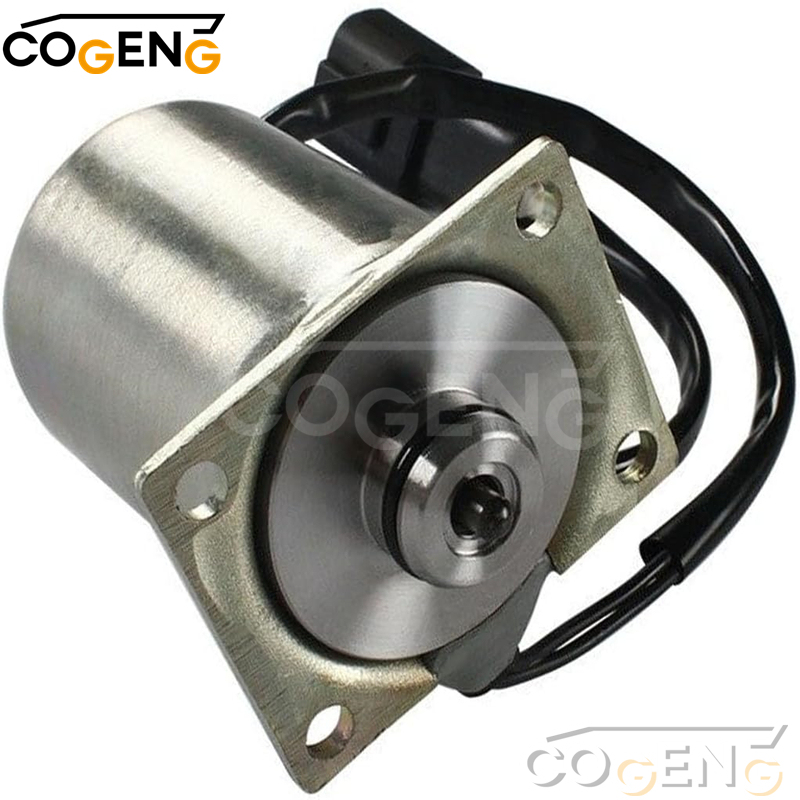

| Product Type | Heavy-Duty Electro-Hydraulic Solenoid Valve |
| Operating Voltage | 12V/24V DC |
| Maximum Operating Pressure | 420 Bar (6,100 PSI) |
| Flow Capacity | 30-60 L/min (8-16 GPM) depending on model |
| Fluid Compatibility | Mineral-based, synthetic hydraulic oils (ISO VG 32-68) |
| Temperature Range | -40°C to 130°C |
| Protection Rating | IP67 Sealed Connectors |
| Quality Assurance | 100% Pressure, Performance, and Leak Testing |
| Warranty | 3,000-Hour Warranty |
708-2H-25240
Type: Solenoid Valve Assembly
Application: Hydraulic control systems in large excavators (e.g., PC400 series) 12.
Sourcing:
Supplier: Jining Gaosong Engineering Machinery (Shandong, China)
Status: Genuine Komatsu OEM part 1.
708-2L-25211
Type: Electromagnetic Valve Assembly
Application:
Primary use: PC200-6/PC200-7 excavator hydraulic systems
Compatibility: Also fits PC70-8 and PC130-7 models
Features: Direct-acting spool design for precise flow control.
708-23-18272
Note: No direct match in search results. Verify part number or consult Komatsu technical databases.
Common Komatsu Valve Series:
708-2H-00322: Hydraulic pump valve
708-2L-00522: Main hydraulic pump component
Typical Failures Addressed:
Hydraulic drift (U029 code)
Pressure oscillations (E747 code)
| № | Number | Name | Qty |
| 1 | 20Y-60-X1261 | PUMP GROUP | 1 |
| 2 | 708-25-04051 | PUMP ASS'Y | 1 |
| 3 | 708-25-04014 | PUMP ASS'Y | 1 |
| 4 | 708-25-04013 | PUMP ASS'Y | 1 |
| 5 | 708-25-04012 | PUMP ASS'Y | 1 |
| 6 | 708-25-04613 | • SERVO VALVE ASS'Y,REAR | 1 |
| 7 | 708-25-04612 | • SERVO VALVE ASS'Y,REAR | 1 |
| 8 | 708-25-04911 | •• VALVE ASS'Y,TVC | 1 |
| 9 | 708-23-00451 | ••• BODY ASS'Y | 1 |
| 10 | 708-23-18120 | ••• PISTON | 1 |
| 11 | 708-23-18130 | ••• SLEEVE | 1 |
| 12 | 708-25-18120 | ••• PISTON | 2 |
| 13 | 708-23-18260 | ••• SLEEVE | 2 |
| 14 | 07000-12016 | ••• O-RING | 4 |
| 15 | 07001-02016 | ••• RING,BACK-UP | 4 |
| 16 | 708-23-18161 | ••• SPOOL | 1 |
| 17 | 708-23-18170 | ••• SEAT | 1 |
| 18 | 708-23-18181 | ••• SPRING | 1 |
| 19 | 708-23-15160 | ••• PLUG | 1 |
| 20 | 07000-02018 | ••• O-RING | 1 |
| 21 | 708-23-18210 | ••• COVER | 1 |
| 22 | 01580-10806 | ••• NUT | 1 |
| 23 | 708-23-18272 | ••• SOLENOID ASS'Y | 1 |
| 24 | 07000-02016 | ••• O-RING | 1 |
| 25 | 708-23-18250 | ••• BOLT | 4 |
| 26 | 708-25-15320 | ••• BOLT | 2 |
| 27 | 01602-20619 | ••• WASHER,SPRING | 2 |
Complete System Depressurization: Relieve all hydraulic system pressure and verify zero pressure before beginning installation
Hydraulic Circuit Identification: Document and tag all hydraulic lines for proper reconnection and circuit integrity
Electrical System Safety: Disconnect battery and main power sources; verify zero electrical energy in system
Contamination Prevention: Cap all hydraulic ports immediately upon disassembly to prevent system contamination
Seal Integrity Verification: Inspect and properly install all seals with compatible hydraulic fluid lubrication
System Purge Procedure: Follow proper bleeding and purging procedures to remove air from hydraulic system
Comprehensive Functional Testing: Test valve operation through complete operational cycle and verify leak-free performance
Q: Symptoms of a faulty 708-2H-25240 pump solenoid on a PC200-6?
A: Common signs include weak hydraulic power, all implement speeds slow, engine bogs down or stalls when digging, and active fault codes related to pump proportional valve feedback.
Q: How to test the PC200-5 hydraulic pump solenoid valve?
A: Measure coil resistance (typically 10-15 ohms). Check for clean signal voltage from the controller. Manually push the valve spool to check for mechanical binding. Ensure the pump's internal pilot filter is clean before replacing the valve.
