Technical Constants & Performance Data
| Parameter | Value / Specification |
|---|---|
| Target Cylinder Size | 40mm Rod Diameter x 75mm Cylinder Bore |
| Maximum Pressure Rating | Up to 4,350 PSI (300 bar) |
| Temperature Range | -40°F to 225°F (-40°C to 107°C) |
| Fluid Compatibility | Petroleum-based hydraulic oils, Komatsu Super Hydraulic Fluid (KSHV), synthetic HFDU fluids |
| Primary Seal Material | Polyurethane (AU), Cast Polyurethane (CU), Nitrile Rubber (NBR) |
| Seal Hardness (Dynamic) | 90-94 Shore A (Polyurethane) |
| Seal Hardness (Static) | 70 Shore A (NBR O-Rings) |
| Design Standard | Manufactured to meet or exceed Komatsu's original performance and dimensional specifications. |
Exact Model Compatibility
| Komatsu Part Number | Target Cylinder Dimension |
|---|---|
| 707-99-14980 | Cylinders with 40mm Rod x 75mm Bore |
| Note: | This kit is a direct replacement for Komatsu OEM part number 707-99-14980. It is designed for cylinders with these specific dimensions. Compatibility is determined by the cylinder's physical bore and rod size. Always verify your cylinder's dimensions (40mm rod, 75mm bore) with precision calipers before ordering or disassembly. |

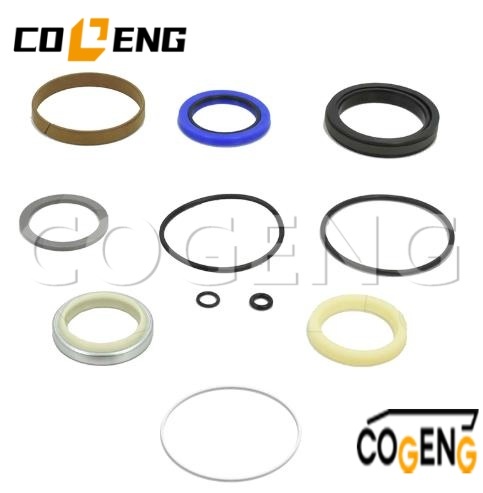

Component Specifications Table
| Component Name | Material | Color | Durometer | Nominal Size (For Reference) |
|---|---|---|---|---|
| Piston Seal (U-Cup) | Polyurethane (AU) | Brown | 92 Shore A | For 75mm Bore |
| Rod Seal (Step Seal) | Cast Polyurethane (CU) | Black | 92 Shore A | For 40mm Rod |
| Wiper/Scraper (Heavy-Duty) | Polyurethane (PU) | Black | 90 Shore A | For 40mm Rod |
| Buffer Ring | Polyurethane (CU) | Black | 90 Shore A | For 40mm Rod Gland |
| O-Ring Set | Nitrile Rubber (NBR) | Black | 70 Shore A | Assorted sizes for gland & ports |
| Wear Ring / Guide Band | Glass-Filled PTFE | Dark Brown | N/A | For 75mm Bore / 40mm Rod (as applicable) |
| Backup Rings | Nylon 6.6 | Tan | N/A | For specific high-pressure O-Rings |
Compatibility & Application Data
| Application Type | Likely Equipment Examples | Purpose |
|---|---|---|
| Mid-Size Equipment Cylinders | Komatsu PC130, PC138, PC160 Excavators | Rebuilding arm, boom, or bucket cylinders on mid-size excavators. |
| Loader & Tool Cylinders | Komatsu WA, WB Series Loaders/Backhoes | Repairing lift, tilt, or bucket cylinders on wheel loaders and backhoes. |
| Industrial Hydraulic Systems | Presses, crushers, heavy machinery | Servicing industrial cylinders with compatible dimensions. |
| Note: | The primary identifier for this kit is the 40mm x 75mm cylinder size. Machine model is secondary. Always physically measure the cylinder's rod and bore. |
Support Seals & Hardware
Full set of static O-rings for gland assembly, end cap, and hydraulic port connections.
High-performance wear ring/guide band to centralize the piston and absorb side loads.
Necessary backup rings for high-pressure static seals.
Excluded Items: This is a seal and wear component kit only. It does NOT include the piston, cylinder rod, barrel, gland nut, bearings, bolts, pins, or any other metal parts or hardware.
Parts list
|
NO |
Number |
Name |
Qty |
|
K01 |
11Y-32-05000 |
Shoe Bolt and Nut Kit |
|
|
112-32-11211 |
• Bolt |
50 |
|
|
11Y-32-11220 |
• Nut |
50 |
|
|
K02 |
11Y-32-05010 |
Shoe Bolt and Nut Kit |
|
|
11G-32-21212 |
• Bolt |
50 |
|
|
11Y-32-11220 |
• Nut |
50 |
|
|
K03 |
707-99-14960 |
Service Kit, Lift Cylinder |
|
|
02896-11009 |
• O-ring |
2 |
|
|
07000-12070 |
• O-ring |
1 |
|
|
07000-12075 |
• O-ring |
1 |
|
|
07000-12085 |
• O-ring |
1 |
|
|
07145-00045 |
• Seal, Dust |
4 |
|
|
707-35-52760 |
• Ring, Back-up |
1 |
|
|
707-39-75190 |
• Ring, Wear |
1 |
|
|
707-44-75180 |
• Ring, Piston |
1 |
|
|
707-51-40030 |
• Packing, Rod |
1 |
|
|
707-51-40640 |
• Ring, Buffer |
1 |
|
|
707-56-40580 |
• Seal, Dust |
1 |
|
|
K04 |
707-99-14970 |
Seal Kit, Hydraulic Cylinder |
|
|
02896-11009 |
• O-ring |
3 |
|
|
07000-12075 |
• O-ring |
1 |
|
|
07000-B2070 |
• O-ring |
1 |
|
|
07002-11423 |
• O-ring |
1 |
|
|
707-35-52760 |
• Ring, Back-up |
1 |
|
|
707-39-75030 |
• Ring, Wear |
1 |
|
|
707-44-75150 |
• Ring, Piston |
1 |
|
|
707-51-40030 |
• Packing, Rod |
1 |
|
|
707-51-40650 |
• Ring, Buffer |
1 |
|
|
707-56-40740 |
• Seal, Dust |
1 |
|
|
K05 |
707-99-24650 |
Service Kit, Tilt Cylinder |
|
|
02896-11008 |
• O-ring |
2 |
|
|
04065-07225 |
• Ring, Snap |
2 |
|
|
07000-12085 |
• O-ring |
1 |
|
|
07000-12090 |
• O-ring |
1 |
|
|
07146-02086 |
• Ring, Back-up |
1 |
|
|
07156-00912 |
• Ring, Wear |
1 |
|
|
707-44-90180 |
• Ring, Piston |
1 |
|
|
707-46-03020 |
• Bushing |
1 |
|
|
707-51-45030 |
• Packing, Rod |
1 |
|
|
707-51-45640 |
• Ring, Buffer |
1 |
|
|
707-56-45580 |
• Seal, Dust |
1 |
|
|
K06 |
707-99-14980 |
Seal Kit, Hydraulic Cylinder |
|
|
02896-11009 |
• O-ring |
2 |
|
|
07000-12075 |
• O-ring |
1 |
|
|
07000-B2070 |
• O-ring |
2 |
|
|
07145-00045 |
• Seal, Dust |
4 |
|
|
707-35-52760 |
• Ring, Back-up |
1 |
|
|
707-39-75190 |
• Ring, Wear |
1 |
|
|
707-44-75150 |
• Ring, Piston |
1 |
|
|
707-51-40030 |
• Packing, Rod |
1 |
|
|
707-51-40650 |
• Ring, Buffer |
1 |
|
|
707-56-40740 |
• Seal, Dust |
1 |
|
|
K07 |
707-99-23040 |
Service Kit, Angle Cylinder |
|
|
02896-11009 |
• O-ring |
2 |
|
|
07000-12075 |
• O-ring |
1 |
|
|
07000-12080 |
• O-ring |
1 |
|
|
07146-02076 |
• Ring, Back-up |
1 |
|
|
07156-00810 |
• Ring, Wear |
2 |
|
|
707-44-80180 |
• Ring, Piston |
1 |
|
|
707-51-40030 |
• Packing, Rod |
1 |
|
|
707-51-40640 |
• Ring, Buffer |
1 |
|
|
707-56-40580 |
• Seal, Dust |
1 |
|
|
K08 |
707-98-04590 |
Seal Kit, Hydraulic Cylinder |
|
|
02896-11009 |
• O-ring |
2 |
|
|
07000-13045 |
• O-ring |
1 |
|
|
07000-13048 |
• O-ring |
1 |
|
|
07002-11423 |
• O-ring |
1 |
|
|
07145-00030 |
• Seal, Dust |
4 |
|
|
10E-63-32390 |
• Ring, Wear |
1 |
|
|
707-35-52510 |
• Ring, Back-up |
1 |
|
|
707-44-50180 |
• Ring, Piston |
1 |
|
|
707-51-30210 |
• Packing, Rod |
1 |
|
|
707-56-30740 |
• Seal, Dust |
1 |
Installation decomposition diagram
Dimension Verification: Prior to any work, confirm the cylinder's rod and bore dimensions match this kit (40mm rod, 75mm bore) using precise measuring tools.
Safe Depressurization & Support: Relieve all hydraulic system pressure and mechanically support the cylinder or implement before disassembly.
Clean Room Standards: Perform all work in an impeccably clean environment to prevent contamination, which is the leading cause of seal failure.
Documented Disassembly & Inspection: Carefully disassemble the cylinder. Photograph the order of components. Inspect all metal parts (rod, bore, piston, gland) for scoring, pitting, or excessive wear. Replace damaged parts.
Lubricated Assembly: Soak all new elastomeric seals in clean hydraulic fluid. Lubricate all seal grooves and sliding surfaces before installation.
Proper Tool Use: Use seal installation cones, sleeves, and nylon tools. Avoid sharp instruments that can nick or cut seals.
Precision Reassembly & Torque: Follow the included diagram for correct seal order. Use a calibrated torque wrench and follow OEM specifications for all fasteners.
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
