Technical Specifications & Performance Data
| Parameter | Specification |
|---|---|
| COGENG Part Number | 707-99-13410 |
| OEM Reference | Komatsu 707-99-13410 |
| Max Operating Pressure | 35 MPa (5,076 psi) |
| Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Seal Material (Primary) | NBR/PU Blend |
| Wiper Material | Polyurethane (PU) |
| Rod Seal Type | U-Cup with Anti-Extrusion Ring |
| Piston Seal Type | Double-Acting Piston Seal |

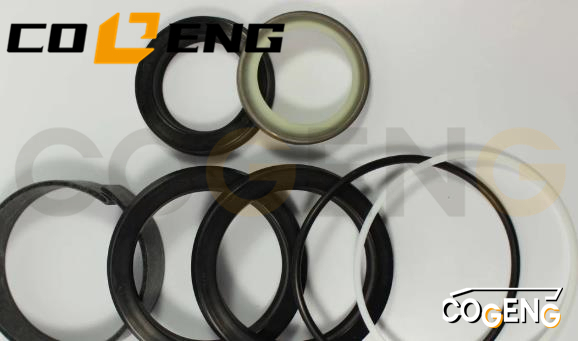

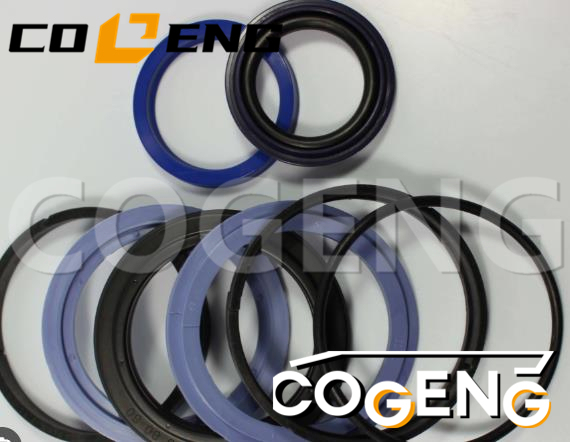

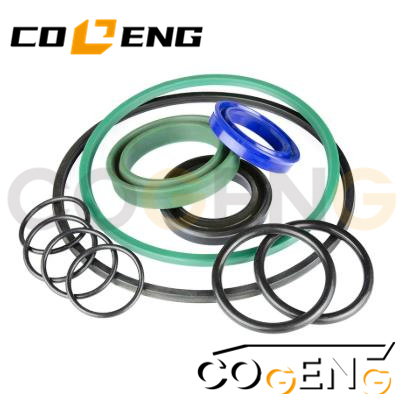

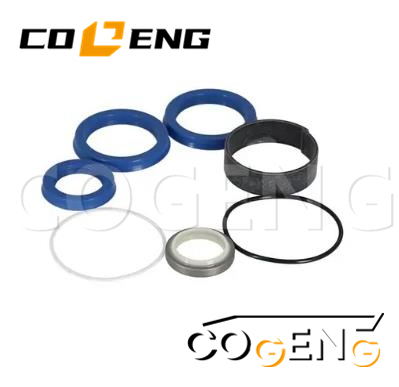

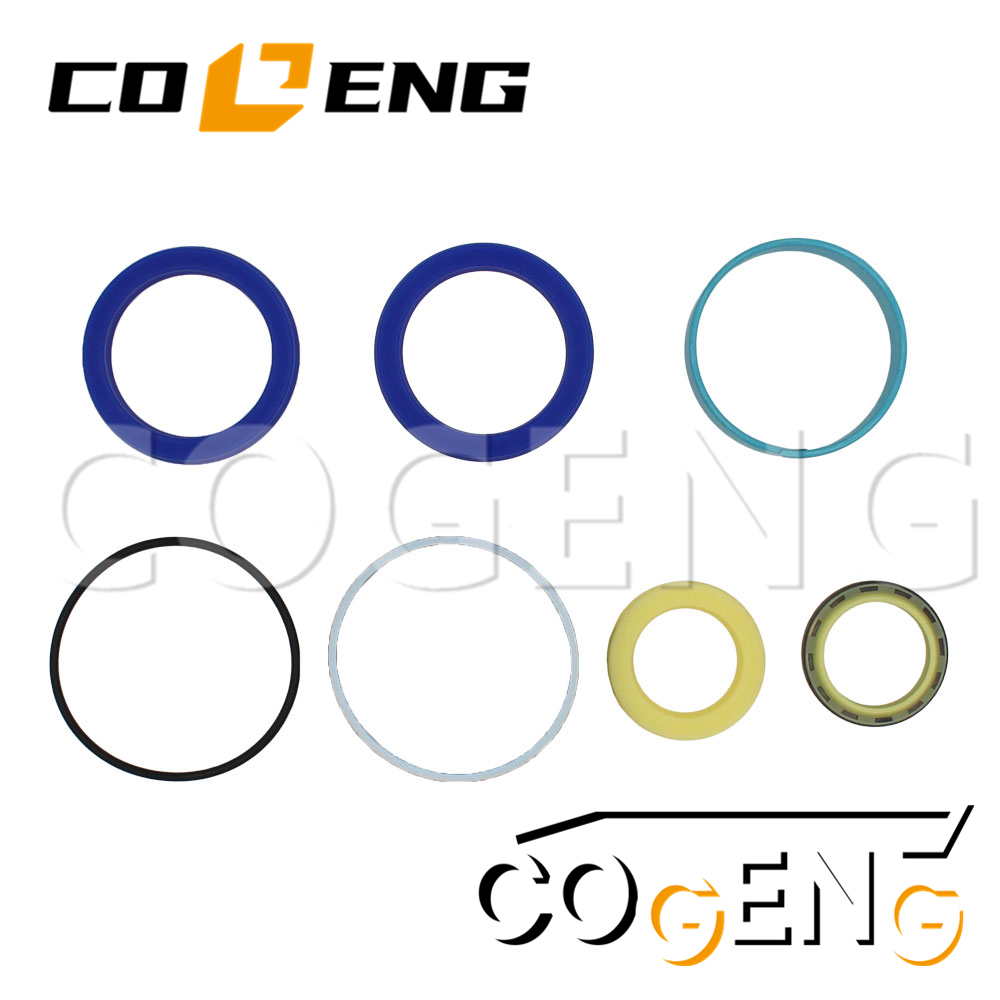

| Kit Includes | Piston seals, rod seals, wipers, O-rings, backup rings, gland seals |
Component Specifications Table
| Component | Material | Hardness (Shore A) | Quantity | Key Feature |
|---|---|---|---|---|
| Piston Seal | NBR/PU Blend | 85 ± 5 | 2 | Low-friction, high-pressure design |
| Rod Seal | NBR/PU Blend | 88 ± 5 | 2 | Anti-extrusion backup included |
| Wiper Seal | Polyurethane | 95 ± 5 | 1 | Dual-lipped for superior contamination exclusion |
| O-Ring (Static) | Nitrile (NBR) | 70 ± 5 | 6 | Standard AS568 sizes |
| Backup Ring | PTFE | N/A | 4 | Prevents seal extrusion under high pressure |
| Wear Ring | Filled PTFE | N/A | 2 | Reduces metal-to-metal contact |
| Gland Seal | NBR | 75 ± 5 | 1 | Ensures static seal at gland |
Compatible Which models is it used for Models
| Komatsu Model Series | Specific Models (Example) | Typical Cylinder Application |
|---|---|---|
| PC200 | PC200-6, PC200-7, PC200-8 | Boom, Arm, Bucket Cylinders |
| PC210 | PC210-6, PC210-7, PC210-8 | Boom, Arm, Bucket Cylinders |
| PC220 | PC220-6, PC220-7, PC220-8 | Boom, Arm, Bucket Cylinders |
| PC228 | PC228US-1, PC228USLC-3 | Boom, Arm Cylinders |
| PC240 | PC240-6, PC240-7, PC240-8 | Bucket, Arm Cylinders |
| Note: | This kit is designed for specific cylinder configurations in the listed models. Always verify your machine's serial number and cylinder part number against the Komatsu parts manual before installation. |
| NO | Number | Name | Qty |
| 707-99-13410 | Hydraulic Cylinder Service Kit | ||
| 10G-63-13100 | |||
| 10G-63-13101 | |||
| 10G-63-13200 | |||
| 10G-63-13201 |
Operating Pressure: Up to 35 MPa (5,076 psi)
Temperature Range: -40°C to +120°C (-40°F to +248°F)
Seal Material: Nitrile Rubber (NBR) / Polyurethane (PU) blend for balanced flexibility and abrasion resistance
Hardness: 85 ± 5 Shore A (dynamic seals), 70 ± 5 Shore A (static seals)
Fluid Compatibility: Compatible with mineral-based hydraulic oils, synthetic fluids, and water-glycol solutions
Friction Coefficient: ≤ 0.25 (optimized for smooth cylinder movement)
Design Standards: Manufactured to ISO 9001 quality standards with precision tolerances
Safety First: Depressurize the hydraulic system completely and secure the equipment before disassembly.
Clean Workspace: Perform repairs in a clean, dust-free environment to prevent contamination.
Inspect Components: Check cylinder walls, piston rods, and grooves for wear or damage; replace if beyond service limits.
Proper Lubrication: Lightly coat all seals with clean hydraulic fluid during installation to prevent dry-start damage.
Correct Orientation: Ensure all seals (especially lip seals) are installed in the correct direction as indicated in the manual.
Avoid Sharp Tools: Use plastic or rubber tools to position seals and avoid cuts or nicks.
Pressure Testing: After reassembly, conduct a gradual pressure test and check for leaks before returning to full operation.
Q1: Which Komatsu excavator models use the 707-99-13410 hydraulic cylinder seal?
A: This precision seal is designed for specific Komatsu excavator hydraulic cylinders requiring OEM part number 707-99-13410. Please verify compatibility with your machine model and cylinder part number before ordering.
Q2: Is this a single seal or a complete seal kit?
A: This is a precision-engineered individual hydraulic cylinder seal. For a complete rebuild, please check if additional seals, O-rings, or wipers are required for your specific cylinder application.
Q3: Is this an OEM or aftermarket seal?
A: It is an OEM-grade precision replacement seal, manufactured to meet or exceed original Komatsu quality standards for dimensional accuracy, material composition, and sealing performance.
Q4: What makes this a "precision-engineered" seal?
A: The seal is manufactured with exacting tolerances to match Komatsu original specifications, ensuring proper fitment, optimal sealing pressure, and extended service life in demanding hydraulic applications.
Q5: How do I purchase the COGENG 707-99-13410 hydraulic cylinder seal?
A: Contact us with your Komatsu machine model and cylinder details for fitment verification, then order directly through our website or sales team for fast shipping.
