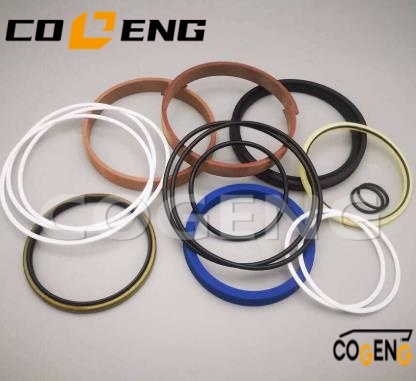

Product name: Komatsu Hydraulic Cylinder Seal Kit
Part No: 707-98-60110 7079860110
Size：70MM / 160MM
Model Number:For D50-17
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Technical Constants & Performance Data
|
Parameter |
Value / Specification |
|---|---|
|
Maximum Operating Pressure |
Up to 4,350 PSI (300 bar) |
|
Temperature Range |
-40°F to 225°F (-40°C to 107°C) |
|
Fluid Compatibility |
Mineral-based hydraulic oils, Komatsu Super Hydraulic Fluid (KSHV), BIO HFDU fluids |
|
Primary Seal Material |
Polyurethane (AU), Cast Polyurethane (CU), Nitrile Rubber (NBR) |
|
Seal Hardness (Dynamic) |
92-94 Shore A (Polyurethane) |
|
Seal Hardness (Static) |
70 Shore A (NBR O-Rings) |
|
Design Standard |
Manufactured to meet or exceed Komatsu's original specifications for pressure holding, wear resistance, and service life. |
Exact Model Compatibility
|
Komatsu Part Number |
Target Cylinder Application |
|---|---|
|
707-98-60110 |
Blade Tilt (Angle) Cylinders |
|
Note: |
This kit is a direct replacement for Komatsu OEM part number 707-98-60110. The specific bulldozer models compatible with this kit must be verified via a Komatsu parts catalog or service manual, as this number applies to tilt cylinders across certain series. Always verify your machine's exact model and serial number to confirm compatibility before purchase. |
Component Specifications Table
|
Component Name |
Material |
Color |
Durometer |
Function |
|---|---|---|---|---|
|
Main Piston Seal (U-Cup) |
Polyurethane (AU) |
Brown |
94 Shore A |
Primary dynamic pressure seal on piston |
|
Rod Seal (Step Seal) |
Cast Polyurethane (CU) |
Black |
93 Shore A |
Main rod seal for pressure retention |
|
Wiper/Scraper (Heavy-Duty) |
Polyurethane (PU) |
Black |
90 Shore A |
Excludes abrasive dirt, mud, and debris |
|
Buffer Ring |
Polyurethane (CU) |
Black |
90 Shore A |
Dampens pressure spikes to protect rod seal |
|
O-Ring Kit (Assorted) |
Nitrile Rubber (NBR) |
Black |
70 Shore A |
Static sealing for gland, end cap, and ports |
|
Wear Ring / Guide Band |
Glass-Filled PTFE |
Dark Brown |
N/A |
Centralizes piston, prevents metal contact |
|
Backup Rings |
Nylon 6.6 |
Tan |
N/A |
Prevents extrusion of static O-rings under pressure |
Compatibility & Application Data
|
Application Sector |
Likely Equipment |
Symptoms Addressed by This Kit |
|---|---|---|
|
Site Grading & Earthmoving |
Komatsu Bulldozers (Model Specific) |
Inability to hold blade angle ("drift"), visible hydraulic oil leakage from the rod gland, slow or weak blade tilt response, oil pooling under the machine near the cylinder. |
|
Construction & Landscaping |
Dozer Blade Angle/Tilt Control |
Loss of precise grading control, "loose" or unresponsive blade feel, increased hydraulic fluid consumption, reduced machine efficiency. |
|
Heavy Equipment Repair |
Scheduled Overhauls & Leak Repair |
Restores factory sealing to ensure reliable blade control for precision work, prevents costly environmental fluid loss, and avoids the expense of complete cylinder replacement. |
Installation decomposition diagram
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
