Technical Constants & Performance Data
| Parameter | Value / Specification |
|---|---|
| Maximum Operating Pressure | Up to 4,350 PSI (300 bar) |
| Temperature Range | -40°F to 225°F (-40°C to 107°C) |
| Fluid Compatibility | Mineral-based hydraulic oils, Komatsu Super Hydraulic Fluid (KSHV), BIO HFDU fluids |
| Primary Seal Material | Polyurethane (AU), Cast Polyurethane (CU), Nitrile Rubber (NBR) |
| Seal Hardness (Dynamic) | 92-95 Shore A (Polyurethane) |
| Seal Hardness (Static) | 70 Shore A (NBR O-Rings) |
| Design Standard | Manufactured to meet or exceed Komatsu's original specifications for pressure holding, extrusion resistance, and service life. |
Exact Model Compatibility
| Komatsu Dozer Model | Specific Application |
|---|---|
| Komatsu D41A-6 | Blade Lift (Hoist) Cylinders |
| Komatsu D41E-6 | Blade Lift (Hoist) Cylinders |
| Komatsu D41P-6 | Blade Lift (Hoist) Cylinders |
| Note: | This kit is a direct replacement for Komatsu OEM part number 707-98-32820. It is designed specifically for the BLADE LIFT/HOIST CYLINDERS on the listed D41-6 series dozers. Verify your machine model, serial number, and that you are servicing the LIFT CYLINDERS, not the tilt or angle cylinders. |

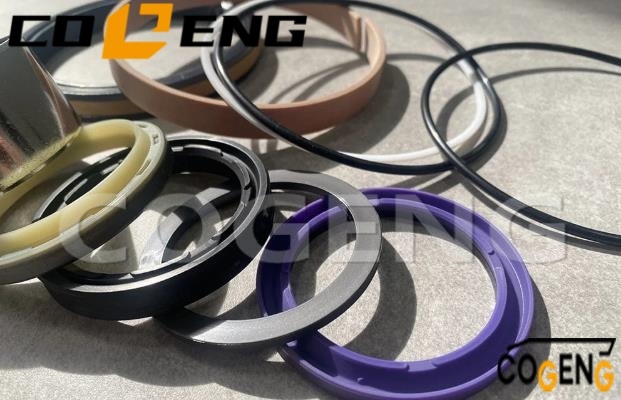

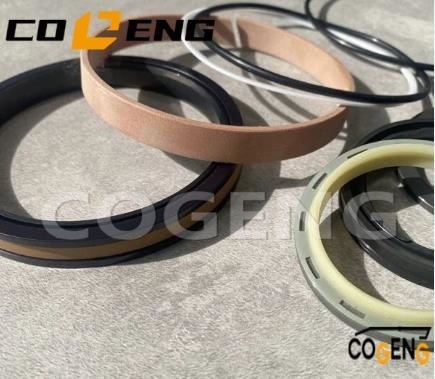

Component Specifications Table
| Component Name | Material | Color | Durometer | Function |
|---|---|---|---|---|
| Main Piston Seal (U-Cup) | Polyurethane (AU) | Brown | 95 Shore A | Primary high-pressure dynamic seal on piston |
| Rod Seal (Step Seal) | Cast Polyurethane (CU) | Black | 94 Shore A | Main rod seal for pressure retention |
| Wiper/Scraper (Heavy-Duty) | Polyurethane (PU) | Black | 90 Shore A | Excludes abrasive dirt, mud, and debris |
| Buffer Ring | Polyurethane (CU) | Black | 90 Shore A | Dampens pressure spikes to protect rod seal |
| O-Ring Kit (Assorted) | Nitrile Rubber (NBR) | Black | 70 Shore A | Static sealing for gland, end cap, and ports |
| Wear Ring / Guide Band | Glass-Filled PTFE | Dark Brown | N/A | Centralizes piston, prevents metal contact |
| Backup Rings | Nylon 6.6 | Tan | N/A | Prevents extrusion of static O-rings under extreme pressure |
| Application Sector | Target Equipment | Symptoms Addressed by This Kit |
|---|---|---|
| Heavy Earthmoving & Mining | Komatsu D41A-6, D41E-6, D41P-6 Bulldozers | Inability to hold blade height ("drift" or "sinking"), visible hydraulic oil leakage from the rod gland, slow or weak blade lifting power, oil pooling under the machine. |
| Major Construction & Site Development | Midsize Dozer Blade Lift/Hoist Cylinders | Loss of precise grade control, increased hydraulic fluid consumption, reduced machine pushing efficiency and productivity. |
| Heavy Equipment Repair | Scheduled Overhauls & Leak Repair | Restores factory sealing to ensure reliable blade control for precision work, prevents environmental fluid loss, and avoids the expense of complete cylinder replacement. |
Decompose pictures
| Item | Description | Quantity | Material |
|---|---|---|---|
| 1 | Piston Seal (105mm bore) | 2 | Polyurethane |
| 2 | Rod Seal (50mm rod - Step-cut) | 2 | NBR + PTFE |
| 3 | Wiper Seal (Double-lipped) | 2 | Polyurethane |
| 4 | Buffer Seal | 2 | Polyurethane |
| 5 | Wear Ring (Piston - 105mm) | 2 | PTFE Composite |
| 6 | Wear Ring (Gland - 50mm) | 2 | PTFE Composite |
| 7 | O-Ring (Gland to barrel) | 2 | HNBR |
| 8 | O-Ring (Piston to rod) | 2 | HNBR |
| 9 | O-Ring (End cap) | 4 | HNBR |
| 10 | Backup Ring (Various sizes) | 4 | Nylon 66 |
| 11 | Dust Seal (Rod wiper) | 2 | Polyurethane |

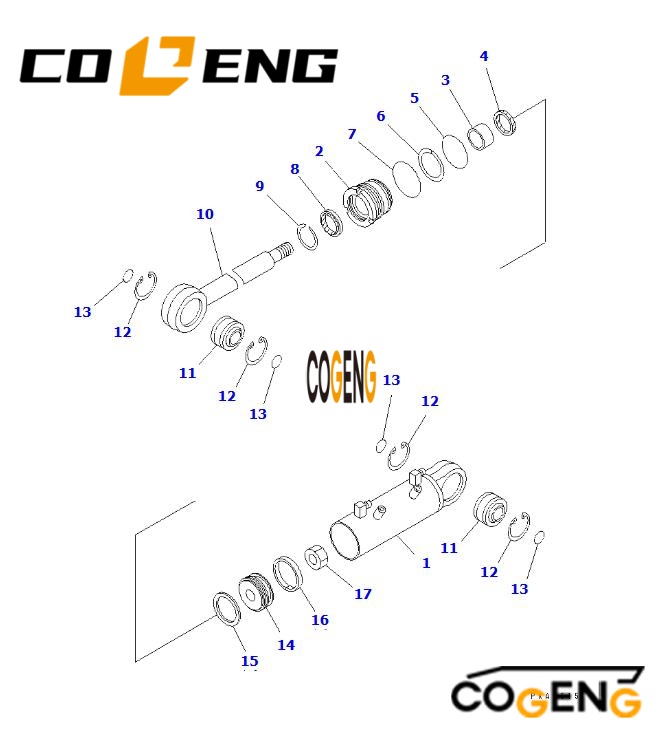

Installation decomposition diagram
Safety Precautions (Safety Instructions)
WARNING: Dozer Blade Crushing Hazard
Secure the Blade: Before disconnecting any hoses or removing pins, ALWAYS lower the blade flat to the ground or support it on heavy hardwood cribbing (timber blocks). NEVER work under a blade that is only supported by the machine's hydraulics. A failed hose can cause the blade to drop instantly, resulting in severe crushing injuries or death.
Hydraulic Pressure Release: Cycle all control levers (raise/lower/tilt) multiple times with the engine OFF to release stored pressure in the lines. This prevents hot oil injection from a pressurized loosened fitting.
Weight Hazard: The D41 lift cylinder is heavy. Use a lifting strap and an engine hoist or overhead crane when removing the cylinder assembly. Never attempt to manhandle the cylinder out of the clevis brackets.
Use Only Genuine Kits: The 707-98-32820 kit includes specific polyurethane (PU) seals designed for the high side-loads of dozer push operations. Using generic rubber seals will result in premature failure (possibly within 50 hours) when pushing heavy material.
*Internal breakdown of Komatsu 707-98-32820 Seal Kit for D41 Blade Lift Cylinder (based on standard Komatsu P-U-14 seal configuration)
| Diagram Ref. | Part Description (English) | Function |
|---|---|---|
| 1 | Dust Seal / Wiper | Prevents external dirt/mud ingress into cylinder. |
| 2 | Rod U-Packing (Main Seal) | High-pressure seal preventing hydraulic oil from leaking out along the rod. |
| 3 | Buffer Ring | Absorbs pressure spikes and protects the main rod seal. |
| 4 | Piston Seal | Maintains pressure separation between cap (lift) and rod (lower) sides of piston. |
| 5 | Piston Wear Ring | Centers the piston in the barrel, preventing metal-to-metal scoring. |
| 6 | O-Rings & Backup Rings | Static seals for the head gland (cylinder cap) and piston nut. |
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
