Product name: Komatsu Hydraulic Cylinder Seal Kit
Part No: 707-52-90250 7075290250
Size：50MM / 55MM
Model Number:For WA470-3 WA480-6 D115C-1 PC400LC
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Technical Constants & Performance Data
| Parameter | Value / Specification |
|---|---|
| Material Composition | PTFE (Polytetrafluoroethylene) with Fiber Reinforcement |
| Temperature Range | -328°F to 536°F (-200°C to 280°C) |
| Coefficient of Friction | 0.04 - 0.12 (Dynamic, against steel) |
| Pressure Velocity (PV) Limit | Up to 20,000 psi-ft/min |
| Fluid Compatibility | Compatible with all standard hydraulic oils, synthetic fluids, water-glycol |
| Primary Function | Radial guidance, load bearing, prevention of metal-to-metal contact |
Exact Model Compatibility
| Komatsu Part Number | Machine Model | Component Type | Nominal Size (ID x OD x W) |
|---|---|---|---|
| 707-52-90250 | Komatsu WA470-6 | Wear Ring / Guide Band | 50mm x 55mm x 30mm |
| Note: | This wear ring is a direct replacement for Komatsu OEM part number 707-52-90250. It is a consumable component used in hydraulic cylinders on the WA470-6 loader. Compatibility is determined by these exact dimensions. Always verify the required size from your disassembled component or service manual. |
Component Specifications Table
| Specification | Value / Detail |
|---|---|
| Inner Diameter (ID) | 50.0 mm (+0.2 / -0.0 mm) |
| Outer Diameter (OD) | 55.0 mm (+0.0 / -0.2 mm) |
| Width / Thickness (W) | 30.0 mm (±0.1 mm) |
| Material | Fiber-Reinforced PTFE Composite |
| Color | Natural White/Brown (Material Color) |
| Machining Standard | Precision CNC machined for consistent dimensions and square edges |
| Item | Description | Quantity | Material |
|---|---|---|---|
| 1 | Piston Seal (Primary) | 2 | Polyurethane |
| 2 | Rod Seal (Step-cut) | 2 | NBR + PTFE |
| 3 | Wiper Seal (Double-lipped) | 2 | Polyurethane |
| 4 | Buffer Seal | 2 | Polyurethane |
| 5 | Wear Ring (Piston) | 2 | PTFE Composite |
| 6 | Wear Ring (Gland) | 2 | PTFE Composite |
| 7 | O-Ring (Gland to barrel) | 2 | HNBR |
| 8 | O-Ring (Piston to rod) | 2 | HNBR |
| 9 | O-Ring (End cap) | 4 | HNBR |
| 10 | Backup Ring (Various sizes) | 4 | Nylon 66 |
| 11 | Dust Seal (Rod wiper) | 2 | Polyurethane |

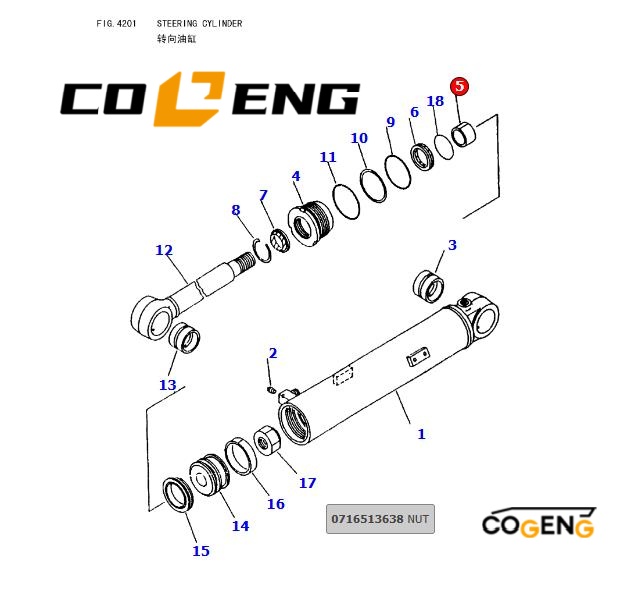

Decompose pictures
Installation decomposition diagram
Machine Secure & Pressure Relief: Park the dozer on a firm, level surface. Lower the blade fully to the ground to relieve all hydraulic pressure. Engage the parking brake and block the tracks.
Cleanliness Protocol: Disassembly and assembly must be performed in an impeccably clean, dust-controlled environment. The abrasive nature of dozer work makes contamination control paramount.
Documented Disassembly: Carefully disassemble the tilt cylinder. Photograph and note the exact order and orientation of all components, especially the seal stack in the gland.
Critical Metal Inspection: Use precision tools to inspect the cylinder rod for any scratches, gouges, or corrosion. Check the cylinder bore (ID) for scoring, pitting, or excessive wear. Damaged metal components MUST be replaced prior to seal installation.
Lubricated Assembly: Soak all new elastomeric seals in clean hydraulic fluid. Lightly lubricate all seal grooves and sliding surfaces before installing new seals.
Proper Tool Use: Use seal installation tools (cone tools, picks, sleeves) to carefully install seals without cutting, stretching, or rolling them over sharp edges.
Torque to Specification: During reassembly, use a calibrated torque wrench. Adhere strictly to Komatsu's specified torque values and sequences for gland bolts or end caps.
Critical Specific Warnings
APPLICATION VERIFICATION IS CRITICAL: Part number 707-98-34590 is used for tilt cylinders on specific dozer models. You must verify the exact machine model this kit is designed for using official Komatsu documentation. Using it on an incompatible model or cylinder type will cause failure.
METAL SURFACE CONDITION: This kit seals fluid between precision metal surfaces. It CANNOT repair a scored rod or a worn cylinder bore. Installation on damaged components will result in immediate, severe leakage.
EXTREME ABRASIVE ENVIRONMENT: Dozer tilt cylinders are constantly exposed to dirt. Absolute cleanliness during assembly is non-negotiable to prevent rapid abrasive seal wear upon startup.
BLADE SUPPORT HAZARD: The bulldozer blade must be fully lowered and supported by the ground. Never work on a cylinder that is under load or hydraulic pressure.
Specific Components Included
Complete seal set matching OEM configuration
All dynamic and static seals as specified
Wear components per original design
Necessary backup rings and support components
Note: Kit contents are configured to exactly match the component list and arrangement of the original Komatsu 707-98-41020 kit. Includes detailed installation diagram.
