Technical Constants & Performance Data
| Parameter | Value / Specification |
|---|---|
| Material Composition | PTFE (Polytetrafluoroethylene) with Fiber Reinforcement |
| Temperature Range | -328°F to 536°F (-200°C to 280°C) |
| Coefficient of Friction | 0.04 - 0.12 (Dynamic, against steel) |
| Pressure Velocity (PV) Limit | Up to 18,000 psi-ft/min |
| Fluid Compatibility | Compatible with all standard hydraulic oils, water-glycol, and synthetic fluids |
| Primary Function | Radial guidance, load bearing, prevention of metal-to-metal contact |
Exact Model Compatibility
| Komatsu Part Number | Component Type | Nominal Size (ID x OD x W) |
|---|---|---|

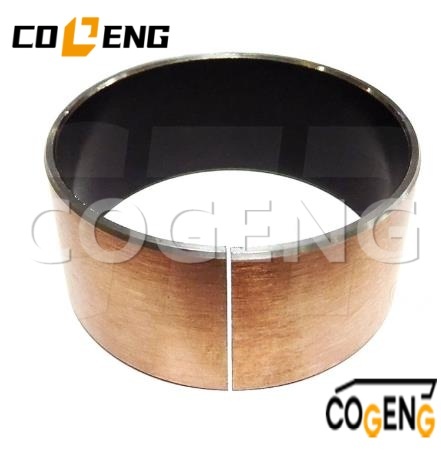

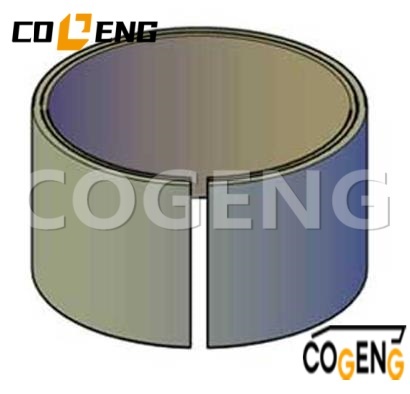

| 707-52-15050 | Wear Ring / Guide Band | 30mm x 34mm x 25mm |
| Note: | This wear ring is a direct replacement for Komatsu OEM part number 707-52-15050. It is a consumable component used in various Komatsu hydraulic cylinders. Compatibility is determined by these exact dimensions. Always verify the required size from your disassembled component or service manual. |
Component Specifications Table
| Specification | Value / Detail |
|---|---|
| Inner Diameter (ID) | 30.0 mm (+0.2 / -0.0 mm) |
| Outer Diameter (OD) | 34.0 mm (+0.0 / -0.2 mm) |
| Width / Thickness (W) | 25.0 mm (±0.1 mm) |
| Material | Fiber-Reinforced PTFE Composite |
| Color | Natural White/Brown (Material Color) |
| Machining Standard | Precision CNC machined for consistent dimensions and square edges |
Compatibility & Application Data
| Application Sector | Typical Use | Purpose & Benefit |
|---|---|---|
| Hydraulic Cylinder Rebuild | Komatsu Mini-Excavator, Compact Loader Cylinders | Replaces worn guide bands in smaller bore cylinders (common in PC-series compact machines) to restore alignment and protect seals. |
| Heavy Equipment Maintenance | Preventative Overhaul of Auxiliary/Function Cylinders | Extends the life of the entire cylinder assembly by absorbing side loads, preventing costly damage to seals and metal surfaces. |
| Industrial Machinery | Small-Bore Hydraulic Cylinders on Various Equipment | Ensures smooth, non-binding operation of cylinders under radial loads, maintaining equipment precision and reliability. |
Support Seals & Hardware
Full set of static O-rings for gland assembly, end cap, and hydraulic port connections.
High-performance wear ring/guide band to centralize the piston and absorb side loads.
Necessary backup rings for high-pressure static seals.
Excluded Items: This is a seal and wear component kit only. It does NOT include the piston, cylinder rod, barrel, gland nut, bearings, bolts, pins, or any other metal parts or hardware.
Decompose pictures

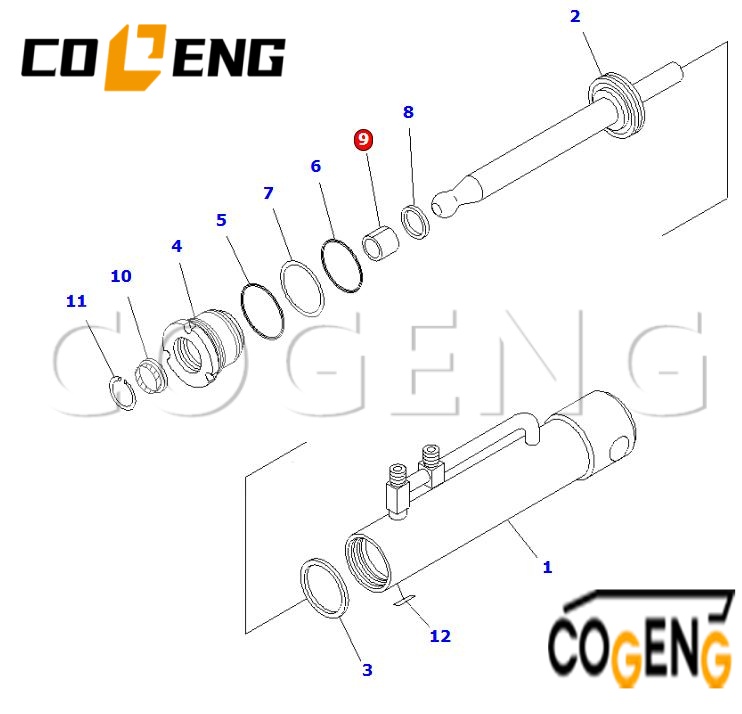

Parts list
|
NO |
Number |
Name |
Qty |
|
K01 |
11Y-32-05000 |
Shoe Bolt and Nut Kit |
|
|
112-32-11211 |
• Bolt |
50 |
|
|
11Y-32-11220 |
• Nut |
50 |
|
|
K02 |
11Y-32-05010 |
Shoe Bolt and Nut Kit |
|
|
11G-32-21212 |
• Bolt |
50 |
|
|
11Y-32-11220 |
• Nut |
50 |
|
|
K03 |
707-99-14960 |
Service Kit, Lift Cylinder |
|
|
02896-11009 |
• O-ring |
2 |
|
|
07000-12070 |
• O-ring |
1 |
|
|
07000-12075 |
• O-ring |
1 |
|
|
07000-12085 |
• O-ring |
1 |
|
|
07145-00045 |
• Seal, Dust |
4 |
|
|
707-35-52760 |
• Ring, Back-up |
1 |
|
|
707-39-75190 |
• Ring, Wear |
1 |
|
|
707-44-75180 |
• Ring, Piston |
1 |
|
|
707-51-40030 |
• Packing, Rod |
1 |
|
|
707-51-40640 |
• Ring, Buffer |
1 |
|
|
707-56-40580 |
• Seal, Dust |
1 |
|
|
K04 |
707-99-14970 |
Seal Kit, Hydraulic Cylinder |
|
|
02896-11009 |
• O-ring |
3 |
|
|
07000-12075 |
• O-ring |
1 |
|
|
07000-B2070 |
• O-ring |
1 |
|
|
07002-11423 |
• O-ring |
1 |
|
|
707-35-52760 |
• Ring, Back-up |
1 |
|
|
707-39-75030 |
• Ring, Wear |
1 |
|
|
707-44-75150 |
• Ring, Piston |
1 |
|
|
707-51-40030 |
• Packing, Rod |
1 |
|
|
707-51-40650 |
• Ring, Buffer |
1 |
|
|
707-56-40740 |
• Seal, Dust |
1 |
|
|
K05 |
707-99-24650 |
Service Kit, Tilt Cylinder |
|
|
02896-11008 |
• O-ring |
2 |
|
|
04065-07225 |
• Ring, Snap |
2 |
|
|
07000-12085 |
• O-ring |
1 |
|
|
07000-12090 |
• O-ring |
1 |
|
|
07146-02086 |
• Ring, Back-up |
1 |
|
|
07156-00912 |
• Ring, Wear |
1 |
|
|
707-44-90180 |
• Ring, Piston |
1 |
|
|
707-46-03020 |
• Bushing |
1 |
|
|
707-51-45030 |
• Packing, Rod |
1 |
|
|
707-51-45640 |
• Ring, Buffer |
1 |
|
|
707-56-45580 |
• Seal, Dust |
1 |
|
|
K06 |
707-99-14980 |
Seal Kit, Hydraulic Cylinder |
|
|
02896-11009 |
• O-ring |
2 |
|
|
07000-12075 |
• O-ring |
1 |
|
|
07000-B2070 |
• O-ring |
2 |
|
|
07145-00045 |
• Seal, Dust |
4 |
|
|
707-35-52760 |
• Ring, Back-up |
1 |
|
|
707-39-75190 |
• Ring, Wear |
1 |
|
|
707-44-75150 |
• Ring, Piston |
1 |
|
|
707-51-40030 |
• Packing, Rod |
1 |
|
|
707-51-40650 |
• Ring, Buffer |
1 |
|
|
707-56-40740 |
• Seal, Dust |
1 |
|
|
K07 |
707-99-23040 |
Service Kit, Angle Cylinder |
|
|
02896-11009 |
• O-ring |
2 |
|
|
07000-12075 |
• O-ring |
1 |
|
|
07000-12080 |
• O-ring |
1 |
|
|
07146-02076 |
• Ring, Back-up |
1 |
|
|
07156-00810 |
• Ring, Wear |
2 |
|
|
707-44-80180 |
• Ring, Piston |
1 |
|
|
707-51-40030 |
• Packing, Rod |
1 |
|
|
707-51-40640 |
• Ring, Buffer |
1 |
|
|
707-56-40580 |
• Seal, Dust |
1 |
|
|
K08 |
707-98-04590 |
Seal Kit, Hydraulic Cylinder |
|
|
02896-11009 |
• O-ring |
2 |
|
|
07000-13045 |
• O-ring |
1 |
|
|
07000-13048 |
• O-ring |
1 |
|
|
07002-11423 |
• O-ring |
1 |
|
|
07145-00030 |
• Seal, Dust |
4 |
|
|
10E-63-32390 |
• Ring, Wear |
1 |
|
|
707-35-52510 |
• Ring, Back-up |
1 |
|
|
707-44-50180 |
• Ring, Piston |
1 |
|
|
707-51-30210 |
• Packing, Rod |
1 |
|
|
707-56-30740 |
• Seal, Dust |
1 |
Installation decomposition diagram
Cleanliness: Ensure the component groove, mating piston/rod, and cylinder bore are impeccably clean and free of debris or burrs.
Inspection: Before installation, inspect the mating metal surfaces for scoring, gouges, or excessive wear that could affect the wear ring's performance or cause premature failure.
Fit Check: The wear ring should be a snug fit in its designated groove without excessive play. It should slide over the mating metal surface with light, even pressure.
Installation Method: For a tight fit, slightly warm the wear ring in clean, hot water (not exceeding 180°F / 82°C) to increase pliability. Use a smooth, flat tool to press it evenly into its groove. Never cut or file the ring to fit.
Final Check: Once installed, ensure the wear ring sits flush and square in its groove. Verify that the piston or rod can move freely within the cylinder bore without binding.
