COGENG 707-52-91550 Cylinder Guide Komatsu Repair

1. PRODUCT OVERVIEW

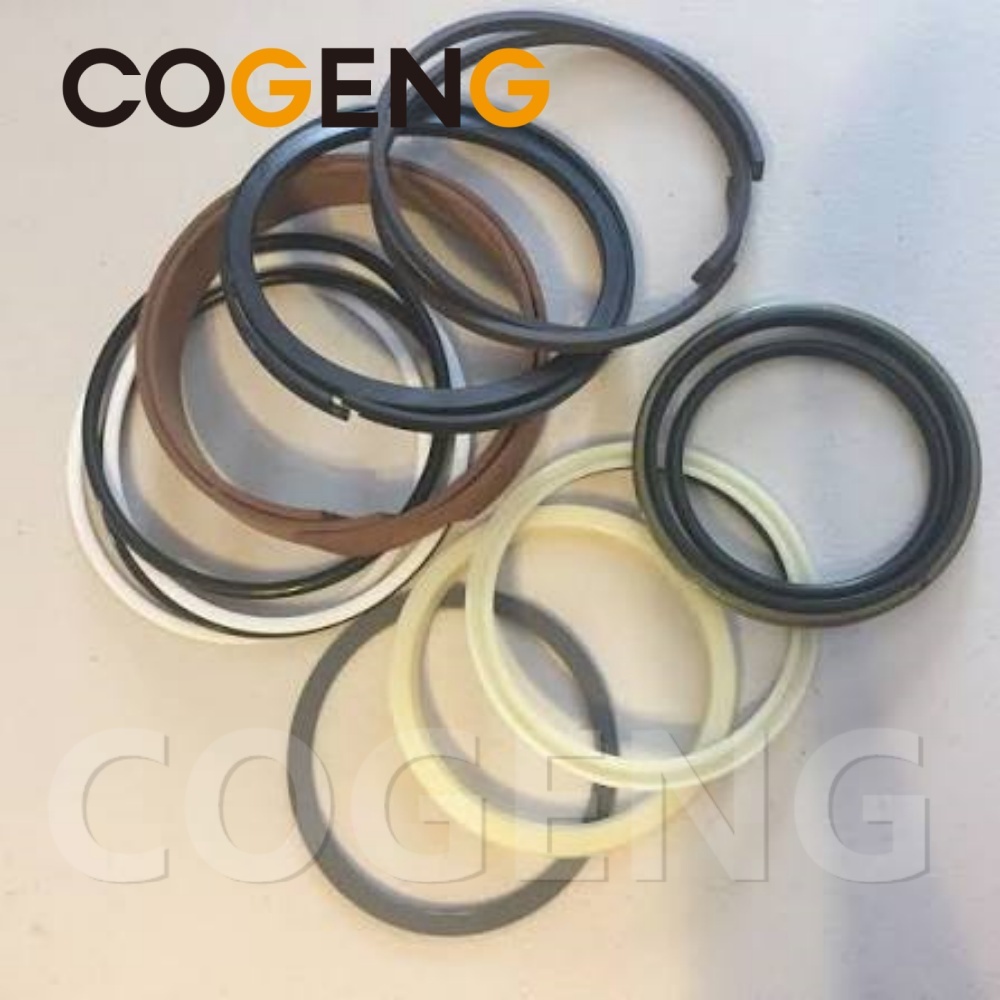

The COGENG 707-52-91550 Cylinder Seal Kit is a premium-grade, OEM-replacement sealing solution precision-engineered for Komatsu hydraulic excavator cylinders. This comprehensive kit contains every component required to completely rebuild a hydraulic cylinder—eliminating internal bypass and external leakage, restoring full operating pressure, and ensuring safe, reliable performance across the most demanding construction, mining, quarrying, and demolition applications. Designed as a direct replacement for the original Komatsu part number 707-52-91550, this kit is the trusted choice for workshop overhauls, field repairs, and preventive maintenance programs for fleets worldwide.

Hydraulic cylinder seal degradation remains one of the most significant contributors to reduced machine productivity and increased operating costs. Worn or damaged seals allow pressurized hydraulic oil to bypass the piston, resulting in sluggish boom and arm movements, uncontrolled bucket drift, elevated fuel consumption, and accelerated wear on the hydraulic pump. The COGENG 707-52-91550 kit comprehensively addresses these challenges, providing a complete set of rod seals, piston seals, wiper seals, O-rings, backup rings, and wear guides—all manufactured to dimensional and material specifications that match or exceed Komatsu's original engineering standards.

Each seal in the COGENG 707-52-91550 kit is crafted from advanced polymeric materials selected for optimal performance in specific sealing roles. The cast polyurethane rod seals offer exceptional abrasion resistance, low friction, and high extrusion resistance—ensuring long service life even under high-pressure, high-cycle conditions common in excavator operations. The nitrile rubber (NBR) O-rings and PTFE backup rings provide reliable static and dynamic sealing across a wide temperature range, while the fabric-reinforced phenolic wear guides absorb radial loads and prevent metal-to-metal contact between the piston and cylinder bore. Every component is 100% dimensionally inspected and functionally validated before packing, ensuring that each kit delivers consistent, leak-proof performance from the moment of installation.

By choosing COGENG for your cylinder seal requirements, you are investing in a product that prioritizes quality, durability, and operator safety. With global inventory, rapid dispatch, and responsive technical support, COGENG keeps your Komatsu excavator fleet operating at peak productivity—reducing unplanned downtime, lowering total maintenance costs, and providing peace of mind on every job site. Order now to keep your machinery running leak-free and efficient.

2. DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)

3. COMPATIBLE EXCAVATORS

The COGENG 707-52-91550 Cylinder Seal Kit is compatible with a broad range of Komatsu excavator models, specifically designed for standard boom, arm, and bucket cylinders with a specific bore and rod diameter configuration. This kit is also suitable for certain attachment cylinders (e.g., tilt, hydraulic thumb, quick-coupler) that share the same sealing architecture. Always confirm your cylinder's dimensions and original part number before ordering.

Note: This kit is primarily designed for Komatsu cylinders with a nominal bore diameter of approximately 110–125 mm and rod diameter of 65–75 mm. For machines with larger or smaller cylinders, or for cylinders with non-standard groove configurations, please contact COGENG with your cylinder serial number and original seal measurements for exact cross-referencing.

4. INSTALLATION DECOMPOSITION DIAGRAM

Installation Steps (Visual Summary):

1. Safe disassembly and preparation – Position the cylinder securely on a clean, flat workbench using suitable supports or a cylinder repair stand. Relieve all hydraulic pressure by cracking open the work ports (collect draining oil in a clean container). Remove the cylinder head gland using a pin spanner or appropriate wrench.

2. Rod and piston extraction – Carefully pull the piston rod assembly from the barrel. Support the rod evenly along its entire length to prevent bending or scratching the chrome-plated surface. Use a sling or overhead hoist for larger cylinders.

3. Complete disassembly – Remove the gland from the rod, then detach the piston from the rod (note the retaining nut torque for reassembly). Remove all old seals, O-rings, backup rings, and wear guides from the piston and gland. Discard all used components.

4. Thorough cleaning and inspection – Clean every groove and surface with a non-abrasive solvent and lint-free cloth. Inspect the cylinder bore for scoring, pitting, or out-of-round conditions. Inspect the rod for scratches, chrome flaking, or corrosion. If damaged, the cylinder must be re-machined or replaced.

5. Old seal comparison – Lay your old seals alongside the new COGENG components. Verify that all dimensions (OD, ID, cross-section width) match. Pay special attention to the rod seal lip orientation and the piston seal ring profile.

6. Install piston seals – Lubricate all new seals with clean hydraulic oil. Install the O-ring into the inner piston groove, then fit the PTFE backup rings on both sides. Install the main piston seal rings into their respective outer grooves, ensuring the lip faces the correct pressure direction.

7. Install gland seals – Into the clean gland housing, install the rod U-cup seal (lip facing inward toward the pressure chamber). Install the O-ring and backup ring in their designated grooves. Finally, press the wiper seal into the outer gland groove (lip facing outward to scrape contaminants from the rod).

8. Assemble piston to rod – Slide the piston onto the rod. Apply a thin film of oil to the threads, then torque the retaining nut to the manufacturer's specification (typically 250–450 N·m—consult your machine service manual). Use a calibrated torque wrench.

9. Reinsert piston assembly – Guide the piston and rod assembly carefully back into the cylinder barrel. Use a seal installation sleeve or tapered guide to prevent damage to the new seals on barrel threads or port edges. Slow, steady, concentric insertion is critical.

10. Reinstall gland – Thread the gland onto the barrel (or onto the rod, depending on cylinder design). Torque to specification using a pin spanner or strap wrench. Install any retaining screws, snap rings, or lock wires.

11. Function test and purging – After reinstallation on the machine, start the engine and idle for 2 minutes. Cycle the cylinder slowly through 5–10 full strokes to purge trapped air and allow the new seals to seat properly. Inspect for external leakage. Re-torque all fasteners after the first heat cycle if required.

5. COMPATIBILITY NOTES

6. SHIPPING DETAILS & RETURN POLICY

7. FREQUENTLY ASKED QUESTIONS

Q1: What components are included in the COGENG 707-52-91550 seal kit?
A: This comprehensive kit includes: one U-cup rod seal, one or two double-acting piston seal rings, one wiper (scraper) seal, all required O-rings (typically 4–6 pieces), PTFE backup rings, and fabric-reinforced phenolic wear guides. The exact count varies by cylinder configuration.

Q2: How do I verify if this kit fits my Komatsu PC210 boom cylinder?
A: Check the identification tag on your cylinder. If the OEM part number is 707-52-91550, this is a direct match. Alternatively, measure the cylinder bore and rod diameter—typical dimensions are bore 115–120 mm and rod 65–70 mm. Send these measurements to our technical team for verification.

Q3: What is the expected service life of these seals?
A: Under standard duty cycles (8–10 hours/day, clean hydraulic oil ISO 4406 18/16/13 or better), these seals typically deliver 4,500–6,500 hours of reliable service. In harsh conditions, inspect at 1,000-hour intervals.

Q4: Are the seals in this kit compatible with synthetic hydraulic oils?
A: Yes—the NBR O-rings and polyurethane seals are compatible with most synthetic hydrocarbon-based hydraulic fluids. For fully synthetic esters or fire-resistant fluids, consult COGENG technical support for upgraded materials.

Q5: What should I do if the kit arrives with a component missing or damaged?
A: Contact COGENG immediately with your order number and clear photos. We will dispatch replacement components at no extra charge via express shipping.

Q6: Is this kit an OEM Komatsu product?
A: COGENG is an independent aftermarket manufacturer. Our seals are engineered to exact OEM specifications and independently validated to meet or exceed genuine Komatsu requirements.

8. 📞 CONTACT

For pricing, bulk orders, or technical support, contact your COGENG supplier today.
Please provide your machine model and cylinder serial number for compatibility verification.

• Sales Price: Please contact COGENG sales customer service for specific prices.

• Shipping method: The specific arrangement will be based on the cargo situation.

• Estimated delivery time: It is based on the shipping time of the logistics company, and the arrival time shown shall prevail.

• Contact details are at the bottom of this datasheet.
